2BCGWBE25ODBE5000 Outdoor/Indoor Mesh Wi-Fi 7 Router

Deco BE25-Outdoor Outdoor/Indoor Mesh Wi-Fi User Guide BE5000 Outdoor/Indoor Mesh Wi-Fi 7 Router 1910013300 REV1.0.0 © 2022 TP-Link Pole Mount Tabletop Wall Mount Contents About This Guide ····················································1 Appearance ·······························································2 Determine the Power Option ····························3 Set Up Your Deco Network································4 Waterproof Your Deco ·········································7 Mount Your Deco ····················································8 Troubleshooting ····················································10 Authentication ························································11 1 About This Guide This guide provides a brief introduction to Deco Whole Home Mesh Wi-Fi System and regulatory information. Features available in Deco may vary by model and software version. Deco availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Deco experience. Conventions In this guide, the following conventions are used: Convention Description Deco Stands for Deco Whole Home Mesh Wi-Fi System/ Unit. Underline Hyperlinks are in teal and underlined. You can click to redirect to a website or a specific section. Teal Key information appears in teal, including management page text such as menus, items, buttons and so on. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tips: Indicates important information that helps you make better use of your device. More Info •Specific product information can be found on the product page at https://www.tp-link.com. • A Technical Community is provided for you to discuss our products at https://community.tp-link.com. •Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support. Speed/Coverage/Device Quantity Disclaimer Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. MU-MIMO Disclaimer Use of MU-MIMO requires clients to also support MU-MIMO. IoT Compatibility Disclaimer IoT compatibility refers only to smart devices that can be controlled via the Deco app. Other wireless devices can still connect to Deco for normal Wi-Fi use. Seamless Roaming Disclaimer Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device. HomeShield Disclaimer HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information. 2 Appearance Each Deco has an LED that changes color according to its status, a mounting tab, two gigabit ports, a power slot, and a Reset button. See the explanation below: Yellow pulse: Deco is resetting. Yellow solid: Deco is starting up. Blue pulse: Deco is ready for setup or WPS in progress. Blue solid: Deco is setting up. Green pulse: Deco is upgrading firmware. Green solid: Deco is registered and all is well. Red pulse: Deco is disconnected from main Deco. Red solid: Deco has an issue. Wall/Pole Mounting Tab For connecting Deco to a pole or wall with the provided mounting kits. Power Slot: For powering up Deco via the provided power cord. Reset Button: Press for 1 second and release to reset Deco to factory default settings. The light changing from pulsing yellow to solid yellow indicates a successful reset. 2× Gigabit Ports: • As the PoE port: For powering Deco up via a PSE device (such as a PoE switch). • As the WAN/LAN port: For connecting Deco to your modem, the Ethernet outlet or other internet devices. 3 Determine the Power Option Deco can be powered via a power cord or a PSE device (such as a PoE switch) which complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) and Electrical Energy Source Class 1(ES1) of IEC 62368-1. Option2: Via Power Cord Plug one end of the provided power cord into the power port of the Deco and the other end to a standard electrical wall outlet. The product can only be powered via the normal building installation wiring. Power Cord WARNING: Risk of Electric Shock. For the US: Install the power cord plug only to indoor socket-outlets or to a covered Class A GFCI receptacle that has an enclosure that is weatherproof with the attachment plug cap inserted or removed. For other regions: Install the power cord plug only to indoor socket- outlets or to outdoor socket-outlets with an enclosure which can be waterproof with the attachment plug cap inserted or removed. Option1: Via PoE Switch (Compliant with 802.3at) Connect an Ethernet cable from the PoE switch (compliant with 802.3at) to the Deco’s Ethernet port. The power should not be less than 18 W. PoE Switch (Compliant with 802.3at) 4 Set Up Your Deco Network First let's start by setting up the Deco network. Get the TP-Link Deco app for iOS or Android, then follow the app to walk through the setup. 1. Get the Deco app Download and install the Deco app from Google Play or App Store, or by scanning the QR code below. 2. Log in with TP-Link ID Open the app and log in with your TP-Link ID. If you don’t have a TP-Link ID, create one first. Tip: If you forgot your login password, tap Forgot Password. The app will help you reset your password. 3. Select your Deco model Search for and select your Deco model. If you have more than one Deco model, tap the question below the search box to check how to maximize the overall network. or 5 4. Plug in your Deco Power off your modem, connect your Deco to the modem, then power them both on. If you don't have a modem, connect your Deco…

Text truncated - open the document above for the full version.

TP-LINK CORPORATION PTE.LTD. 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 012423-17 rev2 Statement for 47 CFR section 2.911(d)(5)(i) TP-LINK CORPORATION PTE.LTD. certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) TP-LINK CORPORATION PTE.LTD. certifies that, as of the date of the filing of this application, the applicant ☐ - is /- is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: ____Sarah Wang__ (Signature 2 ) (Print name) Title: Compliance manager Company: TP-LINK CORPORATION PTE.LTD. PTE.LTD.) Telephone: +86 755 21534921 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

U.S. AgentDesignationfor Serviceof Process (Applicantand U.S. Agentare SeparateParties) TO:AmericanCertificationBody, Inc. 313 Park Avenue Suite 300 Falls Church,VA 22046 ATTENTION:FCC Certification– Section2.911(d)(7)Information DesignatedU.S. Agent CompanyName:VISHTECLLC ContactName:Alan Graham StreetAddress:9888 W BelleviewAve Ste 2142 DenverCO 80123 City/Province/Zip:80123 TelephoneNo:（571）4007350 Email: [email protected] FRN #: 0033407131 This letter is to confirmthat we (“the DesignatedU.S. Agent ”) have acceptedthe responsibilityto act as the DesignatedU.S. Agent for Serviceof Processfor the limited purposeof compliancewith section47 CFR 2.911(d)(7)only and not for any other purpose,on behalfof theApplicantnoted below. U.S. AgentSignature: Date: 2023/8/28 Signedby (PrintedName/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: TP-LINK CORPORATION PTE. LTD. Grantee Code: 2BCGW FRN #: 0034122556 Contact Name: Sarah Wang Street Address: 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 City/Province/Zip: Singapore Telephone No: +65-97538388 Email: [email protected] Applicant Signature 1 : Date: 2023/8/28 Signed by (Printed Name/Title) S arah W ang 1 - Lettersshouldbe placedon appropriateletterhead.

AttestationLetter FederalCommunicationsCommission AuthorizationandEvaluationDivision We Name:TP-LINKCORPORATIONPTE.LTD. Address:7TemasekBoulevard#29-03SuntecTowerOne,Singapore038987 Declarethatthedevicedoesnotsupportchannel12~13in2.4GHzbandandanynon-US channelsinalltheoperationalmode(s)forthefollowingproduct. Product:BE5000Outdoor/IndoorMeshWi-Fi7Router FCCID:2BCGWBE25OD Model:DecoBE25-Outdoor Brand:tp-link Sincerely, Name:SarahWang Position:RegulatoryComplianceManager Date:2024-09-02

DeclarationofFrequencyStability WeTP-LINKCORPORATIONPTE.LTD.ensurethattheproduct(FCCID:2BCGWBE25OD,IC: 31152-BE25OD)meetse-CFRTitle47section15.407(g)&RSS-GENSection8.11andKDB 789033D02v02r01frequencystabilitysuchthattheemissionsaremaintainedwithinthe bandofoperationunderallconditionsofnormaloperationasspecifiedintheuser'smanual. Sincerely, Name:SarahWang Position:RegulatoryComplianceManager Date:2024-09-02

ConfidentialityRequestLetter FederalCommunicationsCommission AuthorizationandEvaluationDivision FCCID:2BCGWBE25OD ConfidentialityRequest PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequest confidentialtreatmentofinformationaccompanyingthisapplicationasoutlinedbelow: 1.BlockDiagram 2.Schematics 3.OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesemattersmightbeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoRule0.457,disclosureofthisapplicationandall accompanyingdocumentationwillnotbemadebeforethedateoftheGrantforthis application. Sincerely, Name:SarahWang Position:RegulatoryComplianceManager Date:2024-09-02

DeclarationofAuthorization We Name:TP-LINKCORPORATIONPTE.LTD. Address:7TemasekBoulevard#29-03SuntecTowerOne,Singapore038987 Declarethat: NameRepresentativeofagent:MarlinChen AgentCompanyname:MRTTechnology(Suzhou)Co.,Ltd Address:D8Building,YouxinIndustrialPark,No.2Tian'edangRd., WuzhongEconomicDevelopmentZone City:Suzhou Country:China isauthorizedtoapplyforCertificationofthefollowingproduct(s): Product:BE5000Outdoor/IndoorMeshWi-Fi7Router FCCID:2BCGWBE25OD Model:DecoBE25-Outdoor Brand:tp-link Sincerely, Name:SarahWang Position:RegulatoryComplianceManager Date:2024-09-02

DeclarationofConformity We Name:TP-LINKCORPORATIONPTE.LTD. Address:7TemasekBoulevard#29-03SuntecTowerOne,Singapore038987 Declarethat: Product:BE5000Outdoor/IndoorMeshWi-Fi7Router FCCID:2BCGWBE25OD Model:DecoBE25-Outdoor Brand:tp-link ProductwhichbearstheaboveFCCIDisalsocompliantwiththeFCCrequirementsforsDOC. AndthesDOCprocedureshallbecarriedoutpriortomarketingthedeviceintheUS. Sincerely, Name:SarahWang Position:RegulatoryComplianceManager Date:2024-09-02

Non-SDR(SoftwareDefinedRadio)CoverLetter RefertoKDB442812D01SDRappsGuidev02r03. Thefollowingsixquestionscanbeusedfordeterminingifaradiocanelecttobe,ormustbe anSDR. 1.CantheRFparametersofthedevicebealteredthroughsoftware? Yes-goto2. No,notanSDR No 2.CanthirdpartiesnotpermittedbytheCommissionthroughspecificfilingsmodify, configure,orloaddifferentsoftware,ormakeconfigurationsettingstooperatethedeviceor hosthardwareradiofrequencyparameters(frequencyrange,modulationtype,maximum outputpowerorotherradioparameters)inanyotherwaythangranted(orexpectedtobe granted)? Yes,mustbeanSDR. No-goto3. No 3.Isthedevicecapableofoperatinginanyotherinanyotherwaythangranted,orwillbe, granted? Yes,-goto4. No-goto5. No 4.IsthisaPart15clientDeviceasdefinedinSection15.202(asopposedtoamaster device)? Yes,qualifiesasapart15clientdevices-goto5. No,mustbeanSDR. 5.DoesthemanufacturerelectSDR? Yes,electstobeanSDR. No,NotanSDR No Conclusion: Accordingtotheabovequestionsreply,wecanconfirmthisdevice(FCCID:2BCGWBE25OD &IC:31152-BE25OD)mustbeaNon-SDRdevice. Name:SarahWang Position:RegulatoryComplianceManager Date:2024-09-02

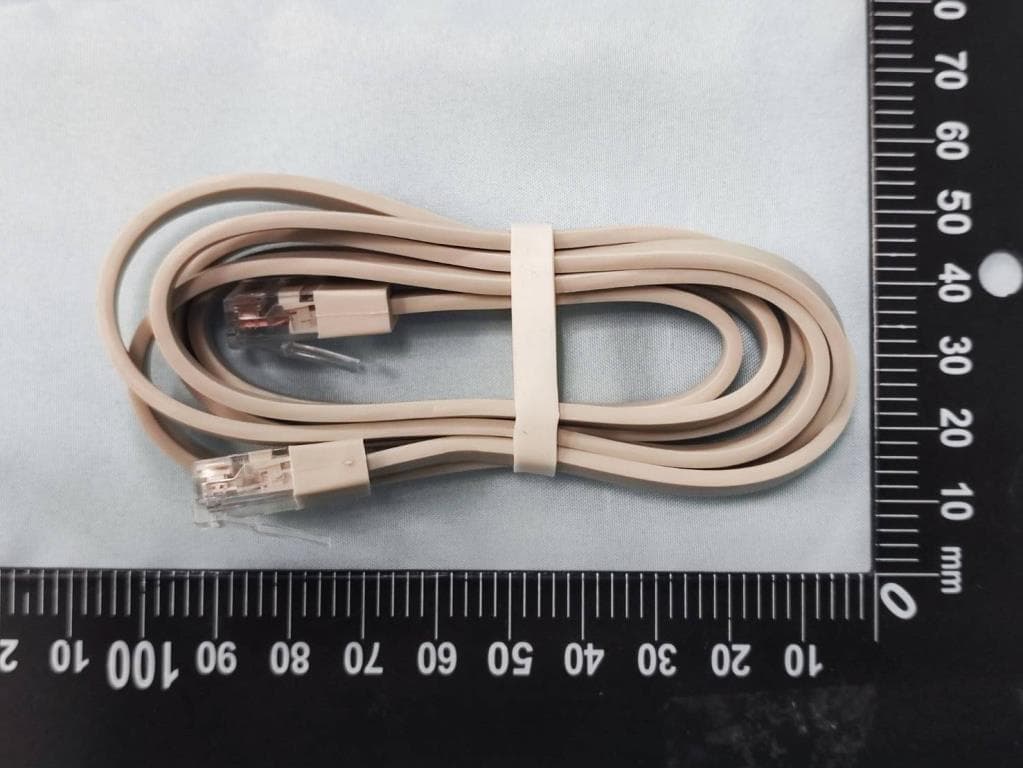

Report No.: 2406TW0101-UE 1 of 5 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2406TW0101-UE 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 2406TW0101-UE 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 2406TW0101-UE 4 of 5 (7) EUT Photo (8) EUT Photo Report No.: 2406TW0101-UE 5 of 5 (9) EUT Photo

C B A 12 C 345678 B E D D A 9 12345 与上一版的区别 E 6789 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 完成日期 设 计 深圳市联洲国际技术有限公司 Deco BE25-Outdoor(1-pack)(US)1.0_防水盖镭雕 A3 斜塔-215 Deco BE25-Outdoor(1-pack)(US)1.0 陈映徽 2024-08-01 删ETL Pantone Cool Gray 6C 文件转曲(效果图) 尺寸图 尺寸：60×34.89 mm 字体：TP-Link Aktiv Regular/Bold 工艺：镭雕 颜色：Pantone Cool Gray 6C 菲林图 121.3 22.5±0.8 注： 产地越南打印于SN标贴贴于底壳镭雕上，防水盖镭雕不打印。 110 40.5mm±1.5 29.4mm±0.8 22.5±0.8 BE5000 Outdoor/Indoor Mesh Wi-Fi 7 Router Model: Deco BE25-Outdoor Power: 100-240V~50/60Hz 0.5A 802.3at PoE: 42.5-57V 0.6A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2BCGWBE25ODMADE IN CHINAIC31152-BE25OD Raintight For outdoor usage, use this product with ground fault circuit interrupter (GFCI) outlet.

Report No.: 2406TW0101-UI 1 of 14 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2406TW0101-UI 2 of 14 (3) EUT Photo (4) EUT Photo Report No.: 2406TW0101-UI 3 of 14 (5) EUT Photo (6) EUT Photo Report No.: 2406TW0101-UI 4 of 14 (7) EUT Photo (8) EUT Photo Report No.: 2406TW0101-UI 5 of 14 (9) EUT Photo (10) EUT Photo Report No.: 2406TW0101-UI 6 of 14 (11) EUT Photo (12) EUT Photo Report No.: 2406TW0101-UI 7 of 14 (13) EUT Photo (14) EUT Photo Report No.: 2406TW0101-UI 8 of 14 (15) EUT Photo (16) EUT Photo Report No.: 2406TW0101-UI 9 of 14 (17) EUT Photo (18) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2406TW0101-U5 Phone: +886-3-3288388 Report Version 1.0 Web: www.mrt-cert.com Issue Date: 2024-08-30 Page Number: 1 of 12 RF Exposure Evaluation Declaration FCC ID : 2BCGWBE25OD Applicant : TP-LINK CORPORATION PTE. LTD. Application Type : Certification Product : BE5000 Outdoor/Indoor Mesh Wi-Fi 7 Router Model No. : Deco BE25-Outdoor Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) Received Date : June 3, 2024 Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2406TW0101-U5 Page Number: 2 of 12 Revision History Report No. Version Description Issue Date Note 2406TW0101-U5 1.0 Original Report 2024-08-30 Valid Report No.: 2406TW0101-U5 Page Number: 3 of 12 CONTENTS Description Page 1. INTRODUCTION ....................................................................................................................... 5 1.1. Scope ............................................................................................................................. 5 1.2. MRT Test Location ......................................................................................................... 5 2. PRODUCT INFORMATION ...................................................................................................... 6 2.1. Feature of Equipment under Test .................................................................................. 6 2.2. Description of Available Antennas .................................................................................. 6 2.3. Device Classification ...................................................................................................... 7 2.4. Applied Standards .......................................................................................................... 7 3. RF Exposure Evaluation ......................................................................................................... 8 3.1. Limits .............................................................................................................................. 8 3.2. MPE Exemptions ........................................................................................................... 9 3.3. Test Result of RF Exposure Evaluation ....................................................................... 12 Report No.: 2406TW0101-U5 Page Number: 4 of 12 General Information Applicant TP-LINK CORPORATION PTE. LTD. Applicant Address 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Manufacturer TP-LINK CORPORATION PTE. LTD. Manufacturer Address 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Device Serial No. N/A Production Pre-Production Engineering Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Canada, EU and TELEC Rules. Report No.: 2406TW0101-U5 Page Number: 5 of 12 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2406TW0101-U5 Page Number: 6 of 12 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test 2.2. Description of Available Antennas Antenna Type Frequency Band (MHz) T X Paths Max Antenna Gain (dBi) Max. Antenna Gain (Elevation angle above 30°) (dBi) Beamforming Directional Gain (dBi) Beamforming Directional Gain (Elevation angle above 30°) (dBi) CDD Directional Gain (dBi) For Power For PSD Horizontal Antenna (TP-LINK P/N: 3101506351, 3101506352) Alford 2412 ~ 2462 2 2.70 -- 5.71 -- 2.70 5.71 Vertical Antenna (TP-LINK P/N: 3101505348, 3101505349) Dipole 2412 ~ 2462 2 3.20 -- 6.21 -- 3.20 6.21 5150 ~ 5250 2 3.60 -4.00 6.61 -0.99 3.60 6.61 5250 ~ 5850 2 3.60 -- 6.61 -- 3.60 6.61 Note: 1. The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB; • For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; 2. The EUT also supports Beam Forming mode, and the Beam Forming support 802.11n/ac/ax/be, not Product Name: BE5000 Outdoor/Indoor Mesh Wi-Fi 7 Router Model No.: Deco BE25-Outdoor Brand Name: tp-link Wi-Fi Specification: 802.11a/b/g/n/ac/ax/be & VHT Power Supply: AC100-240V~50/60Hz 0.5A 802.3at PoE: 42.5-57V 0.6A Report No.: 2406TW01…

Text truncated - open the document above for the full version.

Product Model： Deco BE25-Outdoor Manufacturer： TP-LINK CORPORATION PTE. LTD. Test Date： 2024.6.7 Tested By： Xuan Shan TP-LINK CORPORATION PTE. LTD. 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Index 1. Antenna Distribution ........................................................................................ 3 2. Electrical Characteristics ................................................................................ 4 3. Gain and Radiation Pattern ............................................................................. 6 3.1 Measurement Procedure ........................................................................................... 6 3.2 Test Setup ................................................................................................................. 7 3.3 S Parameter Test Data ............................................................................................. 8 3.4 Antenna Gain ............................................................................................................ 9 3.4.1 Peak Gain ......................................................................................................................... 9 3.4.2 Horizontal plane Gain ..................................................................................................... 10 3.5 Antenna Radiation Pattern ...................................................................................... 10 3.6 Antenna Radiation Pattern (above 30° elevation) ................................................... 11 Page 3 1. Antenna Distribution Deco BE25-Outdoor Page 4 2. Electrical Characteristics Ant1 Frequency 2400 ~ 2500&5150~5850MHz Impedance 50Ohm Antenna Type Dipole Antenna Gain 3.20dBi@2400~2500MHz 3.60dBi@5150~5250MHz 3.60dBi@5250~5350MHz 3.60dBi@5470~5725MHz 3.60dBi@5725~5850MHz Radiation pattern Omni-Directional P/N 3101505348 Ant2 Frequency 2400 ~2500MHz Impedance 50Ohm Antenna Type Alford Antenna Gain 2.70dBi@2400~2500MHz Radiation pattern Omni-Directional P/N 3101506351 Ant3 Frequency 2400 ~ 2500&5150~5850MHz Impedance 50Ohm Antenna Type Dipole Antenna Gain 2.60dBi@2400~2500MHz 3.60dBi@5150~5250MHz 3.60dBi@5250~5350MHz Page 5 3.60dBi@5470~5725MHz 3.60dBi@5725~5850MHz Radiation pattern Omni-Directional P/N 3101505349 Ant4 Frequency 2400 ~2500MHz Impedance 50Ohm Antenna Type Alford Antenna Gain 2.60dBi@2400~2500MHz Radiation pattern Omni-Directional P/N 3101506352 Page 6 3. Gain and Radiation Pattern 3.1 Measurement Procedure This measurement experiment adopted an antenna near-field measurement system, and the diagram of the measurement system was shown in Figure 3-1. The excitation signal was generated by the Keysight E5071C (300kHz-20GHz). Under the control of the central computer, the probe rotated in the θ direction, and the EUT rotated in the φ direction with the turntable. The probe sampling frame received and collected signals in the near-field range of the EUT. The software system which was controlled by the central computer completed the processing, output and display of the test data. Figure 3-1 The test site was a full anechoic chamber with a size of 3.0m×3.1m×2.97m, which was built by GTS Rayzone2800. All six surfaces of the anechoic chamber were pasted with absorbing materials. And the chamber was calibrated by the authoritative third-party lab every year. The antenna anechoic chamber measurement system adopted a 13-probe multi-probe system. The probe antennas were evenly distributed on the spherical surface surrounding the EUT, and theirs operating frequency was 600MHz~8.5GHz. During the measurement, the probe antennas were rotated in the θ direction under the control of the probe holder to sample the near-field data at the θ angle. At the same time, the EUT rotated with the turntable in the φ direction to sample the near field data at the φ angle. The sampling accuracy was 15°. The system diagram was shown in Figure 3-2. From the sampling results, the EUT's near-field test data of θ component, φ component and total component could be obtained. Page 7 Figure 3-2 Before the measurement, calibrated the vector network analyzer, and then connected the input end of each antenna to the output end of the vector network analyzer, and evenly the antennas to be measured. Test Equipment listed below: Equipments Model Manufacturer S/N Cali. Interval Cali. Due Date Chamber Rayzone2800 GTS(General Test System) MY5347043 5 12months 2025/01/15 Vector Network Analyzer E5071C Keysight MY46315238 24months 2026/03/13 GTS MaxSign100 Software V2.1 GTS(General Test System) / / / 3.2 Test Setup The test setup was shown in Figure 3-3, 3-4: Figure 3-3 Page 8 Figure 3-4 3.3 S Parameter Test Data Ant1 Ant2 Page 9 Ant3 Ant4 3.4 Antenna Gain 3.4.1 Peak Gain Frequency 2.45GHz 2400~2500MHz 5.2GHz 5150~5250MHz 5.3GHz 5250~5350MHz 5.6GHz 5470~5725MHz 5.8GHz 5725~5850MHz Ant1 MaxGain(dBi) 3.20 3.60 3.60 3.60 3.60 Ant2 MaxGain(dBi) 2.70 \ \ \ \ Ant3 MaxGain(dBi) 2.60 3.60 3.60 3.60 3.60 Ant4 MaxGain(dBi) 2.60 \ \ \ \ Ant1 Polarization/ Φ(°)/θ(°) Theta/-45/75 Theta/165/90 Theta/165/90 Theta/180/90 Theta/165/90 Ant2 Polarization/ Φ(°)/θ(°) Phi/90/-75 \ \ \ \ Ant3 Polarization/Theta/30/105 Theta/60/90 Theta/135/75 Theta/60/90 Theta/0/75 Page 10 Φ(°)/θ(°) Ant4 Polarization/ Φ(°)/θ(°) Phi/120/-75 \ \ \ \ Max Gain(dBi) 3.20 3.60 3.60 3.60 3.60 3.4.2 Horizontal plane Gain 3.4.2.1. 5150~5250MHz θ >30° Ant1 MaxGain(dBi) -4.02 Ant3 MaxGain(dBi) -4.00 Max Gain(dBi) -4.00 3.5 Antenna Radiation Pattern Ant1 Ant2 Ant3 Page 11 Ant4 3.6 Antenna Radiation Pattern (above 30° elevation) Ant1 Ant3 Page 12

MRT Technology (Taiwan) Co., Ltd Report No.: 2406TW0101-U3 Phone: +886-3-3288388 Report Version: 1.0 Web: www.mrt-cert.com Issue Date: 2024-08-30 Page Number: 1 of 540 FCC ID : 2BCGWBE25OD Applicant : TP-LINK CORPORATION PTE. LTD. Application Type : Certification Product : BE5000 Outdoor/Indoor Mesh Wi-Fi 7 Router Model No. : Deco BE25-Outdoor Brand Name : tp-link FCC Classification : Unlicensed National Information Infrastructure (NII) FCC Rule Part(s) : Part15 Subpart E (Section 15.407) Received Date : June 3, 2024 Test Date : July 3, 2024 ~ August 14, 2024 RF MEASUREMENT REPORT Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02v02r01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2406TW0101-U3 Page Number: 2 of 540 Revision History Report No. Version Description Issue Date Note 2406TW0101-U3 1.0 Original Report 2024-08-30 Valid Report No.: 2406TW0101-U3 Page Number: 3 of 540 CONTENTS Description Page 1. INTRODUCTION ........................................................................................................................ 7 1.1. Scope .............................................................................................................................. 7 1.2. MRT Test Location .......................................................................................................... 7 2. PRODUCT INFORMATION ........................................................................................................ 8 2.1. Equipment Description .................................................................................................... 8 2.2. Product Specification Subjective to this Report ............................................................... 8 2.3. Working Frequencies for this report ................................................................................ 9 2.4. Description of Available Antennas ................................................................................. 10 2.5. Test Mode ..................................................................................................................... 11 2.6. Configuration of Test System ........................................................................................ 12 2.7. Test System Details ...................................................................................................... 13 2.8. Description of Test Software .......................................................................................... 13 2.9. Applied Standards ......................................................................................................... 13 2.10. Duty Cycle ..................................................................................................................... 14 2.11. Test Configuration ......................................................................................................... 17 2.12. EMI Suppression Device(s)/Modifications ..................................................................... 17 2.13. Labeling Requirements ................................................................................................. 17 3. DESCRIPTION OF TEST .…

Text truncated - open the document above for the full version.
