2BCGWC500V2Outdoor Pan/Tilt Security Wi-Fi Camera

User Guide Outdoor Pan/Tilt Security Wi-Fi Camera ©2023 TP-Link 1910013472 REV1.1.0 TC40/Tapo C500/Tapo C510W Contents About This Guide ···········································································1 Introduction ······················································································2 Appearance ······················································································3 Set Up Your Camera ·····································································5 Set Up Using Amazon Frustration-Free Setup ··············6 Install a microSD Card ······························································10 Mount Your Camera···································································11 Install Waterproof Items ··························································14 How to Reset Your Camera ···················································15 Authentication ··············································································16 1 About This Guide This guide provides a brief introduction to the Outdoor Pan/Tilt Security Wi-Fi Camera and the Tapo app, as well as regulatory information. Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Tapo Camera experience. Conventions In this guide, the following convention is used: Convention Description Blue Key information appears in blue, including management page text such as menus, items, buttons and so on. Underline Hyperlinks are in blue and underlined. You can click to redirect to a website. Note: Ignoring this type of note might result in a malfunction or damage to the device. More Info •Specifications can be found on the product page at https://www.tapo.com. •Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/. •The setup video can be found at https://www.tp-link.com/support/setup-video/#cloud-cameras. 2 Introduction Outdoor Pan/Tilt Security Wi-Fi Camera is a full-featured weatherproof security camera that you can access from anywhere. Receive instant notifications and check feeds when the motion is detected. Moreover, the automatic siren system will trigger light and sound to frighten away unwanted visitors after the camera detects motion. Day or night, rain or shine, the Tapo camera protects what you love most. • Smart Motion Tracking – Tracks and follows a subject smartly, keeping it within the camera’s field of view. • 1080p Full HD Live View – Reveals sharp images and vivid details. • Patrol Mode – Keep the camera cruise between two customized points for dynamic monitoring. • Person Detection – Notifies you when a person is detected. • Local* and Cloud** Storage – Save recorded videos to an installed microSD card (up to 512 GB)*, or use Tapo Care** cloud storage service. *microSD card must be purchased separately. **Subscribe for cloud storage at https://www.tapo.com/tapocare/ • IP65 Weatherproof – Offers excellent waterproof and dustproof performance for outdoor scenarios. • Customizable Sound Alarm – Record your own audio as an alarm to extend your usage. • Night Vision (up to 98 ft) – Ensure your safety by providing a clear visual distance of up to 98 ft even in total darkness. • Two-Way Audio – Communicate remotely with a delivery person in real time. • Multiple Installation Options – Use the mounting screws, template and loops* to install on any wall, ceiling or pole for the perfect view. *Mounting loops purchased separately. • Physical Privacy Mode – Maintains your privacy with the lens physically blocked by the housing. 3 Appearance 2 1 3 4 78 6 5 microSD Loosen the screws. While the camera is powered on, use a pin to press and hold the RESET button for at least 5 seconds until the System LED blinks red. Loosen the screws and insert a microSD card*. Initialize it on the Tapo app for local recording. *microSD card not included. Used to connect to a 12V DC power adapter 2 3 Lens 4 System LED Microphone 1 IR LEDs 7 Speaker 8 DC Power Connector 5 Reset 6 microSD Card Slot 4 System LED Indication Blinking red and green Blinking red slowly Solid amber Blinking red quickly Solid red Solid green Blinking green quickly Starting up Connected to the cloud Ready for setup Connecting to Wi-Fi Connected to Wi-Fi Camera resetting Camera updating 5 Set Up Your Camera Follow the steps below to get started with your new camera. Step 1. Download Tapo App Get the Tapo app from the App Store or Google Play, or by scanning the QR code below. Step 2. Log In Open the app, and log in with your TP-Link ID. If you don't have an account, create one first. Step 3. Add Your Camera Tap the button in the app and select your model. Follow app instructions to complete the setup. OR 6 Set Up Using Amazon Frustration-Free Setup Note: Amazon Frustration-Free Setup is only available for Tapo C500. TC40 doesn't support Amazon Frustration-Free Setup. What is Amazon Frustration-Free Setup? Amazon Frustration-Free Setup can help connect and set up Tapo smart devices in fewer steps, without having to remember and re-enter your Wi-Fi password on each device. To use this feature, confirm the following: ● The new Tapo device supports Amazon FFS. ● The new Tapo device is purchased from Amazon. ● You have an Amazon FFS enabled Alexa device or router. ● You have saved your Wi-Fi information to Amazon by using Alexa echo. ● Your Tapo device and router are on the same network as your Alexa echo. LED Indications during Amazon Frustration-Free Setup LEDStatus Blinking red and greenReady for setup Blinking amberFFS setup in progress Solid greenWorking properly If the LED does not turn solid green after a long time, you can try to add the Tapo device manually. (Press the Reset button on your Tapo device once. Then open the Tapo app, tap the + button on the page, select your device model, and follow the app in…

Text truncated - open the document above for the full version.

U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO:AmericanCertificationBody,Inc. 313ParkAvenue Suite300 FallsChurch, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name:VISHTEC LLC Contact Name:Alan Graham Street Address:9888 W Belleview Ave Ste 2142 Denver CO 80123 City/Province/Zip:80123 Telephone No:（571）4007350 Email:[email protected] FRN #: 0033407131 This letter is to confirm that we (“the Designated U.S. Agent”) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process for the limited purpose of compliance with section 47 CFR 2.911(d)(7) only and not for any other purpose, on behalf of theApplicantnoted below. U.S. Agent Signature: Date:2023/8/28 Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: TP-LINK CORPORATION PTE. LTD. Grantee Code: 2BCGW FRN #: 0034122556 Contact Name: Sarah Wang Street Address: 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 City/Province/Zip: Singapore Telephone No: +65-97538388 Email: [email protected] Applicant Signature 1 : Date: 2023/8/28 Signed by (Printed Name/Title) S arah W ang 1 - Lettersshouldbeplacedonappropriateletterhead.

TP-LINK CORPORATION PTE.LTD. CERTIFICATIONS CONCERNING “COVERED” EQUIPMENT Date: 2024-07-25 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID: 2BCGWC500V2 To Whom It May Concern: As required by section 2.911(d)(5)(i), [TP-LINK CORPORATION PTE.LTD.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. As required by section 2.911(d)(5)(ii), [TP-LINK CORPORATION PTE.LTD.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Thank you for your attention to this matter. Sincerely yours, Signature Printed Name: Sarah Wang Company: TP-LINK CORPORATION PTE.LTD. Job Title: Regulatory Compliance Manager Email: [email protected] Telephone: 00852-37585503

TP-LINK CORPORATION PTE.LTD. 030122-15 Authority to Act as Agent Date: August 2, 2024 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: 2025-07-25 By: __________________________ Sarah Wang (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-LINK CORPORATION PTE.LTD. (Company Name) Telephone: 00852-37585503 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-LINK CORPORATION PTE.LTD. 030122-15 Request for Confidentiality Date: August 2, 2024 Subject: Confidentiality Request for: 2BCGWC500V2 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent * 3 User’s Manual TP-LINK CORPORATION PTE.LTD. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager Sarah Wang (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Declaration of Conformity We Name: TP-LINK CORPORATION PTE.LTD. Address: 7 Temasek Boulevard #29-03, Suntec Tower One, Singapore 038987 Declare that: Product: Outdoor Pan/Tilt Security Wi-Fi Camera FCC ID: 2BCGWC500V2 Model: Tapo C500, Tapo C510W Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2024-07-25

TP-LINK CORPORATION PTE.LTD. Wi-Fi Channel 12 and 13 Declaration Letter Date: 2024-07-25 We, the undersigned company Company Name: TP-LINK CORPORATION PTE.LTD. Address: 7 Temasek Boulevard #29-03, Suntec Tower One, Singapore 038987 Declare that: Product description: Outdoor Pan/Tilt Security Wi-Fi Camera Type designation: Tapo C500, Tapo C510W Brand: tp-link FCC ID: 2BCGWC500V2 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Sarah Wang Tel: 00852-37585503 Email: [email protected]

Model Declaration Letter Date: 2024-07-25 We, the undersigning company American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 Company Name: TP-LINK CORPORATION PTE.LTD. Address: 7 Temasek Boulevard #29-03, Suntec Tower One, Singapore 038987 Hereby confirm that the following products: Product description: Outdoor Pan/Tilt Security Wi-Fi Camera Type Design: Tapo C500, Tapo C510W Brand: tp-link The differences of model name show below: The chips of the image sensor are different, the chip of the Tapo C500 is SC2336P, the chip of the Tapo C510W is SC3336P, they are replaced by pin to pin .The function of sensor and the PCB layout are the same. Signature: Name: Sarah Wang Telephone: 00852-37585503 E-mail: [email protected]

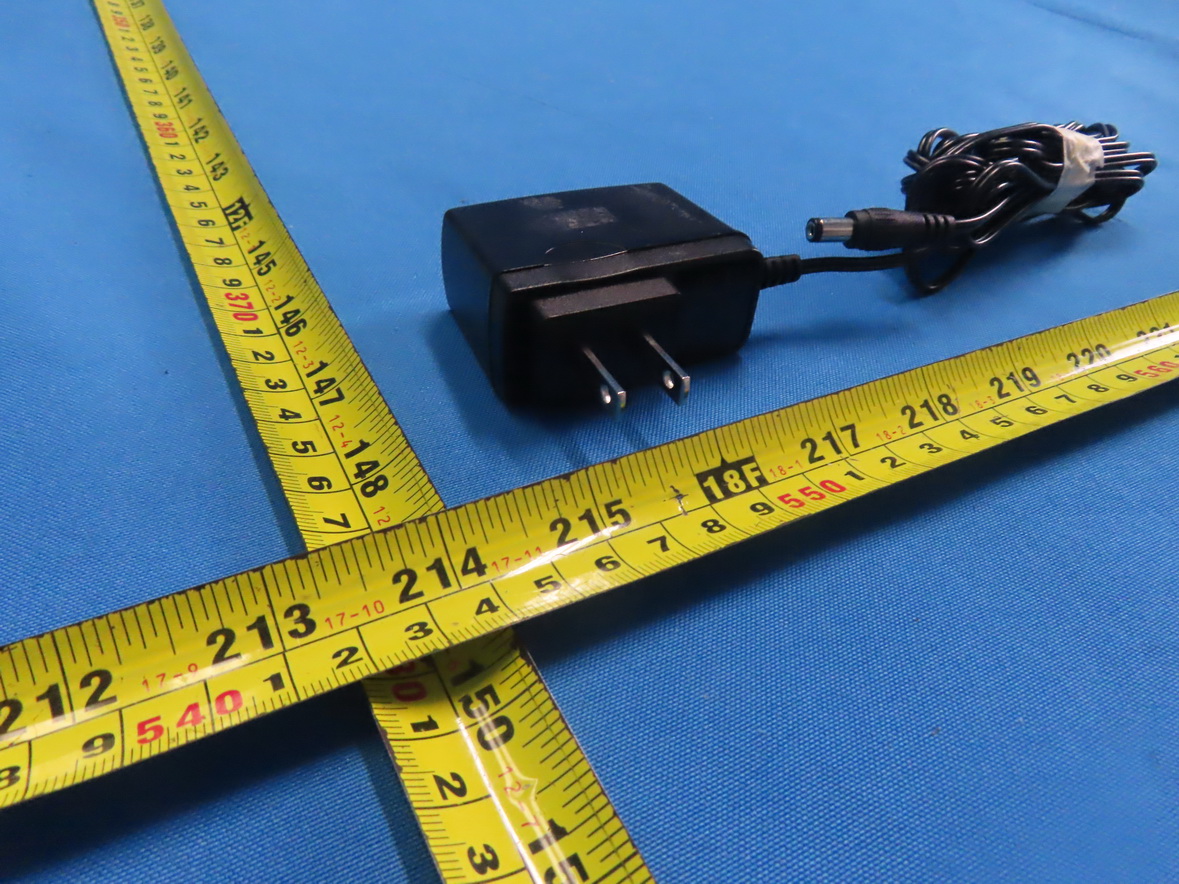

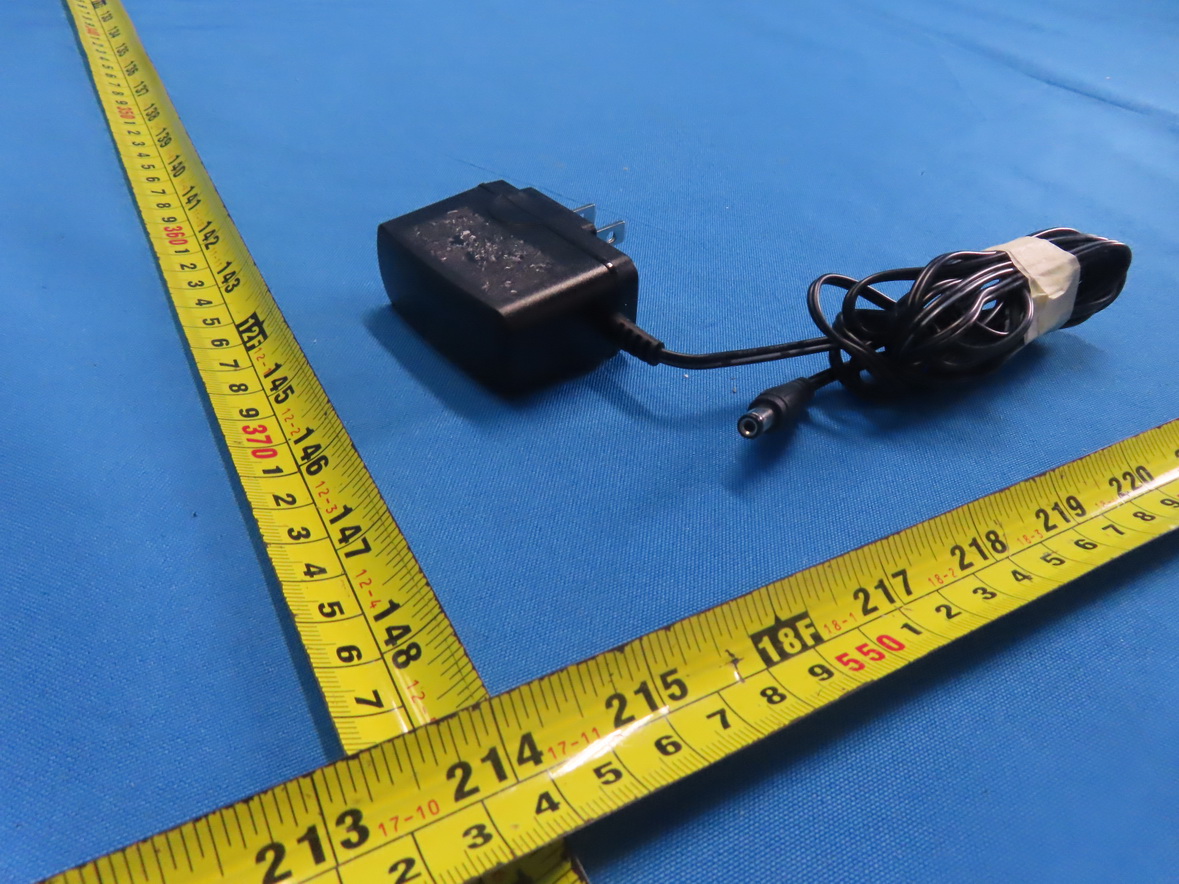

Project No.: 2405G026 Page 2 of 23 Model: Tapo C500 Project No.: 2405G026 Page 3 of 23 Project No.: 2405G026 Page 4 of 23 Project No.: 2405G026 Page 5 of 23 Project No.: 2405G026 Page 14 of 23 Model: C510W Project No.: 2405G026 Page 15 of 23 Project No.: 2405G026 Page 16 of 23

Label Location

Label Location

Pr oject No.: 2405G026 Page 6 of 23 Model: Tapo C500 Project No.: 2405G026 Page 7 of 23 Ant.1 Ant.2 Project No.: 2405G026 Page 8 of 23 Project No.: 2405G026 Page 9 of 23 Project No.: 2405G026 Page 10 of 23

Project No.: 2405G026 Page 11 of 23 Project No.: 2405G026 Page 12 of 23 Project No.: 2405G026 Page 13 of 23

Pr oject No.: 2405G026 Page 17 of 23 Model: C510W Pr oject No.: 2405G026 Page 18 of 23 Pr oject No.: 2405G026 Page 19 of 23 Project No.: 2405G026 Page 20 of 23 Project No.: 2405G026 Page 21 of 23

Project No.: 2405G026 Page 22 of 23 Project No.: 2405G026 Page 23 of 23

Report No.: BTL-FCCP-2-2405G026 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: 2BCGWC500V2 Project No. : 2405G026 Equipment : Outdoor Pan/Tilt Security Wi-Fi Camera Brand Name : tp-link Test Model : Tapo C500 Series Model : Tapo C510W Applicant : TP-LINK CORPORATION PTE. LTD. Address : 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Manufacturer : TP-LINK CORPORATION PTE. LTD. Address : 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Date of Receipt : May 10, 2024 Date of Test : Jun. 14, 2024 ~ Jul. 11, 2024 Issued Date : Jul. 29, 2024 Report Version : R00 Test Sample : Engineering Sample No.: SSL20240510228 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091 & KDB 447498 D01 v06 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Nick Chen Approved by : Chay Cai Room 108, Building 2, No.1, Yile Road, Songshan Lake Zone, Dongguan City, Guangdong, People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-2-2405G026 Page 2 of 3 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-2-2405G026 R00 Original Report. Jul. 29, 2024 Valid Report No.: BTL-FCCP-2-2405G026 Page 3 of 3 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 2. ANTENNA SPECIFICATION Ant. Manufacturer P/N Antenna Type Connector Gain (dBi) 1 TP-LINK CORPORATION PTE. LTD. C500-Ant1 Monopole N/A 0.5 2 TP-LINK CORPORATION PTE. LTD. C500-Ant2 Monopole N/A 0.5 Note: 1) This EUT supports 1TX, but there are two mirror antennas inside the prototype, which will be intelligently switched to the antenna with strong signal when used. 2) The antenna gain is provided by the manufacturer. 3. CALCULATED RESULT Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 0.5 1.1220 19.56 90.3649 0.02018 1 Complies Note: (1) The calculated distance is 20 cm. End of Test Report

Product Model： Tapo C500 Manufacturer： TP-LINK CORPORATION PTE. LTD. Date： 2024.01.25 Checked By： Shao Jinwei TP-LINK CORPORATION PTE. LTD. 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Index 1. Antenna Distribution ........................................................................................ 3 2. Electrical Characteristics ................................................................................ 3 3. Gain and Radiation Pattern ............................................................................. 4 3.1 Measurement Procedure ........................................................................................... 4 3.2 Test Setup ................................................................................................................. 5 3.3 S Parameter Test Data ............................................................................................. 6 3.4 Antenna Peak Gain ................................................................................................... 7 3.5 Antenna Radiation Pattern ........................................................................................ 7 Page 3 1. Antenna Distribution Tapo C500 2. Electrical Characteristics Ant1 Frequency 2400~2500MHz Impedance 50Ohm Antenna Type Monopole Antenna Gain 0.5dBi@2400~2500MHz Radiation pattern Omni-Directional P/N C500-Ant1 Ant2 Frequency 2400~2500MHz Impedance 50Ohm Antenna Type Monopole Antenna Gain 0.5dBi@2400~2500MHz Radiation pattern Omni-Directional P/N C500-Ant2 Page 4 3. Gain and Radiation Pattern 3.1 Measurement Procedure This measurement experiment adopted an antenna near-field measurement system, and the diagram of the measurement system was shown in Figure 3-1. The excitation signal was generated by the Keysight E5071C (300kHz-20GHz). Under the control of the central computer, the probe rotated in the θ direction, and the EUT rotated in the φ direction with the turntable. The probe sampling frame received and collected signals in the near-field range of the EUT. The software system which was controlled by the central computer completed the processing, output and display of the test data. Figure 3-1 The test site was a full anechoic chamber with a size of 3.0m×3.1m×2.97m, which was built by GTS Rayzone2800. All six surfaces of the anechoic chamber were pasted with absorbing materials. And the chamber was calibrated by the authoritative third-party lab every year. The antenna anechoic chamber measurement system adopted a 13-probe multi-probe system. The probe antennas were evenly distributed on the spherical surface surrounding the EUT, and theirs operating frequency was 600MHz~8.5GHz. During the measurement, the probe antennas were rotated in the θ direction under the control of the probe holder to sample the near-field data at the θ angle. At the same time, the EUT rotated with the turntable in the φ direction to sample the near field data at the φ angle. The sampling accuracy was 15°. The system diagram was shown in Figure 3-2. From the sampling results, the EUT's near-field test data of θ component, φ component and total component could be obtained. Page 5 Figure 3-2 Before the measurement, calibrated the vector network analyzer, and then connected the input end of each antenna to the output end of the vector network analyzer, and evenly the antennas to be measured. Test Equipment listed below: Equipments Model Manufacturer S/N Cali. Interval Cali. Due Date Chamber Rayzone2800 GTS(General Test System) MY5347043 5 12months 2024/01/15 Vector Network Analyzer E5071C Keysight MY46315238 24months 2024/03/13 GTS MaxSign100 Software V2.1 GTS(General Test System) / / / 3.2 Test Setup The test setup was shown in Figure 3-3, 3-4: Figure 3-3 Page 6 Figure 3-4 3.3 S Parameter Test Data Ant1 Ant2 Page 7 3.4 Antenna Peak Gain Frequency(GHz) 2.45 Ant1 MaxGain(dBi) 0.5 Ant2 MaxGain(dBi) 0.5 Ant1 Polarization/Φ (°)/θ(°) Theta/0/90 Ant2 Polarization/Φ (°)/θ(°) Theta/60/90 Max Gain(dBi) 0.5 3.5 Antenna Radiation Pattern Ant1 Ant2 Page 8

Report No.: BTL-FCCP-1-2405G026 Page 1 of 81 FCC Radio Test Report FCC ID: 2BCGWC500V2 This report concerns: Original Grant Project No. : 2405G026 Equipment : Outdoor Pan/Tilt Security Wi-Fi Camera Brand Name : tp-link Test Model : Tapo C500 Series Model : Tapo C510W Applicant : TP-LINK CORPORATION PTE. LTD. Address : 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Manufacturer : TP-LINK CORPORATION PTE. LTD. Address : 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Date of Receipt : May 10, 2024 Date of Test : Jun. 14, 2024 ~ Jul. 11, 2024 Issued Date : Jul. 29, 2024 Report Version : R00 Test Sample : Engineering Sample No.: SSL20240510229 for Radiated and AC Power Line Conducted Emissions, SSL20240510228 for other items. Standard(s) : FCC CFR Title 47, Part 15, Subpart C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Nick Chen Approved by : Chay Cai Room 108, Building 2, No.1, Yile Road, Songshan Lake Zone, Dongguan City, Guangdong, People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-1-2405G026 Page 2 of 81 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025: 2017 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2405G026 Page 3 of 81 Table of Contents Page REPORT ISSUED HISTORY 6 1 . APPLICABLE STANDARDS 7 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 2.3 TEST ENVIRONMENT CONDITIONS 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 11 3.3 PARAMETERS OF TEST SOFTWARE 12 3.4 DUTY CYCLE 13 3.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 3.6 SUPPORT UNITS 14 3.7 CUSTOMER INFORMATION DESCRIPTION 14 4 . AC POWER LINE CONDUCTED EMISSIONS 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 15 4.3 DEVIATION FROM TEST STANDARD 15 4.4 TEST SETUP 16 4.5 EUT OPERATION CONDITIONS 16 4.6 TEST RESULTS 16 5 . RADIATED EMISSIONS 17 5.1 LIMIT 17 5.2 TEST PROCEDURE 18 5.3 DEVIATION FROM TEST STANDARD 19 5.4 TEST SETUP 19 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS - 9 KHZ TO 30 MHZ 21 5.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 21 5.8 TEST RESULTS - ABOVE 1000 MHZ 21 6 . BANDWIDTH 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 Report No.: BTL-FCCP-1-2405G026 Page 4 of 81 Table of Contents Page 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . MAXIMUM OUTPUT POWER 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . CONDUCTED SPURIOUS EMISSIONS 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . POWER SPECTRAL DENSITY 25 9.1 LIMIT 25 9.2 TEST PROCEDURE 25 9.3 DEVIATION FROM STANDARD 25 9.4 TEST SETUP 25 9.5 EUT OPERATION CONDITIONS 25 9.6 TEST RESULTS 25 10 . MEASUREMENT INSTRUMENTS LIST 26 11 . EUT TEST PHOTO 28 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 34 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 37 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 42 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 45 APPENDIX E - BANDWIDTH 66 APPENDIX F - MAXIMUM OUTPUT POWER 70 Report No.: BTL-FCCP-1-2405G026 Page 5 of 81 Table of Contents Page APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 72 APPENDIX H - POWER SPECTRAL DENSITY 79 Report No.: BTL-FCCP-1-2405G026 Page 6 of 81 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-1-2405G026 R00 Original Report. Jul. 29, 2024 Valid Report No.: BTL-FCCP-1-2405G026 Page 7 of 81 1. APPLICABLE STANDARDS According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: ANSI C63.10-2013 The following reference test guidance is not within the scope of accreditation of A2LA: KDB 558074 D01 15.247 Meas Guidance v05r02 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section T…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2405G026 Page 28 of 81 11. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2405G026 Page 29 of 81 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2405G026 Page 30 of 81 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2405G026 Page 31 of 81 Radiated Emissions Test Photos Band edge and Harmonic (1 GHz to 18 GHz) Report No.: BTL-FCCP-1-2405G026 Page 32 of 81 Radiated Emissions Test Photos Harmonic (Above 18 GHz) Report No.: BTL-FCCP-1-2405G026 Page 33 of 81 Conducted Test Photos
