2BCGWTBE550EBE9300 Wi-Fi 7 Bluetooth PCIe Adapter

© 2024 TP-Link REV1.0.0 1910013584 User Guide BE9300 Wi-Fi 7 Bluetooth PCIe Adapter Archer TBE550E Contents Chapter 1. About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01 Chapter 2. Get to Know About Your Adapter. . . . . . . . . . . . . . . . . . . 03 1. 1. Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .04 1. 2. Appearance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .05 Chapter 3. Connect to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06 Chapter 4. Use Your Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3. 1. Install Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 3. 2. Join a Wireless Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 3. 3. Pair with Bluetooth Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 3. 4. Uninstall Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Chapter 5. Appendix: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 13 01 About This Guide This guide is a complement to Quick Installation Guide. The Quick Installation Guide instructs you on quick installation, and this guide provides the product overview and more detailed instructions for each steps. When using this guide, please notice that features available of the adapter may vary by model and software version. It may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual experience. Conventions In this guide, the following conventions are used: Convention Description Underlined Underlined words or phrases are hyperlinks. You can click to redirect to a website or a specific section. Teal Contents to be emphasized and texts on the web page are in teal, including the menus, items, buttons, etc. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tips: Indicates important information that helps you make better use of your device. Specifications are subject to change without notice. TP-Link is a registered trademark of TP-LINK CORPORATION PTE. LTD. † Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location. ‡ Use of Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), and other features including 320 MHz Bandwidth, 4096-QAM, Multi-RUs, OFDMA, MU-MIMO, and BSS Color requires the AP and PC OS to also support the corresponding features. § Certain features of Archer TBE550E, such as Bluetooth 5.4, may be restricted on some computing systems and platforms. Please try to update the device’s driver for feature compatibility. △ The 320 MHz bandwidth is only available on the 6 GHz band. The 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 adapters. * Actual network speed may be limited by the rate of the product’s PCI Express Interface, Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, operating system factors, and other environmental conditions. **Use of WPA3 requires APs to also support the corresponding feature. 02 More Info • The latest driver can be found at Download Center at https://www.tp-link.com/support. • The Quick Installation Guide (QIG) can be found where you find this guide or inside the package of the product. • Specifications can be found on the product page at https://www.tp-link.com. • A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com. Chapter 1 Get to Know About Your Adapter This chapter introduces the detail of the adapter. • 1.1 Product Overview • 1.2 Appearance 04 Chapter 1 Get to Know about Your Adapter 1. 1. Product Overview Archer TBE550E offers you incredibly smooth Wi-Fi experience. Wi-Fi 7 unlocks the full potential of the 6 GHz band, providing exceptional bandwidth and congestion-free channels exclusive to your desktop. Enhanced by 4096- QAM and 320MHz, TBE550E delivers astonishing wireless speeds, facilitating instant multi-stream media playback. ‡ • Wireless Standards: 5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 688 Mbps on 2.4 GHz, compatible with IEEE 802.11a/b/g/n/ac/ax/be standard. • Antennas: 2× High-Performance Tri-Band Antennas • Wireless Security: WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK* • Dimensions (without the antenna base): 3.7x4.8x0.8 in ( 95.2*120.8*21.5 mm) • System Requirements: Windows 11(64-bit) only § • Environment: Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing 05 Chapter 1 Get to Know about Your Adapter 1. 2. Appearance LED Description LED StatusDescription BreathingNo internet connection. StaticThe adapter is working properly. SpectrumOperating at 320MHz. OffThe adapter is not working properly. Refer to T6 for troubleshooting. LED Button • Single press to turn on/off the LED. • Press and hold for about 2s to change the color of the LED. LED Antenna Base Adapter Antennas Chapter 2 Connect to a Computer This chapter introduces how to connect the adapter to your computer. Please note that images are for demonstration only. • 2.1 Disable Bluetooth • 2.2 Connect to a Computer 07 Chapter 2 Connect …

Text truncated - open the document above for the full version.

TP-LINK CORPORATION PTE.LTD. 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 012423-17 rev2 Statement for 47 CFR section 2.911(d)(5)(i) TP-LINK CORPORATION PTE.LTD. certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) TP-LINK CORPORATION PTE.LTD. certifies that, as of the date of the filing of this application, the applicant ☐ - is /- is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: ____Sarah Wang__ (Signature 2 ) (Print name) Title: Compliance manager Company: TP-LINK CORPORATION PTE.LTD. PTE.LTD.) Telephone: +86 755 21534921 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

U.S. AgentDesignationfor Serviceof Process (Applicantand U.S. Agentare SeparateParties) TO:AmericanCertificationBody, Inc. 313 Park Avenue Suite 300 Falls Church,VA 22046 ATTENTION:FCC Certification– Section2.911(d)(7)Information DesignatedU.S. Agent CompanyName:VISHTECLLC ContactName:Alan Graham StreetAddress:9888 W BelleviewAve Ste 2142 DenverCO 80123 City/Province/Zip:80123 TelephoneNo:（571）4007350 Email: [email protected] FRN #: 0033407131 This letter is to confirmthat we (“the DesignatedU.S. Agent ”) have acceptedthe responsibilityto act as the DesignatedU.S. Agent for Serviceof Processfor the limited purposeof compliancewith section47 CFR 2.911(d)(7)only and not for any other purpose,on behalfof theApplicantnoted below. U.S. AgentSignature: Date: 2023/8/28 Signedby (PrintedName/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: TP-LINK CORPORATION PTE. LTD. Grantee Code: 2BCGW FRN #: 0034122556 Contact Name: Sarah Wang Street Address: 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 City/Province/Zip: Singapore Telephone No: +65-97538388 Email: [email protected] Applicant Signature 1 : Date: 2023/8/28 Signed by (Printed Name/Title) S arah W ang 1 - Lettersshouldbe placedon appropriateletterhead.

Attestation Letter Federal Communications Commission Authorization and Evaluation Division We Name: TP-LINK CORPORATION PTE. LTD Address: 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. Product: BE9300 Wi-Fi 7 Bluetooth PCIe Adapter FCC ID: 2BCGWTBE550E Model: Archer TBE550E Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2024-01-11

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2BCGWTBE550E Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2024-01-11

Declaration of Authorization We Name: TP-LINK CORPORATION PTE. LTD Address: 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: BE9300 Wi-Fi 7 Bluetooth PCIe Adapter FCC ID: 2BCGWTBE550E Model: Archer TBE550E Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2024-01-11

Declaration of Conformity We Name: TP-LINK CORPORATION PTE. LTD Address: 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Declare that: Product: BE9300 Wi-Fi 7 Bluetooth PCIe Adapter FCC ID: 2BCGWTBE550E Model: Archer TBE550E Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2024-01-11

Report No.: 2311TW0112-UE 1 of 9 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2311TW0112-UE 2 of 9 (3) EUT Photo (4) EUT Photo Report No.: 2311TW0112-UE 3 of 9 (5) EUT Photo (6) EUT Photo Report No.: 2311TW0112-UE 4 of 9 (7) EUT Photo (8) EUT Photo Report No.: 2311TW0112-UE 5 of 9 (9) EUT Photo (10) EUT Photo (11) EUT Photo Report No.: 2311TW0112-UE 6 of 9 (12) EUT Photo Report No.: 2311TW0112-UE 7 of 9 (13) EUT Photo (14) EUT Photo Report No.: 2311TW0112-UE 8 of 9 (15) EUT Photo (16) EUT Photo Report No.: 2311TW0112-UE 9 of 9 (17) EUT Photo (18) EUT Photo

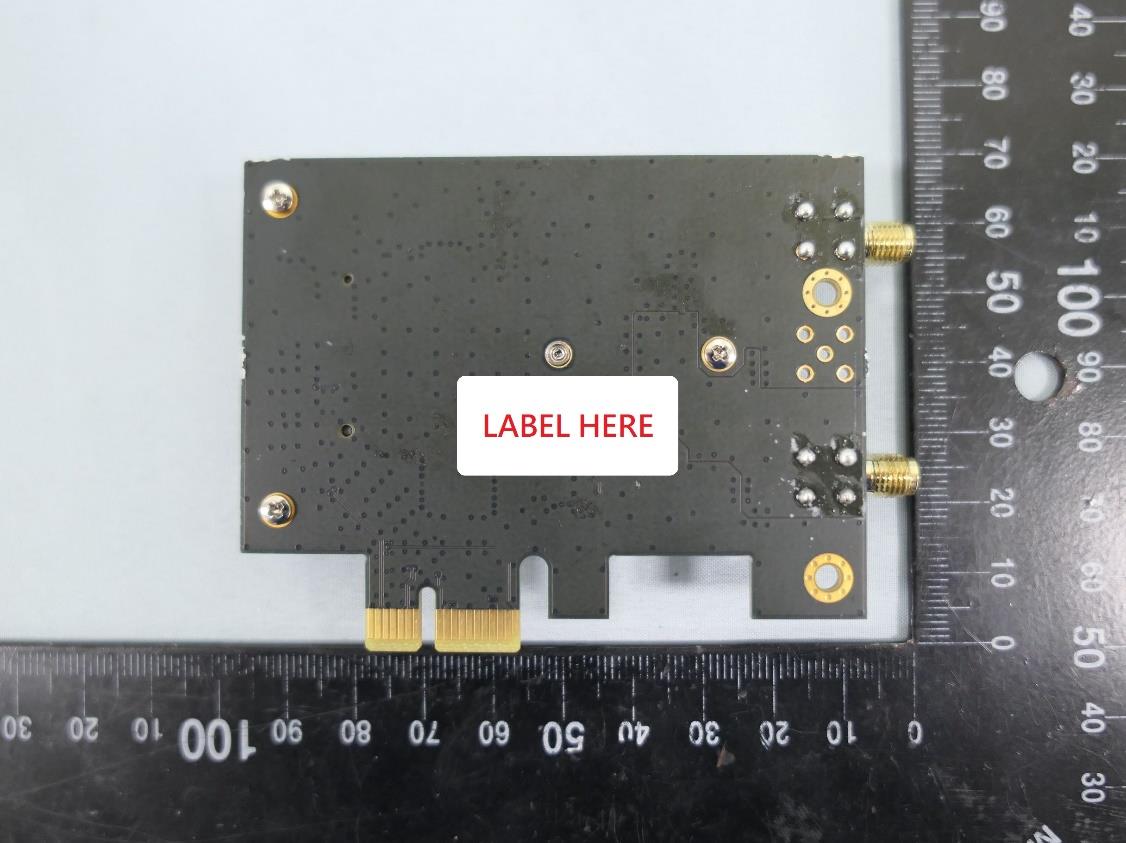

Label Label Location

Report No.: 2311TW0112-UI 1 of 10 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2311TW0112-UI 2 of 10 (3) EUT Photo (4) EUT Photo Report No.: 2311TW0112-UI 3 of 10 (5) EUT Photo (6) EUT Photo Report No.: 2311TW0112-UI 4 of 10 (7) EUT Photo (8) EUT Photo Report No.: 2311TW0112-UI 5 of 10 (9) EUT Photo (10) EUT Photo Report No.: 2311TW0112-UI 6 of 10 (11) EUT Photo (12) EUT Photo Report No.: 2311TW0112-UI 7 of 10 (13) EUT Photo (14) EUT Photo Report No.: 2311TW0112-UI 8 of 10 (15) EUT Photo (16) EUT Photo Report No.: 2311TW0112-UI 9 of 10 (17) EUT Photo (18) EUT Photo Report No.: 2311TW0112-UI 10 of 10 (19) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2311TW0112-U8 Phone: +886-3-3288388 Report Version V1.0 Web: www.mrt-cert.com Issue Date: 2024-01-19 Page Number: 1 of 12 RF Exposure Evaluation Declaration FCC ID : 2BCGWTBE550E Applicant : TP-LINK CORPORATION PTE. LTD. Application Type : Certification Product : BE9300 Wi-Fi 7 Bluetooth PCIe Adapter Model No. : Archer TBE550E Brand Name : tp-link FCC Classification : FCC Part 15 Spread Spectrum Transmitter (DSS) Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) 15E 6 GHz Low Power Indoor Client (6XD) Received Date : November 9, 2023 Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2311TW0112-U8 Page Number: 2 of 12 Revision History Report No. Version Description Issue Date Note 2311TW0112-U8 1.0 Original Report 2024-01-19 Valid Report No.: 2311TW0112-U8 Page Number: 3 of 12 CONTENTS Description Page 1. INTRODUCTION .................................................................................................................... 5 1.1. Scope .......................................................................................................................... 5 1.2. MRT Test Location ....................................................................................................... 5 2. PRODUCT INFORMATION .................................................................................................... 6 2.1. Feature of Equipment under Test ................................................................................. 6 2.2. Description of Available Antennas ................................................................................ 6 2.3. Device Classification .................................................................................................... 7 2.4. Applied Standards ........................................................................................................ 7 3. RF Exposure Evaluation ...................................................................................................... 8 3.1. Limits ........................................................................................................................... 8 3.2. MPE Exemptions ......................................................................................................... 9 3.3. Test Result of RF Exposure Evaluation .......................................................................12 Report No.: 2311TW0112-U8 Page Number: 4 of 12 General Information Applicant TP-LINK CORPORATION PTE. LTD. Applicant Address 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Manufacturer TP-LINK CORPORATION PTE. LTD. Manufacturer Address 7 Temasek Boulevard #29-03 Suntec Tower One, Singapore 038987 Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Canada, EU and TELEC Rules. Report No.: 2311TW0112-U8 Page Number: 5 of 12 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2311TW0112-U8 Page Number: 6 of 12 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test Product Name BE9300 Wi-Fi 7 Bluetooth PCIe Adapter Model No. Archer TBE550E Brand Name tp-link Bluetooth Specification Bluetooth Mode: V4.2 Wi-Fi Specification 802.11a/b/g/n/ac/ax/be 2.2. Description of Available Antennas Antenna Type Frequency Band (MHz) T X Paths Number of spatial streams Antenna Gain (dBi) CDD Directional Gain (dBi) Ant 0 Ant 1 For Power For PSD Dipole 2402 ~ 2480 1 1 1.00 -- -- -- Dipole 2412 ~ 2462 2 1 1.00 1.00 1.00 4.01 Dipole 5150 ~ 5350 2 1 1.27 1.27 1.27 4.28 5470 ~ 5850 2 1 2.00 2.00 2.00 5.01 Dipole 5955 ~ 6425 2 1 2.00 2.00 2.00 5.01 2 2.00 2.00 2.00 2.00 6425 ~ 6525 2 1 1.77 1.77 1.77 4.78 2 1.77 1.77 1.77 1.77 6525 ~ 6885 2 1 1.87 1.87 1.87 4.88 2 1.87 1.87 1.87 4.88 6885 ~ 7125 2 1 1.60 1.60 1.60 4.61 2 1.60 1.60 1.60 1.60 Remark: 1. The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB; • For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; 2. All information of antenna were from antenna report. Report No.: 2311TW0112-U8 Page Number: 7 of 12 2.3. Device Classification According to the user manual, this d…
