2BNNE-BQ-116

QUANZHOU BINQI ELECTRONIC TECHNOLOGY CO.LTD

4G LTE POC RADIO

Click to zoom

Application Details

Equipment Class: PCF - PCS Licensed Transmitter held to face
Date of Grant: Jan 15, 2026
Application Purpose: Original Equipment
Equipment Note: 4G LTE POC RADIO
Frequency Range: 829.00000000 - 844.00000000
Company: QUANZHOU BINQI ELECTRONIC TECHNOLOGY CO.LTD
Country: China

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

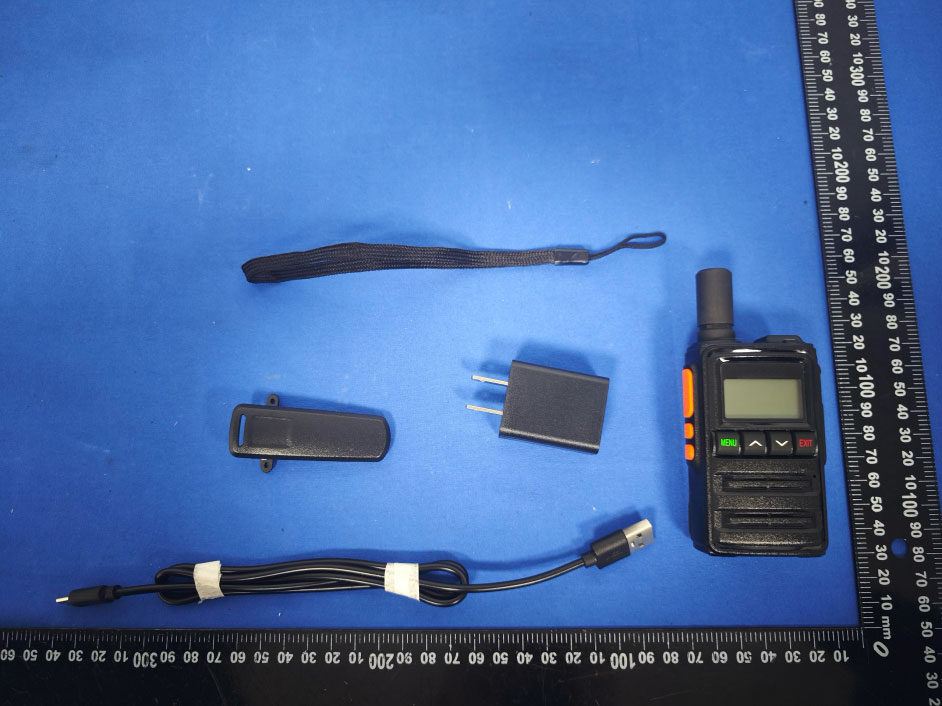

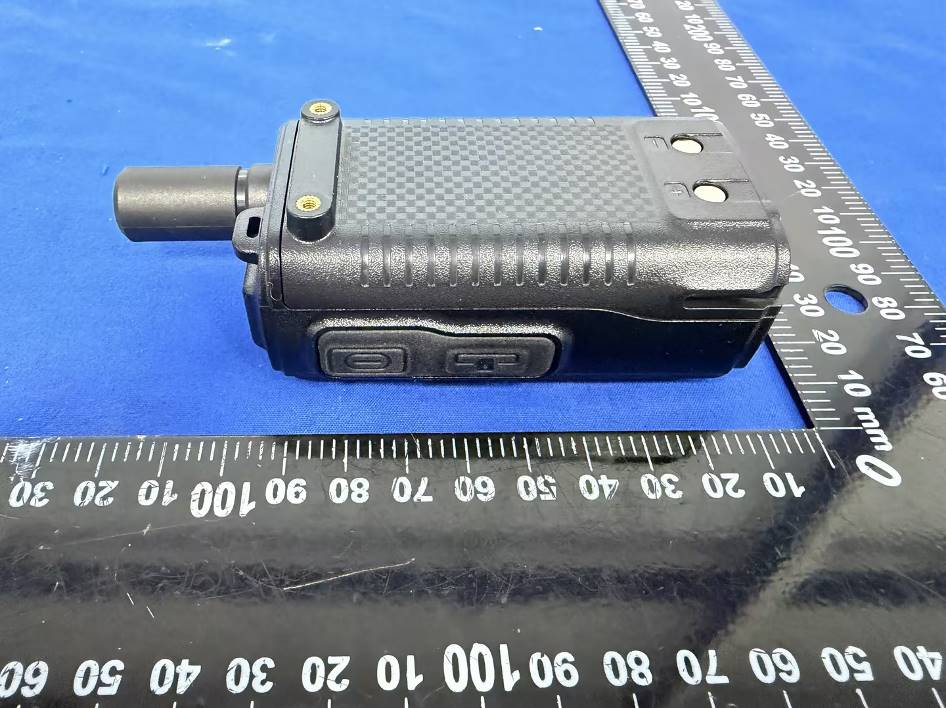

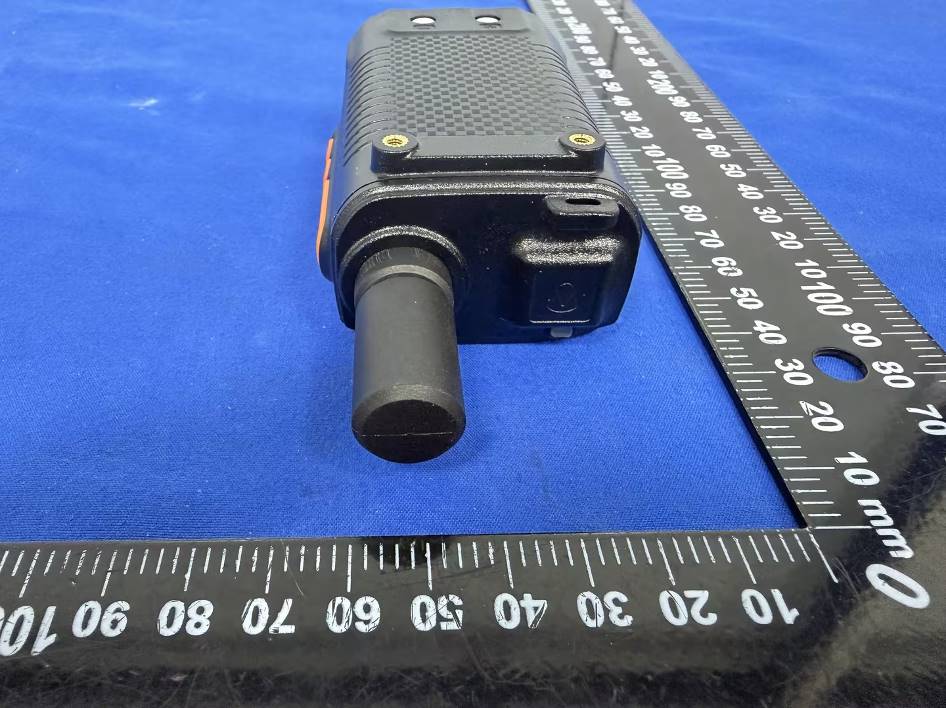

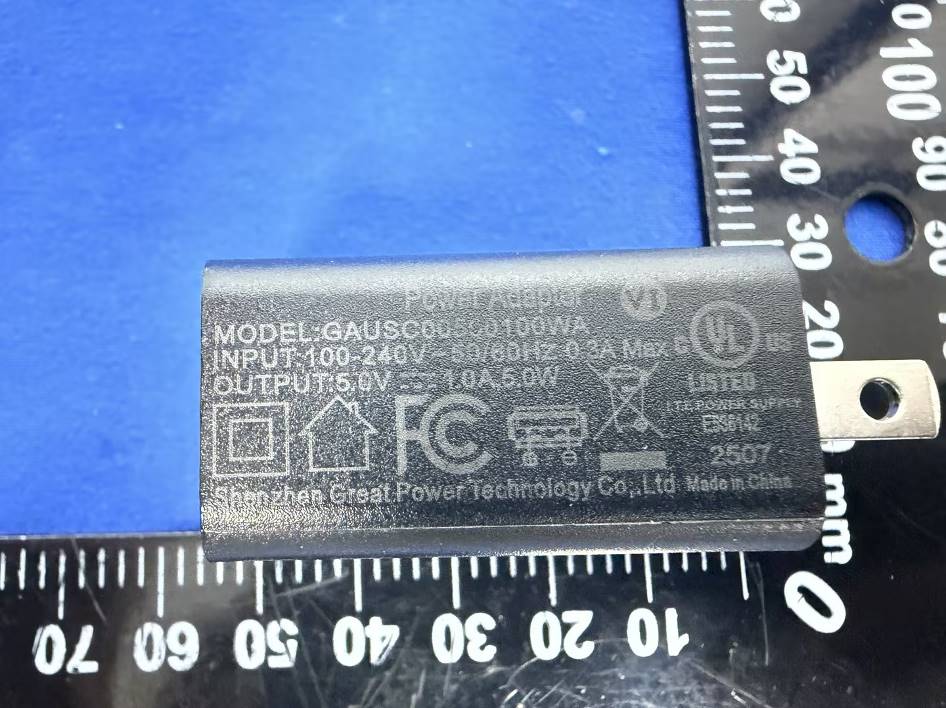

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	340.00 mW	4M47G7D	2.5ppm
2	24E	1.85 GHz - 1.91 GHz	301.00 mW	4M47D7W	2.5ppm
3	24E	1.86 GHz - 1.90 GHz	317.00 mW	17M9G7D	2.5ppm
4	24E	1.86 GHz - 1.90 GHz	275.00 mW	5M00D7W	2.5ppm
5	27	1.72 GHz - 1.75 GHz	321.00 mW	13M4G7D	2.5ppm
6	27	1.72 GHz - 1.75 GHz	299.00 mW	17M8G7D	2.5ppm
7	27	1.72 GHz - 1.75 GHz	271.00 mW	4M96D7W	2.5ppm
8	22H	829 MHz - 844 MHz	155.00 mW	8M94G7D	2.5ppm
9	22H	829 MHz - 844 MHz	130.00 mW	4M88D7W	2.5ppm
1	27	2.51 GHz - 2.56 GHz	376.00 mW	13M4G7D	2.5ppm
11	27	2.51 GHz - 2.56 GHz	349.00 mW	17M8G7D	2.5ppm
12	27	2.51 GHz - 2.56 GHz	318.00 mW	4M96D7W	2.5ppm
13	27	1.72 GHz - 1.77 GHz	337.00 mW	8M94G7D	2.5ppm
14	27	1.71 GHz - 1.78 GHz	281.00 mW	4M47D7W	2.5ppm
15	27	1.72 GHz - 1.77 GHz	305.00 mW	17M9G7D	2.5ppm
16	27	1.72 GHz - 1.77 GHz	256.00 mW	4M96D7W	2.5ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for operation below 1 GHz and EIRP for operation above 1 GHz. LTE supports 1.4/3/5/10/15/20 MHz BW modes in Band 2/4/66, 1.4/3/5/10 MHz BW modes in Band 5, 5/10/15/20 MHz BW modes in Band 7. The antenna(s) used for this transmitter must not be co-located with any other transmitters, except in accordance with FCC multi-transmitter product procedures. For face up, the separation distance between user and the device or its antenna shall be at least 2.5 cm. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head (Face up) and body-worn accessory transmission exposure conditions are 0.39 W/kg and 0.59 W/kg, respectively. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations.
