2BNNE-BQ-510

QUANZHOU BINQI ELECTRONIC TECHNOLOGY CO.LTD

4G LTE POC RADIO

Click to zoom

Application Details

Equipment Class: PCF - PCS Licensed Transmitter held to face
Date of Grant: Mar 18, 2026
Application Purpose: Original Equipment
Equipment Note: 4G LTE POC RADIO
Frequency Range: 824.70000000 - 848.30000000
Company: QUANZHOU BINQI ELECTRONIC TECHNOLOGY CO.LTD
Country: China

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

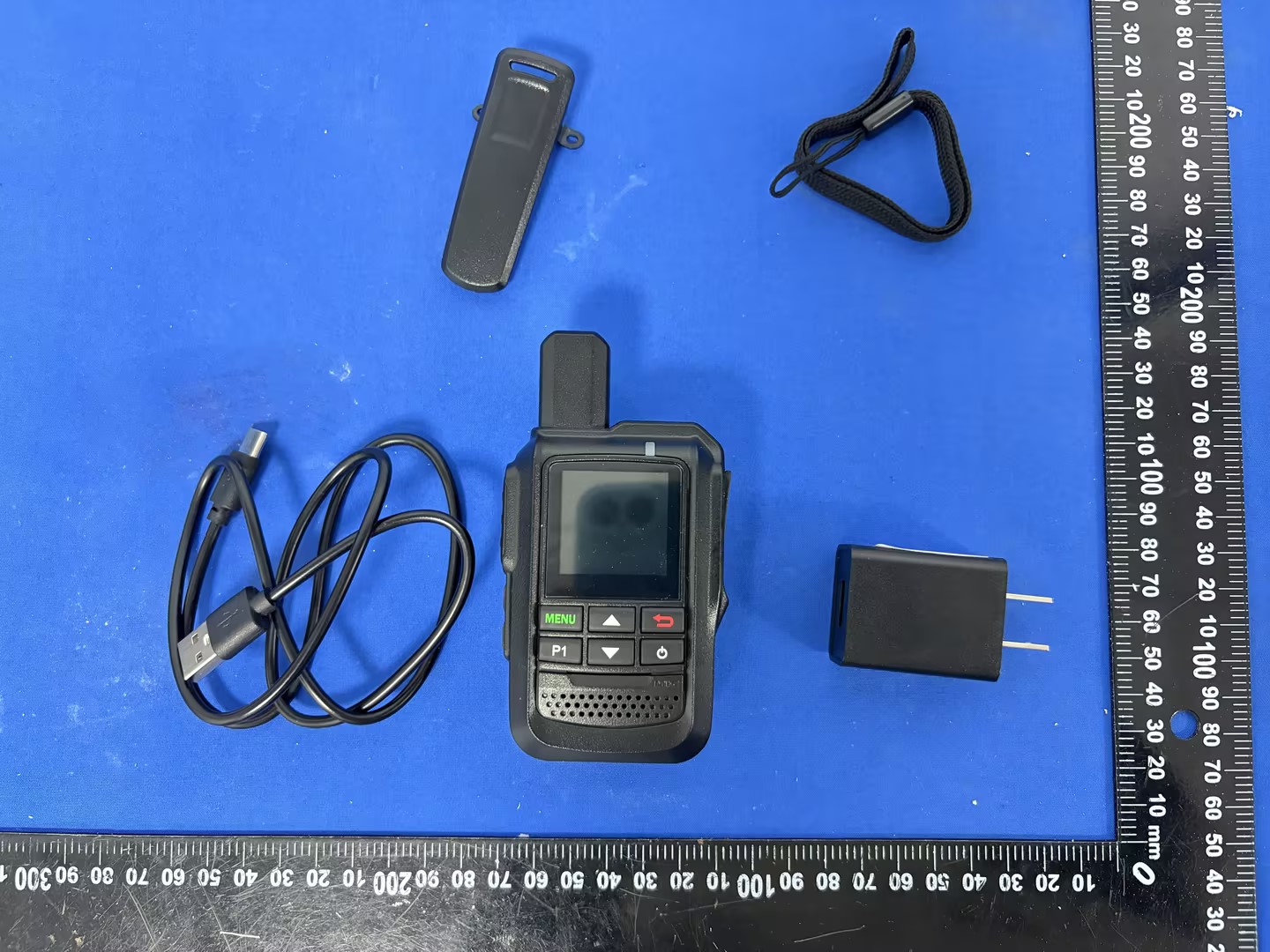

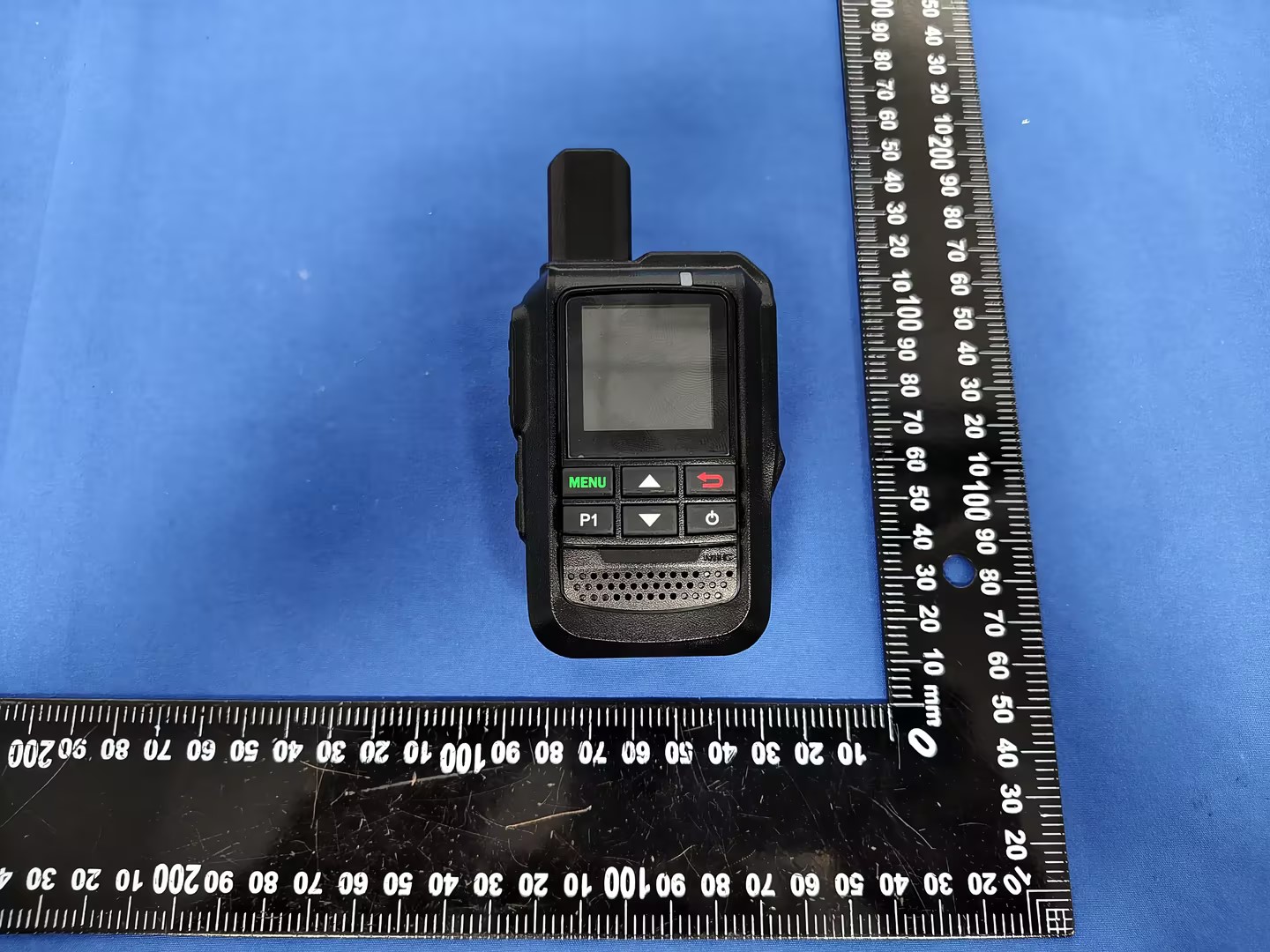

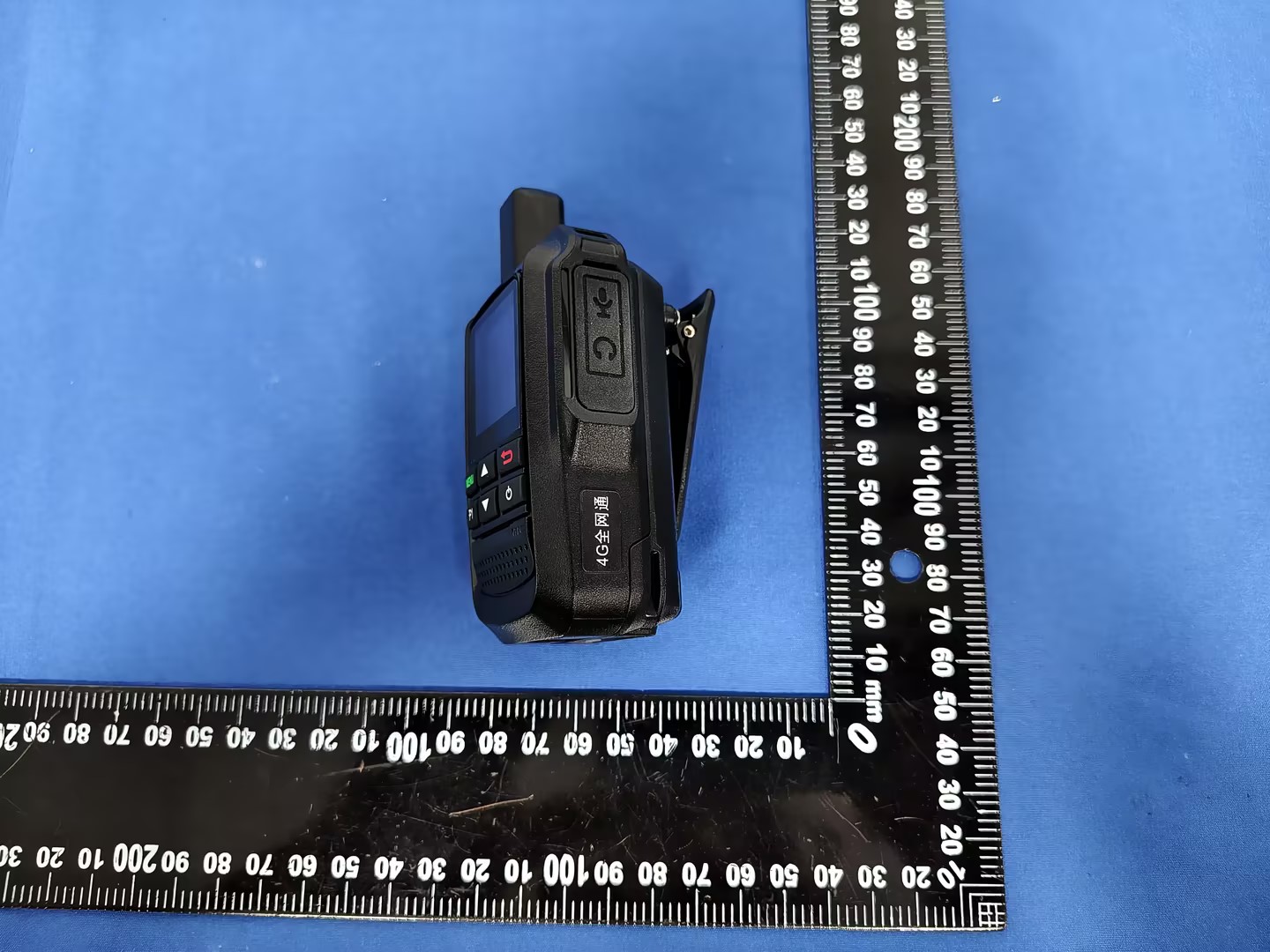

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.86 GHz - 1.90 GHz	301.00 mW	13M4G7D	2.5ppm
2	24E	1.86 GHz - 1.90 GHz	282.00 mW	17M9G7D	2.5ppm
3	24E	1.86 GHz - 1.90 GHz	266.00 mW	5M00D7W	2.5ppm
4	27	1.72 GHz - 1.75 GHz	310.00 mW	17M9G7D	2.5ppm
5	27	1.72 GHz - 1.75 GHz	296.00 mW	4M96D7W	2.5ppm
6	22H	826.5 MHz - 846.5 MHz	157.00 mW	4M48G7D	2.5ppm
7	22H	824.7 MHz - 848.3 MHz	132.00 mW	1M08D7W	2.5ppm
8	22H	829 MHz - 844 MHz	152.00 mW	8M94G7D	2.5ppm
9	22H	829 MHz - 844 MHz	127.00 mW	4M90D7W	2.5ppm
1	27	2.51 GHz - 2.56 GHz	366.00 mW	13M4G7D	2.5ppm
11	27	2.50 GHz - 2.57 GHz	333.00 mW	4M47D7W	2.5ppm
12	27	2.51 GHz - 2.56 GHz	356.00 mW	17M9G7D	2.5ppm
13	27	2.51 GHz - 2.56 GHz	331.00 mW	4M90D7W	2.5ppm
14	27	1.72 GHz - 1.77 GHz	327.00 mW	17M9G7D	2.5ppm
15	27	1.72 GHz - 1.77 GHz	277.00 mW	5M00D7W	2.5ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for operation below 1 GHz and EIRP for operation above 1 GHz. This device supports LTE of 1.4, 3, 5, 10, 15 and 20 MHz bandwidth modes for LTE Bands 2, 4 and 66; LTE of 5, 10, 15 and 20 MHz bandwidth modes for LTE Band 7; LTE of 1.4, 3, 5 and 10 MHz bandwidth modes for LTE Band 5. The antenna(s) used for this transmitter must not be co-located with any other transmitters, except in accordance with FCC multi-transmitter product procedures. For Push-to-Talk operating, the separation distance between user and the device or its antenna shall be at least 2.5cm. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head and body-worn accessory exposure conditions are 0.30 W/kg and 0.80 W/kg, respectively. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations.
