2BQVD-TK-158

Quanzhou Rongyaokesi Electronic Technology Co., LTD

4G LTE POC RADIO

Click to zoom

Application Details

Equipment Class: PCF - PCS Licensed Transmitter held to face
Date of Grant: Dec 04, 2025
Application Purpose: Original Equipment
Equipment Note: 4G LTE POC RADIO
Frequency Range: 825.50000000 - 847.50000000
Company: Quanzhou Rongyaokesi Electronic Technology Co., LTD
Country: China

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

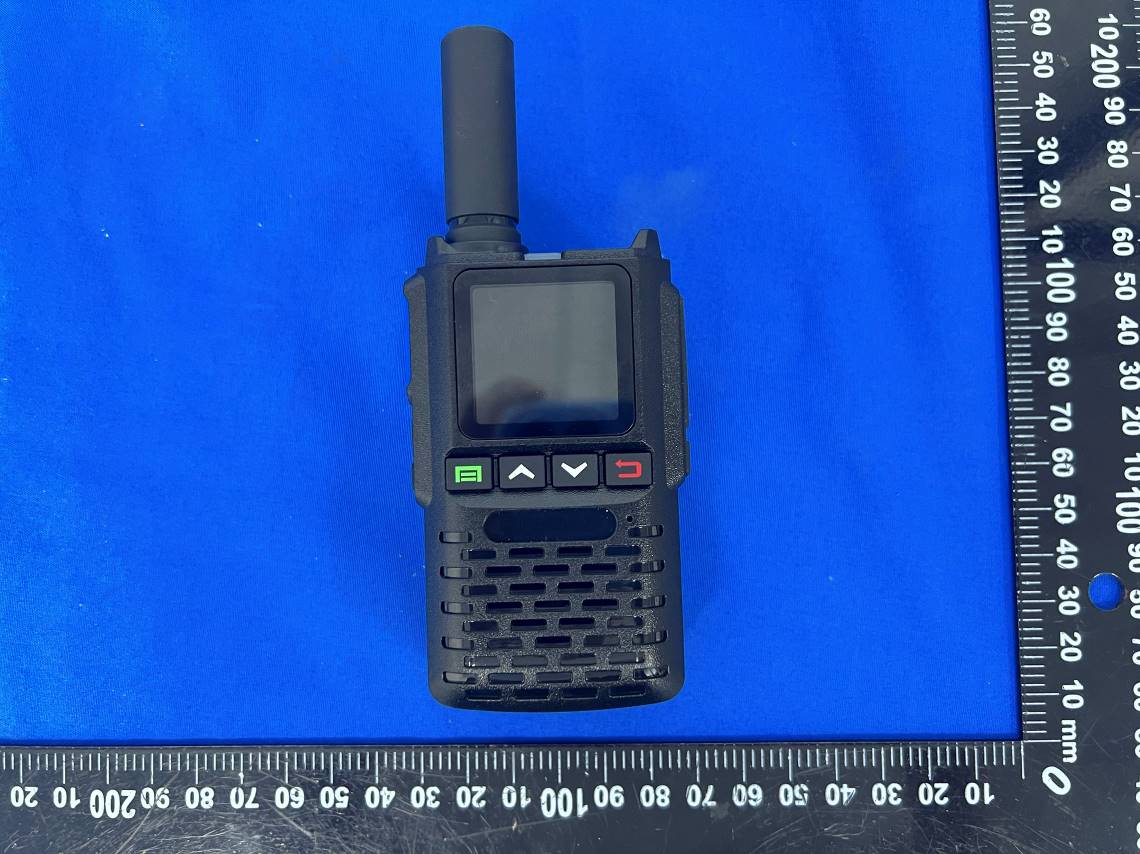

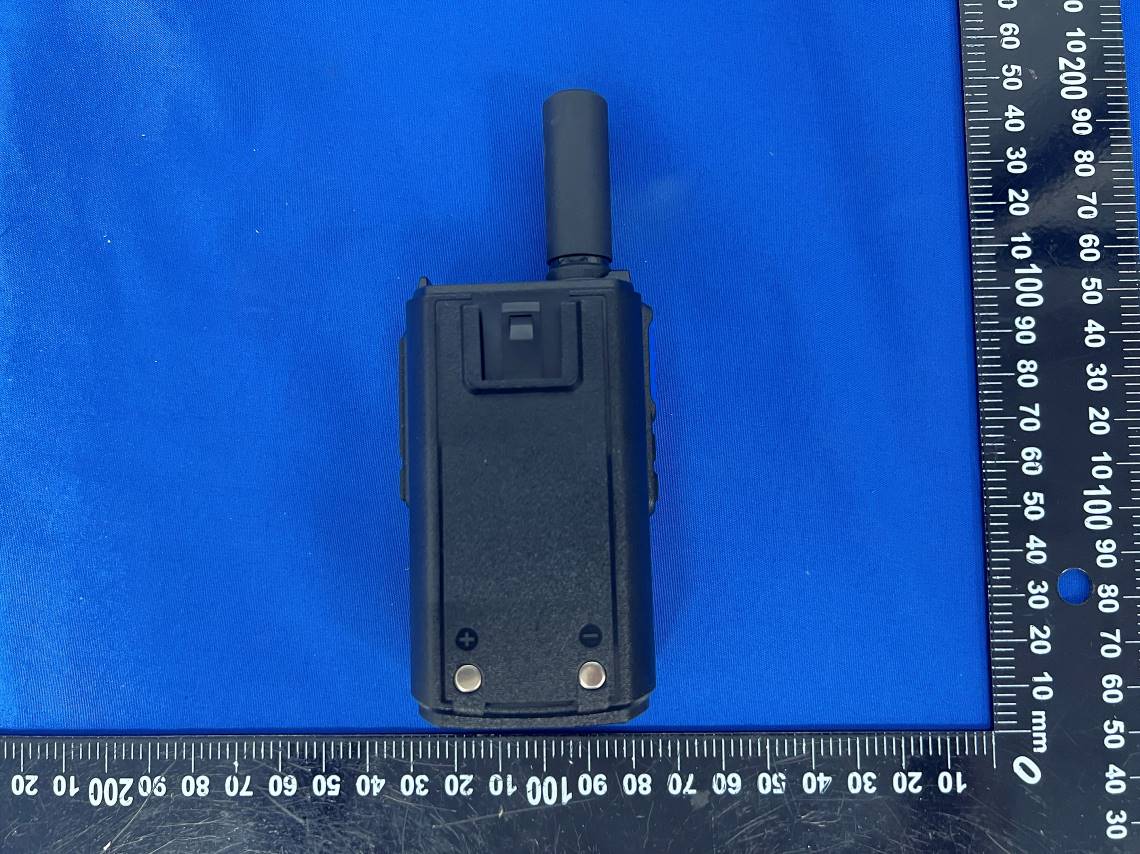

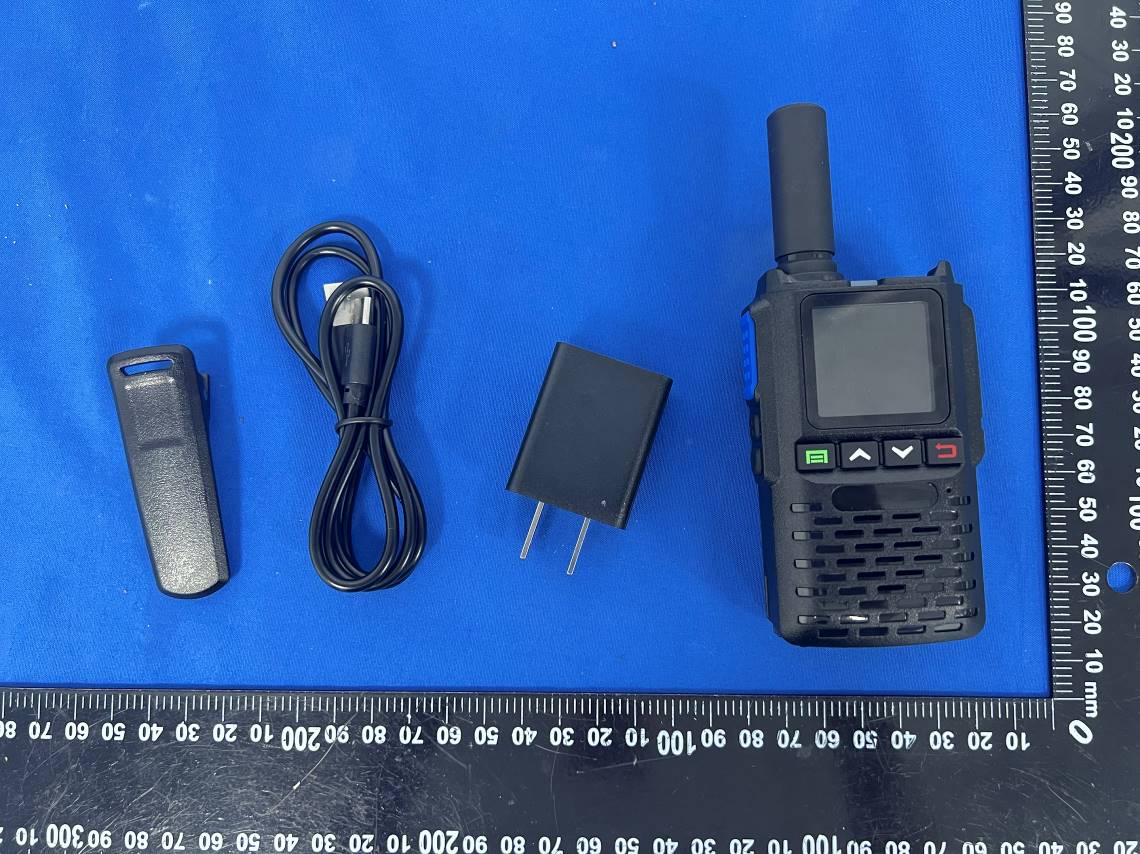

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	347.00 mW	1M09G7D	2.5ppm
2	24E	1.85 GHz - 1.91 GHz	292.00 mW	4M47D7W	2.5ppm
3	24E	1.86 GHz - 1.90 GHz	304.00 mW	17M9G7D	2.5ppm
4	24E	1.86 GHz - 1.90 GHz	269.00 mW	4M64D7W	2.5ppm
5	27	1.71 GHz - 1.75 GHz	284.00 mW	4M47D7W	2.5ppm
6	27	1.72 GHz - 1.75 GHz	326.00 mW	13M4G7D	2.5ppm
7	27	1.72 GHz - 1.75 GHz	299.00 mW	17M8G7D	2.5ppm
8	27	1.72 GHz - 1.75 GHz	275.00 mW	4M68D7W	2.5ppm
9	22H	825.5 MHz - 847.5 MHz	142.00 mW	2M69D7W	2.5ppm
1	22H	829 MHz - 844 MHz	163.00 mW	8M94G7D	2.5ppm
11	22H	829 MHz - 844 MHz	138.00 mW	4M50D7W	2.5ppm
12	27	2.51 GHz - 2.56 GHz	313.00 mW	13M4G7D	2.5ppm
13	27	2.51 GHz - 2.56 GHz	283.00 mW	4M62D7W	2.5ppm
14	27	2.51 GHz - 2.56 GHz	309.00 mW	17M9G7D	2.5ppm
15	27	2.51 GHz - 2.56 GHz	282.00 mW	4M64D7W	2.5ppm
16	27	1.72 GHz - 1.77 GHz	398.00 mW	13M4G7D	2.5ppm
17	27	1.72 GHz - 1.77 GHz	321.00 mW	4M62D7W	2.5ppm
18	27	1.72 GHz - 1.77 GHz	373.00 mW	17M9G7D	2.5ppm
19	27	1.72 GHz - 1.77 GHz	309.00 mW	4M64D7W	2.5ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for operation below 1 GHz and EIRP for operation above 1 GHz. LTE supports 1.4/3/5/10/15/20 MHz BW modes in Band 2/4/66, 1.4/3/5/10 MHz BW modes in Band 5, and 5/10/15/20 MHz BW modes in Band 7. The antenna(s) used for this transmitter must not be co-located with any other transmitters, except in accordance with FCC multi-transmitter product procedures. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 25 mm between the device and the face. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head (Face up) and body-worn accessory exposure conditions are 0.36 W/kg and 1.19 W/kg, respectively. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations.
