A3KM10815" LCD Color Monitor

Philips Electronics Industries (Taiwan) Ltd

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Feb 18, 2002
Application Purpose: Original Equipment
Date of Application: Feb 18, 2002
Equipment Note: 15" LCD Color Monitor
Frequency Range: 0.03000000 - 0.06100000
Company: Philips Electronics Industries (Taiwan) Ltd
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC ID: A3KM108 Product Information Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views • Physical Function Product Features 150P3A / 150P3C Ultra Slim Frame l15-inch color LCD monitor with excellent display performance lStereo 48W PMPO (2 x 2W RMS) lDual input- accepts both DVI Digital and VGA analog inputs lEmbedded universal AC power supply lAdjustable viewing height lPortrait and landscape display lAUTO adjustment optimizes picture quality lUser installable bezel for optional protective cover choice lOptional USB hub RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • TypeTFT LCD • Screen size15" visual • Pixel Pitch0.297 x 0.297mm (15.0") • LCD Panel type 1024 x 768 pixels R.G.B. vertical stripe Anti-glare polarizer hardness • Effective viewing area 304.1 x 228.1mm (15.0") • Display Colors16.7M colors SCANNING • Vertical refresh rate 56Hz-76Hz • Horizontal 30KHz-61KHz Exhibit 3 Installstion and Operating instructions FCC ID: A3KM108 • Horizontal frequency 30KHz-61KHz VIDEO • Video dot rate80 MHz • Input impedance - Video 75 ohm - Sync 5K6 ohm • Input signal levels700m Vpp • Sync input signal Separate sync Composite sync Sync on Green • Sync polaritiesPositive and negative • Input Frequency XGA Hsync 48- 61 KHz, Vsync 60 - 76 Hz (N.I.) SVGA Hsync 35- 50 KHz, Vsync 56 - 75 Hz (N.I.) VGA Hsync 31- 38 KHz, Vsync 60 - 76 Hz (N.I.) • Video interface Dual input: Both Analog (D-Sub) and DVI-D (Digital only) are available. It can be switching via OSD selection. AUDIO • Input signal level0.7 Vpp • Headphone out signal level 32 Ohm 20+20mW • Input signal connector 3.5mm mini jack • Loudspeaker 2+2W stereo front firing (PMPO: 48W) MICROPHONE • Sensitivity -55dB re 1V/ubar at 1KHz • Output impedance 2.2K Ohm max. • Directivity -5dB at 180° • Frequency range300Hz-3KHz OPTICAL CHARACTERISTICS • Contrast ratio350 (typ.) • Brightness 250 cd/m 2 (typ.) • Peak contrast angle 6 o'clock • White x: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338 FCC ID: A3KM108 * These information are subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes RETURN TO TOP OF THE PAGE • White Chromacity x: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338 (at 6500° K) • Viewing Angle (C/R >5) Upper >50° (typ.) Lower >60° (typ.) Left >75 ° (typ.) Right > 75 ° (typ.) • Response time <=30ms (typ.) • Maximum 1024 x 768 at 75Hz • Recommended 1024 x 768 at 60Hz 14 user definable modes 14 factory preset modes: H. freq (KHz)ResolutionV. freq (Hz) 31.469640*35070.086 31.469720*40070.087 31.469640*48059.940 35.000640*48067.000 37.861640*48072.809 37.500640*48075.000 35.156800*60056.250 37.879800*60060.317 48.077800*60072.188 46.875800*60075.000 49.700832*62475.000 48.3631024*76860.004 56.4761024*76870.069 60.0231024*76875.029 FCC ID: A3KM108 Automatic Power Saving If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving features: RETURN TO TOP OF THE PAGE Physical Specifications * These information are subject to change without notice. RETURN TO TOP OF THE PAGE Power Management Definition VESA Mode Video H- sync V- sync Power Used LED color ON Active Yes Yes < 30W Green Stand-by Blanked No Yes < 2W Amber Suspend Blanked Yes No < 2W Amber OFF Blanked No No < 2W Amber This monitor is ENERGY STAR ® compliant. As an ENERGY STAR ® Partner, PHILIPS has determined that this product meets the ENERGY STAR ® guidelines for energy efficiency. • Dimension (WxHxD) * 343 x 354 x 179 mm (incl. Pedestal) • Weight *4.6 Kg • Swivel+/ - 175° • Portrait display90° rotation counter clockwise • Tilt (Forward / Backward) - 5° / 25° • Power supply100 — 240 VAC, 50/60 Hz • Power consumption 23 W (typ.) • Temperature (operating)5° C to 40° C • Relative humidity 20% to 80% • System MTBF 50K hrs (CCFL 40Khrs) • Cabinet color 150P3A: Light Gray 150P3C: Black FCC ID: A3KM108 Pin Assignment 1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the table: 2. The 15-pin D-sub connector (male) of the signal cable: Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment 1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0- 2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+ 3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield 4 No connect 12 No connect 20No connect 5 No connect 13 No connect 21No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield 7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+ 8 No connect 16Hot Plug Detect24 T.M.D.S. Clock- Pin No. Assignment Pin No. Assignment 1 Red video input 9 DDC +5V 2 Green video input 10 Logic ground 3 Blue video input 11 Identical output - connected to pin 10 4 Identical output - connected to pin 10 12 Serial data line (SDA) 5 Cable detect 13 H. Sync / H+V 6 Red video ground 14 V. Sync 7 Green video ground 15 Data clock line (SCL) FCC ID: A3KM108 RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function 8 Blue video ground 1) Tilt 2) Swivel 3) Height adjustment FCC ID: A3KM108 4) Portrait display Turn monitor from landscape view to portrait view 4.1) Tilt the monitor body at an angle 4.2) Rotate the monitor body 90 degrees counter clockwise. FCC ID: A3KM108 Installing your LCD Monitor Your LCD Monitor : Front View Product Description • Connecting to Your PC • Remove and Re-install the Base • Getting Started • Optimizing Performance • Accessories (optional) Front View Product Descripti…

Text truncated - open the document above for the full version.

Block Diagram

! "" 5 ! 209;EB ! " " Exhibit 5 Block diagram

External Photos

FCC ID: A3KM108 Exhibit 7 Photographs Front View FCC ID: A3KM108 Rear View FCC ID: A3KM108 Assembly w/o Audio Base

ID Label/Location Info

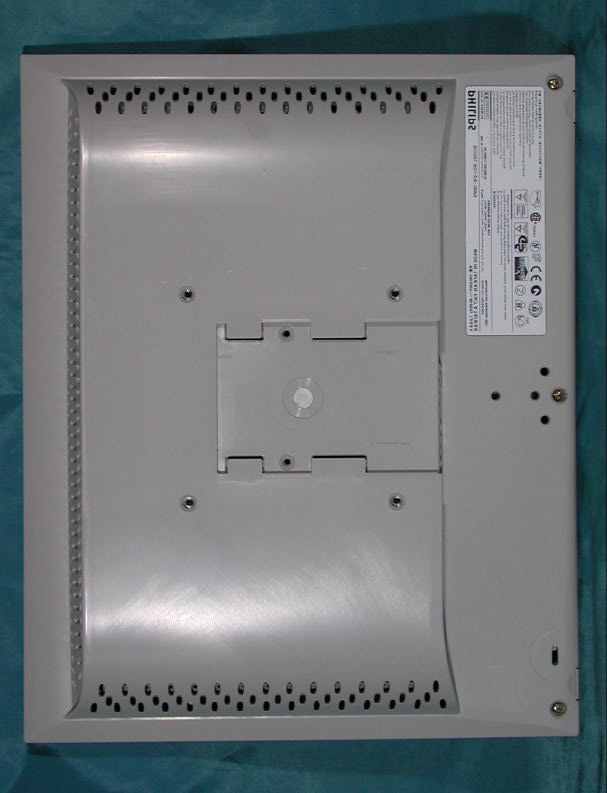

FCC ID: A3KM108 Rear View FCC ID: A3KM108 Label

Internal Photos

FCC ID: A3KM108 Assembly w/o Front Cabinet FCC ID: A3KM108 Assembly w/o Back Cover FCC ID: A3KM108 Shielding Cover FCC ID: A3KM108 Assembly w/o Shielding Cover FCC ID: A3KM108 PCB Layout FCC ID: A3KM108 PCB Layout FCC ID: A3KM108 Plate FCC ID: A3KM108 LCD Panel FCC ID: A3KM108 Audio Base FCC ID: A3KM108 Audio Assembly FCC ID: A3KM108 PCB Layout FCC ID: A3KM108 PCB Layout FCC ID: A3KM108 Power Cord and I/F Cables
