e-Manual Philips LCD Monitor Electronic User’s Manual file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/index.htm2006-03-06 4:02:55 PM Product Information • Product Features• Technical Specifications• Resolution & Preset Modes• Philips Pixel Defect Policy• Automatic Power Saving• Physical Specification• Pin Assignment• Product Views• Physical Function• Rotating the Monitor• SmartManage Product Information Product Features 200WP7 (HWP7200P) ● Outstanding front of screen performance ❍ WSXGA, wide format 1680x1050 resolution for sharper display ❍ Fast response time for better display of moving images ❍ Viewing angle up to 178 degrees ❍ Dual input accepts both analog VGA and digital DVI signals ● Maximum comfort for maximum productivity ❍ SmartManage compatibility enables LAN-based asset management ❍ 90 degree screen rotation and smart cable management ❍ Screen tilt and swivel adjustment for an ideal viewing angle ❍ Display more images and content without scrolling ● Great convenience ❍ Easy to adjust display settings with Philips SmartControl ❍ High-speed USB 2.0 hub for easy connections ❍ Easy plug-and-play DVI for a true digital experience ❍ Embedded power supply eliminates external power adaptors RETURN TO TOP OF THE PAGE Lead-free Product Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment. With Philips, you can be confident that your display device does not harm the environment. Technical Specifications* LCD PANEL • Type TFT LCD • Screen size 20.1" / 51cm • Pixel Pitch 0.258 x 0.258mm file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (1 of 11)2006-03-06 4:03:06 PM Product Information • LCD Panel type 1680 x 1050pixels R.G.B. vertical stripeAnti-glare polarizer, hard coated • Effective viewing area 433.44 x 270.9mm • Display Colors 8 bits interface (16.7M colors) SCANNINGVertical refresh rate 56Hz-76Hz (Analog / Digital input) Horizontal Frequency 30kHz-98kHz (Analog input) VIDEO• Video dot rate 210 MHz • Input impedance - Video 75 ohm - Sync 2.2K ohm • Input signal levels 0.7 Vpp • Sync input signal Separate syncComposite sync Sync on green • Sync polarities Positive and negative Optical characteristics • Peak contrast angle 6 o'clock • White Chromaticity: x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) * This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes • Maximum 1680 x 1050 at 75Hz(analog input) 1680 x 1050 at 60Hz(digital input) •Recommended 1680 x 1050 at 60Hz(digital input) file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (2 of 11)2006-03-06 4:03:06 PM Product Information 40 user definable modes 15 factory preset modes: H. freq (kHz) Resolution V. freq (Hz) 31.469 640x350 70.086 31.469 720x400 70.087 31.469 640x480 59.940 35.000 640x480 67.000 37.500 640x480 75.000 35.156 800x600 56.250 37.879 800x600 60.317 46.875 800x600 75.000 48.363 1024x768 60.004 60.023 1024x768 75.029 68.700 1152x870 75.000 63.981 1280x1024 60.020 79.976 1280x1024 75.025 75.0 1600x1200 60 65.29 1680x1050 60.0 RETURN TO TOP OF THE PAGE Automatic Power SavingIf you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will be waken up automatically by your PC. The following table shows the power consumption and signaling of this automatic power saving feature: Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color Active ON Yes Yes < 48W Green file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (3 of 11)2006-03-06 4:03:06 PM Product Information Sleep OFF No No < 2W Amber Switch Off OFF - - < 1W OFF This monitor is ENERGY STAR ® compliant. As an ENERGY STAR ® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. RETURN TO TOP OF THE PAGE Physical Specifications • Dimension (WxHxD) 483 x 402 x 235 mm (incl. Pedestal) (in lowest position) • Weight 8.6 Kg • Tilt / Swivel -5° ~ 25° / ± 65° • Height adjustment range 130 mm • Power supply 100— 240 VAC, 60 - 50 Hz • Power consumption 48 W* (typ.) • Temperature 5° C to 35° C (operating) -20° C to 60° C (storage) • Relative humidity 20% to 80% • System MTBF 50K hrs (excluding CCFL 40K hrs) • Cabinet color Black/Silver • Altitude - storage/shipment - operating 0 - 40,000 feet (12,192m) 0 - 12,000 feet (3657.6m) * This data is subject to change without notice.* Resolution 1680 x 1050, standard size, contrast max., brightness 50%, 6500° K, full white pattern. RETURN TO TOP OF THE PAGE Pin Assignment1. The DVI connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/PRODUCT.HTM (4 of 11)2006-03-06 4:03:06 PM Product Information Pin No. Signal Assignment Pin No. Signal Assignment PinNo. Signal Assignment 1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0- 2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+ 3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield 4 No connect 12 No connect 20 No connect 5 No connect 13 No connect 21 No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield 7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+ 8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock- 2. The 15-pin D-sub connector (male) of the signal cable: Pin No. Assignment Pin No. Assignment 1 Red video input 9 +5V 2 Green video input/SOG 10 Logic ground 3 Blue video input 11 Ground 4 Ground 12 Serial data line (SDA) 5 No connect 13 H. Sy…

Text truncated - open the document above for the full version.

HWP7200P Block Diagram • To use NOVATEK Scalar MCU NT68F631A D ‐ sub DVI_D LVDS RGB/Hsync/ Vsync) E 2 PROM M24C16 Specification : 1 x Analog : 1680 x 1050 / 75Hz 1 x Digital : 1680 x 1050 / 60Hz Specification : 1 x Analog : 1680 x 1050 / 75Hz 1 x Digital : 1680 x 1050 / 60Hz DC to DC 5V 3.3V 1.8V Panel Panel Vcc AUO:5V NT68563H for 1A + 1D HWP7200P Circuit Description General HWP7200P is the 7 th generation of Hudson series Flat Panel Display Monitor. It designed with LVDS interface feature. The monitor featured with DVI-D and analog signal input interface, and modularized as a display unit with embedded universal AC power supplies inside monitor main body. The monitor comes with super ergo base (SEB), the base is featured with tilt, swivel, height adjustment and portrait functionality. The power button and display control buttons (tact switch type) are on the front of the monitor. The monitor will be TCO03/TCO99 and Energy Star compliant and incorporate energy saving features described further in this document. The monitor shall support an internal scalar to automatically enable the monitor to display lower resolution video modes into 1680x1050 full screen display. The monitor shall communicate display data to the host computer using DDC2B and shall support EDID structure 1.3 for analog and digital signal input. 1. Power supply Main Voltage: AC 90 - 135 Vrms and 170 – 264 Vrms, 50/60±2 Hz Power consumption: Operating < 48W w/o USB, Standby < 2W. DC power switch off < 1W. Power cord length: 1.8M Power cord type: 3 lead with earth plug Power indicator: LED (ON: green, Standby: amber) Auto power saving: EPA, Nutek, VESA, DPMS, E2000 3. Input signal Horizontal scan: 30 - 98 KHz Vertical scan: 56 - 76 Hz Input signals 1).VESA Analog Input signal : Video, Hsync., Vsync Video : 0.7 Vp-p, input impedance, 75 ohm @DC Sync. : Separate sync TTL level, input impedance 5k ohms Hor. sync : Positive/Negative Ver. sync : Positive/Negative 2).Intel DVI Digital Input signal : Four channel TMDS signals 4. OSD (On Screen Display) function Software control function via OSD/ Control as below: Analog Signal Input 1 st LEVEL 2 nd LEVEL 3rd LEVEL MONITOR SETUP Exit Brightness & Contrast Brightness Contrast Color Original Color, 9300K, 6500K, sRGB, User Define Position Horizontal Vertical Input Selection Analog (D-Sub), Digital (DVI-D) Language English, Espanol, Frencais, Deutsch, Italiano, Russian Phase/ Clock Phase Clock More Settings OSD Settings Horizontal Vertical Reset No Yes Serial No.: (Serial No.) Timing Mode Up/Down to Move, ok to Confirm Digital Signal Input 1 st LEVEL 2 nd LEVEL 3rd LEVEL MONITOR SETUP Exit Brightness & Contrast Brightness Contrast Color Original Color, 9300K, 6500K, sRGB, User Define Input Selection Analog (D-Sub), Analog (DVI-A), Digital (DVI-D) Language English, Espanol, Frencais, Deutsch, Italiano, Russian Phase/ Clock (Grey out) More Settings OSD Settings Horizontal Vertical Reset No Yes Serial No.: (Serial No.) Timing Mode Up/Down to Move, ok to Confirm 5. LCD panel (QDI) Type NR. : LM201W01 SLA1 Outside dimensions : 459.4(H) x 296.4(V) x 22.8(D) (Typ) mm Pixel Pitch ( mm ) : 0.258 mm x 0258mm Color pixel arrangement : RGB vertical stripes Display surface : antiglare with hard coating Color depth : 16.7M colors (8 bits) Backlight : Six CCFLs Active area : 433.44(H) x 270.9(V) View angle : Horizontal & Vertical 178 degree (CR>=10) Contrast ratio : 500(min.); 800 :1 (typ) White luminance : Panel original color 250nits (min), 300 nits (Typ) 6. Function block 6.1 Scaler board Scaling NT68563HFG including ADC, Scaler, OSD, LVDS) Analog - Monitor the input horizontal and vertical sync signal to judge input video mode - Sample the input video signal according to its pixel rate to form a digital data for panel. - Auto-adjustment for sampling phase and frequency, picture alignment and color alignment. - Send the parameters to format scaler IC according to the input mode. - Process the control data listed in OSD section. Digital - Monitor DVI input with internal TMDS receiver to judge input video mode - Sample the input video signal according to its pixel rate to form a digital data for panel. - Send the parameters to format scaler IC according to the input mode. - Process the control data listed in OSD section. MCU NT68F631A - Control Scaling and all I/Os port of monitor including audio. - Store the source code into internal Flash ROM and capable of down loading program via ISP. 6.2 Front panel switch control board - Used for OSD function and power on/off 7 push buttons (left, ok, right, up, down, auto, power switch) - Power on/off LED indicator 6.3 AC to DC Power Board The AC power input from 90 VAC to 264 VAC can generate 12VDC and 5VDC power to supply to inverter function and scaler board.

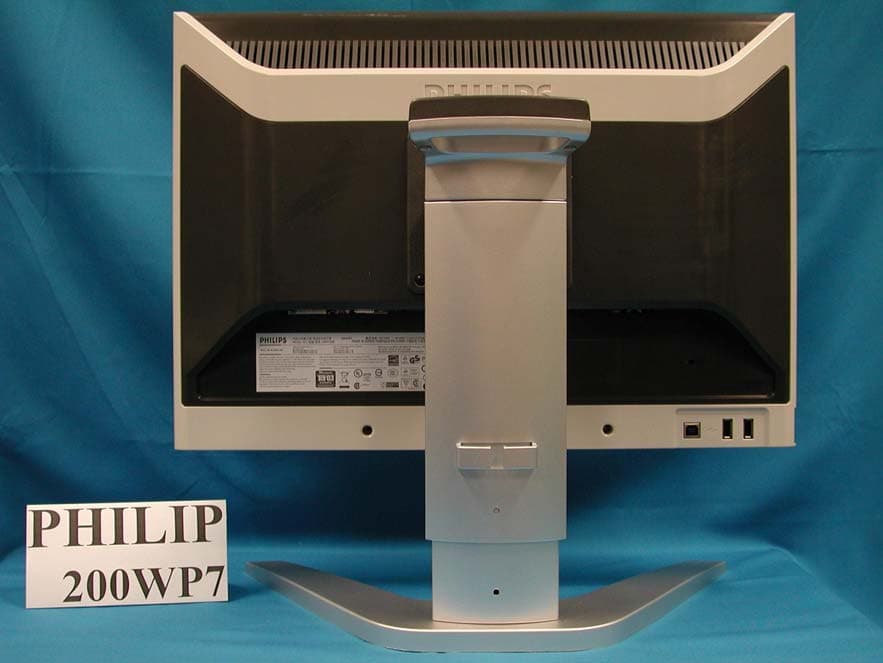

Page 1 of 9 Exhibit 7 Photographs Front View Rear View Page 2 of 9 Label Rear View w/o Base

Page 2 of 9 Label Rear View w/o Base Exhibit 2 FCC ID Label

Page 3 of 9 Rear View w/o Back Cover Shielding Cover Page 4 of 9 Assembly w/o Shielding Cover PCB Layout Page 5 of 9 PCB Layout PCB Layout Page 6 of 9 PCB Layout PCB Layout Page 7 of 9 PCB Layout Assembly w/o PCB Page 8 of 9 Plate LCD Panel Page 9 of 9 Power Cord and I/F Cables Cabinet Assembly

FCC ID. A3KM149 Page 1 of 101 APPLICATION FOR CERTIFICATION On Behalf of Philips Electronics Industries (Taiwan) Ltd. LCD Color Monitor Model No.Κ(1)HWB7200P (2)HWP7200P FCC ID : A3KM149 Brand : PHILIPS Prepared for : Philips Electronics Industries (Taiwan) Ltd. 5, Tze Chiang 1 Road, Chungli Industrial Park Chungli, Taoyuan, Taiwan, R.O.C. Prepared By : Audix Corporation Technical Division EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou, Taipei County, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number: EM950194 Report Number: EM-F950071 Date of Test :Feb. 22 ~ 27, 2006 Date of Report :Mar. 10, 2006 Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 2 of 101 TABLE OF CONTENTS DescriptionPage Test Report Certification........................................................................................................................3 1. GENERAL INFORMATION..........................................................................................................4 1.1.Description of Device ................................................................................................................................ 4 1.2.Tested Supporting System Details............................................................................................................. 5 1.3.Description of Test Facility ....................................................................................................................... 8 1.4.Measurement Uncertainty.......................................................................................................................... 8 2. CONDUCTED EMISSION MEASUREMENT ............................................................................9 2.1.Test Equipment.......................................................................................................................................... 9 2.2.Block Diagram of Test Setup .................................................................................................................... 9 2.3.Conducted Emission Limit ( ̈15.107(a), Class B) ................................................................................... 10 2.4.EUT’s Configuration during Compliance Measurement ......................................................................... 11 2.5.Operating Condition of EUT ................................................................................................................... 12 2.6.Test Procedure ......................................................................................................................................... 12 2.7.Test Results.............................................................................................................................................. 13 3. RADIATED EMISSION MEASUREMENT...............................................................................38 3.1.Test Equipment........................................................................................................................................ 38 3.2.Block Diagram of Test Setup .................................................................................................................. 38 3.3.Radiation Limit ( ̈15.109/CISPR 22, Class B)........................................................................................ 40 3.4.EUT’s Configuration during Compliance Measurement ......................................................................... 40 3.5.Operating Condition of EUT ................................................................................................................... 40 3.6.Test Procedure ......................................................................................................................................... 41 3.7.Radiated Emission Measurement Results................................................................................................ 42 4. DEVIATION TO TEST SPECIFICATIONS ..............................................................................88 5. PHOTOGRAPHS...........................................................................................................................89 5.1.Photos of Conducted Emission Measurement ......................................................................................... 89 5.2.Photos of Radiated Measurement at Open Area Test Site (30-1000MHz).............................................. 93 5.3.Photos of Radiated Measurement at Open Area Test Site (1-2GHz) ...................................................... 99 Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 3 of 101 TEST REPORT CERTIFICATION ApplicantΚPhilips Electronics Industries (Taiwan) Ltd. Factory #1 ΚPhilips Consumer Elec. Co. of Suzhou Ltd. Factory #2 ΚTPV Electronics (Fujian) Co., Ltd EUT Description ΚLCD Color Monitor FCC ID Κ A3KM147 (A) MODEL NO. Κ (1)HWB7200P (2)HWP7200P (B) SERIAL NO. Κ (1)TY0405400 (2)TY0405406 (C) BRAND Κ PHILIPS (D) POWER SUPPLY ΚAC 100-240V, 60-50Hz (E) TEST VOLTAGE Κ AC 120V/60Hz Measurement Procedure Used: FCC CFR 47 Part 15 Subpart B/Feb. 2006 and CISPR 22/1997 ANSI C63.4-2003 The device described above was tested by AUDIX Corporation to determine the maximum emission levels emanating from the device. The maximum emission levels were compared to the FCC Part 15 Subpart B with the provisions of section ̈15.107 (a) and ̈15.109 (a)(g) Class B limits both conducted and radiated emission. The measurement results are contained in this test report and AUDIX Corporation is assumed full responsibility for the accuracy and completeness of these measurements.Also, this report shows that the EUT to be technically compliance with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of AUDIX Corporation. Date of Test : Feb. 22 ~ 27, 2006 Prepared by : (MayChen/Assistant) Test Engineer : (AlexDeng/SectionManager) Approved & Authori…

Text truncated - open the document above for the full version.

FCC ID. A3KM149 Page 89 of 101 5. PHOTOGRAPHS 5.1. Photos of Conducted Emission Measurement Test Model: HWB7200P, LCD Panel’s Angle: 0° FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 90 of 101 Test Model: HWB7200P, LCD Panel’s Angle: 90° FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 91 of 101 Test Model: HWP7200P, LCD Panel’s Angle: 0° FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 92 of 101 Test Model: HWP7200P, LCD Panel’s Angle: 90° FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 93 of 101 5.2. Photos of Radiated Measurement at Open Area Test Site (30-1000MHz) Test Model: HWB7200P, LCD Panel’s Angle: 0° FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 94 of 101 Test Model: HWB7200P, LCD Panel’s Angle: 90° FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 95 of 101 Test Model: HWB7200P, Test Mode: 1680*1050/60Hz, 66kHz, DVI Input, LCD Panel’s Angle: 0° SETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION SETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 96 of 101 Test Model: HWP7200P, LCD Panel’s Angle: 0° FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 97 of 101 Test Model: HWP7200P, LCD Panel’s Angle: 90° FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 98 of 101 Test Model: HWP7200P, Test Mode: 640*480/60Hz, 31kHz, DVI Input, LCD Panel’s Angle: 0° SETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION SETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 99 of 101 5.3. Photos of Radiated Measurement at Open Area Test Site (1-2GHz) Test Model: HWB7200P, Test Mode: 1680*1050/60Hz, 66kHz, DVI Input, LCD Panel’s Angle: 0° FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 100 of 101 Test Model: HWP7200P, Test Mode: 640*480/60Hz, 31kHz, DVI Input, LCD Panel’s Angle: 0° FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT Audix Corporation. Report No. EM-F950071 FCC ID. A3KM149 Page 101 of 101 Audix Corporation. Report No. EM-F950071
