A3KM11118 inches SXGA LCD all-in-one Monitor/TV

Product Information Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views • Physical Function Product Features 180MT
18 inch-SXGA LCD all-in-one Monitor/TV with excellent display performance
Multiple video input allowing display of PC, TV(with Teletext), DVD and VCD
Picture in Picture (PIP) function for displaying both TV or video and PC application on the screen
Super-high brightness/contrast and fast response time
100-page Teletext (available only in Asia Pacific and Western Europe)
Digital Nicam/2CS stereo(available only in Asia Pacific and Western Europe)
Component Video Input (YPbPr/YCbCr) for DVD (available only in Asia Pacific and NTSC systems)
Euroconnector (SCART) (available only in Western Europe) RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • TypeTFT LCD • Screen size18.1" visual • Pixel Pitch0.2805 x 0.2805mm • LCD Panel type 1280 x 1024pixels R.G.B. vertical stripe Anti-glare polarizer • Effective viewing area(H) 359.0 x (V) 287.2mm • Display Colors8 bits interface (16.7M colors) SCANNING • Vertical refresh rate 56Hz-75Hz • Horizontal frequency 30kHz-80kHz Exhibit 3 Installstion and Operating Instructions * These information are subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes VIDEO • Video dot rate135 MHz • Input impedance - Video 75 Ohm - Sync 2K Ohm • Input signal levels0.7 Vpp • Sync input signal Separate sync Composite sync • Sync polaritiesPositive and negative • Input Frequency SXGA Hsync 64- 80 kHz, Vsync 60 - 75 Hz (N.I.) XGA Hsync 48- 61 kHz, Vsync 60 - 75 Hz (N.I.) SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.) VGA Hsync 31- 38 kHz, Vsync 60 - 75 Hz (N.I.) • Video interface D-sub, S-Video, TV-RF, SCART (Europe) or composite and components video (others) AUDIO • Input level for PC/SVHS/SCART 500 mV nominal • Headphone out signal level 4mW max. • Loudspeaker 5W Stereo Audio (2.5W/channel RMS x2, 200Hz~10kHz, 4 ohm, 10% THD) OPTICAL CHARACTERISTICS • Contrast ratio 300:1 (typ.) • Brightness 300 cd/m 2 (typ.) • Peak contrast angle6 o'clock • White Chromacity x: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338 (at 6500° K) • Viewing Angle (C/R >10) Upper >85° (typ.) Lower > 85° (typ.) Left >85 ° (typ.) Right >85 ° (typ.) • Response time <=30ms (typ.) RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving • Maximum1280 x 1024 at 75Hz • Recommended 1280 x 1024 at 60Hz 17 user definable modes 17 factory preset modes: (Interlace mode is not applicable) H. freq (kHz) Resolution V. freq (Hz) 31.5 640*350 70.1 31.5 720*400 70.1 31.5 640*480 59.9 35.0 640*480 67.0 37.8 640*480 72.8 37.5 640*480 75.0 35.2 800*600 56.3 37.9 800*600 60.3 48.0 800*600 72.0 46.9 800*600 75.0 49.7 832*624 75.0 48.4 1024*768 60.0 56.5 1024*768 70.0 60.1 1024*768 75.0 68.7 1152*870 75.0 64.0 1280*1024 60.0 80.0 1280*1024 75.0 features: RETURN TO TOP OF THE PAGE Physical Specifications * These information are subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assignment The 15-pin D-sub connector (male) of the signal cable: Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes 68W (typ.) Green Stand-by Blanked No Yes < 2W Blinking Green Suspend Blanked Yes No < 2W Blinking Green OFF Blanked No No < 2W Blinking Green This monitor is ENERGY STAR ® compliant. As an ENERGY STAR ® Partner, PHILIPS has determined that this product meets the E NERGY S TAR ® guidelines for energy efficiency. • Dimension (WxHxD) 452 x 452 x 200 mm (incl. Pedestal) • Weight 6.3 Kg • Tilt (Forward / Backward)0° / 20° • Power supply100 — 240 VAC, 50/60 Hz • Power consumption 68 W (typ.) • Temperature (operating) 0° C to 35° C (operating) -20 ° C to 60° C (storage)) • Relative humidity 20% to 80% • System MTBF50K hrs RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function Pin No. Assignment Pin No. Assignment 1 Red video input 9 DDC +5V 2 Green video input 10 Logic ground 3 Blue video input 11 Identical output - connected to pin 10 4 Identical output - connected to pin 10 12 Serial data line (SDA) 5 Ground 13 H. Sync / H+V 6 Red video ground 14 V. Sync 7 Green video ground 15 Data clock line (SCL) 8 Blue video ground Tilt RETURN TO TOP OF THE PAGE Installing your LCD Monitor/TV Front View Product Description • Connecting to Your PC, TV antenna,DVD/VCR etc. • Remo and Re-install the Base • Basic Monitor TV Connections • Getting Started • Optimizing Performance Front View Product Description 1 PIP Activate PIP (Picture in Picture) window and select size 2 PC<->TV/Video Switch the monitor between PC mode and TV/Video mode 3 VIDEO SOURCE TV/Video source selection 4 Power switch On/Off 5 Increase or decrease the channel number or up or down the highlighted function in OSD 6 Automatically adjust the H/V position, phase and clock setting 7 Increase or decrease the level of audio volume or increase or decrease the highlighted function in OSD 8 MENU OK Open the OSD and select the highlighted function RETURN TO TOP OF THE PAGE Side View RETURN TO TOP OF THE PAGE Rear View 1. Headphone Jack 2. LINE OUT Jack (Europe) RETURN TO TOP OF THE PAGE 1 DC 12VDC 12V power in 2 PC - VideoD-Sub input 3 PC - AudioPC Stereo input 4 S-VIDEO (L)AV audio (L) S-VIDEO (R)AV audio (R) 5 S-VIDEO S-VIDEO in 6 EXTERNAL/ EURO-AV SCART connection (for Europe only) 7 75 TV Antenna or CATV cable in (North America and Asia Pacific) 1 DC …

Text truncated - open the document above for the full version.

Multi-function TV-MONITOR FUNCTION BLOCK(W/ PIP) --Base on A10+ & Sag scalar JAGASM VIDEO Encoder SAA 7118H SCALAR JAGASM De-interlicer FLI2200 POWER 13V/8V/ 5V/3.3V/2V5/33V Audio Amp TDA1517 Earphone Amp TDA1308 VGA IN 15P D-SUB SDRAM based frame buffer x3M SCART/ YC/LR/ PC Audio Line in Output to Panel EEPROM 24FC16 SDRAM for De-interlacer CPU 80C51 ROM 128K27C512 DDC/ Alignm ent 74HC 4052 Address latchSN74 LV373AD Line Decoder 74HC139 Key control TTL to LVDS Board IIC IIC IIC Sync Buffer 74LV14 A10+ INTERFACE User Key control Tuner DDC EEPROM 24LC02 Exhibit 5 Block Diagram

FCC ID: A3KM111 Exhibit 7 Photographs Front View FCC ID: A3KM111 Rear View FCC ID: A3KM111 Label

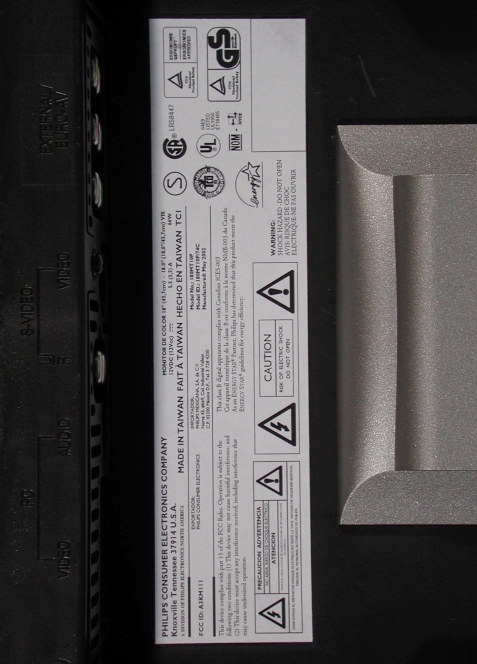

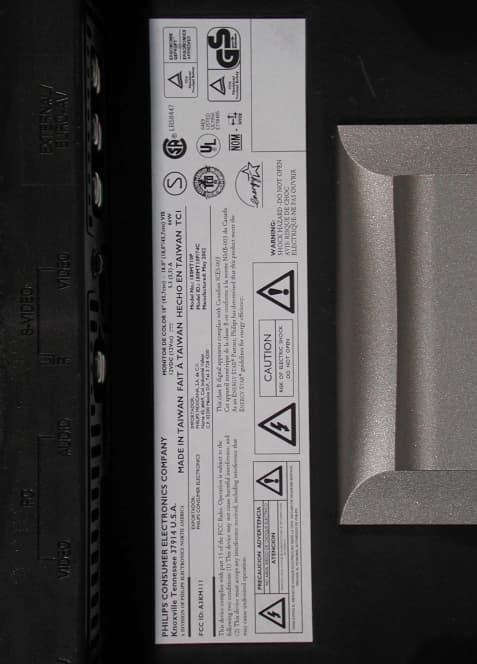

FCC ID Label Exhibit 2

FCC ID: A3KM111 Assembly w/o Back Cover FCC ID: A3KM111 Shielding Cover FCC ID: A3KM111 Assembly w/o Shielding Cover FCC ID: A3KM111 PCB Layout FCC ID: A3KM111 PCB Layout FCC ID: A3KM111 PCB Layout FCC ID: A3KM111 PCB Layout FCC ID: A3KM111 PCB Layout FCC ID: A3KM111 PCB Layout

FCC ID: A3KM111 Assembly w/o PCB FCC ID: A3KM111 Plate FCC ID: A3KM111 LCD Panel FCC ID: A3KM111 AC Adapter FCC ID: A3KM111 Assembly W/O Cabinet FCC ID: A3KM111 Shielding FCC ID: A3KM111 PCB Layout FCC ID: A3KM111 PCB Layout FCC ID: A3KM111 Power Cord and I/F Cables

Philips Electronics Industries (Taiwan) Ltd - EMC Lab. 5, Tze Chiang 1 Road, Chungli Industrial Park, Chungli, Taoyuan, Taiwan Tel.: +886-3-454-9862 Fax.: +886-3-454-9887 E-mail: [email protected] FCC Test Report Report No.: TYR87-2016 Date : 03 July, 2002 Page : Page 1 of 32 Customer : Philips Electronics Industries Name : Mr. S.T. Huang – EE LCD Address : 5, Tze Chiang 1 Road, Zip/City : Chungli Industrial Park, Country : Chungli, Taiwan, R.O.C. Equipment Under Test (including peripherals) : FCC ID. : A3KM111 Model Name : 180MT10P Serial Number : TY0204046 Description : 18” XGA LCD color monitor, Max. resolution 1280x1024/75Hz EMC Standards : FCC Part 15 of October 01,1999 Class B ANSI C63.4-1992 Result : PASSED the limits/test-levels in the standards. Note : The results in this report apply only to the sample(s) and mode(s) tested. It is the manufacturer’s responsibility to assume the continued EMC compliance of production models. Date of receipt of EUT : 01 Jul. 2002 Date of performance of test : 02 Jul., 2002 to 02 Jul., 2002 NVLAP Signatory Philips Electronics Industries (Taiwan) Ltd This report shall not be reproduce except in full, without written approval of the testing laboratory C.C. Wu - EMC Test Engineer Ronnie Yang - EMC Manager Reference: TYR87-2011 180MT10P Date: 03 July 2002 Philips Electronics Industries (Taiwan) Ltd Page: 2 of 32 Table of contents 1. Summary of test results.............................................................................3 2. General information of EUT.......................................................................4 3. Test equipment.......................................................................................5 4. Test configuration of EUT and peripherals......................................................6 5. Test procedure.......................................................................................7 6. Measurement uncertainty...........................................................................9 7. Conducted emissions test..........................................................................10 8. Radiated emissions test............................................................................19 9. Photographs of test set-up.........................................................................28 10. References...........................................................................................32 Reference: TYR87-2011 180MT10P Date: 03 July 2002 Philips Electronics Industries (Taiwan) Ltd Page: 3 of 32 1. Summary of test results Test Standard Result Note Emission, ANSI C63.4-1992 Conducted emission Radiated emission FCC Part 15 FCC Part 15 Passed Passed Remark: The test sample fully complies with the requirements set forth in : FCC Part 15 Class B. Reference: TYR87-2011 180MT10P Date: 03 July 2002 Philips Electronics Industries (Taiwan) Ltd Page: 4 of 32 2. General Information of EUT The EUT, 18” color monitor : Model No. : 180MT10P FCC ID : A3KM111 Brand : Philips The color monitor automatically scans horizontal frequencies between 30KHz and 80KHz , and vertical frequencies between 56Hz and 75Hz. This color monitor displays sharp and brilliant images of text and graphics with a maximum resolution up to 1280x1024 pixels. The monitor has 17 factory-preset modes as indicated in the following table: # Resolution Frequency Pixel rateSync Comment 1 640X350 31.5K/70HZ 25.175 (+/-) IBM VGA 2 720X400 31.5K/70HZ 28.322 (-/+) IBM VGA 3 640X480 31.5K/60HZ 25.175 (-/-) IBM VGA 4 640X480 35.0K/67HZ 30.24 (-/-) MAC 5 640X480 37.9K/72HZ 31.5 (-/-) VESA 6 640X480 37.5K/75HZ 31.501 (-/-) VESA 7 800X600 35.2K/56HZ 36 (+/+) VESA 8 800X600 37.9K/60HZ 40 (+/+) VESA 9 800X600 48.1K/72HZ 50 (+/+) VESA 10 800X600 46.9K/75HZ 49.498 (+/+) VESA 11 832X624 49.7K/75HZ 57.28 (+/+) MAC 12 1024X768 48.4K/60HZ 65 (-/-) VESA 13 1024X768 56.5K/70HZ 75 (-/-) VESA 14 1024X768 60.0K/75HZ 78.75 (+/+) VESA 15 1152X870 68.7K/75Hz 100 (-/-) MAC 16 1280X1024 64.0K/60Hz 108 (+/+) VESA 17 1280X1024 80K/75Hz 135 (+/+) VESA Reference: TYR87-2011 180MT10P Date: 03 July 2002 Philips Electronics Industries (Taiwan) Ltd Page: 5 of 32 3. Test Equipment Test equipment used for line Conducted and Radiated emissions as following. All equipment were calibrated according to ANSI C63.4-1992 and ISO-9000 requirement unless otherwise specified. Traceability to R.O.C. and international standards is assured by using calibrated all equipment. - For Conducted Emissions Test: Test Equipment Model No. Serial No. Last Calibrate Next Calibrate Spectrum HP8568B 2415A00346 08/15/2001 08/15/2002 EMI Receiver R & S ESVS30 841977/006 06/13/2002 06/13/2003 LISN EMCO 3825/2 9311-2153 06/13/2002 06/13/2003 LISN EMCO 3825/2 9311-2154 06/13/2002 06/13/2003 RF Cable 8-meter N/A 05/29-2002 05/29/2003 - For Radiated Emissions Test: Test Equipment Model No. Serial No. Last Calibrate Next Calibrate Spectrum HP8568B 2415A00346 08/15/2001 08/15/2002 RF Preselector HP85685A 2901A00946 08/15/2001 08/15/2002 QP Adapter HP85650A 2043A00366 08/15/2001 08/15/2002 EMI Receiver HP85460A 3441A00199 09/11/2001 09/11/2002 RFI Filter Section HP85460A 3330A00177 09/11/2001 09/11/2002 EMI Receiver R & S ESVS30 841977/006 05/29/2002 05/29/2003 Biconical Antenna EMCO 3110B 3222 06/04/2002 06/04/2003 Biconical Antenna EMCO 3110B 3224 06/04/2002 06/04/2003 Log-Periodic Antenna EMCO 3146A 1424 06/04/2002 06/04/2003 Log-Periodic Antenna EMCO 3146A 1425 06/04/2002 06/04/2003 Turn Table EMCO 1060 1068 05/27/2002 05/27/2003 Antenna Tower EMCO 1050 1113 05/27/2002 05/27/2003 RF Cable M17/75-RG214-NE N/A 05/27/2002 05/27/2003 Reference: TYR87-2011 180MT10P Date: 03 July 2002 Philips Electronics Industries (Taiwan) Ltd Page: 6 of 32 4. Test Configuration of EUT and Peripherals The system was configured for testing in a typical fashion ( as a customer would normally use it ) according to ANSI C63.4-1992, please see the photographs for detail. For system measurement, the EUT “180MT10P” were connecte…

Text truncated - open the document above for the full version.

Reference: TYR87-2011 180MT10P Date: 03 July 2002 Philips Electronics Industries (Taiwan) Ltd Page: 28 of 32 9. Photographs of Test Set-up Conducted Emissions Test Reference: TYR87-2011 180MT10P Date: 03 July 2002 Philips Electronics Industries (Taiwan) Ltd Page: 29 of 32 Conducted Emissions Test Reference: TYR87-2011 180MT10P Date: 03 July 2002 Philips Electronics Industries (Taiwan) Ltd Page: 30 of 32 Radiated Emissions Test Reference: TYR87-2011 180MT10P Date: 03 July 2002 Philips Electronics Industries (Taiwan) Ltd Page: 31 of 32 Radiated Emissions Test
