A3KM113Color Monitor

Product Information Product Features • LightFrame™ for Windows • Technical Specifications • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views Product Features 107B40/43
17" -inch (16.0" VIS) color monitor with excellent front of screen performance for use with MACs and PCs
Autoscan covers horizontal frequencies up to 86kHz offering a maximum resolution of 1600 x 1200 with flicker free display of 1024 x 768 at up to 107 Hz
Flat square high contrast CRT with high-resolution 0.25 mm dot pitch (0.21 hdp)
LightFrame™ for brightest and sharpest display of movie and photo windows
XSD-Xtra Space Design for large screen display in a small footprint: World's shortest 17- inch conventional monitor with maximum depth of only 408 mm/16.1"
Multimedia Base and USB Hub option
sRGB for true on screen color representation.
FCC, CE (in selected countries only) and ISO9241, ISO14001 certified RETURN TO TOP OF THE PAGE LightFrame™ for Windows Introduction Philips LightFrame™ feature enriches the experience of pictures and video on a Philips CRT (picture tube) monitor. LightFrame™ will boost the brightness and sharpness of photos and videos on the monitor screen. To control the LightFrame™ feature in your monitor, you have to install the LightFrame™ application which you will find on this CD-ROM. Note Philips LightFrame™ will only work with monitors that have been built to use this software. Earlier Philips monitors or other manufacturers’ monitors will not work with this special software. It is recommended that you install this software only on a Philips monitor designed to use it. These monitors can be identified by the LightFrame™ logo on the front of the monitor. This software is not designed for use with LCD flat screen monitors. LightFrame™ will work with true Windows-based programs and DOS-based programs that Exhibit 3 Installstion and Operating Instructions pictures. You can decrease this effect by lowering the sharpness setting in the LightFrame™ 3 control panel. Q: How can I tell if my monitor comes with LightFrame™ 3? A: All Philips LightFrame™ 3 monitors display this logo on their front bezel: Q: How do I use the LightFrame™ 3 control bar that appears at the top my screen? A: The control bar is another upgrade that helps you run all LightFrame™ 3’s neat, new features. The illustration below describes the tasks each button performs. Accustomed to working with the original LightFrame™ tray icon? No problem: It’s still there and can be used to turn LightFrame™ on or off and check LightFrame™ status. RETURN TO TOP OF THE PAGE Technical Specifications* CRT • Size and deflection 17 inch / 41 cm ; 90° deflection angle • Dot pitch 0.25 mm • Horizontal pitch0.21 mm • Tube type Shadow mask, real flat, high contrast, anti-glare, anti- static, anti reflection, light transmission55% * These information are subject to change without notice. • PhosphorP22 • Recommended display area12.0" x 9.0" / 306 x 230 mm • Maximum display area12.9" x 9.6" / 327 x 244 mm SCANNING • Horizontal scanning30 - 86KHz • Vertical scanning50 - 160 Hz VIDEO • Video dot rate176 MHz • Input impedance - Video75 ohm - Sync2.2 kOhm • Input signal levels0.7 Vpp • Sync input signal Separate sync Composite sync • Sync polaritiesPositive and negative WHITE COLOR TEMPERATURE Chromaticity CIE coordinates: • at 9300 K degreesx = 0.283 / y = 0.297 • at 6500 K degreesx = 0.313 / y = 0.329 • at 5500 K degreesx = 0.332 / y = 0.347 sRGB sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.) Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen. Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD. To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go to Color temperature and press OK again. Then move the down button to go to sRGB and press OK again. Exit this OSD. After this, please don't change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K. For more information on sRGB, please visit: www.srgb.com RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving features: RETURN TO TOP OF THE PAGE Physical Specifications Power Management Definition VESA's Mode Video H-sync V-sync Power Used Power Saving (%) LED color ON ActiveYes Yes Typical 68W 0 %Green Stand-by BlankedNo Yes < 2W 96% Yellow Suspend BlankedYes No < 2W 96% Yellow OFF BlankedNo No < 2W 96% Yellow This monitor is E NERGY S TAR ® compliant. A s an E NERGY S TAR ® P artner, PHILIPS has determined that this product meets the E NERGY S TAR ® guidelines for energy efficiency. • Dimensions 15.7" x 16.1" x 16.5" / 399 x 410 x 419 mm (including base) 15.7" x 14.7" x 16.5" / 399 x 373 x 419 mm (excluding base) • Weight16.5 kg • Power supply90 - 264 VAC, 50/60Hz • Temperature (operating)0° to 40°C / 32° to 104°F • Temperature (storage)-25° to +65°C / -13° to +149°F • Relative humidity5% to 95% * Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300 ° , full white pattern. * These information are subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assi…

Text truncated - open the document above for the full version.

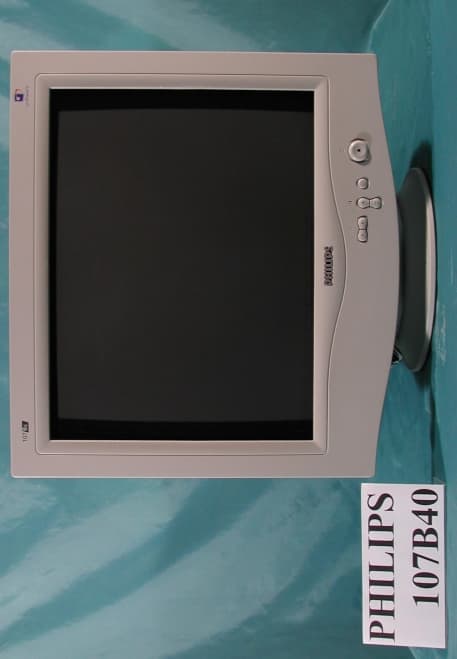

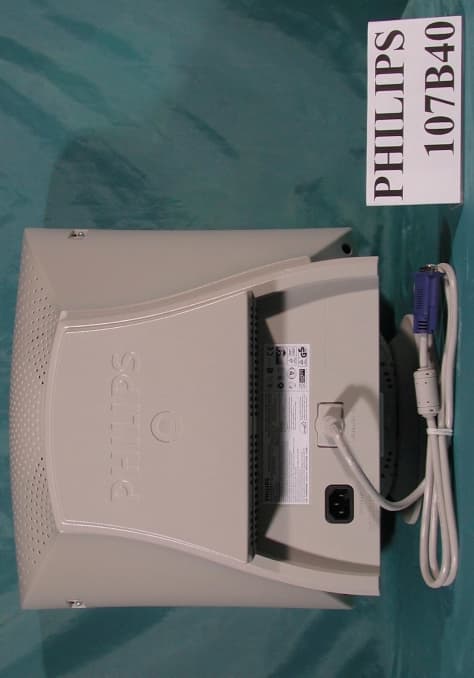

FCC ID: A3KM113 Exhibit 7 Photographs Front View FCC ID: A3KM113 Rear View FCC ID: A3KM113 Label

FCC ID: A3KM113 Side View Without Back Cover FCC ID: A3KM113 Side View Without Back Cover FCC ID: A3KM113 Shielding FCC ID: A3KM113 CRT Assembly FCC ID: A3KM113 PCB Layout FCC ID: A3KM113 PCB Layout FCC ID: A3KM113 PCB Layout FCC ID: A3KM113 PCB Layout FCC ID: A3KM113 Metal Plate FCC ID: A3KM113 Power Cord and I/F Cables
