A3KM119Color Monitor

Product Information Product Features • Technical Specifications • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views Product Features 107E5 z 17-inch (16.0" VIS) color monitor with excellent front of screen performance for use with MACs and PCs z Autoscan covers horizontal frequencies up to 70 kHz offering a maximum resolution of 1280 x 1024 with flicker free display of 1024 x 768 at up to 88 Hz z Flat square High Contrast CRT with high-resolution 0.27 mm dot pitch (0.23 hdp). z Large screen display in a small footprint: 17-inch conventional monitor with maximum depth of only 419 mm/16.5" z Multimedia Base and USB Hub option z sRGB for true on screen color representation. z FCC, CE (in selected countries only) and ISO9241, ISO14001 certified RETURN TO TOP OF THE PAGE Technical Specifications* CRT • Size and deflection 17 inch / 41 cm ; 90° deflection angle • Dot pitch0.27 mm • Horizontal pitch0.23 mm • Tube type Shadow mask, flat square, high contrast, anti-glare, anti-static, anti reflection, light transmission 47% • PhosphorP22 • Recommended display area12.0" x 9.0" / 306 x 230 mm • Maximum display area12.8" x 9.6" / 325 x 244 mm SCANNING • Horizontal scanning30 - 70 KHz • Vertical scanning50 - 160 Hz VIDEO • Video dot rate108 MHz • Input impedance - Video75 ohm - Sync4.7 kOhm Exhibit 3 Installstion and Operating Instructions * These information are subject to change without notice. RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving features: • Input signal levels0.7 Vpp • Sync input signal Separate sync • Sync polaritiesPositive and negative WHITE COLOR TEMPERATURE Chromaticity CIE coordinates: • at 9300 degrees Kx = 0.283 / y = 0.297 • at 6500 degrees Kx = 0.313 / y = 0.329 sRGB sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.) Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen. Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD. To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go to Color temperature and press OK again. Then move the down button to go to sRGB and press OK again. Exit this OSD. After this, please don't change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K. For more information on sRGB, please visit: www.srgb.com Power Management Definition VESA's Mode Video H- sync V- sync Power Used Power Saving (%) LED color RETURN TO TOP OF THE PAGE Physical Specifications * These information are subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assignment The 15-pin D-sub connector (male) of the signal cable (IBM systems): ON Active Yes Yes Typical 64W 0 % Green OFF Blanked No No <1W 98% Flashing Green This monitor is E NERGY S TAR ® compliant. A s an E NERGY S TAR ® P artner, PHILIPS has determined that this product meets the E NERGY S TAR ® guidelines for energy efficiency. • Dimensions 16.5" x 15.1" x 15.6" / 419 x 383 x 397 mm (including base) 16.5" x 13.1" x 15.6" / 419 x 333 x 397 mm (excluding base) • Weight14.0 kg • Power supply90 - 132VAC/ 195 - 264 VAC, 50/60Hz • Temperature (operating)0° to 40°C / 32° to 104°F • Temperature (storage)-25° to +65°C / -13° to +149°F • Relative humidity(storage)5% to 95% * Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300 ° , full white pattern. Pin No. Assignment Pin No. Assignment RETURN TO TOP OF THE PAGE Views Follow the links to see various views of the monitor and its components. Front View Rear View RETURN TO TOP OF THE PAGE 1 Red video input 9+5V DDC supply 2 Green video input10Logic ground 3 Blue video input11 Identical output - connected to pin 10 4 Identical output - connected to pin 10 12Serial data line (SDA) 5 Ground13H. Sync / H+V 6 Red video ground14V. Sync (VCLK for DDC) 7 Green video ground15Data clock line (SCL) 8 Blue video ground Installing your Monitor Front View • Rear View • 6G3B11 Multimedia Base (option) Front View RETURN TO TOP OF THE PAGE Power button switches your monitor on. OK button which when pressed will take you to the OSD controls Contrast hotkey. When the "-" button is pressed, the adjustment controls for the CONTRAST will show up. Brightness hotkey. When the "+" button is pressed, the adjustment controls for BRIGHTNESS will show up. "-" and "+" buttons, are used for adjusting the OSD of your monitor. LightFrame™ hotkey. When the button is pressed, the adjustment controls for LightFrame™ will show up. Rear View 1. Power in - attach power cable here. 2. Video In - this is a cable which is already attached to your monitor. Connect the other end of the cable to your PC. RETURN TO TOP OF THE PAGE Regulatory Information TCO '99 Information • TCO'99 Environmental Requirements • CE Declaration of Conformity•Energy Star Declaration • Federal Communications Commission (FCC) Notice (U.S. Only) • Commission Federale de la Communication (FCC Declaration) • EN 55022 Compliance (Czech Republic Only) • VCCI Class 2 Notice (Japan Only) • MIC Notice (South Korea Only) • Polish Center for Testing and Certification Notice • North Europe Information (Nordic Coun…

Text truncated - open the document above for the full version.

1 The brief ckt. description of V20 107E5 17” Monitor 0. Functional Block Diagram 1. General Description 2. Description of Circuit Diagram A. Power Supply B. Horizontal Deflection/Vertical Deflection/EHT Generator C. Video board & DDC D. Micro-controller Exhibit 4 Brief Description of Circuit Functions 2 1. GENERAL DESCRIPTION The new refreshed V20 using conventional 17” CRT, it is so-called “Digital Controlled Auto-scan Color Display Monitor” with high resolution, which can operate at horizontal scan frequency from 29KHz up to 72KHz, and the vertical scan frequencies can operate from 50 to 160 Hz. The monitors are equipped with a micro-controller, which is adjustable for all modes by OSD control, The monitors comply with TCO03/MPRIII low emission standard and also fulfill E2000 automatic power saving requirements; to reduce power consumption less than 1 watts in power saving mode, the monitor also can complies with VESA standard and energy star computer program initiated by the EPA. 2. DESCRIPTION OF CIRCUIT DIAGRAM This description mainly introduces the functions including power supply, horizontal / vertical deflection, video amplifier, micro-controller, etc. A. POWER SUPPLY The monitor is designed to adopt switching mode power supply which can operate mains input from 90VAC to 264VAC, this switching power supply apply an IC TEA1507controller, that power MOSFET is packed inside as well. The control scheme transforms a switching converter from a voltage source into a multi-output voltage, the control concept is exhibited many desirable properties such as inherent over-load protection, stable and fast system response, the maximum output power capability is up to 90 watts for different models, then a power limiting circuit is added for different power delivery and safety reasons, on main power supply circuit, secondary feedback via a photo-coupler is used to obtain a stable output voltage, the secondary outputs supply all necessary voltages for deflection and video and micro-controller. In order to meet the power consumption less 1 watts @ off mode, introduction the new controller IC TEA1507, this design has been considered and executed in low and high mains voltage. All rectified diodes on secondary site are without lead frame (heat-sink), it gains some cost saving in thermal design, but the turn ratios of main transformer should be fixed to maintain a adequate voltage derating of primary switching MOSFET and secondary +50V rectified diode 31DF4. This monitor can save power consumption while no sync pulses and automatically recover to normal power on when sync signals are detected by micro-controller, the power saving off mode still exist in new designed monitors but suspend / stand-by mode are deleted. During Off mode operation, all the output voltages of main power are reduced, only the required voltage of micro-controller is supplied by burst mode, then it will be used to restart the main power while monitor wake-up is required. The monitor will also operate in burst mode with active CPU while the power switch is in off position (power LED dark). Power consumption is in that case also less than 1W. B. HORIZONTAL DEFLECTION / VERTICAL DEFLECTION / EHT GENERATOR 3 HORIZONTAL DEFLECTION: The heart of horizontal/vertical deflection controller is TDA9112A, which can offer a complete and efficient small signal sync processing for auto-sync monitors, all functions are controlled via I2C bus. This controller provides sync processing, which can accept separate and composite (H+V) input signals, a very short settling time after mode change for protection of external power components has been taken into account. The TDA9112A provides extensive functions like a flexible B+ controller block of H-deflection and a geometry control with facilities, leading to excellent picture quality, this device also can directly drive the vertical deflection output stage, the line driver stage, the E/W output stage and all controls are tracked with the incoming frequencies, picture can be adjusted along horizontal direction by H- shift control, Horizontal size, east/west, trapezoid. Constant EHT over frequency is obtained by varying the supply voltage of H-deflection circuit via boost converter, 2 or 3 S-capacitors plus power MOSFET switches and DC controlled linearity coil are designed for optimal screen linearity. VERTICAL DEFLECTION: The majority of vertical deflection function is integrated by two ICs: TDA9112A and TDA8172. The TDA9112A takes care of sync polarity correction, automatic catching and holding of the vertical oscillator, generation of saw-tooth drive current for vertical output and vertical s-correction, and generation of a correct V-blanking pulse for video blanking during vertical retrace lines. The TDA8172 is a DC-coupled vertical deflection booster with single ended input signals is suitable for color monitor. The output stage has thermal and soar protection, and high linear saw-tooth signal amplification to obtain the required vertical deflection current. EHT generation section The combined circuit is used to generate required extra high voltage for CRT, the transformer (LOT) transfers the voltage to required anode voltage and rest secundary output voltages. The adjustable focus (F1, F2) and screen (G2) voltages are internally derived from the anode voltage, other secondary windings are used to generate the voltages for G1, also provides dynamic focus on F2 to get a good focus performance. For safety reasons, x-ray protection circuit is included, that TDA9112A will shut down EHT generator if the anode voltage exceeds a certain value (28kV). The horizontal output drive pulse will be latched to shut down the EHT generator when the voltage at pin X-RAY (pin25) of the sync-processor TDA9112A (7501) exceeds the threshold 8V. An auxiliary winding of the line output transformer , which voltage is proportional to the EHT voltage, is built to monitor the EHT voltage . Under normal working , the auxili…

Text truncated - open the document above for the full version.

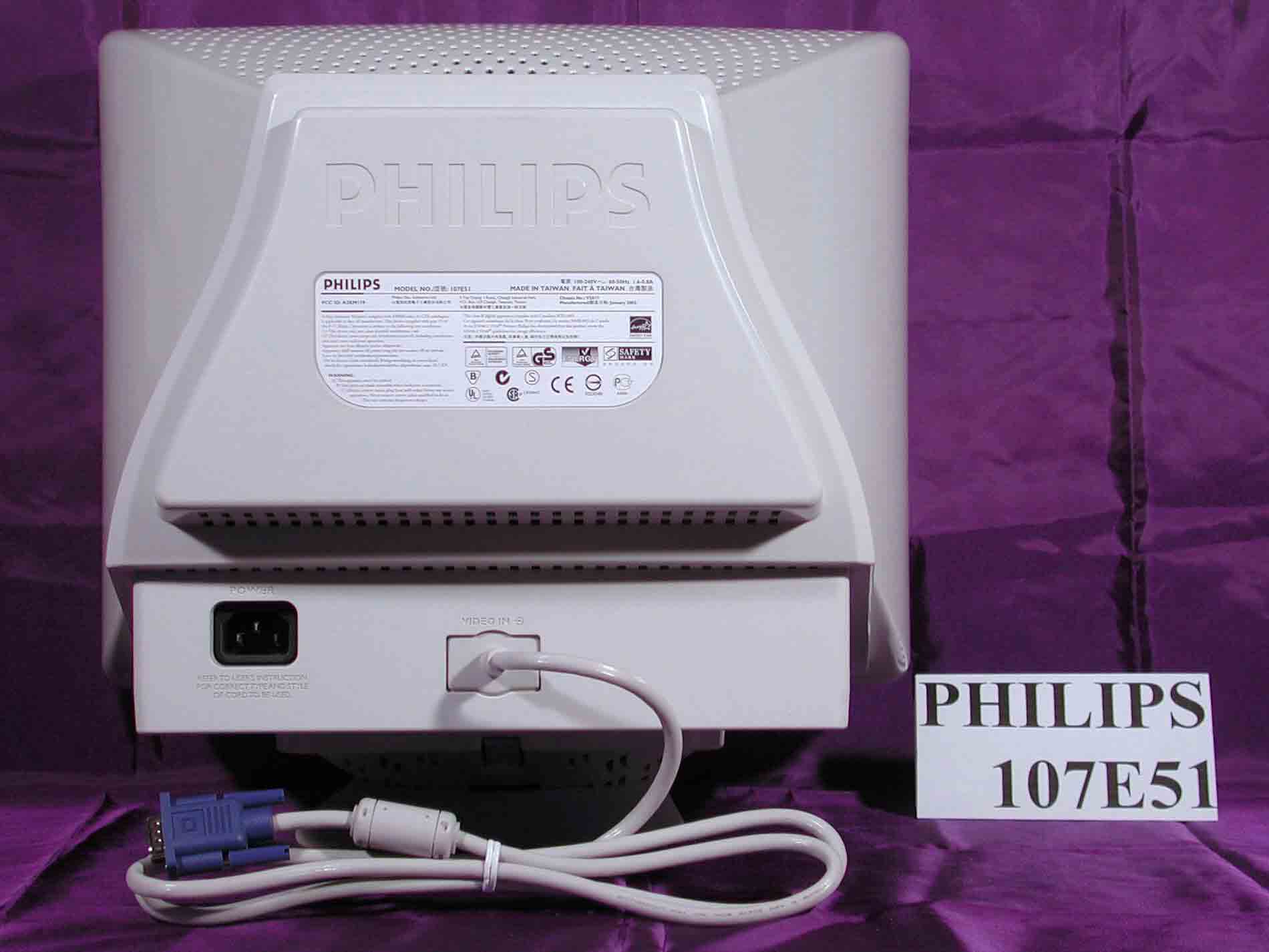

Exhibit 7 Photographs Front View Rear View Label

Exhibit 2 FCC ID Label

Top View Without Back Cover Side View Without Back Cover Side View Without Back Cover Shielding CRT Assembly PCB Layout PCB Layout PCB Layout PCB Layout Power Cord and I/F Cables

Philips Electronics Industries (Taiwan) Ltd - EMC Lab. 5, Tze Chiang 1 Road, Chungli Industrial Park, Chungli, Taoyuan, Taiwan Tel.: +886-3-454-9862 Fax.: +886-3-454-9887 E-mail: [email protected] FCC Test Report Report No.: TYR87-2038 Date : 21 January, 2003 Page : Page 1 of 36 Customer : Philips Electronics Industries Name : Mr. S.T. Huang – EE LCD Address : 5, Tze Chiang 1 Road, Zip/City : Chungli Industrial Park, Country : Chungli, Taiwan, R.O.C. Equipment Under Test (including peripherals) : FCC ID. : A3KM119 Model Name : 107E51 Serial Number : TY0212759 Description : 17” XGA color monitor, Max. resolution 1280x1024/60Hz EMC Standards : FCC Part 15 of October 01,1999 Class B ANSI C63.4-1992 Result : PASSED the limits/test-levels in the standards. Note : The results in this report apply only to the sample(s) and mode(s) tested. It is the manufacturer’s responsibility to assume the continued EMC compliance of production models. Date of receipt of EUT : 03 Dec. 2002 Date of performance of test : 06 Jan., 2003 to 11 Jan., 2003 NVLAP Signatory Philips Electronics Industries (Taiwan) Ltd This report shall not be reproduce except in full, without written approval of the testing laboratory C.C. Wu - EMC Test Engineer Ronnie Yang - EMC Manager Reference: TYR87-2039 107E51 Date: 21 January 2003 Philips Electronics Industries (Taiwan) Ltd Page: 2 of 36 Table of contents 1. Summary of test results.............................................................................3 2. General information of EUT.......................................................................4 3. Test equipment.......................................................................................5 4. Test configuration of EUT and peripherals......................................................6 5. Test procedure.......................................................................................7 6. Measurement uncertainty...........................................................................9 7. Conducted emissions test..........................................................................10 8. Radiated emissions test............................................................................19 9. Photographs of test set-up.........................................................................32 10. References...........................................................................................36 Reference: TYR87-2039 107E51 Date: 21 January 2003 Philips Electronics Industries (Taiwan) Ltd Page: 3 of 36 1. Summary of test results Test Standard Result Note Emission, ANSI C63.4-1992 Conducted emission Radiated emission FCC Part 15 FCC Part 15 Passed Passed Remark: The test sample fully complies with the requirements set forth in : FCC Part 15 Class B. Reference: TYR87-2039 107E51 Date: 21 January 2003 Philips Electronics Industries (Taiwan) Ltd Page: 4 of 36 2. General Information of EUT The EUT, 17” color monitor : Model No. : 107E51 FCC ID : A3KM119 Brand : PHILIPS The color monitor automatically scans horizontal frequencies between 30KHz and 70KHz , and vertical frequencies between 50Hz and 160Hz. This color monitor displays sharp and brilliant images of text and graphics with a maximum resolution up to 1280x1024 pixels. The monitor has 8 factory-preset modes as indicated in the following table: Resolution H. freq. V. freq. H. V. 1. 720 x 400 31.5 KHz 70Hz (VGA) - + 2. 640 x 480 31.47 KHz 60Hz (VGA) - - 3. 640 x 480 43.3 KHz 85Hz (VESA) - - 4. 800 x 600 46.9 KHz 75Hz (VESA) + + 5. 800 x 600 53.674KHz 85Hz (VESA) + + 6. 1280 x 960 60 KHz 60 Hz + + 7. 1024 x 768 68.7 KHz 85Hz (VESA) + + 8. 1280 x 1024 64.0 KHz 60Hz (VESA) + + Reference: TYR87-2039 107E51 Date: 21 January 2003 Philips Electronics Industries (Taiwan) Ltd Page: 5 of 36 3. Test Equipment Test equipment used for line Conducted and Radiated emissions as following. All equipment were calibrated according to ANSI C63.4-1992 and ISO-9000 requirement unless otherwise specified. Traceability to R.O.C. and international standards is assured by using calibrated all equipment. - For Conducted Emissions Test: Test Equipment Model No. Serial No. Last Calibrate Next Calibrate Spectrum HP8568B 2928A04640 06/27/2002 06/27/2003 EMI Receiver R & S ESVS30 841977/006 06/13/2002 06/13/2003 LISN EMCO 3825/2 9311-2153 06/13/2002 06/13/2003 LISN EMCO 3825/2 9311-2154 06/13/2002 06/13/2003 RF Cable 8-meter N/A 05/29-2002 05/29/2003 - For Radiated Emissions Test: Test Equipment Model No. Serial No. Last Calibrate Next Calibrate Spectrum HP8568B 2928A04640 06/27/2002 06/27/2003 RF Preselector HP85685A 2620A00338 06/27/2002 06/27/2003 QP Adapter HP85650A 2811A01324 06/27/2002 06/27/2003 EMI Receiver R & S ESVS30 841977/006 06/13/2002 06/13/2003 Biconical Antenna EMCO 3110B 3222 06/04/2002 06/04/2003 Biconical Antenna EMCO 3110B 3224 06/04/2002 06/04/2003 Log-Periodic Antenna EMCO 3146A 1424 06/04/2002 06/04/2003 Log-Periodic Antenna EMCO 3146A 1425 06/04/2002 06/04/2003 Turn Table EMCO 1060 1068 05/27/2002 05/27/2003 Antenna Tower EMCO 1050 1113 05/27/2002 05/27/2003 RF Cable M17/75-RG214-NE N/A 05/27/2002 05/27/2003 Reference: TYR87-2039 107E51 Date: 21 January 2003 Philips Electronics Industries (Taiwan) Ltd Page: 6 of 36 4. Test Configuration of EUT and Peripherals The system was configured for testing in a typical fashion ( as a customer would normally use it ) according to ANSI C63.4-1992, please see the photographs for detail. For system measurement, the EUT “107E51” were connected to: Description Brand/ Model No. Serial No. FCC ID Remark A Monitor Philips 107E51 TY0212759 A3KM119 EUT B PC Compaq ENC P866 5K15FXHZ2013 FCC Logo C Keyboard Compaq KB-9963 B26950GGALP13Q FCC Logo D Mouse Compaq M-S48a JNZ201213 E Modem Hayes 231AA A22231081770 BFJ9D9308US F Printer HP 2225C 2934S55406 DSI6XU2225 Connected Cables No. Description Manufacturer Length Shielded Remark 1 Power Cord Long Shine 1.8 meters No for EUT 2 Power Cord Acer 1.8 meters No for PC 3 Powe…

Text truncated - open the document above for the full version.

Reference: TYR87-2039 107E51 Date: 21 January 2003 Philips Electronics Industries (Taiwan) Ltd Page: 32 of 36 9. Photographs of Test Set-up Conducted Emissions Test Reference: TYR87-2039 107E51 Date: 21 January 2003 Philips Electronics Industries (Taiwan) Ltd Page: 33 of 36 Conducted Emissions Test Reference: TYR87-2039 107E51 Date: 21 January 2003 Philips Electronics Industries (Taiwan) Ltd Page: 34 of 36 Radiated Emissions Test Reference: TYR87-2039 107E51 Date: 21 January 2003 Philips Electronics Industries (Taiwan) Ltd Page: 35 of 36 Radiated Emissions Test Reference: TYR87-2039 107E51 Date: 21 January 2003 Philips Electronics Industries (Taiwan) Ltd Page: 36 of 36 10. Reference FCC part 15 - 1999 Radio frequency device. ANSI C63.4-1992, “American national standard for measurement of radio-noise emission from low-voltage electrical and electronic equipment in the range of 9KHz to 40GHz”
