A3KM12120

Product Information Product Features BRILLIANCE 200P4 z 20-inch color LCD monitor with excellent display performance z Multiple video input allowing connection of DVI-D digital and VGA analog z Embedded AC power supply z Front firing speakers with stereo 2x2W RMS stereo sound output z Advanced AUTO adjustment optimizes picture quality z Adjustable tilt and swivel function z Picture-in-Picture (PIP) function for displaying both PC and video simultaneously on the screen z Built in module to provide S-Video & CVBS Video inputs(200P4VS, 200P4VG, 200P4VB models) z Optional module to provide S-video and CVBS video inputs(200P4SS, 200P4SG, 200P4SB models) z Optional super-ergo base for height adjustment z sRGB compliant RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • TypeTFT LCD • Screen size20.1" / 51cm • Pixel Pitch0.255 x 0.255mm • LCD Panel type 1600 x 1200 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area408 x 306 mm • Display Colors8 bits interface (16M colors) SCANNING Vertical refresh rate56Hz-85Hz Horizontal Frequency30kHz-94kHz (Analog input) VIDEO • Video dot rate165 MHz • Input impedance - Video 75 ohm - Sync 2K2 ohm • Input signal levels0.7 Vpp • Sync input signal Separate sync Composite sync Sync on green Exhibit 3 Installation and Operating Onstruction * This data is subject to change without notice. • Sync polaritiesPositive and negative • S-Video Y input 1.0Vpp, C input 0.3Vpp, 75ohm input impedance • CVBSComposite, 1.0Vpp, 75 ohm input impedance •Video interface D-Sub (Analog) DVI-D (Digital) AUDIO-IN • Input signal level0.7 Vpp • Headphone out signal level 20mW x 2, 32 • Input signal connector3.5mm mini jack • Loudspeaker 4W Stereo Audio (2W/channel RMSx2, 200Hz- 12kHz, 4 ohm,THD=10%) Optical characteristics • Contrast ratio: 400:1 (typ.) • Brightness: 250 cd/m 2 (typ.) • Peak contrast angle6 o'clock • White Chromaticity: x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) • Viewing Angle: (C/R>10) Upper >88° (typ.) Lower > 88° (typ.) Left > 88° (typ.) Right > 88° (typ.) • Response time 16 ms (typ.) - Rise time 9 ms (typ.) - Fall time 7 ms (typ.) sRGB sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.) Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen. Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD. To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go to Adjust Color and press OK again. Then move the down button to go to sRGB and press OK again. Exit this OSD. After this, please do not change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K. For more information on sRGB, please visit: www.srgb.com RETURN TO TOP OF THE PAGE Resolution & Preset Modes RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: • Maximum 1600 x 1200 at 60Hz(analog input) 1600 x 1200 at 60Hz(digtal input) • Recommended 1600 x 1200 at 60Hz * at DVI digital input 37 user definable modes 15 factory preset modes: (Interlace mode is not applicable except 1080i) H. freq (kHz) Resolution V. freq (Hz) 31.5 640*350 70 (IBM VGA 10h) 31.5 720*400 70 31.5 640*480 60 37.5 640*480 75 35.2 800*600 56 37.9 800*600 60 46.9 800*600 75 48.4 1024*768 60 60.0 1024*768 75 69.0 1152*870 75 63.9 1280*1024 60 80.0 1280*1024 75 75.0 1600*1200 60 33.8 1080i 60 45.0 720p 60 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes < 65W Green RETURN TO TOP OF THE PAGE Physical Specifications * This data is subject to change without notice. * Resolution 1600x1200, standard size, contrast max., brightness 50%, 9300° K, full white pattern, without audio/USB. RETURN TO TOP OF THE PAGE Pin Assignment 1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: OFF Blanked No No < 1.5W Amber This monitor is E NERGY S TAR ® compliant. A s an E NERGY S TAR ® P artner, PHILIPS has determined that this product meets the E NERGY S TAR ® guidelines for energy efficiency. • Dimension (WxHxD) 488 x 459 x220 mm (incl. Pedestal) • Weight 7.5 Kg • Tilt / Swivel-5° ~ 25° / + - 175° • Power supply100 — 240 VAC, 50/60 Hz • Power consumption 50 W* (typ.) • Temperature 5° C to 35° C (operating) -20° C to 60° C (storage) • Relative humidity 20% to 80% • System MTBF50K hrs (excluding CCFL 40K hrs) • Cabinet color 200P4VG/200P4SG: Light Gray 200P4VB/200P4SB: Black 200P4VS/200P4SS: Silver Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment 1 T.M.D.S. Data2- 9 T.M.D.S. Data1-17T.M.D.S. Data0- 2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+18T.M.D.S. Data0+ 3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield 4 No connect 12 No connect 20No connect 2. The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description 5 No connect 13 No connect 21No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock…

Text truncated - open the document above for the full version.

Power supply AC to DC and DC-AC Inverter Scaler gm1601 Control Board 20.1” panel Video Board SAA7115 SA56616-28 reset IC Crystal 14.318M 4Mb Flash ROM 128Mb DDR RAM 3.3V → 2.5V Reg. 3.3V → 1.8V Reg. EEPROM 24C32 MOS Sw DVI_D D_sub EDID 24C02 EDID 24C02 74LVC14 PWM Dual LVDS TX 18V 3.3V DVI Rx ADC V port x186 LB ADC Bright. ctl BL_EN mute, volume, mux,pw Audio YUV(ITU656) S CVBS Electric System Electric System Exhibit 5 Block Diagram

Power supply AC to DC and DC-AC Inverter Scaler gm1601 Control Board 20.1” panel Video Board SAA7115 SA56616-28 reset IC Crystal 14.318M 4Mb Flash ROM 128Mb DDR RAM 3.3V → 2.5V Reg. 3.3V → 1.8V Reg. EEPROM 24C32 MOS Sw DVI_D D_sub EDID 24C02 EDID 24C02 74LVC14 PWM Dual LVDS TX 18V 3.3V DVI Rx ADC V port x186 LB ADC Bright. ctl BL_EN mute, volume, mux,pw Audio YUV(ITU656) S CVBS Electric System Electric System Exhibit 5 Block Diagram

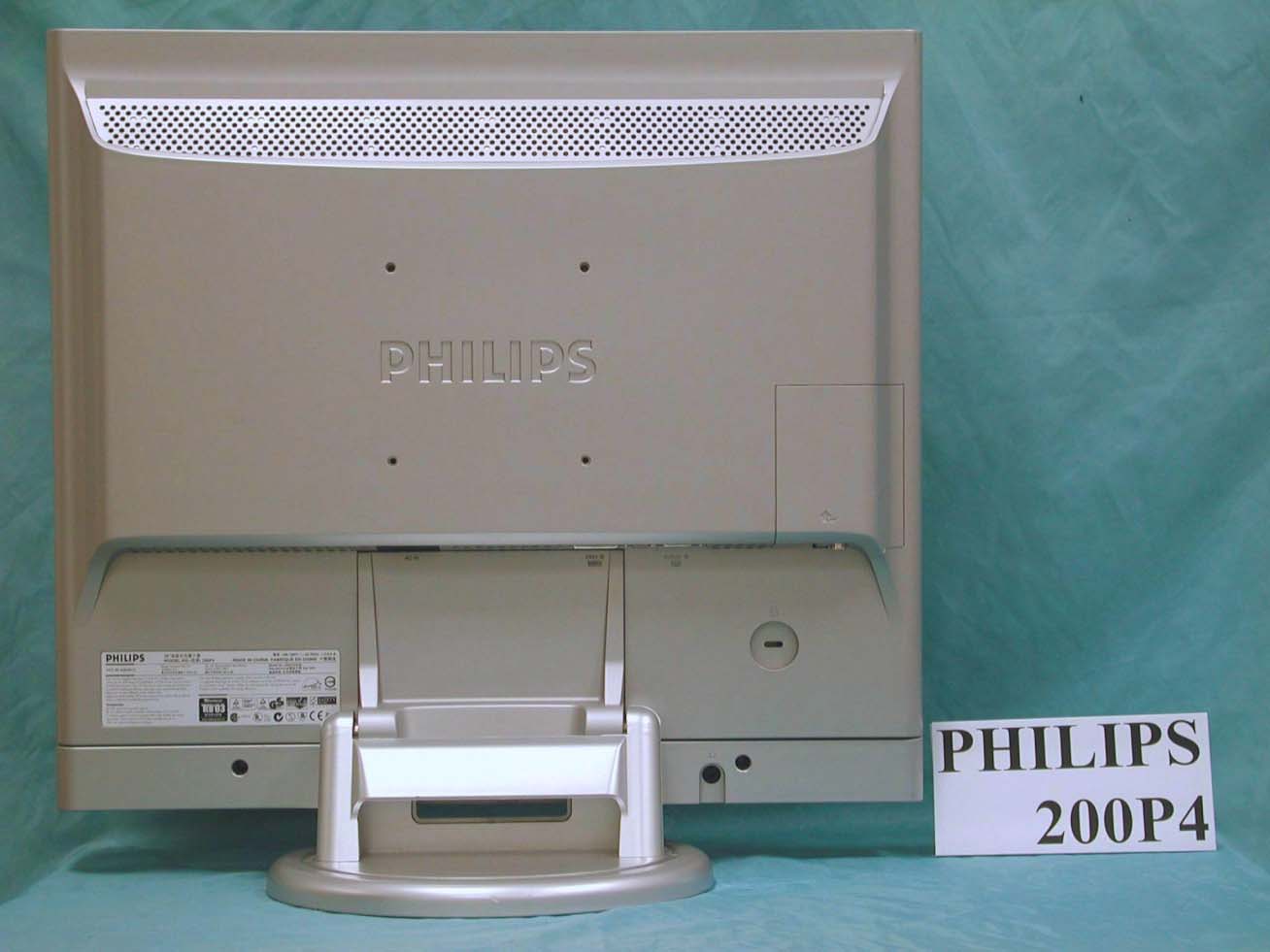

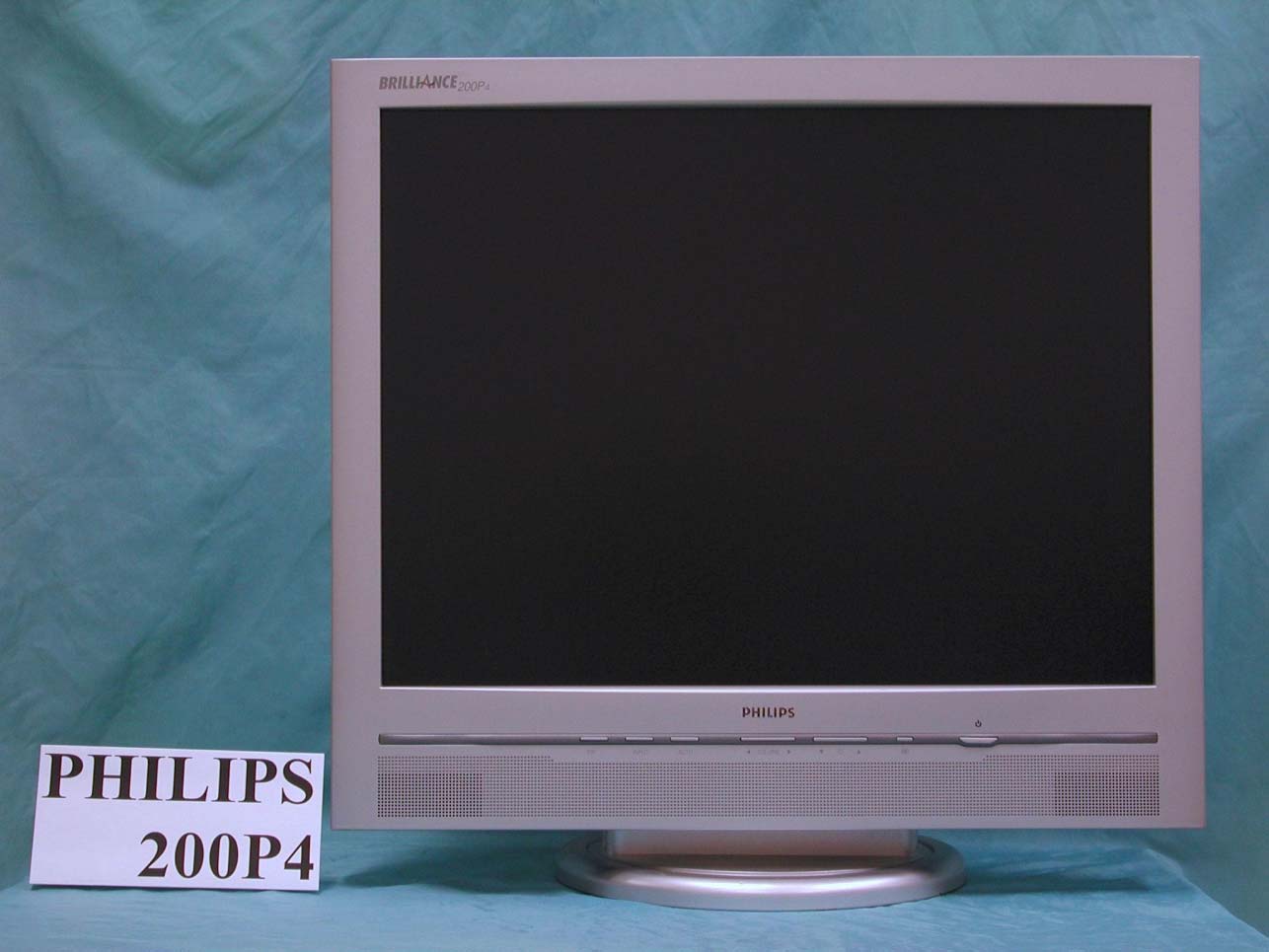

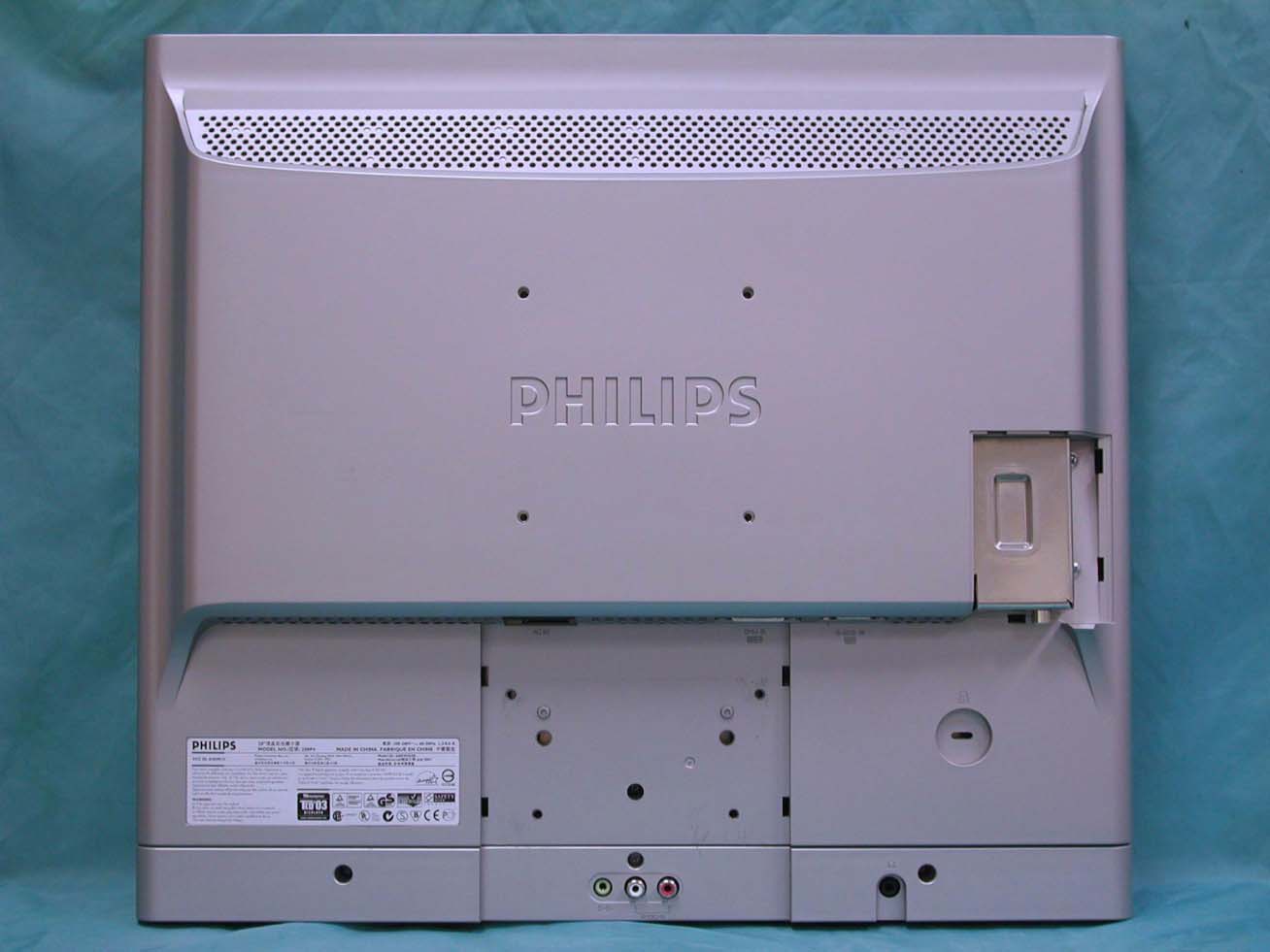

Exhibit 7 Photographs Front View Rear View Label Assembly w/o Base

Exhibit 2 FCC ID Label

Assembly w/o Back Cover Shielding Cover Assembly w/o Shielding Cover PCB Layout PCB Layout PCB Layout PCB Layout PCB Layout PCB Layout Assembly w/o PCB Plate LCD Panel Video Module Shielding PCB Layout PCB Layout Power Cord and I/F Cables

Philips Electronics Industries (Taiwan) Ltd - EMC Lab. 5, Tze Chiang 1 Road, Chungli Industrial Park, Chungli, Taoyuan, Taiwan Tel.: +886-3-454-9862 Fax.: +886-3-454-9887 E-mail: [email protected] FCC Test Report Report No.: TYR87-2056 Date : 20 October, 2003 Page : Page 1 of 40 Customer : Philips Electronics Industries Name : Mr. S.T. Huang – EE LCD Address : 5, Tze Chiang 1 Road, Zip/City : Chungli Industrial Park, Country : Chungli, Taiwan, R.O.C. Equipment Under Test (including peripherals) : FCC ID. : A3KM121 Model Name : 200P4 Serial Number : TY0304314 Description : 20” SXGA LCD color monitor, Max. resolution 1600x1200/60Hz EMC Standards : FCC Part 15 of October 01,1999 Class B ANSI C63.4-1992 Result : PASSED the limits/test-levels in the standards. Note : The results in this report apply only to the sample(s) and mode(s) tested. It is the manufacturer’s responsibility to assume the continued EMC compliance of production models. Date of receipt of EUT : 17 Oct. 2003 Date of performance of test : 17 Oct., 2003 to 19 Oct., 2003 Philips Electronics Industries (Taiwan) Ltd This report shall not be reproduce except in full, without written approval of the testing laboratory C.C. Wu - EMC Test Engineer Ronnie Yang - EMC Manager Reference: TYR87-2056 200P4 Date: 20 October 2003 Philips Electronics Industries (Taiwan) Ltd Page: 2 of 40 Table of contents 1. Summary of test results.............................................................................3 2. General information of EUT.......................................................................4 3. Test equipment.......................................................................................5 4. Test configuration of EUT and peripherals......................................................6 5. Test procedure.......................................................................................7 6. Measurement uncertainty...........................................................................9 7. Conducted emissions test..........................................................................10 8. Radiated emissions test............................................................................23 9. Photographs of test set-up.........................................................................36 10. References...........................................................................................40 Reference: TYR87-2056 200P4 Date: 20 October 2003 Philips Electronics Industries (Taiwan) Ltd Page: 3 of 40 1. Summary of test results Test Standard Result Note Emission, ANSI C63.4-1992 Conducted emission Radiated emission FCC Part 15 FCC Part 15 Passed Passed Remark: The test sample fully complies with the requirements set forth in : FCC Part 15 Class B. Reference: TYR87-2056 200P4 Date: 20 October 2003 Philips Electronics Industries (Taiwan) Ltd Page: 4 of 40 2. General Information of EUT The EUT, 20” color monitor : Model No. : 200P4 FCC ID : A3KM121 Brand : PHILIPS The color monitor automatically scans horizontal frequencies between 30KHz and 93KHz , and vertical frequencies between 56Hz and 85Hz. This color monitor displays sharp and brilliant images of text and graphics with a maximum resolution up to 1600x1200 pixels. The monitor has 15 factory-preset modes as indicated in the following table: Item H.Freq. (KHz) Mode Resolution V.Freq. (Hz) 1 31.469 IBM VGA 10H640x350 70.086 2 31.469 IBM VGA 3H 720x400 70.087 3 31.469 IBM VGA 12H640x480 59.940 4 37.500 VESA 640x480 75.000 5 35.156 VESA 800x600 56.250 6 37.879 VESA 800x600 60.317 7 46.875 VESA 800x600 75.000 8 48.363 VESA 1024x768 60.004 9 60.023 VESA 1024x768 75.029 10 68.700 MACINTOSH 1152x870 75.000 11 63.981 VESA 1280x1024 60.020 12 79.976 VESA 1280x1024 75.025 13 75.0 VESA 1600x1200 60 14 33.75 HDTV 1080i (D-sub only)60 15 45.0 HDTV 720p (D-sub only) 60 Reference: TYR87-2056 200P4 Date: 20 October 2003 Philips Electronics Industries (Taiwan) Ltd Page: 5 of 40 3. Test Equipment Test equipment used for line Conducted and Radiated emissions as following. All equipment were calibrated according to ANSI C63.4-1992 and ISO-9000 requirement unless otherwise specified. Traceability to R.O.C. and international standards is assured by using calibrated all equipment. - For Conducted Emissions Test: Test Equipment Model No. Serial No. Last Calibrate Next Calibrate Spectrum HP8568B 2928A04640 02/27/2003 02/27/2004 EMI Receiver R & S ESVS30 841977/006 02/27/2003 02/27/2004 LISN EMCO 3825/2 9311-2153 06/16/2003 06/16/2004 LISN EMCO 3825/2 9311-2154 06/16/2003 06/16/2004 RF Cable 8-meter N/A 08/21/2003 08/21/2004 - For Radiated Emissions Test: Test Equipment Model No. Serial No. Last Calibrate Next Calibrate Spectrum HP8568B 2928A04640 09/23/2003 09/23/2004 RF Preselector HP85685A 2620A00338 09/23/2003 09/23/2004 QP Adapter HP85650A 2811A01324 09/23/2003 09/23/2004 EMI Receiver R & S ESVS30 841977/006 02/27/2003 02/27/2004 Biconical Antenna EMCO 3110B 3224 08/21/2003 08/21/2004 Log-Periodic Antenna EMCO 3146A 1425 08/21/2003 08/21/2004 Turn Table EMCO 1060 1068 08/21/2003 08/21/2004 Antenna Tower EMCO 1050 1113 08/21/2003 08/21/2004 RF Cable M17/75-RG214-NE N/A 08/21/2003 08/21/2004 Reference: TYR87-2056 200P4 Date: 20 October 2003 Philips Electronics Industries (Taiwan) Ltd Page: 6 of 40 4. Test Configuration of EUT and Peripherals The system was configured for testing in a typical fashion ( as a customer would normally use it ) according to ANSI C63.4-1992, please see the photographs for detail. For system measurement, the EUT “200P4” were connected to: Description Brand/ Model No. Serial No. FCC ID Remark A Monitor Philips 200P4 TY0304314 A3KM121 EUT B PC Compaq ENC P866 5K15FXHZ2013 FCC Logo C Keyboard Compaq KB-9963 B26950GGALP13Q FCC Logo D Mouse Compaq M-S48a JNZ201213 E Modem Hayes 231AA A22231081770 BFJ9D9308US F Printer HP 2225C 2934S55406 DSI6XU2225 Connected Cables No. Description Manufacturer Length Shielded Remark 1 Power Cord Long Shine 1.8 meters No…

Text truncated - open the document above for the full version.

Reference: TYR87-2056 200P4 Date: 20 October 2003 Philips Electronics Industries (Taiwan) Ltd Page: 36 of 40 9. Photographs of Test Set-up Conducted Emissions Test Reference: TYR87-2056 200P4 Date: 20 October 2003 Philips Electronics Industries (Taiwan) Ltd Page: 37 of 40 Conducted Emissions Test Reference: TYR87-2056 200P4 Date: 20 October 2003 Philips Electronics Industries (Taiwan) Ltd Page: 38 of 40 Radiated Emissions Test Reference: TYR87-2056 200P4 Date: 20 October 2003 Philips Electronics Industries (Taiwan) Ltd Page: 39 of 40 Radiated Emissions Test Reference: TYR87-2056 200P4 Date: 20 October 2003 Philips Electronics Industries (Taiwan) Ltd Page: 40 of 40 10. Reference FCC part 15 - 1999 Radio frequency device. ANSI C63.4-1992, “American national standard for measurement of radio-noise emission from low-voltage electrical and electronic equipment in the range of 9KHz to 40GHz”
