A3KM122LCD Color Monitor

Product Information Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views • Physical Function Product Features 150MT2 z 15-inch XGA LCD all-in-one Monitor TV with excellent display performance z Multiple video input allowing display of PC, TV, HDTV (the US/Canada/Korea/Taiwan), VCD, DVD, Progressive DVD and CamCorder z Digital High Definition Picture (1080i / 720p / 576P / 480P) z DCDi TM for superior depiction of motion z Picture-in-Picture (PIP) function in VGA mode z Light sensor to automatically adjust brightness z Teletext (available only in Asia Pacific and Western Europe) z Digital Nicam/2CS stereo (available only in Asia Pacific and Western Europe) z Component Video Input (YPbPr/YCbCr) for DVD (available in Asia Pacific and NTSC system areas) z Euroconnector (SCART) (available in Western Europe) z MultiSystem TV tuner-PAL/NTSC (available in most of the Asia Pacific area) z Hotel application available by disabling control key/remote control and using reserved lock port on tuner/AV box RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • TypeTFT LCD • Screen size15 inch • Pixel Pitch0.297 x 0.297mm • LCD Panel type 1024 x 768 pixels R.G.B. vertical stripe Anti-glare polarizer • Effective viewing area(H) 304.1 x (V) 228.1mm • Display Colors8 bits interface (16.7M colors) PC SCANNING • Vertical refresh rate 56Hz-75Hz Installstion and Operating Instructions Exhibit 3 * This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes • Horizontal frequency 31kHz-63kHz PC VIDEO • Video dot rate80 MHz • Input impedance - Video 75 ohm - Sync 2K ohm • Input signal levels0.7 Vpp • Sync input signal Separate sync • Sync polaritiesPositive and negative • Input Frequency XGA Hsync 48- 63 kHz, Vsync 60 - 75 Hz (N.I.) SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.) VGA Hsync 31- 38 kHz, Vsync 60 - 75 Hz (N.I.) • Video interface D-sub, S-Video, TV-RF, SCART (Europe) or composite and components video (others) AUDIO • Input level for PC/SVHS/SCART 500 mV nominal • Headphone out signal level 4mW max. • Loudspeaker 5W Stereo Audio (2.5W/channel RMS x2, 200Hz~10kHz, 4 ohm, 10% THD) OPTICAL CHARACTERISTICS • Contrast ratio 500:1 (typ.) • Brightness 310 cd/m 2 (typ.) • Peak contrast angle6 o'clock • White Chromacity x: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338 (at 6500° K) • Viewing Angle (C/R >5) Upper >55° (typ.) Lower > 65° (typ.) Left >70 ° (typ.) Right >70 ° (typ.) • Response time <=25ms (typ.) RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will then 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: • Maximum1024 x 768 at 75Hz • Recommended 1024 x 768 at 60Hz 15 user definable modes 17 factory preset modes: Resolution Mode H. freq (kHz) V. freq (Hz) PC 640*350 VGA-1 31.469 70.086 640*480 VGA VESA 60 31.469 59.940 640*480 Mac 13 35.000 66.667 640*480 VGA VESA 75 37.500 75.000 720*400 IBM VGA 3H 31.468 70.087 800*600 SVGA VESA 56 35.156 56.250 800*600 SVGA VESA 60 37.879 60.317 800*600 SVGA VESA 75 46.875 75.000 832*624 Mac 16 49.724 74.550 1024*768 XGA VESA 60 48.363 60.004 1024*768 XGA VESA 75 60.023 75.029 Video Video 60Hz 15.734 59.940 Video 50Hz 15.625 50.000 Progressive Video HDTV 480P 31.470 60.000 Pr. Component 576P 31.250 50.000 HDTV 1080i 33.750 60.000 HDTV 720P 45.000 60.000 Power Management Definition RETURN TO TOP OF THE PAGE Physical Specifications * This data is subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assignment The 15-pin D-sub connector (male) of the signal cable: VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes 48W (typ.) Blue OFF Blanked No No < 2W Amber This monitor is E NERGY S TAR ® compliant. A s an E NERGY S TAR ® P artner, PHILIPS has determined that this product meets the E NERGY S TAR ® guidelines for energy efficiency. • Dimension (WxHxD) 392 x 374.1 x 167.8 mm (incl. Pedestal) • Weight 4.1 kg • Tilt (Forward / Backward)- 5° / 25° • Power supply100 — 240 VAC, 50/60 Hz • Power consumption 48 W (typ.) • Temperature (operating)0° C to 35° C • Relative humidity 20% to 80% • System MTBF50K hrs (excluding CCFL 40Khrs) RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function Pin No. Assignment Pin No. Assignment 1 Red video input 9 DDC +5V 2 Green video input 10 Logic ground 3 Blue video input 11 Ground 4 Ground 12 Serial data line (SDA) 5 Ground 13 H. Sync 6 Red video ground 14 V. Sync 7 Green video ground 15 Data clock line (SCL) 8 Blue video ground Tilt Installing your LCD Monitor/TV Front View Product Description • Connecting to Your PC, TV antenna, DVD/VCR etc. • Rem and Re-installing the Base • Basic Monitor TV Connections • Getting Started • Optimising Performance Front View Product Description RETURN TO TOP OF THE PAGE Side View 1 Receiver Window Receiver for 'remote control' and 'Light Sensor' 2 SOURCE TV/Video source selection 3 Increase or decrease the channel number or up or down the highlighted function in OSD 4 Increase or decrease the level of audio volume or move up or down the highlighted function in OSD 5 MENU OK Open the OSD and select the highlighted function 6 Power switch On/Off RETURN TO TOP OF THE PAGE Rear View 1. Headphone Jack 2. LINE OUT Jack (Europe) RETURN TO TOP OF THE PAGE (Americas and Asia Pacific) 1 DC 12VDC 12V power in 2 PC - VideoD-Sub input 3 PC - AudioPC Stereo input 4 Progressive - VideoD-Sub input 5 Progressive - AudioAudio input 6 EXTERNAL/ EURO-AV SCART connection (for Europe on…

Text truncated - open the document above for the full version.

150MT2 LCD TV-Monitor Function Block Scaller JASM (ADC, OSD,HDTV ) Panel PC Video decoder SAA7118A .Brightness .contrast .sharpness .Tint . comb filte r CVBS , YC , YUV , RGB 2 n d IF Sound decoder MSP34XX Sound from PC, HDTV, YC, AV, RGB Audio Power & earphone Amp.TDA1517 TDA1308 CPU 8051 Flash 020 Painter I .Teletext 10P .C.C., V-chip. Key pad IR 8M SDRAM CV B S Tuner FQ12XX MK3 detachable De-interlacer S2300 SDRAM LVDS Painter II /NVM 100 P txt Audio delay line RAM/counter/Latch MUX AD9883 HDTV Exhibit 5 Block Diagram

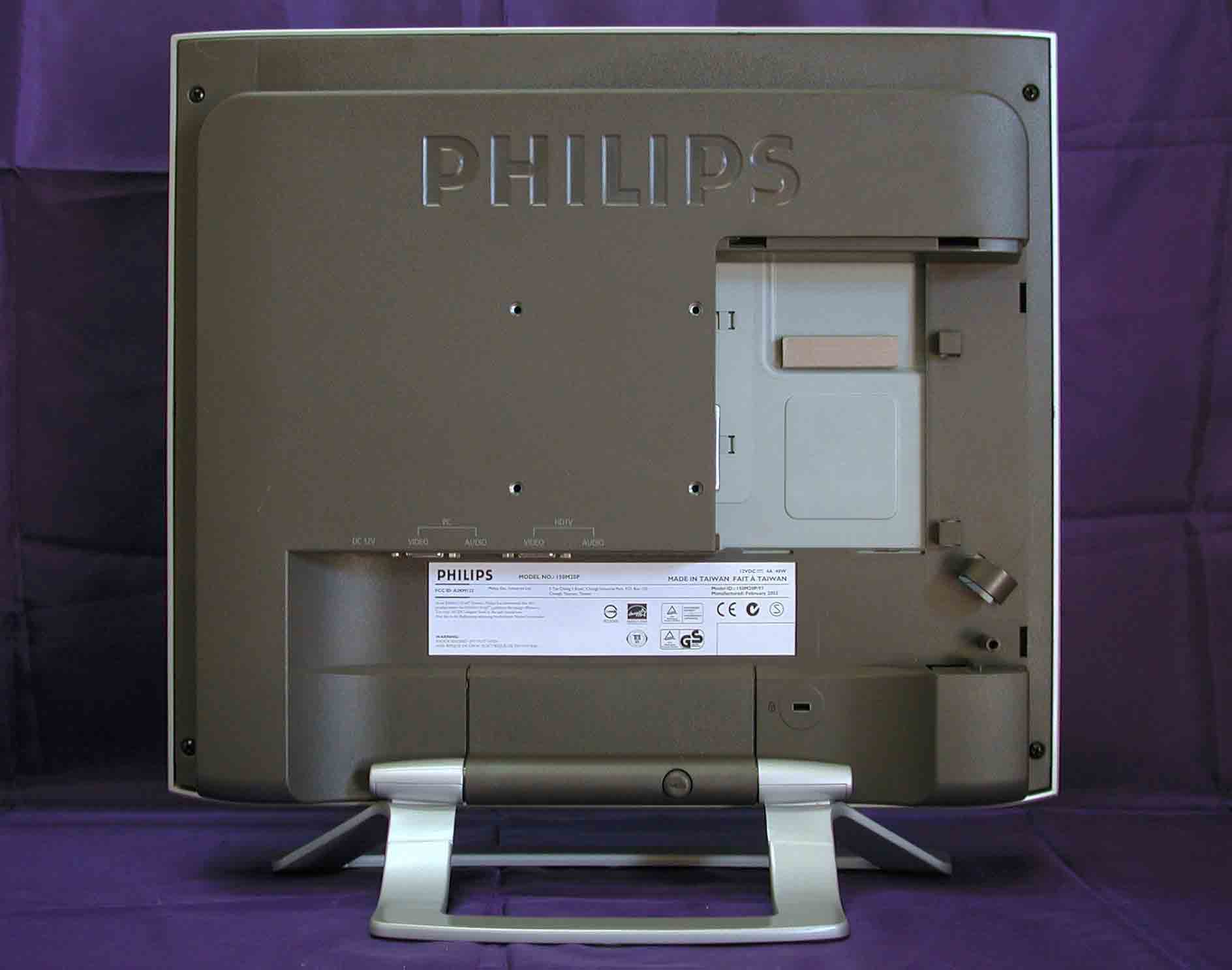

Exhibit 7 Photographs Front View Rear View Label Assembly w/o TV/AV Module Cover Assembly w/o TV/AV Module

Exhibit 2 FCC ID Label

Assembly with Back Cover Shielding Cover Assembly w/o Shielding Cover PCB Layout PCB Layout PCB Layout PCB Layout Plate LCD Panel TV/AV Module TV/AV Module Assembly PCB Layout PCB Layout Shielding Adapter Adapter Assembly Shielding Adapter Assembly w/o Shielding PCB Layout PCB Layout Power Cord and Cables

Philips Electronics Industries (Taiwan) Ltd - EMC Lab. 5, Tze Chiang 1 Road, Chungli Industrial Park, Chungli, Taoyuan, Taiwan Tel.: +886-3-454-9862 Fax.: +886-3-454-9887 E-mail: [email protected] FCC Test Report Report No.: TYR87-2045 Date : 26 March, 2003 Page : Page 1 of 32 Customer : Philips Electronics Industries Name : Mr. S.T. Huang – EE LCD Address : 5, Tze Chiang 1 Road, Zip/City : Chungli Industrial Park, Country : Chungli, Taiwan, R.O.C. Equipment Under Test (including peripherals) : FCC ID. : A3KM122 Model Name : 150M20P Serial Number : TY0302094 Description : 15” XGA color monitor, Max. resolution 1024x768/75Hz EMC Standards : FCC Part 15 of October 01,1999 Class B ANSI C63.4-1992 Result : PASSED the limits/test-levels in the standards. Note : The results in this report apply only to the sample(s) and mode(s) tested. It is the manufacturer’s responsibility to assume the continued EMC compliance of production models. Date of receipt of EUT : 17 Mar. 2003 Date of performance of test : 19 Mar., 2003 to 24 Mar., 2003 NVLAP Signatory Philips Electronics Industries (Taiwan) Ltd This report shall not be reproduce except in full, without written approval of the testing laboratory C.C. Wu - EMC Test Engineer Ronnie Yang - EMC Manager Reference: TYR87-2045 150M20P Date: 26 March 2003 Philips Electronics Industries (Taiwan) Ltd Page: 2 of 32 Table of contents 1. Summary of test results.............................................................................3 2. General information of EUT.......................................................................4 3. Test equipment.......................................................................................5 4. Test configuration of EUT and peripherals......................................................6 5. Test procedure.......................................................................................7 6. Measurement uncertainty...........................................................................9 7. Conducted emissions test..........................................................................10 8. Radiated emissions test............................................................................19 9. Photographs of test set-up.........................................................................28 10. References...........................................................................................32 Reference: TYR87-2045 150M20P Date: 26 March 2003 Philips Electronics Industries (Taiwan) Ltd Page: 3 of 32 1. Summary of test results Test Standard Result Note Emission, ANSI C63.4-1992 Conducted emission Radiated emission FCC Part 15 FCC Part 15 Passed Passed Remark: The test sample fully complies with the requirements set forth in : FCC Part 15 Class B. Reference: TYR87-2045 150M20P Date: 26 March 2003 Philips Electronics Industries (Taiwan) Ltd Page: 4 of 32 2. General Information of EUT The EUT, 15” color monitor : Model No. : 150M20P FCC ID : A3KM122 Brand : PHILIPS The color monitor automatically scans horizontal frequencies between 30KHz and 61KHz , and vertical frequencies between 56Hz and 75Hz. This color monitor displays sharp and brilliant images of text and graphics with a maximum resolution up to 1024x768 pixels. The monitor has 11 factory-preset modes as indicated in the following table: # Resolution Frequency Pixel rateSync Comment 1 640X350 31.5K/70HZ25.175 (+/-) IBM VGA 2 720X400 31.5K/70HZ28.322 (-/+) IBM VGA 3 640X480 31.5K/60HZ25.175 (-/-) IBM VGA 4 640X480 35.0K/67HZ30.24 (-/-) MAC 5 640X480 37.5K/75HZ31.501 (-/-) VESA 6 800X600 35.2K/56HZ36 (+/+) VESA 7 800X600 37.9K/60HZ40 (+/+) VESA 8 800X600 46.9K/75HZ49.498 (+/+) VESA 9 832X624 49.7K/75HZ57.28 (+/+) MAC 10 1024X768 48.4K/60HZ65 (-/-) VESA 11 1024X768 60.0K/75HZ78.75 (-/-) VESA Reference: TYR87-2045 150M20P Date: 26 March 2003 Philips Electronics Industries (Taiwan) Ltd Page: 5 of 32 3. Test Equipment Test equipment used for line Conducted and Radiated emissions as following. All equipment were calibrated according to ANSI C63.4-1992 and ISO-9000 requirement unless otherwise specified. Traceability to R.O.C. and international standards is assured by using calibrated all equipment. - For Conducted Emissions Test: Test Equipment Model No. Serial No. Last Calibrate Next Calibrate Spectrum HP8568B 2928A04640 06/27/2002 06/27/2003 EMI Receiver R & S ESVS30 841977/006 06/13/2002 06/13/2003 LISN EMCO 3825/2 9311-2153 06/13/2002 06/13/2003 LISN EMCO 3825/2 9311-2154 06/13/2002 06/13/2003 RF Cable 8-meter N/A 05/29-2002 05/29/2003 - For Radiated Emissions Test: Test Equipment Model No. Serial No. Last Calibrate Next Calibrate Spectrum HP8568B 2928A04640 06/27/2002 06/27/2003 RF Preselector HP85685A 2620A00338 06/27/2002 06/27/2003 QP Adapter HP85650A 2811A01324 06/27/2002 06/27/2003 EMI Receiver R & S ESVS30 841977/006 06/13/2002 06/13/2003 Biconical Antenna EMCO 3110B 3222 06/04/2002 06/04/2003 Biconical Antenna EMCO 3110B 3224 06/04/2002 06/04/2003 Log-Periodic Antenna EMCO 3146A 1424 06/04/2002 06/04/2003 Log-Periodic Antenna EMCO 3146A 1425 06/04/2002 06/04/2003 Turn Table EMCO 1060 1068 05/27/2002 05/27/2003 Antenna Tower EMCO 1050 1113 05/27/2002 05/27/2003 RF Cable M17/75-RG214-NE N/A 05/27/2002 05/27/2003 Reference: TYR87-2045 150M20P Date: 26 March 2003 Philips Electronics Industries (Taiwan) Ltd Page: 6 of 32 4. Test Configuration of EUT and Peripherals The system was configured for testing in a typical fashion ( as a customer would normally use it ) according to ANSI C63.4-1992, please see the photographs for detail. For system measurement, the EUT “150M20P” were connected to: Description Brand/ Model No. Serial No. FCC ID Remark A Monitor PHILIPS 150M20P TY0302094 A3KM122 EUT B PC Compaq ENC P866 5K15FXHZ2013 FCC Logo C Keyboard Compaq KB-9963 B26950GGALP13Q FCC Logo D Mouse Compaq M-S48a JNZ201213 E Modem Hayes 231AA A22231081770 BFJ9D9308US F Printer HP 2225C 2934S55406 DSI6XU2225 Connected Cables No. Description Manufac…

Text truncated - open the document above for the full version.

Reference: TYR87-2045 150M20P Date: 26 March 2003 Philips Electronics Industries (Taiwan) Ltd Page: 28 of 32 9. Photographs of Test Set-up Conducted Emissions Test Reference: TYR87-2045 150M20P Date: 26 March 2003 Philips Electronics Industries (Taiwan) Ltd Page: 29 of 32 Conducted Emissions Test Reference: TYR87-2045 150M20P Date: 26 March 2003 Philips Electronics Industries (Taiwan) Ltd Page: 30 of 32 Radiated Emissions Test Reference: TYR87-2045 150M20P Date: 26 March 2003 Philips Electronics Industries (Taiwan) Ltd Page: 31 of 32 Radiated Emissions Test Reference: TYR87-2045 150M20P Date: 26 March 2003 Philips Electronics Industries (Taiwan) Ltd Page: 32 of 32 10. Reference FCC part 15 - 1999 Radio frequency device. ANSI C63.4-1992, “American national standard for measurement of radio-noise emission from low-voltage electrical and electronic equipment in the range of 9KHz to 40GHz”
