A3KM125LCD TV Monitor

Product Information Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views • Physical Function Product Features 150T4 z 15-inch XGA LCD all-in-one Monitor TV with excellent display performance z Multiple video input allowing display of PC, TV, HD (the US/Canada/Korea/Taiwan), VCD, DVD, Progressive DVD and CamCorder z Digital High Definition Picture (1080i / 720P / 576P / 480P) z D-Sub to YPbPr component Video input adapter cable for DVD & HD z MultiSystem TV tuner-PAL/NTSC (available in most of the Asia Pacific area) RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • TypeTFT LCD • Screen size15 inch • Pixel Pitch0.297 x 0.297mm • LCD Panel type 1024 x 768 pixels R.G.B. vertical stripe Anti-glare polarizer • Effective viewing area(H) 304.1 x (V) 228.1mm • Display Colors8 bits interface (16.7M colors) PC SCANNING • Vertical refresh rate 56Hz-76Hz • Horizontal frequency 30kHz-63kHz PC VIDEO • Video dot rate80 MHz • Input impedance - Video 75 ohm - Sync 2K ohm • Input signal levels0.7 Vpp • Sync input signal Separate sync • Sync polaritiesPositive and negative Exhibit 3 Installstion and Operating Instructions * This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes • Input Frequency XGA Hsync 48- 63 kHz, Vsync 60 - 75 Hz (N.I.) SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.) VGA Hsync 31- 38 kHz, Vsync 60 - 75 Hz (N.I.) • Video interfaceD-sub, S-Video, TV-RF and composite video AUDIO • Input level for PC/SVHS500 mV nominal • Headphone out signal level4mW max. • Loudspeaker 2W Stereo Audio (1W/channel RMS x2, 200Hz~10kHz, 16 ohm, 10% THD) OPTICAL CHARACTERISTICS • Contrast ratio 350:1 (typ.) • Brightness 250 cd/m 2 (typ.) • Peak contrast angle6 o'clock • White Chromaticity x: 0.283 y: 0.297 (at 9300° K) x: 0.313 y: 0.329 (at 6500° K) x: 0.313 y: 0.329 (sRGB) • Viewing Angle (C/R >5) Upper >50° (typ.) Lower > 60° (typ.) Left >75° (typ.) Right >75° (typ.) • Response time <=25ms (typ.) • Maximum1024 x 768 at 75Hz • Recommended 1024 x 768 at 60Hz 14 user definable modes 11 factory preset modes: Resolution Mode H. freq (kHz) V. freq (Hz) PC 640*350 VGA-1 31.469 70.086 640*480 VGA VESA 60 31.469 59.940 640*480 Mac 13 35.000 66.667 640*480 VGA VESA 75 37.500 75.000 720*400 IBM VGA 3H 31.468 70.087 RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will then 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: RETURN TO TOP OF THE PAGE 800*600 SVGA VESA 56 35.156 56.250 800*600 SVGA VESA 60 37.879 60.317 800*600 SVGA VESA 75 46.875 75.000 832*624 Mac 16 49.724 74.550 1024*768 XGA VESA 60 48.363 60.004 1024*768 XGA VESA 75 60.023 75.029 Video Video 60Hz 15.734 59.940 Video 50Hz 15.625 50.000 Progressive Video HD 480P 31.470 60.000 Pr. Component 576P 31.250 50.000 HD 1080i 33.750 60.000 HD 1080i 28.125 50.000 HD 720P 45.000 60.000 HD 720P 37.500 50.000 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes 25W (typ.) Blue OFF Blanked No No 110VAC < 1W 230VAC < 2W Amber This monitor is E NERGY S TAR ® compliant. A s an E NERGY S TAR ® P artner, PHILIPS has determined that this product meets the E NERGY S TAR ® guidelines for energy efficiency. Physical Specifications * This data is subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assignment The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE • Dimension (WxHxD) 360 x 358 x 177 mm (incl. Pedestal) • Weight 4.1 kg • Tilt (Forward / Backward)- 5° / 20° • Power supply100 — 240 VAC, 50/60 Hz • Power consumption 25 W (typ.) • Temperature (operating)5° C to 40° C • Relative humidity 20% to 80% • System MTBF50K hrs (excluding CCFL 40Khrs) Pin No. Assignment Pin No. Assignment 1 Red video input 9 DDC +5V 2 Green video input 10 Logic ground 3 Blue video input 11 Ground 4 Ground 12 Serial data line (SDA) 5 Ground 13 H. Sync 6 Red video ground 14 V. Sync 7 Green video ground 15 Data clock line (SCL) 8 Blue video ground Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function RETURN TO TOP OF THE PAGE Tilt Installing your LCD Monitor/TV Front View Product Description • Connecting to Your PC, TV antenna, DVD/VCR etc. • VESA Wall Mounting • Installing the Optional TV/AV Module • Getting Started • Optimising Performa Front View Product Description 1 SOURCE TV/Video source selection 2 Increase or decrease the channel number or up or down the highlighted function in OSD 3 MENU Open the OSD and select the highlighted function 4 VOL Increase or decrease the level of audio volume or move up or down the highlighted function in OSD 5 Power indicator 6 Power switch On/Off 7 Receiver for 'remote control' RETURN TO TOP OF THE PAGE Rear View RETURN TO TOP OF THE PAGE Optimizing Performance z For best performance, ensure that your display settings are set at 1024x768@60Hz (for 15"). z You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installation process. Click on the link to find out more about this program. More about FP_setup03.exe RETURN TO TOP OF THE PAGE 1 DC 12V outFor connect to "Audio Chin" only 2 AC inAC power in 3 VGAD-Sub input 4 PC - Audio in For connect to PC Audio output 5 Audio outFor connect to Audio out Note: You can check the current display settings by pressing the 'MENU' button once. Regulatory Information TCO '99 Info…

Text truncated - open the document above for the full version.

1. General Description This 15” LCD monitor TV support analog PC VGA signal up to 1024X768 75HZ XGA, and TV, YC, CVBS signal input. It can also support to HDTV (from PC D-sub ), including 480I, 480P, 720P, 1080i 60Hz input and 576I, 576P, 720P, 1080I 50Hz. This LCD monitor TV use Scaler engine that built in MCU for controlling PC and TV signal. MCU code size is 96K and communication via I2C. PC video is into an ADC chip AD9883 then connected to scaller W8801TR, and also work for HDTV input. Video decoder SAA7115 is used for TV video processing and convert it with CCIR 656 8bits digital format, tri-state to AD9883 (8bits of Green), send to scaler for picture scaling process. Finally, Scaler W8801TR will output RSDS (20)+TCON (7) signals to LCD panel for picture display. One audio decoder MSP34XXG is used for TV sound processing. Followings are the key function that scaler built-in MCU: 1. Size and phase clock auto adjustment. 2. Back light brightness and on-off control. 4. VGA mode detection and IC register setting. 5. De-interlace the video signal. 6. Panel power on/off. 7. Factory alignment command receiver. 8. Control AD9883 A/D converter for HDTV input. 9. RC remote control 10 Keyboard control : Up , Down , Left , Right , Enter , Source and Power 11. Source select and small signal process control. 12. Power LED control. 13. Power management for PC and TV 14. Multimedia tuner control (Philips MK3 family) 15. TV sound decoder (Micronas MSP34X5G family) for TV sound process. 16. Sound mute, volume and sound effect control Exhibit 4 Brief Description of Circuit Functions 2. COLOR ADJUSTMENT VGA mode : Set AD9883 R,G,B gain and R,G,B CUT-OFF as preset color 9300/6500. Control Scaler for user Contrast, Brightness adjustment. TV / Video mode / HDTV : For normal, warm, cool color setup is done by scaler color look up table. Normal set to original panel color, Warm set to 6500, Cool set to 9300. User Brightness and contrast, color, tint, are adjusted by scaler also. 3. Factory alignment and DDC dada VGA and TV factory alignment use PC interface cable. 4. Keyboard definition 4.1 Control Board touch control keys <A> Power LED <B> <C>RIGH <D> Menu <E> Down <F> Up <G> Source 4.2 Control Key Definition PC mode Auto adjustment hot key: Press <D> and <E> at the same time and hold for 2 seconds. 5. Power Management: Power LED: Normal working: Green Power saving: Amber. Power consumption <1W ( 100Vac ) <2W ( 230Vac ) Key Function VGA mode TV/video mode <A> Power Soft Power Soft Power <B> Left Left/Volume down Left/Volume down <C> Right Right/Volume up Right/Volume up <D> Menu Call OSD menu Call OSD menu <E> Down/channel down Down Down/Channel Down <F> Up/Channel up Up Up/Channel up <G> Source Source (PC/TV/S- V /AV/HDTV) Source (PC/TV/S-V /AV/HDTV) 6. HDTV input HD input connector: One VGA 15 pin D-sub connector is used for HDTV video input. PIN No. SIGNAL 1 Pr 2 Y 3 Pb 4 Gnd 5 Gnd 6 Red/Pr GND 7 Green/Y GND 8 Blue/Pb GND 9 NA 10 NA 11 NA 12 NA 13 NA 14 NA 15 NA CVBS Y/C Tuner D | SUB AD9883 A/D SAA7115 Video decoder MSP34XXG Sound decoder 24C16 EEPROM 24C02 DDC Audio box TV board 1024X768 2 X CCFL CPT RSDS Panel PC-Audio Scaler Board Audio from YC/AV WT8801TR Scaler + u P IIC Power & Inverter IIC VGA 24Bites TV 8 Bites Block Diagram Exhibit 5

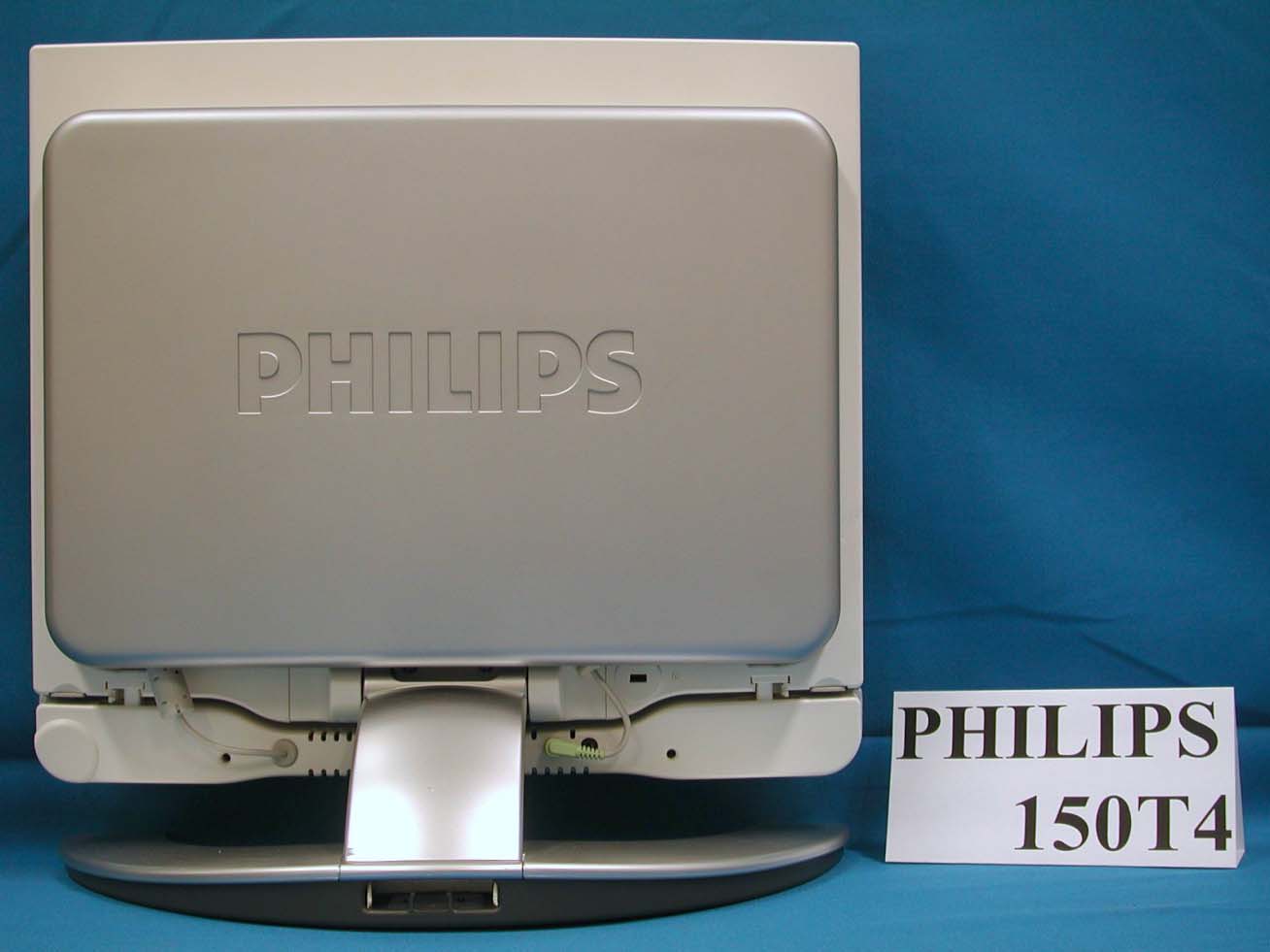

Exhibit 7 Photographs Front View Rear View Label Assembly w/o Base

FCC ID Label Exhibit 2

Assembly w/o Back Cover Shielding Cover Assembly w/o Shielding Cover PCB Layout PCB Layout PCB Layout PCB Layout Assembly w/o PCB Plate LCD Panel Video Module Video Module Assembly Shielding PCB Layout PCB Layout Audio Module Audio Module Assembly PCB Layout PCB Layout Power Cord and I/F Cables

Philips Electronics Industries (Taiwan) Ltd - EMC Lab. 5, Tze Chiang 1 Road, Chungli Industrial Park, Chungli, Taoyuan, Taiwan Tel.: +886-3-454-9862 Fax.: +886-3-454-9887 E-mail: [email protected] FCC Test Report Report No.: TYR87-2060 Date : 17 December, 2003 Page : Page 1 of 35 Customer : Philips Electronics Industries Name : Mr. S.T. Huang – EE LCD Address : 5, Tze Chiang 1 Road, Zip/City : Chungli Industrial Park, Country : Chungli, Taiwan, R.O.C. Equipment Under Test (including peripherals) : FCC ID. : A3KM125 Model Name : 150T4 Serial Number : TY0304604 Description : 15” SVGA LCD TV monitor, Max. resolution 1024x768/75Hz EMC Standards : FCC Part 15 of October 01,1999 Class B ANSI C63.4-1992 Result : PASSED the limits/test-levels in the standards. Note : The results in this report apply only to the sample(s) and mode(s) tested. It is the manufacturer’s responsibility to assume the continued EMC compliance of production models. Date of receipt of EUT : 01 Dec. 2003 Date of performance of test : 03 Dec., 2003 to 06 Dec., 2003 Philips Electronics Industries (Taiwan) Ltd This report shall not be reproduce except in full, without written approval of the testing laboratory C.C. Wu - EMC Test Engineer Ronnie Yang - EMC Manager Reference: TYR87-2060 150T4 Date: 17 December 2003 Philips Electronics Industries (Taiwan) Ltd Page: 2 of 35 Table of contents 1. Summary of test results.............................................................................3 2. General information of EUT.......................................................................4 3. Test equipment.......................................................................................5 4. Test configuration of EUT and peripherals......................................................6 5. Test procedure.......................................................................................7 6. Measurement uncertainty...........................................................................9 7. Conducted emissions test..........................................................................10 8. Radiated emissions test............................................................................19 9. Photographs of test set-up.........................................................................31 10. References...........................................................................................35 Reference: TYR87-2060 150T4 Date: 17 December 2003 Philips Electronics Industries (Taiwan) Ltd Page: 3 of 35 1. Summary of test results Test Standard Result Note Emission, ANSI C63.4-1992 Conducted emission Radiated emission FCC Part 15 FCC Part 15 Passed Passed Remark: The test sample fully complies with the requirements set forth in : FCC Part 15 Class B. Reference: TYR87-2060 150T4 Date: 17 December 2003 Philips Electronics Industries (Taiwan) Ltd Page: 4 of 35 2. General Information of EUT The EUT, 15” color monitor : Model No. : 150T4 FCC ID : A3KM125 Brand : PHILIPS The color monitor automatically scans horizontal frequencies between 30KHz and 63KHz , and vertical frequencies between 56Hz and 76Hz. This color monitor displays sharp and brilliant images of text and graphics with a maximum resolution up to 1024x768 pixels. The monitor has 11 factory-preset modes as indicated in the following table: # Resolution Frequency Pixel rate Sync Comment 1 640X350 31.5K/70HZ 25.175 (+/-) IBM VGA 2 720X400 31.5K/70HZ 28.322 (-/+) IBM VGA 3 640X480 31.5K/60HZ 25.175 (-/-) IBM VGA 4 640X480 35.0K/67HZ 30.24 (-/-) MAC 5 640X480 37.5K/75HZ 31.501 (-/-) VESA 6 800X600 35.2K/56HZ 36 (+/+) VESA 7 800X600 37.9K/60HZ 40 (+/+) VESA 8 800X600 46.9K/75HZ 49.498 (+/+) VESA 9 832X624 49.7K/75HZ 57.28 (+/+) MAC 10 1024X768 48.4K/60HZ 65 (-/-) VESA 11 1024X768 60.0K/75HZ 78.75 (-/-) VESA Reference: TYR87-2060 150T4 Date: 17 December 2003 Philips Electronics Industries (Taiwan) Ltd Page: 5 of 35 3. Test Equipment Test equipment used for line Conducted and Radiated emissions as following. All equipment were calibrated according to ANSI C63.4-1992 and ISO-9000 requirement unless otherwise specified. Traceability to R.O.C. and international standards is assured by using calibrated all equipment. - For Conducted Emissions Test: Test Equipment Model No. Serial No. Last Calibrate Next Calibrate Spectrum HP8568B 2928A04640 02/27/2003 02/27/2004 EMI Receiver R & S ESVS30 841977/006 02/27/2003 02/27/2004 LISN EMCO 3825/2 9311-2153 06/16/2003 06/16/2004 LISN EMCO 3825/2 9311-2154 06/16/2003 06/16/2004 RF Cable 8-meter N/A 08/21/2003 08/21/2004 - For Radiated Emissions Test: Test Equipment Model No. Serial No. Last Calibrate Next Calibrate Spectrum HP8568B 2928A04640 09/23/2003 09/23/2004 RF Preselector HP85685A 2620A00338 09/23/2003 09/23/2004 QP Adapter HP85650A 2811A01324 09/23/2003 09/23/2004 EMI Receiver R & S ESVS30 841977/006 02/27/2003 02/27/2004 Biconical Antenna EMCO 3110B 3224 08/21/2003 08/21/2004 Log-Periodic Antenna EMCO 3146A 1425 08/21/2003 08/21/2004 Turn Table EMCO 1060 1068 08/21/2003 08/21/2004 Antenna Tower EMCO 1050 1113 08/21/2003 08/21/2004 RF Cable M17/75-RG214-NE N/A 08/21/2003 08/21/2004 Reference: TYR87-2060 150T4 Date: 17 December 2003 Philips Electronics Industries (Taiwan) Ltd Page: 6 of 35 4. Test Configuration of EUT and Peripherals The system was configured for testing in a typical fashion ( as a customer would normally use it ) according to ANSI C63.4-1992, please see the photographs for detail. For system measurement, the EUT “150T4” were connected to: Description Brand/ Model No. Serial No. FCC ID Remark A Monitor PHILIPS 150T4 TY0304604 A3KM125 EUT B PC Compaq ENC P866 5K15FXHZ2013 FCC logo C Keyboard Compaq KB-9963 B26950GGALP13Q FCC Logo D Mouse Compaq M-S48a JNZ201213 E Modem Hayes 231AA A22231081770 BFJ9D9308US F Printer HP 2225C 2934S55406 DSI6XU2225 Connected Cables No. Description Manufacturer Length Shielded Remark 1 Power Cord Long Shine 1.8 meters No for EUT 2 Power Cord Acer 1.8 meters No for PC 3 P…

Text truncated - open the document above for the full version.

Reference: TYR87-2060 150T4 Date: 17 December 2003 Philips Electronics Industries (Taiwan) Ltd Page: 31 of 35 9. Photographs of Test Set-up Conducted Emissions Test Reference: TYR87-2060 150T4 Date: 17 December 2003 Philips Electronics Industries (Taiwan) Ltd Page: 32 of 35 Conducted Emissions Test Reference: TYR87-2060 150T4 Date: 17 December 2003 Philips Electronics Industries (Taiwan) Ltd Page: 33 of 35 Radiated Emissions Test Reference: TYR87-2060 150T4 Date: 17 December 2003 Philips Electronics Industries (Taiwan) Ltd Page: 34 of 35 Radiated Emissions Test Reference: TYR87-2060 150T4 Date: 17 December 2003 Philips Electronics Industries (Taiwan) Ltd Page: 35 of 35 10. Reference FCC part 15 - 1999 Radio frequency device. ANSI C63.4-1992, “American national standard for measurement of radio-noise emission from low-voltage electrical and electronic equipment in the range of 9KHz to 40GHz”
