Exhibit 4 Brief Description of Circuit Functions 1. General Description This LCD-TV-F1 support PC analog input up to 1280X768 75Hz mode for WXGA panel, and support TV (RF), YC, CVBS, and SCART. Also for Y Pb Pr signal input from SDTV to HDTV (480I, 480P, 720P, 1080i 60Hz and 576I, 576P, 720P, 1080I 50Hz). This LCD - TV use MST51510 as Scaler engine, which has embedded Analog D-sub, digital DVI decoder, scaling input signal to panel OSD mapping and simple 3D de-interlacer. The extra SDRAM is to accomplish video frame rate conversion and PIP function. The external CPU can be used to back light control, RC, keypad input, IIC I/O communication and. TV tuning control, sound control, and SAA7119A video decoder. Video decoder SAA7119 is used for TV video processing and convert it with CCIR 601/16bits or 656/8bits digital format and send to Scaler for de-interlace process, and also CC,V-chip data decode. One audio decoder MSP34XXG is used for TV sound processing, and output to post amplifier and SCART out. An option function in WE model “Telttext display”. Data decode is done by SAA5360, output RGB/FB is to video decoder input for text overlapping. In non-text model, this chip is N.C. 2. System block diagram Scaler choice: If the panel interface is TTL type: 20” use MST51502L. If the panel interface is LVDS type: 14”15”17” use MST51512L SAA7119 TEXT SAA5360 /1 1Mx16 MCU 128K AD VIDEO MST515X2 DDC 24C02 EEPROM 24C32 SCL/SDA DDC_SDA/ DDC_SCL (ISP) LVDS / TTL AD IF MM Tuner PC_input AV_CVBS_SC SC_R/G/B or YPbPr Y/C Tuner_CVBS TEXT FB/FR/FG 8Bits ITU656 YPbPr( HD ) MSP34X5 PC_AUD_in YPbPr_AUD_in CVBS_AUD_in SC_AUD_in 2 nd _IF SATPA 3005D2 SC_AUD_OUT SPEAKER PANEL 1Mx1 M U X S S A A A A 7 7 1 1 1 1 9 9 + + M M S S T T AV_CVBS_RCA 3. Function description: MM tuner is used to receive RF wave and output CVBS and 2nd IF signal. CVBS is to video decoder (SAA7119) for color process, 2nd IF is to sound decoder (MSP34x5) for audio process. The tuner control is via IIC ex. channel tuning. For different TV system, tuner and sound decoder have diversity as above. Standard TV input (Tuner, S-video, CVBS, SCART) is processed by SAA7119, But YPbPr, SDTV and HDTV(480i, 576i, 480p,576p,720p,1080i), is done by scaler MST51512L/502L ADC. But the signal is still link to SAA7119 if PIP (video in graph) function is requested. Then all YPbPr signal processed by SAA7119 could be the PIP video source. (* May use down sampling in HD0) MV protect is decoded by scaler. Video decoder SAA7119, is in charge of color decoding, could support PAL, NTSC and SECAM world wide system. Compare to SAA7118, SAA7119 improve some picture quality, like V-chip CC I2C read- back, LTI, CTI, skin tone correction(see task A), also the HD0 is supported, so if F1 need PIP function then the The Teltext function is for WE model, need a extra IC SAA5360. CVBS input, R/G/B, FB, out. Due to the SAA5360 request input signal 1Vrms and only one input channel, so the CVBS input source is from SAA7119 AOUT (CVBS out with 1Vrms). The R/G/B FB output into SAA7119 by AI22/AI32/AI42, and AI44 could overlay on any video source. Sound decoder MSP3415/45 is responsible to sound decode of tuner 2 nd IF. It has one 2nd IF, two selectable audio sources input. And one loudspeaker, one scart out. Due to the input port limitation, a MUX is added for AV source select( PC audio in is fix in SC1). If the post audio amplifier is gain fixed type then the volume adjust will be on MSP34x5. Scaler MST51502L/51512L besides scaling function, PIP, 3D de-interlacer, color enhance are major feature. Even de-interlacer is not so good but for static picture is enough to avoid image sticking. In America market, to avoid patent issue, two SDRAM is necessary for graph frame buffer. But in else region one SDRAM is enough. Of course, if no PC mode in spec, then one SDRAM for all model. The scaler structure limitation, the PIP source only from “video port”, 8 bits or 16 bits. The sub window /PIP size can enlarge to half screen. MCU, NT68F632AL, is 128K flash ROM inside. Power control, RC5 I/O, and key function all done by here, more detail function will description in chapter 4.later. All chip communication is by IIC (SDA/SCL), and ISP is via DDCIIC, but if PC mode un- supported, then a reserved 6pin connector is for same application. Exhibit 5 System block diagram SAA7119 TEXT SAA5360/1 1Mx16 MCU 128K ADVIDEO MST515X2 DDC 24C02 EEPROM24C32 SCL/SDA DDC_SDA/DDC_SCL (ISP) LVDS / TTL AD IF MM Tuner PC_input AV_CVBS_SC SC_R/G/B or YPbPr Y/C Tuner_CVBS TEXT FB/FR/FG 8Bits ITU656 YPbPr( HD ) MSP34X5 PC_AUD_in YPbPr_AUD_in CVBS_AUD_in SC_AUD_in 2 n d _IF SATPA3005D2 SC_AUD_OUT SPEAKER PANEL 1Mx1 MUX S S A A A A 7 7 1 1 1 1 9 9 + + M M S S T T AV_CVBS_RCA

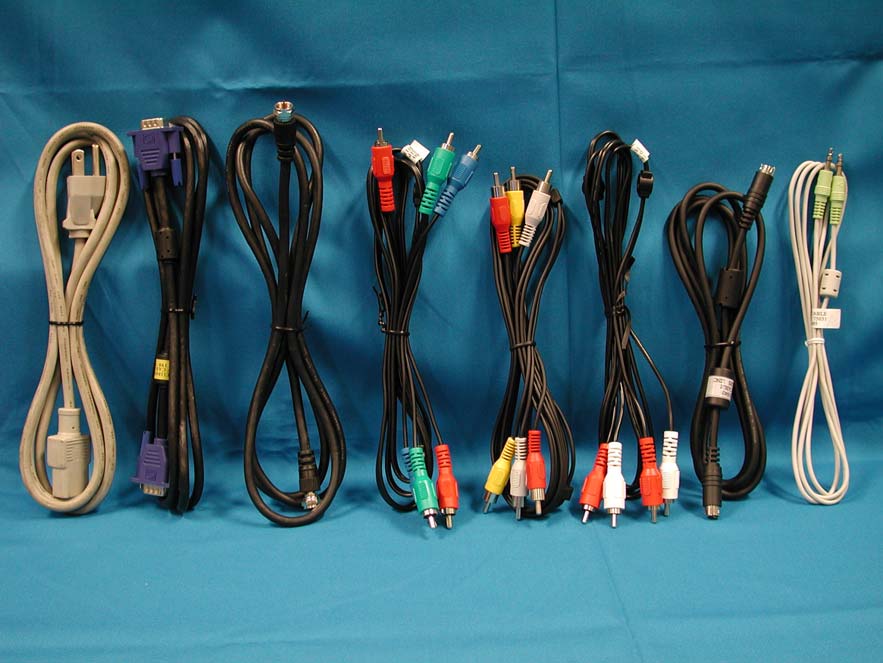

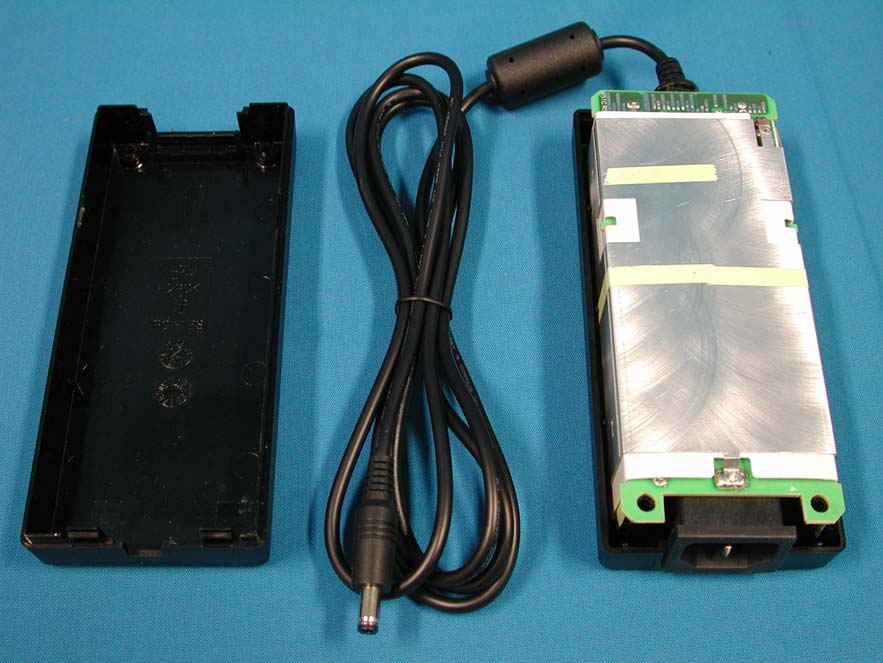

Page 1 of 11 Exhibit 7 Photographs Front View Rear View Page 2 of 11 Label Front View w/o Front Cabinet Page 8 of 11 AC Adapter Assembly with Shielding Page 11 of 11 Power Cord and I/F Cables

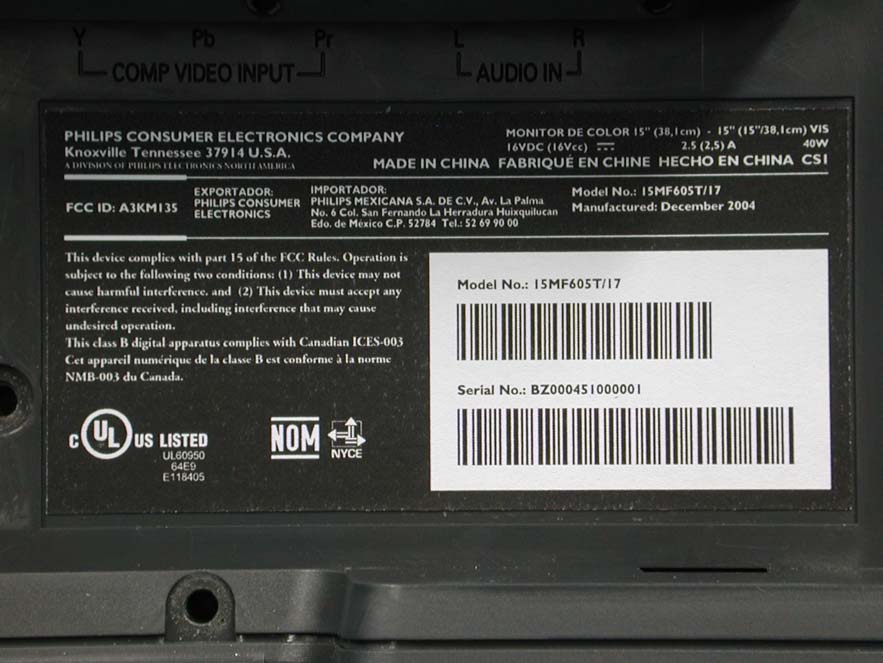

Exhibit 2 FCC ID Label Page 2 of 11 Label Front View w/o Front Cabinet

Page 2 of 11 Label Front View w/o Front Cabinet Page 3 of 11 Rear View w/o Back Cover Shielding Cover Page 4 of 11 Assembly w/o Shielding Cover PCB Layout Page 5 of 11 PCB Layout PCB Layout Page 6 of 11 PCB Layout Assembly w/o PCB Page 7 of 11 Plate LCD Panel Page 8 of 11 AC Adapter Assembly with Shielding Page 9 of 11 Assembly with Shielding Shielding Page 10 of 11 PCB Layout PCB Layout

FCC ID. A3KM135 Page 1 of 53 Audix Corporation. Report No. EM-F930258 APPLICATION FOR CERTIFICATION On Behalf of Philips Electronics Industries (Taiwan) Ltd. LCD TV Model No.：15MF605T Brand : Philips Magnavox FCC ID: A3KM135 Prepared for : Philips Electronics Industries (Taiwan) Ltd. 5, Tze Chiang 1 Rd, Chungli Ind. Park, Chungli, Taoyuan Hsien, Taiwan, R.O.C. Prepared By : AUDIX Corporation Technical Division EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou, Taipei Hsien, Taiwan, R.O.C. Tel: (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number ： EM931465 Report Number ： EM-F930258 Date of Test ： Dec. 17, 2004 Date of Report ： Dec. 20, 2004 FCC ID. A3KM135 Page 2 of 53 Audix Corporation. Report No. EM-F930258 TABLE OF CONTENTS Description Page Test Report Certification........................................................................................................................3 1. GENERAL INFORMATION ...........................................................................................................4 1.1. Description of Device (EUT) .................................................................................................................... 4 1.2. Tested Supporting System Details ............................................................................................................ 5 1.3. Test Facility .............................................................................................................................................. 7 1.4. Measurement Uncertainty ......................................................................................................................... 7 2. CONDUCTED DISTURBANCE MEASUREMENT .....................................................................8 2.1. Test Equipment ......................................................................................................................................... 8 2.2. Block Diagram of Test Setup.................................................................................................................... 8 2.3. Conducted Powerline Emission Limit (§15.107, Class B) ....................................................................... 8 2.4. EUT’s Configuration during Compliance Measurement .......................................................................... 9 2.5. Operating Condition of EUT................................................................................................................... 10 2.6. Test Procedure ........................................................................................................................................ 10 2.7. Line Conducted RF Voltage Measurement Results ................................................................................ 11 3. RADIATED DISTURBANCE MEASUREMENT .......................................................................28 3.1. Test Equipment ....................................................................................................................................... 28 3.2. Block Diagram of Test Setup.................................................................................................................. 28 3.3. Radiation Limit (§15.109/CISPR 22, Class B) ....................................................................................... 29 3.4. EUT’s Configuration during Compliance Measurement ........................................................................ 29 3.5. Operating Condition of EUT................................................................................................................... 29 3.6. Test Procedure ........................................................................................................................................ 30 3.7. Radiated Emission Measurement Results ............................................................................................... 30 4. DEVIATION TO TEST SPECIFICATIONS................................................................................47 5. PHOTOGRAPHS.............................................................................................................................48 5.1. Photos of Powerline Conducted Measurement .......................................................................................48 5.2. Photos of Radiated Measurement at Open Area Test Site ...................................................................... 50 FCC ID. A3KM135 Page 3 of 53 Audix Corporation. Report No. EM-F930258 TEST REPORT CERTIFICATION Applicant ： Philips Electronics Industries (Taiwan) Ltd. Manufacturer ： Philips Electronics Industries (Taiwan) Ltd. Factory ： Philips Consummer Electronics Co., of Suzhou Ltd. EUT Description ： LCD TV FCC ID ： A3KM135 (A) MODEL NO. ： 15MF605T (B) SERIAL NO. ： (1)TY0404727 (2)TY0404729 (C) BRAND NAME ： Philips Magnavox (D) POWER SUPPLY ： 16VDC－, 2.5A (E) TEST VOLTAGE ： AC 120V/60Hz (Via Power Adapter) Measurement Standards and Methods Used : FCC CFR 47 Part15 / Jul. 2004 and CISPR 22/1997 and ANSI C63.4-2003 The device described above was tested by AUDIX CORPORATION to determine the maximum emission levels emanating from the device. The maximum emission levels were compared to the FCC Part 15 Subpart B with the provisions of section §15.107 (a) and § 15.109 (g) Class B limits both conducted and radiated emission. The measurement results are contained in this test report and AUDIX CORPORATION is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliance with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of AUDIX Corporation. Date of Test : Dec. 17 , 2004 Prepared by : (Julie Hsu/Assistant Administrator) Test Engineer : (Ben Cheng/Section Manager) Approve & Authorized Signer : (Leon Liu/Senior Manager) Name of the Representative of the Respon…

Text truncated - open the document above for the full version.

FCC ID. A3KM135 Page 48 of 53 Audix Corporation. Report No. EM-F930258 5. PHOTOGRAPHS 5.1. Photos of Powerline Conducted Measurement Test Mode：D-Sub Input (“H” Pattern) FRONT VIEW OF CONDUCTED TEST BACK VIEW OF CONDUCTED TEST FCC ID. A3KM135 Page 49 of 53 Audix Corporation. Report No. EM-F930258 Test Mode：D-Sub + RF Input (PIP Mode, “H” Pattern + “Color Bar” image) FRONT VIEW OF CONDUCTED TEST BACK VIEW OF CONDUCTED TEST FCC ID. A3KM135 Page 50 of 53 Audix Corporation. Report No. EM-F930258 5.2. Photos of Radiated Measurement at Open Area Test Site Test Mode：D-Sub Input (“H” Pattern) FRONT VIEW OF RADIATED TEST BACK VIEW OF RADIATED TEST FCC ID. A3KM135 Page 51 of 53 Audix Corporation. Report No. EM-F930258 Test Mode：D-Sub + RF Input (PIP Mode, “H” Pattern + “Color Bar” image) FRONT VIEW OF RADIATED TEST BACK VIEW OF RADIATED TEST FCC ID. A3KM135 Page 52 of 53 Audix Corporation. Report No. EM-F930258 Test Mode: D-Sub Input, AUO Panel; 640*480/60Hz, 31kHz SETUP WITH MAXIMUM DETECTED EMMISSION AT HORIZONTAL POLARIZATION SETUP WITH MAXIMUM DETECTED EMMISSION AT VERTICAL POLARIZATION FCC ID. A3KM135 Page 53 of 53 Audix Corporation. Report No. EM-F930258 Test Mode: D-Sub Input, LG Philips Panel; 640*480/60Hz, 31kHz SETUP WITH MAXIMUM DETECTED EMMISSION AT HORIZONTAL POLARIZATION SETUP WITH MAXIMUM DETECTED EMMISSION AT VERTICAL POLARIZATION
