A3KM142Flat Panel Color Monitor

Product Information Product Features 200W6 z Outstanding front of screen performance {WSXGA, wide format 1680x1050 resolution for sharper display {Fast 16ms response time displays fast moving pictures better {Widest viewing angle up to 176 degree {Dual Input accepts both analog VGA and digital DVI signals z Maximum comfort for maximum productivity {SmartManage provides LAN-based asset management capabilities {Large viewing area for seeing more without scrolling {Screen tilt, swivel and height adjustment for ideal viewing angle {Easy, user friendly plug-and play installation z Multi-function for ultimate convenience {USB port for convenient peripheral connections {Built-in speakers for audio without desktop clutter {Stand-alone audio for efficient net conferencing {Easy plug and play DVI ensures true digital experience RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • TypeTFT LCD • Screen size20.1" / 51cm • Pixel Pitch0.258 x 0.258mm • LCD Panel type 1680 x 1050 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area433.44 x 270.9 mm • Display Colors8 bits interface (16.7M colors) SCANNING Vertical refresh rate56Hz-85Hz Horizontal Frequency30kHz-93kHz (Analog input) VIDEO • Video dot rate165 MHz • Input impedance - Video 75 ohm - Sync 2K2 ohm 第 1 頁，共 6 頁Product Information 2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm * This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes • Input signal levels0.7 Vpp • Sync input signal Separate sync Composite sync Sync on green • Sync polaritiesPositive and negative •Video interface D-Sub (Analog) DVI-D (Digital) AUDIO-IN • Input signal level0.7 Vpp • Headphone out signal level20mW x 2, 32 • Input signal connector3.5mm mini jack • Loudspeaker 4W Stereo Audio (2W/channel RMSx2, 200Hz-12kHz, 4 ohm,THD=10%) Optical characteristics • Contrast ratio: 600:1 (typ). • Brightness: 300 cd/m 2 (typ.) • Peak contrast angle6 o'clock • White Chromaticity: x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) • Viewing Angle: (C/R>10) Upper >88° (typ.) Lower > 88° (typ.) Left > 88° (typ.) Right > 88° (typ.) • Response time 16 ms (typ.) • Maximum 1680 x 1050 at 75Hz(analog input) 1680 x 1050 at 60Hz(digtal input) • Recommended 1680 x 1050 at 60Hz * at DVI digital input 39 user definable modes 15 factory preset modes: H. freq (kHz) Resolution V. freq (Hz) 第 2 頁，共 6 頁Product Information 2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: RETURN TO TOP OF THE PAGE 31.469 640x350 70.086 31.469 720x400 70.087 31.469 640x480 59.940 35.000 640x480 67.000 37.500 640x480 75.000 35.156 800x600 56.250 37.879 800x600 60.317 46.875 800x600 75.000 48.363 1024x768 60.004 60.023 1024x768 75.029 68.700 1152x870 75.000 63.981 1280x1024 60.020 79.976 1280x1024 75.025 75.0 1600x1200 60 65.29 1680x1050 60.0 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color Active ON Yes Yes < 50W Green Sleep OFF No No < 1.5W Amber Switch Off OFF- -< 1.5WOFF This monitor is ENERGY STAR ® compliant. As an ENERGY STAR ® Partner, PHILIPS has determined that this product meets the ENERGY STAR ® guidelines for energy efficiency. 第 3 頁，共 6 頁Product Information 2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm Physical Specifications * This data is subject to change without notice. * Resolution 1680x1050, standard size, contrast max., brightness 50%, 6500° K, full white pattern. RETURN TO TOP OF THE PAGE Pin Assignment 1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: • Dimension (WxHxD) 478 x 423.5 x235 mm (incl. Pedestal) • Weight 7.6 Kg • Tilt / Swivel-5° ~ 25° / ± 125° • Power supply90— 240 VAC, 60 - 50 Hz • Power consumption 50 W* (typ.) • Temperature 5° C to 40° C (operating) -20° C to 60° C (storage) • Relative humidity 20% to 80% • System MTBF50K hrs (excluding CCFL 40K hrs) • Cabinet color 200W6CB: Black 200W6CS: Silver • Altitude - storage/shipment - operating 0 - 40,000 feet (12,192m) 0 - 12,000 feet (3657.6m) Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment 1 T.M.D.S. Data2- 9 T.M.D.S. Data1-17T.M.D.S. Data0- 2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+18T.M.D.S. Data0+ 3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield 4 No connect 12 No connect 20No connect 5 No connect 13 No connect 21No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield 7 DDC Data 15 Ground (for +5V)23T.M.D.S. Clock+ 8 No connect 16 Hot Plug Detect24T.M.D.S. Clock- 第 4 頁，共 6 頁Product Information 2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm 2. The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function Pin No. Assignment Pin No. Assignment 1 Red video input 9 +5V 2 Green video input/SOG 10 Logic ground 3 Blue video input 11 Ground 4 Ground 12 Serial data line (SDA) 5 No connect 13 H. Sync / H+V 6 Red video ground 14 V. Sync (VCLK for DDC) 7 Green video ground 15 Data clock line (SCL) 8 Blue video ground 第 5 頁，共 6 頁Product Information 2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm RETURN TO TOP OF THE PAGE 1) Tilt 2) Swivel 第 6 頁，共 6 頁Product Information 2005-03-16file://N:\…

Text truncated - open the document above for the full version.

1 200W6 200W6 Functional Block Diagram 200W6 Functional Block Diagram SCALER MST9251A EEPROM M24C16 DDCSDA DDCSCL R/G/B CLK and R/G/B DATA (LVDS interface) CPU (128K) NT68F631A CLK: 12MHz IICSDAIICSCL HS/VS Connector to Audio & Ctrl Board Connector to Panel VIDEO Input LVDS Tx Panel_PWR 5V/12V D-SUB DVISDA DVISCL RX0+/-, 1+/-,2+/- DVI-D RXC+/- Connector to Power + Inverter BL_CTRL Brightness Adapter + Inverter Board Switching Frequency 45K~55KHz LCD Panel 5V, 12V BL_CTRL, Brightness CCFL Line *6 USB plug USB device PC DDR K4D263238A Exhibit 4 Circuit Description 1. General 200W6 is the 20” Flat Panel Display Monitor. The monitor featured with analog and digital signal input interface, USB plug and modularized as a display unit with embedded universal AC power supplies inside monitor main body. It armed with the compact base that featuring with height adjustment, tilt and swivel functionality. The power button and display control buttons (tact switch type) and USB are in the front of the monitor. The monitor will be TCO03 and Energy Star compliant and incorporate energy saving features described feature in this document. The monitor shall support an internal scalar to automatically enable the monitor to display lower resolution video modes into 1680x1050 full screen display. The monitor shall communicate display data to the host computer using DDC-CI and shall support EDID structure 1.3 for analog and digital signal input. 2. Power supply Main Voltage: AC 90 - 135 Vrms and 170 – 264 Vrms, 50/60 ± 2 Hz Power consumption: Operating < 68 W (Max. w/o audio), Standby < 1.5W. DC power switch off < 1.5W. Power cord length: 1.8M Power cord type: 3 lead with earth plug Power indicator: LED (ON: green, Standby: amber) Auto power saving: EPA, Nutek, VESA, DPMS, E2000 3. Input signal Horizontal scan: 30 - 93 KHz Vertical scan: 56 -85 Hz Input signals 1. Signal input level Video : 0.7 Vp-p linear / 75 ohms Sync : H/H+V, V TTL level, composite sync, sync on green 2. Impedance Video : Terminated with 75 ohms Sync : Terminated with 2K2 ohms 4. OSD (On Screen Display) function Software control function via OSD/ Control as below: Analog Signal Input 1. Main Menu 2.1 Sub Menu 2.2 Sub Menu 2 MONITOR SETUP Exit Brightness & Contrast Brightness, Contrast Color Original Color, 9300K,6500K, sRGB User Define Red, Green, Blue Position Horizontal, Vertical Input Selection Analog, Digital More Settings Language English, Spanish, French, German, Italian, S. Chinese Phase/ Clock Phase, Clock OSD Setting Horizontal, Vertical Audio Option Stand-alone (On, Off) Mute (On, Off) Reset No, Yes Serial No.: (Serial No.) (Timing Mode) Move Selection Then ok Digital Signal Input 1. Main Menu 2.1 Sub Menu 2.2 Sub Menu 2 MONITOR SETUP Exit Brightness & Contrast Brightness, Contrast Color Original Color, 9300K,6500K, sRGB User Define Red, Green, Blue Position (Gray out) Input Selection Analog, Digital More Settings Language, English, Spanish, French, German, Italian, S.Chinese Phase/ Clock (Gray out) Phase, Clock (Gray out) OSD Setting Horizontal, Vertical Audio Option Stand-alone (On, Off) Mute (On, Off) Reset No, Yes Serial No.: (Serial No.) (Timing Mode) Move Selection Then ok Remark: Audio Selection - Stand-alone – On: Isolate video and audio control input Stand-alone – Off: Integrate video and audio control input Mute – On: Turn off Audio input Mute – Off: Turn on Audio input Reset - No: Exit. Yes: Auto adjustment for displaying timing mode and recall factory preset 5. LCD panel Type NR. : LM201W01 (LG.PHILIPS) Outside dimensions : 459.4(H) ∗ 296.4(V) ∗ 23.7(D) (Typ) mm Pixel Pitch ( mm ) : 0.258 mm x 0258mm Color pixel arrangement : RGB vertical stripes Display surface : low reflection, antiglare with hard coating Color depth : 16.7M colors (8 bits) Backlight : Six CCFL‘s Active area(WxH) : 433.44x270.9mm (20.1”W diagonal) View angle : Horizontal & Vertical 178 degree (CR>=10) Contrast ratio : 600:1 (Typ) ,400 :1 (min) White luminance : Panel original color >220nits (min), 300 nits (Typ) 6. Function block 6.1 Scaler board Scaling (MST9251A including ADC, Scaler, OSD, LVDS) Analog - Monitor the input horizontal and vertical sync signal to judge input video mode - Sample the input video signal according to its pixel rate to form a digital data for panel. - Auto-adjustment for sampling phase and frequency, picture alignment and color alignment. - Send the parameters to format scaler IC according to the input mode. - Process the control data listed in OSD section. Digital - Monitor DVI input with internal TMDS receiver to judge input video mode - Sample the input video signal according to its pixel rate to form a digital data for panel. - Send the parameters to format scaler IC according to the input mode. - Process the control data listed in OSD section. MCU NT68F631A - Control Scaling and all I/Os port of monitor including audio. - Store the source code into internal Flash ROM and capable of down loading program via ISP. 6.2 Front panel switch control board - Used for OSD function and power on/off 7 push buttons (left, ok, right, up, down, auto, power switch) - Power on/off LED indicator 6.3 AC to DC Inverter Board board The AC power input from 90 VAC to 264 VAC, can generate 12V and 5 VDC power to supply to inverter function and scaler board.

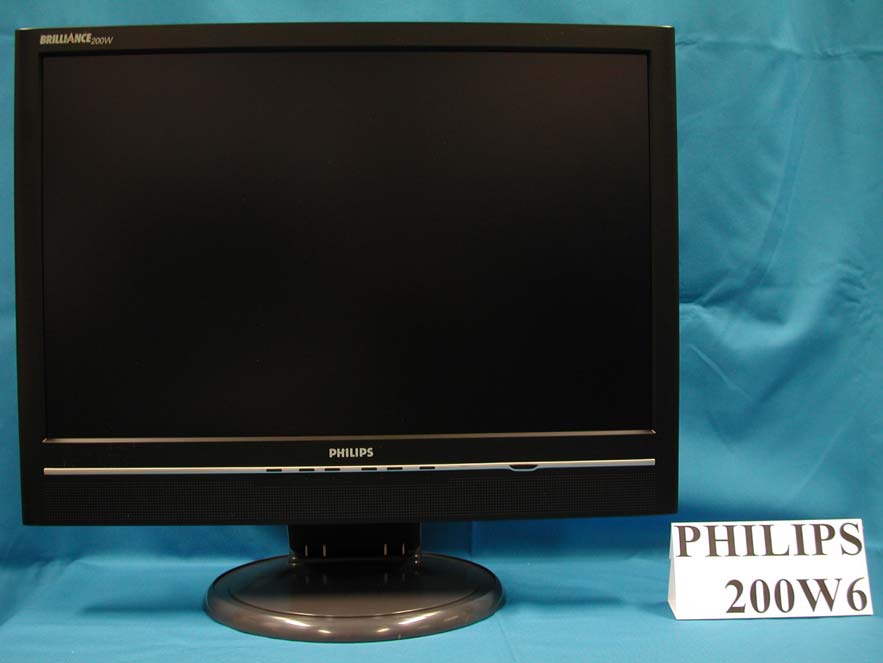

Page 1 of 9 Exhibit 7 Front View Rear View

Exhibit 2 FCC ID Label Page 1 of 9 FCC ID Label Location Rear View

Page 2 of 9 Label Front View w/o Front Cabinet Page 3 of 9 Rear View w/o Back Cover Shielding Cover Page 4 of 9 Assembly w/o Shielding Cover PCB Layout Page 5 of 9 PCB Layout PCB Layout Page 6 of 9 PCB Layout PCB Layout Page 7 of 9 PCB Layout Assembly w/o PCB Page 8 of 9 Plate LCD Panel Page 9 of 9 Power Cord and I/F Cables

FCC ID.A3KM142 Page 1 of 71 Audix Corporation. Report No. EM-F940053 TEST REPORT FOR CERTIFICATION On Behalf for Philips Electronics Industries (Taiwan) Ltd. Flat Panel Color Monitor Model No.: 200W6 FCC ID. : A3KM142 Brand : PHILIPS Prepared for : Philips Electronics Industries (Taiwan) Ltd. 5, Tze Chiang 1 Road, Chungli Industrial Park Chungli, Taoyuan, Taiwan, R.O.C. Prepared By : Audix Corporation Technical Division EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou, Taipei County, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number : EM940206 Report Number : EM-F940053 Date of Test : Mar. 01 ~ 03, 2005 Date of Report : Mar. 09, 2005 FCC ID.A3KM142 Page 2 of 71 Audix Corporation. Report No. EM-F940053 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ......................................................................................................3 1. GENERAL INFORMATION..........................................................................................................4 1.1.Description of Device ................................................................................................................................ 4 1.2.Tested Supporting System Details............................................................................................................. 5 1.3.Description of Test Facility ....................................................................................................................... 7 1.4.Measurement Uncertainty.......................................................................................................................... 7 2. CONDUCTED EMISSION MEASUREMENT ............................................................................8 2.1.Test Equipment.......................................................................................................................................... 8 2.2.Block Diagram of Test Setup .................................................................................................................... 8 2.3.Limits for Conducted Emission (§15.107(a), Class B).............................................................................. 8 2.4.EUT‘s Configuration during Compliance Measurement ...........................................................................9 2.5.Operating Condition of EUT ................................................................................................................... 10 2.6.Test Procedure ......................................................................................................................................... 10 2.7.Conducted Emission Measurement Results............................................................................................. 11 3. RADIATED EMISSION MEASUREMENT...............................................................................44 3.2.Block Diagram of Test Setup .................................................................................................................. 44 3.3.Radiation Limit (§15.109/CISPR 22, Class B)........................................................................................ 46 3.4.EUT’s Configuration during Compliance Measurement ......................................................................... 46 3.5.Operating Condition of EUT ................................................................................................................... 46 3.6.Test Procedure ......................................................................................................................................... 46 3.7.Radiated Emission Measurement Results................................................................................................ 47 4. DEVIATION TO TEST SPECIFICATIONS ..............................................................................61 5. PHOTOGRAPHS...........................................................................................................................62 5.1.Photos of Conducted Eemission Measurement ....................................................................................... 62 5.2.Photos of Radiated Measurement at Simple Anechoic Chamber (30-1000MHz).............................................. 64 5.3.Photos of Radiated Measurement at Open Area Test Site (30-1000MHz).............................................. 66 5.4.Photos of Radiated Measurement at Open Area Test Site (1-2GHz) ...................................................... 70 APPENDIX I (Radiated Emission Test at Simple Anechoic Chamber) FCC ID.A3KM142 Page 3 of 71 Audix Corporation. Report No. EM-F940053 TEST REPORT CERTIFICATION Applicant : Philips Electronics Industries (Taiwan) Ltd. Manufacturer : Philips Electronics Industries (Taiwan) Ltd. Factory #1 : Skyway (Dong Guan) monitor Factory Factory #2 : Philips Consumer Electronics Co., of Suzhou Ltd. Factory #3 : Philips Ltd. Assembly Centre Hungary EUT Description : Flat Panel Color Monitor FCC ID. : A3KM142 (A) MODEL NO. : 200W6 (B) SERIAL NO. : (1) TY0405001 (2) TY0405026 (C) BRAND : PHILIPS (D) POWER SUPPLY : AC 100V-240V~ , 60-50Hz (E) TEST VOLTAGE : AC 120V/60Hz Measurement Procedure Used: FCC CFR 47 Part15 Subpart B/ July 2004 and CISPR 22/1997 ANSI C63.4-2003 The device described above was tested by AUDIX Corporation to determine the maximum emission levels emanating from the device. The maximum emission levels were compared to the FCC Part 15 Subpart B with the provisions of section §15.107 (a) and §15.109 (a)(g) Class B limits both conducted and radiated emission. The measurement results are contained in this test report and AUDIX Corporation is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliance with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of AUDIX Corpo…

Text truncated - open the document above for the full version.

FCC ID.A3KM142 Page 62 of 71 Audix Corporation. Report No. EM-F940053 5. PHOTOGRAPHS 5.1. Photos of Conducted Eemission Measurement Test Mode: LPL Panel FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID.A3KM142 Page 63 of 71 Audix Corporation. Report No. EM-F940053 Test Mode: AUO Panel FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID.A3KM142 Page 64 of 71 Audix Corporation. Report No. EM-F940053 5.2. Photos of Radiated Measurement at Simple Anechoic Chamber (30-1000MHz) Test Mode: LPL Panel FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID.A3KM142 Page 65 of 71 Audix Corporation. Report No. EM-F940053 Test Mode: AUO Panel FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID.A3KM142 Page 66 of 71 Audix Corporation. Report No. EM-F940053 5.3. Photos of Radiated Measurement at Open Area Test Site (30-1000MHz) Test Mode: LPL Panel FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID.A3KM142 Page 67 of 71 Audix Corporation. Report No. EM-F940053 Test Mode: LPL Panel, 1600*1200/60Hz, 75kHz (DVI) SETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION SETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION FCC ID.A3KM142 Page 68 of 71 Audix Corporation. Report No. EM-F940053 Test Mode: AUO Panel FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID.A3KM142 Page 69 of 71 Audix Corporation. Report No. EM-F940053 Test Mode: AUO Panel, 1600*1200/60Hz, 75kHz (DVI) SETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION SETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION FCC ID.A3KM142 Page 70 of 71 Audix Corporation. Report No. EM-F940053 5.4. Photos of Radiated Measurement at Open Area Test Site (1-2GHz) Test Mode: LPL Panel FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID.A3KM142 Page 71 of 71 Audix Corporation. Report No. EM-F940053 Test Mode: AUO Panel FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT
