A3LSCHI930Multi-Band CDMA/GSM/EDGE/LTE Phone with WLAN, Bluetooth and RFID

GH68-37765E Printed in Korea I930 ANDROID SMARTPHONE User Manual Please read this manual before operating your phone and keep it for future reference. DRAFT For Internal Use Only VZW_i930_UM_Eng_xxx_TE_101812_D1 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT For Internal Use Only THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT THE PHONE WILL NO LONGER OPERATE AND BE INSTRUCTED TO POWER DOWN THE DEVICE. YOU MUST THEN CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER-AUTHORIZED SETTINGS. DRAFT For Internal Use Only Samsung Telecommunications America (STA), LLC © 2012 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd. Do you have questions about your Samsung Mobile Phone? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support Headquarters: 1301 E. Lookout Drive Richardson, TX 75082 Customer Care Center: 1000 Klein Rd. Plano, TX 75074 Toll Free Tel: 1.888.987.HELP (4357) Internet Address: http://www.samsung.com DRAFT For Internal Use Only The Bluetooth ® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG. Nuance ® , VSuite™, T9 ® Text Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications, Inc., or its affiliates in the United States and/or other countries. microSD™, microSDHC™ and the microSD logo are Trademarks of the SD Card Association. Wi-Fi ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. LTE is a trademark of ETSI. Google, Google Play and other marks are trademarks of Google, Inc. ©Samsung Telecommunications America, LLC (“Samsung”). Samsung and Super AMOLED are trademarks of Samsung Electronics Co., Ltd. and/or its related entities. Other company names, product names and marks mentioned herein are the property of their respective owners and may be trademarks or registered trademarks. Appearance of device may vary. ©Verizon Wireless. Verizon Wireless and the Verizon Wireless logos are trademarks of Verizon Trademark Services LLC. All company names, trademarks, logos and copyrights not property of Verizon Wireless are the property of their respective owners. DRAFT For Internal Use Only 1 Table of Contents Section 1: Getting Started ...........................5 Understanding this User Manual . . . . . . . . . . . . 5 Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . 7 Turning the Phone On and Off . . . . . . . . . . . . . 11 Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Your Google Account . . . . . . . . . . . . . . . . . . . . 11 Your Samsung Account . . . . . . . . . . . . . . . . . . 12 Displaying Your Phone Number . . . . . . . . . . . . 12 Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Guided Tours . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Roaming…

Text truncated - open the document above for the full version.

Samsung Electronics Co., LTD. 416, Maetan-3dong, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Date: August 28, 2012 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 660-B Dobbin Road Columbia, MD 21045 Subject: Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 To Whom it May Concern We attest the following regarding FCC ID: A3LSCHI930 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes: Supported channel BWs, modulations, frequency bands: a. LTE Band 13 (Channel BW 10 MHz)/QPSK & 16QAM 2. MPR is implemented per 3GPP TS 36.101. With the MPR permanently implemented, this device will never operate at 23.5dBm or higher in QPSK and 16QAM. 3. We confirm the specific MPR targets and tolerances shown below 1) These are the LTE MPR Targets when power reduction is not activated Band Bandwidth [MHz] ModulationRB Size RB Offset Target MPR [dB] Maximum MPR Allowed per 3GPP [dB] LTE Band 13 10 QPSK 1 0 0 0 10 QPSK 1 49 0 0 10 QPSK 25 12 1 0-1 10 QPSK 50 0 1 0-1 10 16-QAM 1 0 1 0-1 10 16-QAM 1 49 1 0-1 10 16-QAM 25 12 2 0-2 10 16-QAM 50 0 2 0-2 2 ) These are the LTE MPR Targets when power reduction is activated Band Bandwidth [MHz] ModulationRB Size RB Offset Target MPR [dB] Maximum MPR Allowed per 3GPP [dB] LTE Band 13 10 QPSK 1 0 0 0 10 QPSK 1 49 0 0 10 QPSK 25 12 0 0-1 10 QPSK 50 0 0 0-1 10 16-QAM 1 0 0 0-1 10 16-QAM 1 49 0 0-1 10 16-QAM 25 12 0 0-2 10 16-QAM 50 0 0 0-2 4. A-MPR was disabled for all SAR test samples for SAR testing purposes only. 5. This device implements LTE power reduction for SAR compliance when operating in an SVLTE connection. The power reduction description contains more information about the power reduction mechanism 6. We attest to the Simultaneous Tx listed on Operational Description to be accurate and furthermore, any other simultaneous Tx combinations not listed on the SAR report are not supported by software/hardware design. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Senior Engineer: Jungsuk Park Samsung Electronics CO. LTD TEL: +82 31 6035 E-mail: [email protected]

1 Date: SEP, 20, 2012 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO.,LTD. FCC ID: A3LSCHI930 Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirem ent in the TCB Guidance issued on June 20, 2008. We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production s amples. FCC ID: A3LSCHI930 Model(s): SCH-I930 Air Interfaces: CDMA, USPCS, EVDO Rev A, GSM/GPRS Radio Services: Cellular, PCS GSM 850/1900 Key Features: GPS WLAN NFC SMS Bluetooth MP3 Player Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jungsuk Park Senior Engineer Samsung Electronics

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: September 28, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHI930 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea September 28, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSCHI930 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

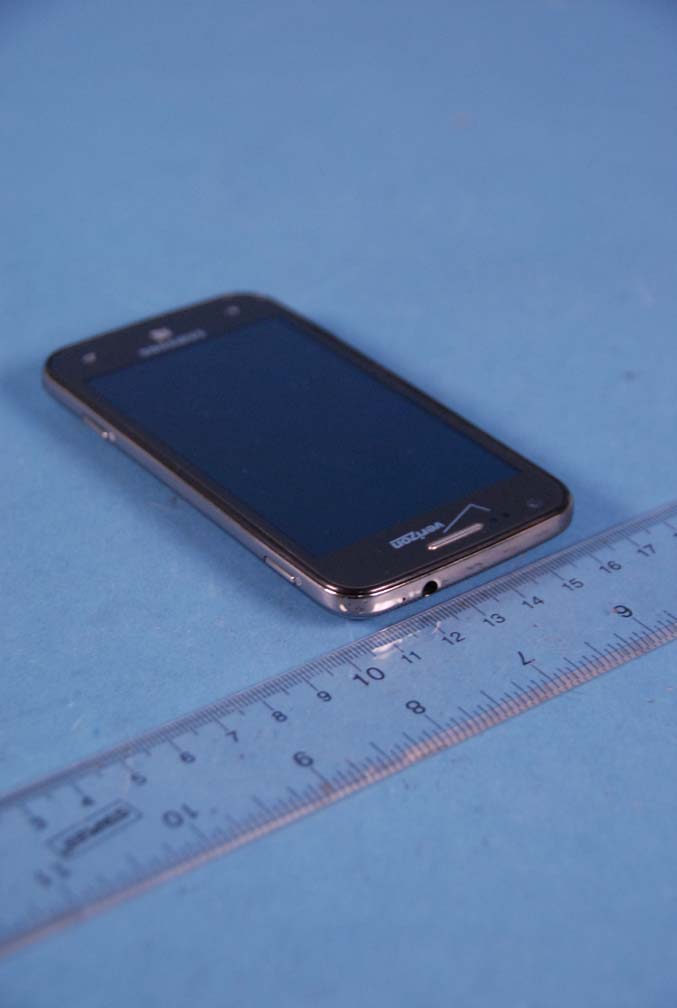

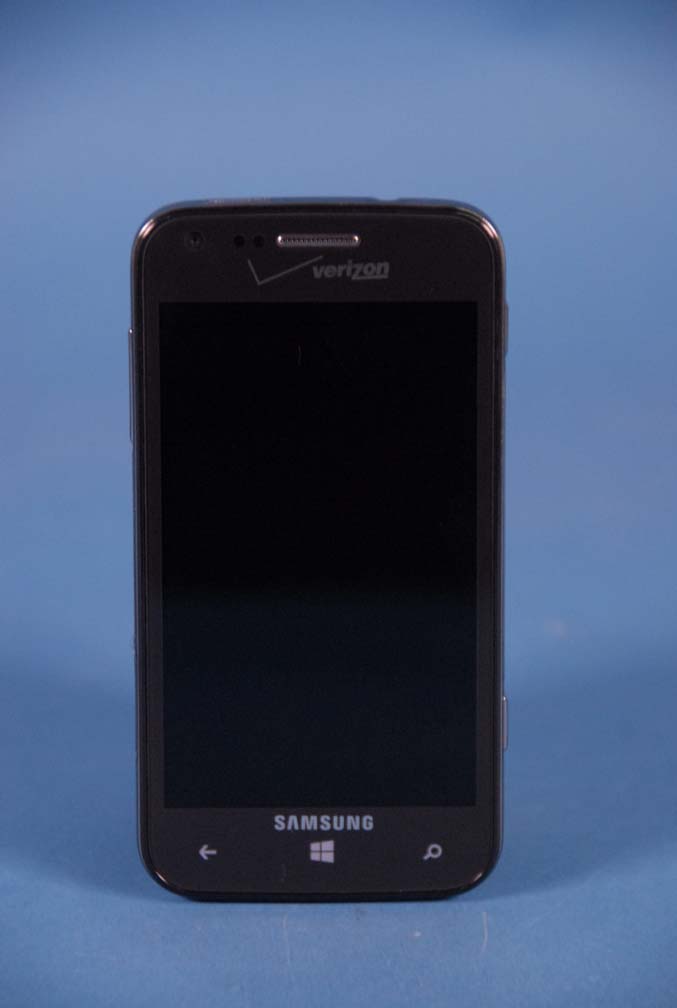

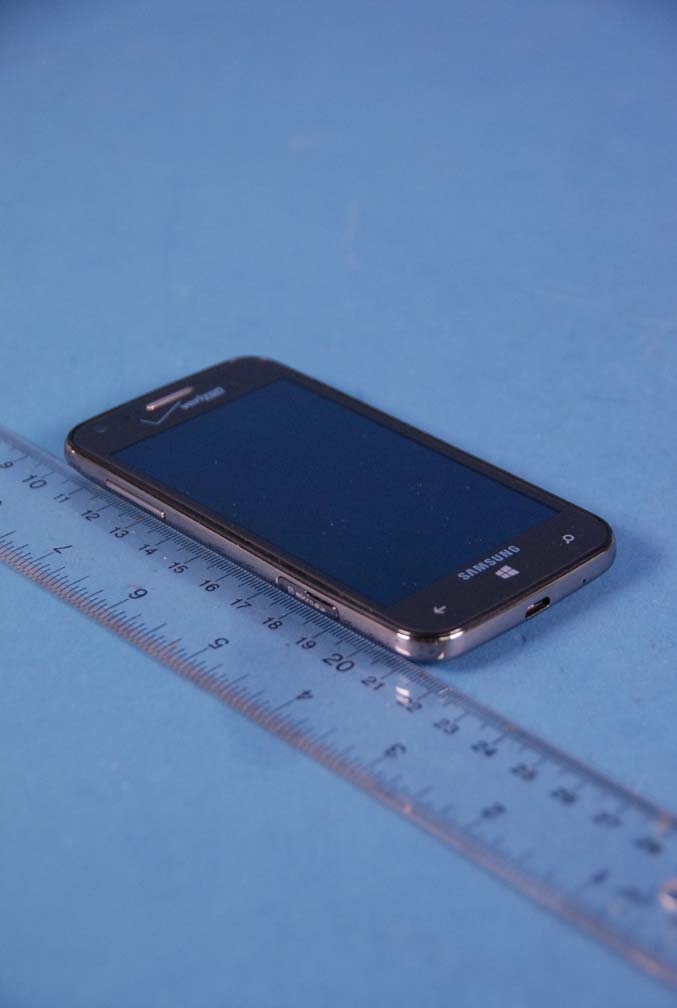

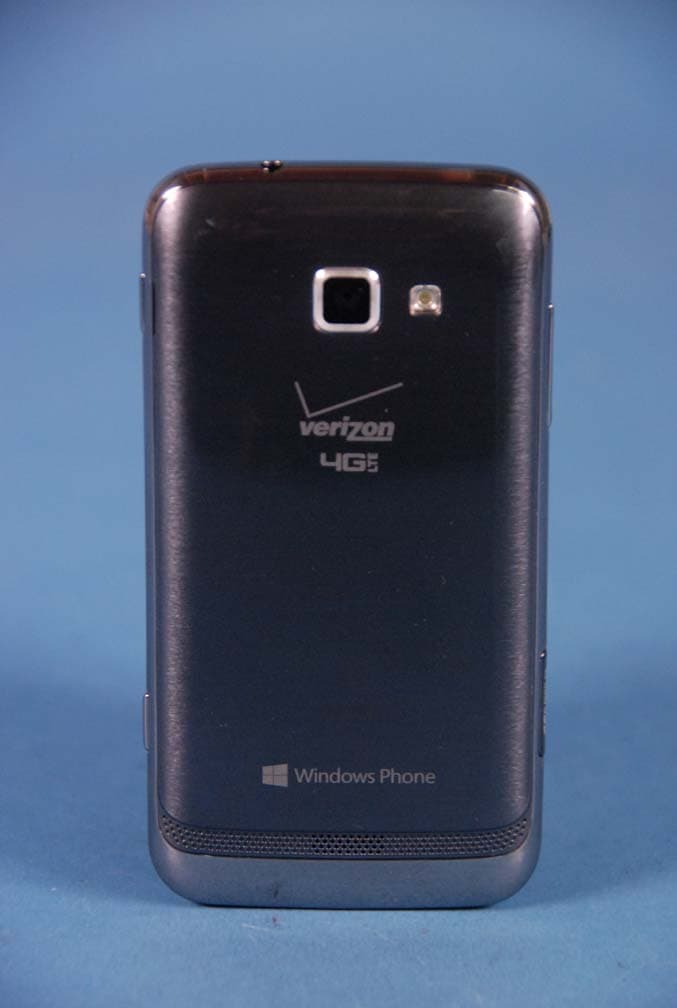

Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 External Photos EUT Type: Portable Handset Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 External Photos EUT Type: Portable Handset Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 External Photos EUT Type: Portable Handset Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 External Photos EUT Type: Portable Handset Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

1 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization | Samsung Electronics Label and Location Samsung Phone Model: SCH-I930 FCC ID: A3LSCHI930 Label: Location: Label is placed inside of the battery compartment. TOP Back Plate of Device BOT

Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 Internal Photos EUT Type: Portable Handset Page 1 of 9 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 Internal Photos EUT Type: Portable Handset Page 2 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 Internal Photos EUT Type: Portable Handset Page 3 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 Internal Photos EUT Type: Portable Handset Page 4 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 Internal Photos EUT Type: Portable Handset Page 5 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 Internal Photos EUT Type: Portable Handset Page 6 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 Internal Photos EUT Type: Portable Handset Page 7 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 Internal Photos EUT Type: Portable Handset Page 8 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHI930 Model: SCH-I930 Internal Photos EUT Type: Portable Handset Page 9 of 9 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSCHI930 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: EUT Type: 0Y1209121333.A3L 09/14/12 - 09/27/12 Portable Handset Page 1 of 59 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 09/14/12 - 09/27/12 416, Maetan 3-dong, Yeongtong-gu, Suwon-si Test Site/Location: Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Document Serial No.: 0Y1209121333.A3L FCC ID: A3LSCHI930 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 SCH-I930 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) Cell. CDMA/EVDO824.70 - 848.31 MHz25.000.450.620.62 GSM/GPRS/EDGE 850824.20 - 848.80 MHz32.930.33 0.500.50 PCS CDMA/EVDO1851.25 - 1908.75 MHz25.250.410.630.64 GSM/GPRS/EDGE 19001850.20 - 1909.80 MHz30.400.14 0.190.26 LTE Band 13782 MHz23.020.18 0.200.20 2.4 GHz WLAN2412 - 2462 MHz16.440.20 0.310.31 5.8 GHz WLAN5745 - 5825 MHz14.34<0.10.11 5.2 GHz WLAN5180 - 5240 MHz13.91<0.10.43 5.3 GHz WLAN5260 - 5320 MHz14.120.120.65 5.5 GHz WLAN5500 - 5700 MHz14.21<0.10.18 Bluetooth2402 - 2480 MHz11.25 0.731.271.07 SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT Reviewed by: FCC ID: A3LSCHI930 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: EUT Type: 0Y1209121333.A3L 09/14/12 - 09/27/12 Portable Handset Page 2 of 59 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE CHECKLIST PER KDB 941225 D05 ....................................................................................... 8 3 INTRODUCTION ............................................................................................................................. 9 4 SAR MEASUREMENT SETUP ..................................................................................................... 10 5 DOSIMETRIC ASSESSMENT ...................................................................................................... 13 6 DEFINITION OF REFERENCE POINTS ...................................................................................... 14 7 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 15 8 FCC RF EXPOSURE LIMITS........................................................................................................ 18 9 FCC MEASUREMENT PROCEDURES........................................................................................ 19 10 RF CONDUCTED POWERS......................................................................................................... 22 11 LTE POWER REDUCTION ........................................................................................................... 28 12 SYSTEM VERIFICATION.............................................................................................................. 32 13 SAR DATA SUMMARY ................................................................................................................. 35 14 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 47 15 EQUIPMENT LIST......................................................................................................................... 54 16 MEASUREMENT UNCERTAINTIES ............................................................................................ 55 17 CONCLUSION............................................................................................................................... 57 18 REFERENCES .............................................................................................................................. 58 Reviewed by: FCC ID: A3LSCHI930 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: EUT Type: 0Y1209121333.A3L 09/14/12 - 09/27/12 Portable Handset Page 3 of 59 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA/EVDO824.70 - 848.31 MHz GSM/GPRS/EDGE 850824.20 - 848.80 MHz PCS CDMA/EVDO1851.25 - 1908.75 MHz GSM/GPRS/EDGE 19001850.20 - 1909.80 MHz LTE Band 13782 MHz 2.4 GHz WLAN2412 - 2462 MHz 5.8 GHz WLAN5745 - 5825 MHz 5.2 GHz WLAN5180 - 5240 MHz 5.3 GHz WLAN5260 - 5320 MHz 5.5 GHz WLAN5500 - 5700 MHz Bluetooth2402 - 2480 MHz NFC13.56 MHz Band & ModeTx Frequency 1.2 Near Field Communications (NFC) Antenna This…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

Reviewed by: FCC ID: A3LSCHI930 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1209121335.A3L 9/12/12 - 9/27/12 Portable Handset Page 1 of 27 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0LTE 06/03/09 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 9/12/12 - 9/27/12 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab., Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1209121335.A3L FCC ID: A3LSCHI930 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §27 EUT Type: Portable Handset Model(s): SCH-I930 Test Device Serial No.: identical prototype [S/N: 99000024851620] Max. Power (W) Max. Power (dBm) LTE Band 137828M94G7WQPSK0.06217.900 LTE Band 137828M93W7W16QAM0.04316.311 Mode Tx Frequency (MHz) Emission Designator ERP/EIRP Modulation This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. . PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 27 LTE Reviewed by: FCC ID: A3LSCHI930 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1209121335.A3L 9/12/12 - 9/27/12 Portable Handset Page 2 of 27 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0LTE 06/03/09 TABLE OF CONTENTS FCC PART 27 MEASUREMENT REPORT..................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EUT CAPABILITIES............................................................................................................................. 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 EVALUATION PROCEDURE.............................................................................................................. 6 3.2 BLOCK C FREQUENCY RANGE ........................................................................................................6 3.3 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 6 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 6 3.5 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 7 3.6 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 3.7 SVLTE.................................................................................................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 12 6.3 LTE RADIATED MEASUREMENTS .................................................................................................. 13 6.4 LTE RADIATED MEASUREMENTS IN 1559 – 1610MHZ BAND ...................................................... 14 6.5 LTE FREQUENCY STABILITY MEASUREMENTS........................................................................... 15 7.0 PLOT(S) OF EMISSIONS ..............................................................................................................17 8.0 CONCLUSION................................................................................................................................27 Reviewed by: FCC ID: A3LSCHI930 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1209121335.A3L 9/12/12 - …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHI930 FCC Pt. 22/24 GSM/EDGE/CDMA/EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1209121334.A3L 09/10/12 - 9/18/12 Portable Handset Page 1 of 58 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.6GWCFI 05/21/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 09/10/12 - 9/18/12 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab., Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1209121334.A3L FCC ID: A3LSCHI930 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): SCH-I930 EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 Test Device Serial No.: identical prototype [S/N: 99000024851620] Max. Power (W) Max. Power (dBm) GSM850824.2 - 848.8240KGXW0.81029.09 EDGE850824.2 - 848.8243KG7W0.20223.06 GSM19001850.2 - 1909.8248KGXW0.49626.96 EDGE19001850.2 - 1909.8242KG7W0.19022.79 CDMA850824.7 - 848.311M28F9W0.29724.73 CDMA19001851.25 - 1908.751M27F9W0.21023.23 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: A3LSCHI930 FCC Pt. 22/24 GSM/EDGE/CDMA/EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1209121334.A3L 09/10/12 - 9/18/12 Portable Handset Page 2 of 58 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.6GWCFI 05/21/2012 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION..................................................................................................................... 5 2.4 EMI SUPP…

Text truncated - open the document above for the full version.
