A3LSGHI987Cellular/PCS WCDMA/GSM/EDGE Mini-Tablet with WLAN and Bluetooth

Using this guide 2 Using this guide Congratulations on your purchase of the Samsung Galaxy Tab. This powerful, “go anywhere” device, puts the best of the web and mobile computing at your fingertips in a lightweight, highly versatile platform that fits your active lifestyle. Built on the Google Android operating system, the Galaxy gives you access to thousands of useful and entertaining applications to enrich your mobile web experience. With integrated wireless access and a responsive touch screen, you can keep in touch with versatile messaging and video calling applications; read books and newspapers on the go; stay up-to-date on the latest news, sports, and weather; manage your multimedia and business files; and browse the web for maps, business locations, and more. Read me first Please read all safety precautions and this guide carefully before using your device to ensure • safe and proper use. The descriptions in this guide are based on the default settings of your device. • Images and screenshots used in this guide may differ in appearance from the actual product.• Content in this guide may differ from the product, or from software provided by service • providers or carriers, and is subject to change without prior notice. Using this guide 3 Available features and additional services may vary by device, software, or service provider.• Formatting and delivery of this guide is based on Google Android operating systems and may • vary depending on the user’s operating system. Applications and their functions may vary by country, region, or hardware specifications. • Samsung is not liable for performance issues caused by third-party applications. Samsung is not liable for performance issues or incompatibilities caused by user editing of • registry settings. You may upgrade your mobile device’s software by accessing www.samsungmobile.com. • Sound sources, wallpapers, and images provided in this device are licenced for limited use • between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. Please keep this guide for future reference. • Using this guide 4 Instructional icons Before you start, familiarise yourself with the icons you will see in this guide: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other equipment Note—notes, usage tips, or additional information ► Refer to—pages with related information; for example: ► p.12 (represents “see page 12”) → Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Settings → Wireless and network (represents Settings, followed by Wireless and network) [ ]Square brackets—device keys; for example: [] (represents the Power key) Using this guide 5 Copyright Copyright © 2010 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.• The Android logo, Google Search• ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Android Market ™ , and Google Talk ™ are trademarks of Google, Inc. Bluetooth • ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Java • ™ is a trademark of Sun Microsystems, Inc. Windows Media Player • ® is a registered trademark of Microsoft Corporation. Wi-Fi • ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. Using this guide 6 DivX• ® , Divx Certified ® , and associated logos are trademarks of DivX, Inc. and are used under license. Covered by one or more of the following U.S. patents: Pat. 7,295,673; 7,460,668; 7,515,710; 7,519,274 All other trademarks and copyrights are the property of their respective owners. • Using this guide 7 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, Inc. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. DivX Certified ® to play DivX ® video up to HD 720p, including premium content May play DivX ® video up to HD 1080p (LCD resolution : 1024x600) ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Contents 8 Assembling ........................................................................................... 11 Unpack ............................................................................................................................... 11 Charge the battery .......................................................................................................... 12 Insert the SIM or USIM card ........................................................................................... 13 Insert a memory card (optional) .................................................................................. 15 Getting started ..................................................................................... 18 Turn your device on and off .......................................................................................... 18 Get to know your device ................................................................................................ 20 Use the touch screen ..................................................................................................…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: October 28, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHI987 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

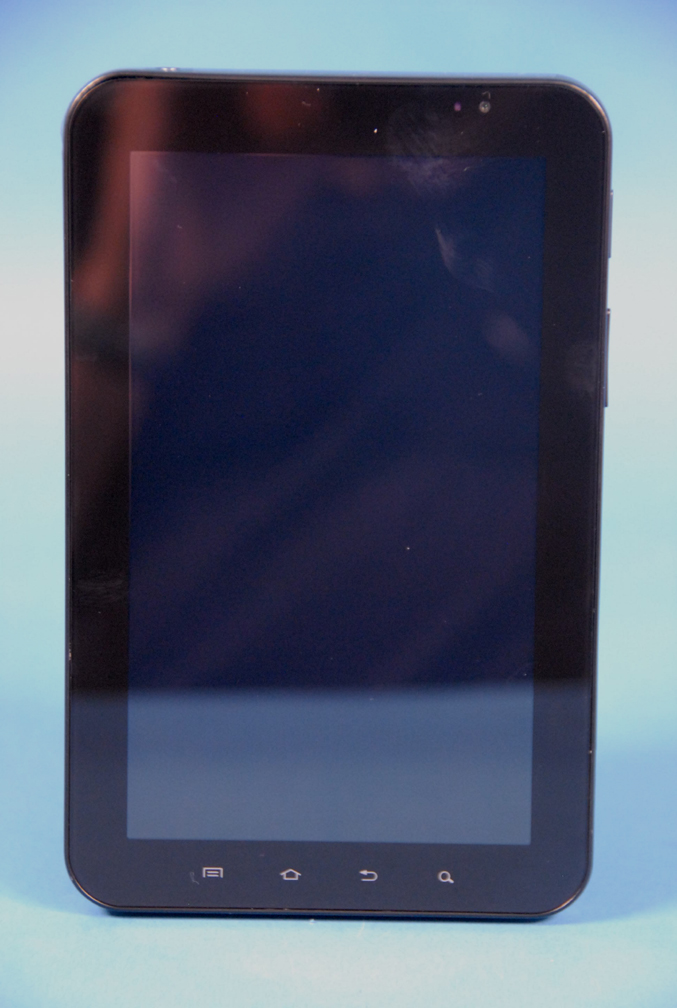

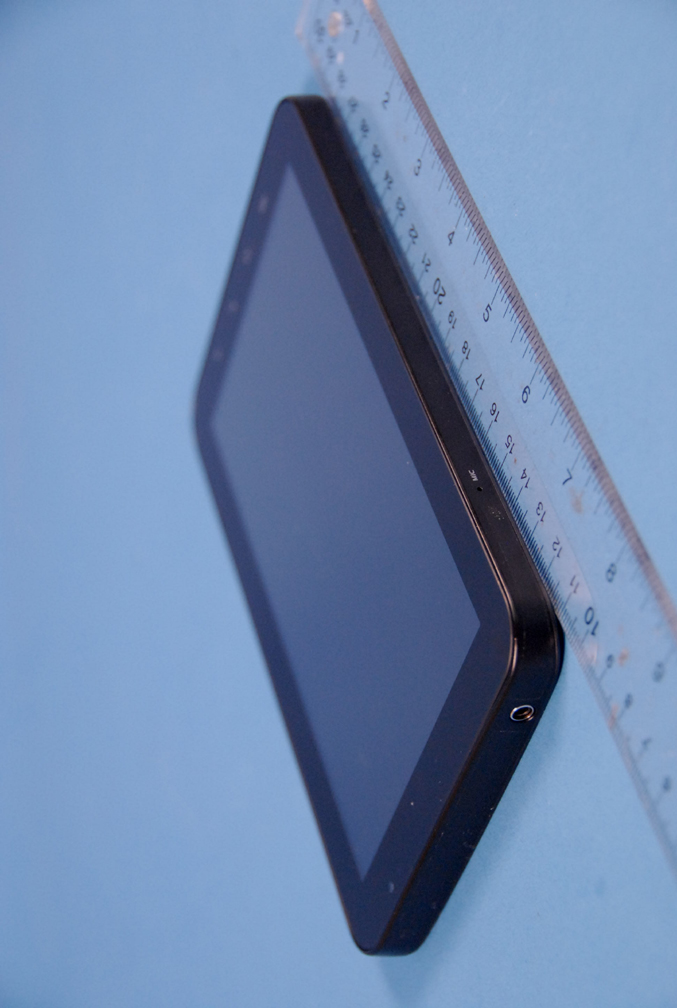

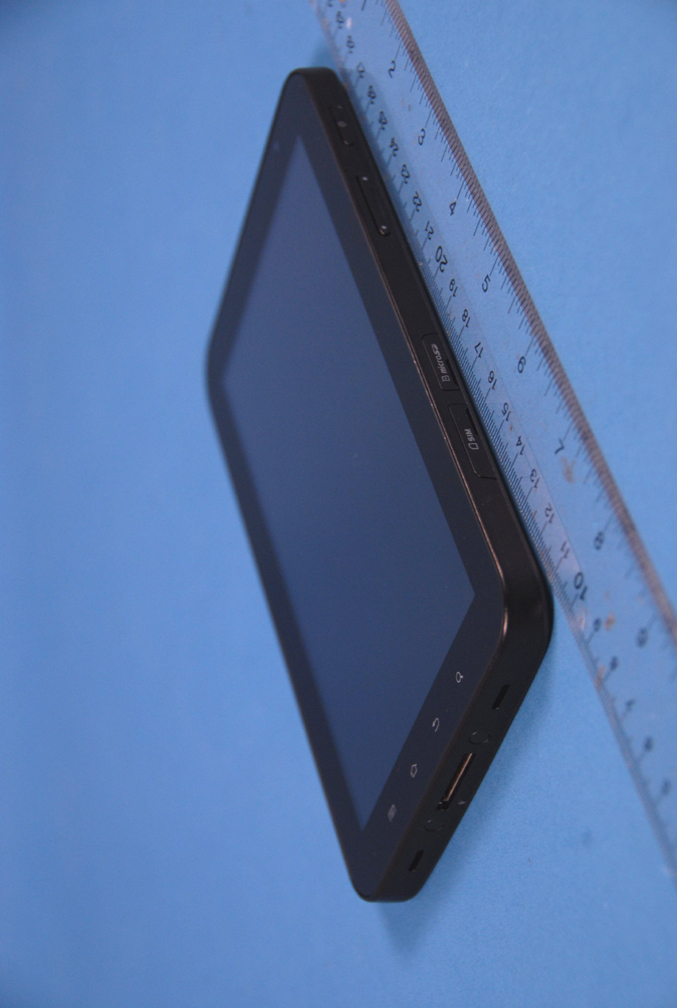

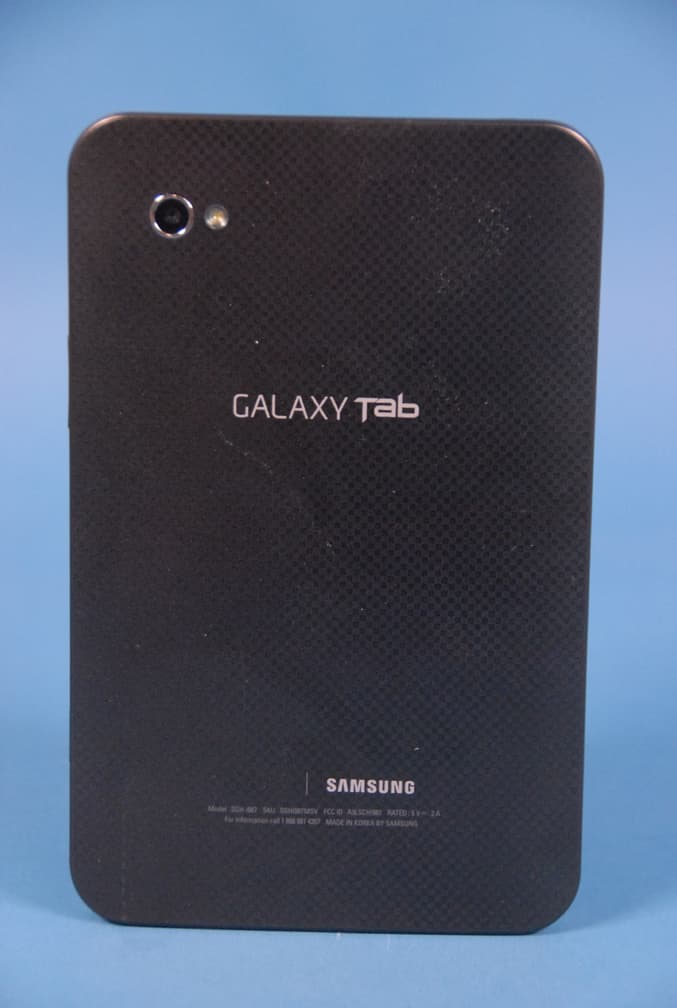

Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

Technical Description 1. Use ‘FILM’ p rovided by ‘SAMSUNG’ for letter and contents 2. Backg round color is ‘BLACK’, letter color is ‘GRAY’ (reverse fo r SAMSUNG LOGO) 3. Back side sho uld be attached to release paper once adhesive is applied. 4. No letter sho uld be blur/smeared 5. Th e production must be proceed after the approval of R&D Group 6. Th e product must be within approved sample's specification tolerance. 7. Th e product must be finished in a ROLL 8. Release p aper must be unifiedn for material and color(blue)

Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 1 of 9 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 2 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 3 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 4 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 5 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 6 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 7 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 8 of 9 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 9 of 9 © 2010 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSGHI987 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1009201610.A3L 09/23/10 - 10/27/10 850/1900 GSM/GPRS/EDGE/WCDMA Mini-Tablet with BT and WLAN Page 1 of 39 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.6M 9/22/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 09/23/10 - 10/27/10 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1009201610.A3L FCC ID: A3LSGHI987 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 850/1900 GPRS/EDGE/WCDMA Mini-Tablet with BT and WLAN Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification Applicable for SAR: PCS Licensed Transmitter (PCB) Digital Transmission System (DTS) Model(s): SGH-I987 Tx Frequency: 824.20 - 848.80 MHz (GSM 850) / 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) / 1852.4 - 1907.6 MHz (UMTS II) 2412 - 2462 MHz (WLAN) Conducted Power: 32.33 dBm GSM 850 / 29.94 dBm GSM 1900 22.56 dBm UMTS V / 23.05 dBm UMTS II 17.29 dBm 2.4 GHz WLAN Max. SAR Measurement: 0.96 W/kg GSM 850 Body SAR / 0.78 W/kg GSM 1900 Body SAR 0.79 W/kg UMTS V Body SAR / 1.01 W/kg UMTS II Body SAR 0.35 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: FH-207-A, IMEI: 354021040021956] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LSGHI987 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1009201610.A3L 09/23/10 - 10/27/10 850/1900 GSM/GPRS/EDGE/WCDMA Mini-Tablet with BT and WLAN Page 2 of 39 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.6M 9/22/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 RF EXPOSURE LIMITS ................................................................................................................ 11 9 MEASUREMENT UNCERTAINTIES ............................................................................................ 12 10 SYSTEM VERIFICATION.............................................................................................................. 13 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 16 12 SIMULTANEOUS TRANSMISSION ANALYSIS ........................................................................... 17 13 RF OUTPUT POWER CONSIDERATIONS.................................................................................. 18 14 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 21 15 SAR TESTING CONSIDERATIONS & FCC KDB INQUIRIES ..................................................... 24 16 SAR DATA SUMMARY ................................................................................................................. 26 17 EQUIPMENT LIST......................................................................................................................... 32 18 CONCLUSION............................................................................................................................... 33 19 REFERENCES .............................................................................................................................. 34 20 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 36 Reviewed by: FCC ID: A3LSGHI987 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1009201610.A3L 09/23/10 - 10/27/10 850/1900 GSM/GPRS/EDGE/WCDMA Mini-Tablet with BT and WLAN Page 3 of 39 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.6M 9/22/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The s…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSGHI987 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009201612.A3L September 20-23, 2010 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 1 of 39 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.3WBGNFI 07/08/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. September 20-23, 2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1009201612.A3L FCC ID: A3LSGHI987 APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SGH-i987 EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Max. RF Output Power: 53.58 mW (17.29 dBm) Conducted (b) 23.33 mW (13.68 dBm) Conducted (g) 22.7 mW (13.56 dBm) Conducted (n) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 7 Test Device Serial No.: FH-207-B This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: A3LSGHI987 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1009201612.A3L September 20-23, 2010 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 2 of 39 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.3WBGNFI 07/08/2010 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B...................................................................................... 14 6.4 OUTPUT POWER MEASUREMENT – 802.11G/N .................................................................................. 15 6.5 POWER SPECTRAL DENSITY (802.11B/G/N) ....................................................................................... 16 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 19 6.7 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 23 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 27 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 31 6.10 LINE-CONDUCTED TEST DATA............................................................................................................. 33 7.0 CONCLUSION ...............................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSGHI987 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1012071955.A3L December 10, 2010 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 1 of 40 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.1WN 02/06/2009 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. December 10, 2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1012071955.A3L FCC ID: A3LSGHI987 APPLICANT: Samsung Electronics, Co. Ltd. Model(s): SGH-i987 EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Max. RF Output Power: 20.80 mW (13.18 dBm) Conducted (a) - 5.8GHz 17.34 mW (12.39 dBm) Conducted (n) - 5.8GHz Frequency Range: 5745 – 5805 MHz (OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Device Serial No.: FH-207-A Please note this report covers 5.8GHz operation only. A separate test report covers 2.4GHz operation for this device. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11 a/n Reviewed by: FCC ID: A3LSGHI987 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1012071955.A3L December 10, 2010 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 2 of 40 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.1WN 02/06/2009 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/N.................................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11A (5.8GHZ) ...................................................................... 15 6.4 OUTPUT POWER MEASUREMENT – 802.11N (5.8GHZ) ...................................................................... 16 6.5 POWER SPECTRAL DENSITY (802.11A/N) ........................................................................................... 17 6.6 OUT OF BAND EMISSIONS AT THE BAND EDGE................................................................................ 21 6.7 OUT OF BAND EMISSIONS .................................................................................................................... 25 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 29 6.9 LINE-CONDUCTED TEST DATA............................................................................................................. 36 7.0 CONCLUSION .......................................................................................................................................40 Reviewed…

Text truncated - open the document above for the full version.

Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 1 of 3 © 2010 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 2 of 3 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHI987 Model: SGH-i987 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Mini Tablet with BT and WLAN Page 3 of 3 © 2010 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSGHI987 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1009201610.A3L 09/23/10 - 10/27/10 850/1900 GSM/GPRS/EDGE/WCDMA Mini-Tablet with BT and WLAN Page 36 of 39 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.6M 9/22/2010 20 SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: A3LSGHI987 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1009201610.A3L 09/23/10 - 10/27/10 850/1900 GSM/GPRS/EDGE/WCDMA Mini-Tablet with…

Text truncated - open the document above for the full version.
