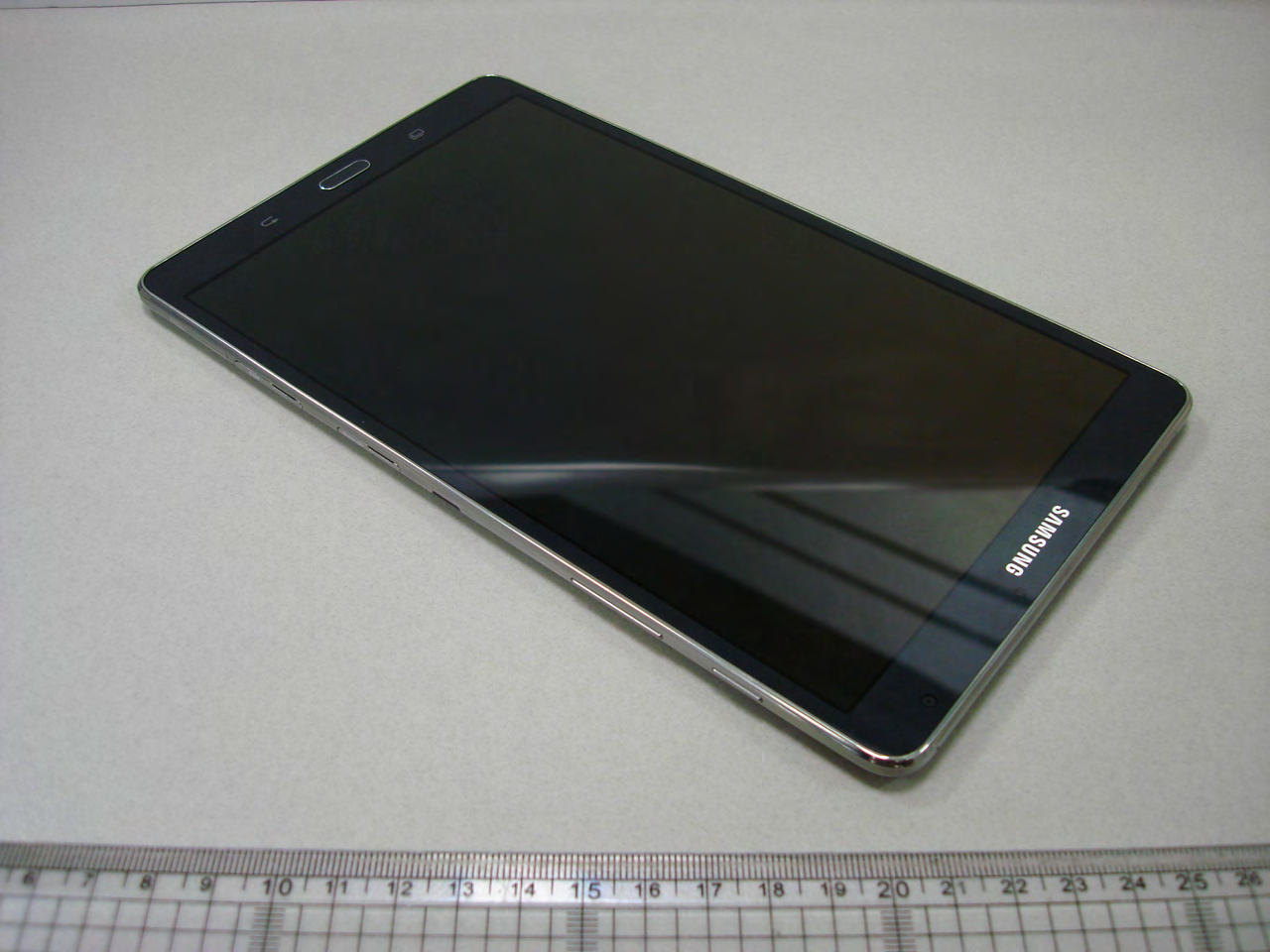

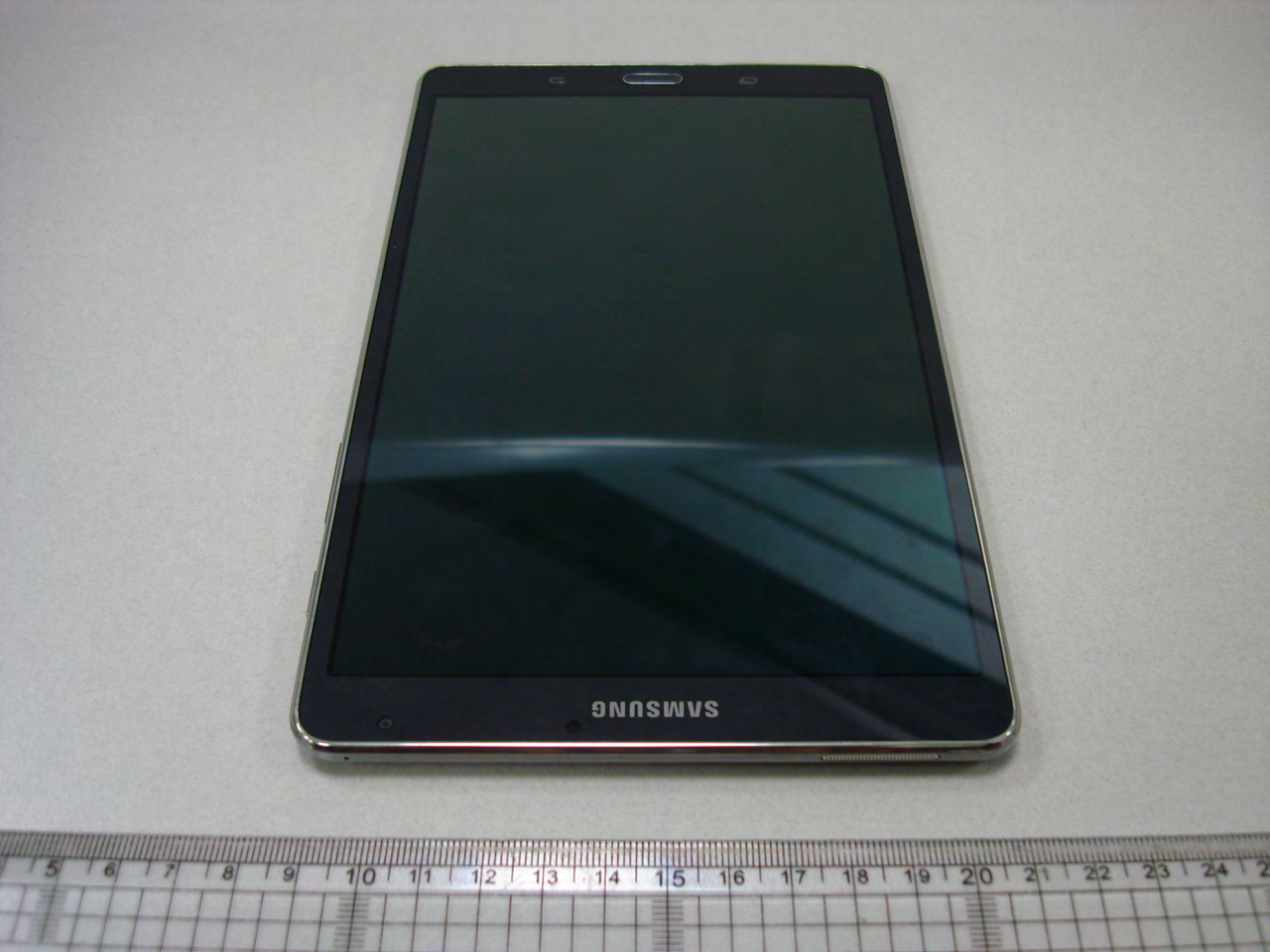

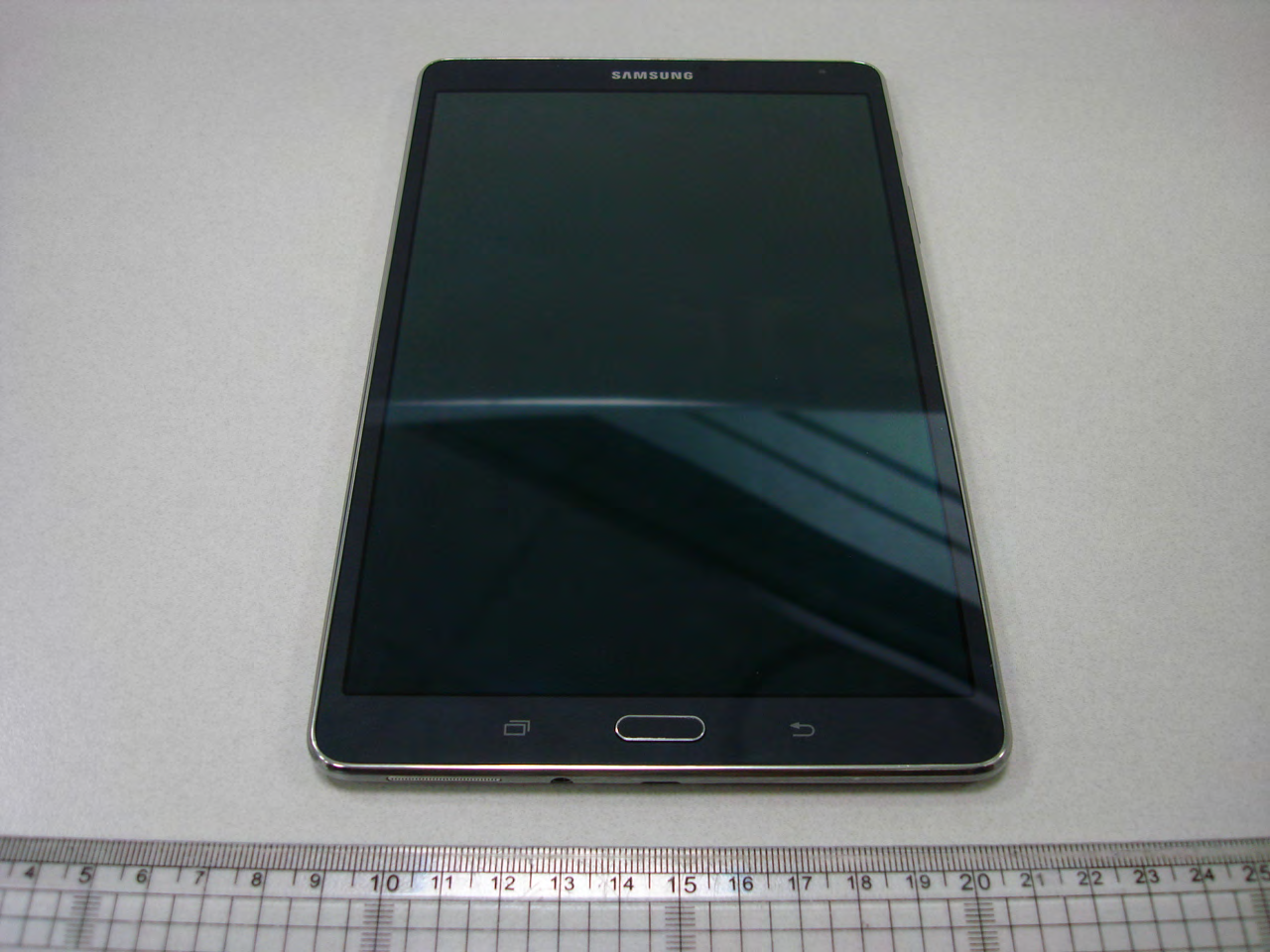

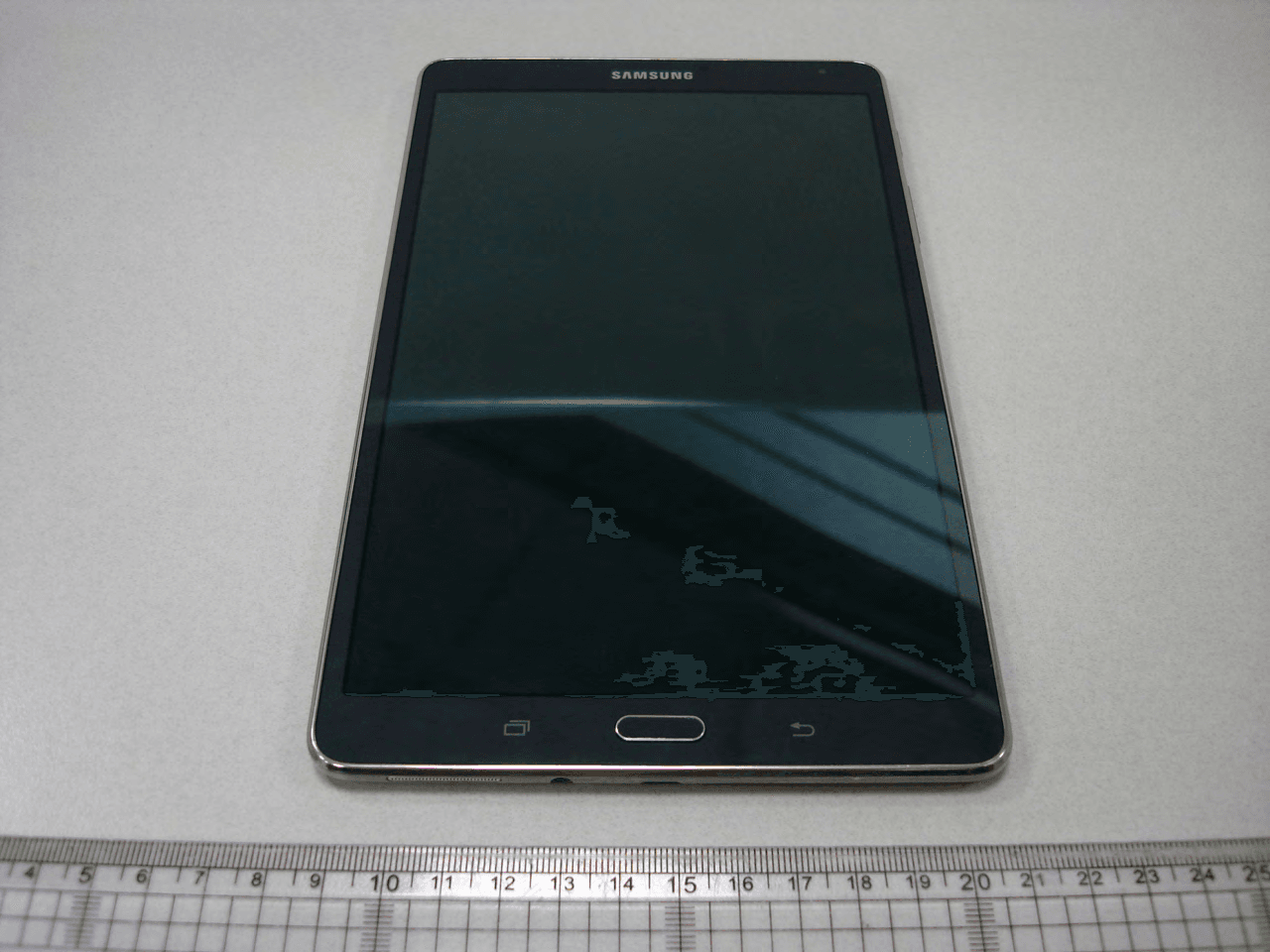

A3LSMT707AMulti-band UMTS/LTE Tablet with WLAN, Bluetooth and ANT+

DRAFT Internal Use Only User manual SM-T707A This device is capable of operating in 802.11a/n/ac mode. For 802.11a/n/ac devices operating in the frequency range of 5.15 - 5.25 GHz, they are restricted for indoor operations to reduce any potential harmful interference for Mobile Satellite Services (MSS) in the US. WIFI Access Points that are capable of allowing your device to operate in 802.11a/n/ac mode (5.15 - 5.25 GHz band) are optimized for indoor use only. If your WIFI network is capable of operating in this m ode, please restrict your WIFI use indoors to not violate federal regulations to protect Mobile Satellite Services. Draft DRAFT Internal Use Only Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Copyright information ●Bluetooth? is a registered trademark of the Bluetooth SIG, Inc. worldwide. ●JavaTM is a trademark or registered trademark of Sun Microsystems, Inc. ●Picsel and Picsel ViewerTM are trademarks of Picsel Technologies, Inc. Drive safely at all times Do not use a hand-held device while driving. Park your vehicle first. Switch off the device when refuelling Do not use the device at a refuelling point (service station) or near fuels or chemicals. Switch off in an aircraft Wireless devices can cause interference. Using them in an aircraft is both illegal and dangerous. Switch off the device near all medical equipment Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Interference All wireless devices may be subject to interference, which could affect their performance. Be aware of special regulations Meet any special regulations in force in any area and always switch off your device whenever it is forbidden to use it, or when it may cause interference or danger. Water resistance Your device is not water-resistant. Keep it dry. DRAFT Internal Use Only Sensible use Use only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the device is switched on. Emergency calls Key in the emergency number for your present location, then press [ ]. Keep your device away from small children Keep the device and all its parts, including accessories, out of the reach of small children. Accessories Use only Samsung-approved accessories, such as headsets and PC data cables. Use of any unauthorized accessories could damage you or your device and may be dangerous. Qualified service Only qualified service personnel may repair your device. For more detailed safety information, see Health and safety information on page 20. • The device could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the eardevices into an audio source and use only the minimum volume setting necessary to hear your conversation or music. DRAFT Internal Use Only Unpack Make sure you have each item • Device • Adapter • Stereo headset • User’s manual Suitable Adapter or Charger, certified according to the relevant safety standard, will be provided for each country in use. You can obtain the following accessories for your device from your local Samsung dealer. • Multi adapter • Travel charger • Car charger • PC data cable • Portable PC data cable • Music controller • Bluetooth mono/ stereo headset kit Get started First steps to operate your device Install and charge the device 1. Install the battery: To remove the battery, slide the battery catch toward the top of the device and hold it. 2. Plug the adapter into the device. 3. Plug the adapter into a standard AC wall outlet. 4. When the device is completely charged (the battery icon stops blinking), unplug the adapter from the power outlet. 5. Remove the adapter from the device. Low battery indicator When the battery is low: • a warning tone sounds, • the battery low message displays, and • the empty battery icon [ ] blinks. If the battery level becomes too low, the device automatically turns off. Recharge your battery. DRAFT Internal Use Only Keys and display Buttons Function Power • Press and hold to turn the device on or off. • Press and hold for more than 7 seconds to reset the device if it has fatal errors or hang-ups, or freezes. • Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off. Menu • Tap to open a list of options available for the current screen. • Tap and hold on the Home screen to launch Google application. Home • Press to return to the Home screen. • Press twice to launch S Voice application. • Press and hold to open the list of recent applications. Back • Tap to return to the previous screen. Volume • Press to adjust the device volume. DRAFT Internal Use Only Overview of menu functions To access Menu mode, press [환경설정] in ldle mode. T service ChatON Maps Call log Samsung Link Local Device Group Play Navigation Contacts S Health Downloads Messaging S Voice Optical Reader Samsung Hub S Memo Messenger Samsung Apps S Translator Play Books WatchON Email Play Movies & TV Camera Shopping & wallet T nao Gallery T cloud App Guide Story Album hoppin T Membership DMB MelOn Remote Care T store Chrome T world T LTE Pack Gmail 11st Music Google SmartWallet Video Voice Search NATE Internet YouTube Calculator Clock Talk Voice Recorder S Planner Google+ Dictionary Settings Play Store My Files DRAFT Internal Use Only B tv mobile Pickat Basket Cyworld SmartTouch Cymera NateOnUC Dropbox Samsung service V3 Mobile 2.0 Help Google Settings DRAFT Internal Use Only Solve problems Help and personal needs To save the time and expense of an unnecessary service call, perform the simple checks in this section before contacting a service professional. When you switch on your device, the following messages may appear: “Insert USIM card” • Be sure tha…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: July 24, 2014 FCC ID: A3LSMT707A To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

RB sizes. Sincerely, Date: July 8, 2 014 PCTEST TCB/ CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 Samsung Electronics Co., LTD. 129, Samsung-ro, Yeongto ng-gu Suwon-City, Gyeonggi-do, 443-742, Korea Subject: Samsung Electronics Co.,ltd. FCC ID: A3LSMT707A To Whom it May Concern We attest the following regarding FCC ID: A3LSMT707A 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and Supported channel BWs, modulations, frequency bands: a. LTE Band 2 (Channel BW 1.4, 3, 5, 10, 15 & 20 MHz)/QPSK & 16QAM b. LTE Band 4 (Channel BW 1.4, 3, 5, 10, 15 & 20 MHz)/QPSK & 16QAM c. LTE Band 5 (Channel BW 1.4, 3, 5 & 10 MHz)/QPSK & 16QAM d. L TE Band 17 (Channel BW 5 & 10 MHz)/QPSK & 16QAM 2. A-MPR was disabled for all SAR test samples f or SAR testing p urposes only. 3. We confirm the specif ic MPR targets and tolerances shown in the SAR Report. 4. LTE Rel 10 implementation is limited. The uplink does not support carrier aggregation nor enhanced SC-FDMA. Features such as CoMP, HetNet, Relay, SON, cross carrier scheduling, eICIC, enhanced downlink MIMO, MBMS, M2M/D2 are also not supported. Should you have any questions or comments concerning the above, please contact the undersigned. Senior Engineer Junggil Kim Samsung Electroni cs CO. LTD TEL:+82-31-301-4544 E-mail: [email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: July 24, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT707A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea July 14, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMT707A Gentlemen: We hereby provide the label statement letter for the above-mentioned device by the label statement policy of KDB 784748 D01. The label statement is as follows: The FCC ID label is located on the rear of the device. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This st atement could not be included in the label. So we inform you of it through this letter. Should yo u hav e any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

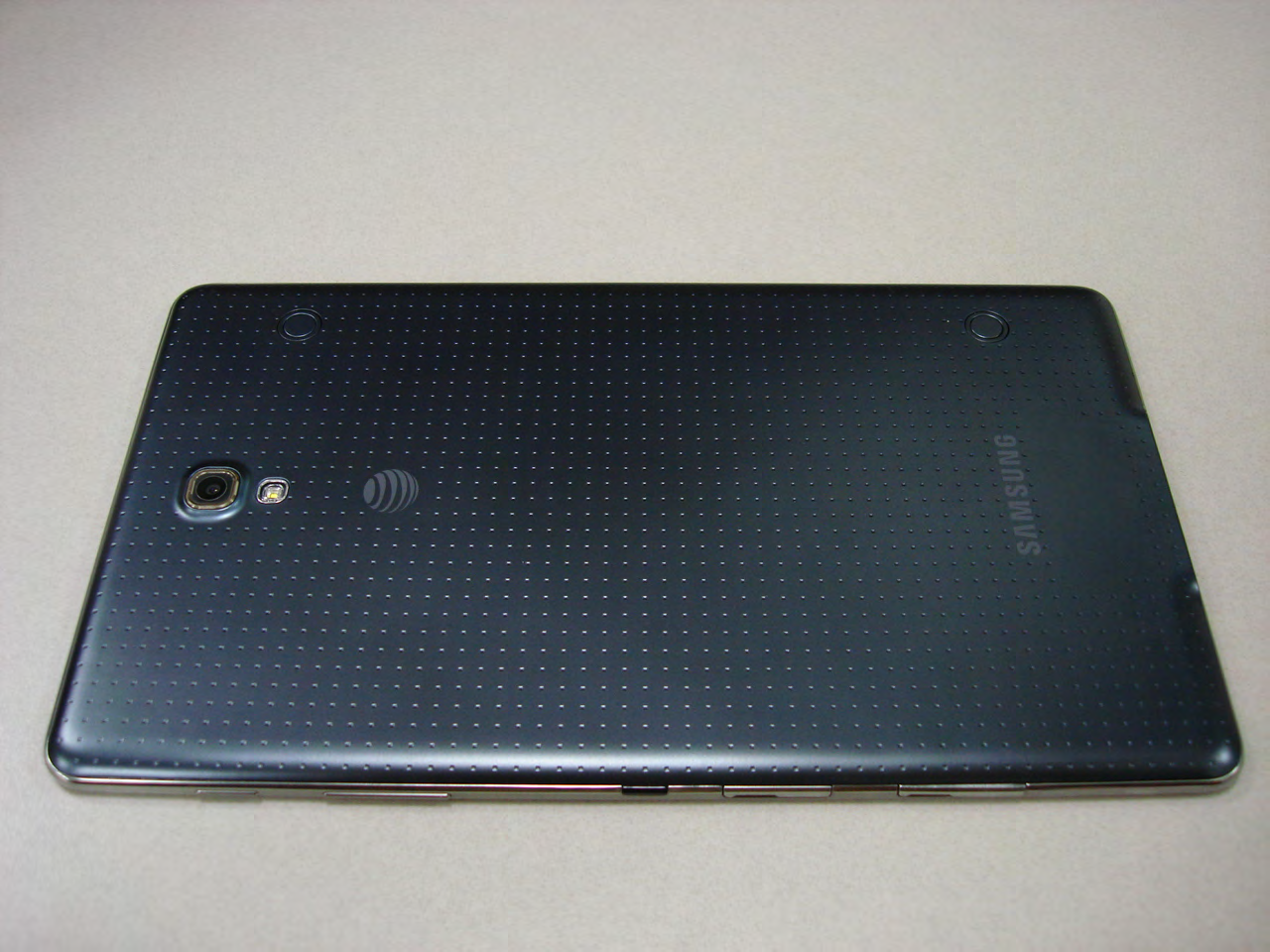

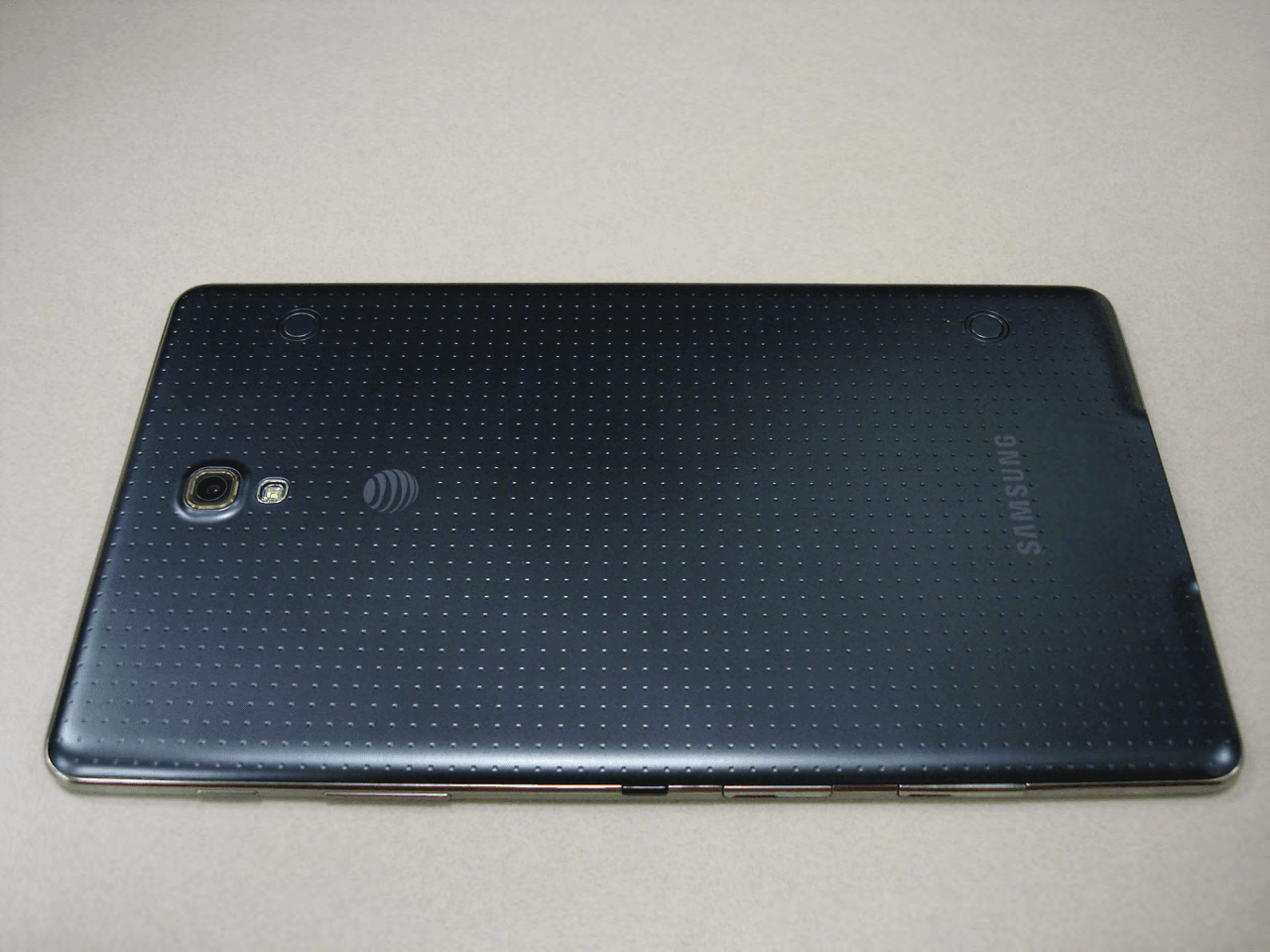

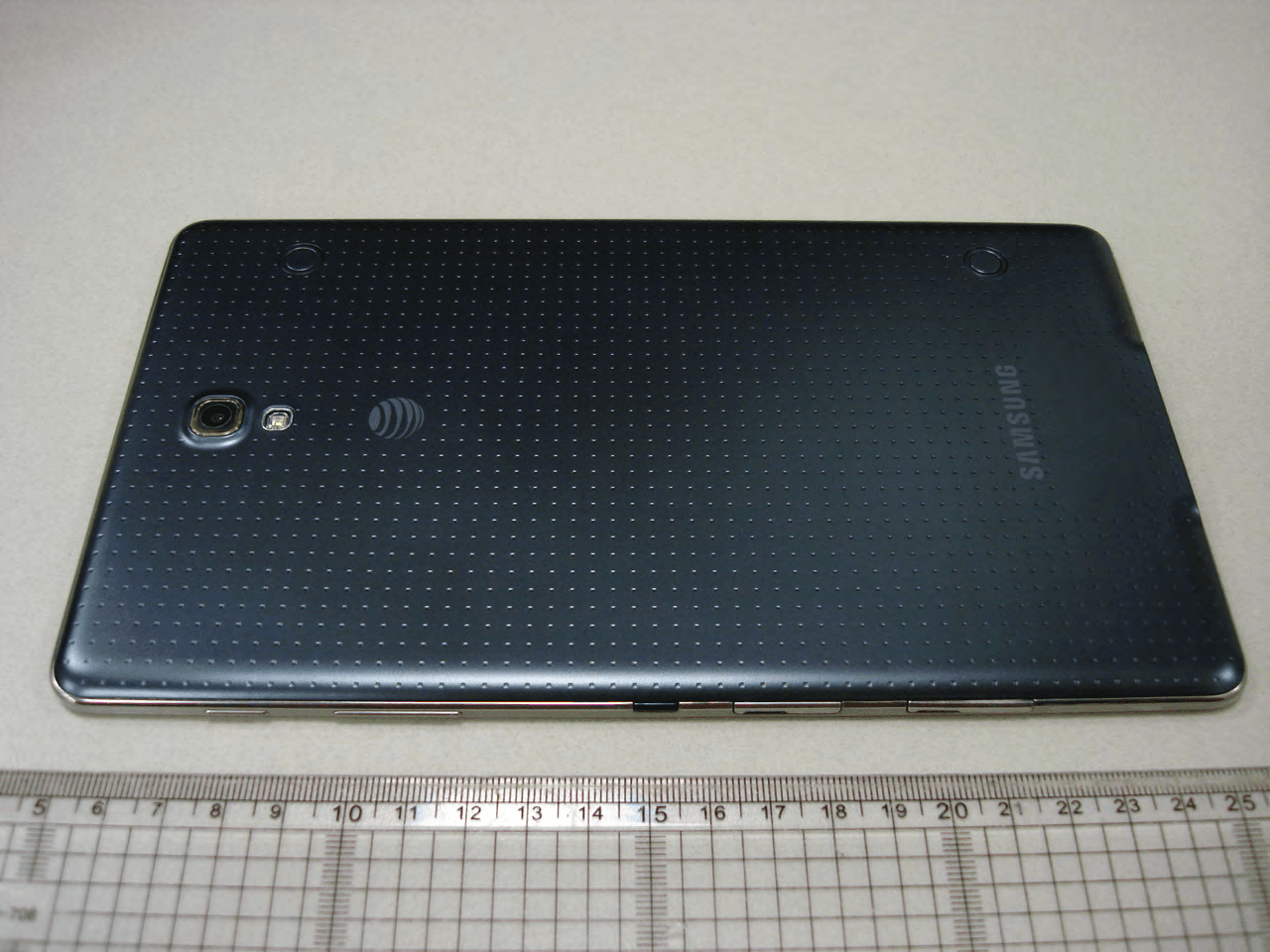

Label and Location Model: SM-T707A FCC ID: A3LSMT707A Label: Location: Top Back of device Bottom FCC ID is printed on rear of the device

FCC ID: A3LSMT707A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 90 0Y1407081354.A3L 04/14/14 - 07/14/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/14/14 - 07/14/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1407081354.A3L FCC ID: A3LSMT707A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T707A SAR 1 gm Body (W /kg) PCBUMTS 850 826.40 - 846.60 MHz0.65 PCBUMTS 1900 1852.4 - 1907.6 MHz0.80 PCBLTE Band 17706.5 - 713.5 MHz 0.92 PCBLTE Band 5 (Cell) 824.7 - 848.3 MHz0.50 PCB LTE Band 4 (AWS)1710.7 - 1754.3 MHz0.99 PCBLTE Band 2 (PCS) 1850.7 - 1909.3 MHz0.68 DTS2.4 GHz WLAN2412 - 2462 MHz1.06 DTS Bluetooth LE2402 - 2480 MHz DTS 5.8 GHz WLAN5745 - 5825 MHz NII 5.2 GHz WLAN5180 - 5240 MHz NII5.3 GHz WLAN5260 - 5320 MHz NII 5.5 GHz WLAN5500 - 5700 MHz DSSBluetooth2402 - 2480 MHz0.27 1.55 Band & ModeTx Frequency Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMT707A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 90 0Y1407081354.A3L 04/14/14 - 07/14/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 TABLE OFCONTENTS 1 DEVICE UNDER TEST ..................................................................................................................... 3 2 LTE INFORMATION .......................................................................................................................... 9 3 INTRODUCTION ............................................................................................................................. 10 4 DOSIMETRIC ASSESSMENT ........................................................................................................ 11 5 TABLET SAR TEST GUIDANCE .................................................................................................... 12 6 RF EXPOSURE LIMITS .................................................................................................................. 13 7 FCC MEASUREMENT PROCEDURES .......................................................................................... 14 8 RF CONDUCTED POWERS ........................................................................................................... 18 9 SYSTEM VERIFICATION ................................................................................................................ 60 10 SAR DATA SUMMARY ................................................................................................................... 62 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ........................................................... 67 12 SAR MEASUREMENT VARIABILITY ............................................................................................. 85 13 EQUIPMENT LIST ........................................................................................................................... 86 14 MEASUREMENT UNCERTAINTIES .............................................................................................. 87 15 CONCLUSION ................................................................................................................................. 88 16 REFERENCES ................................................................................................................................ 89 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID: A3LSMT707A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 90 0Y1407081354.A3L 04/14/14 - 07/14/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 1 DEVICE UNDER TEST 1.1 Device Overview UMTS 850Data826.40 - 846.60 MHz UMTS 1900Data1852.4 - 1907.6 MHz LTE Band 17Data706.5 - 713.5 MHz LTE Band 5 (Cell)Data824.7 - 848.3 MHz LTE Band 4 (AWS)Data1710.7 - 1754.3 MHz LTE Band 2 (PCS)Data1850.7 - 1909.3 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz ANT+Data2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Power Reduction for SAR This device uses a sensor for SAR compliance. The sensor is activated when used in close proximity to the user’s body. The sensor triggers p…

Text truncated - open the document above for the full version.

© 2014 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSMT707A FCC Pt. 22 & 24 WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 39 0Y1407081355.A3L 7/8 -7/15/2014 Portable Tablet Computer © 2014 PCTEST Engineering Laboratory, Inc. V 1.10 07/08/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 7/8 -7/15/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1407081355.A3L FCC ID: A3LSMT707A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification Model(s): SM-T707A EUT Type: Portable Tablet Computer FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 Test Device Serial No.: identical prototype [S/N: 8JULY-4] WCDMA850826.4 - 846.64M07F9W0.04516.57 WCDMA1900 1852.4 - 1907.64M07F9W0.16922.27 Emission Designator Tx Frequency (MHz) Mode ERP/EIRP Max. Power (W) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 FCC ID: A3LSMT707A FCC Pt. 22 & 24 WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 39 0Y1407081355.A3L 7/8 -7/15/2014 Portable Tablet Computer © 2014 PCTEST Engineering Laboratory, Inc. V 1.10 07/08/2014 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT .......................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 RADIATED MEASUREMENTS ............................................................................................................ 7 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 8 5.0 SAMPLE CALCULATIONS .............................................................................................................. 9 6.0 TEST RESULTS ............................................................................................................................. 10 6.1 SUMMARY ......................................................................................................................................... 10 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 11 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 13 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 20 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 24 6.6 RADIATED POWER (ERP/EIRP) ...................................................................................................... 26 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 29 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 34 7.0 CONCLUSION ................................................................................................................................ 39 FCC ID: A3LSMT707A FCC Pt. 22 & 24 WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report …

Text truncated - open the document above for the full version.

FCC ID: A3LSMT707A FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 110 0Y1407081356.A3L 7/8-7/15/2014 Portable Tablet Computer © 2014 PCTEST Engineering Laboratory, Inc. V 1.10 07/08/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 7/8-7/15/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1407081356.A3L FCC ID : A3LSMT707A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22; §24; §27 Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 EUT Type: Portable Tablet Computer Model(s): SM-T707A Test Device Serial No.: identical prototype [S/N: 8JULY-4] LTE Band 17706.5 - 713.54M49G7DQPSK0.07318.63LTE Band 21850.7 - 1909.3 1M21G7DQPSK0.23623.72 LTE Band 17706.5 - 713.54M50W7D16QAM0.05617.45LTE Band 21850.7 - 1909.3 1M27W7D16QAM0.17722.48 LTE Band 17709 - 7118M98G7DQPSK0.07518.74LTE Band 21851.5 - 1908.5 2M73G7DQPSK0.20923.21 LTE Band 17709 - 7118M98W7D16QAM0.05717.54LTE Band 21851.5 - 1908.5 2M72W7D16QAM0.15721.96 LTE Band 5824.7 - 848.31M20G7DQPSK0.04816.80LTE Band 21852.5 - 1907.5 4M50G7DQPSK0.20523.12 LTE Band 5824.7 - 848.31M24W7D16QAM0.03815.78LTE Band 21852.5 - 1907.5 4M49W7D16QAM0.15721.96 LTE Band 5825.5 - 847.52M73G7DQPSK0.05517.43LTE Band 21855 - 19059M00G7DQPSK0.21523.33 LTE Band 5825.5 - 847.52M71W7D16QAM0.04316.32LTE Band 21855 - 19058M98W7D16QAM0.16222.11 LTE Band 5826.5 - 846.54M51G7DQPSK0.05617.48LTE Band 21857.5 - 1902.5 13M5G7DQPSK0.26424.21 LTE Band 5826.5 - 846.54M50W7D16QAM0.04316.31LTE Band 21857.5 - 1902.5 13M5W7D16QAM0.20023.01 LTE Band 5829 - 8449M01G7DQPSK0.05117.11LTE Band 21860 - 190018M1G7DQPSK0.21523.33 LTE Band 5829 - 8448M98W7D16QAM0.04016.00LTE Band 21860 - 190018M1W7D16QAM0.16222.10 LTE Band 41710.7 - 1754.31M21G7DQPSK0.28124.49 LTE Band 41710.7 - 1754.3 1M25W7D16QAM0.21923.41 LTE Band 41711.5 - 1753.52M73G7DQPSK0.25324.04 LTE Band 41711.5 - 1753.5 2M72W7D16QAM0.20423.10 LTE Band 41712.5 - 1752.54M51G7DQPSK0.26024.15 LTE Band 41712.5 - 1752.5 4M50W7D16QAM0.21123.24 LTE Band 41715 - 17509M00G7DQPSK0.24923.96 LTE Band 41715 - 17508M97W7D16QAM0.20823.18 LTE Band 41717.5 - 1747.513M5G7DQPSK0.26224.19 LTE Band 41717.5 - 1747.5 13M5W7D16QAM0.21123.25 LTE Band 41720 - 174518M0G7DQPSK0.23123.65 LTE Band 41720 - 174518M0W7D16QAM0.19322.85 Emission Designator Modulation ERP/EIRP Ma x . Po w e r (W) Max . Po w er (dBm) ERP/EIRP Ma x . Po w e r (W) Ma x . Po w e r (dBm) Mode Tx Frequency (MHz) Mode Tx Frequency (MHz) Emission Designator Modulation This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24, & 27 LTE FCC ID: A3LSMT707A FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 110 0Y1407081356.A3L 7/8-7/15/2014 Portable Tablet Computer © 2014 PCTEST Engineering Laboratory, Inc. V 1.10 07/08/2014 TABLE OF CONTENTS FCC PART 22, 24, & 27 MEASUREMENT REPORT ................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS .............................................................................................................. 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 MEASUREMENT PROCEDURE ......................................................................................................... 6 3.2 BLOCK A FREQUENCY RANGE ........................................................................................................ 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 A…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT707A FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 44 of 110 0Y1407081356.A3L 7/8-7/15/2014 Portable Tablet Computer © 2014 PCTEST Engineering Laboratory, Inc. V 1.10 07/08/2014 6.4 Band Edge Emissions at Antenna Terminal §2.1051 §22.917(a) §24.238(a) §27.53(g) §27.53(h) Test Overview All out of band emissions are measured with a spectrum analyzer connected to the antenna terminal of the EUT while the EUT is operating at its maximum duty cycle, at maximum power, and at the appropriate frequencies. All data rates were investigated to determine the worst case configuration. All modes of operation were investigated and the worst case configuration results are reported in this section. The minimum permissible attenuation level of any spurious emission is 43 + log 10 (P [Watts] ), where P is the transmitter power in Watts. Test Procedure Used KDB 97…

Text truncated - open the document above for the full version.
