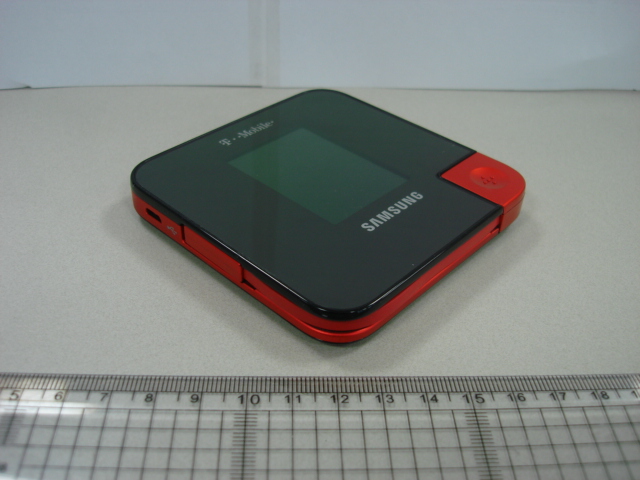

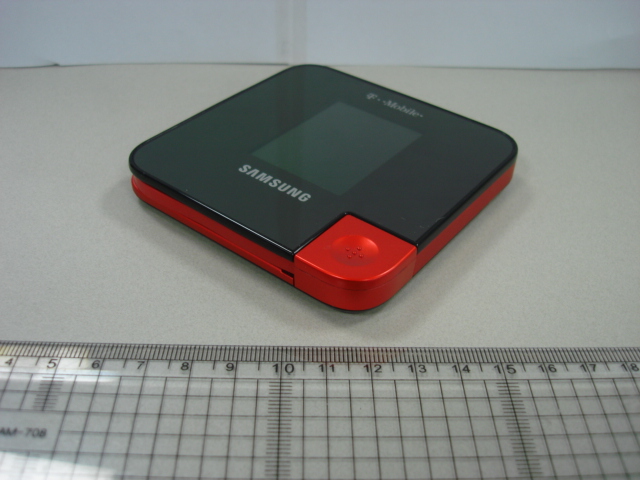

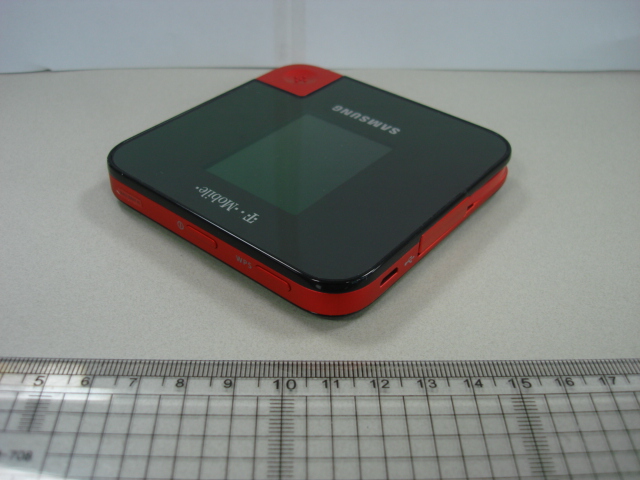

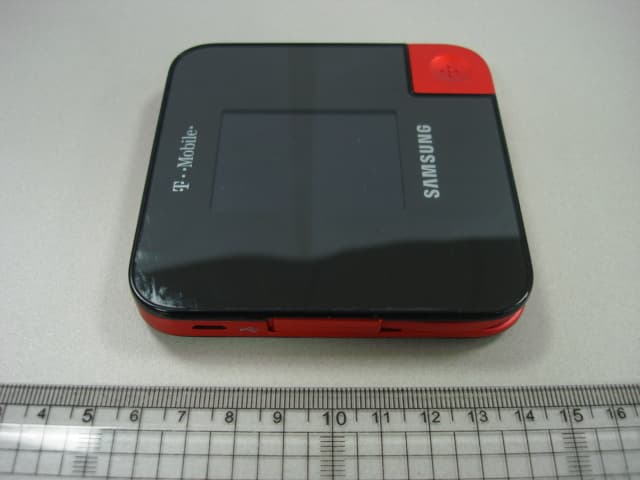

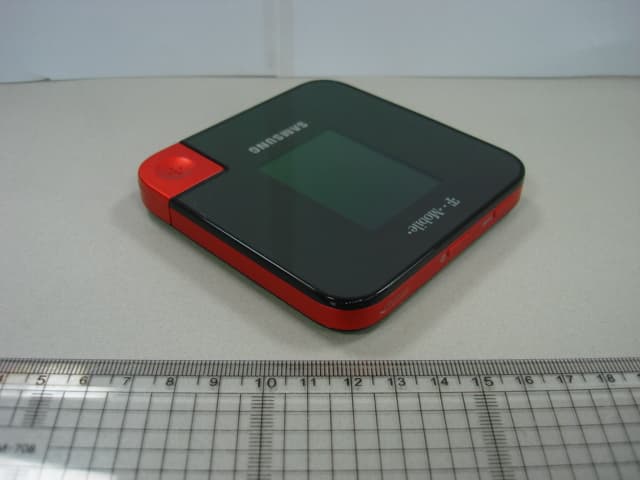

A3LSMV100TPortable Wireless Router with Multi-band GSM/EDGE/WCDMA, LTE and WLAN

DRAFT Internal Use Only MOBILE HOTSPOT User Manual Please read this manual before operating your phone and keep it for future reference. BISCOTTO This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT Internal Use Only SM-VT100T_UM_English_MF8_PS_062713_D3 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT Internal Use Only THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. Samsung Telecommunications America (STA), LLC Headquarters: 1301 E. Lookout Drive Richardson, TX 75082 Customer Care Center: 1000 Klein Rd. Plano, TX 75074 Toll Free Tel: 1.888.987.HELP (4357) DRAFT Internal Use Only © 2013 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd. Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support microSD™ and the microSD logo are Trademarks of the SD Card Association. Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc. LTE is a trademark of ETSI Internet Address: http://www.samsung.com DRAFT Internal Use Only 1 Table of Contents Section 1: Getting Started .......................... 3 Understanding this User Manual . . . . . . . . . . . . 3 Setting Up Your Device . . . . . . . . . . . . . . . . . . . 4 Installing the Optional microSD Memory Card . . 9 Turning Your Device On and Off . . . . . . . . . . . 11 Factory Reset of Your Device . . . . . . . . . . . . . 11 Section 2: Understanding Your Device .... 12 Features of Your Device . . . . . . . . . . . . . . . . . 12 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 On-Screen Indicators . . . . . . . . . . . . . . . . . . . 14 Section 3: Connecting Your Device .......... 15 System Requirements . . . . . . . . . . . . . . . . . . 15 Before You Begin a Connection . . . . . . . . . . . 15 Initial Connection to Your Device . . . . . . . . . . 16 Accessing Your HotSpot via a Browser . . . . . . 16 Configuring Your HotSpot . . . . . . . . . . . . . . . . 17 Preparing your HotSpot for File Access . . . . . . 18 Connecting your Device to the HotSpot via USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Factory Reset via the Web Portal . . . . . . . . . . 20 Section 4: Home Page ...............................21 Mobile HotSpot Home Page . . . . . . . . . . . . . . 21 Section 5: Network Page ...........................24 Mobile HotSpot Network Page . . . . . . . . . . . . 24 Wi-Fi Configuration . . . . . . . . . . . . . . . . . . . . 26 Section 6: Securing Your Device ........…

Text truncated - open the document above for the full version.

Samsung Electronics Co., LTD. 416, Maetan-3dong, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Date: FEBRUARY, 05, 2013 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 660-B Dobbin Road Columbia, MD 21045 Subject: Samsung Electronics Co., Ltd. FCC ID: A3LSMV100T To Whom it May Concern We attest the following regarding FCC ID: A3LSMV100T 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes: Supported channel BWs, modulations, frequency bands: a. LTE Band 4 (Channel BW 5 , 10, 15 & 20 MHz)/QPSK & 16QAM b. LTE Band 17 (Channel BW 5 & 10 MHz)/QPSK & 16QAM 2. MPR is implemented per 3GPP TS 36.101. With the MPR permanently implemented, this device will never operate at 25dBm or higher in QPSK and 16QAM. 3. We confirm the specific MPR targets and tolerances shown below 1) The LTE MPR Targets for Band 4 (AWS) are: Band Bandwidth [MHz] ModulationRB Size RB Offset Target MPR [dB] Maximum MPR Allowed per 3GPP [dB] Band 4 5 QPSK 1 0 0 0 5 QPSK 1 24 0 0 5 QPSK 12 6 1 0-1 5 QPSK 25 0 1 0-1 5 16-QAM 1 0 1 0-1 5 16-QAM 1 24 1 0-1 5 16-QAM 12 6 2 0-2 5 16-QAM 25 0 2 0-2 10 QPSK 1 0 0 0 10 QPSK 1 49 0 0 10 QPSK 25 12 1 0-1 10 QPSK 50 0 1 0-1 10 16-QAM 1 0 1 0-1 10 16-QAM 1 49 1 0-1 10 16-QAM 25 12 2 0-2 10 16-QAM 50 0 2 0-2 15 QPSK 1 0 0 0 15 QPSK 1 74 0 0 15 QPSK 36 18 1 0-1 15 QPSK 75 0 1 0-1 15 16-QAM 1 0 1 0-1 15 16-QAM 1 74 1 0-1 15 16-QAM 36 18 2 0-2 15 16-QAM 75 0 2 0-2 20 QPSK 1 0 0 0 20 QPSK 1 99 0 0 20 QPSK 50 25 1 0-1 20 QPSK 100 0 1 0-1 20 16-QAM 1 0 1 0-1 20 16-QAM 1 99 1 0-1 20 16-QAM 50 25 2 0-2 20 16-QAM 100 0 2 0-2 2 ) The LTE MPR Targets for Band 17 are: Band Bandwidth [MHz] ModulationRB Size RB Offset Target MPR [dB] Maximum MPR Allowed per 3GPP [dB] Band 17 5 QPSK 1 0 0 0 5 QPSK 1 24 0 0 5 QPSK 12 6 1 0-1 5 QPSK 25 0 1 0-1 5 16-QAM 1 0 1 0-1 5 16-QAM 1 24 1 0-1 5 16-QAM 12 6 2 0-2 5 16-QAM 25 0 2 0-2 10 QPSK 1 0 0 0 10 QPSK 1 49 0 0 10 QPSK 25 12 1 0-1 10 QPSK 50 0 1 0-1 10 16-QAM 1 0 1 0-1 10 16-QAM 1 49 1 0-1 10 16-QAM 25 12 2 0-2 10 16-QAM 50 0 2 0-2 4. A-MPR was disabled for all SAR test samples for SAR testing purposes only. 5. This device does not implement power back-off schemes for SAR compliance. 6. We attest to the Simultaneous Tx listed on Operational Description to be accurate and furthermore, any other simultaneous Tx combinations not listed on the SAR report are not supported by software/hardware design. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Kyoungmin Yoon Engineer Samsung Electronics CO. LTD TEL: +82-31-301-4893 E-mail:[email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: July 17, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMV100T To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea June 11, 2013 Fede ral Communication s Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMV100T Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

dLabel and Location Samsung Phone Model: SM-V100T FCC ID: A3LSMV100T Label: Location: Top Back of device Bottom Label is placed inside of the battery compartment. Label

FCC ID: A3LSMV100T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 40 0Y1306201049-R1.A3L 06/27/13 - 07/11/13 Portable Wireless Router © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/27/13 - 07/11/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1306201049-R1.A3L FCC ID: A3LSMV100T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Wireless Router Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-V100T 1 gm Hotspot (W /kg) PCB GPRS/EDGE 850824.20 - 848.80 MHz 27.740.61 PCBUMTS 850826.40 - 846.60 MHz 22.49 0.54 PCBUMTS 1750 1712.4 - 1752.5 MHz22.64 1.08 PCB GPRS/EDGE 19001850.20 - 1909.80 MHz26.180.86 PCB UMTS 19001852.4 - 1907.6 MHz 22.491.05 PCBLTE Band 17 706.5 - 713.5 MHz24.89 0.38 PCBLTE Band 4 (AWS) 1712.5 - 1752.5 MHz22.39 0.95 DTS 2.4 GHz WLAN2412 - 2462 MHz18.150.49 DTS 5.8 GHz WLAN5745 - 5825 MHz14.24 0.95 1.55 Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. Note: This revised Test Report (S/N: 0Y1306201049-R1.A3L) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMV100T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 40 0Y1306201049-R1.A3L 06/27/13 - 07/11/13 Portable Wireless Router © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................8 3 INTRODUCTION ..............................................................................................................................9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 SAR TESTING PROCEDURES .................................................................................................... 11 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 17 9 SYSTEM VERIFICATION .............................................................................................................. 25 10 SAR DATA SUMMARY ................................................................................................................. 27 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 31 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 34 13 EQUIPMENT LIST ......................................................................................................................... 35 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 36 15 CONCLUSION ............................................................................................................................... 38 16 REFERENCES .............................................................................................................................. 39 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMV100T SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 40 0Y1306201049-R1.A3L 06/27/13 - 07/11/13 Portable Wireless Router © 2013 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 1 DEVICE UNDER TEST 1.1 Device Overview GPRS/EDGE 850Data824.20 - 848.80 MHz UMTS 850Data826.40 - 846.60 MHz UMTS 1750Data1712.4 - 1752.5 MHz GPRS/EDGE 1900Data 1850.20 - 1909.80 MHz UMTS 1900Data1852.4 - 1907.6 MHz LTE Band 17Data706.5 - 713.5 MHz LTE Band 4 (AWS)Data 1712.5 - 1752.5 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData 5745 - 5825 MHz Band & ModeTx Frequency Operating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power speci…

Text truncated - open the document above for the full version.

FCC ID: A3LSMV100T FCC Pt. 22, 24 & 27 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 71 0Y1306201050.A3L 6/26 - 7/2/2013 Portable Wireless Router © 2013 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 6/26 - 7/2/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab., Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1306201050.A3L FCC ID: A3LSMV100T APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): SM-V100T EUT Type: Portable Wireless Router FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2 §22(H) §24(E) §27(L) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 Test Device Serial No.: identical prototype [S/N: FK-174-C] Max. Power (W ) Max. Power (dBm) GSM850824.2 - 848.8241KGXW0.31024.92 EDGE850824.2 - 848.8247KG7W0.11020.40 GSM19001850.2 - 1909.8244KGXW1.65032.17 EDGE19001850.2 - 1909.8244KG7W0.78228.93 WCDMA850826.4 - 846.64M15F9W0.06017.75 WCDMA17001712.4 - 1752.54M15F9W0.36025.56 WCDMA19001852.4 - 1907.64M15F9W0.69128.39 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24 & 27 FCC ID: A3LSMV100T FCC Pt. 22, 24 & 27 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 71 0Y1306201050.A3L 6/26 - 7/2/2013 Portable Wireless Router © 2013 PCTEST Engineering Laboratory, Inc. V 3.0 06/17/2013 TABLE OF CONTENTS FCC PART 22, 24 & 27 MEASUREMENT REPORT .................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 AWS - BASE FREQUENCY BLOCKS ................................................................................................. 7 3.7 AWS - MOBILE FREQUENCY BLOCKS ............................................................................................. 7 3.8 RADIATED MEASUREMENTS ............................................................................................................ 8 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 5.0 SAMPLE CALCULATIONS ............................................................................................................ 10 6.0 TEST RESULTS ............................................................................................................................. 11 6.1 SUMMARY ......................................................................................................................................... 11 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 12 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 17 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 35 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 43 6.6 RADIATED POWER (ERP/EIRP) ..............................................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMV100T FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 67 0Y1306201051.A3L 6/28 - 7/4/2013 Portable Wireless Router © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 6/28 - 7/4/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab., Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1306201051.A3L FCC ID : A3LSMV100T APPLICANT: SAMSUNG ELECTRONICS CO., LTD. FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §27 EUT Type: Portable Wireless Router Model(s): SM-V100T Test Device Se rial No.: identical prototype [S/N: FK-174-C] Max. Power (W) Max. Power (dBm) LTE Band 17706.5 - 713.54M52G7DQPSK0.01612.10 LTE Band 17706.5 - 713.54M51W7D16QAM0.01311.13 LTE Band 17709 - 7118M95G7DQPSK0.01511.85 LTE Band 17709 - 7118M96W7D16QAM0.01310.97 LTE Band 41712.5 - 1752.54M52G7DQPSK0.49726.96 LTE Band 41712.5 - 1752.54M53W7D16QAM0.37425.73 LTE Band 41715 - 17509M01G7DQPSK0.51727.13 LTE Band 41715 - 17508M99W7D16QAM0.41826.21 LTE Band 41717.5 - 1747.513M4G7DQPSK0.44226.45 LTE Band 41717.5 - 1747.513M4W7D16QAM0.35025.44 LTE Band 41720 - 174517M9G7DQPSK0.42626.29 LTE Band 41720 - 174517M9W7D16QAM0.33325.22 Mode Tx Frequency (MHz) Emission Designator ERP/EIRP Modulation This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 27 LTE FCC ID: A3LSMV100T FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 67 0Y1306201051.A3L 6/28 - 7/4/2013 Portable Wireless Router © 2013 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 TABLE OF CONTENTS FCC PART 27 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS .............................................................................................................. 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 MEASUREMENT PROCEDURE ......................................................................................................... 6 3.2 BLOCK A FREQUENCY RANGE ........................................................................................................ 6 3.3 AWS - BASE FREQUENCY BLOCKS ................................................................................................. 6 3.4 AWS - MOBILE FREQUENCY BLOCKS ............................................................................................. 6 3.5 OCCUPIED BANDWIDTH ................................................................................................................... 7 3.6 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .............................................. 7 3.7 PEAK-AVERAGE RATIO ..................................................................................................................... 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA .................................................................................... 10 5.0 SAMPLE CALCULATIONS ............................................................................................................ 11 6.0 TEST RESULTS ............................................................................................................................. 12 6.1 SUMMARY ......................................................................................................................................... 12 6.2 EFFECTIVE RADIATED POWER (ERP) ........................................................................................... 13 6.3 EQUIVALENT ISOTROPIC RADIATED POWER (EIRP) .................................................................. 14 6.4 BAND 17 RADIATED SPURIOUS EMISSIONS ................................................................................ 15 6.5 BAND 4 RADIATED SPURIOUS EMISSIONS ...........…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LSMV100T Model: SM-V100T Test Set-Up Photos EUT Type: Portable Handset Page 1 of 2 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSMV100T Model: SM-V100T Test Set-Up Photos EUT Type: Portable Handset Page 2 of 2 © 2013 PCTEST Engineering Laboratory In…
