A3LSOG2201Smallcell (SOG2201)

SAMSUNG Electronics CO., Ltd. (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Model Number : SOG2201-G30 To whom it may it concern: I hereby appoint Jongin Kim to sign letters and applications for any filings with regulatory agencies on our behalf, and to receive and exchange data between our company, the agents company and the agency in connection with certification for any products that our company owns or manufactures. Sincerely, ---------------------------------------------------- Jenni Chun / Head of Regulatory & Environmental Affairs Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-800-SAMSUNG (1-800-726-7864) Date: February 15, 2023

SAMSUNG Electronics CO., Ltd. (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: February 15, 2023 Covered Equipment for FCC ID: A3LSOG2201 To whom it may concern: We, SAMSUNG Electronics Co.,Ltd, certify that the equipment for which it seeks an equipment authorization is not prohibited from receiving an equipment authorization pursuant to section 2.903. Section 2.903 (a) prohibits authorization of “covered” equipment. Per Section 2.911(d)(5)(i)- (ii) 1. SAMSUNG Electronics Co.,Ltd, (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. SAMSUNG Electronics Co.,Ltd, (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Note. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. If this option is selected, then a KDB Inquiry will be submitted to the FCC by this TCB to evaluate your explanation and make a determination on whether the equipment can be authorized. Please provide this explanation in a separate document which will then be submitted in the KDB inquiry. Sincerely, Jenni Chun / Head of Regulatory & Environmental Affairs Samsung Electronics America, Inc. 19 Chapin Rd., Building D Pine Brook, NJ 07058

SAMSUNG Electronics CO., Ltd. (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea CERTIFICATION FOR US AGENT ACCEPTING SERVICE OF PROCESS Per 47CFR §2.911(d)(7) and FCC KDB 986446 D01 Date: March 23, 2023 TO: Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: A3LSOG2201 This letter is to confirm you the below mentioned U.S. Agent is accepting the responsibility to act as the U.S. based Agent for service of process for this Equipment Authorization. We, SAMSUNG Electronics Co.,Ltd, (“the applicant”) will maintain this agent in the US for no less than one year after either all marketing or importation to the US is terminated (or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment), whichever is later. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. U.S. AGENT Company Name: Samsung Electronics America, Inc. Contact Name: Jenni Chun Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Telephone No: +1-800-726-7864 Email: [email protected] FRN: 0027908797 By By Jenni Chun Jongin Kim Samsung Electronics America, Inc. Samsung Electronics Co., Ltd. Head of Regulatory & Environmental Affairs Principal Engineer March 23, 2023 March 23, 2023

SAMSUNG Electronics CO., Ltd. (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Date: January 17, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: A3LSOG2201 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG Electronics Co., Ltd.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG Electronics Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description LONG-TERM CONFIDENTIAL 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure 4 Schematics 5 Internal Photos 6 User’s Manual SHORT-TERM CONFIDENTIAL 7 External Photos 8 Test-Setup Photos The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jongin Kim / Principal Engineer SAMSUNG Electronics Co.,Ltd. (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Republic of Korea SAMSUNG Electronics CO., Ltd. (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Date: January 17, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Long-Term Confidentiality for FCC ID: A3LSOG2201 To Whom It May Concern: This is a request to hold the internal photos and user manual for FCC ID: A3LSOG2201 under long term confidentiality. The transmitter is a Base Station where access is controlled and only available to trained personnel. Please note that the internal photos are being asked to be confidential under the FCC guidelines that this is a non-consumer device (Base Station) and is inaccessible to the general public due to the location of the device and it is only serviceable by the licensee or his designated technicians. The user manual is being requested to be confidential under the FCC guidelines that the manual is very technical and is not provided to the general public. The user manual contains proprietary information required for trained installers to commission the base station. The user manual will be used by the licensee or his designated technicians only. Having the subject information easily available to competitors would negate the advantage we have achieved by developing this product. All sales of the non-consumer device will be under NDA to include 3rd party sales and that the final user of the device is subject to the NDA as required by the special conditions of section II)3)c) of KDB 726920 D01. The requested Long-Term Confidential exhibits are list as follows: LONG-TERM CONFIDENTIAL LIST Exhibit Description LONG-TERM CONFIDENTIAL 1 Internal Photographs 2 User’s Manual Sincerely, Jongin Kim / Principal Engineer SAMSUNG Electronics Co.,Ltd. (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Republic of Korea

Samsung Electronics Co., Ltd. FCC ID: A3LSOG2201 Model: SOG2201-G30 External Photographs EUT Type: Smallcell (SOG2201) Page 1 of 8 © 2023 Element V 1.0 2023 E X T E R N A L P H O T O G R A P H S Front view with cosmetic cover Samsung Electronics Co., Ltd. FCC ID: A3LSOG2201 Model: SOG2201-G30 External Photographs EUT Type: Smallcell (SOG2201) Page 2 of 8 © 2023 Element V 1.0 2023 Rear view with cosmetic cover Samsung Electronics Co., Ltd. FCC ID: A3LSOG2201 Model: SOG2201-G30 External Photographs EUT Type: Smallcell (SOG2201) Page 3 of 8 © 2023 Element V 1.0 2023 Front view without cosmetic cover Samsung Electronics Co., Ltd. FCC ID: A3LSOG2201 Model: SOG2201-G30 External Photographs EUT Type: Smallcell (SOG2201) Page 4 of 8 © 2023 Element V 1.0 2023 Rear view without cosmetic cover Samsung Electronics Co., Ltd. FCC ID: A3LSOG2201 Model: SOG2201-G30 External Photographs EUT Type: Smallcell (SOG2201) Page 5 of 8 © 2023 Element V 1.0 2023 Front view Antenna A Samsung Electronics Co., Ltd. FCC ID: A3LSOG2201 Model: SOG2201-G30 External Photographs EUT Type: Smallcell (SOG2201) Page 6 of 8 © 2023 Element V 1.0 2023 Rear view Antenna A Samsung Electronics Co., Ltd. FCC ID: A3LSOG2201 Model: SOG2201-G30 External Photographs EUT Type: Smallcell (SOG2201) Page 7 of 8 © 2023 Element V 1.0 2023 Front view Antenna B Samsung Electronics Co., Ltd. FCC ID: A3LSOG2201 Model: SOG2201-G30 External Photographs EUT Type: Smallcell (SOG2201) Page 8 of 8 © 2023 Element V 1.0 2023 Rear view Antenna B

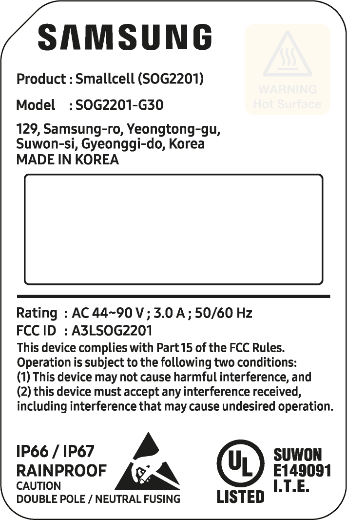

[Bottom View] [Top View] [Left View] 6.3 (16 0) Unit: in. (mm) [Right View][Rear View] [Front View] 19 (482.6) 8 (20 3) SOG2201-G30 Label Location StickerLabelonsidewalloftheproduct Thelabelisastickeraffixedtotheproductviapermanentadhesive. Itisdesignedtolasttheexpectedlifetimeoftheproductintheen vironmentinwhichtheproductistobeoperated.

SOG2201-G30 Label Location Sticker Label on side wall of the product The label is a sticker affixed to the product via permanent adh esive. It is designed to last the expected lifetime of the product in the en vironment in which the product is to be operated.

FCC: A3LSOG2201 MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 11 8K22121601-01-R2.A3L 01/03/2023 – 02/15/2023 Smallcell (SOG2201) © 2024 Element ES-QP-16-09 Rev.05 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without written permission from Element. If you have any questions about this or have an inquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu, Suwon-si Gyeonggi-do, 16677, Korea Date of Testing: 01/03/2023 – 02/15/2023 Test Site/Location: Element Lab., Suwon, Yongin-si, Gyeonggi-do, Korea Test Report Serial No.: 8K22121601-01-R2.A3L FCC ID: A3LSOG2201 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model: SOG2201-G30 EUT Type: Smallcell (SOG2201) FCC Classification: Citizens Band Category B Devices (CBD) FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) Test Procedure(s): KDB 447498 D01 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Prepared by Jonathan Jang Reviewed by Charles.Shin Test Engineer Technical Manager Element Suwon (#1407) 13, Heungdeok 1-ro, Giheung-gu, Yongin-si, Gyeonggi-do 16954, Korea Tel. +82 31.660.7319 / Fax +82 31.660.7918 http://www.element.com TEST REPORT Maximal Permissible Exposure [MPE] REPORT FCC: A3LSOG2201 MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 11 8K22121601-01-R2.A3L 01/03/2023 – 02/15/2023 Smallcell (SOG2201) © 2024 Element ES-QP-16-09 Rev.05 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without written permission from Element. If you have any questions about this or have an inquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. T A B L E O F C O N T E N T S 1.0 REVISION RECORD ..................................................................................................................................... 3 2.0 INTRODUCTION ........................................................................................................................................... 4 2.1 Scope ................................................................................................................................................................. 4 2.2 Element Test Location ........................................................................................................................................ 4 2.3 Test Facility / Accreditation ................................................................................................................................ 4 3.0 PRODUCT INFORMATION ........................................................................................................................... 5 3.1 Equipment Description ....................................................................................................................................... 5 3.2 Device Capabilities ............................................................................................................................................. 5 4.0 RF EXPOSURE EVALUATION - MPE .......................................................................................................... 6 4.1 Introduction ........................................................................................................................................................ 6 4.2 MPE Requirements Overview ............................................................................................................................ 7 4.3 Procedure ........................................................................................................................................................... 8 4.4 Results of Maximum Permissible Exposure ....................................................................................................... 9 5.0 CONCLUSION ............................................................................................................................................. 11 FCC: A3LSOG2201 MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 11 8K22121601-01-R2.A3L 01/03/2023 – 02/15/2023 Smallcell (SOG2201) © 2024 Element ES-QP-16-09 Rev.05 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without written permission from Element. If you have any questions about this or have an inquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1 . 0 R E V I S I O N R E C O R D Issue Number Issued Date Revision History 8K22121601-01.A3L 02/16/2023 Initial Issue 8K22121601-01-R1.A3L 02/24/2023 Revision due to updated Antenna gain information 8K22121601-01-R2.A3L 05/10/2024 Revision due to updated unit of MPE limit FCC: A3LSOG2201 MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Date…

Text truncated - open the document above for the full version.

FCC: A3LSOG2201 MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 289 8K22121601-00-R2.A3L 01/03/2023 – 02/15/2023 Smallcell (SOG2201) © 2023 Element ES-QP-16-09 Rev.05 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without written permission from Element. If you have any questions about this or have an inquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu, Suwon-si Gyeonggi-do, 16677, Korea Date of Testing: 01/03/2023 – 02/15/2023 Test Site/Location: Element Lab., Suwon, Yongin-si, Gyeonggi-do, Korea Test Report Serial No.: 8K22121601-00-R2.A3L FCC ID: A3LSOG2201 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model: SOG2201-G30 EUT Type: Smallcell (SOG2201) FCC Classification: Citizens Band Category B Devices (CBD) FCC Rule Part(s): 96 Test Procedure(s): ANSI C63.26-2015, KDB 971168 D01 v03r01, KDB 940660 D01 v03, KDB 662911 D01 v02r01 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Prepared by Jonathan Jang Reviewed by Charles.Shin Test Engineer Technical Manager Element Suwon (#1407) 13, Heungdeok 1-ro, Giheung-gu, Yongin-si, Gyeonggi-do 16954, Korea Tel. +82 31.660.7319 / Fax +82 31.660.7918 http://www.element.com TEST REPORT PART 96 MEASUREMENT REPORT FCC: A3LSOG2201 MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 289 8K22121601-00-R2.A3L 01/03/2023 – 02/15/2023 Smallcell (SOG2201) © 2023 Element ES-QP-16-09 Rev.05 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without written permission from Element. If you have any questions about this or have an inquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. T A B L E O F C O N T E N T S 1.0 REVISION RECORD ..................................................................................................................................... 4 2.0 INTRODUCTION ........................................................................................................................................... 5 2.1 Scope ................................................................................................................................................................. 5 2.2 Element Test Location ........................................................................................................................................ 5 2.3 Test Facility / Accreditation ................................................................................................................................ 5 3.0 PRODUCT INFORMATION ........................................................................................................................... 6 3.1 Equipment Description ....................................................................................................................................... 6 3.2 Device Capabilities ............................................................................................................................................. 6 3.3 Test Configuration .............................................................................................................................................. 7 3.4 EMI Suppression Device(s)/Modifications .......................................................................................................... 8 4.0 DESCRIPTION OF TESTS ........................................................................................................................... 9 4.1 Measurement Procedure .................................................................................................................................... 9 4.2 Radiated Spurious Emissions .......................................................................................................................... 10 4.3 Measurement Software .................................................................................................................................... 10 4.4 Enviromental Conditions .................................................................................................................................. 10 5.0 MEASUREMENT UNCERTAINTY .............................................................................................................. 11 6.0 TEST EQUIPMENT CALIBRATION DATA ................................................................................................. 12 7.0 SAMPLE CALCULATIONS ......................................................................................................................... 13 8.0 TEST RESULTS .......................................................................................................................................... 14 8.1 Summary .......................................................................................................................................................... 14 8.2 Occupied Bandwidth .....................................................…

Text truncated - open the document above for the full version.

FCC: A3LSOG2201 MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 97 of 289 8K22121601-00-R2.A3L 01/03/2023 – 02/15/2023 Smallcell (SOG2201) © 2023 Element ES-QP-16-09 Rev.05 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without written permission from Element. If you have any questions about this or have an inquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Sector Zone Port QPSK 16QAM 64QAM 256QAM 1 1 1 23.44 23.13 23.70 23.16 2 23.27 23.14 23.73 23.16 Total MIMO Conducted power (mW/10MHz) 433.12 411.65 470.47 414.03 Total MIMO Conducted power (dBm/10MHz) 26.37 26.15 26.73 26.17 Ant. Gain (dBi) 12.00 12.00 12.00 12.00 e.i.r.p (dBm/10MHz) 38.37 38.15 38.73 38.17 e.i.r.p Limit (dBm/10MHz) 47.00 47.00 47.00 47.00 Margin (dB) -8.63 -8.85 -8.27 -8.83 Sector Zone Port QPSK 16QAM 64QAM 256QAM 1 2 3 23.66 23.45 24.06 23.45 4 23.33 23.21 23.72 23.15 Total MIMO Conducted power (mW/10MHz) 447.55 430.72 490.19 427.85 Total MIMO Conducted power (dBm/10MHz) 26.51 26.34 26.90 26.31 Ant. Gain (dBi) 12.00 12.00 12.00 12.00 e.i.r.p (dBm/10MHz) 38.51 38.34 38.90 38.31 e.i.r.p Limit (dBm/10MHz) 47.00 47.00 47.00 47.00 Margin (dB) -8.49 -8.66 -8.10 -8.69 Sector Zone Port QPSK 16QAM 64QAM 256QAM 2 3 5 23.50 23.27 24.02 23.36 6 23.87 23.86 23.99 23.82 Total MIMO Conducted power (mW/10MHz) 467.65 455.54 502.96 457.76 Total MIMO Conducted power (dBm/10MHz) 26.70 26.59 27.02 26.61 Ant. Gain (dBi) 12.00 12.00 12.00 12.00 e.i.r.p (dBm/10MHz) 38.70 38.59 39.02 38.61 e.i.r.p Limit (dBm/10MHz) 47.00 47.00 47.00 47.00 Margin (dB) -8.30 -8.41 -7.98 -8.39 Sector Zone Port QPSK 16QAM 64QAM 256QAM 2 4 7 23.39 22.95 23.76 23.06 8 23.39 23.12 23.82 23.22 Total MIMO Conducted power (mW/10MHz) 436.55 402.36 478.67 412.20 Total MIMO Conducted power (dBm/10MHz) 26.40 26.05 26.80 26.15 Ant. Gain (dBi) 12.00 12.00 12.00 12.00 e.i.r.p (dBm/10MHz) 38.40 38.05 38.80 38.15 e.i.r.p Limit (dBm/10MHz) 47.00 47.00 47.00 47.00 Margin (dB) -8.60 -8.95 -8.20 -8.85 Table 8-94. Equivalent Isotropic Radiated Power Table (n48_1C_30M_Low Channel_2T) FCC: A3LSOG2201 MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 98 of 289 8K22121601-00-R2.A3L 01/03/2023 – 02/15/2023 Smallcell (SOG2201) © 2023 Element ES-QP-16-09 Rev.05 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without written permission from Element. If you have any questions about this or have an inquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Sector Zone Port QPSK 16QAM 64QAM 256QAM 1 1 1 24.00 23.94 23.97 24.06 2 23.87 24.02 24.00 24.09 Total MIMO Conducted power (mW/10MHz) 494.97 500.09 500.65 511.13 Total MIMO Conducted power (dBm/10MHz) 26.95 26.99 27.00 27.09 Ant. Gain (dBi) 12.00 12.00 12.00 12.00 e.i.r.p (dBm/10MHz) 38.95 38.99 39.00 39.09 e.i.r.p Limit (dBm/10MHz) 47.00 47.00 47.00 47.00 Margin (dB) -8.05 -8.01 -8.00 -7.91 Sector Zone Port QPSK 16QAM 64QAM 256QAM 1 2 3 24.04 24.22 24.10 24.12 4 23.68 23.66 24.02 24.14 Total MIMO Conducted power (mW/10MHz) 486.86 496.51 509.39 517.64 Total MIMO Conducted power (dBm/10MHz) 26.87 26.96 27.07 27.14 Ant. Gain (dBi) 12.00 12.00 12.00 12.00 e.i.r.p (dBm/10MHz) 38.87 38.96 39.07 39.14 e.i.r.p Limit (dBm/10MHz) 47.00 47.00 47.00 47.00 Margin (dB) -8.13 -8.04 -7.93 -7.86 Sector Zone Port QPSK 16QAM 64QAM 256QAM 2 3 5 23.47 24.13 23.74 23.38 6 23.94 23.90 24.15 23.85 Total MIMO Conducted power (mW/10MHz) 470.07 504.29 496.61 460.43 Total MIMO Conducted power (dBm/10MHz) 26.72 27.03 26.96 26.63 Ant. Gain (dBi) 12.00 12.00 12.00 12.00 e.i.r.p (dBm/10MHz) 38.72 39.03 38.96 38.63 e.i.r.p Limit (dBm/10MHz) 47.00 47.00 47.00 47.00 Margin (dB) -8.28 -7.97 -8.04 -8.37 Sector Zone Port QPSK 16QAM 64QAM 256QAM 2 4 7 23.45 23.42 23.84 23.37 8 23.57 23.85 23.79 23.49 Total MIMO Conducted power (mW/10MHz) 448.82 462.45 481.43 440.63 Total MIMO Conducted power (dBm/10MHz) 26.52 26.65 26.83 26.44 Ant. Gain (dBi) 12.00 12.00 12.00 12.00 e.i.r.p (dBm/10MHz) 38.52 38.65 38.83 38.44 e.i.r.p Limit (dBm/10MHz) 47.00 47.00 47.00 47.00 Margin (dB) -8.48 -8.35 -8.17 -8.56 Table 8-95. Equivalent Isotropic Radiated Power Table (n48_1C_30M_Mid Channel_2T) FCC: A3LSOG2201 MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 99 of 289 8K22121601-00-R2.A3L 01/03/2023 – 02/15/2023 Smallcell (SOG2201) © 2023 Element ES-QP-16-09 Rev.05 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without written permission from Element. If you have any questions about this or have an inquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Sector Zone Port QPSK 16QAM 64QAM 256QAM 1 1 1 23.25 23.15 23.78 23.27 2 23.34 23.26 23.84 23.36 Total MIMO Conducted power (mW/10MHz) 427.12 418.37 480.88 429.09 Total MIMO Conducted power (dBm/10MHz) 26.31 26.22 26.82 26.33 Ant. Gain (dBi) 12.00 12.00 12.00 12.00 e.i.r.p (dBm/10MHz) 38.31 38.22 38.82 38.33 e.i.r.p Limit (dBm/10MHz) 47.00 47.00 47.00 47.00 Margin (dB) -8.69 -8.78 -8.18 -8.67 Sector Zone Port QPSK 16QAM 64QAM 256QAM 1 2 3 23.78 23.72 23.26 23.82 4 23.33 23.28 23.89 23.37 Total MIMO Conducted power (mW/10MHz) 454.06 448.32 456.74 458.26 Total MIMO Conducted power (dBm/10MHz) 26.57 26.52 26.60 26.61 Ant. Gain (dBi) 12.00 12.00 12.00 12.00 e.i.r.p (dBm/10MHz) 38.57 38.52 38.60 38.61 e.i.r.p Limit (dBm/10MHz) 47.00 47.00 47.00 47.00 Margin (dB) -8.43 -8.4…

Text truncated - open the document above for the full version.

FCC: A3LSOG2201 MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 176 of 289 8K22121601-00-R2.A3L 01/03/2023 – 02/15/2023 Smallcell (SOG2201) © 2023 Element ES-QP-16-09 Rev.05 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without written permission from Element. If you have any questions about this or have an inquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Sector Zone Port Measured Range (GHz) Max. Value (dBm) Limit (dBm) Worst Margin (dB) QPSK 16QAM 64QAM 256QAM 1 1 1 3.530 to 3.595 -35.96 -38.20 -39.01 -38.88 -28.01 -7.95 3.595 to 3.604 -35.88 -37.73 -37.11 -37.94 -16.01 -19.87 3.604 to 3.605 -25.37 -25.44 -25.85 -25.43 -16.01 -9.36 3.645 to 3.646 -25.88 -26.73 -26.23 -27.56 -16.01 -9.87 3.646 to 3.655 -36.64 -37.53 -38.17 -38.26 -16.01 -20.63 3.655 to 3.720 -39.37 -39.26 -39.13 -39.16 -28.01 -11.12 2 3.530 to 3.595 -37.06 -38.62 -40.75 -39.48 -28.01 -9.05 3.595 to 3.604 -37.67 -37.17 -37.46 -38.46 -16.01 -21.16 3.604 to 3.605 -25.29 -26.14 -26.12 -26.17 -16.01 -9.28 3.645 to 3.646 -26.07 -25.73 -26.85 -26.70 -16.01 -9.72 3.646 to 3.655 -37.57 -37.95 -37.91 -38.82 -16.01 -21.56 3.655 to 3.720 -39.62 -40.16 -39.88 -40.24 -28.01 -11.61 2 3 3.530 to 3.595 -38.35 -38.98 -39.72 -39.22 -28.01 -10.34 3.595 to 3.604 -37.71 -37.61 -37.22 -38.03 -16.01 -21.21 3.604 to 3.605 -24.33 -26.11 -25.55 -24.82 -16.01 -8.32 3.645 to 3.646 -25.12 -24.33 -25.23 -27.02 -16.01 -8.32 3.646 to 3.655 -36.76 -36.16 -37.47 -37.39 -16.01 -20.15 3.655 to 3.720 -38.46 -38.97 -38.28 -38.87 -28.01 -10.27 4 3.530 to 3.595 -37.49 -37.49 -38.25 -38.21 -28.01 -9.48 3.595 to 3.604 -36.35 -36.45 -36.04 -36.63 -16.01 -20.03 3.604 to 3.605 -26.85 -26.19 -25.67 -25.44 -16.01 -9.43 3.645 to 3.646 -26.99 -26.26 -25.70 -23.68 -16.01 -7.67 3.646 to 3.655 -37.66 -38.18 -38.21 -37.98 -16.01 -21.65 3.655 to 3.720 -40.58 -40.19 -39.01 -39.94 -28.01 -11.00 2 3 5 3.530 to 3.595 -37.93 -36.89 -39.11 -38.18 -28.01 -8.88 3.595 to 3…
