A3LSPHN170Tri-Mode Dual Band Analog/PCS Phone (AMPS/CDMA)
Samsung Electronics Co Ltd
Click to zoom
Application Details
- Equipment Class
- PCE - PCS Licensed Transmitter held to ear
- Date of Grant
- Aug 14, 2001
- Application Purpose
- Original Equipment
- Date of Application
- May 09, 2001
- Equipment Note
- Tri-Mode Dual Band Analog/PCS Phone (AMPS/CDMA)
- Frequency Range
- 1851.25000000 - 1908.75000000
- Company
- Samsung Electronics Co Ltd
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Attestation Statements
March 9, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a) Sincerely, Wallace Oh Engineering Manager Samsung Electronics America May 1, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.:A3LSPHN170 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. May 1, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSPHN170), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSPHN170) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. May 1, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSPHN170 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.
Cover Letter(s)
May 1, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSPHN170 Part 22 & 24 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22/24 Certification of the following Tri-Mode Cellular/PCS Phone (AMPS/CDMA): FCC ID: A3LSPHN170 TRADE / MODEL(s): SAMSUNG SPH-N170 EUT TYPE: Licenced Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 824.04 — 848.97 MHz (AMPS) 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Freq. Range: 869.04 — 893.97 MHz (AMPS) 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.444 W ERP AMPS (26.473 dBm) 0.315 W ERP CDMA (24.983 dBm) 0.351 W EIRP PCS CDMA (24.451 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab
External Photos

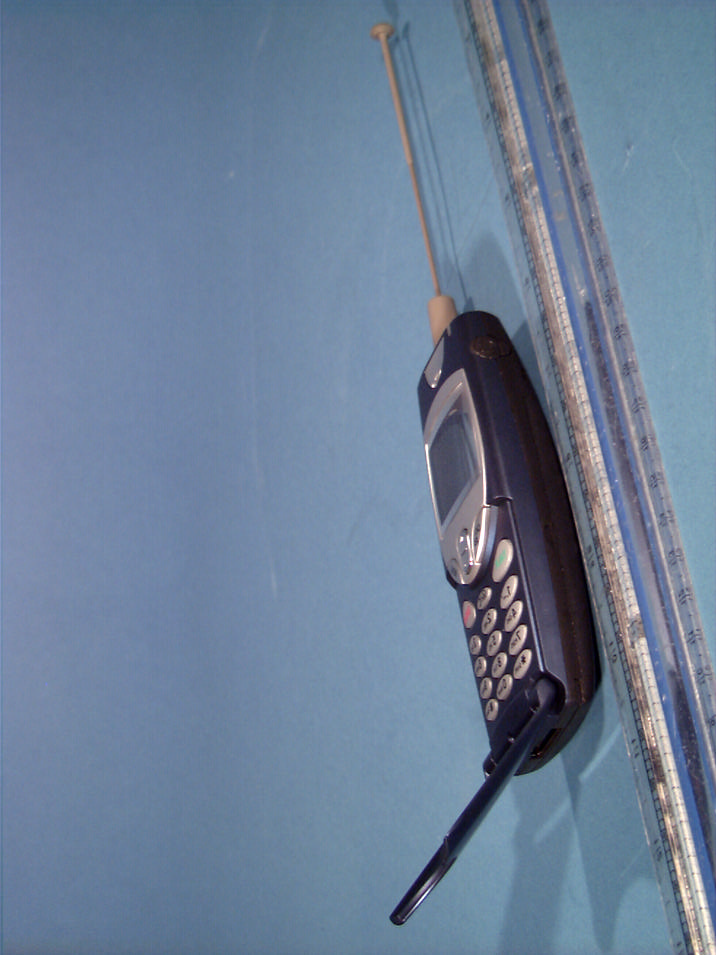

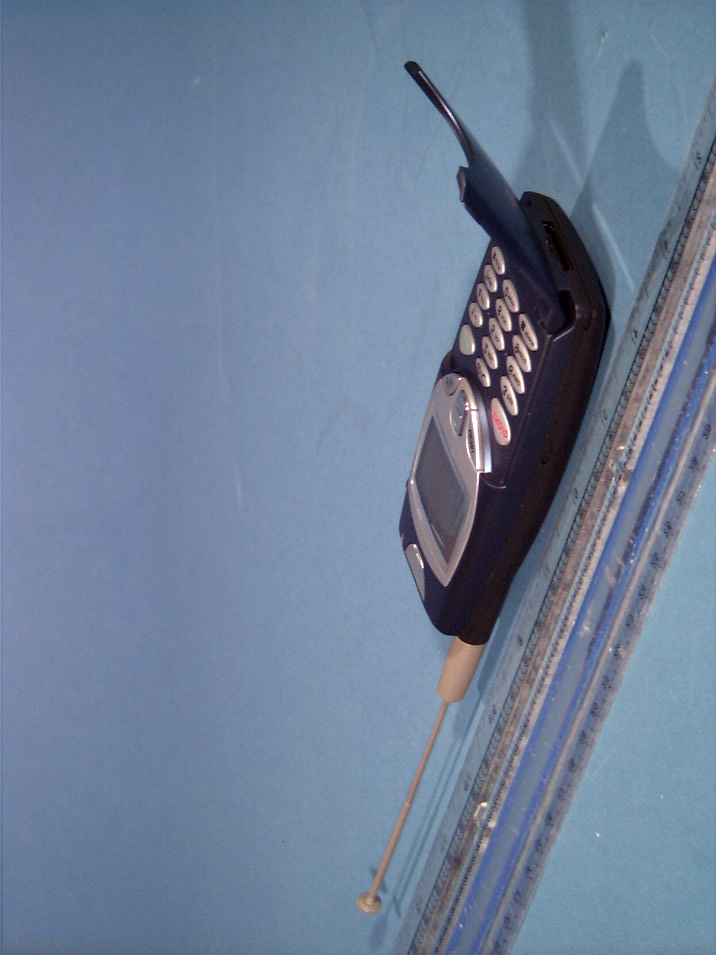

© 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone
ID Label/Location Info
© 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.
Internal Photos
© 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone
Parts List/Tune Up Info
10.PARTSLIST 5.TUNE-UPPROCEDURE TESTPROCEDURE ListofEquipment -DCPowerSupply -TestJig -TestCable -CDMAMobileStationTestSetHP8924C,HP83236A,CMD-80,etc -SpectrumAnalyzer(includeCDMAtestmode)HP8596E ConfigurationofTest SpectrumAnalyzer RFIn HP8924C RFAudioAudio In/OutOutIn ToA-Out TestJig ToA-In DCPowerSupply (+3.8V) ChangetoTestMode A.TochangethephonefromNormalModetotestMode,Youshouldenterthefollowingkeys. "47*869#1235" B.Thecommand 01"(Suspend)isenteredtostarttest. C.TofinishtheTestMode,Youshouldenterthecommand"02". ChannelSelectionandTxPowerOutputlevelControl 1 .AMPS A.YoushouldchangethephonefromNormalModetoAMPSTestmode "01,2110001,02";AMPSSystemB 10000;AMPSSystemA B.Thecommand 01"(Suspend)isenteredtostarttest. C.Youshouldenterthefollowingkeys. "09XXXX#,07,72XXX" -Ifyouenterthecommand"09",Youcanselectthechannel ex)090383(under-barmeanschannelnumber) -Thecommand"07 meansCarrierOn(CarrierOff: 08 ) -Ifyouenterthecommand"72",Youcancontrolthepoweroutputlevel. Followingunder-barmeansAGCcode.Andyoucancontrolthepoweroutputlevel using [SEND]or[END]key. ex)72300 D.Afterenterthecommand"97"andcontroltheTxPowerOutputLeveltobeeachpowerlevelstep using [SEND]or[END]key ,press"OK"keytostoreData inEEPROM. LEVELLCDDisplayTXOUPUTPOWERSTORE 2TXpwr[02]+26dBm+2/-4dBOK 3TXpwr[03]+24dBm+2/-4dBOK 4TXpwr[04]+20dBm+2/-4dBOK 5TXpwr[05]+16dBm+2/-4dBOK 6TXpwr[06]+12dBm+2/-4dBOK 7TXpwr[07]+8dBm+2/-4dBOK 2.CDMA A.YoushouldchangethephonefromNormalModetoPCSTestmode "01,2120363,02" B.Thecommand 01"(Suspend)isenteredtostarttest. C.Youshouldenterthefollowingkeys. "09XXXX#,07,34,71XXX#" -Ifyouenterthecommand"09",Youcanselectthechannel ex)090363(under-barmeanschannelnumber) -Thecommand"07 meansCarrierOn(CarrierOff: 08 ) -Ifyouenterthecommand"34",Youcanspreadthecarrier. -Ifyouenterthecommand"71",Youcancontrolthepoweroutputlevel. Followingunder-barmeansAGCcode.Andyoucancontrolthepoweroutputlevel using[SEND]or[END]Keys. ex)71300 D.Afterenterthecommand"92"andcontroltheTxPowerOutputLeveltobeeachpowerlevelstep (TXRAS)using [SEND]or[END]key ,press"OK"keytostoreData inEEPROM. 3.PCS A.YoushouldchangethephonefromNormalModetoPCSTestmode "01,2130600,02" B.Thecommand 01"(Suspend)isenteredtostarttest. C.Youshouldenterthefollowingkeys. "09XXXX#,07,34,71XXX#" -Ifyouenterthecommand"09",Youcanselectthechannel ex)090600(under-barmeanschannelnumber) -Thecommand"07 meansCarrierOn(CarrierOff: 08 ) -Ifyouenterthecommand"34",Youcanspreadthecarrier. -Ifyouenterthecommand"71",Youcancontrolthepoweroutputlevel. Followingunder-barmeansAGCcode.Andyoucancontrolthepoweroutputlevel using[SEND]or[END]Keys. ex)71300 D.Afterenterthecommand"90"andcontroltheTxPowerOutputLeveltobeeachpowerlevelstep (TXRAS)using [SEND]or[END]key ,press"OK"keytostoreData inEEPROM. ConfigurationofTest(Hands-Free) DCPOWER SUPPLY (+13.7V) + - HANDSFREE KITBOX DATA PWR CRADLE Red Orange Black ANTENNA TESTCABLEDESCRIPTIONFORSPH-N170 1.TESTCABLE 2.TESTCABLECONNECTIONS 1PLUGCONNECTTOSPH-N170 2BNCCONNECTOR(RF) 3Dsub25PINCONNECTOR(DATA) 4RFCABLE 5DATACABLE 4 1 3 5 3.Dsub25PINCONNECTORPINDESCRIPTION(TESTCABLE1,BACKSIDE) 4.CONVERSIONTABLEOFFREQUENCYvsCHANNEL -CDMA,AMPS -PCS DATADESCRIPTIONDsubCONN.PINNO. Vcc5,6 GND13,24,25 PWON/OFF7 TXAUDIO10 TXDATA22 RXAUDIO12 RXDATA21 151719212325 14 16 18 20 22 24 12 123456789101113 TYPECHANNELCONVERSIONEQUATIONREMARK TX FREQUENCY 1 N 799 990 N 1023 F=0.03 N+825.00 F=0.03 (N-1023)+825.00 N;CHNUMBER F;FREQUENCY RX FREQUENCY 1 N 799 990 N 1023 F=0.03 N+870.00 F=0.03 (N-1023)+870.00 TYPECHANNELCONVERSIONEQUATIONREMARK TX FREQUENCY 1 N 1175F=0.05 N+1850N;CHNUMBER F;FREQUENCY RX FREQUENCY 1 N 1175F=0.05 N+1930 TESTPROCEDURE 1.AMPSMODE TESTITEMSTEPPROCEDURE 1.PREPARE a b c d Connectthetestequipment Enterthetestmode:press[47*869#1235] SelectAMPSmode:Pressintestmode[2110001];SystemB 10000;SystemA Ifyoupressawrongkey,press[#]keyandthenenternew command. Toexitthetestmodeatanytime:press[02] 2.RF POWER a b c d e f Setthechannel383:Press[090383#] (Chnumbermustbe4digits) Turnthecarrieron,andsetthepowerlevel2 :press[01,07,102#] MeasuretheRFPowerOutput:+26dBm+2/-4dB Note1:Incaseofusingtheantennacable,must compensateforthecableloss(ex:1.5dB). Note2:Topreventfromdamagingthehhp,mustmeasure bycalibratedtestequipment. Warning! Adjustmentswithoutcalibratedequipmentcanresultin excessiveheatandwillvoidthewarranty. Powerlevelcontrolmodeis[10X] Adjustpowerlevelbyusing[SEND]or[END]key,andstore. :press[97] Thenmeasurethepoweroutputforeachlevel bypressing[OK]or[ ]ateverystep. Thenturncarrieroff:press[08] 3.TX FREQUENCY a b c d Setthechannel383:press[090383#] Turnthecarrieron:press[01,07] Measurethetxfrequency:836.490MHz 2.5ppm( 2090Hz) Turnthecarrieroff:press[08] TESTITEMSTEPPROCEDURE 4.VOICE DEVIATION a b c d e f g h i j k l Setthechannel383:[090383#] SendtheRFpower,andsetTXaudiounmute :press[01,07,46,14] Setthepowerlevel2 :press[102#] Settheaudiogeneratoroutputto1kHz,3.0Vrms MeasuretheTXvoicedeviationbyusingtheHPFof 20HzandtheLPFof99kHz.(spec: 12kHzless) Toadjustthepeakdeviation, ( )Press[63]andusethe[SEND]or[END]key ( )Storethepeakdeviation:press[OK] Settheaudiogeneratoroutputto1kHz,100mVrms. MeasuretheTXvoicedeviationbyusingtheHPFof 50HzandtheLPFof15kHz.(spec: 2.9kHz 10%) Toadjustthecompressoroffdeviation:press[45],and use[SEND]or[END]key.(spec: 2.9kHz 0.2kHz) Storethecompressoroffdeviation:press[OK] Toadjustthecompressorondeviation:press[44],and use[SEND]or[END]key.(spec; 2.9kHz 0.2kHz) Storethecompressorondeviation:press[OK] Turnthecarrieroff,andTXmute:[08,13] 5.ST DEVIATION a b c d e f g Setthechannel383:press[090383#] Turnthecarrieron,andsetthepowerlevel2 :press[01,07,102#] SetST:press[46,16] MeasuretheTXSTdeviationbyusingtheHPFof20Hz andtheLPFof15kHz. (spec: 8kHz10%) Toadjustthedeviation;press[66],anduse[SEND]or[END]key. StorethedeviationcodeinEEPROM:press[OK] TurntheSTandthecarrieroff:press[17,08] TESTITEMSTEPPROCEDURE 6.SAT DEVIATION a b c d e f g Setthechannel383:[090383#] Turnthecarrieron,andsetthepowerlevel2 :press[01,07,102#] SettheVoiceStateandSATon:press[46,321#] Measur…
Text truncated - open the document above for the full version.
RF Exposure Info
© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: Apr. 19-25, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.210419231.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSPHN170 APPLICANT SAMSUNG Electronics Co., Ltd. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.444W ERP AMPS (26.47 dBm) / 0.315W ERP CDMA (24.98 dBm) 0.351 W EIRP PCS CDMA (25.45 dBm) Trade Name/Model(s): SAMSUNG SPH-N170 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.2813 W/kg AMPS Brain SAR; 0.7027 W/kg AMPS Body SAR 0.7186 W/kg CDMA Brain SAR; 0.4657 W/kg CDMA Body SAR 1.4381 W/kg PCS Brain SAR; 1.1715 W/kg PCS Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210419231.A3L Test Report S/N: SAR.210419231.A3L SAR Measurement Report Test Dates: APR. 19-25, 2001 FCC Part 22/24 Certification Table of Contents 1.1 SCOPE...........................................................................................................1 2.1 INTRODUCTION...........................................................................................2 2.2 SAR Definition..................................................................................................2 3.1 SAR MEASUREMENT SET-UP.....................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM........................................................4 5.1 E-field PROBE CALIBRATION PROCESS..................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES....................................................7 7.1 SYSTEM SPECIFICATIONS..........................................................................8 8.1 MEASUREMENT PROCESS..........................................................................9 9.1 TEST POSITION OF THE PHONE...............................................................10 10.1 BODY-WORN TEST SETUP......................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS....................................12 12.1 MEASUREMENT UNCERTAINTIES..........................................................13 13.1 SAR TEST DATA SUMMARY....................................................................14 14.1 SAR TEST EQUIPMENT............................................................................18 15.1 CONCLUSION...........................................................................................19 Test Report S/N: SAR.210419231.A3L SAR Measurement Report Test Dates: Apr. 19-25, 2001 FCC Part 24/22 Certification SAMSUNG FCC ID: A3LSPHN170 (Model: SPH-N170) © 2001 PCTEST Lab Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do, 441-742, KOREA Attention: Mr. Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) • Trade Name: SAMSUNG • Model(s): SPH-N170 • FCC IDENTIFIER: A3LSPHN170 • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.444W ERP AMPS (26.47 dBm) 0.315W ERP CDMA (24.98 dBm) 0.351W EIRP PCS CDMA (25.45 dBm) • Date(s) of Tests: Apr. 19-25, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210419231.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210419231.A3L SAR Measurement Report Test Dates: Apr. 19-25, 2001 FCC Part 24/22 Certification SAMSUNG FCC ID: A3LSPHN170 (Model: SPH-N170) © 2001 PCTEST Lab Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for …
Text truncated - open the document above for the full version.
RF Exposure Info
Peak SAR Location © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Cellular/PCS Phone (AMPS/CDMA) 800 MHz Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01041912_ZOOM.VLT Start : 19-Apr-101 03:43:38 pm End : 19-Apr-101 03:54:14 pm Radio Type : SAMSUNG Model Number : SPH-N170 Serial Number : 1 Frequency : 824.04 MHz Peak Trans. Pwr : 0.450 W Start Trans. Pwr: 0.450 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG TRI-MODE PHONE - AMPS MODE CHAN 0991 Conducted 26.5 dBm SAMSUNG TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.250, Y = -4.250, Z = 0.000 (cm) Value = 19.488 Measured Values (volts) = 1.927E-002 1.528E-002 1.276E-002 1.065E-002 9.130E-003 7.882E-003 7.130E-003 6.566E-003 6.118E-003 5.652E-003 5.000E-003 4.291E-003 3.298E-003 2.485E-003 1.718E-003 1.251E-003 1.026E-003 1.144E-003 1.441E-003 1.811E-003 2.088E-003 Calc. Voltage @ Surface (Vs) = 0.0237 Voltage @ 1.00 cm (Vt) = 0.0107 Ave. Voltage (Vs+Vt)/2 = 0.0172 Ave. SAR over 1 g (mW/g) = 1.2529 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 01041912_ZOOM Start : 19-Apr-101 03:43:38 pm End : 19-Apr-101 03:54:14 pm SAMSUNG/SPH-N170/1;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01041912_ZOOM Start : 19-Apr-101 03:43:38 pm End : 19-Apr-101 03:54:14 pm SAMSUNG/SPH-N170/1;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.422 1.358 1.294 1.230 1.166 1.102 1.037 0.973 0.909 0.845 File : 01041912_ZOOM Start : 19-Apr-101 03:43:38 pm End : 19-Apr-101 03:54:14 pm SAMSUNG/SPH-N170/1;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.422 1.358 1.294 1.230 1.166 1.102 1.037 0.973 0.909 0.845 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01041913_ZOOM.VLT Start : 19-Apr-101 03:55:28 pm End : 19-Apr-101 04:06:01 pm Radio Type : SAMSUNG Model Number : SPH-N170 Serial Number : 1 Frequency : 824.04 MHz Peak Trans. Pwr : 0.450 W Start Trans. Pwr: 0.450 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG TRI-MODE PHONE - AMPS MODE CHAN 0991 Conducted 26.5 dBm SAMSUNG TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.250, Y = -4.250, Z = 0.000 (cm) Value = 19.619 Measured Values (volts) = 1.970E-002 1.571E-002 1.311E-002 1.096E-002 9.490E-003 8.164E-003 7.422E-003 6.762E-003 6.297E-003 5.809E-003 5.181E-003 4.360E-003 3.479E-003 2.554E-003 1.781E-003 1.271E-003 1.103E-003 1.209E-003 1.525E-003 1.951E-003 2.164E-003 Calc. Voltage @ Surface (Vs) = 0.0242 Voltage @ 1.00 cm (Vt) = 0.0110 Ave. Voltage (Vs+Vt)/2 = 0.0176 Ave. SAR over 1 g (mW/g) = 1.2813 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 01041913_ZOOM Start : 19-Apr-101 03:55:28 pm End : 19-Apr-101 04:06:01 pm SAMSUNG/SPH-N170/1;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01041913_ZOOM Start : 19-Apr-101 03:55:28 pm End : 19-Apr-101 04:06:01 pm SAMSUNG/SPH-N170/1;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.431 1.370 1.309 1.248 1.187 1.126 1.065 1.004 0.943 0.881 File : 01041913_ZOOM Start : 19-Apr-101 03:55:28 pm End : 19-Apr-101 04:06:01 pm SAMSUNG/SPH-N170/1;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.431 1.370 1.309 1.248 1.187 1.126 1.065 1.004 0.943 0.881 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01041906_ZOOM.VLT Start : 19-Apr-101 02:49:27 pm End : 19-Apr-101 02:58:49 pm Radio Type : SAMSUNG Model Number : SPH-N170 Serial Number : 1 Frequency : 836.49 MHz Peak Trans. Pwr : 0.450 W Start Trans. Pwr: 0.450 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG TRI-MODE PHONE - AMPS MODE CHAN 0383 Conducted 26.5 dBm SAMSUNG TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.250, Y = -4.250, Z = 0.000 (cm) Value = 16.065 Measured Values (volts) = 1.627E-002 1.268E-002 1.054E-002 8.687E-003 7.446E-003 6.342E-003 5.731E-003 5.222E-003 4.906E-003 4.495E-003 4.025E-003 3.420E-003 2.735E-003 2.007E-003 1.426E-003 9.972E-004 8.555E-004 9.231E-004 1.165E-003 1.479E-003 1.671E-003 Calc. Voltage @ Surface (Vs) = 0.0202 Voltage @ 1.00 cm (Vt) = 0.0087 Ave. Voltage (Vs+Vt)/2 = 0.0145 Ave. SAR over 1 g (mW/g) = 1.0547 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01041906_ZOOM Start : 19-Apr-101 02:49:27 pm End : 19-Apr-101 02:58:49 pm SAMSUNG/SPH-N170/1;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01041906_ZOOM Start : 19-Apr-101 02:49:27 pm End : 19-Apr-101 02:58:49 pm SAMSUNG/SPH-N170/1;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.172 1.120 1.067 1.015 0.962 0.910 0.858 0.805 0.753 0.700 File : 01041906_ZOOM Start : 19-Apr-101 02:49:27 pm End : 19-Apr-101 02:58:49 pm SAMSUNG/SPH-N170/1;836.49MHz;W;Helical/In; Head/Lef…
Text truncated - open the document above for the full version.
RF Exposure Info
© 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSPHN170 (Model: SPH-N170) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone
RF Exposure Info
FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communica tions Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consis tent with the safety standard previously set by both U.S. and international standards bodies. T he design of this phone complies with the FCC guidelines and thes e international standards. Use only the supplied or an appr oved antenna. U nauthorized antennas, modifications, or attach ments could impair call qua lity, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-w orn operations with the back of the phone kept 2.0 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clip s, holsters or similar accessories that maintain a 2.0 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether ext ended or retracted. The use of third-party belt-clips, holst ers and similar accessories should not contain metallic components in its assemb ly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone
Test Report
© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: April 19-25, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: 24/22.210419232.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSPHN170 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H), §2 EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Trade Name/Model: SAMSUNG SPH-N170 Tx Frequency Range: 824.04MHz – 848.97MHz (AMPS) / 824.70 - 848.31 MHz (CDMA) 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz – 893.97MHz (AMPS) / 869.70 - 893.31 MHz (CDMA) 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.444 W ERP AMPS (26.473 dBm) 0.315 W ERP CDMA (24.983 dBm) 0.351 W EIRP PCS CDMA (24.451 dBm) Emission Designator(s): 40K0F8W, 40K0F1D, 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210419232.A3L FCC Parts 24 & 22 Certification © 2001 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS 3 4.1 DESCRIPTION OF TESTS 4-7 5.1 EFFECTIVE RA…
Text truncated - open the document above for the full version.
Contact Information
Applicant
Jenni Chun(General Manager)
Technical Contact
PCTEST Engineering Laboratory, Inc.Randy Ortanez
[email protected]410-290-6652
6660-B Dobbin Road · Columbia, Maryland · United States
Non-Technical Contact
PCTEST Engineering Laboratory, Inc.Randy Ortanez
[email protected]410-290-6652
Test Firm
PCTEST Engineering Laboratory, Inc.Randy Ortanez
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 4 | 24E | 1.85 GHz - 1.91 GHz | 351.00 mW | 1M25F9W | 2.5 ppm |
