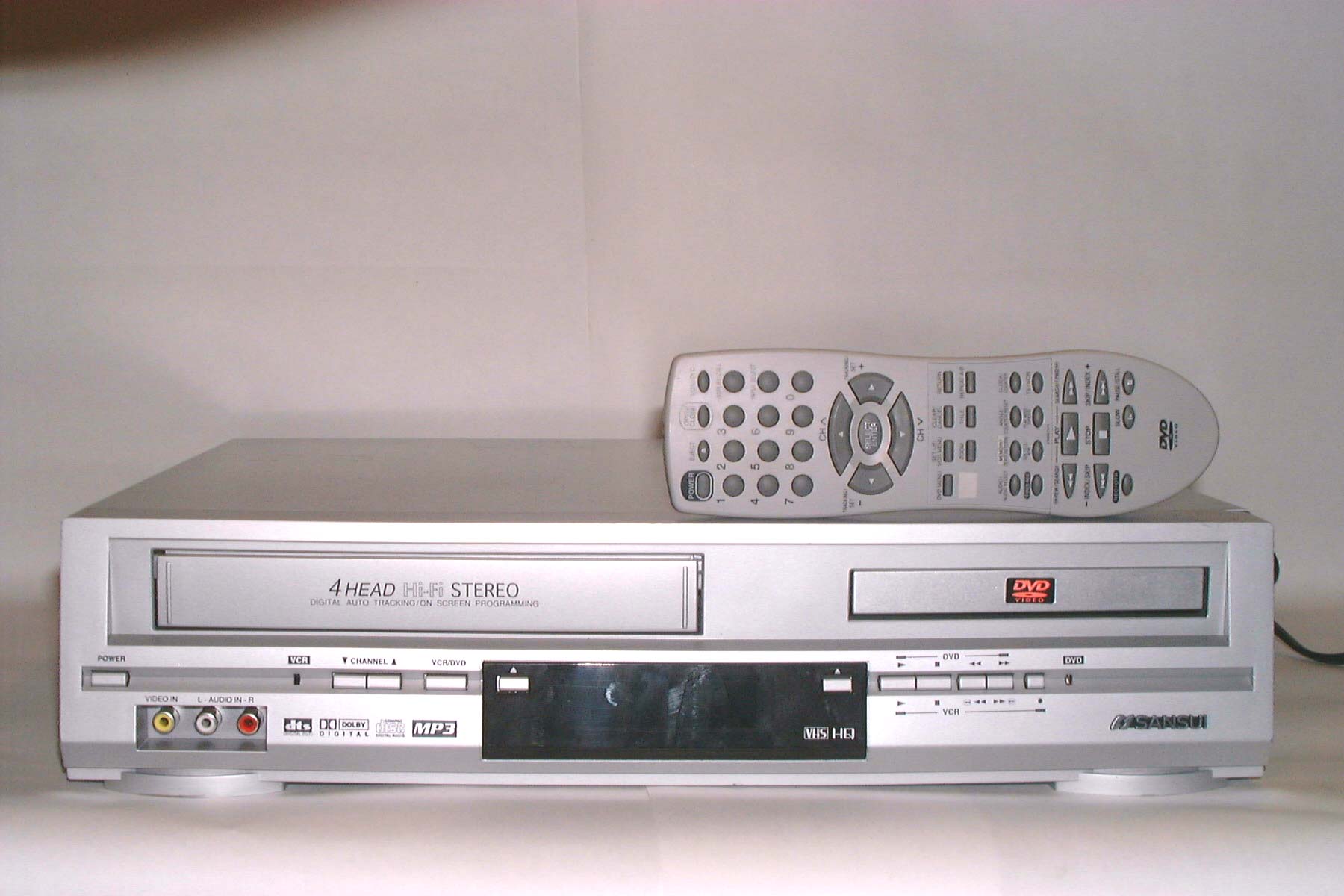

A7RM2A7ADVD VCR Combo

R DVD PLAYER/Hi-Fi VIDEO CASSETTE RECORDER OWNER'S MANUAL Before operating the unit, please read this manual thoroughly. ATTENTION If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code. TV/CATV MODE SELECTION When shipped from the factory, the TV/CATV menu option is set to the "CATV" (Cable Television) mode. If not using CATV (Cable TV), set this menu option to the "TV" mode. ORION WEBSITE FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT WWW.ORIONSALESINC.COM VRDVD4000 2A70101A Cover04/12/2001, 23:051 2 WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION:Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. 3 CH. IN OUT ANT. DIGITAL AUDIOAUDIOS-VIDEOCOMPONENT DVD OUTPUT L R VIDEO OPTICALCOAXIAL AUDIO L R 4 ( ) TV ( ) Y PB/CB PR/CR 2A70101A(02-05)29/11/2001, 13:472 3 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS All operating and use instructions should be followed. 5. CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning the exterior cabinet only. 6. ATTACHMENTS The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards. 7. WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 8. ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. 8A.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 9. VENTILATION Slots and openings in the cabinet back or bottom are provided for ventilation, and to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installations such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. 10. POWER SOURCES This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions. 11. GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If …

Text truncated - open the document above for the full version.

R DVD PLAYER/Hi-Fi VIDEO CASSETTE RECORDER OWNER'S MANUAL Before operating the unit, please read this manual thoroughly. ATTENTION If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code. TV/CATV MODE SELECTION When shipped from the factory, the TV/CATV menu option is set to the "CATV" (Cable Television) mode. If not using CATV (Cable TV), set this menu option to the "TV" mode. ORION WEBSITE FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT WWW.ORIONSALESINC.COM VRDVD4000 2A70101A Cover04/12/2001, 23:051 2 WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION:Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. 3 CH. IN OUT ANT. DIGITAL AUDIOAUDIOS-VIDEOCOMPONENT DVD OUTPUT L R VIDEO OPTICALCOAXIAL AUDIO L R 4 ( ) TV ( ) Y PB/CB PR/CR 2A70101A(02-05)29/11/2001, 13:472 3 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS All operating and use instructions should be followed. 5. CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning the exterior cabinet only. 6. ATTACHMENTS The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards. 7. WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 8. ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. 8A.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 9. VENTILATION Slots and openings in the cabinet back or bottom are provided for ventilation, and to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installations such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. 10. POWER SOURCES This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions. 11. GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If …

Text truncated - open the document above for the full version.

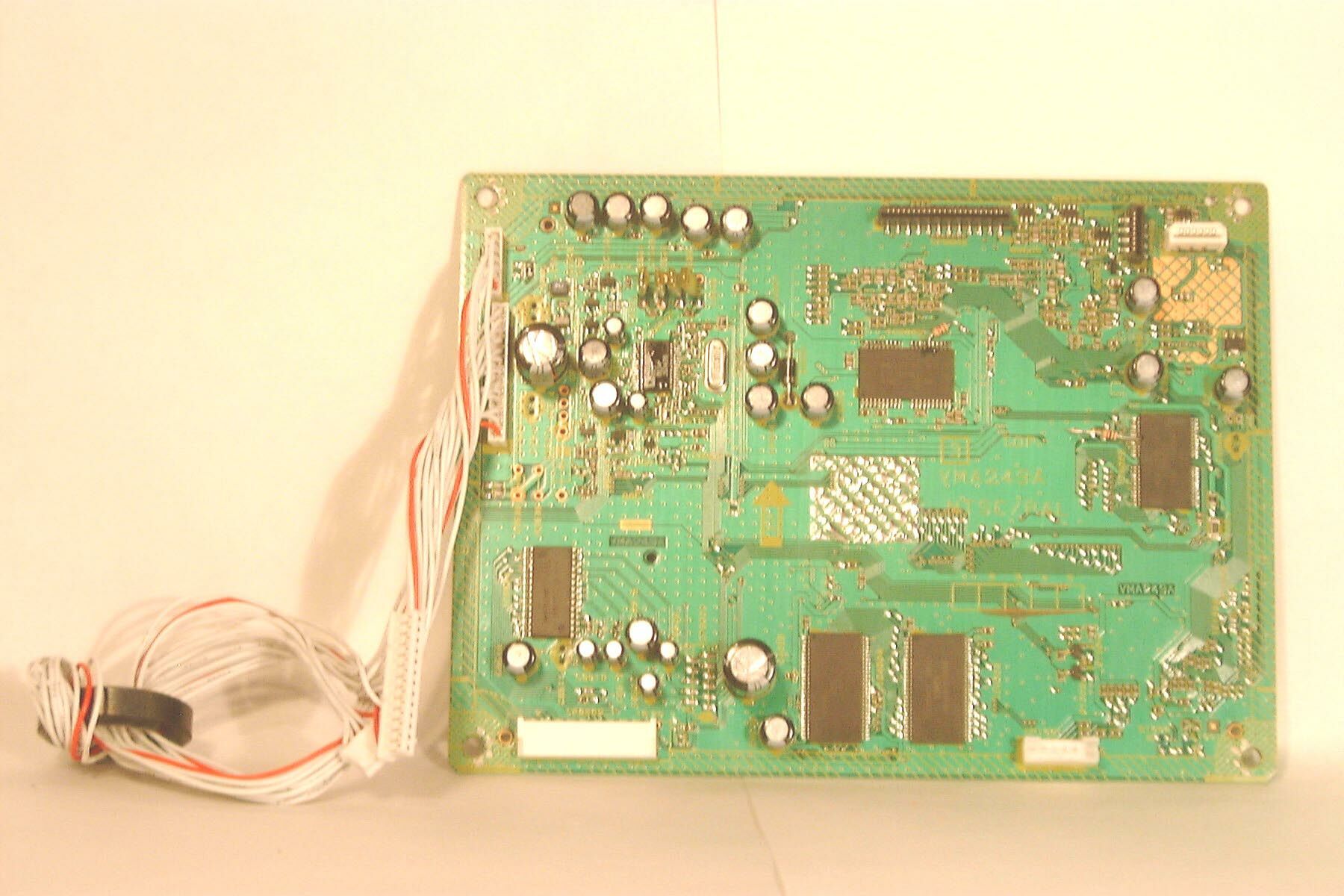

BLOCK DIAGRMA 1 *For the detail of this block, please refer to the block diagram 2. DVD Y DVD U COMPONENT OUT MIXER DVD AUDIO OUT L DVD V NUM4580M DVD AUDIO OUT R DVD BLOCK Y OUT S-VHS OUT C OUT OPT OPT OUT COAXAIL DIGITAL AUDIO OUT DVD AUDIO OUT L SURROUND DVD AUDIO OUT DVD AUDIO OUT R AN7399S DVD VIDEO OUT AUDIO OUT L HIFI/DEMODULATOR HIFI AUDIO OUT L A/V SW AUDIO OUT R REAR OUTPUT SIF HIFI AUDIO OUT R NJM2283V VIDEO OUT TUNER/IF/MODURATOR RF CONVERTER AN3663F AUDIO OUT SW VIDEO OUT MICRO PROCESSOR SYSTEM/TIMER/ SERVO CONTROL Y/C VIDEO OEC0119A LEM FRONT AUDIO IN L FROM NORMAL AUDIO 14.3818MHz VCR DECK BLOCK 10MHz FRONT INPUT FRONT AUDIO IN R TO NORMAL AUDIO 32.768KHz FRONT VIDEO IN Y/C/AUDIO/CCD/H.AMP LA71205M VCR AUDIO OUT TUNER VIDEO OUT TUNER 32V UNREG 3.3V POWER SUPPLY AT 5.2V 3.578545MHz AT 13V MOTOR 12V MOTOR 24V VIDEO OUT P.CON +5V D P.CON.+5V A AC120V P.CON.+9V A

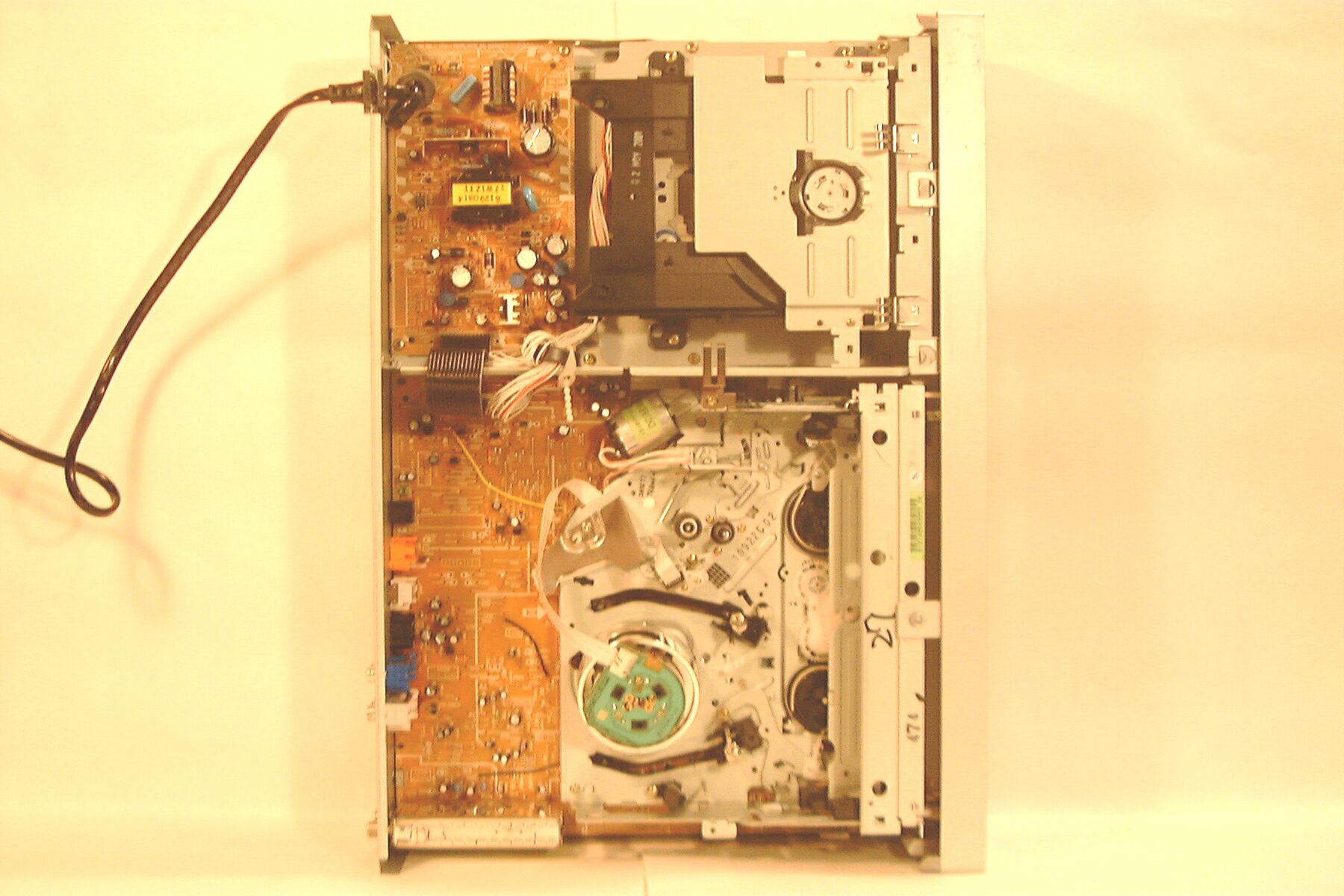

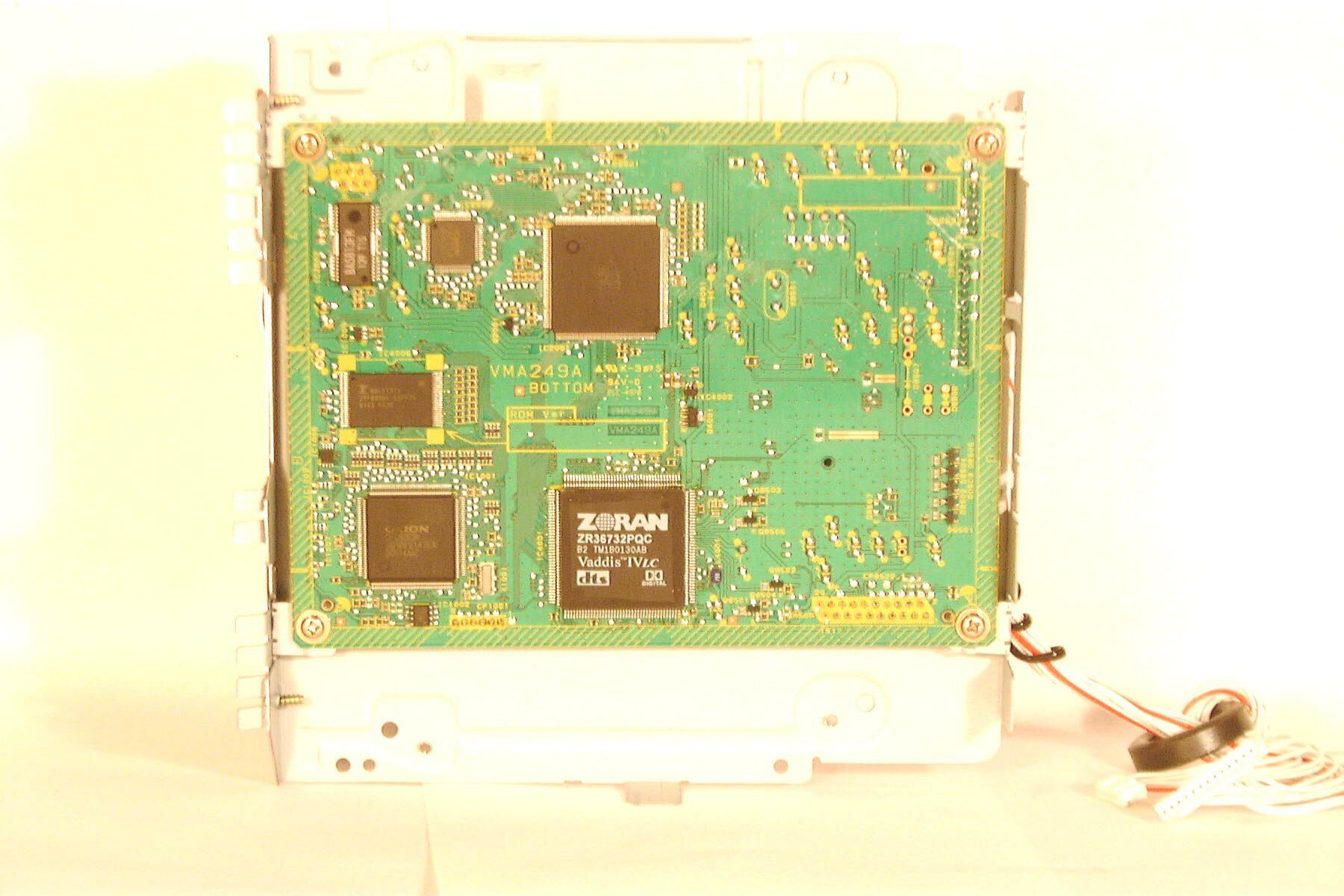

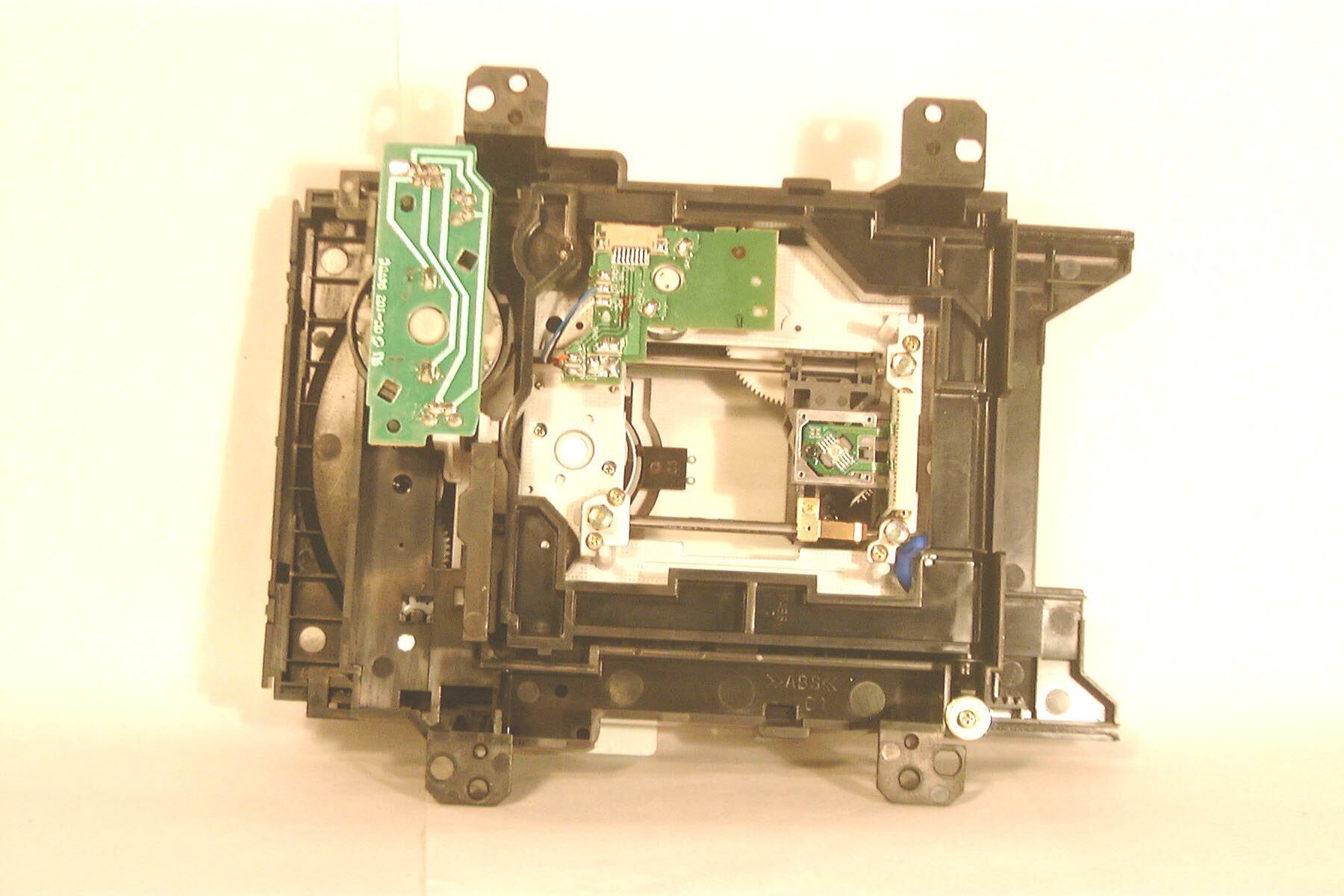

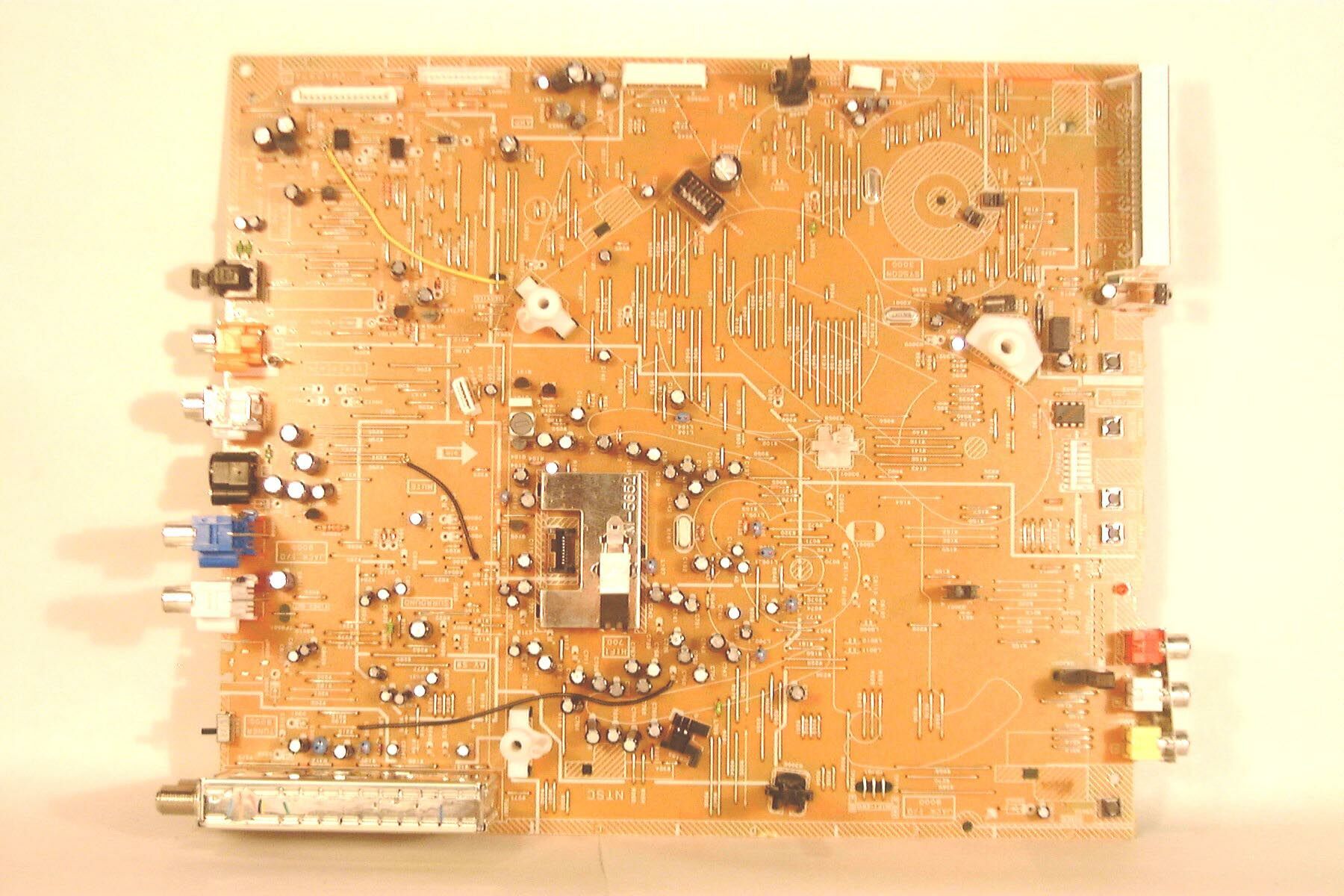

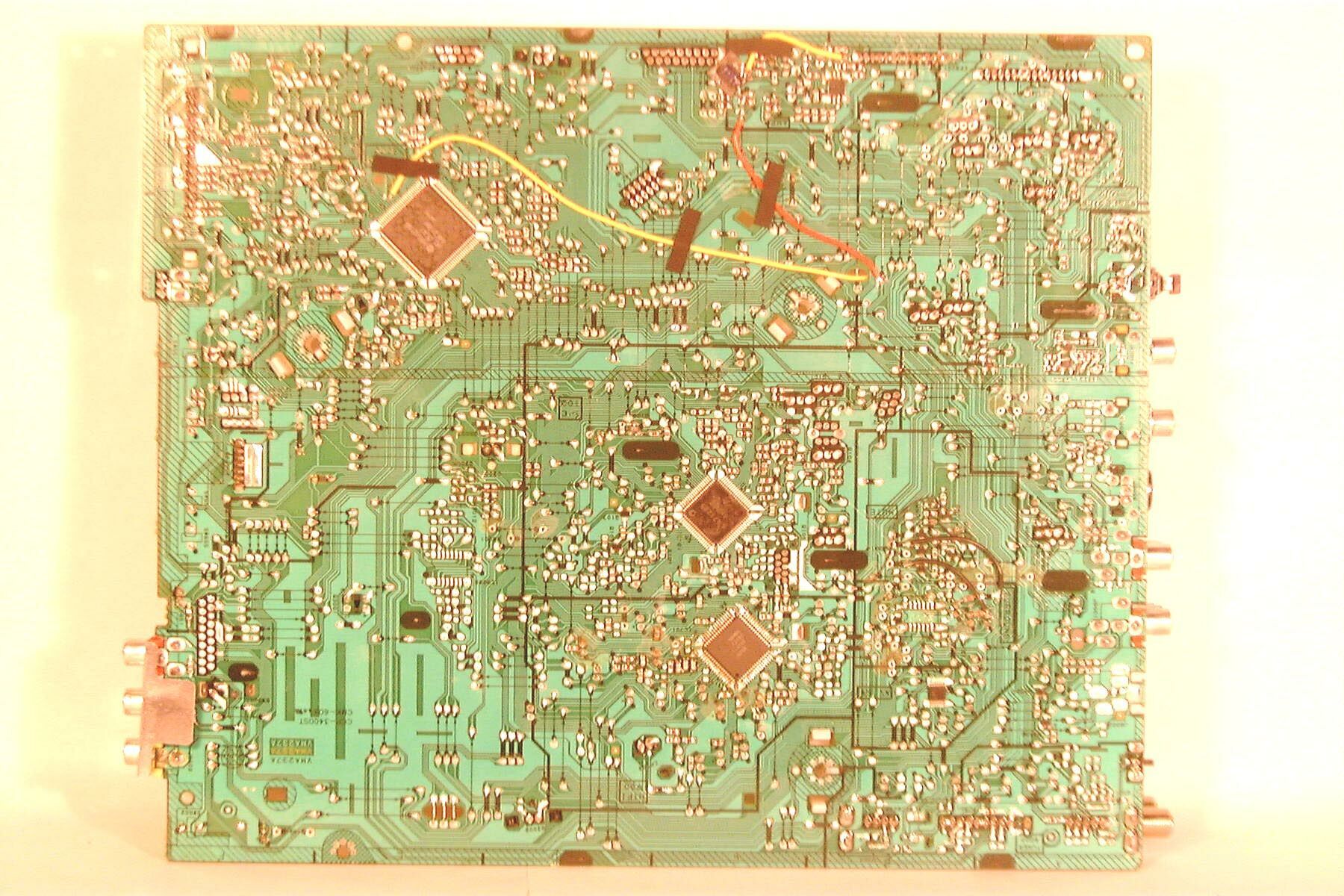

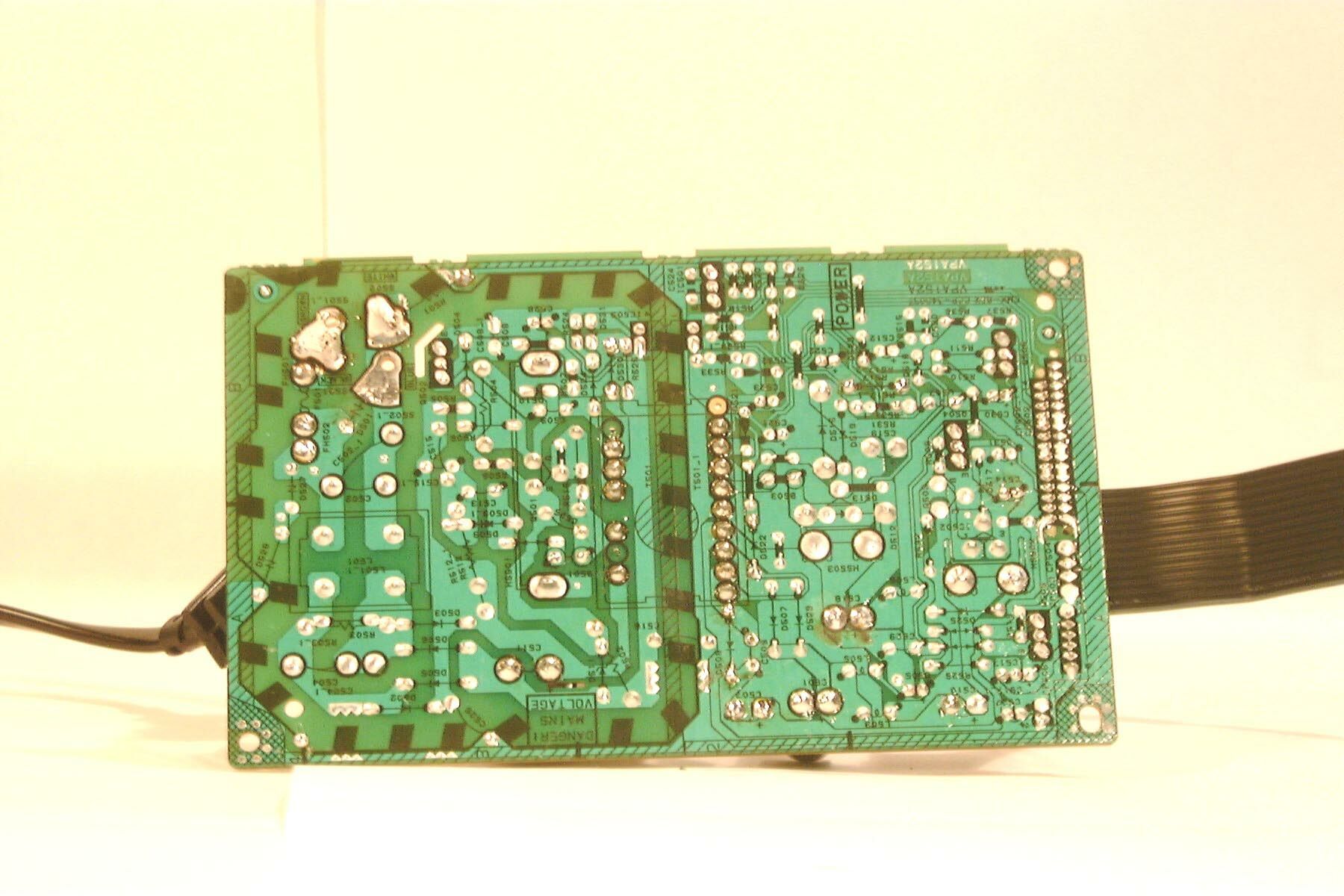

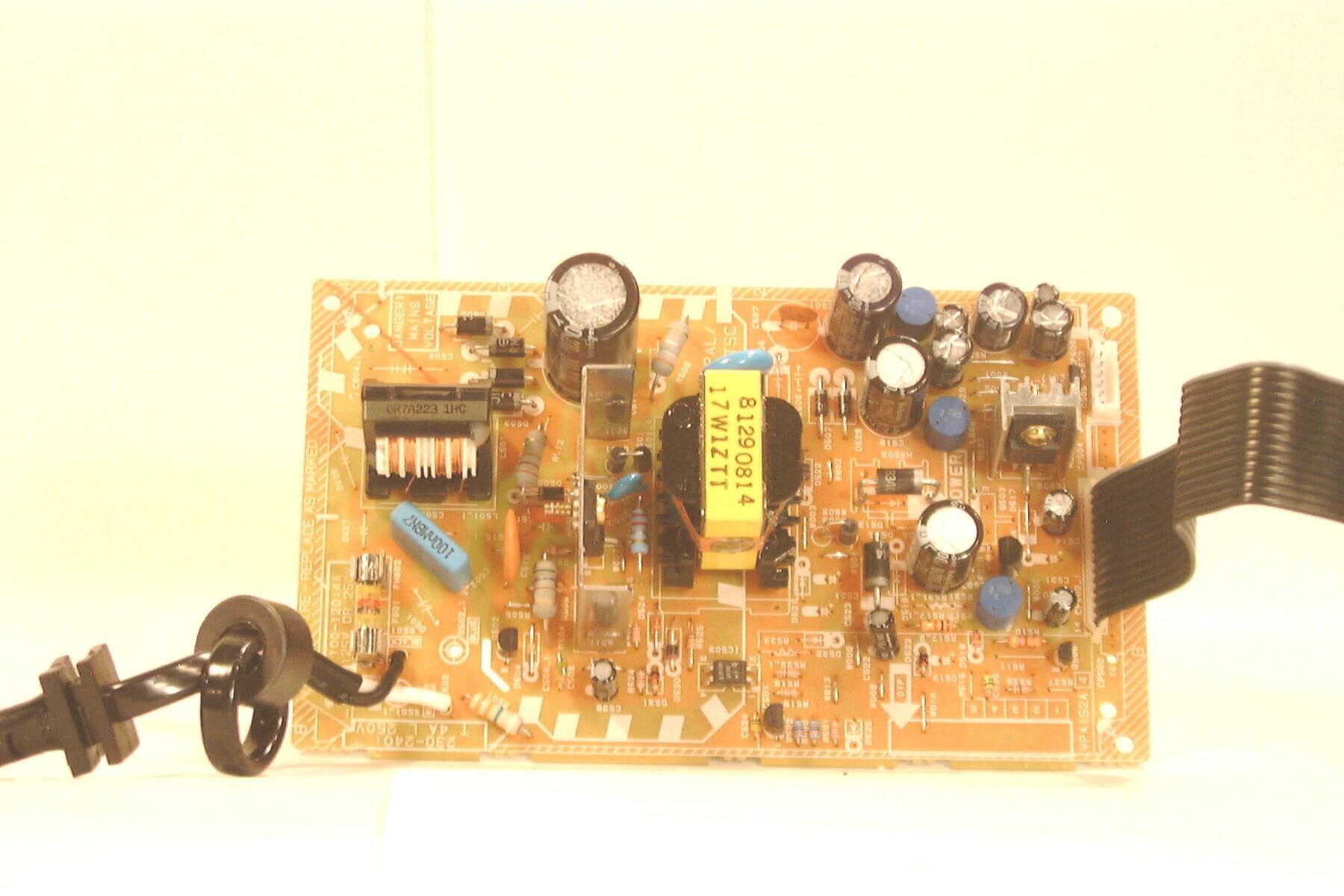

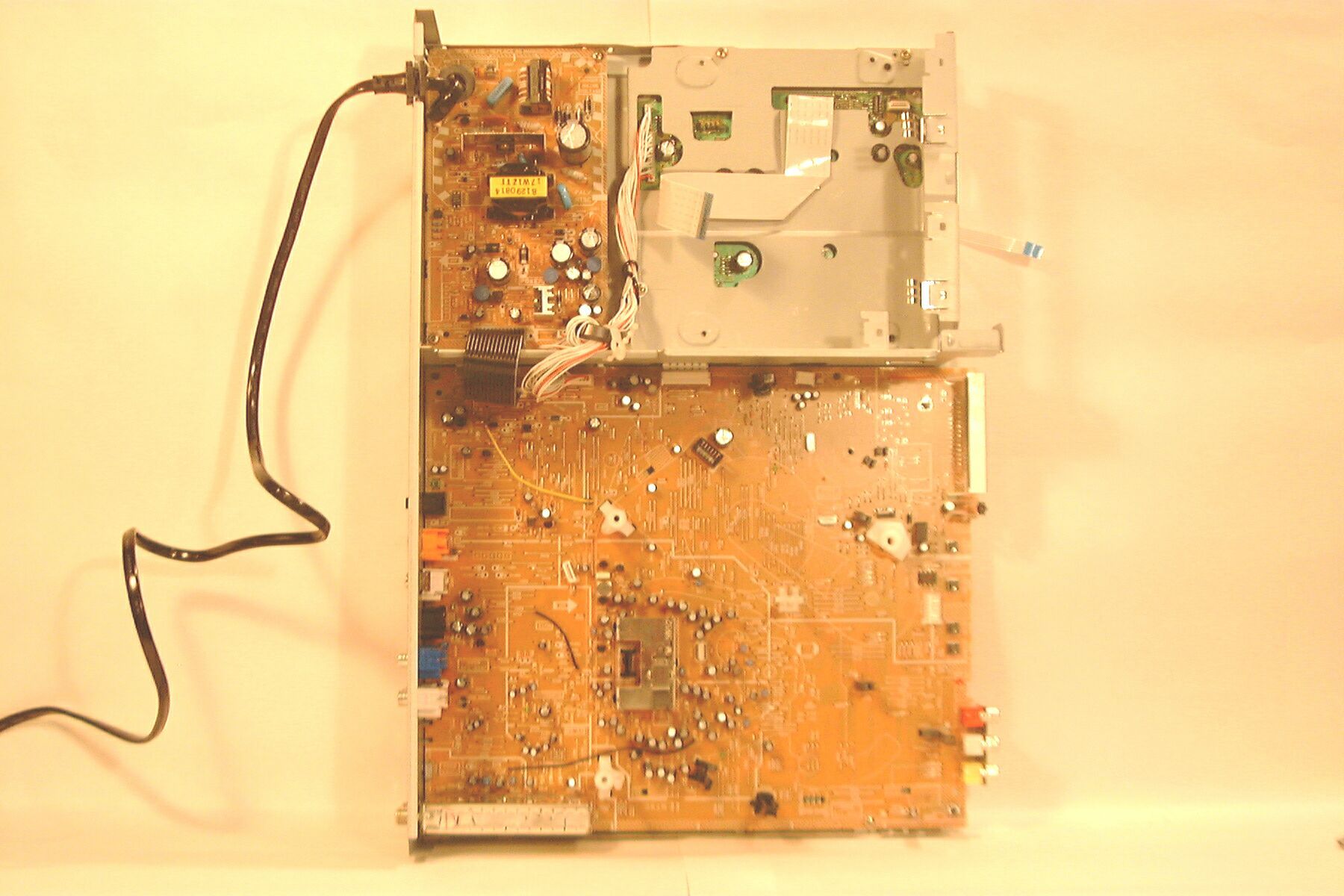

CIRCUIT DESCRIPTION 1/2 This device is combined a DVD player with a Video cassette recorder and operates with an AC commercial power supply.(AC120V, 60Hz) This device includes TV interface Device, Television Broadcast receiver ,and Digital device of product category defined by FCC. The external connectors are equipped with Front Audio (L/R)/Video Input, RF input/Output, Rear Audio (L/R) Video Output, Component Out, S-VHS Output, DVD Audio Output, Optical Digital Audio Out, Coaxial Digital Audio out and so on. The circuit is composed by Power Supply Block , VCR Block, and DVD Block, if divided roughly. The explanation is as follows and the details are referred to Block Diagram. Power Supply Block: Use the switching regulator circuit and provide the power supply to each cirucuit. VCR Block: The circuit of this block is composed by Tuner/IF/Modulator, Luminance and Chrominance/Audio/CCD/Head Amp, System/Timer/Servo, HIFI Demodulator, Audio/Video Switching, Sround, Mixer, Motor Drive and so on RF Modulator output is output in US 3ch or 4ch and Emission frequency is as Follows: Emission Frequency; US 3ch Video carrier: 61.25MHz Audio carrier: 65.75MHz US 4ch Video carrier: 67.25MHz Audio carrier: 71.75MHz The oscillating frequencies that is used this block are the follows: 10MHz----VCR System Control IC Clock 14.318MHz--- VCR System Control IC Clock 32.768KHz--- VCR System Control IC Clock 3.579545MHz---Luminance and Chrominance IC Clock DVD Block: The block part of DVD comprises of a read control device of a disk, a signal processing device, a decoder part and a control unit. Each device is in charge of serial processing from reading to indication of a signal. A reading device of a disk comprises of a motor part spinning a disk and a 2/2 laser part reading data from the disk. A signal processing device converts a laser pulse read by a disk to the digital data which a decoder can process The decoder part develop compressed digital data and output in a personal computer , television, a stereo system and etc. as a picture , a voice and other data.. A control unit controls the operation from a wireless remote controller and front panel and the order input form a software and controls a decoder and other mechanism The oscllating frequencies that is used this block are the follows: 108MHz--- SD-RAM Clock(MPCLK) 27MHz--- MPEG Master Clock(GCLK) 27MHz--- Audio DAC IC Clock 22.5792MHz--- DVD DSP Clock(SCCLK2) 12.288MHz--- Audio Master Clock(GCLK1) 9MHz---DVD System Control Clock 3.072MHz---Audio bit Clock(ABCLK) 48kHz---Audio L/R Clock(LRCLK)

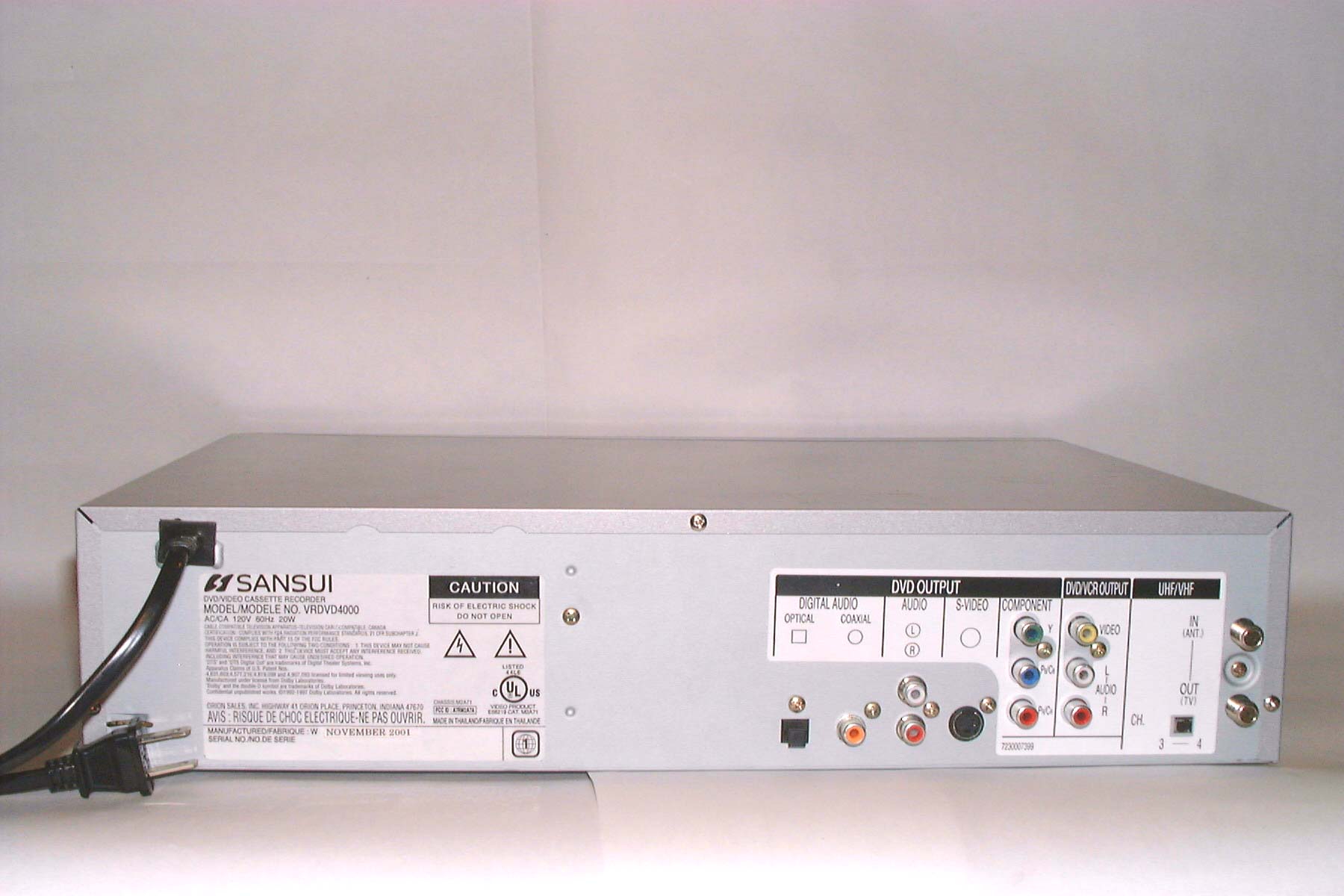

ATTACHMENT J-1 FCC ID: A7RM2A7A FCC IDENTIFIER (2.926) LABELING REQUIREMENT(15.19) --- Labeling BACK VIEW

Test report No. : 22DE0029-KT-1 Page: 2 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Contents Page Section 1 :Client information3 Section 2 :Equipment under test (E.U.T.)3 Section 3 :Test specification, methods & procedures5 Section 4 :Operation of E.U.T. during tests6 Section 5 :Summary of test results8 Section 6 :Test instruments10 Section 7 :Conducted interference11 Section 8 :Radiated emission14 Section 9 :Antenna terminal voltage17 Section 10 : RF output level / spurious emission18 Section 11 : Antenna transfer switch19 Section 12 : Picture sensitivity20 Section 13 :Noise figure21 Appendix 1 :Photographs of test set up22 Appendix 2 :Data of EMI tests30 Test report No. : 22DE0029-KT-1 Page: 3 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Section 1 : Client information Company name: ORION ELECTRIC CO., LTD. Brand Name:SANSUI Address: 41-1 Iehisa-cho, Takefu-shi, Fukui 915-8555, JAPAN Telephone number: +81-778-23-0019 Facsimile number: +81-778-23-7799 Contact person: Hiroshi Tsujimoto Section manager Engineering headquarters Administration section Section 2 : Equipment under test (E.U.T.) 2.1Identification of E.U.T. Type of equipment: DVD/VCR Model number: VRDVD4000 Rating:AC 120 V / 60 Hz Manufacturer: 1. WORLD ELECTRIC (THAILAND) LTD. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. KORAT DENKI LTD. 149 Moo 10 Thombol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 3. ORION AMERICA, INC. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Receipt Date of Sample:December 04, 2001 Condition of EUT:Production Prototype Test report No. : 22DE0029-KT-1 Page: 4 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 2.2Product description ORION ELECTRIC CO., LTD., Model: VRDVD4000 (referred to as the EUT in this report) is a DVD/VCR. The EUT specifications is as follows. Tuner type : Quartz PLL frequency synthesized I / F :45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz Operation: 20 W Stand by: 3 W I / O terminal (Video): RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio): RCA in – 8 dBm 50 k ohm, RCA out – 8 dBm 1 k ohm 2.3Similar apparatus There are no similar apparatus. Test report No. : 22DE0029-KT-1 Page: 5 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Section 3 : Test specification, methods & procedures 3.1Test specification Test specification: FCC Part 15 Subpart B Title:FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators (Subpart C Intentional Radiators) 3.2Methods & procedures No.ItemTest procedureLimitsRemarks 1 Conducted interferenceANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 250 uVLISN 2 Radiated emissionANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 30–88 MH: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 3 m 3 Antenna terminal voltageANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 2 nW (at 75 ohm)– RF output levelVideo signal: 3000 uV Aural signal: 671 uV –4 Spurious emission ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 94.8 uV– 5 Transfer switchANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 9.5 dB– 6 Picture sensitivityANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 8 dB– 7 Noise figureFCC/OET MP:2:1986 14 dB– 3.3Additions or deviations to standard No addition, deviation or exclusion has been made from standards. Test report No. : 22DE0029-KT-1 Page: 6 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Section 4 : Operation of E.U.T. during tests 4.1Operating modes The EUT exercise program used during testing was designed exercise the various system components in a manner similar to typical use. The sequence in used : * Receive mode (0 dBmV input / 25 dBmV input) * AV input mode (1 Vp-p input / 5 Vp-p input) * DVD play mode * VCR playback mode Operation :The EUT tested above operation mode (Using a video tape with a typical TV signal recorded on it, if necessary.) Just ification :The system was configured in typical fashion (as a customer would normally use it) for testing. 4.2Configuration and peripherals Front View A B 50k ohm terminator 50k ohm terminator 75 ohm terminator Audio in Audio in Video in C * Cabling was taken into consideration and test data was taken under worse case conditions. Top View AC 120 V / 60 Hz 2 1 Video in Audio in A Audio in RF in RF out Video out Audio out Audio out Component Y Component Pb Component Pr S-Video out Audio out Audio out Digital Audio out 75 ohm terminator 50 k ohm terminator 50 k ohm terminator 75 ohm terminator 1k ohm terminator 1k ohm terminator 75 ohm terminator 75 ohm terminator 75 ohm terminator 75 ohm terminator 1k ohm terminator 1k ohm terminator 75 ohm terminator 75 ohm terminator Front Back C * Cabling was taken into consideration and test data was taken under worse case conditions. Test report No. : 22DE0029-KT-1 Page: 7 of 87 Date of issue: December 19, 2001 A-pex International Co.…

Text truncated - open the document above for the full version.

Test report No. : 22DE0029-KT-1 Page: 22 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Appendix 1 : Photographs of test set up This section contains the following photographs. Page 23 : Test set up of conducted interference Page 24 : Test set up of radiated emission Page 25 : Test set up of antenna terminal voltage Page 26 : Test set up of RF output level / spurious emission Page 27 : Test set up of antenna transfer switch Page 28 : Test set up of picture sensitivity Page 29 : Test set up of noise figure Test report No. : 22DE0029-KT-1 Page: 23 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Conducted interference Test report No. : 22DE0029-KT-1 Page: 24 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Radiated emission Test report No. : 22DE0029-KT-1 Page: 25 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Antenna terminal voltage Test report No. : 22DE0029-KT-1 Page: 26 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 RF output level / spurious emission Test report No. : 22DE0029-KT-1 Page: 27 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Antenna transfer switch Test report No. : 22DE0029-KT-1 Page: 28 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Picture sensitivity Test report No. : 22DE0029-KT-1 Page: 29 of 87 Date of issue: December 19, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Noise figure
