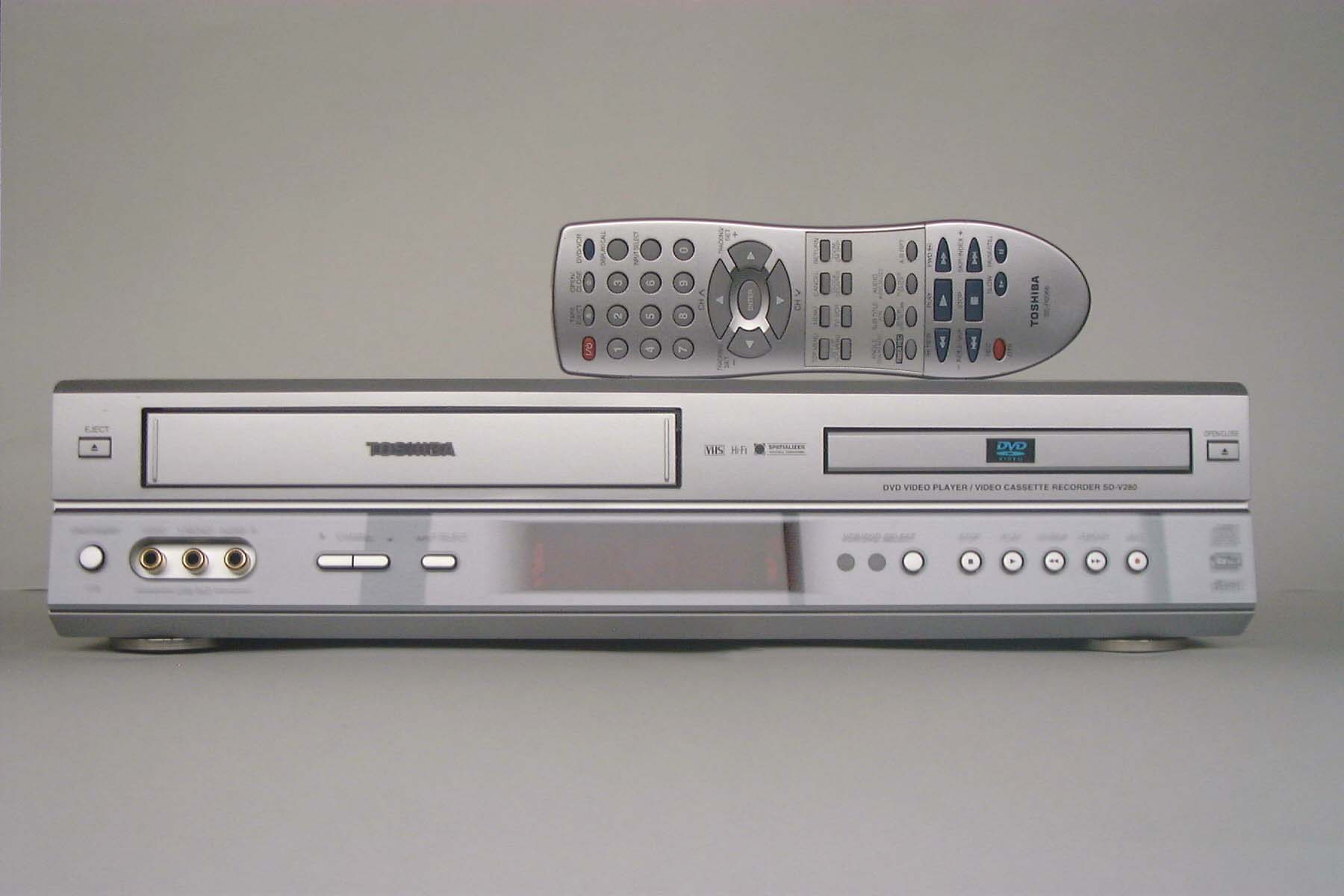

A7RM2B0BDVD/Video Cassette Recorder

DVD VIDEO PLAYER & VIDEO CASSETE RECORDER SD-V280 OWNER’S MANUAL 79077142 9876123000 2 14 22 29 34 39 Introduction Connections Basic setup Playback (VCR) Recording (VCR) Other functions (VCR) S DIGITAL VIDEO ©2001 Toshiba Corporation 42 47 55 63 Basic playback (DVD) Advanced playback (DVD) Function setup (DVD) Others ? 2A70601A (E)COV28/12/2001, 20:521 2 Introduction IMPORTANT SAFEGUARDS WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not expose this appliance to rain or moisture. WARNING:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION:Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. CAUTION:THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CARE- FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTE- NANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLO- SURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (ORBACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. 7230007448 DVD OUTDVD, VCR OUTLINE ONEUHF/VHF ANALOG AUDIO L Y P B PR VIDEO L R AUDIO VIDEO L(MONO) R 3 CH 4 AUDIO IN (FROM ANT) OUT (TO TV) R COMPONENTSDIGITAL AUDIO OPTICALCOAXIAL 2A70601A (E)p02-1328/12/2001, 20:522 3 Introduction 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS All operating and use instructions should be followed. 5. CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning the exterior cabinet only. 6. ATTACHMENTS The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards. 7. WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 8. ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. 8A.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 9. VENTILATION Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and/or the manufacturer’s instructions have been adhered to. 10. POWER SOURCES This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions. 11. GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 17, 2002 RE: Orion Electric Co., Ltd. FCC ID: A7RM2BOB After a review of the submitted information, I have a few comments on the above referenced Application. 1) The 731 Form lists the FCC ID as A7RA7RM2BOB. It appears that the Grantee code is listed twice since the labeling exhibit only shows A7RM2BOB. Please confirm the correct ID number correct the affected exhibits. 2) The formatting of the block diagrams provided is all messed up. Please convert these to .pdf format and resubmit. 3) A modification letter was included but contained only XXXXXXXX. Please confirm that there were no modifications necessary. 4) The test report states that 4 models are similar. Please explain the differences between these models. 5) Please check the calibration data/Validity for the following pieces of equipment: Test Receiver, Noise Figure Indicator, Noise Source. 6) Please explain the rational for testing to 2000 MHz. Many tuners contain LO frequencies in excess of 1.8 GHz. Also, the device may tune to channels 113 Cable and 69 TV which would suggest testing to at least 5 GHz. See 15.33.(b)(1). Please comment 7) Please explain how the matching pad was compensated for in the readings or Antenna Terminal Voltage, RF Output, and RF Spurious Emissions. What was its value. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

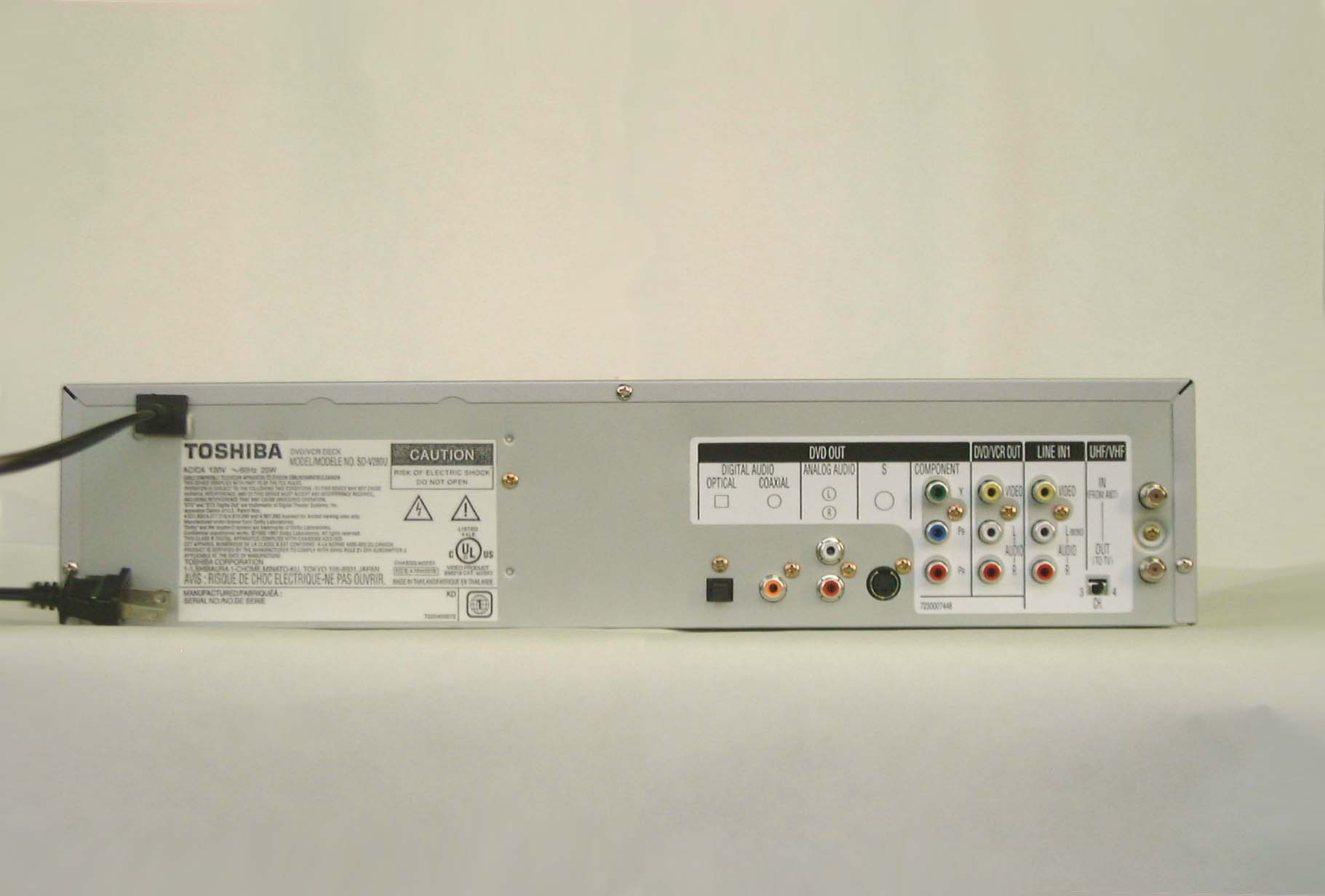

ATTACHMENT J-1 FCC ID: A7RM2B0B FCC IDENTIFIER (♣2.926) LABELING REQUIREMENT(♣15.19) --- Labeling BACK VIEW

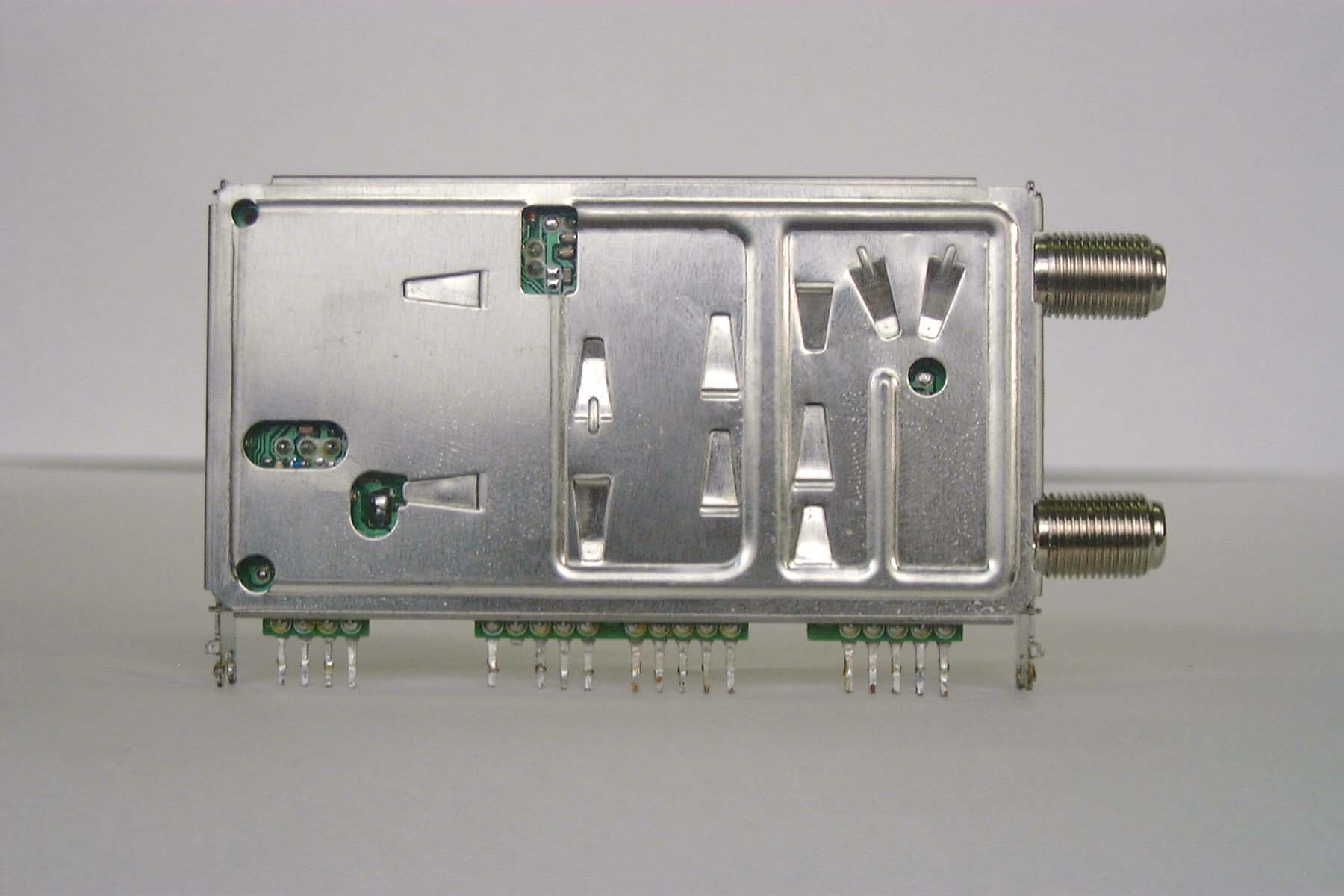

CIRCUIT DESCRIPTION 1/2 This device is combined a DVD player with a Video cassette recorder and operates with an AC commercial power supply.(AC120V, 60Hz) This device includes TV interface Device, Television Broadcast receiver ,and Digital device of product category defined by FCC. The external connectors are equipped with Front Audio (L/R)/Video Input, RF input/Output, Rear Audio (L/R) Video Output, Component Out, S-VHS Output, DVD Audio Output, Optical Digital Audio Out, Coaxial Digital Audio out and so on. The circuit is composed by Power Supply Block , VCR Block, and DVD Block, if divided roughly. The explanation is as follows and the details are referred to Block Diagram. Power Supply Block: Use the switching regulator circuit and provide the power supply to each cirucuit. VCR Block: The circuit of this block is composed by Tuner/IF/Modulator, Luminance and Chrominance/Audio/CCD/Head Amp, System/Timer/Servo, HIFI Demodulator, Audio/Video Switching, Sround, Mixer, Motor Drive and so on RF Modulator output is output in US 3ch or 4ch and Emission frequency is as Follows: Emission Frequency; US 3ch Video carrier: 61.25MHz Audio carrier: 65.75MHz US 4ch Video carrier: 67.25MHz Audio carrier: 71.75MHz The oscillating frequencies that is used this block are the follows: 10MHz----VCR System Control IC Clock 14.318MHz--- VCR System Control IC Clock 32.768KHz--- VCR System Control IC Clock 3.579545MHz---Luminance and Chrominance IC Clock DVD Block: The block part of DVD comprises of a read control device of a disk, a signal processing device, a decoder part and a control unit. Each device is in charge of serial processing from reading to indication of a signal. A reading device of a disk comprises of a motor part spinning a disk and a 2/2 laser part reading data from the disk. A signal processing device converts a laser pulse read by a disk to the digital data which a decoder can process The decoder part develop compressed digital data and output in a personal computer , television, a stereo system and etc. as a picture , a voice and other data.. A control unit controls the operation from a wireless remote controller and front panel and the order input form a software and controls a decoder and other mechanism The oscllating frequencies that is used this block are the follows: 108MHz--- SD-RAM Clock(MPCLK) 27MHz--- MPEG Master Clock(GCLK) 16.9344MHz--- DVD DSP Clock 18.4327MHz--- Audio Master Clock(AMCLK) 12.5MHz---DVD System Control Clock 3.072MHz---Audio bit Clock(ABCLK) 48kHz---Audio L/R Clock(LRCLK)

Test report No.: 22LE0003-KT-1 Page: 2 of 103 Date of issue: July 15, 2002 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Contents Page Section 1:Client information3 Section 2:Equipment under test (E.U.T.)3 Section 3:Test specification, methods & procedures5 Section 4:Operation of E.U.T. during tests6 Section 5:Summary of test results8 Section 6:Test instruments10 Section 7:Conducted interference11 Section 8:Radiated emission14 Section 9:Antenna terminal voltage17 Section 10: RF output level / spurious emission18 Section 11: Antenna transfer switch19 Section 12: Picture sensitivity20 Section 13:Noise figure21 Appendix 1 :Photographs of test set up22 Appendix 2 :Data of EMI tests30 Test report No.: 22LE0003-KT-1 Page: 3 of 103 Date of issue: July 15, 2002 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Section 1 : Client information Company name: ORION ELECTRIC CO., LTD. Brand Name:TOSHIBA Address: 41-1 Iehisa-cho, Takefu-shi, Fukui 915-8555, JAPAN Telephone number: +81-778-23-0019 Facsimile number: +81-778-23-7799 Contact person: Hiroshi Tsujimoto Section manager Engineering headquarters Administration section Section 2 : Equipment under test (E.U.T.) 2.1Identification of E.U.T. Type of equipment: DVD/VCR Model number: SD-V280UA Rating:AC 120 V / 60 Hz Manufacturer: 1.WORLD ELECTRIC (THAILAND) LTD. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. KORAT DENKI LTD. 149 Moo 10 Thombol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 3. ORION AMERICA, INC. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Receipt Date of Sample:July 06, 2002 Condition of EUT:Production Prototype Test report No.: 22LE0003-KT-1 Page: 4 of 103 Date of issue: July 15, 2002 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 2.2Product description ORION ELECTRIC CO., LTD., Model: SD-V280UA (referred to as the EUT in this report) is a DVD/VCR. The EUT specifications is as follows. Tuner type : Quartz PLL frequency synthesized I / F :45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz / 20 W I / O terminal (Video): RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio): RCA in –8 dB 50 k ohm, RCA out –8 dB 1 k ohm 2.3Similar apparatus There are similar apparatus for the EUT as follows. SD-V280CA SD-V280-S-TU SD-V280-S-TC SD-K200-K-TC Test report No.: 22LE0003-KT-1 Page: 5 of 103 Date of issue: July 15, 2002 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Section 3 : Test specification, methods & procedures 3.1Test specification Test specification: FCC Part 15 Subpart B Title:FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators (Subpart C Intentional Radiators) 3.2Methods & procedures No.ItemTest procedureLimitsRemarks 1Conducted interferenceANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 250 uVLISN 2Radiated emissionANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 30–88 MH: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 3 m 3Antenna terminal voltageANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 2 nW (at 75 ohm)– RF output levelVideo signal: 3000 uV Aural signal: 671 uV –4 Spurious emission ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 94.8 uV– 5Transfer switchANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 9.5 dB– 6Picture sensitivityANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 8 dB– 7Noise figureFCC/OET MP:2:1986 14 dB– 3.3Additions or deviations to standard No addition, deviation or exclusion has been made from standards. Test report No.: 22LE0003-KT-1 Page: 6 of 103 Date of issue: July 15, 2002 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Section 4 : Operation of E.U.T. during tests 4.1Operating modes The EUT exercise program used during testing was designed exercise the various system components in a manner similar to typical use. The sequence in used :* Receive mode (0 dBmV input / 25 dBmV input) * AV input mode (1 Vp-p input / 5 Vp-p input) Line 1 / Line 2 * VCR playback mode * DVD play mode Operation :The EUT tested above operation mode (Using a video tape with a typical TV signal recorded on it, if necessary.) Just ification :The system was configured in typical fashion (as a customer would normally use it) for testing. 4.2Configuration and peripherals Front View A B 50k ohm terminator 50k ohm terminator 75 ohm terminator Audio in Audio in Video in * Cabling was taken into consideration and test data was taken under worse case conditions. Top View Component Y Component Pb Component Pr S-Video out Coaxial out Audio out Audio out AC 120 V / 60 Hz 1 1k ohm terminator Front Back 1k ohm terminator 75 ohm terminator 75 ohm terminator 75 ohm terminator 75 ohm terminator 75 ohm terminator Audio out 1k ohm terminator Audio out 1k ohm terminator 75 ohm terminator Video out 75 ohm terminator RF in RF out 50 k ohm terminator Audio in 50 k ohm terminator 75 ohm terminator Video in Audio in Line 1 A Audio in 50 k ohm terminator 75 ohm terminator Video in Audio in Line 2 50 k ohm terminator To TV signal generator * Cabling was taken into consideration and test data was taken under worse case …

Text truncated - open the document above for the full version.

Test report No.: 22LE0003-KT-1 Page: 23 of 103 Date of issue: July 15, 2002 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Conducted interference Test report No.: 22LE0003-KT-1 Page: 24 of 103 Date of issue: July 15, 2002 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Radiated emission Test report No.: 22LE0003-KT-1 Page: 25 of 103 Date of issue: July 15, 2002 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Antenna terminal voltage Test report No.: 22LE0003-KT-1 Page: 26 of 103 Date of issue: July 15, 2002 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 RF output level / spurious emission Test report No.: 22LE0003-KT-1 Page: 27 of 103 Date of issue: July 15, 2002 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Antenna transfer switch Test report No.: 22LE0003-KT-1 Page: 28 of 103 Date of issue: July 15, 2002 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Picture sensitivity Test report No.: 22LE0003-KT-1 Page: 29 of 103 Date of issue: July 15, 2002 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.1F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Noise figure
