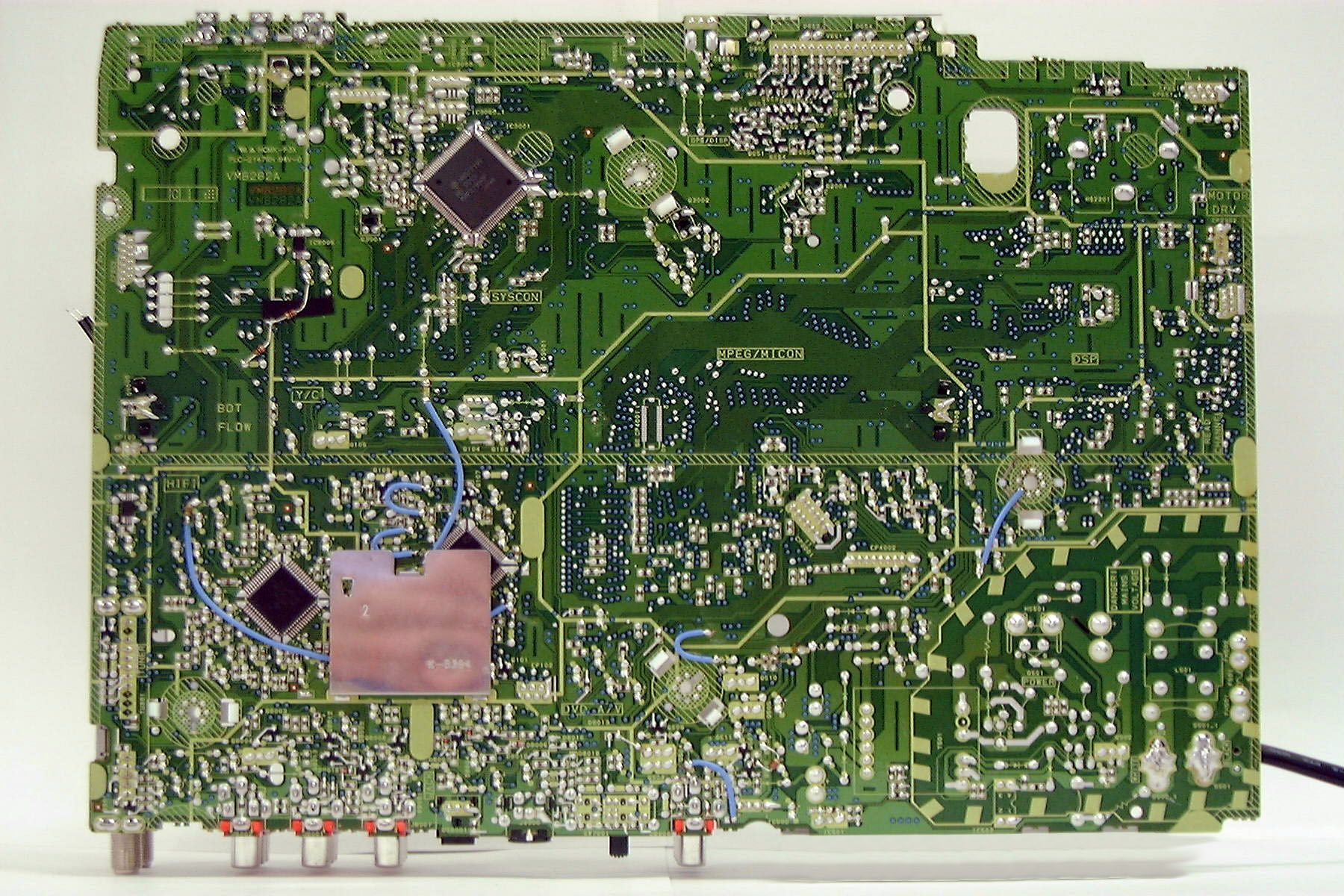

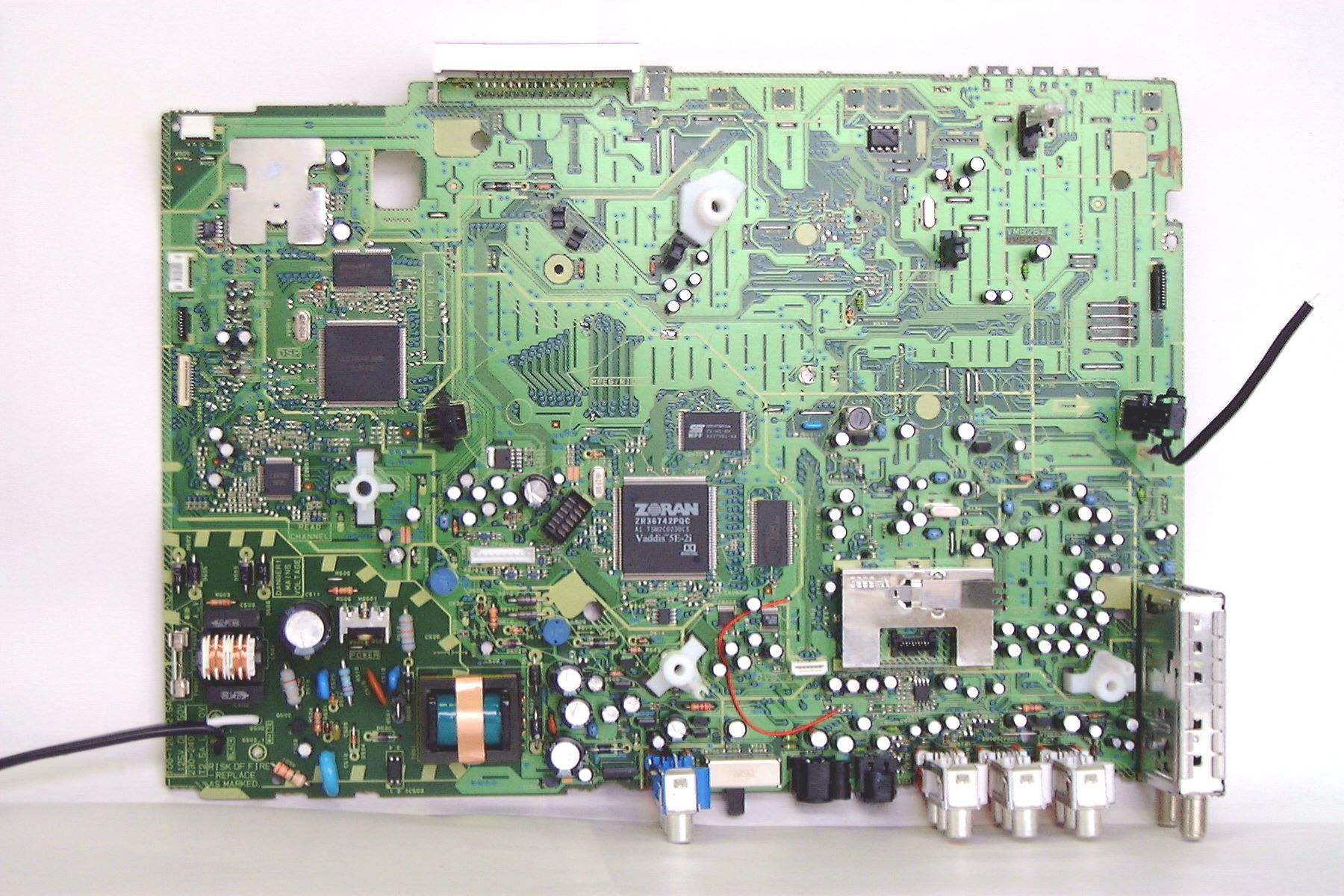

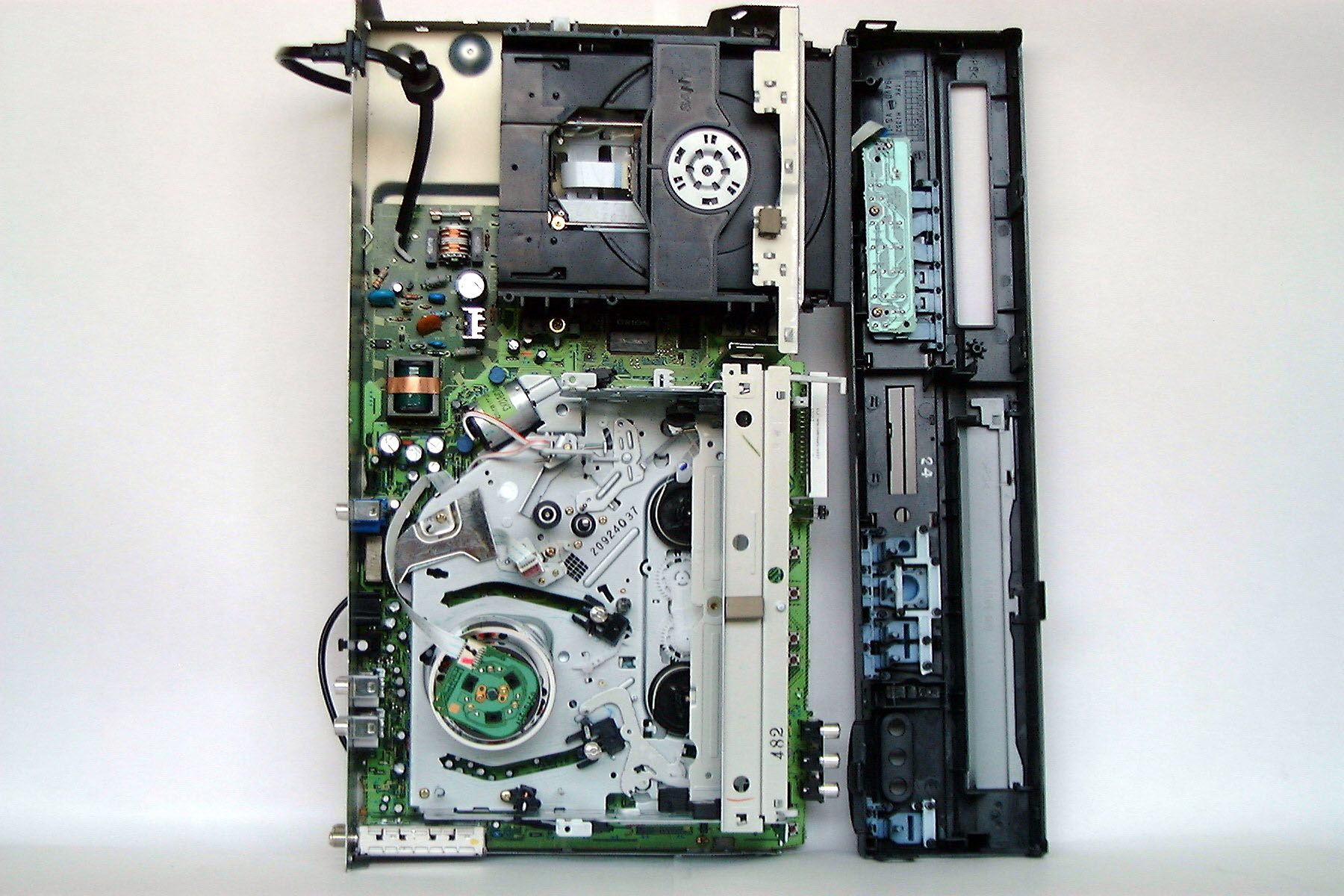

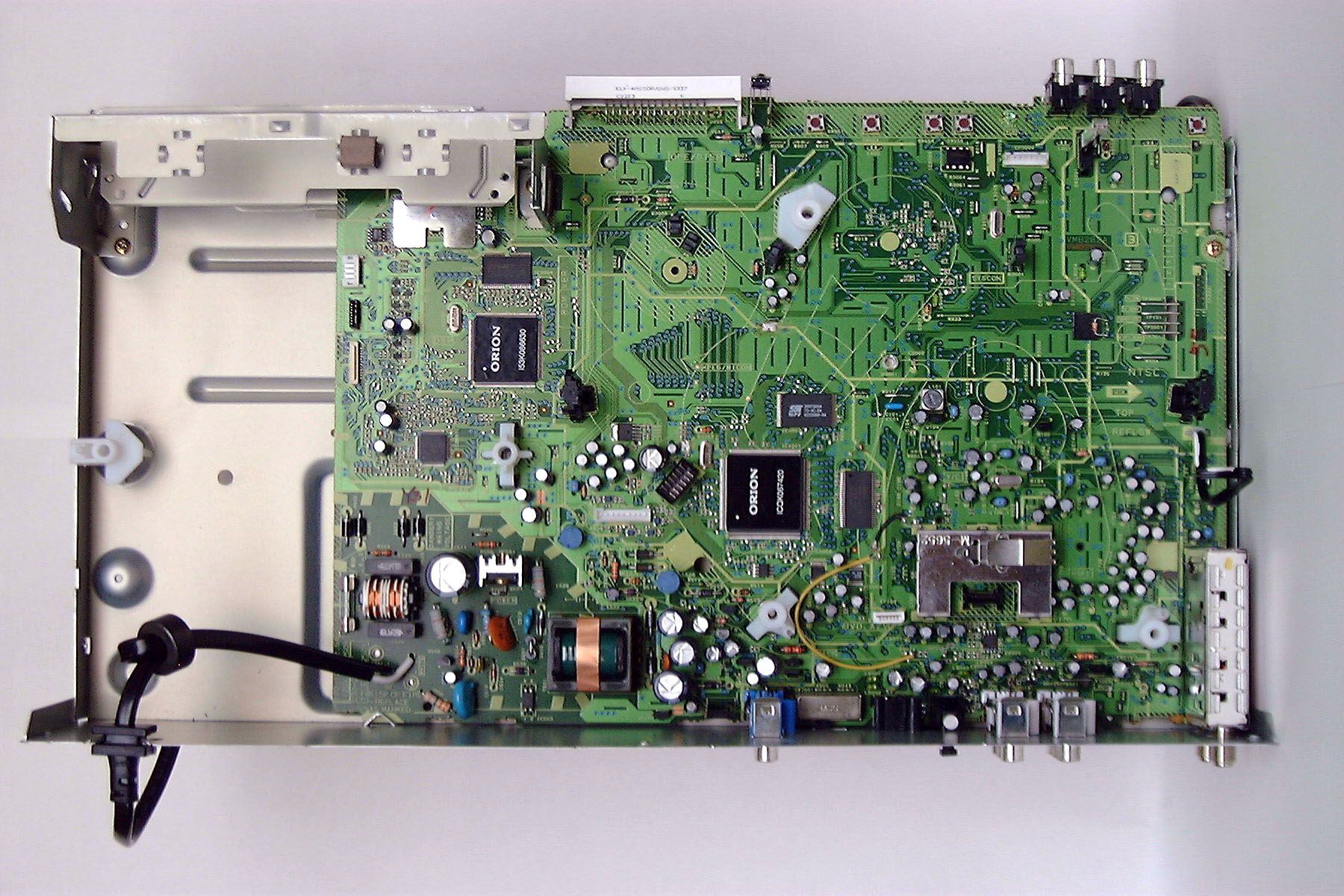

A7RM2C3ADIGITAL VIDEO PLAYER

For model: HR-XVC20U DVD/CD PLAYER Hi-Fi STEREO VIDEO CASSETTE RECORDER USER'S GUIDE LPT0674-001B For Customer Use: Model No. Serial No. Enter below the Model No. and Serial No. which are located on the rear of cabinet. Retain this information for future reference. ? 2C30101AE Cover10/31/02, 20:301 2 WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION:TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. CAUTION: THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT A JVC AUTHORIZED SERVICE CENTER. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION:Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. 2C30101AE(02-05)10/31/02, 20:302 CAUTION: Changes or modifications not approved by JVC could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 3 1.READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2.RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3.HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4.FOLLOW INSTRUCTIONS All operating and use instructions should be followed. 5.CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning the exterior cabinet only. 6.ATTACHMENTS The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards. 7.WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 8.ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 9.VENTILATION Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and/or the manufacturer’s instructions have been adhered to. 10.POWER SOURCES This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions. 11.GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug, if your unit is equipped with a 3-wire grounding-ty…

Text truncated - open the document above for the full version.

35 Stereo recording and playback / Separate Audio Program (SAP) When a MTS STEREO broadcast is received, the word “STEREO” will ap- pear on the screen for about 4 seconds and the program can be viewed or re- corded in stereo. The Hi-Fi STEREO recording procedure is the same as for normal recordings. The VHS Hi-Fi audio system permits high fidelity recording of MTS STEREO TV broadcasts. NOTES: •When playing back a tape that is not recorded in Hi-Fi stereo mode, the audio will automatically be monaural. •When listening to a VHS Hi-Fi video tape or MTS broadcast through the VHF/UHF jack (Audio/Video cable not connected), the sound will be monaural. Stereo Recording and Playback NOTE: When using a CATV system, stereo TV programs may be transmitted over a mono cable channel. In this case the word "STEREO" will not appear and the sound will be in mono. When viewing an MTS STEREO TV program, or playing a prerecorded VHS Hi-Fi STEREO videotape, press A.MONITOR to select how the audio will be heard through the speakers. Normally set to the Hi-Fi STEREO position, this button can be set to the MONO position if the stereo broadcast or videotape audio is of poor quality. The "R" and "L" positions allow the audio from the Right or Left Hi-Fi channel to be heard over both TV speakers. This button has no effect when viewing a MONO videotape or TV program. Each time when you press the button, OUTPUT SELECTION display appears on the screen for several seconds. Refer to the chart below. Output selection OUTPUT SELECTION STEREO L ch R ch MONO SOUND HEARD ON BOTH SPEAKERS STEREO LEFT CHANNEL AUDIO RIGHT CHANNEL AUDIO MONO Your VCR is fitted with a SAP broadcast system which enables you to switch to a separate audio program when viewing a selected channel. This function applies only when the program is broadcast in multi-languages through the SAP broadcast system. Separate Audio Program (SAP) Press SET UP MENU. Then press or to select “SAP”. 1 2 Then press ENTER to select “ON”. Then press SET UP MENU until the menu screen is cleared. When the VCR is turned on or a channel selection is made, make certain the letters "SAP" appears on the screen for about 4 seconds. This means that the "Separate Audio Program" broadcasting is available. Listening to SAP OR STEREO STEREO SAP SAP á+/Ð/ENTER/MENUñ MENU TIMERRECSET AUTOREPEAT ONOFF ONOFF SAP CHSETUP SYSTEMSETUP 2C30101AE(30-35)10/31/02, 20:3135 36 If you connect the VCR to another VCR or camcorder, you can duplicate a previously recorded tape. Make all connections before turning on the power. Duplicating a video tape/Duplicating a disc material onto a video tape Load a blank cassette tape with the erase preven- tion tab intact into the recording VCR. Load a previously recorded tape into the playback VCR or CAMCORDER. 1 Press SP/EP to select the desired tape speed SP or EP. It is recommended that you set the speed to the SP mode on the recording VCR for best results. 2 Press VCR CH + or – to select AUDIO/VIDEO input position. "L" will appear in the display. 3 Press REC on the recording VCR or on the Remote. While holding REC, press PLAY. Then press PAUSE. 4 Press PLAY button on the playback VCR or CAMCORDER, then press PAUSE button. 5 Press PAUSE on both the VCRs simultaneously to begin the duplicating process. 6 For duplicating a previously recorded tape from a camcorder, follow the camcorder manufacturer’s instructions. A typical camcorder dubbing hookup is shown above. To AUDIO (L) IN To AUDIO (L) OUT AUDIO/VIDEO cable (supplied) Playback VCR To VIDEO OUTTo AUDIO (R) OUT Recording VCR To VIDEO IN To AUDIO (R) IN AUDIO/VIDEO cable (not supplied) To AUDIO (R) IN To AUDIO (L) IN To VIDEO IN Recording VCR To AV Jack Playback Camcorder Connection with second VCR Connection with Camcorder Duplicating a video tape You can record disc material in DVD, Video CD, Audio CD, etc. onto a video tape with this DVD/VCR only. If the DVD disc has a Copy-guard feature, the duplicating is not possible. A symbol mark “ ” will appear on the screen for approx. 4 seconds. See page 39 for more information about the DVD playback. Press DVD to select the DVD mode. (The DVD indicator will light) 1 Press PLAY to start the disc playback. 2 During disc playback, press REC on the VCR or while holding REC, press PLAY on the Remote. The duplicating will start. 3 Duplicating a disc material onto a video tape Load a cassette tape with the erase prevention tab intact. Select the tape speed in the VCR mode. (see P.30) Load a disc you wish to duplicate. Preparation: • • • You can set the duplicating time using the ITR-function. At step 3 above press REC repeatedly until the desired duplicating time appears on the screen. (see P.32) NOTE: 2C30101AE(36-41)10/31/02, 20:3136 37 Disc This unit applies to DVD discs from Region 1 only. The loaded Disc (DVD, Video-CD, Audio-CD, MP3-CD, WMA-CD and JPEG-CD) will be recognized automatically. The suitable Disc-formats are: DVD, CD-R and CD-RW. This unit can play back FUJICOLOR CD and Kodak Picture formats. Do not play DVD-ROM, DVD-Audio, CDV, CD-G or Photo CD to prevent accidental erasure of prerecorded material. Some DVDs are played back with a Copy guard system. In case of a dubbing on video tape, strong disturbance may occur. This is not a defect of this DVD/VCR. Title When two or more movies are recorded on a disc, the disc is divided into two or more sections. Each section is called a “TITLE”. Chapter The titles can be subdivided into many sections. Each section is called a “CHAPTER”. Video-CD/Audio-CD-Track An Video CD or Audio CD can contain several items. These are assigned to the tracks. Removing Disc from Case Be sure to hold the edge of disc. Do not touch the surface of the disc. Pick up the disc gently from the case. • Do not scratch the disc. • Do not get dirt on the surface of the disc. • Do not stick a label or adhesive tape on the disc. • Do not drop or bend the disc. Storing Disc • Store the disc in the case to avoid risk of scratches, dirt or dam…

Text truncated - open the document above for the full version.

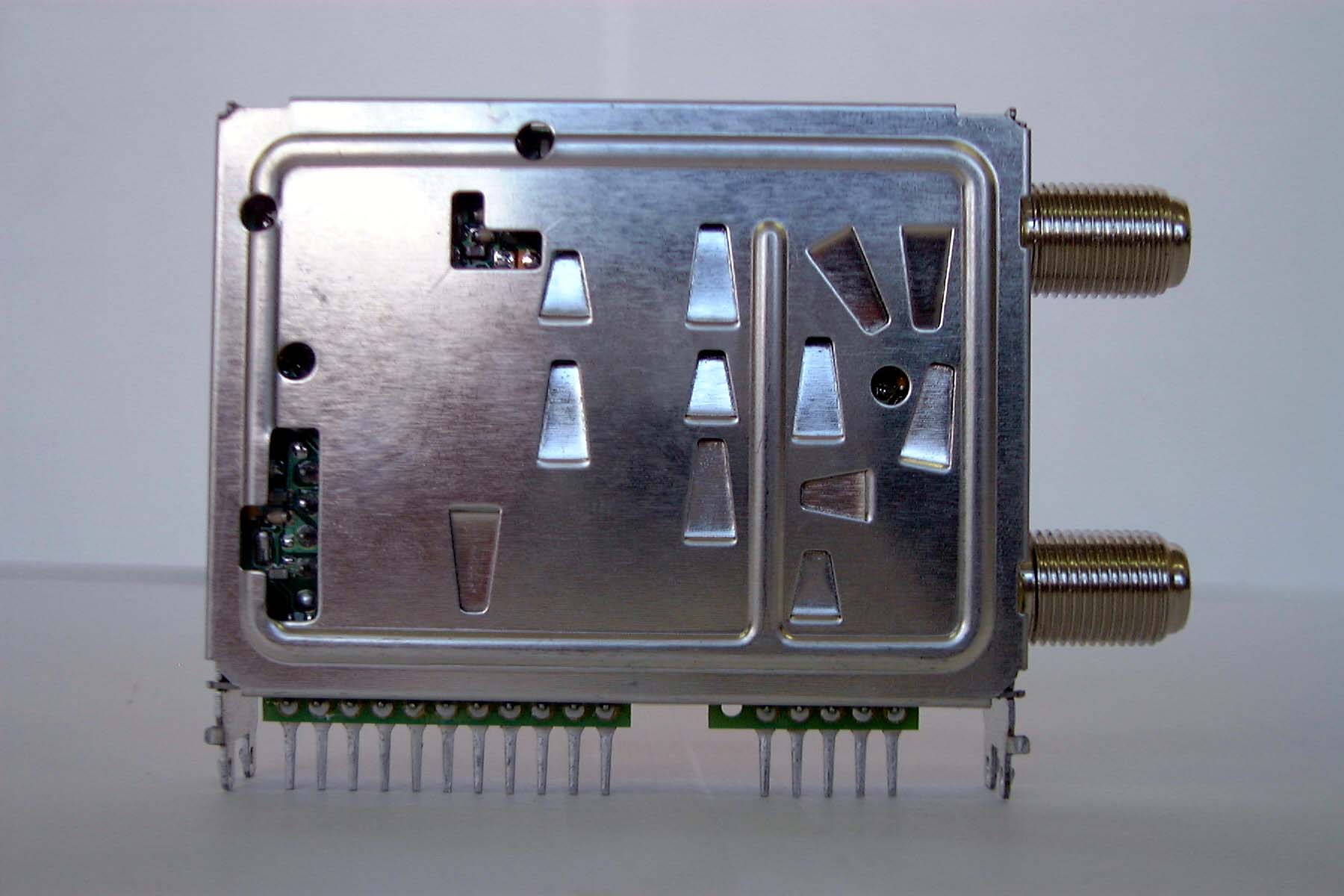

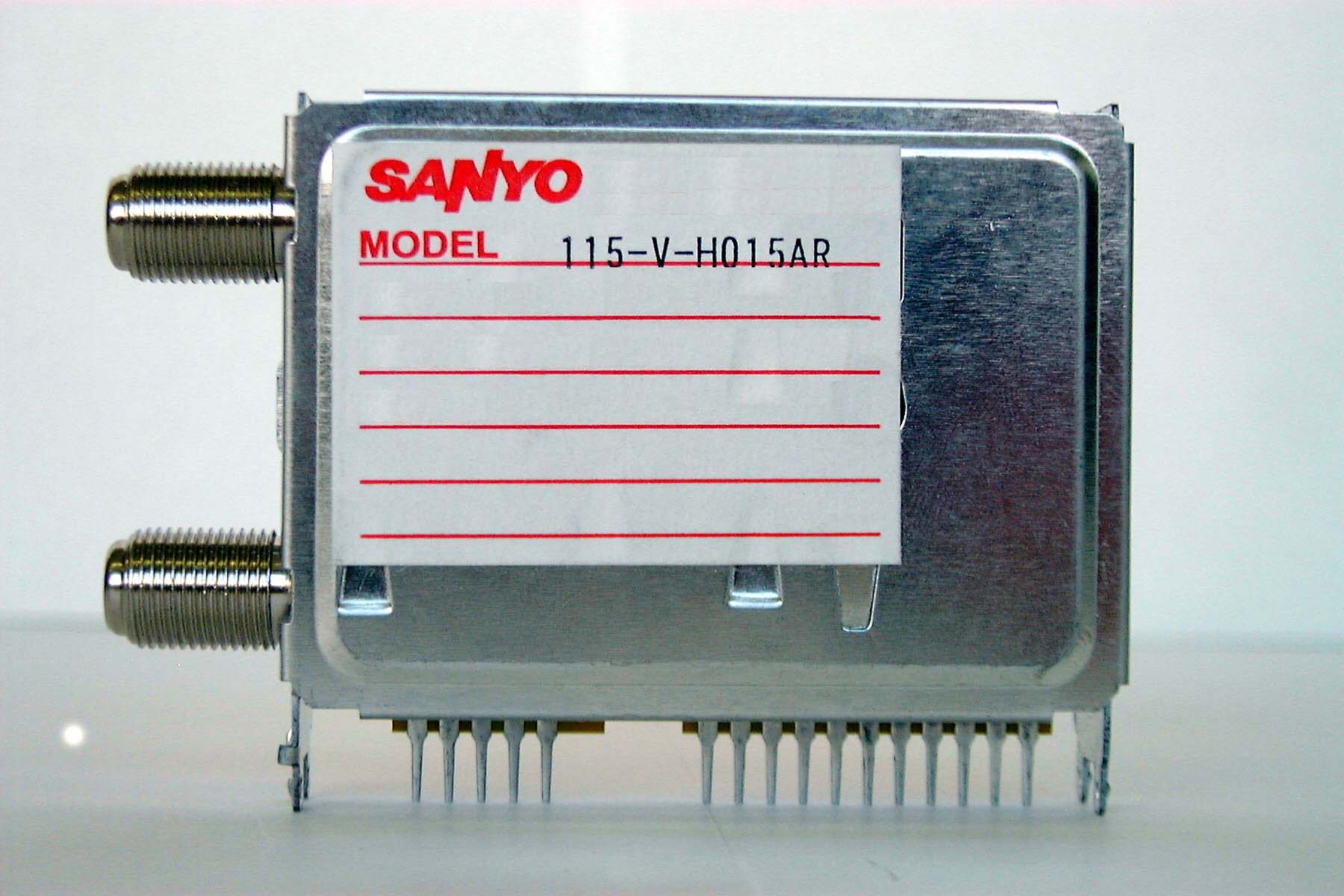

ATTACHMENT J-1 FCC ID: A7RM2C3A FCC IDENTIFIER (§2.926)  LABELING REQUIREMENT(§15.19) --- Labeling BACK VIEW

Subject: A7RM2C3A grant Date: Tue, 12 Nov 2002 15:15:35 +0900 From: [email protected] To: [email protected] CC: [email protected], [email protected] Hi Dennis The material of the label is "art paper". It is strong material and will not easily break and let the letters come off. It is also put using adhesion bond, so that it is permenantly affixed to the device.

Test report No. : 23CE0062-YW-1 Page : 2 of 94 Date of issue : November 6, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Contents Page Section 1 : Client information 3 Section 2 : Equipment under test (E.U.T.) 3 Section 3 : Test specification, procedures & results 4 Section 4 : Operation of E.U.T. during tests 6 Section 5 : Conducted emission 8 Section 6 : Radiated emission 11 Section 7 : Antenna terminal voltage 14 Section 8 : RF output level / spurious emission 15 Section 9 : Antenna transfer switch 16 Section 10 : Picture sensitivity 17 Section 11 : Noise figure 18 Contents of Appendixes 19 Appendix 1 : Photographs of test set up 20 Appendix 2 : Data of EMI tests 27 Appendix 3: Test instruments 94 Test report No. : 23CE0062-YW-1 Page : 3 of 94 Date of issue : November 6, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Section 1 : Client information Company name : Orion Electric Co., Ltd. Brand Name : JVC Address : 41-1 Iehisa-cho, Takefu-shi, Fukui-ken, 915-8555 JAPAN Telephone number : +81 778 23 0019 Facsimile number : +81 778 23 7799 Contact person : Hiroshi Tsujimoto Section 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipment : DVD/ VCR Model number : HR-XVC20US Rating : AC 120 V / 60 Hz Manufacturer : 1. World Electric (Thailand) Ltd. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. Korat Denki Ltd. 149 Moo 10 Tambol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 228 Moo 3 Tambol Nongbuasala, Amphur Muang, Nakhonratchasima 30000, Thailand 3. Orion America, Inc. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Receipt Date of Sample : October 28, 2002 Condition of EUT : Production Prototype 2.2 Product description Model: HR-XVC20US (referred to as the EUT in this report) is a DVD/ VCR. The EUT specifications is as follows. Tuner type : Quartz PLL frequency synthesized I / F : 45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz, 16W I / O terminal (Video) : RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio) : RCA in –8 dB 47 k ohm, RCA out –8 dB 1 k ohm 2.3 Similar apparatus HR-XVC20U, HR-XVC21US, HR-XVC21U, HR-XVC15UC, HR-XVC15U Test report No. : 23CE0062-YW-1 Page : 4 of 94 Date of issue : November 6, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Section 3 : Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart B Title : FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures & results Item Test procedure Limits Worst margin Result Conducted emission ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 250 uV 10.3 dB (15.1487 MHz) Complied Radiated emission ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 30–88 MH: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 3.5 dB (144.54 MHz) Complied Antenna terminal voltage ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 2 nW (at 75 ohm) 20.1 dB (1467.11096MHz) Complied RF output level Video signal: 3000 uV Aural signal: 671 uV 3.0 dB (61.25 MHz) Complied Spurious emission ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 94.8 uV 23.9 dB (122.5 MHz) Complied Transfer switch ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 9.5 dB 7.1 dB (341.25 MHz) Complied Picture sensitivity ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 8 dB 4.8 dB Complied Noise figure FCC/OET MP:2:1986 14 dB 7.3dB (543.25 MHz / 133.25 MHz) Complied 3.3 Additions or deviations to standard No addition, deviation or exclusion has been made from standards. 3.4 Confirmation A-Pex International Co., Ltd. hereby confirms that E.U.T., in the configuration tests, complies with the specifications FCC Part15 Subpart B. Test report No. : 23CE0062-YW-1 Page : 5 of 94 Date of issue : November 6, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) 3.5 Uncertainty Conducted emission (450 kHz – 30 MHz) The measurement uncertainty (with a 95% confidence level) for this test was ± 1.74 dB. The data listed in this test report has enough margin, more than site margin. Radiated emission The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.4 dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±4.8 dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±5.8 dB. The data listed in this test report may exceed the test limit because it does not have enough margin. Antenna terminal voltage The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report has enough margin, more than site margin. RF output level test / spurious emission test The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report may exceed the test limit because it does not have enough margin. Antenna transfer switch The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report has enough margin, more than site margin. Picture sensitivity test The measurement uncertainty (with a 95% confidence level) for this test was ± 1.0 dB. The data listed in this test report has enough margin, more than site margin. Noise Figure Test The measurement uncertainty (with a 95% confidence level) for this test was ± 1.2 dB. The data listed in this test report has enou…

Text truncated - open the document above for the full version.

A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Conducted emission A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Radiated emission A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Antenna terminal voltage A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) RF output level / spurious emission A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Antenna transfer switch A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Picture sensitivity A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Noise figure
