A7RM2C3BDVD VIDEO PLAYER & VIDEO CASSETTE RECORDER

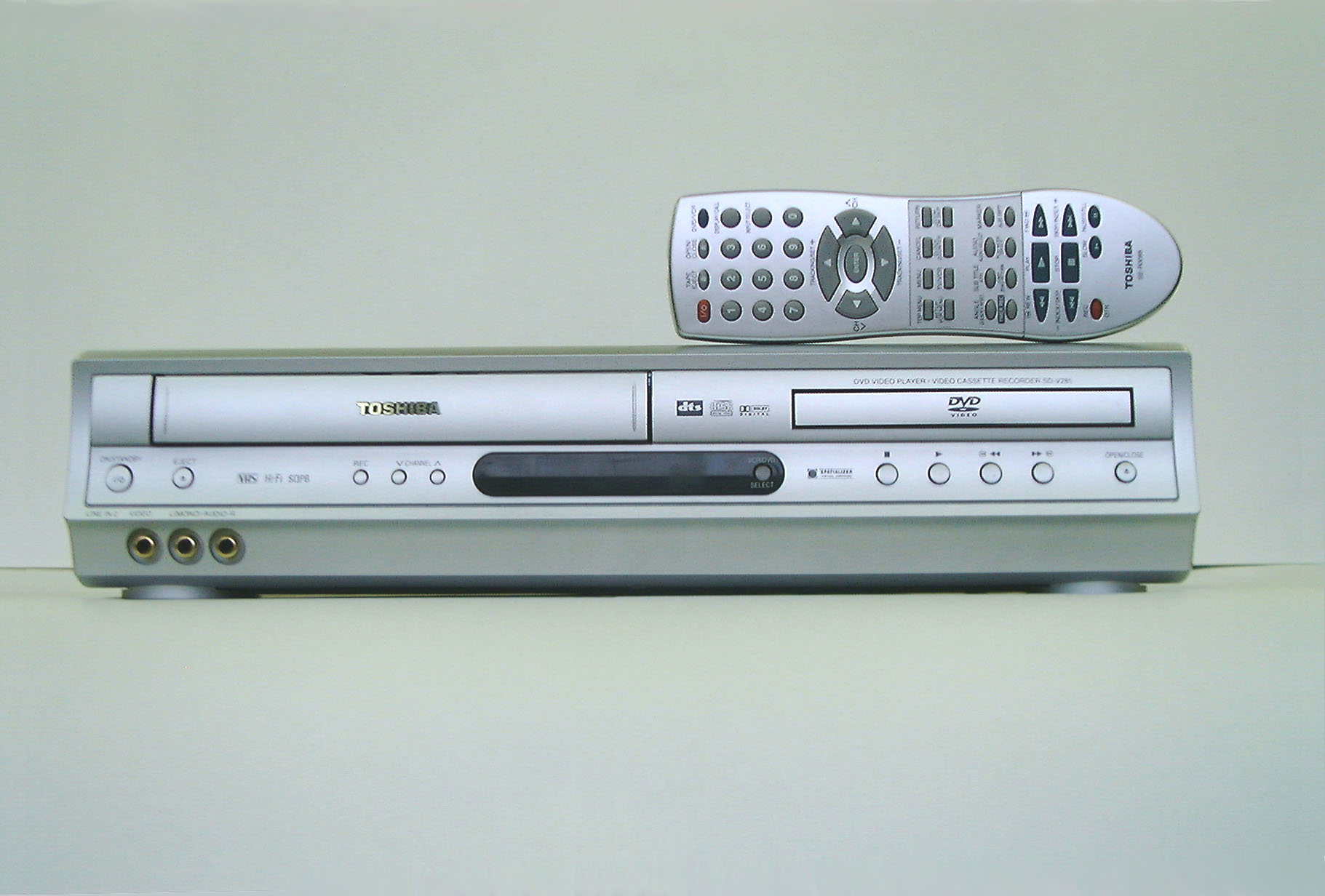

DVD VIDEO PLAYER & VIDEO CASSETTE RECORDER SD-K220 OWNER’S MANUAL 2 14 22 29 34 39 Introduction Connections Basic setup Playback (VCR) Recording (VCR) Other functions (VCR) DIGITAL VIDEO ©2003 Toshiba Corporation 42 45 57 Basic playback (DVD) Advanced playback (DVD) Function setup (DVD) This device does not tape-recorded copy protected DVD Video Discs. 67 Others 2C31101A (E)COV11/22/02, 15:411 2 Introduction P / 7235490032 P / LINE IN IMPORTANT SAFEGUARDS WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not expose this appliance to rain or moisture. CAUTION:TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. WARNING:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. CAUTION:Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. CAUTION:THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CARE- FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTE- NANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLO- SURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. 2C31101A (E)p02-1311/22/02, 15:412 3 Introduction 1.READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2.RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3.HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4.FOLLOW INSTRUCTIONS All operating and use instructions should be followed. 5.CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning the exterior cabinet only. 6.ATTACHMENTS The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards. 7.WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 8.ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. 8A.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 9.VENTILATION Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and/or the manufacturer’s instructions have been adhered to. 10.POWER SOURCE This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions. 11.GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. …

Text truncated - open the document above for the full version.

37 Recording (VCR) Timer recording Timer recording can be programmed on-screen with the remote control. The built-in timer allows automatic unattended recording of up to 8 programs within 1 month. Timer recording Notes: •Press CANCEL to move cursor backward for correction. •To record from external source set the channel to "L1" or "L2". "L1" or "L2" will appear next to CH 125 (or 69). Notes: •If the timer symbol () blinks when the timer recording ended, the TV program has not been completely recorded because of an insufficient tape length. Press TIMER REC to cancel the timer program or press TAPE EJECT to remove the cassette tape. •During timer recording standby mode, the VCR mode cannot be operated. To use the VCR, press TIMER REC at first, then press DVD/VCR to change to VCR mode. After you use the VCR, press TIMER REC again to put the VCR into timer recording standby mode. •If you press TIMER REC during timer recording, the recording operation will be interrupted. If you press TIMER REC again within the programmed time, the recording operation will start again. •After a power failure or disconnection of the power plug, all programmed recording settings and time display will be lost upon resumption of power. In this case, reset the clock 24 and reprogram any timer recording. Press VCR MENU. Select “TIMER REC SET”, then press ENTER. Preparation: •Press DVD/VCR to select the VCR mode. •Load a cassette tape with the erase prevention tab intact. •Check the time and date are correct 24 . Example:Program a timer recording for the 26th day, channel 125 (CATV), 11:00 - 11:30 PM on timer program number 1 (Tape speed: SLP). 1 Press SET + or – to select one of the program line, then press ENTER. 2 Press SET + or – to select the date, then press ENTER. 3 Set the start time, end time, channel and tape speed as in step 3. 4 MENU TIMERRECSET AUTOREPEAT ONOFF ONOFF SAP CHSETUP SYSTEMSETUP á+/-/ENTER/MENUñá+/-/ENTER/MENUñ á+/Ð/ENTER/CANCEL/MENUñ DATESTARTENDCH ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ Ð Ð Ð Ð Ð Ð Ð 26(SU)11:00PM11:30PM125 SLP á+/Ð/ENTER/CANCEL/MENUñ DATESTARTENDCH ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ Ð Ð Ð Ð Ð Ð Ð 26(SU)11:00PM11:30PM125 SLP To enter other programs, repeat step 2 through 4. •To return to the normal screen, press VCR MENU twice. 5 Press TIMER REC. The timer symbol () will appear on the display and the VCR stands by for recording. At the same time, VCR mode will change to DVD mode automatically. You can use DVD even if the VCR is in the timer recording mode. If you do not use the DVD, turn the power off. 6 Notes: •The timer recording will start at 5 seconds before the time you predetermined. •If the timer symbol( ) does not appear on the display in spite of the pressing of TIMER REC, the cassette may not have been loaded. 29 •If the cassette is ejected in spite of the pressing of TIMER REC, the erase prevention tab of the cassette may have been removed. 29 2, 3 1-3 DVD/VCR TIMER REC CANCEL 1, 5 TAPE EJECT á+/Ð/ENTER/CANCEL/MENUñ DATESTARTENDCH ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ Ð Ð Ð Ð Ð Ð Ð Ð á+/Ð/ENTER/CANCEL/MENUñ DATESTARTENDCH ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ Ð:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ Ð Ð Ð Ð Ð Ð Ð Ð 26(SU) TRACKING/ SET + TRACKING/ SET – TRACKING/ SET + TRACKING/ SET – TRACKING/ SET + TRACKING/ SET – 2C31101A (E)p26-3711/22/02, 15:4337 38 Recording (VCR) Setting procedure To set daily/weekly timer To confirm Timer program: At step 1 on the previous page select “TIMER REC SET” and press ENTER. The timer program list will appear on the screen. 2 The current day (Friday)SU-SA (Sunday to Saturday) MO-SA (Monday to Saturday) MO-FR (Monday to Friday) WKL-WEWKL-TH (Weekly Thursday) (Weekly Wednesday) One month later minus one day Weekly (e.g. WKL-TU: each Tuesday) or daily (e.g. MO- SA: Monday to Saturday) Timer recording Follow the procedure of timer recording on the previous page. At step 3 press SET + or – repeatedly until the desired setting appears. Then press ENTER. When you press SET – repeatedly, the DATE indicator will change as follows, in this case the day is Friday. If the programs overlap another Do not overlap timer programs as portions of the conflicting programs will be lost. The first recording time has priority over the next recording time as shown in the diagram below. Notes: •The daily/weekly recording can be made continuously until the recording is canceled or the tape reaches the end. •During timer recording the automatic rewinding mechanism does not function. 8 : 00 11 : 00 9 : 00 10 : 00 Program 1 Prog.1 Deleted Parts Non Recorded Portion Parts Prog.2Prog.3 Program 2 Program 3 Recording Control Settings á+/Ð/ENTER/CANCEL/MENUñ DATESTARTENDCH WKL-WE á+/Ð/ENTER/CANCEL/MENUñ DATESTARTENDCH 26(SU)11:00PM11:30PM125 SLP Notes: •If there are other timer record programs remaining, TIMER REC must be pressed to reactivate the timer, otherwise the remaining timer record programs will be ignored. •You cannot confirm the Timer program during timer recording operation. •You can correct or cancel a programmed setting in program confirm mode. If the Timer has been activated, press TIMER REC to deactivate the Timer. The timer symbol () will disappear. Then press DVD/VCR to change to VCR mode. 1 To cancel Timer program: Press SET + or – to select the unwanted program, then press CANCEL to cancel the program. 3 Press VCR MENU repeatedly until the menu screen is cleared. 4 Timer recording (continued) To confirm or cancel a program SET +/– ENTER VCR MENU CANCEL DVD/VCR TIMER REC á+/Ð/ENTER/CANCEL/MENUñ DATESTARTENDCH ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:ÐÐÐ:ÐÐÐÐÐ ÐÐÐÐÐÐÐ:Ð…

Text truncated - open the document above for the full version.

ATTACHMENT J-1 FCC ID: A7RM2C3B FCC IDENTIFIER (§2.926)  LABELING REQUIREMENT(§15.19) --- Labeling BACK VIEW

CIRCUIT DESCRIPTION 1/2 This device is combined a DVD player with a Video cassette recorder and operates with an AC commercial power supply.(AC120V, 60Hz) This device includes TV interface Device, Television Broadcast receiver, and Digital device of product category defined by FCC. The external connectors are equipped with Front Audio (L/R)/Video Input, RF input/Output, Rear Audio (L/R)/Video Input, Rear Audio( L/R) /Video Output, Component Output, S-VHS Output, Coaxial Digital Audio Output, Optical Digital Audio Output and DVD Audio Output L/R. The circuit is composed by Power Supply Block , VCR Block, and DVD Block, if divided roughly. The explanation is as follows and the details are referred to Block Diagram. Power Supply Block: Use the switching regulator circuit and provide the power supply to each circuit. VCR Block: The circuit of this block is composed by Tuner/IF/Modulator, Luminance and Chrominance/Audio/CCD/Head Amp, System/Timer/Servo, HIFI Demodulator, Operation/Display, Motor Drive and so on. RF Modulator output is output in US 3ch or 4ch and Emission frequency is as Follows: Emission Frequency; US 3ch Video carrier: 61.25MHz Audio carrier: 65.75MHz US 4ch Video carrier: 67.25MHz Audio carrier: 71.75MHz The oscillating frequencies that is used this block are the follows: 10MHz----VCR System Control IC Clock 32.768KHz--- VCR System Control IC Clock 3.579545MHz---Luminance and Chrominance IC Clock DVD Block: The block part of DVD comprises of a read control device of a disc, a signal processing device, a decoder part and a control unit. Each device is in charge of serial processing from reading to indication of a signal. A reading device of a disc comprises of a motor part spinning a disc and a 2/2 laser part reading data from the disk. A signal processing device converts a laser pulse read by a disc to the digital data which a decoder can process The decoder part develop compressed digital data and output in a personal computer , television, a stereo system and etc. as a picture , a voice and other data. A control unit controls the operation from a wireless remote controller and front panel and the order input form a software and controls a decoder and other mechanism The oscllating frequencies that is used this block are the follows: 108MHz--- SD-RAM Clock(MPCLK) 27MHz--- MPEG Master Clock(GCLK) 16.9344MHz--- DVD DSP Clock 18.4327MHz--- Audio Master Clock(AMCLK) 3.072MHz---Audio bit Clock(ABCLK) 48kHz---Audio L/R Clock(LRCLK)

Test report No. : 23DE0092-YW-1 Page : 2 of 113 Date of issue : December 4, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Contents Page Section 1 : Client information 3 Section 2 : Equipment under test (E.U.T.) 3 Section 3 : Test specification, procedures & results 4 Section 4 : Operation of E.U.T. during tests 6 Section 5 : Conducted emission 7 Section 6 : Radiated emission 10 Section 7 : Antenna terminal voltage 13 Section 8 : RF output level / spurious emission 14 Section 9 : Antenna transfer switch 15 Section 10 : Picture sensitivity 16 Section 11 : Noise figure 17 Contents of Appendixes 18 Appendix 1 : Photographs of test set up 19 Appendix 2 : Data of EMI tests 26 Appendix 3: Test instruments 113 Test report No. : 23DE0092-YW-1 Page : 3 of 113 Date of issue : December 4, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Section 1 : Client information Company name : Orion Electric Co., Ltd. Brand Name : TOSHIBA Address : 41-1 Iehisa-cho, Takefu-shi, Fukui-ken, 915-8555 JAPAN Telephone number : +81 778 23 0019 Facsimile number : +81 778 23 7799 Contact person : Hiroshi Tsujimoto Section 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipment : DVD/VCR Model number : SD-K220U Rating : AC 120 V / 60 Hz Manufacturer : 1. World Electric (Thailand) Ltd. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. Korat Denki Ltd. 149 Moo 10 Tambol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 228 Moo 3 Tambol Nongbuasala, Amphur Muang, Nakhonratchasima 30000, Thailand 3. Orion America, Inc. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Receipt Date of Sample : November 21, 2002 Condition of EUT : Production Prototype 2.2 Product description Model: SD-K220U (referred to as the EUT in this report) is a DVD/VCR. The EUT specifications is as follows. Tuner type : Quartz PLL frequency synthesized I / F : 45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz, 16W I / O terminal (Video) : RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio) : RCA in –8 dB 47 k ohm, RCA out –8 dB 1 k ohm 2.3 Similar apparatus SD-K220UC, SD-K220C, SD-K220-S-TU, SD-K220-S-TC Test report No. : 23DE0092-YW-1 Page : 4 of 113 Date of issue : December 4, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Section 3 : Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart B Title : FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures & results Item Test procedure Limits Worst margin Result Conducted emission ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 250 uV 13.1 dB (13.6382 MHz) Complied Radiated emission ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 30–88 MH: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 2.7 dB (180.65 MHz) Complied Antenna terminal voltage ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 2 nW (at 75 ohm) 16.9 dB (1472.10999 MHz) Complied RF output level Video signal: 3000 uV Aural signal: 671 uV 2.3 dB (61.25 MHz) Complied Spurious emission ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 94.8 uV 23.1 dB (122.5 MHz, 848 MHz) Complied Transfer switch ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 9.5 dB 5.9 dB (67.5 MHz) Complied Picture sensitivity ANSI C63.4:1992 IEEE 213:1987 IEEE 187:1990 8 dB 3.8 dB Complied Noise figure FCC/OET MP:2:1986 14 dB 6.2 dB (543.25 MHz) Complied 3.3 Additions or deviations to standard No addition, deviation or exclusion has been made from standards. 3.4 Confirmation A-Pex International Co., Ltd. hereby confirms that E.U.T., in the configuration tests, complies with the specifications FCC Part15 Subpart B. Test report No. : 23DE0092-YW-1 Page : 5 of 113 Date of issue : December 4, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) 3.5 Uncertainty Conducted emission (450 kHz – 30 MHz) The measurement uncertainty (with a 95% confidence level) for this test was ± 1.74 dB. The data listed in this test report has enough margin, more than site margin. Radiated emission The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.4 dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±4.8 dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±5.8 dB. The data listed in this test report may exceed the test limit because it does not have enough margin. Antenna terminal voltage The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report has enough margin, more than site margin. RF output level test / spurious emission test The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report may exceed the test limit because it does not have enough margin. Antenna transfer switch The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report has enough margin, more than site margin. Picture sensitivity test The measurement uncertainty (with a 95% confidence level) for this test was ± 1.0 dB. The data listed in this test report has enough margin, more than site margin. Noise Figure Test The measurement uncertainty (with a 95% confidence level) for this test was ± 1.2 dB. The data listed in this test report has enough margi…

Text truncated - open the document above for the full version.

Test report No. : 23DE0092-YW-1 Page : 19 of 113 Date of issue : December 4, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Conducted emission Test report No. : 23DE0092-YW-1 Page : 20 of 113 Date of issue : December 4, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Radiated emission Test report No. : 23DE0092-YW-1 Page : 21 of 113 Date of issue : December 4, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Antenna terminal voltage Test report No. : 23DE0092-YW-1 Page : 22 of 113 Date of issue : December 4, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) RF output level / spurious emission Test report No. : 23DE0092-YW-1 Page : 23 of 113 Date of issue : December 4, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Antenna transfer switch Test report No. : 23DE0092-YW-1 Page : 24 of 113 Date of issue : December 4, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Picture sensitivity Test report No. : 23DE0092-YW-1 Page : 25 of 113 Date of issue : December 4, 2002 A-Pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 MF060b(24.04.02) Noise figure
