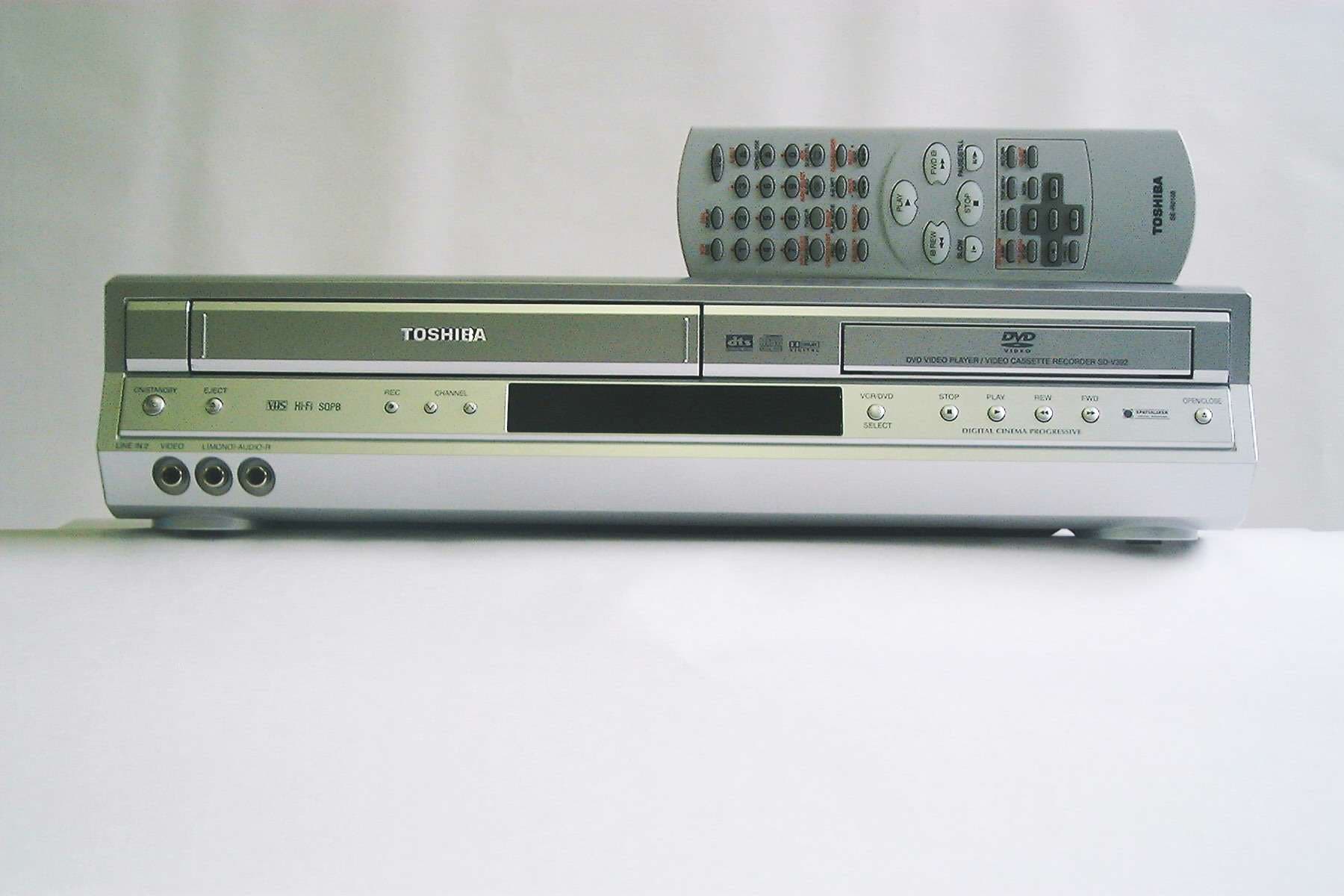

A7RM2D8BDVD/VCR TV Interface Device

ATTACHMENT J-1 FCC ID: A7RM2D8B FCC IDENTIFIER (§2.926) ＆ LABELING REQUIREMENT(§15.19) --- Labeling BACK VIEW

CIRCUIT DESCRIPTION 1/2 This device is combined a DVD player with a Video cassette recorder and operates with an AC commercial power supply.(AC120V, 60Hz) This device includes TV interface Device, Television Broadcast receiver, and Digital device of product category defined by FCC. The external connectors are equipped with Front Audio (L/R)/Video Input, RF input/Output, Rear Audio (L/R)/Video Input, Rear Audio( L/R) /Video Output, Component Output, S-VHS Output, Coaxial Digital Audio Output, Optical Digital Audio Output and DVD Audio Output L/R. The circuit is composed by Power Supply Block, VCR Block, and DVD Block, if divided roughly. The explanation is as follows and the details are referred to Block Diagram. Power Supply Block: Use the switching regulator circuit and provide the power supply to each circuit. VCR Block: The circuit of this block is composed by Tuner/IF/Modulator, Luminance and Chrominance/Audio/CCD/Head Amp, System/Timer/Servo, HIFI Demodulator, Operation / Display, Motor Drive and so on. RF Modulator output is output in US 3ch or 4ch and Emission frequency is as Follows: Emission Frequency; US 3ch Video carrier: 61.25MHz Audio carrier: 65.75MHz US 4ch Video carrier: 67.25MHz Audio carrier: 71.75MHz The oscillating frequencies that is used this block are the follows: 10MHz----VCR System Control IC Clock 3.579545MHz---Luminance and Chrominance IC Clock DVD Block: The block part of DVD comprises of a read control device of a disc, a signal processing device, a decoder part and a control unit. Each device is in charge of serial processing from reading to indication of a signal. A reading device of a disc comprises of a motor part spinning a disc and a 2/2 laser part reading data from the disk. A signal processing device converts a laser pulse read by a disc to the digital data which a decoder can process The decoder part develop compressed digital data and output in a personal computer , television, a stereo system and etc. as a picture , a voice and other data. A control unit controls the operation from a wireless remote controller and front panel and the order input form a software and controls a decoder and other mechanism The oscillating frequencies that is used this block are the follows: 135MHz--- SD-RAM Clock (RAMCLK) 27MHz--- MPEG Master Clock (GCLK) 18.4327MHz--- Audio Master Clock (AMCLK) 3.072MHz---Audio bit Clock (ABCLK) 48kHz---Audio L/R Clock (LRCLK)

Test report No. : 24JE0051-YW-1 Page : 2 of 121 Date of issue : May 26, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Contents Page Section 1 : Client information 3 Section 2 : Equipment under test (E.U.T.) 3 Section 3 : Test specification, procedures & results 4 Section 4 : Operation of E.U.T. during tests 6 Section 5 : Conducted emission 7 Section 6 : Radiated emission 10 Section 7 : Antenna terminal voltage 13 Section 8 : RF output level / spurious emission 14 Section 9 : Antenna transfer switch 15 Section 10 : Picture sensitivity 16 Section 11 : Noise figure 17 Contents of Appendixes 18 Appendix 1 : Photographs of test set up 19 Appendix 2 : Data of EMI tests 26 Appendix 3: Test instruments 121 Test report No. : 24JE0051-YW-1 Page : 3 of 121 Date of issue : May 26, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 1 : Client information Company name : Orion Electric Co., Ltd. Address : 41-1 Iehisa-cho, Takefu-shi, Fukui-ken, 915-8555 JAPAN Telephone number : +81 778 23 0019 Facsimile number : +81 778 23 7799 Contact person : Hiroshi Tsujimoto Section 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipment : DVD/VCR Brand Name : TOSHIBA Model number : SD-V392SUA Rating : AC 120 V / 60 Hz Manufacturer : 1. World Electric (Thailand) Ltd. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. Korat Denki Ltd. 149 Moo 10 Tambol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 228 Moo 3 Tambol Nongbuasala, Amphur Muang, Nakhonratchasima 30000, Thailand 3. Orion America, Inc. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Receipt Date of Sample : May 8, 2004 Condition of EUT : Production Prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product description Model: SD-V392SUA (referred to as the EUT in this report) is a DVD/VCR. The EUT specifications is as follows. Tuner type : Quartz PLL frequency synthesized I / F : 45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz, 18W I / O terminal (Video) : RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio) : RCA in –8 dB 47 k ohm, RCA out –8 dB 1 k ohm 2.3 Similar apparatus There are similar apparatuses as follows; SD-V392SCA, SD-V320SUA, SD-V320SCA, SD-V396SUA, SD-V396SCA, SD-K220SUA, SD-K220SCA Test report No. : 24JE0051-YW-1 Page : 4 of 121 Date of issue : May 26, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 3 : Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart B Title : FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators Test Specification : ICES-003 Issue No. 4 Title : Spectrum Management Interference-Causing Equipment Standard Digital Apparatus *ICES-003 (Issue No. 4) is based on FCC Part 15. 3.2 Procedures & results Item Test procedure Limits Worst margin Result Conducted emission ANSI C63.4:2001 IEEE 213:1987 CISPR 22 19.3 dB (0.1500 MHz, AV Input 1 + Rec. 1Vp-p: L1/ AV Input 2 + Rec. 1Vp-p: N) Complied Radiated emission ANSI C63.4:2001 IEEE 187:1990 30–88 MH: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 7.5 dB (405.00 MHz, Horizontal, DVD Play) Complied Antenna terminal voltage ANSI C63.4:2001 2 nW (at 75 ohm) 20.4 dB (624.85330 MHz, TV Tuning/ 621.71060 MHz, CATV Tuning) Complied RF output level Video signal: 3000 uV Aural signal: 671 uV 5.8 dB (67.25 MHz, TV Reception + Rec. 25dBmV / AV Input 2 + Rec. 5Vp-p/ DVD Play) Complied Spurious emission ANSI C63.4:2001 94.8 uV 24.1 dB (38.5400 MHz: 4ch, TV Reception + Rec. 25dBmV / AV Input 1 + Rec. 1Vp-p) Complied Transfer switch ANSI C63.4:2001 9.5 dB 6.0 dB (67.2500 MHz, 4ch AV Input 1 + Rec. 1Vp-p/ 5Vp-p) Complied Picture sensitivity ANSI C63.4:2001 8 dB 4.7 dB Complied Noise figure FCC/OET MP:2:1986 14 dB 7.3 dB (38ch, 615.25 MHz/ 16ch, 133.25 MHz) Complied For ICES-003, only the tests, which relate to the digital device of conducted emission and radiated emission, were performed. 3.3 Additions or deviations to standard No addition, deviation or exclusion has been made from standards. 3.4 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tests, complies with the specifications FCC Part15 Subpart B and ICES-003 Issue No. 4. Test report No. : 24JE0051-YW-1 Page : 5 of 121 Date of issue : May 26, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 3.5 Uncertainty Conducted emission (150 kHz – 30 MHz) The measurement uncertainty (with a 95% confidence level) for this test was ± 1.74 dB. The data listed in this test report has enough margin, more than site margin. Radiated emission The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.4 dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±4.8 dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±5.8 dB. The data listed in this test report has enough margin, more than site margin. Antenna terminal voltage The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report has enough margin, more than site margin. RF output level test / spurious emission test The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report has enough margin, more than site margin. Antenna transfer switch The measurement uncertainty (with a 95% confidence level) fo…

Text truncated - open the document above for the full version.

Test report No. : 24JE0051-YW-1 Page : 19 of 121 Date of issue : May 26, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Conducted emission Test report No. : 24JE0051-YW-1 Page : 20 of 121 Date of issue : May 26, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Radiated emission Test report No. : 24JE0051-YW-1 Page : 21 of 121 Date of issue : May 26, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Antenna terminal voltage Test report No. : 24JE0051-YW-1 Page : 22 of 121 Date of issue : May 26, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 RF output level / spurious emission Test report No. : 24JE0051-YW-1 Page : 23 of 121 Date of issue : May 26, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Antenna transfer switch Test report No. : 24JE0051-YW-1 Page : 24 of 121 Date of issue : May 26, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Picture sensitivity Test report No. : 24JE0051-YW-1 Page : 25 of 121 Date of issue : May 26, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Noise figure
