A7RM2D8CTV Interface Device

ENGLISH FRANÇAIS DVD2100-C DVD PLAYER / Hi-Fi VIDEO CASSETE RECORDER LECTEUR DVD / MAGNÉTOSCOPE STÉRÉO Hi-Fi OWNER’S MANUAL MANUEL D’INSTRUCTIONS Before operating the unit, please read this manual thoroughly. Avant de mettre cet appareil en marche, veuillez lire attentivement ce manuel. ATTENTION TV/CABLE MODE SELECTION SÉLECTION DU MODE TV/CABLE If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code. Si vous utilisez avec cet appareil une télécommande universelle (autre que celle vendue avec ce téléviseur), consultez la documentation accompagnant la télécommande universelle afin de connaître le code numérique correspondant au téléviseur. When shipped from the factory, the TV/CABLE menu option is set to the “CABLE” (Cable Television) mode. If not using CABLE, set this menu option to “TV” mode. Lors de la fabrication de l'appareil, l'option menu TV/CABLE est réglée au mode « CABLE » (câblodistribution). Si l'on n'utilise pas le mode CABLE (câblodistribution), réglez cette option menu au mode « TV ». ? 2D81221A[E] Cover7/2/04, 9:27 AM1 2 WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION:TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. CAUTION: THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCA- TION-SEE SERVICE PROCEDURE. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. ENGLISH NOTE:Please keep all packaging material for at least 90 days in case you need to return this product to your place of purchase or Memorex. WARNING:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. CAUTION:Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. 2D81221A[E] (02-05)7/2/04, 9:27 AM2 3 ENGLISH 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS All operating and use instructions should be followed. 5. CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning the exterior cabinet only. 6. ATTACHMENTS The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards. 7. WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 8. ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. 8A.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 9. VENTILATION Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper…

Text truncated - open the document above for the full version.

The device has RF output at VCR playback, DVD play and TV reception. At VCR playback and DVD play, the test was done with signal at normal operation because it operates with internal video signal. (Please refer to data page 64, 65, 68, 69, 74 and 75.) At TV reception, 25dBmV and 0dBmV signal was supplied to RF input from TV signal generator. (Please refer to data page 62, 63, 66, 67, 70 and 71.) This was not shown in the diagram in the test report. The diagram has been revised. Please refer to Figure 4. on Page 13 of the test report. The test using 1Vp-p and 5Vp-p of video signal were not performed since the device does not operate with external video signal. The output testing has been done in a modulated environment.

Test report No. : 24KE0255-YW-1 Page : 13 of 80 Date of issue : July 5, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 EUT Spectrum an al yzer Matc hing pad Pre AMP. 75 ohm ter min ator RF out RF in Section 8 : RF output level / spurious emission 8.1 Operation environment The test was carried out in a shielded room the size of 4.5 x 3.6 x 2.7 m. Date : June 29, 2004 Temperature : See data Humidity : See data 8.2 Test configuration The EUT was placed on a non-metallic platform 0.8 m above a reference ground plane. A drawing of the set up is shown in figure 4 and photographs in Appendix 1. Figure 4. RF output level TV Reception + Rec. mode VCR Playback mode and DVD Play mode EUT Spectrum an al yzer Matc hing pad Pre AMP. TV/ G RF out RF in 8.3 Test conditions EUT position : Table top EUT operation mode : TV Reception + Rec., VCR Playback, DVD Play 8.4 Test procedure EUT was connected spectrum analyzer through matching pad by accessory cable. RF channel selected 3ch or 4ch. Picture carrier, sound carrier and spurious levels are measured. Both sound carrier levels (upper and lower side bands) of modulator output are measured. Detector Type : Peak 8.5 Test result Passed Please refer to summary of the test results in Appendix 2. Test engineer: Tsubasa Takayama

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 5, 2004 RE: FCC ID: A7RM2D8C_ATCB001472 Attention: Mayuki Tanaka I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the plot on page 61 of the report is not readable. Please provide a data plot that can easily be read. 2. Please explain how the device meets the requirements of 15.115(b) “Output Signal Limits”. I do not see how the device is modulated as per requirements of ANSI C63.4 H5 (i.e. how does it meet ANSI C63.4 12.2.5 Output and spurious conducted level measurements as setup by that of appendix H5. Please show explain.) Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

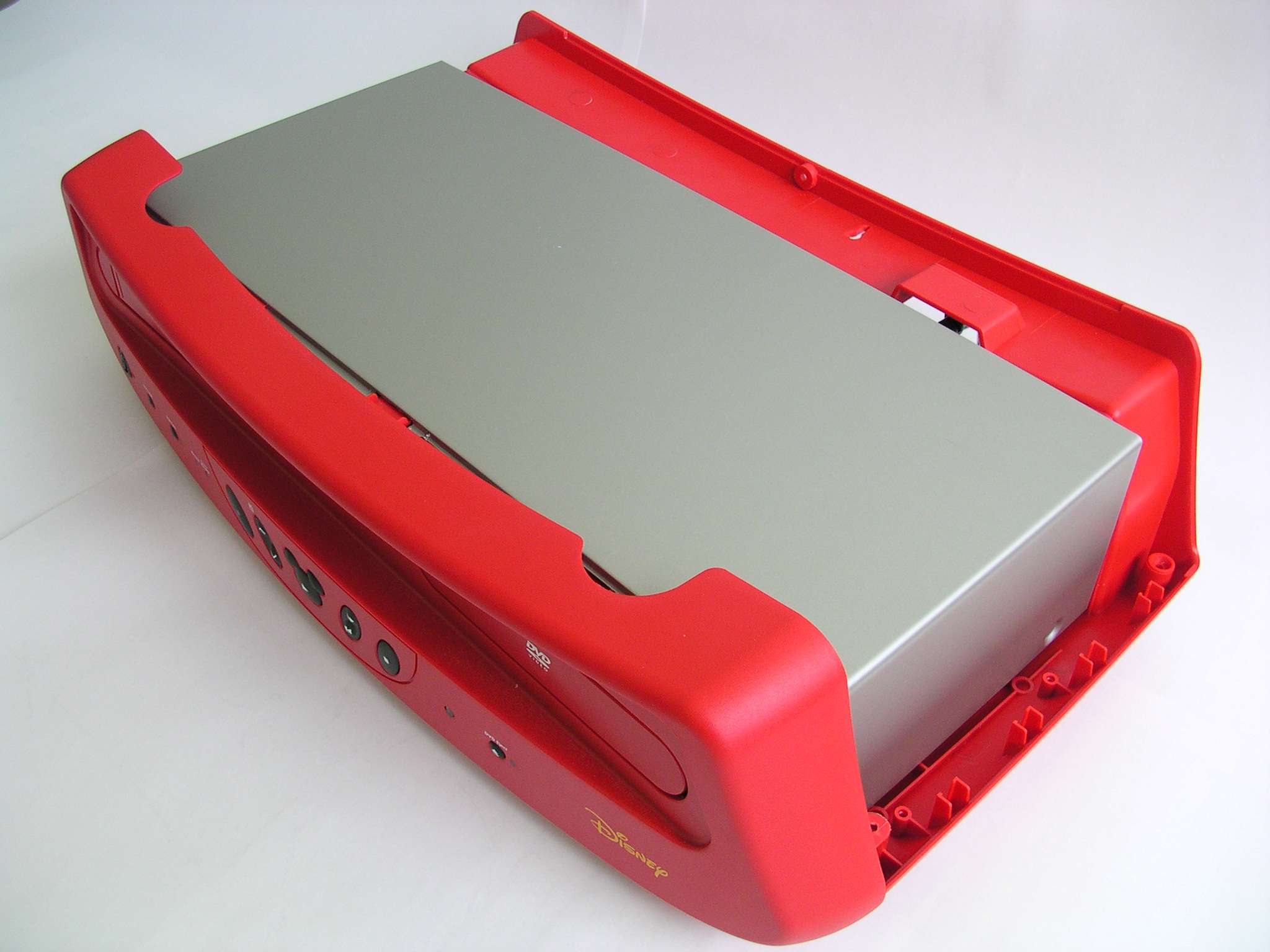

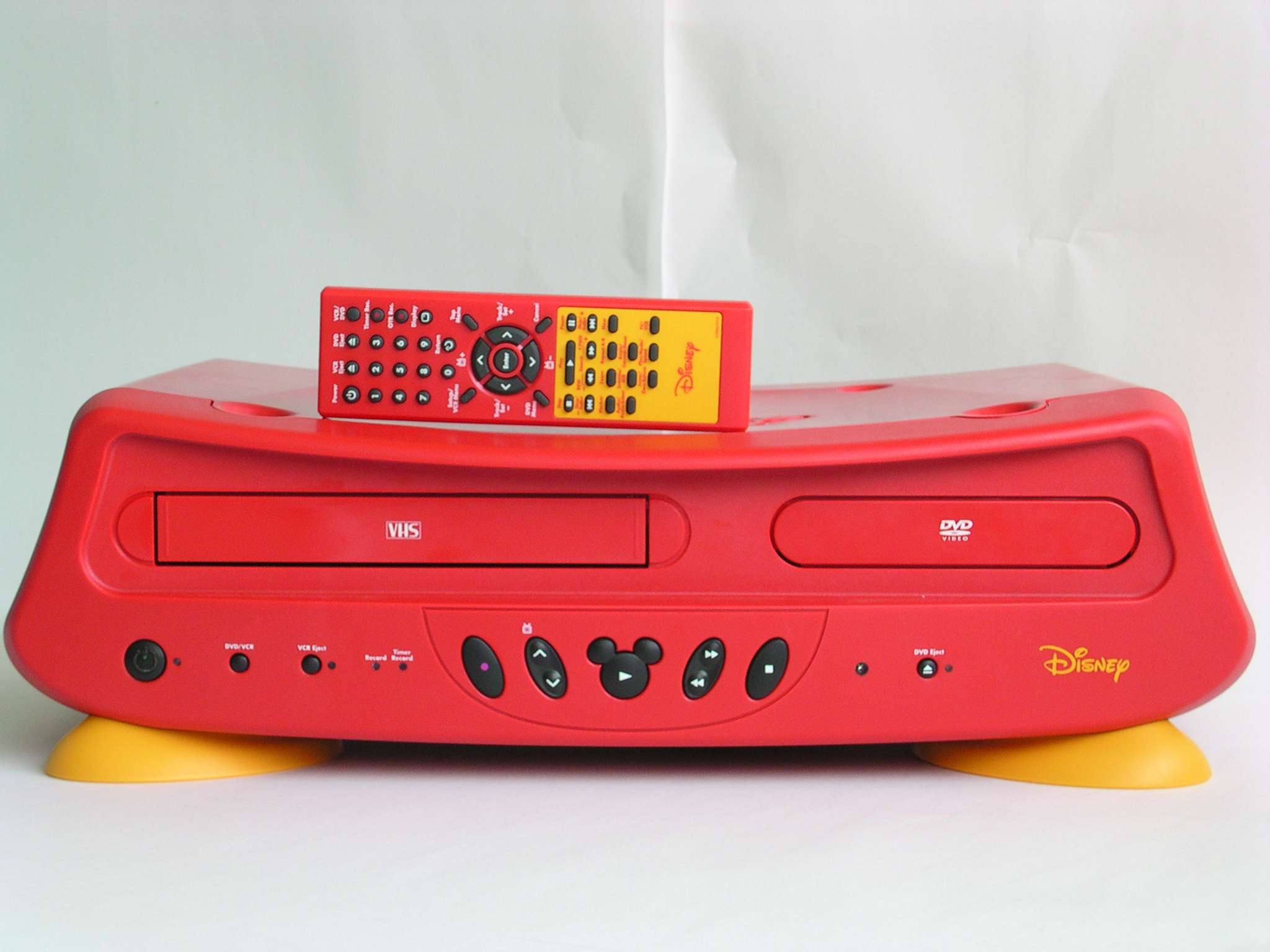

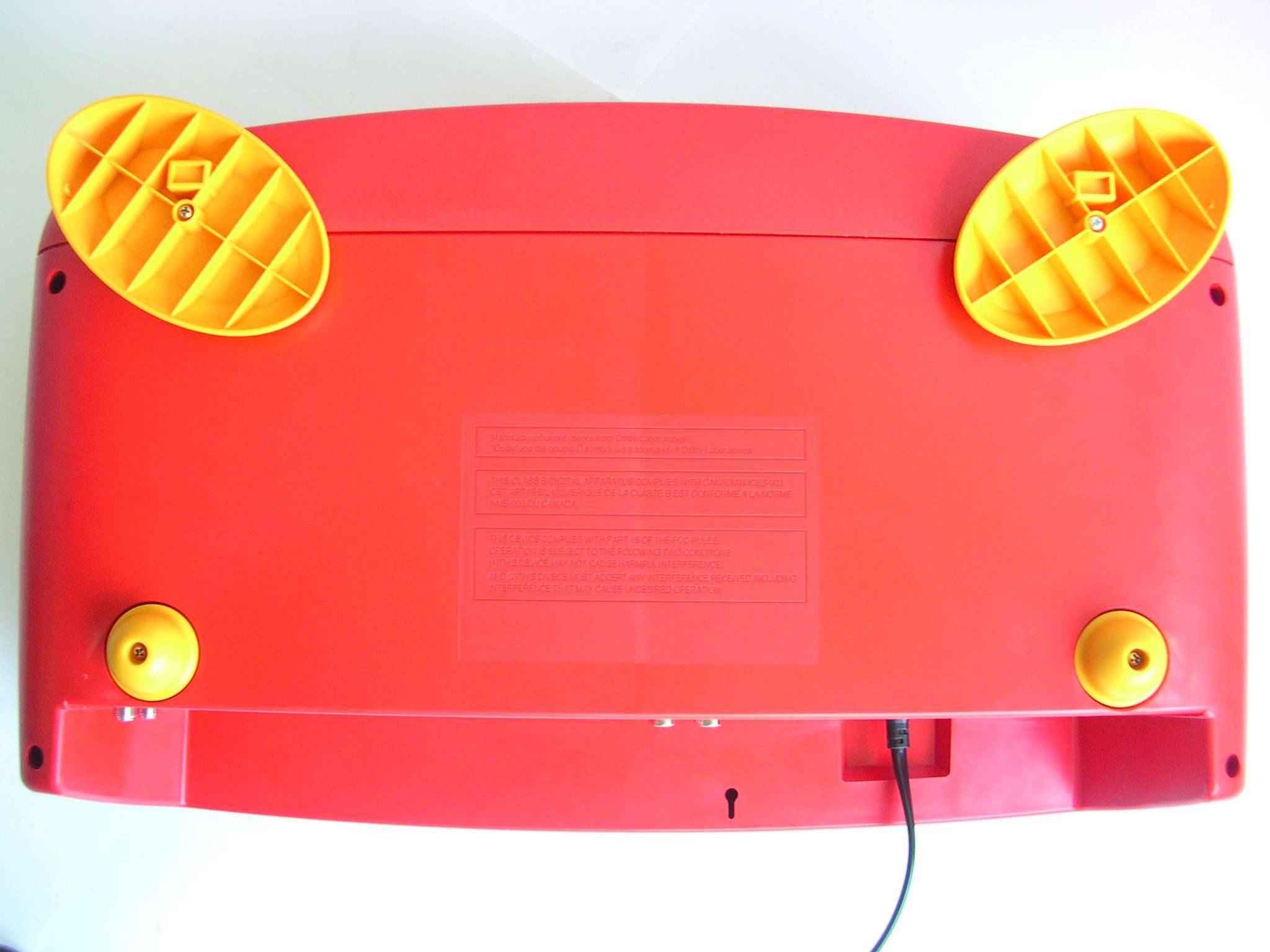

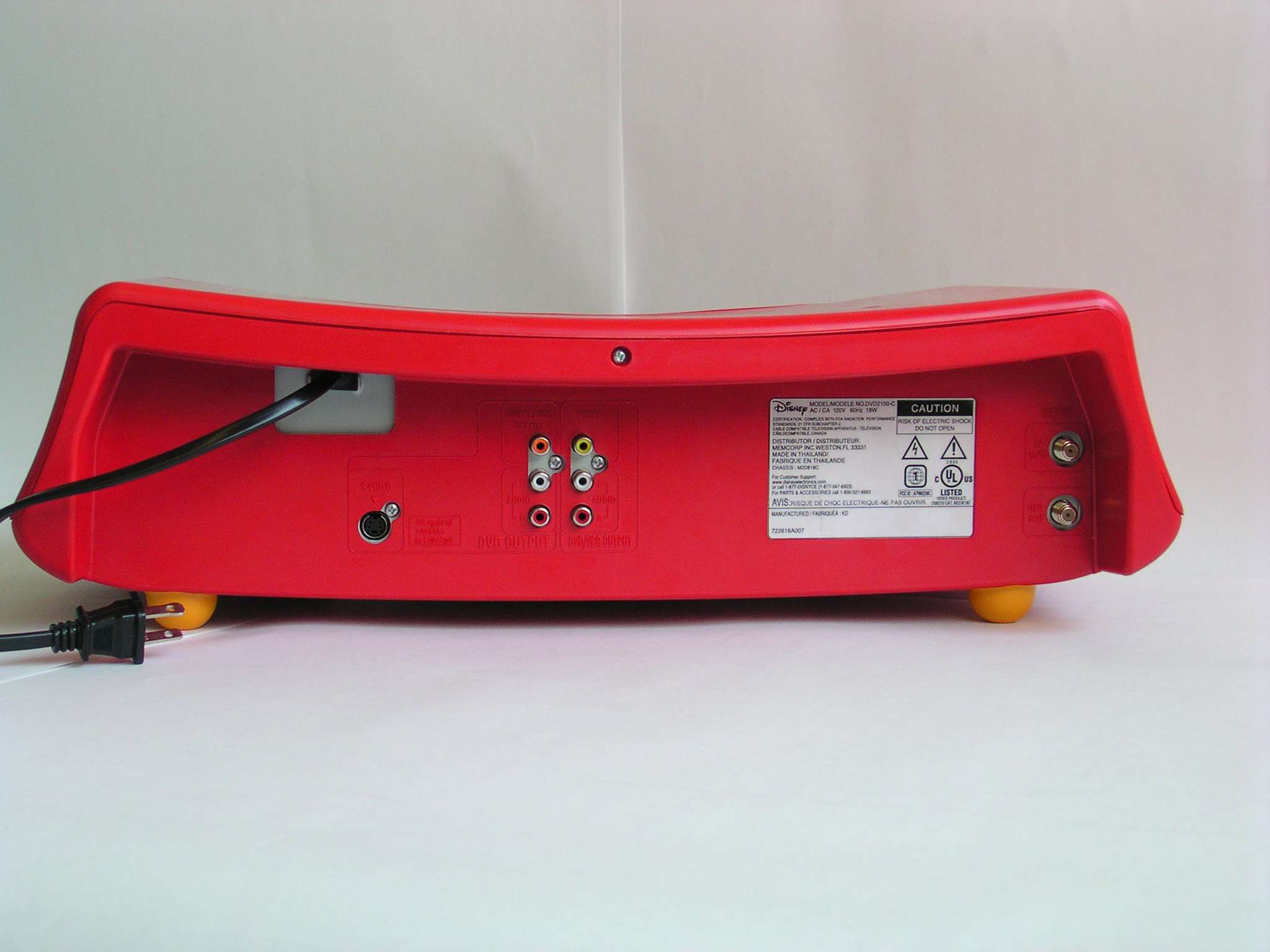

ATTACHMENT J-1 FCC ID: A7RM2D8C Page.1/2 FCC IDENTIFIER (§2.926) --- Labeling BACK VIEW FCC ID: A7RM2D8C Page.2/2 LABELING REQUIREMENT(§15.19) --- Molded BOTTOM VIEW

CIRCUIT DESCRIPTION 1/2 This device is combined a DVD player with a Video cassette recorder and operates with an AC commercial power supply.(AC120V, 60Hz) This device includes TV interface Device, Television Broadcast receiver, and Digital device of product category defined by FCC. The external connectors are equipped with RF Input/Output, Rear Audio( L/R) /Video Output, S-VHS Output, Coaxial Digital Audio Output and DVD Audio Output L/R. The circuit is composed by Power Supply Block, VCR Block, and DVD Block, if divided roughly. The explanation is as follows and the details are referred to Block Diagram. Power Supply Block: Use the switching regulator circuit and provide the power supply to each circuit. VCR Block: The circuit of this block is composed by Tuner/Modulator, Luminance and Chrominance/Audio/CCD/Head Amp, System/Timer/Servo, HIFI Demodulator, Operation , Motor Drive and so on. RF Modulator output is output in US 3ch or 4ch and Emission frequency is as Follows: Emission Frequency; US 3ch Video carrier: 61.25MHz Audio carrier: 65.75MHz US 4ch Video carrier: 67.25MHz Audio carrier: 71.75MHz The oscillating frequencies that is used this block are the follows: 10MHz----VCR System Control IC Clock 3.579545MHz---Luminance and Chrominance IC Clock DVD Block: The circuit of this block is composed by DVD Loader, Motor Drive, RF Amp/ DSP, MPEG Decoder/Encoder/Microprocessor/DSP, Memory, Stereo DAC and so on. 2/2 The oscillating frequencies that is used this block are the follows: 135MHz--- SD-RAM Clock (RAMCLK) 27MHz--- MPEG Master Clock (GCLK) 18.4327MHz--- Audio Master Clock (AMCLK) 3.072MHz---Audio bit Clock (ABCLK) 48kHz---Audio L/R Clock (LRCLK)

Test report No. : 24KE0255-YW-1 Page : 2 of 80 Date of issue : July 5, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Contents Page Section 1 : Client information 3 Section 2 : Equipment under test (E.U.T.) 3 Section 3 : Test specification, procedures & results 4 Section 4 : Operation of E.U.T. during tests 6 Section 5 : Conducted emission 7 Section 6 : Radiated emission 9 Section 7 : Antenna terminal voltage 12 Section 8 : RF output level / spurious emission 13 Section 9 : Antenna transfer switch 14 Section 10 : Picture sensitivity 15 Section 11 : Noise figure 16 Contents of Appendixes 17 Appendix 1 : Photographs of test set up 18 Appendix 2 : Data of EMI tests 25 Appendix 3: Test instruments 80 Test report No. : 24KE0255-YW-1 Page : 3 of 80 Date of issue : July 5, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 1 : Client information Company name : Orion Electric Co., Ltd. Address : 41-1 Iehisa-cho, Takefu-shi, Fukui-ken, 915-8555 JAPAN Telephone number : +81 778 23 0019 Facsimile number : +81 778 23 7799 Contact person : Hiroshi Tsujimoto Section 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipment : DVD/VCR Brand Name : Disney Model number : DVD2100-C Rating : AC 120 V / 60 Hz Manufacturer : 1. World Electric (Thailand) Ltd. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. Korat Denki Ltd. 149 Moo 10 Tambol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 228 Moo 3 Tambol Nongbuasala, Amphur Muang, Nakhonratchasima 30000, Thailand 3. Orion America, Inc. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Receipt Date of Sample : June 18, 2004 Condition of EUT : Production Prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product description Model: DVD2100-C (referred to as the EUT in this report) is a DVD/VCR. The EUT specifications is as follows. Tuner type : Quartz PLL frequency synthesized I / F : 45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz, 18W I / O terminal (Video) : RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio) : RCA in –8 dB 47 k ohm, RCA out –8 dB 1 k ohm 2.3 Similar apparatus There are similar apparatuses as follows; DVD2100-P Test report No. : 24KE0255-YW-1 Page : 4 of 80 Date of issue : July 5, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 3 : Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart B Title : FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators Test Specification : ICES-003 Issue No. 4 Title : Spectrum Management Interference-Causing Equipment Standard Digital Apparatus *ICES-003 (Issue No. 4) is based on FCC Part 15. 3.2 Procedures & results Item Test procedure Limits Worst margin Result Conducted emission ANSI C63.4:2001 IEEE 213:1987 CISPR 22 18.6 dB (0.1500 MHz, L1, VCR Playback) Complied Radiated emission ANSI C63.4:2001 IEEE 187:1990 30–88 MH: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 7.1 dB (945.00 MHz, Vertical, VCR Playback/ 270.00 MHz, Horizontal, DVD Play) Complied Antenna terminal voltage ANSI C63.4:2001 2 nW (at 75 ohm) 25.2 dB (627.71040 MHz, CATV Tuning) Complied RF output level Video signal: 3000 uV Aural signal: 671 uV 5.0 dB (67.25 MHz, VCR Playback) Complied Spurious emission ANSI C63.4:2001 94.8 uV 22.2 dB (331.4200 MHz, 3ch: TV Reception + Rec. 25dBmV) Complied Transfer switch ANSI C63.4:2001 9.5 dB 7.0 dB (269.0000 MHz, VCR Playback: 4ch) Complied Picture sensitivity ANSI C63.4:2001 8 dB 3.5 dB Complied Noise figure FCC/OET MP:2:1986 14 dB 6.7 dB (615.25 MHz, 38ch) Complied For ICES-003, only the tests, which relate to the digital device of conducted emission and radiated emission, were performed. 3.3 Additions or deviations to standard No addition, deviation or exclusion has been made from standards. 3.4 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tests, complies with the specifications FCC Part15 Subpart B and ICES-003 Issue No. 4. Test report No. : 24KE0255-YW-1 Page : 5 of 80 Date of issue : July 5, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 3.5 Uncertainty Conducted emission (150 kHz – 30 MHz) The measurement uncertainty (with a 95% confidence level) for this test was ± 1.74 dB. The data listed in this test report has enough margin, more than site margin. Radiated emission The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.4 dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±4.8 dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±5.8 dB. The data listed in this test report has enough margin, more than site margin. Antenna terminal voltage The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report has enough margin, more than site margin. RF output level test / spurious emission test The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report has enough margin, more than site margin. Antenna transfer switch The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report has enough margin, more than site margin. Picture sensitivity test The measurement uncertainty (with a 95% confidence level) for this test was ± 1.0 dB. Th…

Text truncated - open the document above for the full version.

Test report No. : 24KE0255-YW-1 Page : 18 of 80 Date of issue : July 5, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Conducted emission Test report No. : 24KE0255-YW-1 Page : 19 of 80 Date of issue : July 5, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Radiated emission Test report No. : 24KE0255-YW-1 Page : 20 of 80 Date of issue : July 5, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Antenna terminal voltage Test report No. : 24KE0255-YW-1 Page : 21 of 80 Date of issue : July 5, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 RF output level / spurious emission Test report No. : 24KE0255-YW-1 Page : 22 of 80 Date of issue : July 5, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Antenna transfer switch Test report No. : 24KE0255-YW-1 Page : 23 of 80 Date of issue : July 5, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Picture sensitivity Test report No. : 24KE0255-YW-1 Page : 24 of 80 Date of issue : July 5, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Noise figure
