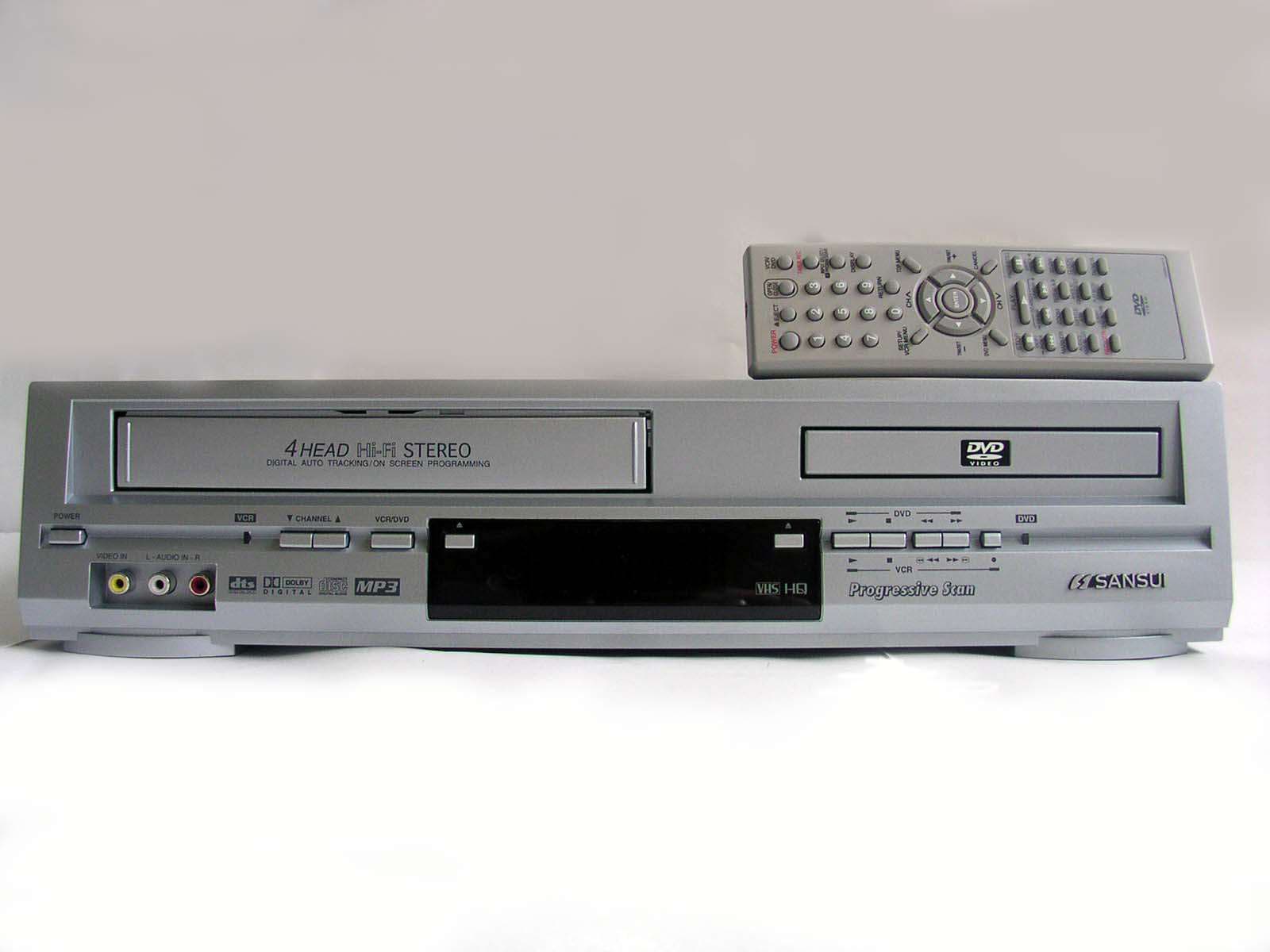

A7RM2E5ADVD/VCR TV Interface Device

R DVD PLAYER/Hi-Fi VIDEO CASSETTE RECORDER OWNER'S MANUAL Before operating the unit, please read this manual thoroughly. ATTENTION If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code. TV/CABLE MODE SELECTION When shipped from the factory, the TV/CABLE menu option is set to the "CABLE" (Cable Television) mode. If not using CABLE (Cable TV), set this menu option to the "TV" mode. ORION WEBSITE FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT WWW.ORIONSALESINC.COM VRDVD4001AC 2E50401A[E] Cover9/1/04, 10:051 2 WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCA- TION-SEE SERVICE PROCEDURE. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION:Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. 2E50401A[E](02-05)9/1/04, 10:052 3 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS All operating and use instructions should be followed. 5. CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning the exterior cabinet only. 6. ATTACHMENTS The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards. 7. WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 8. ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. 8A.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 9. VENTILATION Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and/or the manufacturer’s instructions have been adhered to. 10. POWER SOURCES This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions. 11. GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety pur…

Text truncated - open the document above for the full version.

ATTACHMENT J-1 FCC ID: A7RM2E5A FCC IDENTIFIER (§2.926) ＆ LABELING REQUIREMENT(§15.19) --- Labeling BACK VIEW

CIRCUIT DESCRIPTION 1/2 This device is combined a DVD player with a Video cassette recorder and operates with an AC commercial power supply.(AC120V, 60Hz) This device includes TV interface Device, Television Broadcast receiver, and Digital device of product category defined by FCC. The external connectors are equipped with Front Audio (L/R)/Video Input, RF input/Output, Rear Audio( L/R) /Video Output, Component Output, S-VHS Output, Coaxial Digital Audio Output, Optical Digital Audio Output and DVD Audio Output L/R. The circuit is composed by Power Supply Block, VCR Block, and DVD Block, if divided roughly. The explanation is as follows and the details are referred to Block Diagram. Power Supply Block: Use the switching regulator circuit and provide the power supply to each circuit. VCR Block: The circuit of this block is composed by Tuner/IF/Modulator, Luminance and Chrominance/Audio/CCD/Head Amp, System/Timer/Servo, HIFI Demodulator, Operation / Display, Motor Drive and so on. RF Modulator output is output in US 3ch or 4ch and Emission frequency is as Follows: Emission Frequency; US 3ch Video carrier: 61.25MHz Audio carrier: 65.75MHz US 4ch Video carrier: 67.25MHz Audio carrier: 71.75MHz The oscillating frequencies that is used this block are the follows: 10MHz----VCR System Control IC Clock 3.579545MHz---Luminance and Chrominance IC Clock DVD Block: The circuit of this block is composed by DVD Loader, Motor Drive, RF Amp/ DSP, MPEG Decoder/Encoder/Microprocessor/DSP, Memory, Stereo DAC and so on. 2/2 The oscillating frequencies that is used this block are the follows: 135MHz--- SD-RAM Clock (RAMCLK) 27MHz--- MPEG Master Clock (GCLK) 18.4327MHz--- Audio Master Clock (AMCLK) 3.072MHz---Audio bit Clock (ABCLK) 48kHz---Audio L/R Clock (LRCLK)

Test report No. : 25AE0230-YW-1 Page : 2 of 98 Date of issue : September 3, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Contents Page Section 1 : Client information 3 Section 2 : Equipment under test (E.U.T.) 3 Section 3 : Test specification, procedures & results 4 Section 4 : Operation of E.U.T. during tests 6 Section 5 : Conducted emission 7 Section 6 : Radiated emission 10 Section 7 : Antenna terminal voltage 13 Section 8 : RF output level / spurious emission 14 Section 9 : Antenna transfer switch 16 Section 10 : Picture sensitivity 17 Section 11 : Noise figure 18 Contents of Appendixes 19 Appendix 1 : Photographs of test set up 20 Appendix 2 : Data of EMI tests 27 Appendix 3: Test instruments 98 Test report No. : 25AE0230-YW-1 Page : 3 of 98 Date of issue : September 3, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 1 : Client information Company name : Orion Electric Co., Ltd. Address : 41-1 Iehisa-cho, Takefu-shi, Fukui-ken, 915-8555 JAPAN Telephone number : +81 778 23 0019 Facsimile number : +81 778 23 7799 Contact person : Hiroshi Tsujimoto Section 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipment : DVD/VCR Brand Name : SANSUI Model number : VRDVD4001AC FCC ID : A7RM2E5A Rating : AC 120 V / 60 Hz Manufacturer : 1. World Electric (Thailand) Ltd. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. Korat Denki Ltd. 149 Moo 10 Tambol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 228 Moo 3 Tambol Nongbuasala, Amphur Muang, Nakhonratchasima 30000, Thailand 3. Orion America, Inc. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Receipt Date of Sample : August 22, 2004 Condition of EUT : Production Prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product description Model: VRDVD4001AC (referred to as the EUT in this report) is a DVD/VCR. The EUT specifications is as follows. Tuner type : Quartz PLL frequency synthesized I / F : 45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz, 18W I / O terminal (Video) : RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio) : RCA in –8 dB 47 k ohm, RCA out –8 dB 1 k ohm Test report No. : 25AE0230-YW-1 Page : 4 of 98 Date of issue : September 3, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 3 : Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart B Title : FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators Test Specification : ICES-003 Issue No. 4 Title : Spectrum Management Interference-Causing Equipment Standard Digital Apparatus *ICES-003 (Issue No. 4) is based on FCC Part 15. 3.2 Procedures & results Item Test procedure Limits Worst margin Result Conducted emission ANSI C63.4:2003 IEEE 213:1987 CISPR 22 17.8 dB (0.1517 MHz, N/L1, AV Input + Rec. 1Vp-p / 0.1541 MHz, L1, AV Input + Rec. 5Vp-p) Complied Radiated emission ANSI C63.4:2003 IEEE 187:1990 30–88 MH: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 3.3 dB (945.00 MHz, Vertical, VCR Play) Complied Antenna terminal voltage ANSI C63.4:2003 2 nW (at 75 ohm) 28.3 dB (811.00450 MHz, CATV tuning) Complied RF output level Video signal: 3000 uV Aural signal: 671 uV 5.8 dB (61.25 MHz, 3ch, TV Reception + Rec. 25dBmV) Complied Spurious emission ANSI C63.4:2003 94.8 uV 15.9 dB (54.1100 MHz, 3ch, DVD Play) Complied Transfer switch ANSI C63.4:2003 9.5 dB 5.4 dB (134.5000 MHz, 4ch, DVD Play) Complied Picture sensitivity ANSI C63.4:2003 8 dB 4.3 dB Complied Noise figure FCC/OET MP:2:1986 14 dB 6.4 dB (55.25 MHz, 2ch) Complied For ICES-003, only the tests, which relate to the digital device of conducted emission and radiated emission, were performed. 3.3 Additions or deviations to standard No addition, deviation or exclusion has been made from standards. 3.4 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tests, complies with the specifications FCC Part15 Subpart B and ICES-003 Issue No. 4. Test report No. : 25AE0230-YW-1 Page : 5 of 98 Date of issue : September 3, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 3.5 Uncertainty Conducted emission (150 kHz – 30 MHz) The measurement uncertainty (with a 95% confidence level) for this test was ± 1.74 dB. The data listed in this test report has enough margin, more than site margin. Radiated emission The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.4 dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±4.8 dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±5.8 dB. The data listed in this test report meets the limits unless the uncertainty is taken into consideration. Antenna terminal voltage The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report has enough margin, more than site margin. RF output level test / spurious emission test The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report has enough margin, more than site margin. Antenna transfer switch The measurement uncertainty (with a 95% confidence level) for this test was ± 3.48 dB. The data listed in this test report has enough margin, more than site margin. Picture sensitivity test The measurement uncertainty (with a 95% confidence level) for this test was ± 1.0 d…

Text truncated - open the document above for the full version.

Test report No. : 25AE0230-YW-1 Page : 20 of 98 Date of issue : September 3, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Conducted emission Test report No. : 25AE0230-YW-1 Page : 21 of 98 Date of issue : September 3, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Radiated emission Test report No. : 25AE0230-YW-1 Page : 22 of 98 Date of issue : September 3, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Antenna terminal voltage Test report No. : 25AE0230-YW-1 Page : 23 of 98 Date of issue : September 3, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 RF output level / spurious emission Test report No. : 25AE0230-YW-1 Page : 24 of 98 Date of issue : September 3, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Antenna transfer switch Test report No. : 25AE0230-YW-1 Page : 25 of 98 Date of issue : September 3, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Picture sensitivity Test report No. : 25AE0230-YW-1 Page : 26 of 98 Date of issue : September 3, 2004 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Noise figure
