A7RM2F9ATV interface Device

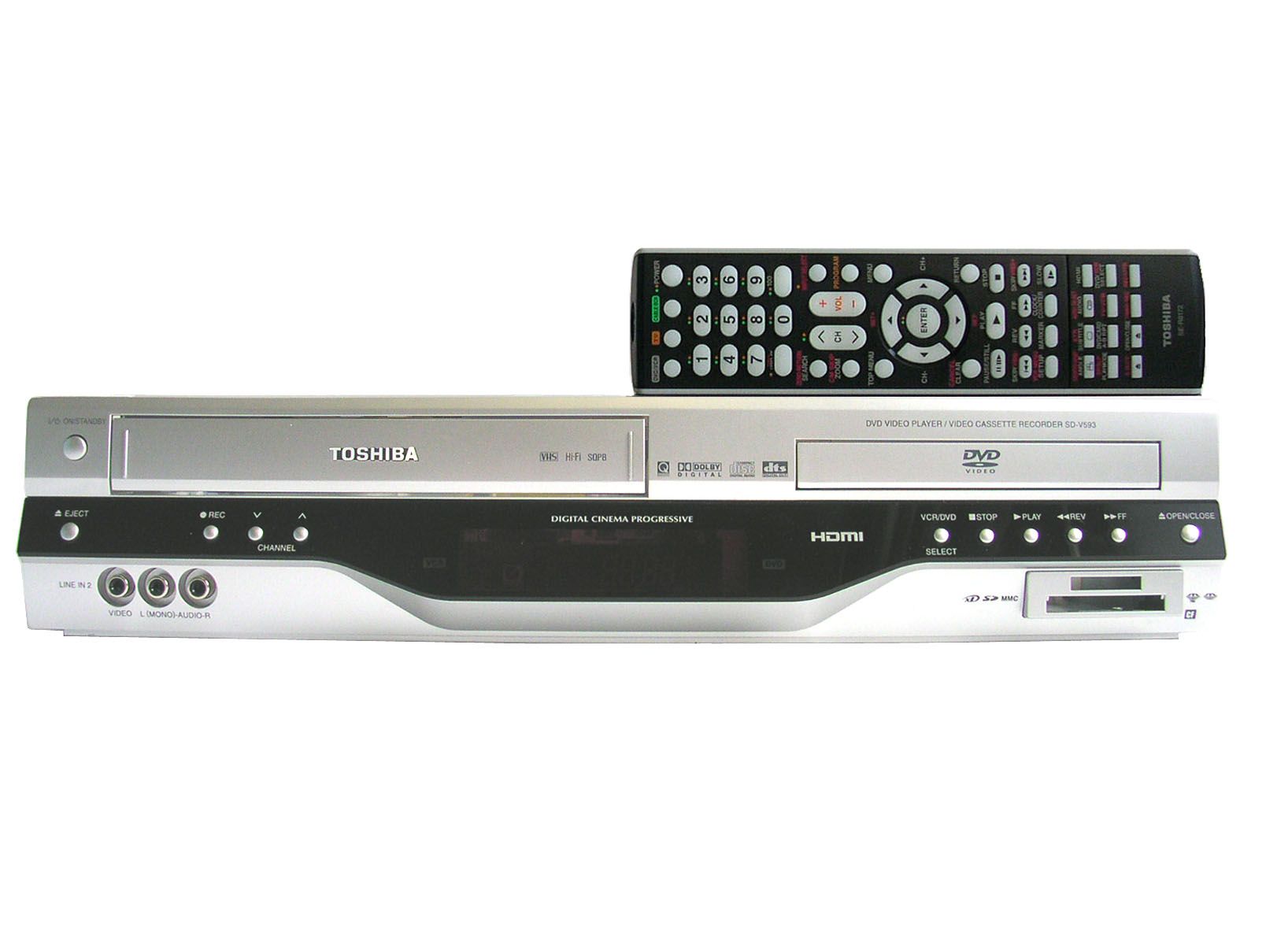

2 16 25 32 37 42 Introduction DIGITAL VIDEO 45 48 58 65 DVD VIDEO PLAYER & VIDEO CASSETTE RECORDER SD-V593SU OWNER’S MANUAL ©2005 Toshiba Corporation This device does not tape-record copy protected DVD Video Discs. Connections Basic setup Playback (VCR) Recording (VCR) Other functions (VCR) Basic playback (DVD) Advanced playback (DVD) Function setup (DVD) Others 2F90201A (E) COV4/4/05, 9:01 PM1 2 Introduction SAFETY PRECAUTIONS WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not expose this appliance to rain or moisture. CAUTION:TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. FCC NOTICE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION:Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. CAUTION:THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CARE- FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTE- NANCE, CONTACT AN AUTHORIZED SERVICE LOCATION. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION









   2F90201A (E)p02-154/4/05, 9:01 PM2 3 Introduction 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS All operating and use instructions should be followed. 5. CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft dry cloth for cleaning the exterior cabinet only. 6. ATTACHMENTS The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards. 7. WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 8. ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. 8A.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 9. VENTILATION Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and/or the manufacturer’s instructions have been adhered to. 10. POWER SOURCE This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. 11. GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug. 12. POWER-CORD PROTECTION Power-supply cords should be routed so that they are not likely to be walked on or pinched by…

Text truncated - open the document above for the full version.

31 Basic setup Repeat the step 1 on page 30. Then press SET + or – to select the “ADD/DELETE” and press ENTER. 1 To ADD/DELETE channels Press VCR MENU until the menu screen is cleared. 3 To Add or Delete desired channels 2



      1)PressDirect channel selection buttons (0–9) orSET +/– to select a channel number you want to add or delete. 2) To add channels PressENTER until “ADD” appears on the screen. To delete channels PressENTER until “DELETE” appears on the screen. The channel number will blink 3)Repeat1) to 2) to add or delete other channel. Noise elimination When you don't want to receive a weak signal broadcast, a Blue back screen can be obtained by selecting the NO NOISE BACK- GROUND “ON”. When the unit is shipped from the factory, the NO NOISE BACKGROUND is set to “ON”. Repeat the steps 1~2 on page 29 and press SET + or – to select “NO NOISE BACKGROUND”. 1 Press ENTER to select “ON” or “OFF” position. 2






   〈   〉 Press VCR MENU until the menu screen is cleared. 3 0–9 ENTER VCR MENU






   〈   〉 SET +/– 2F90201A (E)p29-344/4/05, 9:02 PM31 32 Playback (VCR) Loading and unloading a cassette tape Use only video cassette tapes marked . Loading Remove the erase prevention tab with a screwdriver. Cover the hole with a piece of adhesive tape. To record again Screwdriver Automatic tape eject This DVD/VCR will automatically rewind the tape when the tape has ended. Once the tape is rewound to its beginning, the cassette tape will be ejected automatically. Push the center of the tape until it is automatically inserted. Insert the cassette tape with its labeled side facing up and the erase prevention tab positioned at your left. An inverted cassette tape cannot be inserted. Automatic playback When loading a cassette tape without an erase prevention tab, playback will start automatically. Automatic power ON When you insert a cassette tape the DVD/VCR power will turn ON automatically. 2 Erase prevention tab Adhesive tape Remove the cassette tape. Erase prevention tab Unloading To prevent accidental erasure To prevent accidental erasure Tape speed and maximum recording time Video cassette tape Tape Speed SLP (Super Long Play) T-160T-120T-90T-60T-30 2-2/3 hours2 hours1-1/2 hours1 hour30 minutes 8 hours6 hours4-1/2 hours3 hours1-1/2 hours SP (Standard Play) EJECT or PressEJECT on the front panel or on the remote. 1 2F90201A (E)p29-344/4/05, 9:02 PM32 33 Playback (VCR) Cassette tape playback To play a prerecorded tape. Load a prerecorded tape (When loading a cassette tape without the erase prevention tab, playback will start automatically). Preparation: • Turn ON the TV and select the corresponding video input. • PressDVD/VCR to operate the DVD/VCR. • PressDVD/VCR SELECT to select the VCR mode. (The VCR indicator will light). 1 PressPLAY. Playback will start. “ ” will appear on the screen for about 4 seconds. PressSTOP once. The tape will stop but remain fully loaded and ready to play. “ ” will appear on the screen for about 4 seconds. To stop playback Stop the playback or recording via STOPon remote. To discontinue the tape-winding, press STOP. To switch to playback directly (without STOP), press PLAY. Notes: • This VCR selects the playback tape speed SP, LP or SLP au- tomatically. • The Cassette tape and DVD disc can be played back simulta- neously. If you press DVD/VCR SELECT, the tape playback and DVD playback alternate with each other on the screen (via CH3, 4 or video connection). 2 To start playback PlaybackRewind or forward the tape To rewind the tape: PressREV. To forward the tape: Press FF. Forward/Reverse picture search mode When the tape is being winded, you can switch to picture search mode (see next page). To do this, press REVor FFand hold it down. The unit will resume the tape advance or rewinding as soon as the button is released. PLAY STOP FF REV DVD/VCR DVD/VCR SELECT 2F90201A (E)p29-344/4/05, 9:02 PM33 34 Playback (VCR) Special playback Picture search Reverse picture search function PressREV once or twice during playback. Forward picture search function PressFF once or twice during playback. To return to playback, press PLAY. PressPAUSE/STILL during playback. To resume normal playback, press PLAY or PAUSE/STILL. During playback press SLOW. To return to playback, press PLAY or SLOW. Whenever you insert a tape and start playback, the automatic tracking feature continuously analyzes the signal to enable optimum picture quality during playback. PressPAUSE/STILL during playback. PressSLOWrepeatedly: The picture advances frame by frame. To return to playback, press PLAY or PAUSE/STILL. Slow tracking and vertical lock adjustment If noise bars appear in the picture during slow motion, press the SET + /– to reduce the noise bars. If the still picture jitters excessively, press SET +/–to stabilize the still picture. Automatic tracking adjustment If automatic tracking cannot eliminate noises well during playback, press SET +/–to eliminate the noise. “MANUAL TR.” will appear on the screen. Press it briefly for a fine adjustment, or press and hold for a coarse adjustment. Manual tracking adjustment SPEED SEARCH TIMES Adjusting tracking condition Still picture Slow motion Frame by frame picture Notes: • The audio output is muted duringPICTURE SEARCH, STILL, FRAME ADVANCE and SLOW MOTION. • During picture search mode there will be noise bars. This is not a defect. • Playback will commence after approx. 5 minutes to protect the video tape against excessive wear during pause mode. PressAT R to reactivate automatic tracking again. “AUTO TR.” will appear on the screen.
 PICTURE SEARCH SPEED PRESS TWICE TAPE SPEED PRESS ONCE SP (Standard Play) LP (Long Play) SLP (Super Long Play) 5 X 9 X 15 X 3 X 7 X 9 X REV PLAY FF SLOW AT R P…

Text truncated - open the document above for the full version.

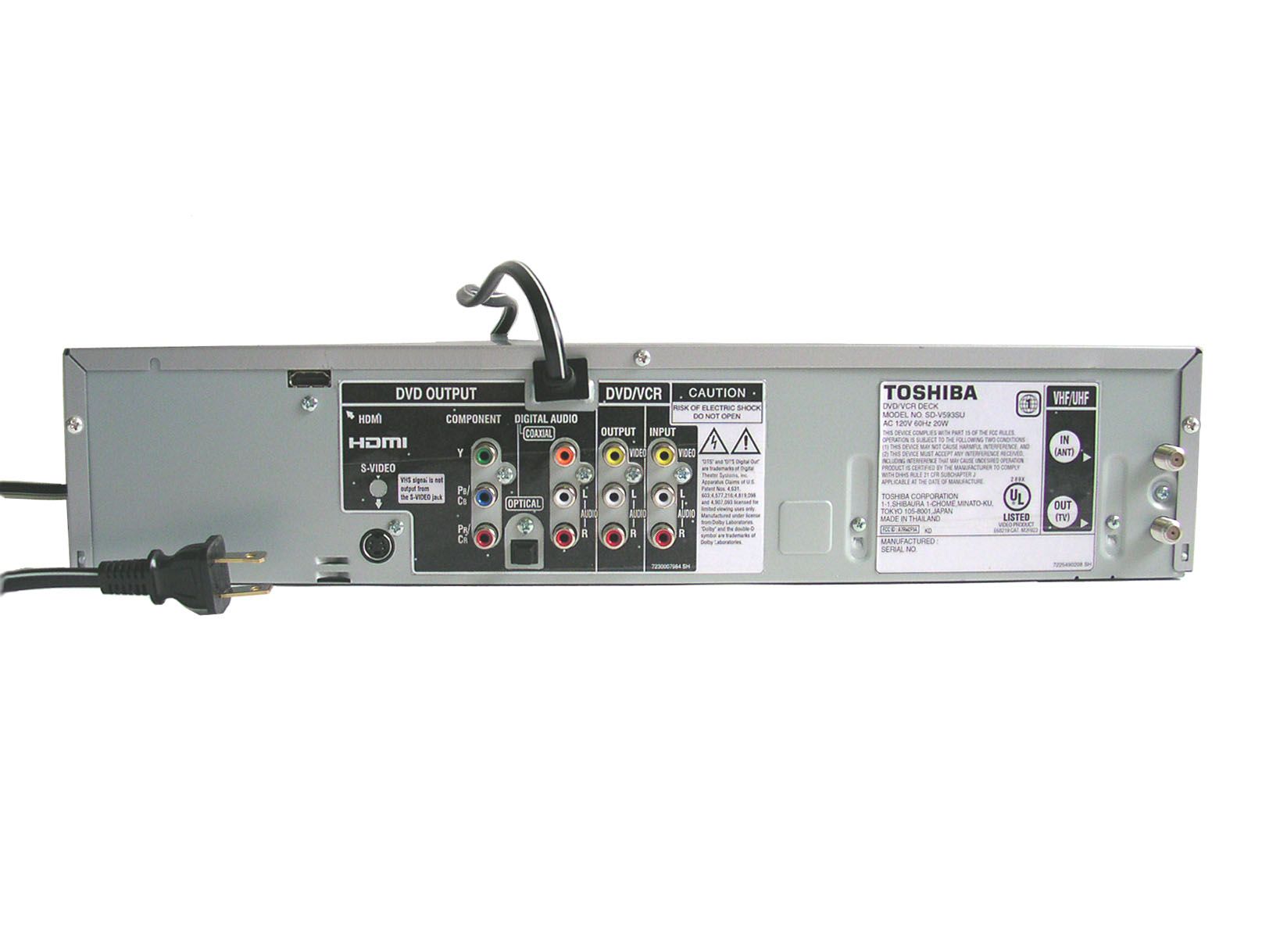

ATTACHMENT J-1 FCC ID: A7RM2F9A FCC IDENTIFIER (§2.926)  LABELING REQUIREMENT(§15.19) --- Labeling BACK VIEW

Test report No. : 25IE0134-YW-1 Page : 1 of 144 Date of issue : April 19, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Certification EMI TEST REPORT Test Report No. : 25IE0134-YW-1 Applicant : Orion Electric Co., Ltd. Type of equipment : DVD Player with Video Cassette Recorder Model number : SD-V593SU FCC ID : A7RM2F9A Test standard : FCC Part 15 Subpart B ICES-003 Issue No.4 Class B Test result : Complied Similar model : Model No. Brand name Model No. Brand name SD-V593SC TOSHIBA - - - - - - - - - - - - - - - - - - 1. This test report shall not be reproduced except in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this test report are traceable to the national or international standards. 5. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. Date of test : March 31 to April 14, 2005 Tested by: Tsubasa Takayama Tomoyuki Yamashita Engineer of EMC Service Engineer of EMC Service Approved by: Hiroya Tabata Leader of EMC Service Test report No. : 25IE0134-YW-1 Page : 2 of 144 Date of issue : April 19, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Contents Page Section 1 : Client information 3 Section 2 : Equipment under test (E.U.T.) 3 Section 3 : Test specification, procedures & results 4 Section 4 : Operation of E.U.T. during tests 6 Section 5 : Conducted emission 7 Section 6 : Radiated emission 10 Section 7 : Antenna terminal voltage 13 Section 8 : RF output level / spurious emission 14 Section 9 : Antenna transfer switch 16 Section 10 : Picture sensitivity 17 Section 11 : Noise figure 18 Contents of Appendixes 19 Appendix 1 : Photographs of test set up 20 Appendix 2 : Data of EMI tests 27 Appendix 3: Test instruments 144 Test report No. : 25IE0134-YW-1 Page : 3 of 144 Date of issue : April 19, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 1 : Client information Company name : Orion Electric Co., Ltd. Address : 41-1 Iehisa-cho, Takefu-shi, Fukui-ken, 915-8555 JAPAN Telephone number : +81 778 23 0019 Facsimile number : +81 778 23 7799 Contact person : Yoshimasa Tanikawa Section 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipment : DVD Player with Video Cassette Recorder Brand Name : TOSHIBA Model number : SD-V593SU FCC ID : A7RM2F9A Rating : AC 120 V / 60 Hz Manufacturer : 1. World Electric (Thailand) Ltd. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. Korat Denki Ltd. 149 Moo 10 Tambol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 228 Moo 3 Tambol Nongbuasala, Amphur Muang, Nakhonratchasima 30000, Thailand 3. Orion America, Inc. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Receipt Date of Sample : March 31, 2005 Condition of EUT : Production Prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product description Model: SD-V593SU (referred to as the EUT in this report) is a DVD Player with Video Cassette Recorder. The EUT specifications is as follows. Tuner type : Quartz PLL frequency synthesized I / F : 45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz, 20W I / O terminal (Video) : RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio) : RCA in –8 dB 47 k ohm, RCA out –8 dB 1 k ohm Test report No. : 25IE0134-YW-1 Page : 4 of 144 Date of issue : April 19, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 3 : Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart B Title : FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators Test Specification : ICES-003 Issue No. 4 Title : Spectrum Management Interference-Causing Equipment Standard Digital Apparatus *ICES-003 (Issue No. 4) is based on FCC Part 15. 3.2 Procedures & results Item Test procedure Limits Worst margin Result Conducted emission ANSI C63.4:2003 CISPR 22 7.1 dB (0.1670 MHz, N, AV, Card) Complied Radiated emission ANSI C63.4:2003 IEEE 187:1990 30–88 MH: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 1.0 dB (675.00 MHz, Vertical, VCR Play) Complied Antenna terminal voltage ANSI C63.4:2003 2 nW (at 75 ohm) 24.6 dB (629.71550 MHz, TV tuning / 628.00130 MHz, CATV tuning) Complied RF output level Video signal: 3000 uV Aural signal: 671 uV 3.8 dB (61.25 MHz, 3ch, AV Input 2 + Rec. 5Vp-p) Complied Spurious emission ANSI C63.4:2003 94.8 uV 22.2 dB (593.4000 MHz, AV Input 2 + Rec. 1Vp-p / 122.0000 MHz, DVD Play (HDMI) ; 3ch) Complied Transfer switch ANSI C63.4:2003 9.5 dB 6.0 dB (67.2500 MHz, AV Input 2 + Rec. 5Vp-p, 4ch) Complied Picture sensitivity ANSI C63.4:2003 8 dB 5.5 dB Complied Noise figure FCC/OET MP:2:1986 14 dB 7.1 dB (133.25 MHz, 16ch) Complied For ICES-003, only the tests, which relate to the digital device of conducted emission and radiated emission, were performed. 3.3 Additions or deviations to standard No addition, deviation or exclusion has been made from standards. 3.4 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tests, complies with the specifications FCC Part15 Subpart B and ICES-003 Issue No. 4. Test report No. : 25IE0134-YW-1 Page : 5 of 144 Date of issue : April 19, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 F…

Text truncated - open the document above for the full version.

DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE Report No.: 25IE0134-YW-1 Applicant : Orion Electric Co.,Ltd. Kind of Equipment : DVD/VCR Model No. : SD-V593SU Serial No. : - Power : AC120V/60Hz Mode : TV Reception+Rec Remarks : 0dBmV Date : 4/14/2005 Test Distance : 3 m Temperature : 27 °C Engineer : Tsubasa Takayama Humidity : 38 ％ Regulation : FCC Part15B CLASS B No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 675.00 BB 33.2 36.2 22.0 27.3 6.3 5.9 40.1 43.1 46.0 5.9 2.9 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. Except for the above table: adequate margin data below the limits. ANT.TYPE: 30-300MHz Biconical, 300-1000MHz Logperiodic Page: DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE Report No.: 25IE0134-YW-1 Applicant : Orion Electric Co.,Ltd. Kind of Equipment : DVD/VCR Model No. : SD-V593SU Serial No. : - Power : AC120V/60Hz Mode : TV Reception+Rec Remarks : 0dBmV Date : 4/14/2005 Test Distance : 3 m Temperature : 27 °C Engineer : Tsubasa Takayama Humidity : 38 ％ Regulation : FCC Part15B CLASS B Emission Level [dBμV/m] Frequency [MHz] □Horizontal×Vertical 0 10 20 30 40 50 60 70 80 90 100 30 100 500 1000 Page: DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE Report No.: 25IE0134-YW-1 Applicant : Orion Electric Co.,Ltd. Kind of Equipment : DVD/VCR Model No. : SD-V593SU Serial No. : - Power : AC120V/60Hz Mode: TV Reception+Rec Remarks : 25dBmV Date: 4/1/2005 Test Distance : 3 m Temperature : 27 °C Engineer : Tsubasa Takayama Humidity : 38 ％ Regulation : FCC Part15B CLASS B No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 72.01 BB 29.6 41.1 6.5 28.1 1.8 5.9 15.7 27.2 40.0 24.3 12.8 2. 202.50 BB 37.1 29.9 17.1 27.8 3.1 5.9 35.4 28.2 43.5 8.1 15.3 3. 243.00 BB 39.3 33.5 13.4 27.8 3.5 5.9 34.3 28.5 46.0 11.7 17.5 4. 253.12 BB 38.0 37.5 14.0 27.8 3.6 5.9 33.7 33.2 46.0 12.3 12.8 5. 297.00 BB 37.9 28.8 16.4 27.8 3.9 6.0 36.4 27.3 46.0 9.6 18.7 6. 324.00 BB 35.6 32.3 16.9 27.9 4.1 6.0 34.7 31.4 46.0 11.3 14.6 7. 388.12 BB 38.2 30.4 17.7 28.0 4.6 6.0 38.5 30.7 46.0 7.5 15.3 8. 405.00 BB 34.8 39.2 17.9 28.0 4.7 5.9 35.3 39.7 46.0 10.7 6.3 9. 486.01 BB 35.6 33.1 19.2 28.1 5.2 5.9 37.8 35.3 46.0 8.2 10.7 10. 513.00 BB 35.7 34.1 19.5 28.0 5.4 5.9 38.5 36.9 46.0 7.5 9.1 11. 567.00 BB 26.5 32.8 20.2 27.8 5.7 5.9 30.5 36.8 46.0 15.5 9.2 12. 675.00 BB 33.8 36.5 22.0 27.3 6.3 5.9 40.7 43.4 46.0 5.3 2.6 13. 756.00 BB 26.0 24.8 22.8 27.2 6.7 5.9 34.2 33.0 46.0 11.8 13.0 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. Except for the above table: adequate margin data below the limits. ANT.TYPE: 30-300MHz Biconical, 300-1000MHz Logperiodic Page: DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE Report No.: 25IE0134-YW-1 Applicant : Orion Electric Co.,Ltd. Kind of Equipment : DVD/VCR Model No. : SD-V593SU Serial No. : - Power : AC120V/60Hz Mode : TV Reception+Rec Remarks : 25dBmV Date: 4/1/2005 Test Distance : 3 m Temperature : 27 °C Engineer : Tsubasa Takayama Humidity : 38 ％ Regulation : FCC Part15B CLASS B Emission Level [dBμV/m] Frequency [MHz] □Horizontal×Vertical 0 10 20 30 40 50 60 70 80 90 100 30 100 500 1000 Page: DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE Report No.: 25IE0134-YW-1 Applicant : Orion Electric Co.,Ltd. Kind of Equipment : DVD/VCR Model No. : SD-V593SU Serial No. : - Power : AC120V/60Hz Mode : AV Input1+Rec Remarks : 1Vp-p Date : 4/14/2005 Test Distance : 3 m Temperature : 27 °C Engineer : Tsubasa Takayama Humidity : 38 ％ Regulation : FCC Part15B CLASS B No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 675.00 BB 31.1 33.8 22.0 27.3 6.3 5.9 38.0 40.7 46.0 8.0 5.3 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. Except for the above table: adequate margin data below the limits. ANT.TYPE: 30-300MHz Biconical, 300-1000MHz Logperiodic Page: DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE Report No.: 25IE0134-YW-1 Applicant : Orion Electric Co.,Ltd. Kind of Equipment : DVD/VCR Model No. : SD-V593SU Serial No. : - Power : AC120V/60Hz Mode : AV Input1+Rec Remarks : 1Vp-p Date : 4/14/2005 Test Distance : 3 m Temperature : 27 °C Engineer : Tsubasa Takayama Humidity : 38 ％ Regulation : FCC Part15B CLASS B Emission Level [dBμV/m] Frequency [MHz] □Horizontal×Vertical 0 10 20 30 40 50 60 70 80 90 100 30 100 500 1000 Page: DATA OF RADIATION TEST UL Apex Co., Ltd. YOKOWA No.3 OPEN TEST SITE Report No.: 25IE0134-YW-1 Applicant : Orion Electric Co.,Ltd. Kind of Equipment : DVD/VCR Model No. : SD-V593SU Serial No. : - Power : AC120V/60Hz Mode : AV Input1+Rec Remarks : 5Vp-p Date : 4/14/2005 Test Distance : 3 m Temperature : 27 °C Engineer : Tsubasa Takayama Humidity : 38 ％ Regulation : FCC Part15B CLASS B No. FREQ. ANT READING ANT AMP CA…

Text truncated - open the document above for the full version.

Test report No. : 25IE0134-YW-1 Page : 20 of 144 Date of issue : April 19, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Conducted emission Test report No. : 25IE0134-YW-1 Page : 21 of 144 Date of issue : April 19, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Radiated emission Test report No. : 25IE0134-YW-1 Page : 22 of 144 Date of issue : April 19, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Antenna terminal voltage Test report No. : 25IE0134-YW-1 Page : 23 of 144 Date of issue : April 19, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 RF output level / spurious emission Test report No. : 25IE0134-YW-1 Page : 24 of 144 Date of issue : April 19, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Antenna transfer switch Test report No. : 25IE0134-YW-1 Page : 25 of 144 Date of issue : April 19, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Picture sensitivity Test report No. : 25IE0134-YW-1 Page : 26 of 144 Date of issue : April 19, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Noise figure
