A7RM2G0BVCR/DVD TV Interface Device

Hi-Fi VCR & DVD VIDEO RECORDER D-VRW1SU OWNER’S MANUAL 2 23 33 48 52 61 Introduction Various settings Disc playback Tape playback Recording Editing the disc DIGITAL VIDEO ©2005 Toshiba Corporation 76 79 Dubbing Additional information This device does not tape-record copy protected DVD Video Discs. W1 2G00101A Cover3/1/05, 11:28 AM1 DRAFT Introduction 2 WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not expose this appliance to rain or moisture. CAUTION:TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. FCC NOTICE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION:Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. CAUTION:THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CARE- FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTE- NANCE, CONTACT AN AUTHORIZED SERVICE LOCATION. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLO- SURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. SAFTY PRECAUTIONS RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 2G00101A P02-P073/1/05, 11:28 AM2 Introduction 3 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS All operating and use instructions should be followed. 5. CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft dry cloth for cleaning the exterior cabinet only. 6. ATTACHMENTS The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards. 7. WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 8. ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. 8A.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 9. VENTILATION Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and/or the manufacturer’s instructions have been adhered to. 10. POWER SOURCE This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. 11. GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug. 12. POWER-CORD PROTECTION Power-supply cords should be routed so that they are not likely to be walked on or pinched by items place…

Text truncated - open the document above for the full version.

Disc playback 41 Changing soundtrack language / Subtitles / To turn off the PBC Audio 1/8 ENG Dolby Digital Audio 2/8 FRA Dolby Digital Subtitle OFF Subtitle 1/32 ENG Changing soundtrack language You can select the language when you play a multilingual disc. 1 PressAUDIO during playback. The current soundtrack language will appear. 2 PressAUDIO repeatedly until the desired language is selected. The on-screen display will disap- pear after a few seconds. Turning the subtitles On and Off When playing back a disc recorded with subtitles, you can turn the subtitles on or off. PressSUBTITLE during playback until “Subtitle OFF” appears. Changing the subtitles language You can select the language when playing back a disc recorded with multilingual subtitles. PressSUBTITLE repeatedly during playback until your desired language appears. The on screen display will disappear after a few seconds. NOTES: • If the desired language is not heard after pressing the button several times, the language is not recorded on the disc. • Changing soundtrack or subtitles language is cancelled when you open the disc tray. The initial default language or available language will be heard and seen if the disc is played back again. • Depending on the DVD you may be unable to turn on, turn off, or change the subtitles, even if they are re- corded on the disc. While playing the DVD, the subtitles may change while opening or closing the disc tray, or while changing the title. • In some cases, the subtitles lan- guage is not changed to the se- lected one immediately. Audio LRAudio LAudio R Audio 1/2 LRAudio 1/2 RAudio 1/2 L Audio 2/2 RAudio 2/2 LRAudio 2/2 L 33 33 3In case of VIDEO CD playback Audio type will change as follows each time you press AUDIO. VIDEO CD S-VCD To turn off the PBC PressTITLE MENU in the stop mode, then press ENTER. 2G00101A P40-P463/1/05, 11:29 AM41 Disc playback 42 Various operations on CD Preparation: • Turn ON the TV and set to the video input mode. • Load the music CD. • Press DVD to select the DVD mode. (The DVD indicator will light.) PressTOP MENU/TITLE MENU. The TRACK INFO screen will appear. This section describes the TRACK INFO screen where music CDs can be played back using the various operations. TRACK 02 TRACK 03 TRACK 04 TRACK 05 TRACK 06 TRACK 07 TRACK 08 TRACK 09 TRACK 10 TRACK 01 TRACK 01 00:00:19/00:03:54 00:00:19/00:45:28 MODE: NORMAL REPEAT: OFF TRACK INFO ENTER RETURNPLAYBACKEND SELECT SET TITLE MENU The elapsed time and total time of the music data (during playback) Scroll bar The elapsed time and total time of the whole CD Current playback mode The track number during playback The music data recorded on the CD Press. The menu list will appear. Playing back a selected track 1 Press or to select the track number you want to playback and press . 2 Press or to select “PLAY” from the menu list and press ENTER. The selected track will be played back. Excluding specified track 1 During stop, press or to select the track number you do not want to playback and press . 2 Press or to select “HIDE/SHOW” from the menu list and press ENTER. The selected track will not be played back. (“H” appears at the side of the track number.) When you want to cancel the exclusion, press or to select the track number with “H” and press . Press or to select “HIDE/SHOW” from the menu list and press ENTER, “HIDE” will be cancelled. NOTE: In case the disc includes more than 10 tracks, you can turn to the next or the previous page. Press , then press or to display next/previous page. To return to normal use, press . TRACK 02 TRACK 03 TRACK 04 TRACK 05 TRACK 06 TRACK 07 TRACK 08 TRACK 09 TRACK 10 TRACK 01 TRACK 01 00:00:19/00:03:54 00:00:19/00:45:28 Mode: NORMAL REPEAT: OFF TRACK INFO ENTER RETURNENTERBACKEND SELECT TITLE MENU SET PLAY HIDE/SHOW RANDOM PLAY REPEAT TRACK REPEAT ALL PROGRAM PLAYBACK TIME SEARCH PLAY Menu list 2G00101A P40-P463/1/05, 11:29 AM42 Disc playback 43 Various operations on CD NOTE: When recording on a CD-R/CD-RW in the MP3 or WMA modes, “RAN- DOM PLAY” and “TIME SEARCH” will not appear in the menu list. Random playback 1 Press or to select “RANDOM PLAY” from the menu list and pressENTER. The order of music tracks is randomly changed. 2 PressPLAY. Music is played back in random order. To cancel random playback, select “RANDOM PLAY” from the menu list again, and press ENTER. Repeat playback of selected track 1 Press or to select the track number you want to repeat play- back and press . 2 Press or to select “REPEAT TRACK” from the menu list and pressENTER. 3 PressPLAY. The selected track will be played back repeatedly. To cancel repeat track playback, select “REPEAT TRACK” from the menu list again, and press ENTER. Repeat playback of all tracks 1 Press or to select “REPEAT ALL” from the menu list and pressENTER. 2 PressPLAY. All tracks on CD will be played back repeatedly. To cancel the repeat all playback, select “REPEAT ALL” from the menu list again, and press ENTER. Playing back programs You can specify the playback order yourself. 1 Press or to select “PROGRAM PLAYBACK” from the menu list and press ENTER. 2 Press or to select to the track number that you want to change the order of and press ENTER. The “ ” mark will appear at the right side of the track number. 3 Press or to select to the track number that you want to specify and press ENTER. The track number that you select in step 2 moves to the position that you specified. 4 Repeat steps 2 and 3 to change the playback order. 5 PressPLAY. The tracks will be played back in the changed order. To cancel program playback, select “EXIT PROGRAM MODE” from the menu list and press ENTER. Playing back track by specifying the time 1 Press or to select “TIME SEARCH” from the menu list dur- ing playback and press ENTER. 2 Press/ or / to specify the elapsed time of the track (this will be the starting point of playback) and press ENTER. Playback will start from the specified elapsed time. 2G00101A P40-P463/1/05, 11:29 AM43 Disc playback 44 MP3/W…

Text truncated - open the document above for the full version.

Editing the disc 67 Editing a playlist Erasing a playlist You can erase the created playlist. Even if you erase the playlist, the original title will not be erased. 1 PressTITLE MENU to display the title menu. 2 Select the playlist that you want to erase. • Press or to select the playlist. • Press to display the editing menu of the playlist. • Press or to select “DELETE TITLE”. ENTER RETURNENTERBACK SET END SELECT TITLE MENU DISC NAME: - - - - 11/23/2005 08:41AM 006 SLP 11/25/2005 10:03PM 011 SP 11/29/2005 11:30AM 009 SP 12/01/2005 06:52PM 006 XP Family REC DATE :11/23/2005 TIME:08:41AM LENGTH:00:30:17 CHANNEL :006 REC MODE :SLP TITLE MENU PLAY EDIT TITLE DELETE PROGRAM RENAME TITLE TITLE COMBINE DELETE TITLE 3 PressENTER. The selected playlist will be erased. ENTER RETURNPLAYBACK SET END SELECT TITLE MENU DISC NAME: - - - - 11/23/2005 08:41AM 006 SLP 11/25/2005 10:03PM 011 SP 11/29/2005 11:30AM 009 SP 12/01/2005 06:52PM 006 XP REC DATE :12/01/2005 TIME:06:52PM LENGTH:00:30:07 CHANNEL :006 REC MODE :XP TITLE MENU 2G00101A P61-P693/1/05, 11:30 AM67 Editing the disc 68 Editing an original title In VR mode, you can edit various items, whereas in Video mode, you can edit the title names only. NOTES: • You can automatically add a chap- ter mark in recording. For more in- formation, see page 31. • In case the disc includes more than 10 titles, you can turn to the next or the previous page. (See page 34.) Preparation: • Turn ON the TV and set to the video input mode. • Load the recorded disc. • Press DVDto select the DVD mode. (The DVD indicator will light.) Adding a chapter mark You can add a chapter mark to the original title. You can add up to 999 chapter marks to one disc. 1 PressTITLE MENU to display the title menu. 2 Select the original title where a chapter mark is added. • Press or to select the original title. • Press to display the editing menu of the original title. • Press or to select “ADD CHAPTER MARK”. ENTER RETURNENTERBACK SET END SELECT TITLE MENU DISC NAME: - - - - 11/23/2005 08:41AM 006 SLP 11/25/2005 10:03PM 011 SP 11/29/2005 11:30AM 009 SP 12/01/2005 06:52PM 006 XP Family REC DATE :11/23/2005 TIME:08:41AM LENGTH:00:30:17 CHANNEL :06 REC MODE :EP PLAY COMBINE CHAPTERS EDIT TITLE DELETE TITLE RENAME TITLE NEW PLAYLIST ADD CHAPTER MARK TITLE MENU 3 PressENTER. The ADD CHAPTER MARK screen will appear. ENTER RETURNENTERBACKEND TITLE MENU ADD CHAPTER MARK NAME11/25/2003 08:41 AM CHAPTER1/3 LENGTH00:00:00/00:30:17 4 PressPLAY to search a scene where you want to add the chapter mark. • Search the scene by using each operation button (F.FWD,REW, SKIP +,SKIP -,PAUSE/STILL,SLOW,INSTANT SKIP) for the playback. ENTER RETURNENTERBACKEND TITLE MENU ADD CHAPTER MARK NAME11/25/2003 08:41 AM CHAPTER1/3 LENGTH00:02:03/00:30:17 7% 2G00101A P61-P693/1/05, 11:30 AM68 Editing the disc 69 Editing an original title 5 When the scene you want to add a chapter mark, press ENTER. The playback is paused and the position of the added chapter mark appears green. ADD CHAPTER MARK 17% NAME11/25/2003 08:41 AM CHAPTER2/4 LENGTH00:03:08/00:30:17 The added chapter mark 6 If you want to continue to add chapter mark, repeat step 5. 7 Adding chapter marks is finished. • To display the title menu, press RETURN. • To return to the normal screen, press TITLE MENU. Combining chapters By erasing the added chapter marks, the chapters can be combined. 1 PressTITLE MENU to display the title menu. 2 Select the original titles where you want to combine the chapters. • Press or to select the original title. • Press to display the editing menu of original title. • Press or to select “COMBINE CHAPTERS”. ENTER RETURNENTERBACK SET END SELECT TITLE MENU DISC NAME: - - - - 11/23/2005 08:41AM 006 SLP 11/25/2005 10:03PM 011 SP 11/29/2005 11:30AM 009 SP 12/01/2005 06:52PM 006 XP Family REC DATE :11/23/2005 TIME:08:41AM LENGTH:00:30:17 CHANNEL :06 REC MODE :EP PLAY COMBINE CHAPTERS EDIT TITLE DELETE TITLE RENAME TITLE NEW PLAYLIST ADD CHAPTER MARK TITLE MENU 3 PressENTER. The COMBINE CHAPTERS screen will appear. At the beginning, the top still image in the chapter 2 is displayed. NOTE: Chapter marks that have been added automatically in the erasing of a scene procedure (page 71) cannot be erased. 2G00101A P61-P693/1/05, 11:30 AM69 Editing the disc 70 4 PressSKIP + or SKIP - to select the chapter marks to be erased. 5 PressENTER. The chapter marks are erased and 2 chapters are combined into 1 chapter. 6 To continue erasing the chapter marks, repeat steps 4 and 5. 7 The combining chapters will completed. • To display the title menu, press RETURN. • To return to the normal screen, press TITLE MENU. Changing an original title name 1 PressTITLE MENU to display the title menu. 2 Select the original title that you want to rename. • Press or to select the original title. • Press to display the editing menu of original title. • Press or to select “RENAME TITLE”. Editing an original title SELECT ENTER RETURNENTERBACKEND TITLE MENU COMBINE CHAPTERS NAME11/25/2003 10:03 PM CHAPTER2/4 LENGTH00:02:03/00:30:17 ENTER RETURNENTERBACK SET END SELECT TITLE MENU DISC NAME: - - - - 11/23/2005 08:41AM 006 SLP 11/25/2005 10:03PM 011 SP 11/29/2005 11:30AM 009 SP 12/01/2005 06:52PM 006 XP Family REC DATE :11/23/2005 TIME:08:41AM LENGTH:00:30:17 CHANNEL :06 REC MODE :EP TITLE MENU PLAY ADD CHAPTER MARK COMBINE CHAPTERS EDIT TITLE DELETE TITLE RENAME TITLE NEW PLAYLIST RENAME TITLE 3 PressENTER. The keyboard screen will appear. The entering method of the title name is the same as for the playlist. See the steps 4 and 5 of “Changing a title name” in “Editing a playlist” (page 63) and enter the title name. NOTE: The title name can be a maximum of 64 characters in VR mode and a maximum of 30 characters in Video mode. Long names will be shortened in the title menu. 2G00101A P70-P783/1/05, 11:30 AM70 Editing the disc 71 Editing an original title NOTES: • If the scene is erased from the original title, the created playlist is erased. • Disc space will only be freed u…

Text truncated - open the document above for the full version.

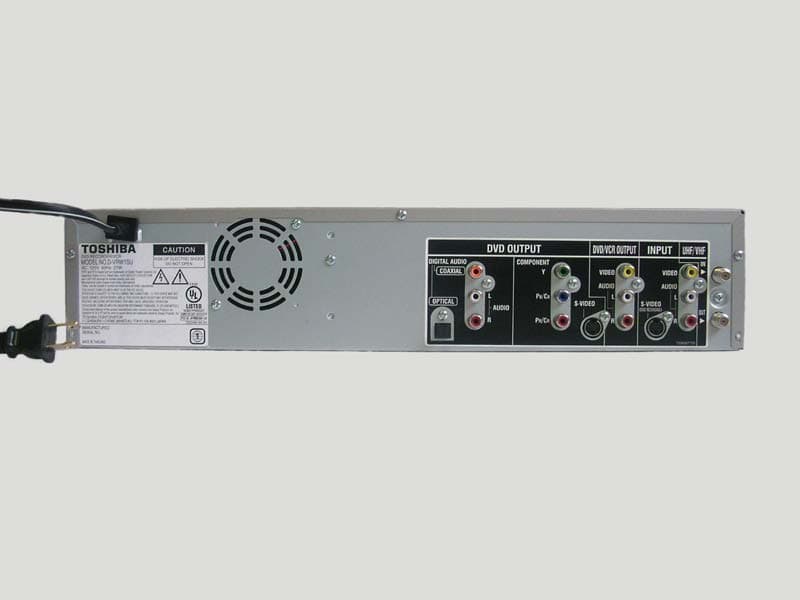

ATTACHMENT J-1 FCC ID: A7RM2G0B FCC IDENTIFIER (§2.926) ＆ LABELING REQUIREMENT(§15.19) --- Labeling BACK VIEW

CIRCUIT DESCRIPTION 1/2 This device is combined a DVD Recorder with a Video cassette recorder and operates with an AC commercial power supply.(AC120V, 60Hz) This device includes TV interface Device, Television Broadcast receiver, and Digital device of product category defined by FCC. The external connectors are equipped with Front Audio (L/R)/Video Input, Front S-VHS Input, RF input/Output, Rear Audio (L/R)/Video Input, Rear S-VHS Input, Rear Audio(L/R) /Video Output, Rear S-VHS Output, Component Output, Digital Audio coaxial Output, Audio Output(L/R), Optical Digital Audio Output . The circuit is composed by Power Supply Block, VCR Block, and DVD Recorder Block, if divided roughly. The explanation is as follows and the details are referred to Block Diagram. Power Supply Block: Use the switching regulator circuit and provide the power supply to each circuit. VCR Block: The circuit of this block is composed by Tuner/IF/Modulator, Luminance and Chrominance/Audio/CCD/Head Amp, System/Timer/Servo, HIFI Demodulator, Operation / Display, Motor Drive and so on. RF Modulator output is output in US 3ch or 4ch and Emission frequency is as Follows: Emission Frequency; US 3ch Video carrier: 61.25MHz Audio carrier: 65.75MHz US 4ch Video carrier: 67.25MHz Audio carrier: 71.75MHz The oscillating frequencies that is used this block are the follows: 14.318MHz-----On Screen Display reference Clock 10MHz----VCR System Control IC Clock 32.768KHz--- Clock reference 3.579545MHz---Luminance and Chrominance IC Clock DVD Recorder Block: The circuit of this block is composed by AV Encoder, MPEG, Memory, ATAPI, Audio and so on. (2/2) This block includes a control device for the reading , writing and rewriting of Disc, a signal processing part, Decoder/Encoder parts and a control part. The oscillating frequencies that is used this block are the follows: 135MHz--- SD-RAM Clock (RAMCLK) 27MHz--- MPEG Master Clock (GCLK) 18.4327MHz--- Audio Master Clock (AMCLK) 3.072MHz---Audio bit Clock (ABCLK) 48kHz---Audio L/R Clock (ALRCLK) 81MHz----Master Clock(MCLK) 27MHz---Video Clock(VIDCLK) 27MHz---Serial Bit Clock(SBCLK)

Test report No. : 25GE0229-YW-1 Page : 1 of 135 Date of issue : March 9, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Certification EMI TEST REPORT Test Report No. : 25GE0229-YW-1 Applicant : Orion Electric Co., Ltd. Type of equipment : DVD Recorder with Video Cassette Recorder Model number : D-VRW1SU FCC ID : A7RM2G0B Test standard : FCC Part 15 Subpart B ICES-003 Issue No.4 Class B Test result : Complied Similar model : Model No. Brand name Model No. Brand name D-VRW1SC TOSHIBA - - - - - - - - - - - - - - - - - - 1. This test report shall not be reproduced except in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this test report are traceable to the national or international standards. 5. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. Date of test : February 25 to March 3, 2005 Tested by: Tsubasa Takayama Engineer of EMC Service Approved by: Hiroya Tabata Leader of EMC Service Test report No. : 25GE0229-YW-1 Page : 2 of 135 Date of issue : March 9, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Contents Page Section 1 : Client information 3 Section 2 : Equipment under test (E.U.T.) 3 Section 3 : Test specification, procedures & results 4 Section 4 : Operation of E.U.T. during tests 6 Section 5 : Conducted emission 7 Section 6 : Radiated emission 10 Section 7 : Antenna terminal voltage 13 Section 8 : RF output level / spurious emission 14 Section 9 : Antenna transfer switch 16 Section 10 : Picture sensitivity 17 Section 11 : Noise figure 18 Contents of Appendixes 19 Appendix 1 : Photographs of test set up 20 Appendix 2 : Data of EMI tests 27 Appendix 3: Test instruments 135 Test report No. : 25GE0229-YW-1 Page : 3 of 135 Date of issue : March 9, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 1 : Client information Company name : Orion Electric Co., Ltd. Address : 41-1 Iehisa-cho, Takefu-shi, Fukui-ken, 915-8555 JAPAN Telephone number : +81 778 23 0019 Facsimile number : +81 778 23 7799 Contact person : Hiroshi Tsujimoto Section 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipment : DVD Recorder with Video Cassette Recorder Brand Name : TOSHIBA Model number : D-VRW1SU FCC ID : A7RM2G0B Rating : AC 120 V / 60 Hz Manufacturer : 1. World Electric (Thailand) Ltd. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. Korat Denki Ltd. 149 Moo 10 Tambol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 228 Moo 3 Tambol Nongbuasala, Amphur Muang, Nakhonratchasima 30000, Thailand 3. Orion America, Inc. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Receipt Date of Sample : February 20, 2005 Condition of EUT : Production Prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product description Model: D-VRW1SU (referred to as the EUT in this report) is a DVD Recorder with Video Cassette Recorder. The EUT specifications is as follows. Tuner type : Quartz PLL frequency synthesized I / F : 45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz, 27W I / O terminal (Video) : RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio) : RCA in –8 dB 47 k ohm, RCA out –8 dB 1 k ohm Test report No. : 25GE0229-YW-1 Page : 4 of 135 Date of issue : March 9, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Section 3 : Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart B Title : FCC 47 CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators Test Specification : ICES-003 Issue No. 4 Title : Spectrum Management Interference-Causing Equipment Standard Digital Apparatus *ICES-003 (Issue No. 4) is based on FCC Part 15. 3.2 Procedures & results Item Test procedure Limits Worst margin Result Conducted emission ANSI C63.4:2003 CISPR 22 21.0 dB (0.7843 MHz, L1, AV Input 1 + Rec. 5Vp-p) Complied Radiated emission ANSI C63.4:2003 IEEE 187:1990 30–88 MH: 100 uV/m 88–216 MHz: 150 uV/m 216–960 MHz: 200 uV/m above 960 MHz: 500 uV/m 4.8 dB (945.00 MHz, Vertical, DVD Play + Rec.) Complied Antenna terminal voltage ANSI C63.4:2003 2 nW (at 75 ohm) 23.8 dB (628.85320 MHz, CATV tuning) Complied RF output level Video signal: 3000 uV Aural signal: 671 uV 5.4 dB (61.25 MHz, 3ch, TV Reception + Rec.) Complied Spurious emission ANSI C63.4:2003 94.8 uV 22.8 dB (122.5000 MHz, TV Reception + Rec.) Complied Transfer switch ANSI C63.4:2003 9.5 dB 6.4 dB (67.2500 MHz, 4ch, DVD Play + Rec.) Complied Picture sensitivity ANSI C63.4:2003 8 dB 6.2 dB Complied Noise figure FCC/OET MP:2:1986 14 dB 5.0 dB (133.25 MHz, 16ch) Complied For ICES-003, only the tests, which relate to the digital device of conducted emission and radiated emission, were performed. 3.3 Additions or deviations to standard No addition, deviation or exclusion has been made from standards. 3.4 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tests, complies with the specifications FCC Part15 Subpart B and ICES-003 Issue No. 4. Test report No. : 25GE0229-YW-1 Page : 5 of 135 Date of issue : March 9, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 3.5 Uncertainty Conducted emission (150 kHz – 30 MHz) The measurement unc…

Text truncated - open the document above for the full version.

Test report No. : 25GE0229-YW-1 Page : 20 of 135 Date of issue : March 9, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Conducted emission Test report No. : 25GE0229-YW-1 Page : 21 of 135 Date of issue : March 9, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Radiated emission Test report No. : 25GE0229-YW-1 Page : 22 of 135 Date of issue : March 9, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Antenna terminal voltage Test report No. : 25GE0229-YW-1 Page : 23 of 135 Date of issue : March 9, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 RF output level / spurious emission Test report No. : 25GE0229-YW-1 Page : 24 of 135 Date of issue : March 9, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Antenna transfer switch Test report No. : 25GE0229-YW-1 Page : 25 of 135 Date of issue : March 9, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Picture sensitivity Test report No. : 25GE0229-YW-1 Page : 26 of 135 Date of issue : March 9, 2005 UL Apex Co., Ltd. Yokowa EMC Lab. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: +81 596 39 1485 Facsimile: +81 596 39 0232 Noise figure
