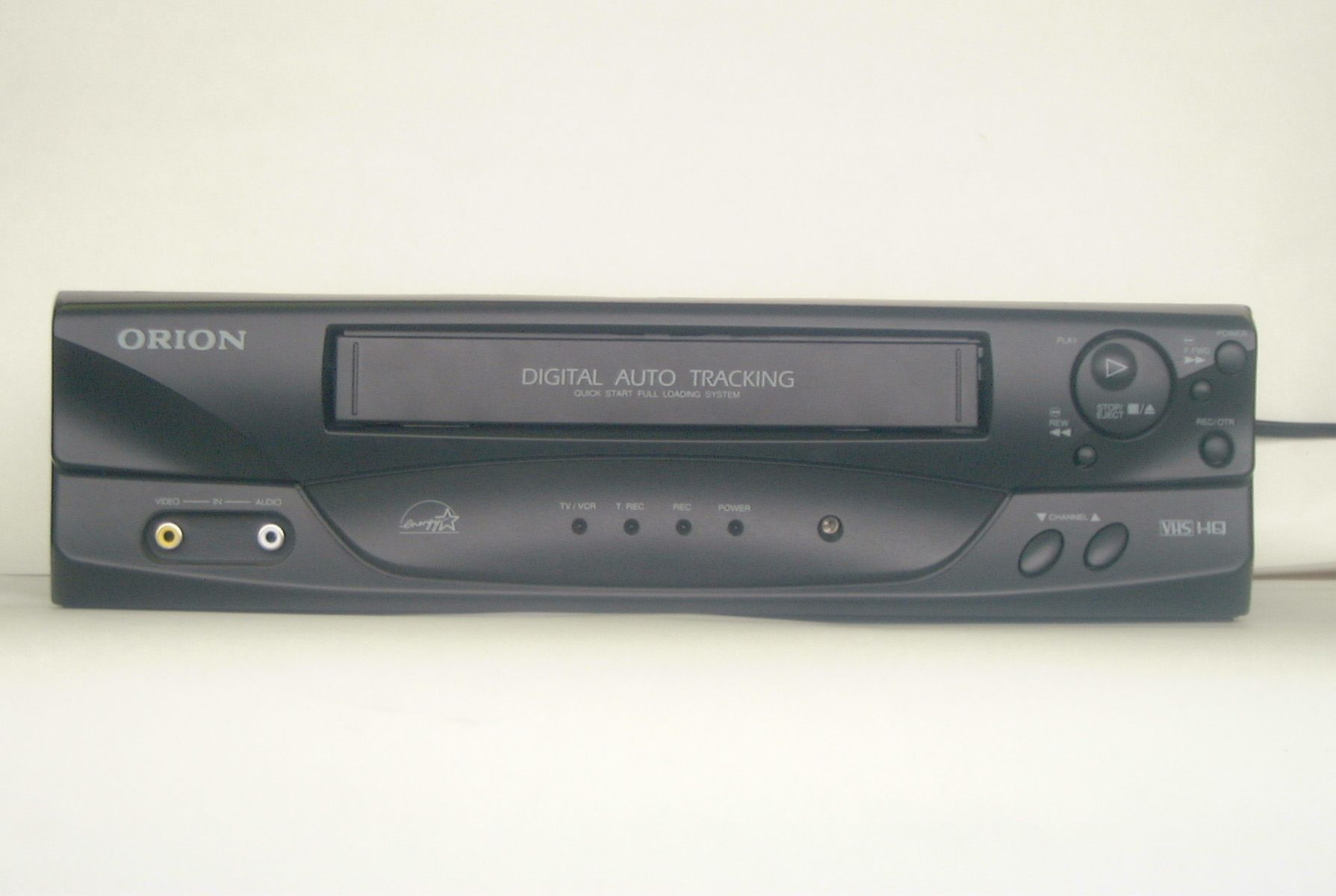

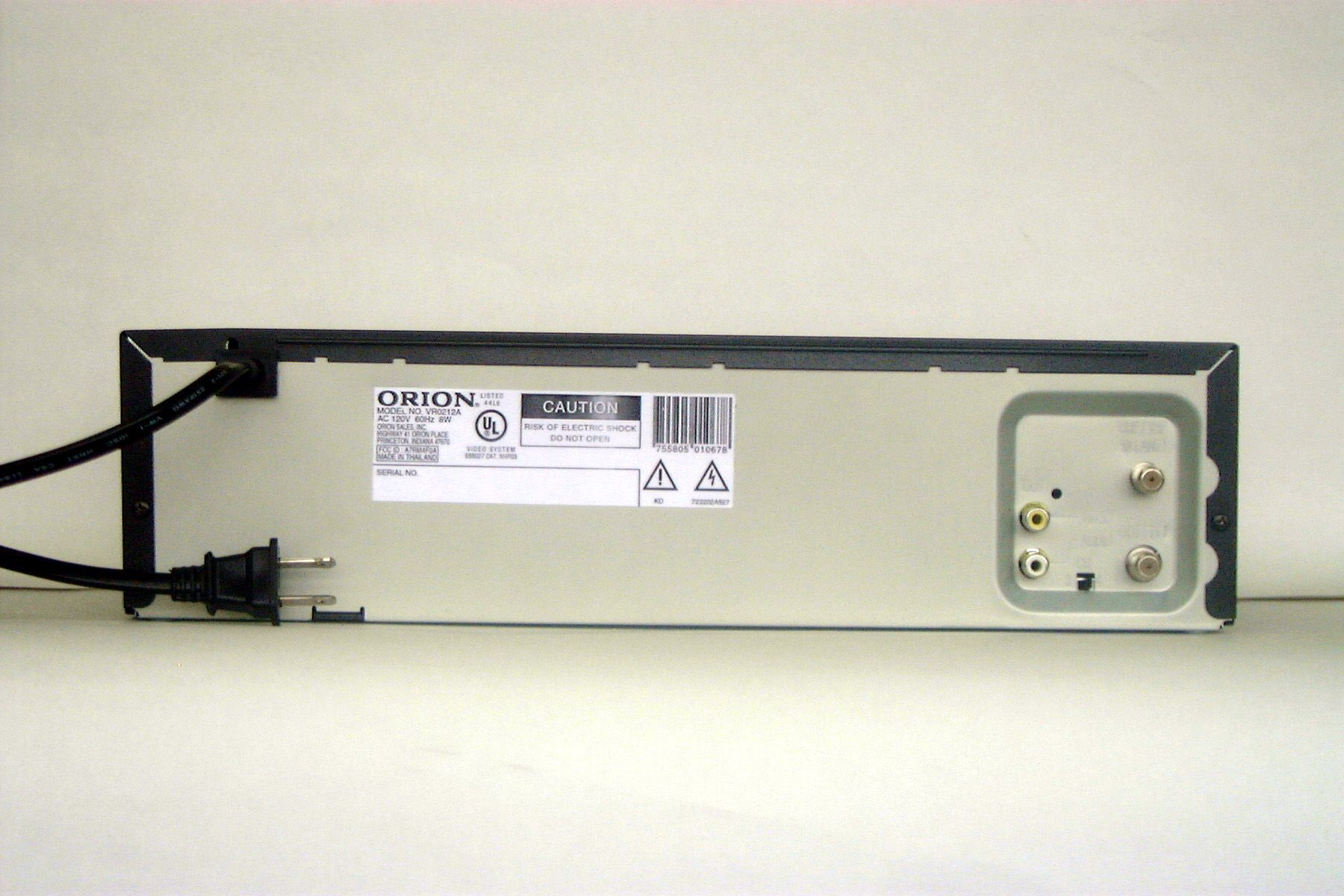

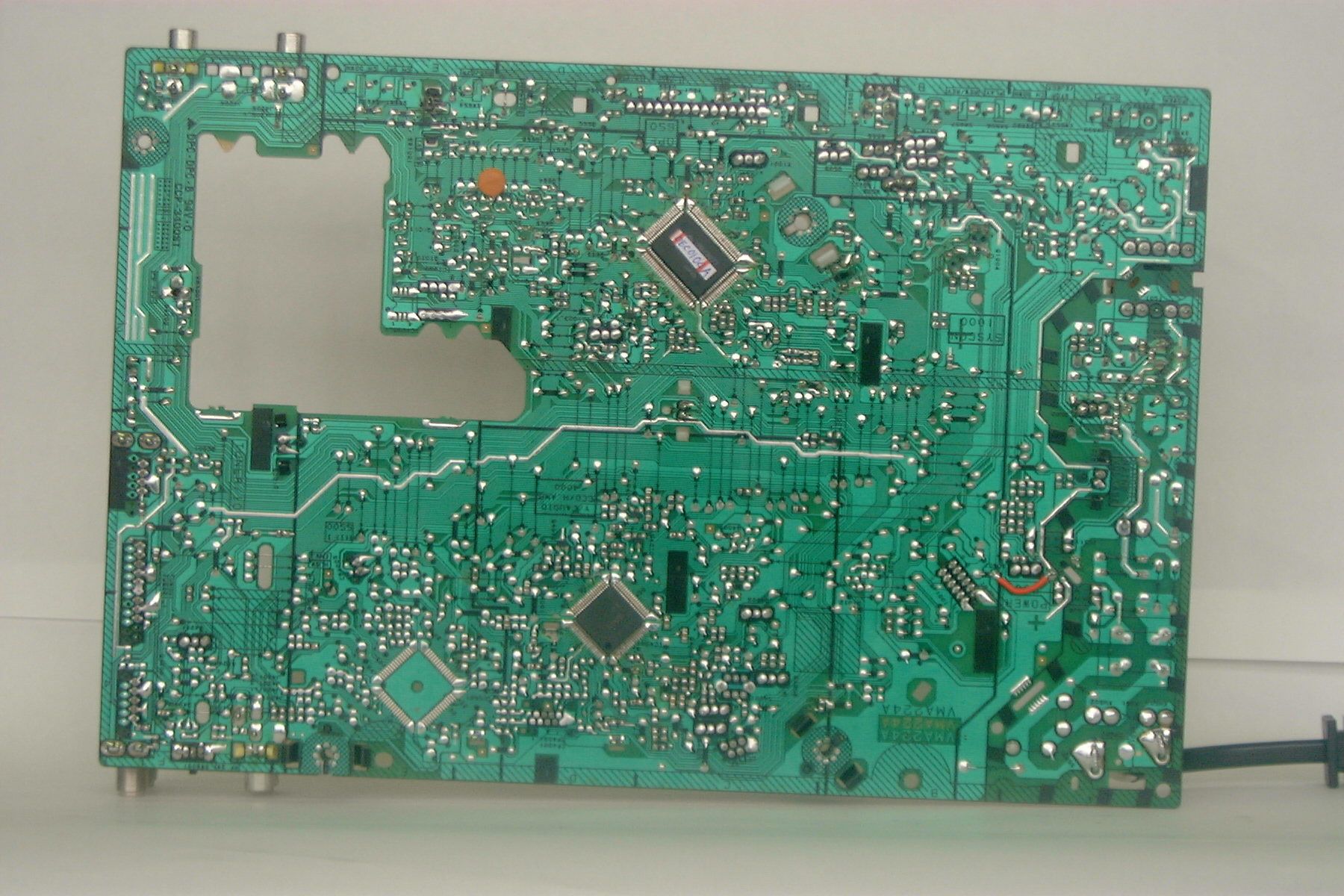

A7RM4F0AVideo Tape Recorder

2 RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALI- FIED SERVICE PERSONNEL. CAUTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. WARNING: WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correcting the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. - - - - 4C73101B(C-09)17/9/99, 4:13 PM2 3 READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS All operating and use instructions should be followed. CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. ATTACHMENTS Do not use attachments not recommended by the unit's manufacturer as they may cause hazards. WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool. ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. VENTILATION Slots and openings in the cabinet and in the back or bottom are provided for ventilation and to ensure reliable operation of the unit and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in built-in installa- tions such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to. POWER SOURCES This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions. GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug If your unit is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin, this plug will only fit into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug. 1. 2. 3. 4. 5. 6. 7. 8. 8A. 9. 10. 11. IMPORTANT SAFEGUARDS S3126A PORTABLE CART WARNING (symbol provided by RETAC) 4C73101B(C-09)17/9/99, 4:13 PM3 4 POWER-CORD PROTECTION Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. LIGHTNING To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges. POWER LINES An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to…

Text truncated - open the document above for the full version.

BLOCK DIAGRAM VIF/SIF DEMODULATOR VIDEO SW REMOTE SENSOR AUDIO SW SW. REG. 32V 12V 5V AC120 BUS CONTROL HEAD AMP RF MOD. Y/C CCD TUNER RF IN/OUT AUDIO OPERATION KEY MOTOR DRIVER A/V IN/OUT SYSTEM CONTROL,TIMER,SERVO A/C HEAD VIDEO/AUDIO HEAD TUNER UNIT CYLINDER MOTOR UNIT MICRO PROCESSOR

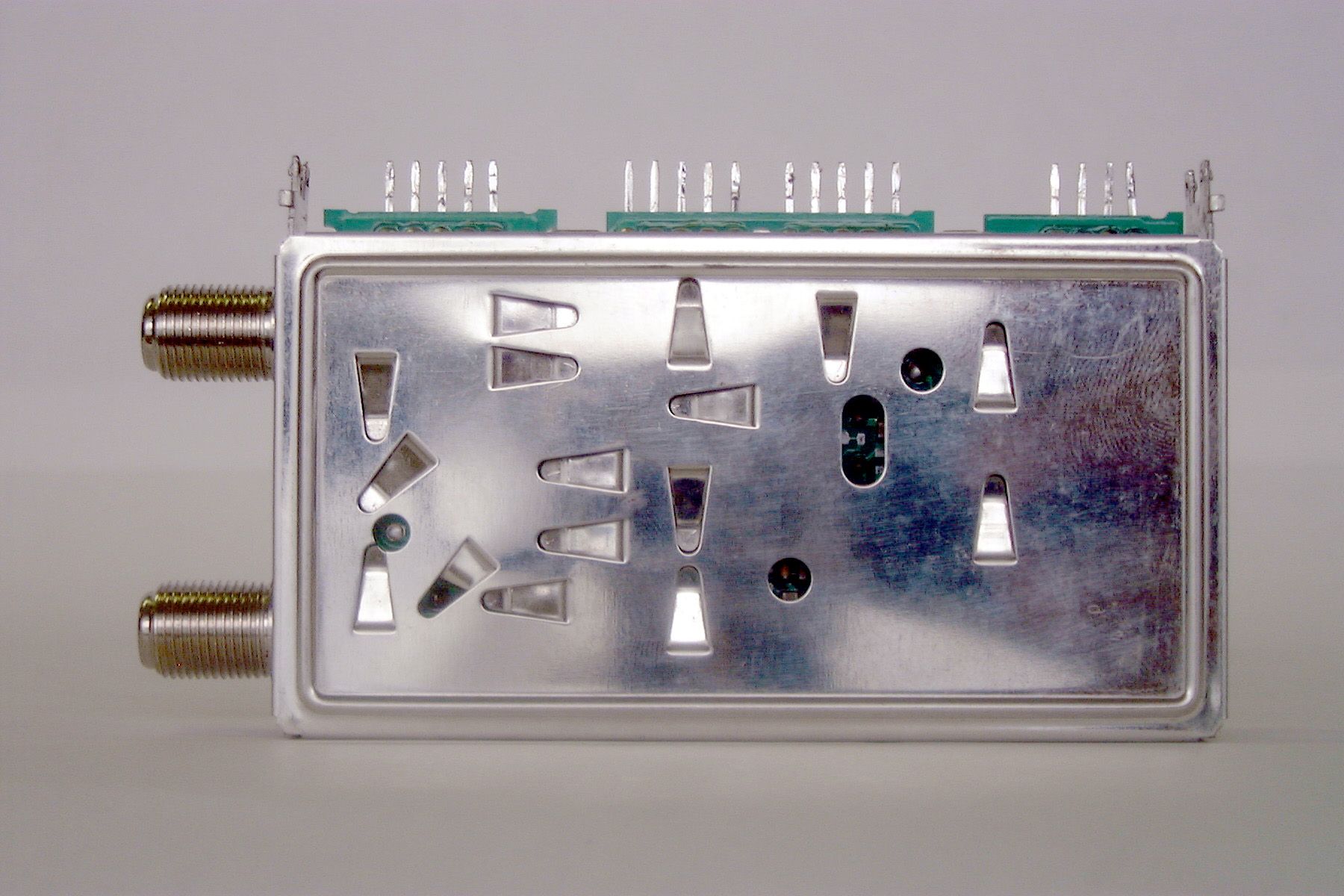

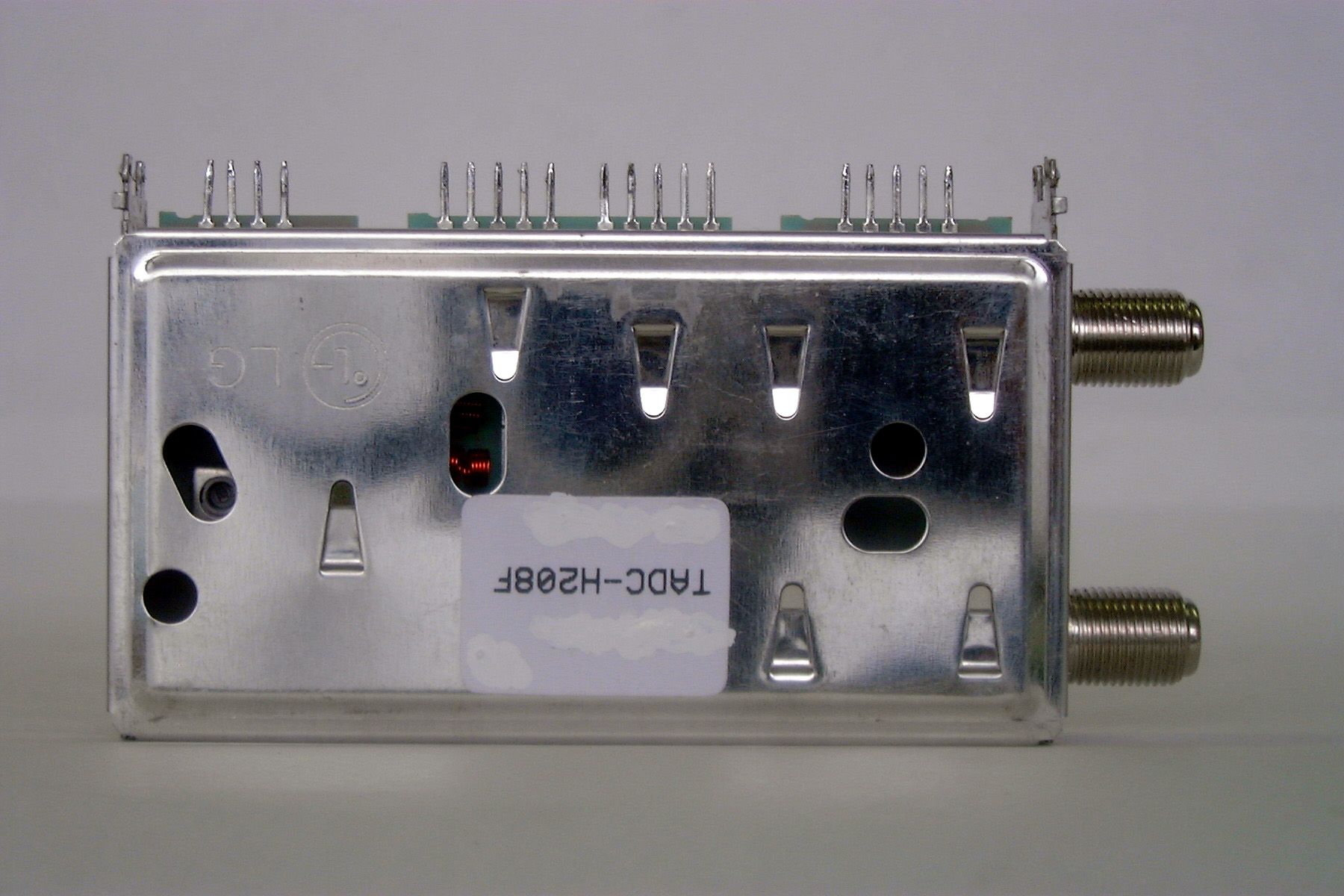

Brief Description for Circuit Function RF IN/OUT:EXT. Antenna Terminal (input and output) RF MOD.:RF Modulator (output channel:3ch or 4ch switchable) TUNER:Frequency Synthesizer Tuning System VIF/SIF DEMODULATOR:VIF/SIF Signal Processor and Demodulator VIDEO SW:Video Signal Selector Audio SW:Audio Signal Selector Y/C:Luminanse and Chrominanse Signal Processor CCD:CCD COMB Filter Circuit A/V IN/OUT:EXT. Audio/Video Terminal (input and output) MOTOR DRIVER:Cylinder Motor Control VIDEO/AUDIO HEAD:Video-Head and Audio-Head HEAD AMP:Amplifier of Video-Head Signal A/C HEAD:Audio-Head and Tape Control-Head AUDIO:Audio-Head Signal Processor REMOTE SENSOR:Sensor of Infrared Remote Control SW REG:Power Regulator (Switching Regulator) Operation Key:Operation Key( Power, CH Up, CH Down, Play,FF, Rew, Rec, Stop/Eject) MICRO PROCESSOR:System Control, Timer, Servo

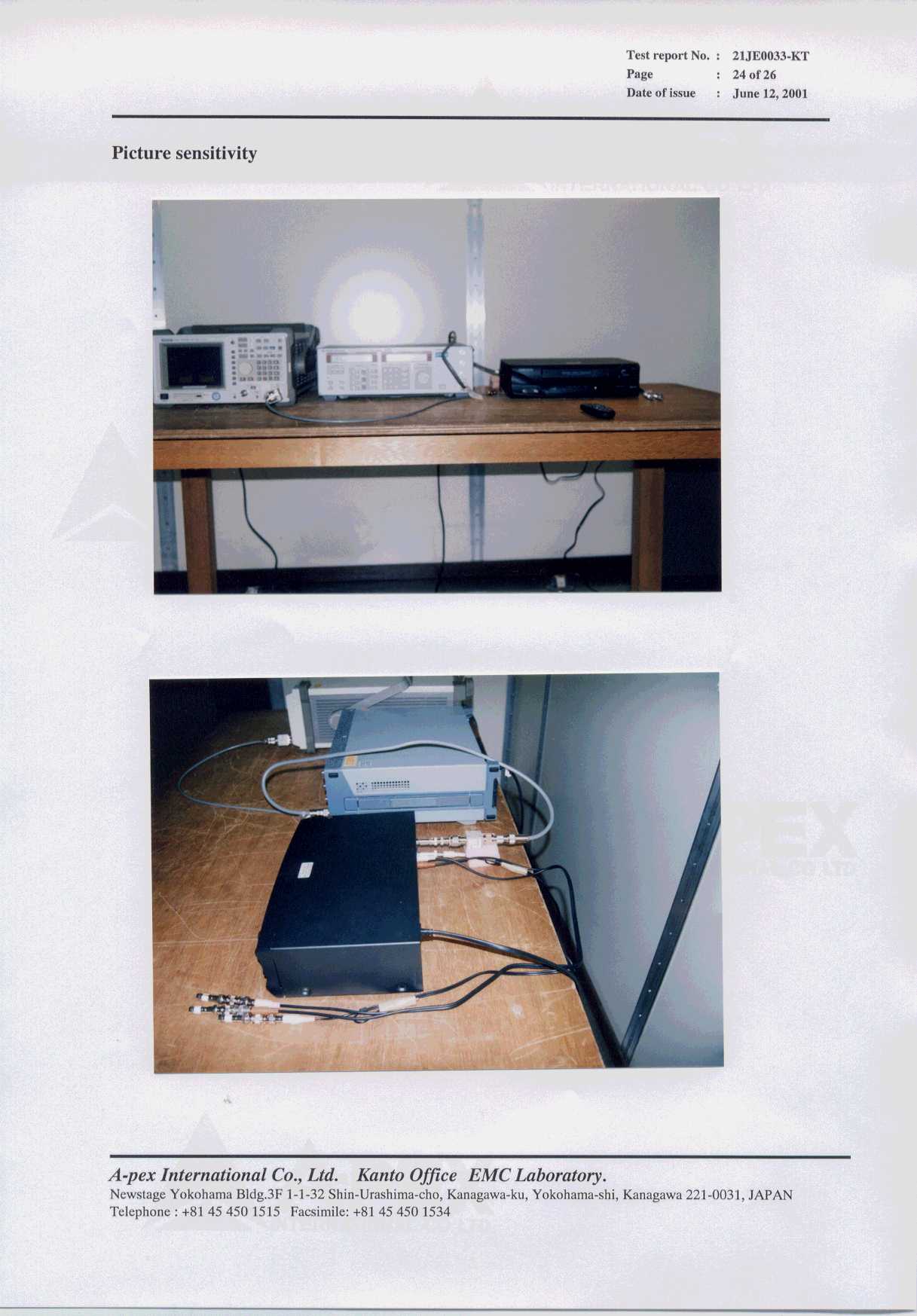

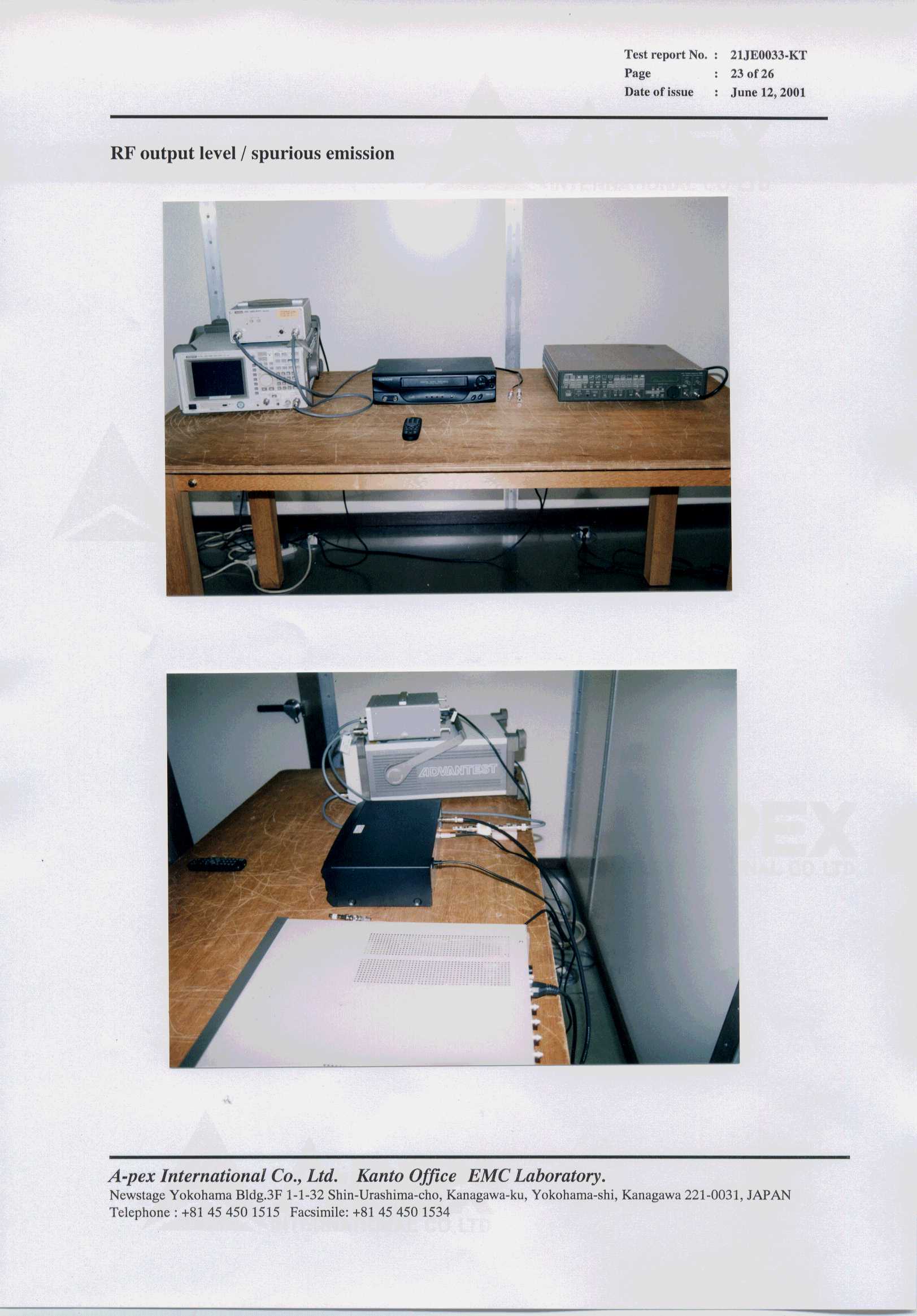

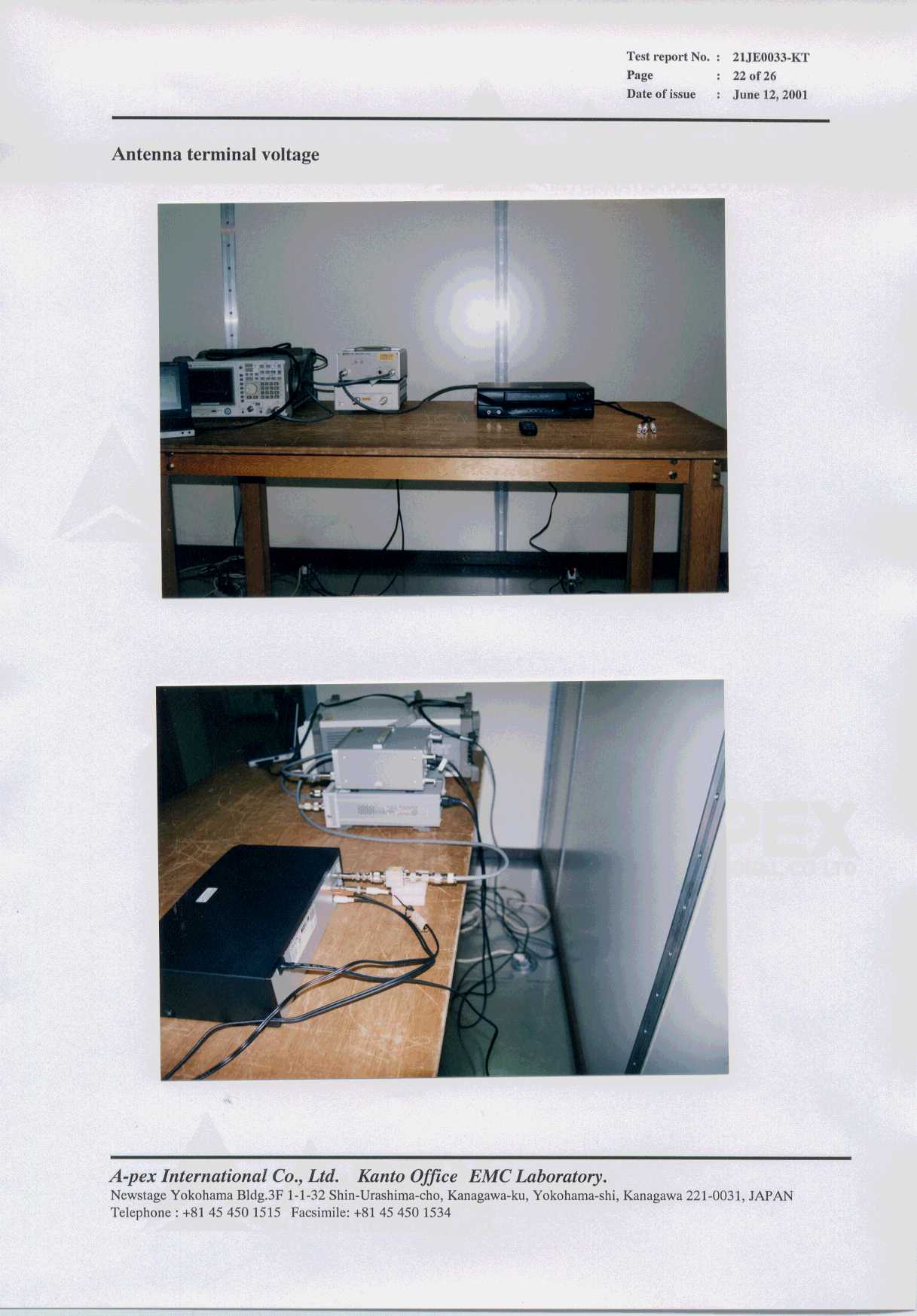

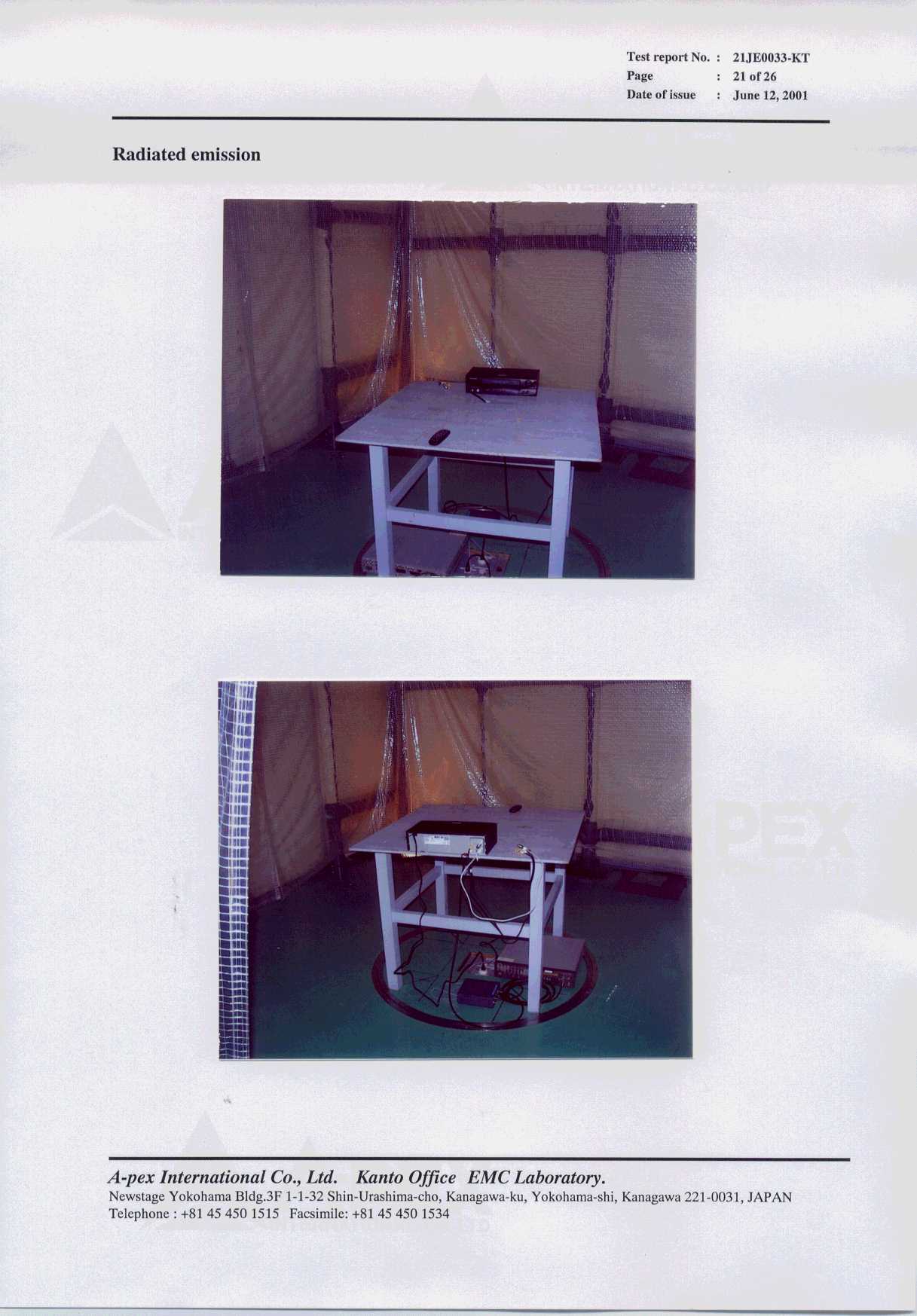

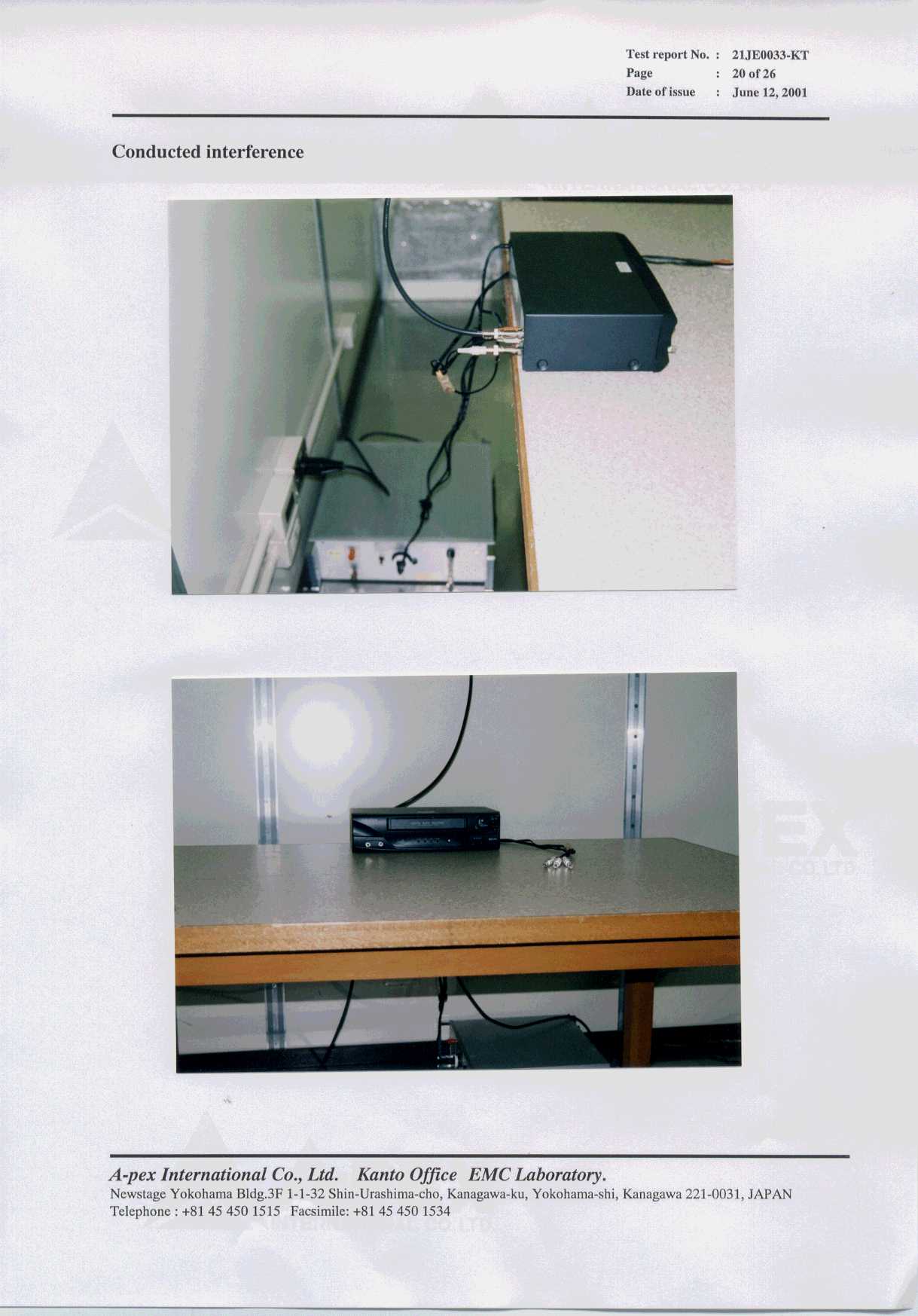

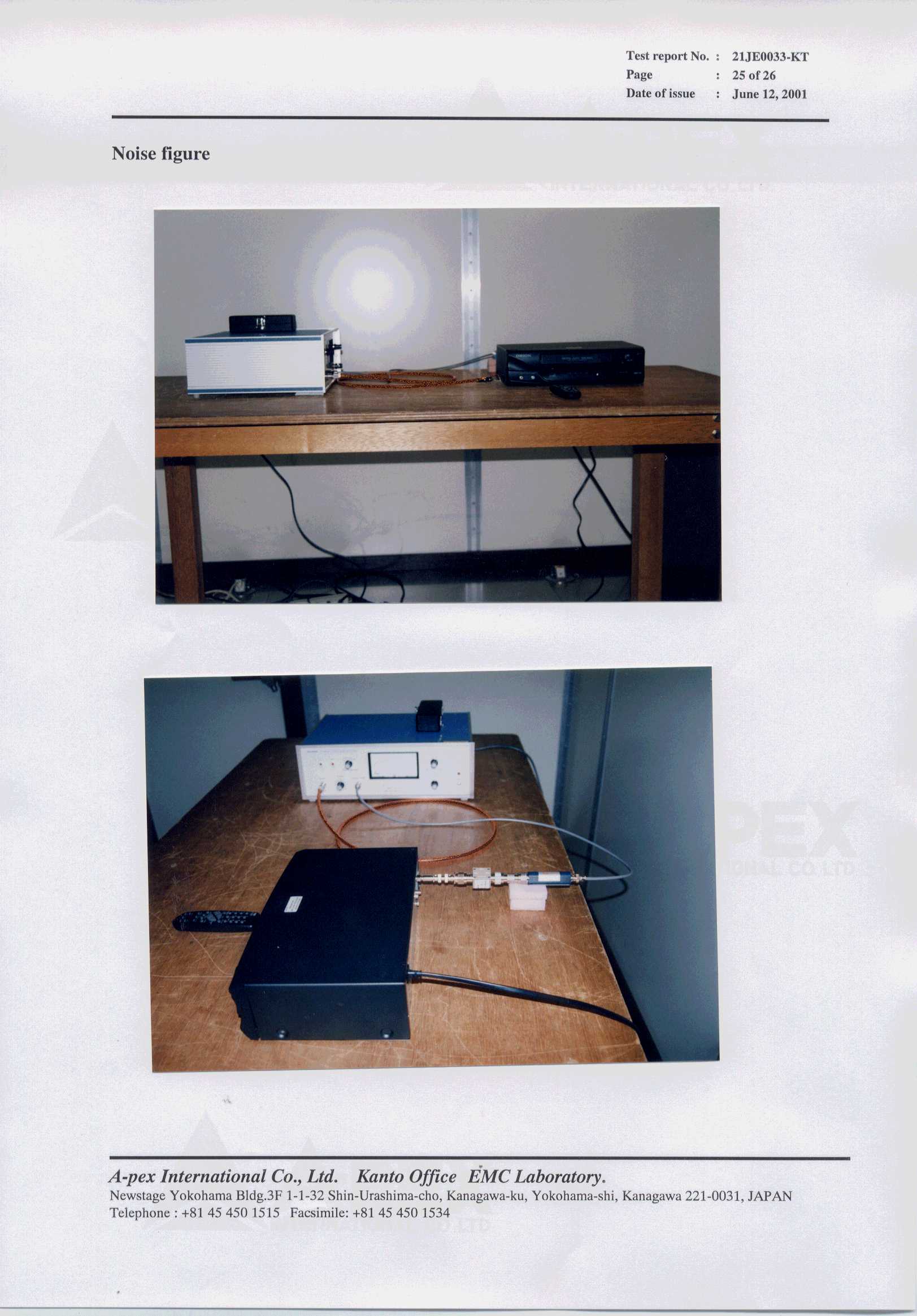

Test report No. : 21JE0033-KT Page: 2 of 26 Date of issue: June 12, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Contents Page Section 1 :Client information3 Section 2 :Equipment under test (E.U.T.)3 Section 3 :Test specification, methods & procedures5 Section 4 :Operation of E.U.T. during tests6 Section 5 :Summary of test results7 Section 6 :Test instruments8 Section 7 :Conducted interference9 Section 8 :Radiated emission12 Section 9 :Antenna terminal voltage15 Section 10 :RF output level / spurious emission16 Section 11 : Picture sensitivity17 Section 12 :Noise figure18 Appendix 1 :Photographs of test set up19 Appendix 2 :Data of EMI tests26 Test report No. : 21JE0033-KT Page: 3 of 26 Date of issue: June 12, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Section 1 : Client information Company name: ORION ELECTRIC CO., LTD. Address: 41-1 Iehisa-cho, Takefu-shi, Fukui 915-8555 JAPAN Telephone number: +81-778-23-0019 Facsimile number: +81-778-23-7799 Contact person: Hiroshi Tsujimoto Section manager Engineering headquarters Administration section Section 2 : Equipment under test (E.U.T.) 2.1Identification of E.U.T. Unique type identification : Video cassette recorder Model number: VR0212A Serial number: - Manufacturer: 1. WORLD ELECTRIC (THAILAND) LTD. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. KORAT DENKI LTD. 149 Moo 10 Thombol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 3. ORION AMERICA, INC. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Test report No. : 21JE0033-KT Page: 4 of 26 Date of issue: June 12, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 2.2P roduct description ORION ELECTRIC CO., LTD., Model: VR0212A (referred to as the EUT in this report) is a video cassette recorder. Tuner type : Quartz PLL frequency synthesized I / F :45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz, 8 W I / O terminal (Video) : RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio) : RCA in 300 mV 50 k ohm, RCA out 300 mV 1 k ohm Test report No. : 21JE0033-KT Page: 5 of 26 Date of issue: June 12, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Section 3 : Test specification, methods & procedures 3.1Test specification Basic standard : FCC Part 15 Subpart B : Radiated frequency devices - unintentional radiators Test methods:ANSI C63.4 : 1992 : Methods of measurement of radio-noise emissions from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz. 3.2Methods & procedures No.ItemTest requirementsTest procedureLimits 1 Conducted interference FCC Part 15 Subpart B Sec. 15.107 (a) ANSI C63.4 1992250 uV 2 Radiated emissionFCC Part 15 Subpart B Sec. 15.109 (a) ANSI C63.4 199230 – 88 MHz: 100 uV/m 88 – 216 MHz: 150 uV/m 216 – 960 MHz: 200 uV/m above 960 MHz: 500 uV/m 3 Antenna terminal voltage FCC Part 15 Subpart B Sec. 15.111 (f) ANSI C63.4 19922 nW (at 75 ohm) RF output levelFCC Part 15 Subpart B Sec. 15.115 (b) ANSI C63.4 1992Video signal: 3000 uV Aural signal: 671 uV 4 Spurious emission94.8 uV 5 Picture sensitivityFCC Part 15 Subpart B Sec. 15.117 (f) ANSI C63.4 19928 dB 6 Noise figureFCC Part 15 Subpart B Sec. 15.117 (g) ANSI C63.4 199214 dB Test report No. : 21JE0033-KT Page: 6 of 26 Date of issue: June 12, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Section 4 : Operation of E.U.T. during tests 4.1Operating modes * Receive mode (0 dBmV input / 25 dBmV input) * AV Input mode (1 Vp-p input / 5 Vp-p input) * Playback mode 4.2Configuration and peripherals AC 120 V / 60 Hz A 1 47 k ohm terminator 75 ohm terminator 1k ohm terminator 75 ohm terminator 23 4 EUT and support equipment EUT SignIte mModel numberSerial numberManufacturer AVideo cassette recorderVR0212A-ORION ELECTRIC CO., LTD. Support item (s) No.Ite mLength (m)ShieldingManufacturer 1AC power cable1.75Unshielded 2AV cable1.0Shielded 3AV cable1.0Shielded 4AV cable1.0Shielded Test report No. : 21JE0033-KT Page: 7 of 26 Date of issue: June 12, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Section 5 : Summary of test results 5.1Test results We confirmed the EUT complied to the specifications of FCC Part 15 Subpart B in the test configuration mentioned in this test report. No.ItemTest requirementsLimitsResults 1 Conducted Interference FCC Part 15 Subpart B Sec. 15.107 (a) 250 uVPassed 2 Radiated Emission FCC Part 15 Subpart B Sec. 15.109 (a) 30 – 88 MHz: 100 uV/m 88 – 216 MHz: 150 uV/m 216 – 960 MHz: 200 uV/m above 960 MHz: 500 uV/m Passed 3 Antenna Terminal Voltage FCC Part 15 Subpart B Sec. 15.111 (f) 2 nW (at 75 ohm)Passed RF output levelFCC Part 15 Subpart B Sec. 15.115 (b) Video signal: 3000 uV Aural signal: 671 uV Passed Spurious emission94.8 uVPassed 4 Picture SensitivityFCC Part 15 Subpart B Sec. 15.117 (f) 8 dBPassed 5 Noise FigureFCC Part 15 Subpart B Sec. 15.117 (g) 14 dBPassed 5.2Test…

Text truncated - open the document above for the full version.

Test report No. : 21JE0033-KT Page : 26 of 26 Date of issue : June 12, 2001 A-pex International Co., Ltd. Kanto Office EMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515 Facsimile: +81 45 450 1534 Appendix 2 : Data of EMI tests This section contains the following data. Conducted interference : A2-1 to A2-10 Radiated emission : A2-11 to A2-19 Antenna terminal voltage : A2-20 to A2-21 RF output level / spurious emission : A2-22 to A2-36 Picture sensitivity : A2-37 Noise figure : A2-38
