A7RM4F2BVideo Tape Recorder

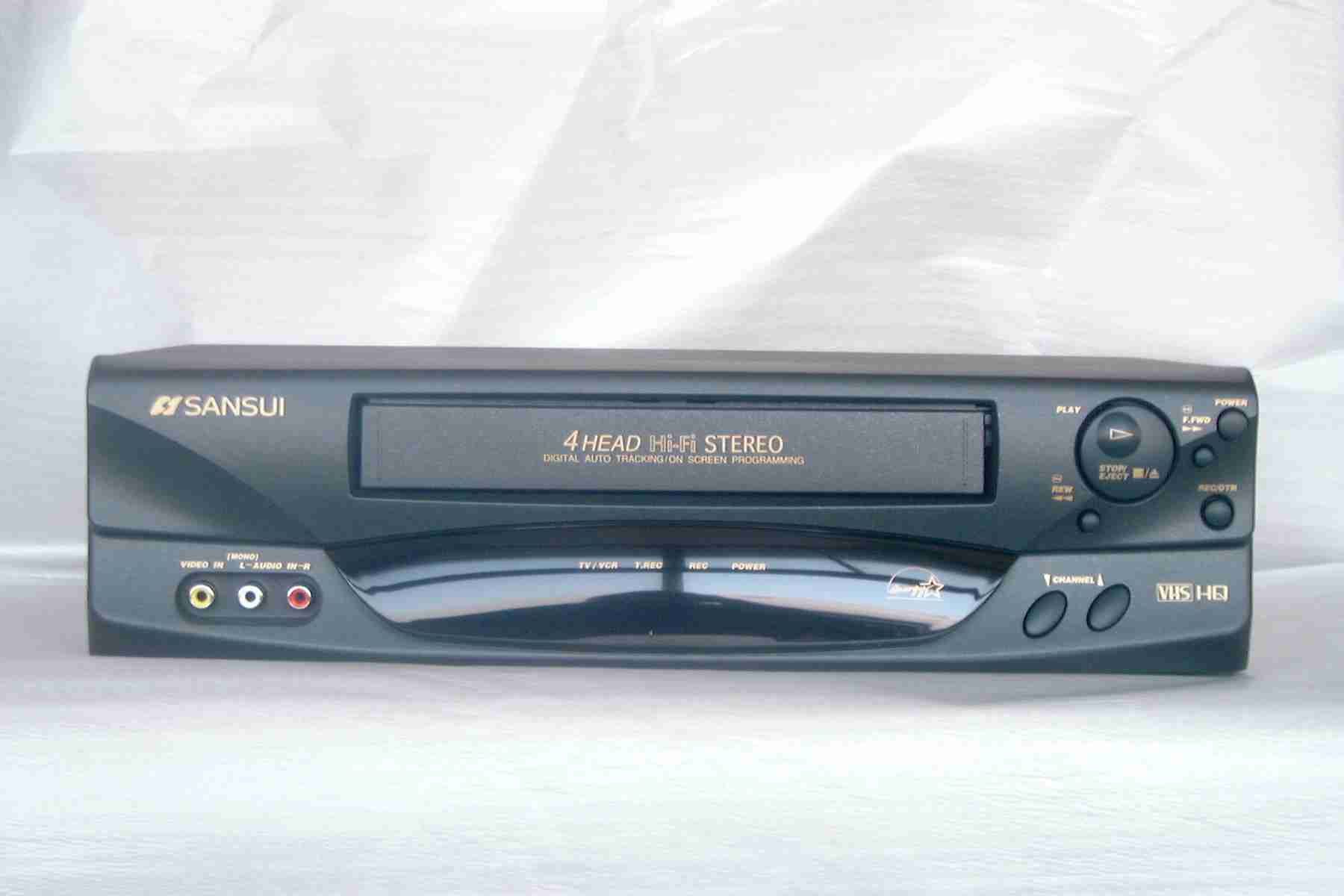

For your protection in the event of theft or loss of this product, please fill in the information listed below which is for your own personal records. Pour votre protection en cas de vol ou de perte de l’appareil, veuillez inscrire ci- dessous les renseignements demandés. Date of Purchase: Date d'achat: Serial No.: Numéro de série: Place of Purchase : Lieu d'achat: R 4 HEAD Hi-Fi STEREO VCR MAGNÉTOSCOPE STÉRÉO Hi-Fi À 4 TÊTES OWNER’S MANUAL MANUEL D’INSTRUCTIONS Before operating the unit, please read this manual thoroughly. Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel. VHF6010 TV/CATV MODE SELECTION SELECTION DU MODE TV/CATV When shipped from the factory, the TV/CATV menu option is set to the "CATV" (Cable Television) mode. If not using CATV (Cable TV), set this menu option to the "TV" mode. Lors de la fabrication, l’option menu TV/CATV est réglée en mode "CATV" (Télévision à câble). Si l’on n’utilise pas le mode CATV (TV à câble), régler cette option menu en mode "TV". ATTENTION 4C94001A/E/COV-0908*12*99, 11:441 RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: WARNING: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. CAUTION: 2 TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. WARNING: CAUTION: ENGLISH 4C94001A/E/COV-0908*12*99, 11:442 READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS All operating and use instructions should be followed. CLEANING Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. ATTACHMENTS Do not use attachments not recommended by the unit's manufacturer as they may cause hazards. WATER AND MOISTURE Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool. ACCESSORIES Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. VENTILATION Slots and openings in the cabinet and in the back or bottom are provided for ventilation and to ensure reliable operation of the unit and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in built-in installations such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to. POWER SOURCES This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions. GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug If your unit is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) p…

Text truncated - open the document above for the full version.

ORION ELECTRIC CO., LTD. 41-1 IEHISA-CHO, TAKEFU-SHI TEL.+81- 778-23-0001 FUKUI, 915-8555, JAPAN FAX.+81- 778-24-7799 Request for Confidentiality Date April 27, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID:A7RM4F2B Please be advised that the following information is to be held confidential and behalf of ORION ELECTRIC CO.,LTD.: Block diagram Schematic diagram The application contains technical information which ORION ELECTRIC CO.,LTD. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory Hiroshi Tsujimoto Section manager Engineering headquarters Administration section

ORION ELECTRIC CO., LTD. 41-1 IEHISA-CHO, TAKEFU-SHI TEL.+81- 778-23-0001 FUKUI, 915-8555, JAPAN FAX.+81- 778-24-7799 Letter Of Agency Date: April 27, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that ORION ELECTRIC CO.,LTD. authorizes A-Pex International Co., Ltd. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory Hiroshi Tsujimoto Section manager Engineering headquarters Administration section ORION ELECTRIC CO., LTD. 41-1 IEHISA-CHO, TAKEFU-SHI TEL.+81- 778-23-0001 FUKUI, 915-8555, JAPAN FAX.+81- 778-24-7799 FCC Labeling Requirements and Information Date April 27, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID:A7RM4F2B The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Signatory Hiroshi Tsujimoto Section manager Engineering headquarters Administration section ORION ELECTRIC CO., LTD. 41-1 IEHISA-CHO, TAKEFU-SHI TEL.+81- 778-23-0001 FUKUI, 915-8555, JAPAN FAX.+81- 778-24-7799 Request for Confidentiality Date April 27, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID:A7RM4F2B Please be advised that the following information is to be held confidential and behalf of ORION ELECTRIC CO.,LTD.: Block diagram Schematic diagram The application contains technical information which ORION ELECTRIC CO.,LTD. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory Hiroshi Tsujimoto Section manager Engineering headquarters Administration section ORION ELECTRIC CO., LTD. 41-1 IEHISA-CHO, TAKEFU-SHI TEL.+81- 778-23-0001 FUKUI, 915-8555, JAPAN FAX.+81- 778-24-7799 Manufacturer’s Letter Date April 27, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID:A7RM4F2B To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Signatory Hiroshi Tsujimoto Section manager Engineering headquarters Administration section

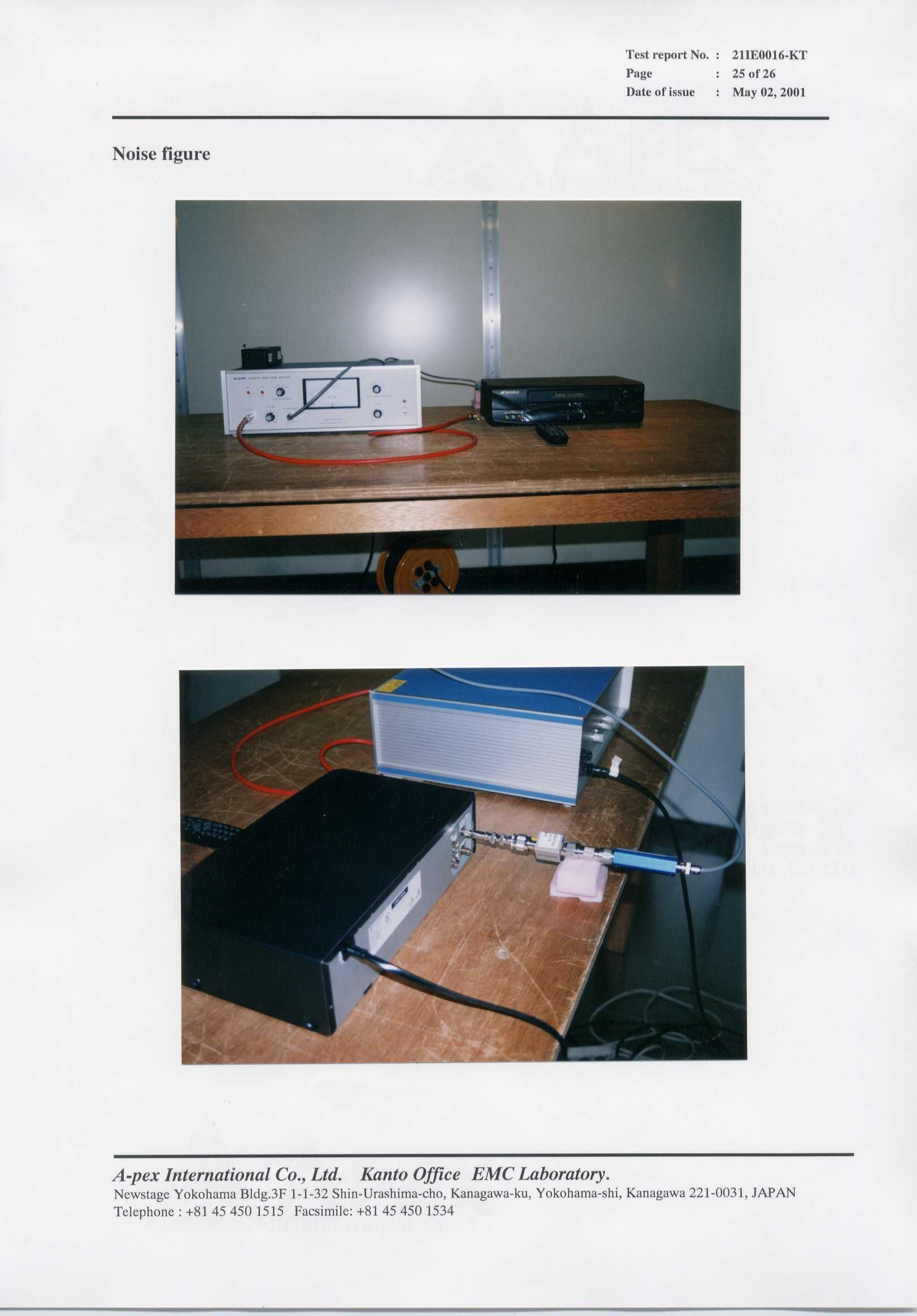

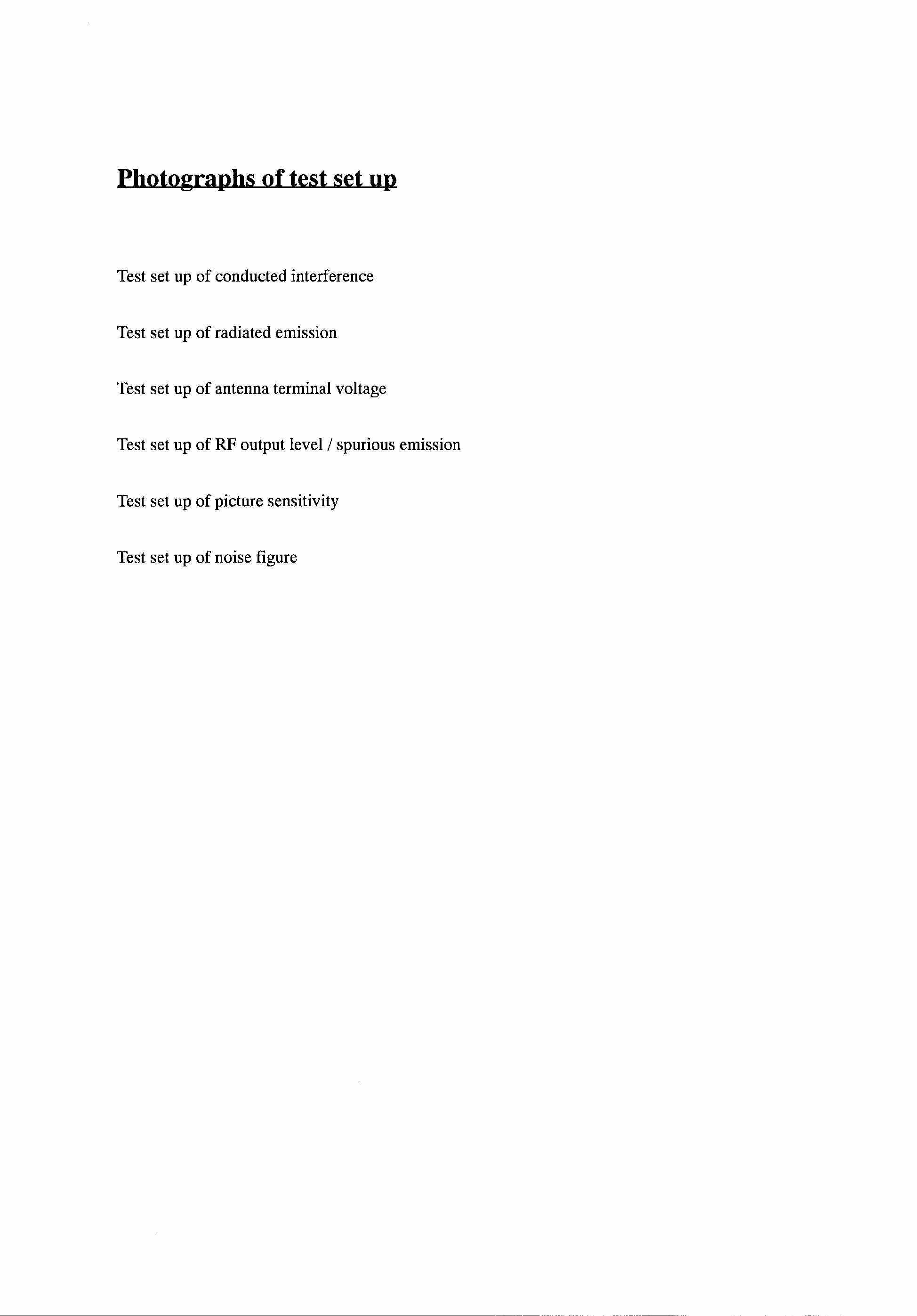

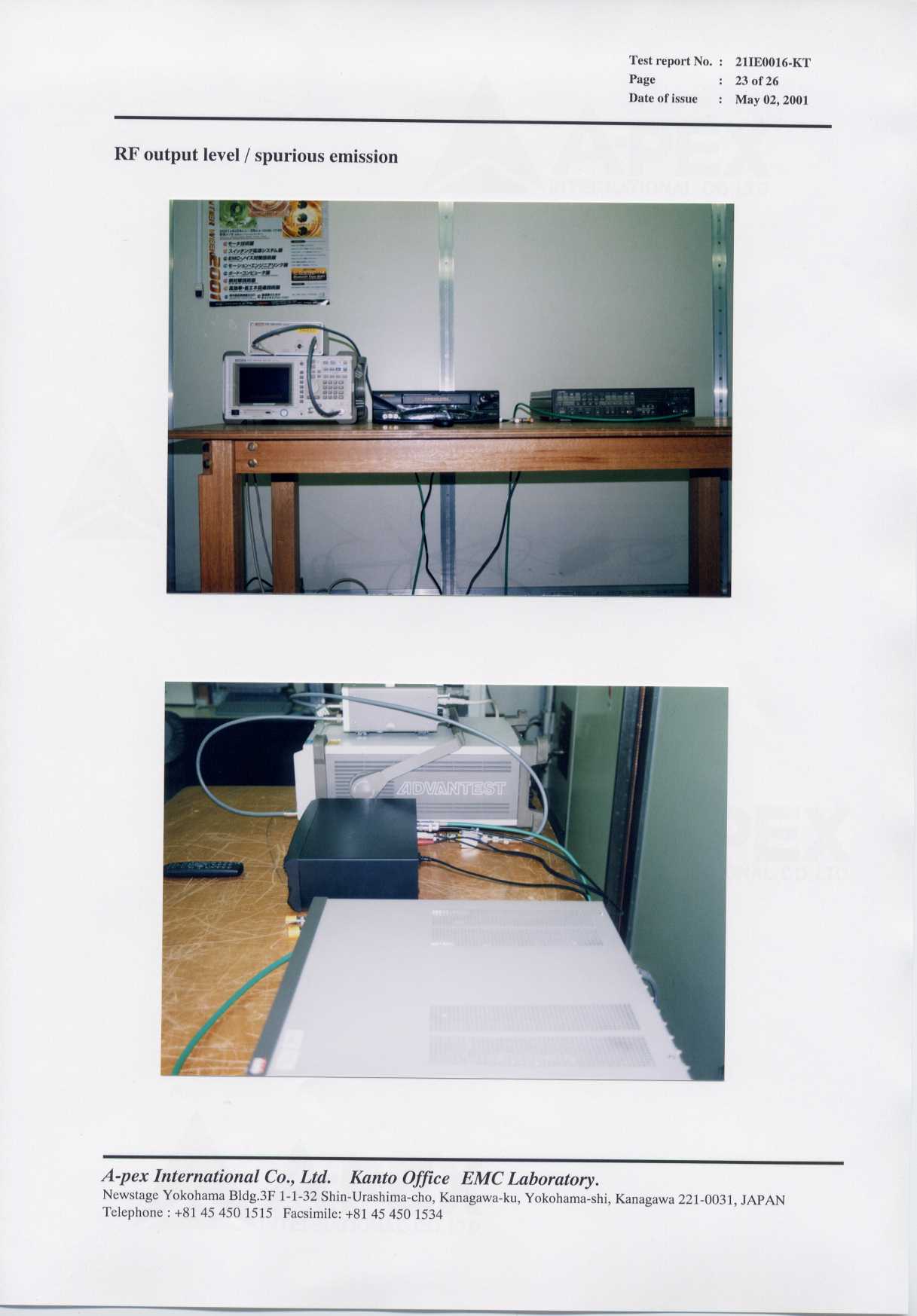

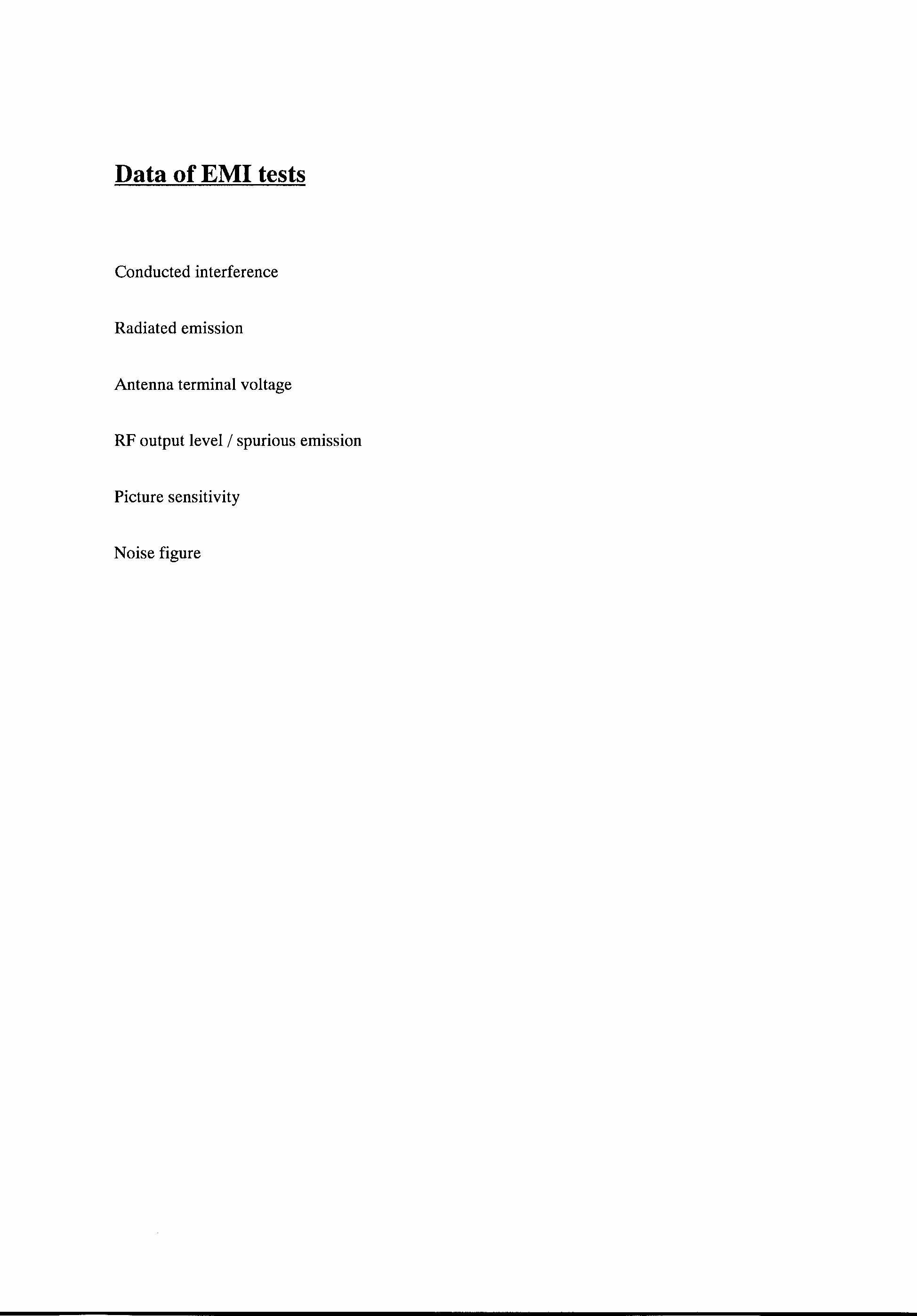

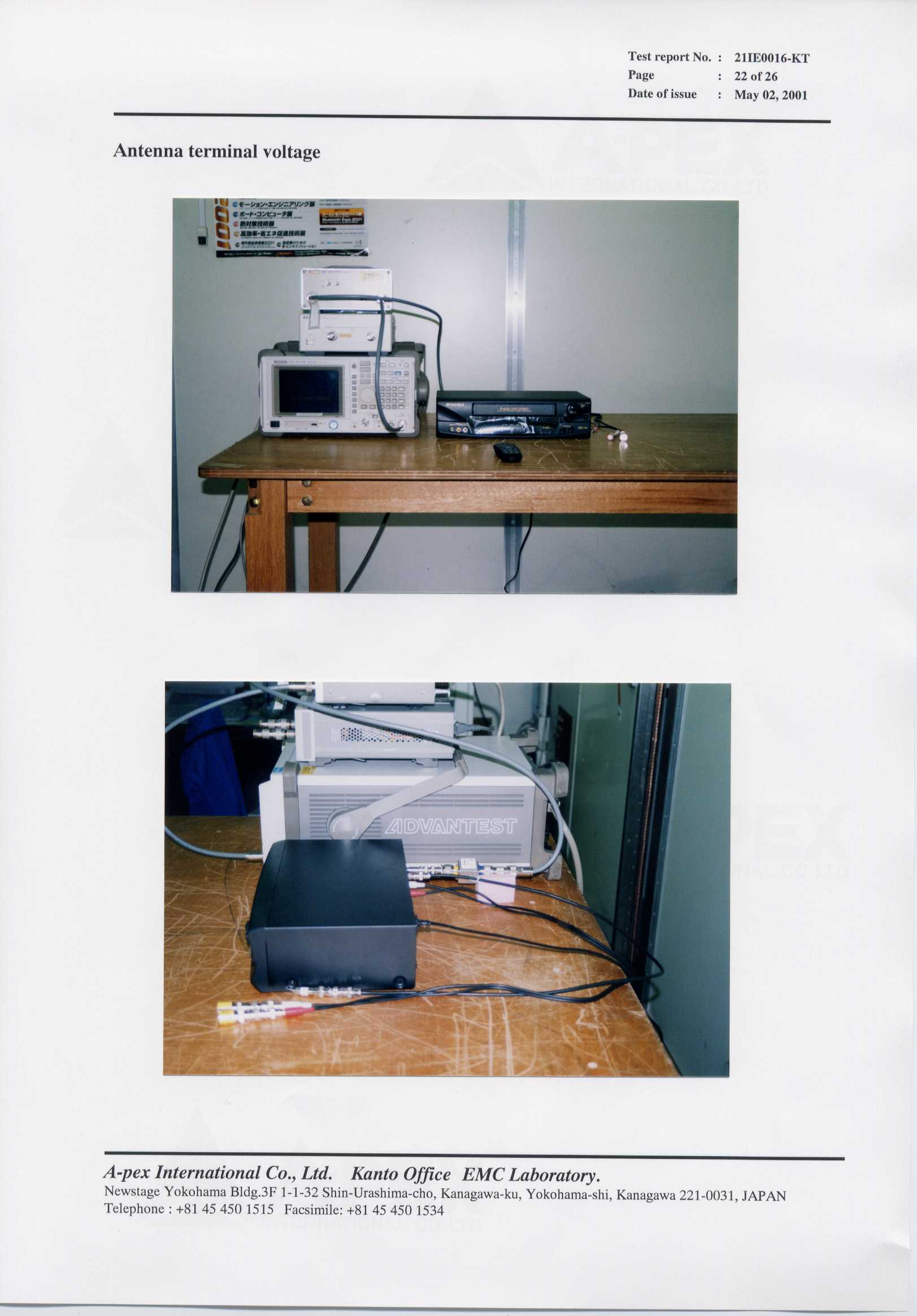

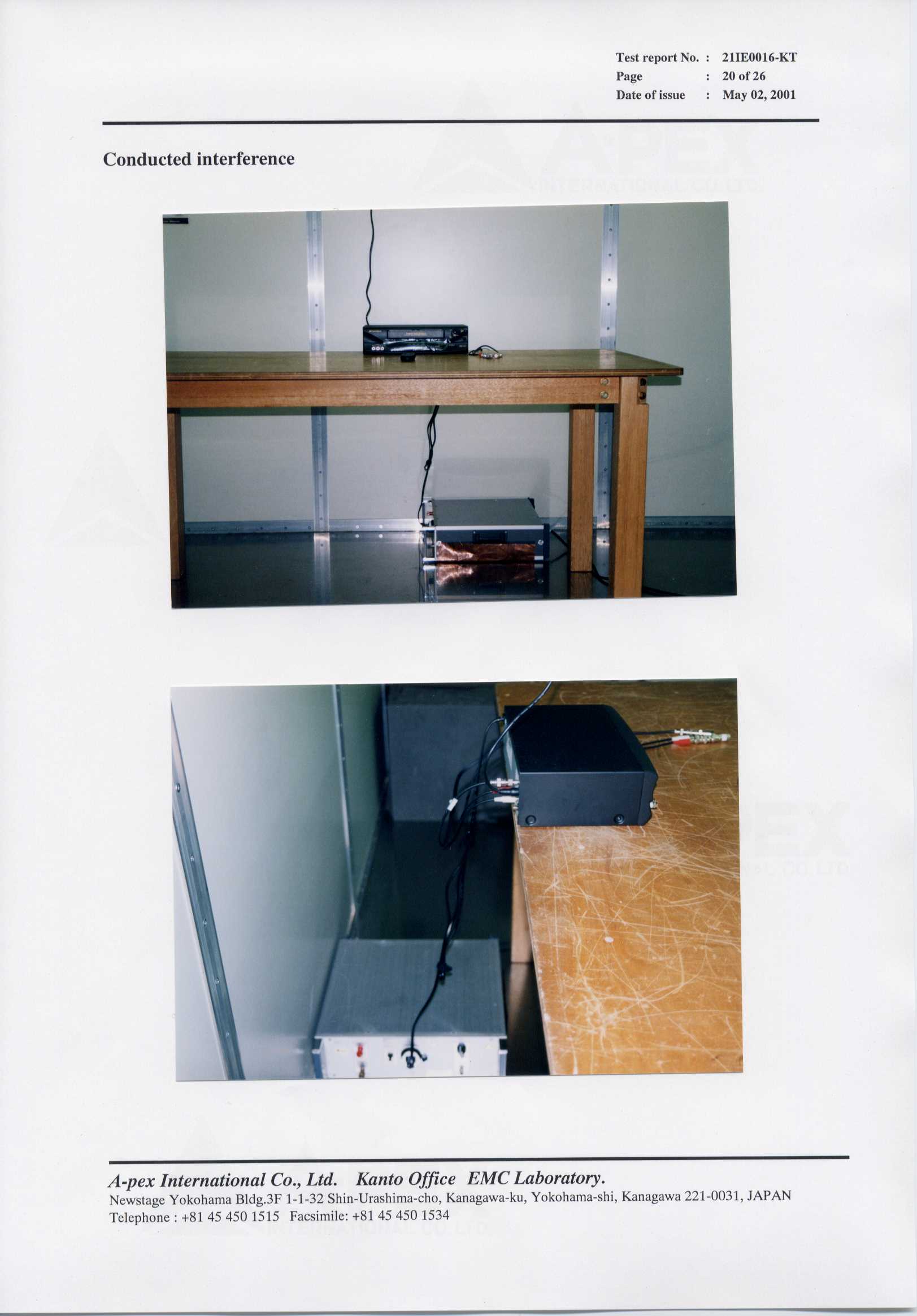

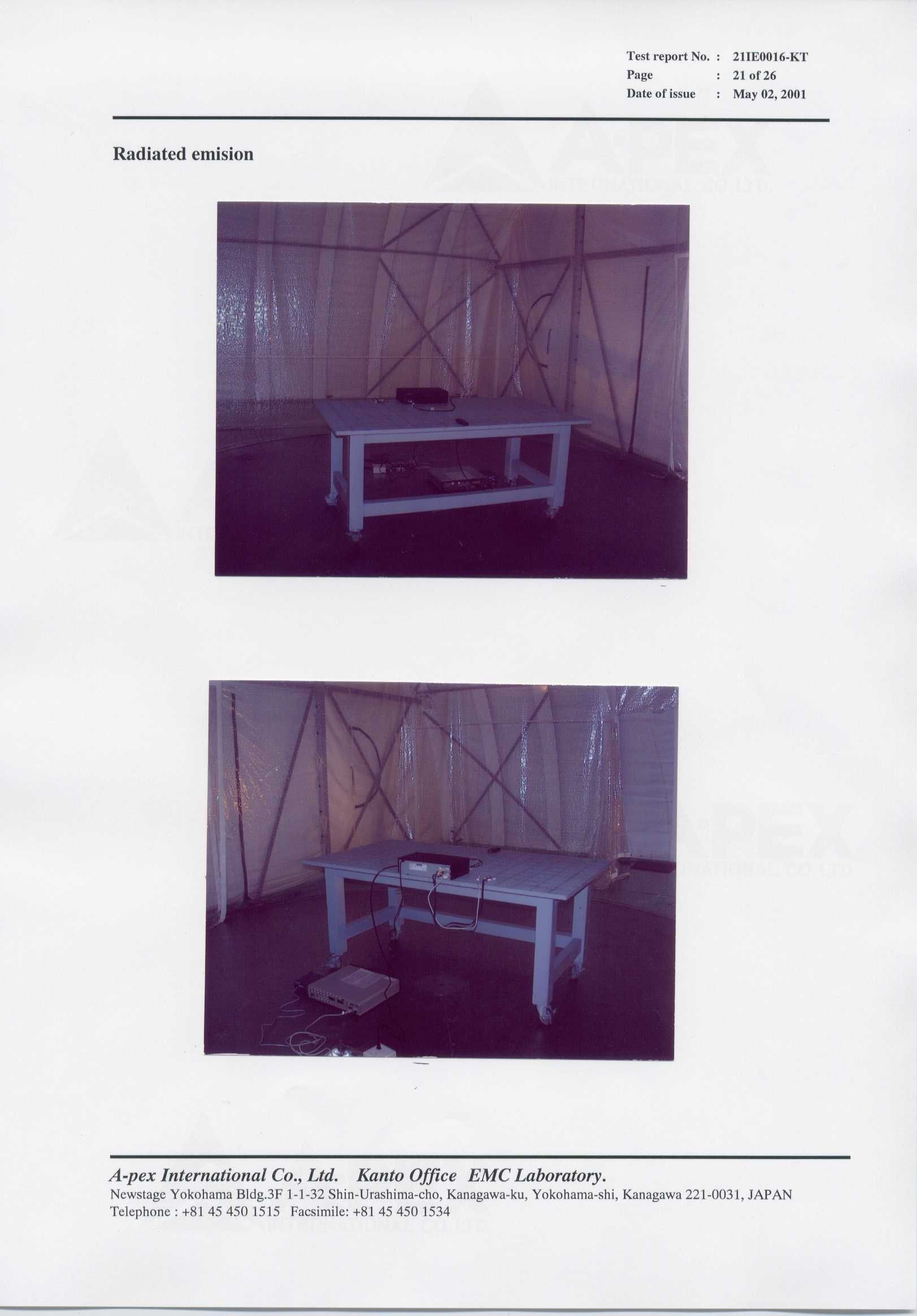

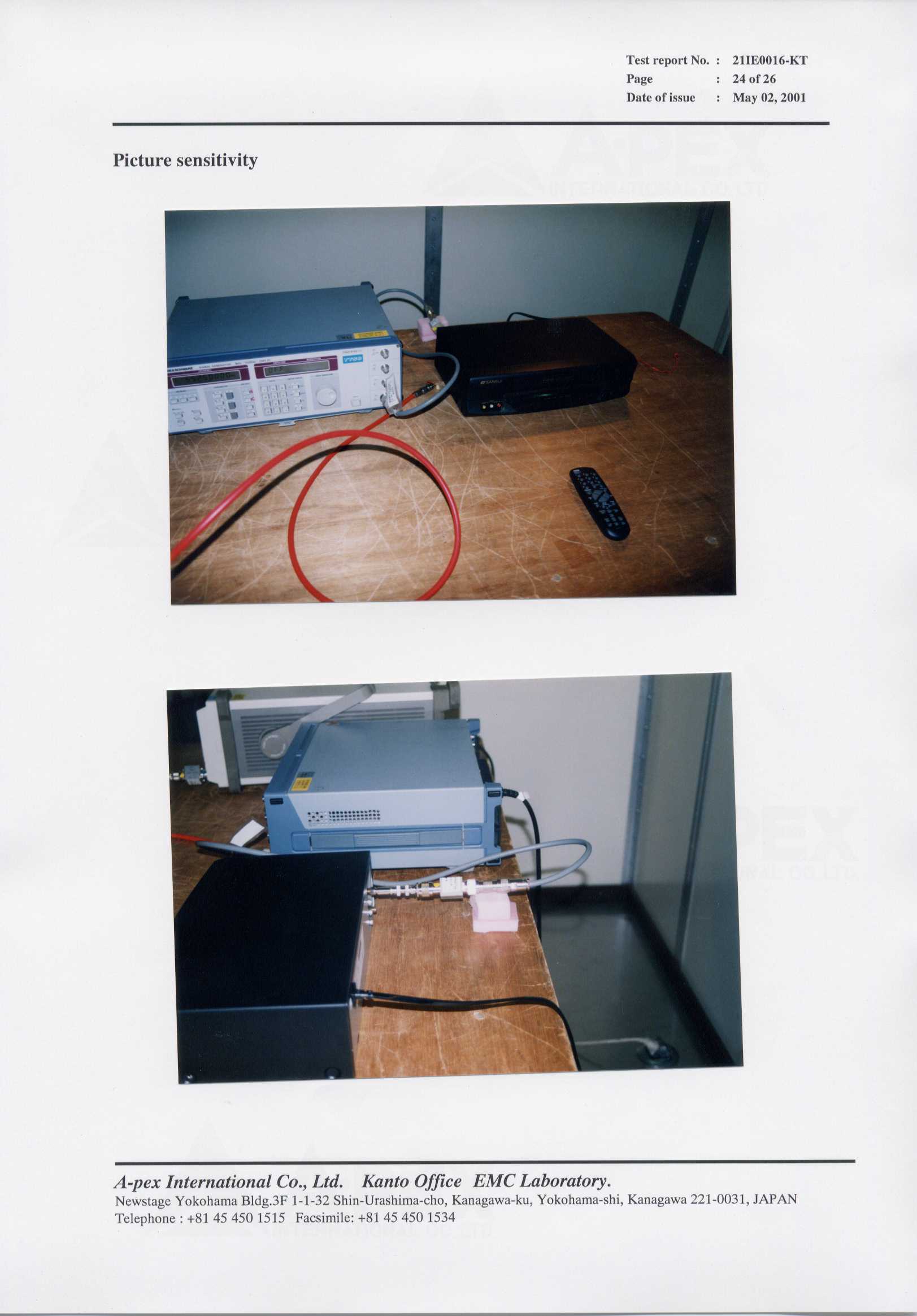

Test report No.: 21IE0016-KT Page: 2 of 26 Date of issue: May 02, 2001 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Contents Page Section 1:Client information3 Section 2:Equipment under test (E.U.T.)3 Section 3:Test specification, methods & procedures5 Section 4:Operation of E.U.T. during tests6 Section 5:Summary of test results7 Section 6:Test instruments8 Section 7:Conducted interference9 Section 8:Radiated emission12 Section 9:Antenna terminal voltage15 Section 10:RF output level / spurious emission16 Section 11: Picture sensitivity17 Section 12:Noise figure18 Appendix 1 :Photographs of test set up19 Appendix 2 :Data of EMI tests26 Test report No.: 21IE0016-KT Page: 3 of 26 Date of issue: May 02, 2001 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Section 1 : Client information Company name: ORION ELECTRIC CO., LTD. Address: 41-1 Iehisa-cho, Takefu-shi, Fukui 915-8555 JAPAN Telephone number: +81-778-23-0019 Facsimile number: +81-778-23-7799 Contact person: Hiroshi Tsujimoto Section manager Engineering headquarters Administration section Section 2 : Equipment under test (E.U.T.) 2.1Identification of E.U.T. Unique type identification: Video cassette recorder Model number: VHF6010C Serial number: - Manufacturer: 1.WORLD ELECTRIC (THAILAND) LTD. 236 Moo 2 Nongchark, Banbung, Chonburi 20170, Thailand 2. KORAT DENKI LTD. 149 Moo 10 Thombol Chokchai, Amphur Chokchai, Nakhonratchasima 30190, Thailand 3. ORION AMERICA, INC. Hwy 41 North, Orion Place, Princeton, Indiana 47670, U.S.A Test report No.: 21IE0016-KT Page: 4 of 26 Date of issue: May 02, 2001 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 2.2Product description ORION ELECTRIC CO., LTD., Model: VHF6010C (referred to as the EUT in this report) is a video cassette recorder. Tuner type : Quartz PLL frequency synthesized I / F :45.75 MHz (Picture), 41.25 MHz (Sound) Receiving channel : VHF 2 – 13 ch / UHF 14 – 69 ch / CATV 1 – 125 ch Antenna input : 75 ohm Video signal : NTSC color Power source : AC 120 V / 60 Hz, 9 W I / O terminal (Video): RCA in 1Vp-p 75 ohm, RCA out 1 Vp-p 75 ohm I / O terminal (Audio): RCA in 300 mV 50 k ohm, RCA out 300 mV 1 k ohm Test report No.: 21IE0016-KT Page: 5 of 26 Date of issue: May 02, 2001 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Section 3 : Test specification, methods & procedures 3.1Test specification Basic standard: FCC Part 15 Subpart B : Radiated frequency devices - unintentional radiators Test methods:ANSI C63.4 : 1992 : Methods of measurement of radio-noise emissions from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz. 3.2Methods & procedures No.ItemTest requirementsTest procedureLimits 1Conducted interference FCC Part 15 Subpart B Sec. 15.107 (a) ANSI C63.4 1992250 uV 2Radiated emissionFCC Part 15 Subpart B Sec. 15.109 (a) ANSI C63.4 199230 – 88 MHz: 100 uV/m 88 – 216 MHz: 150 uV/m 216 – 960 MHz: 200 uV/m above 960 MHz: 500 uV/m 3Antenna terminal voltage FCC Part 15 Subpart B Sec. 15.111 (f) ANSI C63.4 19922 nW (at 75 ohm) RF output levelFCC Part 15 Subpart B Sec. 15.115 (b) ANSI C63.4 1992Video signal: 3000 uV Aural signal: 671 uV 4 Spurious emission94.8 uV 5Picture sensitivityFCC Part 15 Subpart B Sec. 15.117 (f) ANSI C63.4 19928 dB 6Noise figureFCC Part 15 Subpart B Sec. 15.117 (g) ANSI C63.4 199214 dB Test report No.: 21IE0016-KT Page: 6 of 26 Date of issue: May 02, 2001 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Section 4 : Operation of E.U.T. during tests 4.1Operating modes * Receive mode (0 dBmV input / 25 dBmV input) * AV Input mode (1 Vp-p input / 5 Vp-p input) * Playback mode 4.2Configuration and peripherals AC 120 V / 60 Hz A 1 47 k ohm terminator 75 ohm terminator 1k ohm terminator 75 ohm terminator 1k ohm terminator EUT and support equipment EUT SignItemModel numberSerial numberManufacturer AVideo cassette recorderVHF6010C-ORION ELECTRIC CO., LTD. Support item (s) No.ItemLength (m)ShieldingManufacturer 1AC power cable1.75Unshielded- 2RF output cable1.50ShieldedSupplies accessory Test report No.: 21IE0016-KT Page: 7 of 26 Date of issue: May 02, 2001 A-pex International Co., Ltd. Kanto OfficeEMC Laboratory. Newstage Yokohama Bldg.3F 1-1-32 Shin-Urashima-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0031, JAPAN Telephone : +81 45 450 1515Facsimile: +81 45 450 1534 Section 5 : Summary of test results 5.1Test results We confirmed the EUT complied to the specifications of FCC Part 15 Subpart B in the test configuration mentioned in this test report. No.ItemTest requirementsLimitsResults 1Conducted Interference FCC Part 15 Subpart B Sec. 15.107 (a) 250 uVPassed 2Radiated Emission FCC Part 15 Subpart B Sec. 15.109 (a) 30 – 88 MHz: 100 uV/m 88 – 216 MHz: 150 uV/m 216 – 960 MHz: 200 uV/m above 960 MHz: 500 uV/m Passed 3Antenna Terminal Voltage FCC Part 15 Subpart B Sec. 15.111 (f) 2 nW (at 75 ohm)Passed RF output levelFCC Part 15 Subpart B Sec. 15.115 (b) Video signal: 3000 uV Aural signal: 671 uV Passed Spurious emission94.8 uVPassed 4Picture SensitivityFCC Part 15 Subpart B Sec. 15.117 (f) 8 dBPassed 5Noise FigureFCC Part 15 Subpart B Sec. 15.117 (g) 14 dBPassed 5.2Test equipments Please refer to the list of test instrume…
