AAO1200768Universal FM Transmitter

THE P ERFORMANCE YOU NEED TM TM Wireless FM Transmitter for iPod ® or iPhone ® User’s Guide 1200768 Please read this user’s guide before using your new transmitter. 2/2 2 2 Package contents „FM Transmitter „User’s Guide „USB Cable „Quick Start Features „Listen to your iPod/iPhone music through your FM radio. „Charge your iPod/iPhone while the music plays. IMPORTANT SAFETY INFORMATION Connect and operate this product BEFORE operating your vehicle. Pay attention to the road. Attempting to drive and operate your transmitter at the same time can cause a serious traffic accident! Please drive responsibly. 1 Connect the transmitter Plug the FM transmitter into the iPod/iPhone and begin playing music. The FM transmitter powers on and displays the last used frequency. n Notes: The transmitter draws power from your iPod/iPhone so make sure it is charged before use. If your FM transmitter does not power on after connecting to the iPod/iPhone, press on your iPod/iPhone twice. The protective case of the iPod/iPhone may need to be removed in order to fully connect the FM transmitter. 3 3 2 Tune your transmitter To save frequencies 1. Press + or - to find the desired frequency. 2. Press and hold M until M1 flashes. 3. Press + or - to select the desired memory location then press and hold M to store the memory location. 4. Repeat steps 1-3 to save a frequency in M2 and M3. Select a saved frequency „Press M once, M1 and its frequency appear. „Press M twice, M2 and its frequency appear. „Press M three times, M3 and its frequency appear. 3 Tune your radio Tune your FM radio to the frequency displayed on the transmitter. 4 Listen to music Use your iPod/iPhone to find a song, and use the volume controls on the radio to adjust the volume. n Notes: The volume control on your iPod/iPhone does not control the sound on the radio. Due to different radio set and antenna position in the vehicles, the best position to use the FM transmitter in each vehicles may be different. However, the rule of thumb is to put the FM transmitter close to the antenna. 4 4 Charge your iPod/iPhone with the Transmitter To charge your iPod/iPhone, connect the supplied USB cable to the transmitter and to your computer or other USB power output device. n Note: The USB port lets you charge iPod/iPhone only. It cannot be used for data transfer. RBDS Transmission RBDS protocol transmits both audio and track information from your iPod/iPhone to your radio receiver. If your radio is RBDS capable, “AUVIO” appears in the Program Service Name area and the currently playing music title is shown in the Radio Text area. n Note: Actual operation to view display text may vary according to individual radio receivers. Please refer to the user’s guide of your receiver for details. Use with iPhone Application If you are using the transmitter with iPod Touch or the iPhone with OS3.0 or above, you can download FM Navi from Apple App Store. This application allows you to control all functions of the transmitter through iPod Touch/iPhone screen. Your saved channels will upload to application automatically and all your settings in the application would be stored in the transmitter in turn. Download FM Navi Download FM Navi from Apple App store then follow the on- screen instruction to install. (Refer to the instructions for your iPhone/iPod for more details.) 5 5 Use FM Navi 1. Plug the FM transmitter into the iPod/iPhone. 2. Choose a song to play and start playback. The transmitter turns on. 3. Return to your iPhone/iPod’s home screen. Find and tap the FM Navi icon to run the application. n Note: After the transmitter is plugged in, run the FM Navi application or start music playback to turn on the transmitter. If FM Navi is not running, the transmitter turns off 2 minutes after music is paused or stopped. Once your music playlist is created in iPhone/iPod application, FM Navi allows you to control music playback and FM transmission in the same screen. Music Controls „Repeat - Tap repeatedly to select repeat all tracks, current track or turn off repeat. „ 9 - Tap to start and pause playback. „ @ - Tap to skip to previous song or touch and hold to fast backwards. „ I - Tap skip to next song or touch and hold to fast forward. „Shuffle - Tap repeatedly to shuffle all tracks or turn off shuffle. Control your Transmitter Tune Frequency „Tune Up : Touch and rotate the wheel clockwise. „Tune Down: Touch and rotate the wheel anticlockwise. 6 6 Store Channel Frequency „Touch and hold the frequency shown on the FM Navi display until a white cursor appears, then drag it to the desired memory location to save current frequency. Select a Stored Channel Frequency „Tab any of the 3 memory buttons to select frequency. The selected memory is enlarged. Change Background Color 1. Tap the icon to show available background colors. 2. Tap the desired color. 3. Tap a to close. More Information „Tap the icon for help. n Notes: Update your iPod or iPhone to the latest firmware version for the best use of this FM transmitter. Specifications Audio input ..................................................30-pin iPod connector Transmitting frequency ...........88.1–107.9 MHz with 0.2 MHz step Modulation ..........................................................FM stereo, RBDS Operating range ............................................................10 - 30 feet Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. Complies with the European Union’s “Restriction of Hazardous Substances Directive,” which protects the environment by restricting specific hazardous materials and products. 7 7 FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment generates, uses and can radiate rad…

Text truncated - open the document above for the full version.

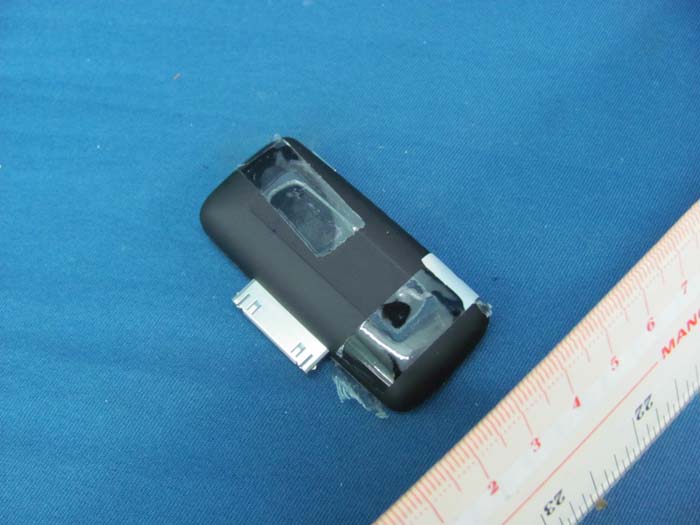

INTERTEK TESTING SERVICE Report No.: HK10030899-2 Equipment Photographs Model : 1200768 (External) FCC ID: AAO1200768

Rating Label (Engraving) Size: 41 x 12 mm ART NO. REV ECN NO. MODEL ZONE DESCRIPTION DRAFTDATE A PART NO. DWG. NO. PART NAME DEST APPROVED CHECKED DRAFT PLS RETURN IMMEDIATELY AFT FILMED SCALE 12-768 U.S.A Rating Label (E) Merry 1:1 generated label A/W Merry DATE 12768EP01B 02/23/10 02/23/10 TANDY RADIO SHACK LIMITED A Division of RadioShack Corporation MMAYY Date code Silkscreen color: White FCC ID: AAO1200768 CAT. NO.: 1200768 CUSTOM IN CHINA FOR IGNITION L.P., 3102 MAPLE AVE. SUITE 450, DALLAS, TX 75201 MFD. FM TRANSMITTER DONGLE WITH OS 3.0 B Change the cat no. Merry 04/01/10

INTERTEK TESTING SERVICE Report No.: HK10030899-2 Equipment Photographs Model : 1200768 (Internal) FCC ID: AAO1200768 INTERTEK TESTING SERVICE Report No.: HK10030899-2 Equipment Photographs Model : 1200768 (Internal) FCC ID: AAO1200768

INTERTEK TESTING SERVICES Report No.: HK10030899-2 Sample No.: 1/1 Code: FCC15C_c / Effective Date: 04 Aug 2009 Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 239 Requirement INTERTEK TESTING SERVICES Report No.: HK10030899-2 Sample No.: 1/1 Code: FCC15C_c / Effective Date: 04 Aug 2009 Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 239 Requirement

Report no.: HK10030899-2 TX mode PC AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP C0899A2 Date: 12.APR.2010 16:32:06 Report no.: HK10030899-2 TX mode PC AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 190.5 kHz 50.35 N gnd -13.65 2 CISPR Average190.5 kHz 40.98 N gnd -13.02 1 Quasi Peak 213 kHz 38.66 L1 gnd -24.41 2 CISPR Average253.5 kHz 33.49 N gnd -18.14 1 Quasi Peak 316.5 kHz 34.58 N gnd -25.21 2 CISPR Average2.652 MHz 16.80 L1 gnd -29.19 1 Quasi Peak 2.841 MHz 28.98 N gnd -27.01 1 Quasi Peak 3.093 MHz 24.51 N gnd -31.48 2 CISPR Average3.9165 MHz 16.88 L1 gnd -29.11 2 CISPR Average4.425 MHz 19.50 N gnd -26.49 C0899A2 Date: 12.APR.2010 16:31:35

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10030899-2 RadioShack Corporation Application For Certification (Original Grant) (FCC ID: AAO1200768) FM Transmitter Prepared and Checked by: Approved by: Signed On File Benny Lau/sl Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: April 30, 2010 INTERTEK TESTING SERVICES Report No.: HK10030899-2 FCC ID: AAO1200768 i GENERAL INFORMATION RadioShack Corporation BRAND NAME: AUVIO, MODEL: 1200768 FCC ID: AAO1200768 Grantee: RadioShack Corporation Grantee Address: 300 RadioShack Circle, Mail Stop WF4-136, Fort Worth, Texas, 76102-2802, USA. Contact Person: Pat Loehr Tel: (817) 415-6221 Fax: (817) 415-9247 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: AUVIO Model: 1200768 Type of EUT: FM Transmitter Description of EUT: AUVIO FM Transmitter Dongle with OS 3.0 Serial Number: N/A FCC ID: AAO1200768 Date of Sample Submitted: March 22, 2010 Date of Test: April 12, 2010 Report No.: HK10030899-2 Report Date: April 30, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10030899-2 FCC ID: AAO1200768 ii SUMMARY OF TEST RESULT RadioShack Corporation BRAND NAME: AUVIO, MODEL: 1200768 FCC ID: AAO1200768 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) Pass Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver / Digital Device Radiated Emissions 15.109 / ICES-003 N/A Intentional Radiator Conducted Emissions 15.207 / ICES-003 Pass Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10030899-2 FCC ID: AAO1200768 iii Table of Contents 1.0 General Description........................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants............................................................................... 1 1.3 Test Methodology.............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ............................................................................. 2 2.1 Justification ....................................................................................................... 2 2.2 EUT Exercising Software................................................................................... 2 2.3 Special Accessories .......................................................................................... 2 2.4 Equipment Modification ..................................................................................... 2 2.5 Measurement Uncertainty.................................................................................. 2 2.6 Support Equipment List and Description ............................................................ 2 3.0 Emission Results ............................................................................................ 3 3.1 Field Streng…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK10030899-2 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 1200768 Figure 1 FCC ID: AAO1200768 INTERTEK TESTING SERVICE Report No: HK10030899-2 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 1200768 Figure 2 FCC ID: AAO1200768
