THE P ERFORMANCE YOU NEED ® ® Universal FM Transmitter User’s Guide 1200962 Please read this user’s guide before using your new transmitter. 2 2 3 3 4 4 5 5 6 6 7 7 8 8 Tune Your Radio Tune your car’s FM radio to the same frequency displayed on the transmitter. Listen to Music When you play your music on your audio source, the sound is transmitted through the car speakers. You can use your radio controls to adjust the volume. Changing the Fuse If the transmitter display does not turn on after plugging in to your car’s power outlet, the power adapter’s fuse may be blown. Replace it with a 1A, 250V tube-type fuse (not supplied). Specifications Power ................................................................................12VDC Transmitting frequency .........88.1–107.9 MHz with 0.2 MHz step Modulation ...................................................................FM stereo Available channels ...................................................................100 Operating range ..................................................10–30 ft (3–9 m) Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. Tune Your Transmitter w Caution: Do not tune or scan while driving. Auto-scanning for a Frequency Hold down Scan until the display changes. Your FM transmitter finds the first clear frequency. Auto scan may not find clear frequencies in highly congested areas. For more precise tuning, follow the procedure for manually tuning. Manually Tuning a Frequency 1. Hold down 2 M until M1 , M2 , and M3 all flash on the display. 2. Press 1or 3 to find the desired frequency. 3. Wait until the display stops flashing. Saving Displayed Frequencies 1. Hold down 2 M until M1 , M2 , and M3 all flash on the display. 2. Hold down 1, 2 M, or 3 for two seconds to save the displayed frequency to M1 , M2 , or M3 respectively. Selecting a Saved Frequency Press 1, 2 M or 3 to select a saved frequency. The display shows M1 , M2 , or M3 and its corresponding frequency. n Note: Press any button to turn the backlight on for ten seconds. Package contents „FM Transmitter „ 1 / 8 ’’ to 3 / 32 ’’ adapter „User’s Guide Features „Transmits music that you can listen to through your vehicle’s speakers „Works with virtually any portable audio device that has a 1 / 8 ” (3.5mm) or 3 / 32 ” (2.5mm) headphone jack „Auto-scan feature searches for a clear frequency at the push of a button to help eliminate interference IMPORTANT SAFETY INFORMATION Connect and operate this product BEFORE operating your vehicle. Pay attention to the road. Attempting to drive and operate your transmitter at the same time can cause a serious traffic accident! Please drive responsibly. Connect the Transmitter 1. Insert the power adapter into your car’s power outlet. The backlight turns on and the transmitter displays the frequency last used. 2. Insert the stereo plug into the headphone jack of your portable audio device. n Note: If the plug does not fit your device, try the included Ç” to 3 / 32 ” adapter. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: „Reorient or relocate the receiving antenna. „Increase the separation between the equipment and receiver. „Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. „Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Ignition L.P. may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. Limited Warranty Ignition L.P. warrants this product against defects in materials and work- manship under normal use by the original purchaser for ninety (90) days after the date of purchase. IGNITION L.P. MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a Ignition L.P. Authorized Service Facility; (c) consum- ables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser. Should a problem occur that is covered by this warranty, take the product and the sales receipt as proof of purchase date to the place of purchase. Ignition L.P. will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of Ignition L.P. New or reconditioned p…

Text truncated - open the document above for the full version.

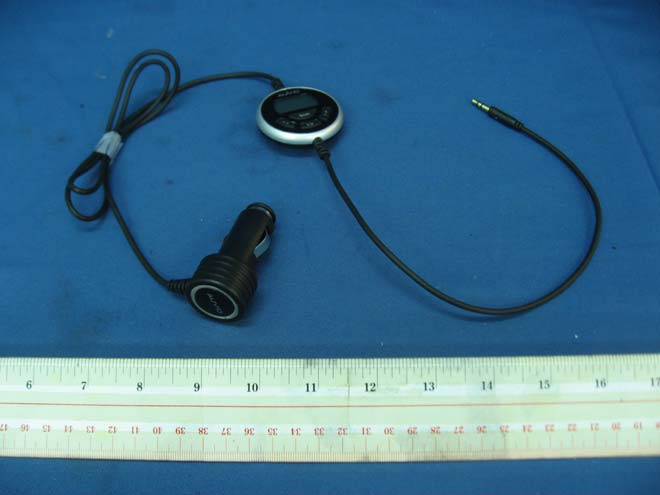

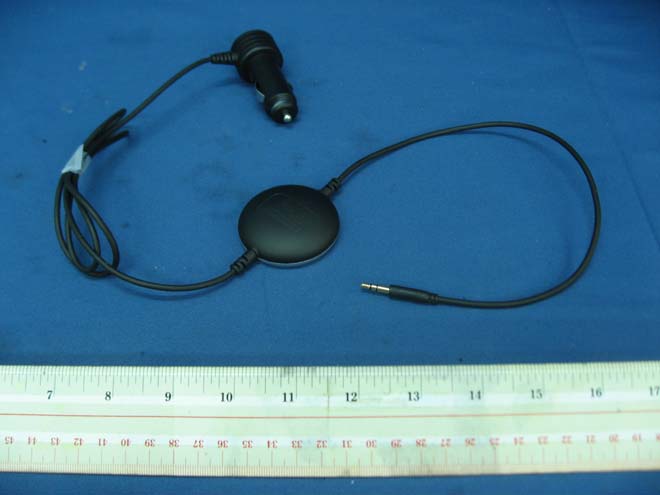

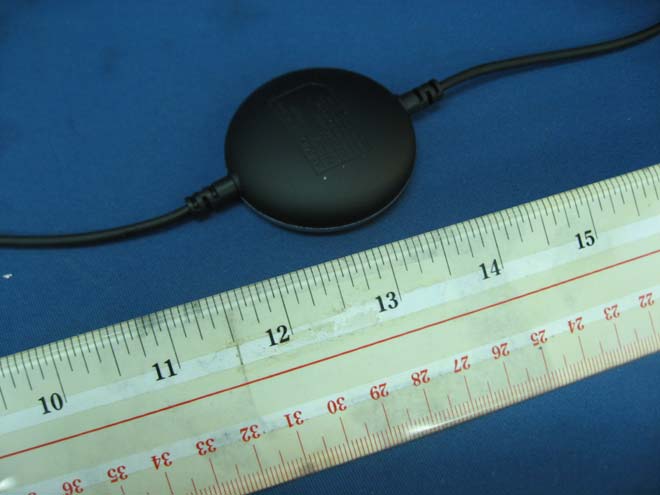

INTERTEK TESTING SERVICE Report No.: HK11051677-1 FCC ID: AAO1200962 Equipment Photographs Model: 1200962 (External) INTERTEK TESTING SERVICE Report No.: HK11051677-1 FCC ID: AAO1200962 Equipment Photographs Model: 1200962 (External)
