AAO2302500Bluetooth Power Bank

TM 2345678910 Charge the Power Bank 1. Connect the supplied USB cable to the power bank’s IN port and the USB port on your computer or USB charger. 2. Unplug the power bank when charging is complete. Portable Power Bank with Bluetooth ® Speaker We hope you enjoy your Portable Power Bank with Bluetooth ® Speaker from RadioShack. This power bank works with most Micro USB devices to provide up to 13 hours of talk time, and features an integrated speaker. Please read this user’s guide before using your new power bank. Package Contents •Portable Power Bank •USB to Micro USB Cable •User’s Guide Caution: •Use only with devices that require 5V USB power. •The input current for a device plugged into this power bank should not exceed 1 A. •Do not short-circuit, disassemble, or destroy the power bank. •Do not expose to water, fire, high temperature, or high humidity. •Charge only devices with minimum input current 80 mA. Charge Your Device You can use the provided USB cable or another USB cable that is compatible with your device. Read your device’s instructions for charging requirements. 1. Press ON , and then connect your device to the power bank’s OUT port. 2. When charging is finished, unplug your device and disconnect the cable from the power bank to prevent self-discharge. Use the Bluetooth Speaker 1. Press and hold ON for 3 seconds to enter pairing mode. The Bluetooth indicator flashes. 2. Activate your device’s Bluetooth function (refer to your device’s user’s guide). When your device locates RS2302500/01/02, select it. When paired, the indicator lights steadily. 4. Use your audio device to control playback. 5. Press and hold ON for 3 seconds to turn off your power bank after use. Notes: •If prompted for a PIN, enter 0000. •When turned on, the power bank automatically connects to the most recently paired device within 5 seconds. Pair again if connection fails. •If the most recently paired device is not available, the power bank will search for other devices. •The power bank will disconnect from your device if they are too far apart. To reconnect, move the power bank closer to the device within 30 seconds. •Bluetooth function cannot be used if the battery level of the power bank is too low. Specifications Battery Chemistry ............Lithium-ion rechargeable USB Input ..........................................................5V DC, 1 A USB Output ...................................................5V DC, 1.5 A Cell Capacity .............................................14.8 Wh (4 Ah) Battery Charging Time (at 1000mA)..............5 hours Talk Time .............................................Up to 13 hours Operating Temperature ..............32–104°F (0 –40°C) Speaker Output Power ................................................................2 W Frequency Response .................................200 –20 kHz Rated Impedance .........................................................4 Ω Sensitivity ...................................................................83 dB Specif ications are subject to change and improvement without notice. Actual product may vary from the images found in this document. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/T V technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Printed in China 12A14 2302500 2302501 2302502 ©2014 RadioShack Corporation. All rights reserved. RadioShack is a registered trademark used by RadioShack Corporation. Complies with the European Union’s “Restriction of Hazardous Substances Directive,” which protects the environment by restricting specific hazardous materials and products. 2302500 2302501 2302502 Limited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase from a RadioShack-owned store or an authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f ) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than th…

Text truncated - open the document above for the full version.

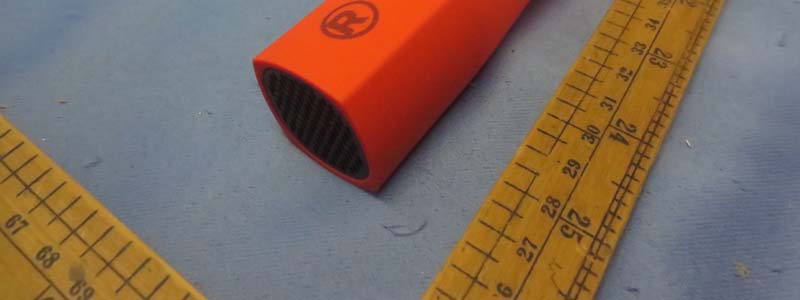

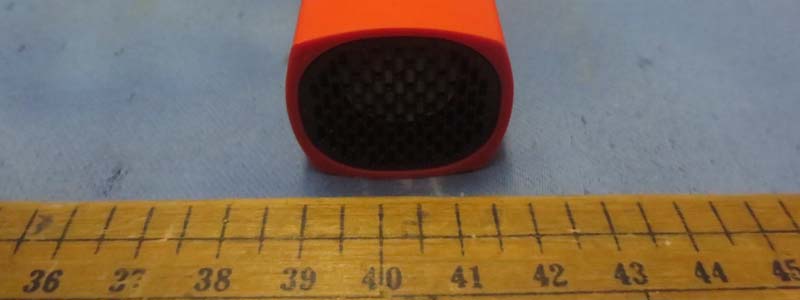

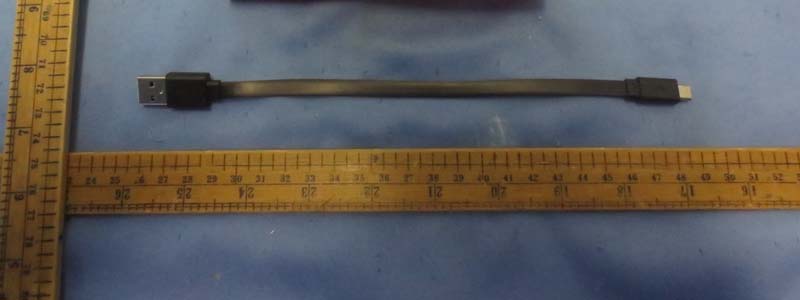

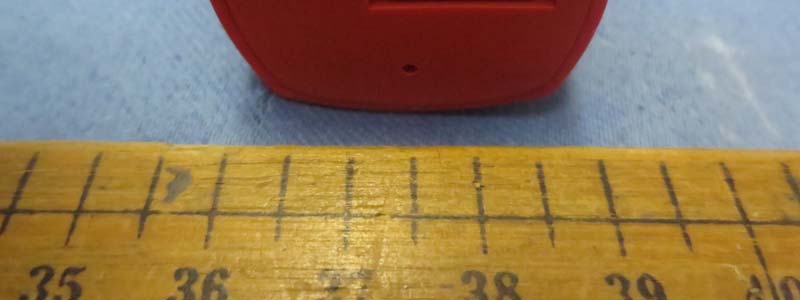

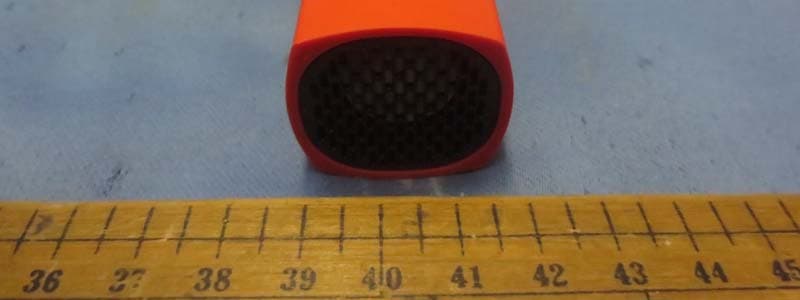

External Photos

Internal Photos

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Bluetooth Power Bank with Bluetooth function. The EUT was powered by the fully-charged DC 3.7V, 4000mAh new rechargeable battery which was charged by USB port (DC 5V). For more detail information pls. refer to the user manual. Modulation Type: GFSK for BT 4.0 and GFSK, π/4DQPSK, 8DPSK for BT 3.0+EDR. Bluetooth Version: 4.0 and 3.0 with EDR. Antenna Type: Integral antenna. Antenna Gain: 0dBi. The nominal conducted output power specified: -5dBm +/-3dB. The nominal radiated output power (e.i.r.p) specified: -5dBm (+/- 3dB) According to the KDB 447498: The maximun peak radiated emission for the EUT is 91.8dBμV/m at 3m in the frequency 2480MHz of BT 4.0 The EIRP = [(FS*D) ^2 / 30] mW = -3.43dBm which is within the production variation. The minimum peak radiated emission for the EUT is 88.0dBμV/m at 3m in the frequency 2402MHz of BT 4.0 The EIRP = [(FS*D) ^2 / 30] mW = -7.23dBm which is within the production variation. The maximun conducted output power specified is -2.0dBm = 0.63mW The source- based time-averaging conducted output power = 0.63 * Duty cycle mW (where Duty cycle≤1) ≤ 0.63 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: AAO2302500

BW Plot BT 3.0+EDR BT 4.0

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com RadioShack Corporation Application For Certification FCC ID: AAO2302500 Bluetooth Power Bank Model: 2302500 Additional Model: 2302501, 2302502 Brand name: radioshack 2.4GHz Transceiver Report No.: 141120003SZN-002 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Jenner Liu Assistant Engineer Andy Yan Senior Project Engineer Date: February 02, 2015 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: AAO2302500 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: AAO2302500 ii MEASUREMENT/TECHNICAL REPORT RadioShack Corporation - MODEL: 2302500 Additional Model: 2302501, 2302502 Brand name: radioshack FCC ID: AAO2302500 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-13 Edition] provision. Report prepared by: Jenner Liu Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0639 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: AAO2302500 iii Table of Contents 1.0 General Description ............................................................................................................................................ 2 1.1 Product Description ........................................................................................................................................... 2 1.2 Related Submittal(s) Grants ............................................................................................................................. 2 1.3 Test Methodology .............................................................................................................................................. 2 1.4 Test Facility ....................................................................................................................................................... 2 2.0 System Test Configuration ................................................................................................................................ 4 2.1 Justification ......................................................................................................................................................... 4 2.2 EUT Exercising Software .................................................................................................................................. 4 2.3 Special Accessories .......................................................................................................................................... 4 2.4 Equipment Modification ..................................................................................................................................... 4 2.5 Measurement Uncertainty ................................................................................................................................. 5 2.6 Support Equipment List and Description ......................................................................................................... 5 3.0 Emission Results ................................................................................................................................................ 7 3.1 Radiated Test Results ....................................................................................................................................... 8 3.1.1 Field Strength Calculation .............................................................................................................................. 8 3.1.2 Radiated Emission Con…
