AAO1500044T2.4GHz Digital Wireless Rear Speaker Kit - Transmitter

© 2011. Ignition L.P. All rights reserved. Auvio is a registered trademark used by Ignition L.P. Package and user documentation are recyclable. User documentation contains recycled material. Printed in China 03A11 1500044 See the User’s Guide for complete instructions. Start Here Package contents THE P ERFORMANCE YOU NEED ® ® Wireless Speaker Kit Quick Start 1500044 Connect the Receiver Connect the Transmitter Quick Start User’s Guide Transmitter 9V AC Adapter Use Your Speaker Kit 2 1 3 15V AC Adapter 6-foot Speaker Wires Stands (2) Receiver Transmitter Receiver - OR - Amplifier     From amplifier speaker output From line out To rear speakers AO0468AAA1 1500044 QS_022411.indd 13/1/2011 11:05:44 AM THE P ERFORMANCE YOU NEED ® ® Wireless Speaker Kit User’s Guide 1500044 Please read this user’s guide before using your new speaker kit. 2 2 3 3 4 4 5 5 Package contents „Transmitter D Receiver „9V AC Adapter D 15V AC Adapter „Stands (2) D 6-foot speaker wire (2) „User’s Guide D Quick Start Features „2.4GHz digital wireless link provides crystal clear audio signals. „Three-channel selection to avoid potential interference in the environment. „Up to 115 feet (35m) operation distance between transmitter and receiver (line of sight). 1 Install the Transmitter 1. Make sure your amplifier is off. Connect the transmitter to your amplifier‘s speaker output terminals with the provided 6-foot speaker cords, matching polarities. Or connect your transmitter to the amplifier’s RCA output ports with RCA cables (not included). 2. Connect the supplied AC adapter (9V, 200mA) to the DC IN 9V jack, then plug it into a standard household outlet. 2 Install the Receiver 1. Connect the surround speakers to the receiver with speaker wires, matching polarities. 2. Connect the supplied AC adapter (15V, 4A) to the DC IN 15V jack, and then plug it into a standard household outlet. n Notes: Make sure the exposed tips of each cord do not touch each other, and make sure they are fully inserted into the terminals. This rear speaker kit is designed for connecting to your amplifier surround speaker terminals only. For speaker wires that have proprietary connectors, you may strip the end of the wires to allow connection to the receiver. However, check with the speaker manufacturer before doing this, as it may void the warranty. When the RCA cables are connected, audio input from the speaker terminal will be disabled. Unplug the AC adapters from the AC outlet before unplugging it from the transmitter or receiver. Use the supplied AC adapters only. Using an AC adapter not designed for this product may cause damage. 3 Place the Transmitter and Receiver The transmitter and receiver must be placed within 100 feet for proper operation. They can be placed horizontally on a flat surface, vertically in the provided stands or mounted on a wall, using the mounting holes on the bottom. DC IN 9V DC IN 15V - OR - To rear speakers From amplifier speaker output From line out 1500044_UG_EN 022411.indd 1-53/1/2011 3:56:49 PM 6 6 7 7 8 8 9 9 10 10 L.P. will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of Ignition L.P. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. IGNITION L.P. EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDI- TIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, IGNITION L.P. SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFOR- MANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULT- ING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF IGNITION L.P. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. You may contact Ignition L.P. at: Ignition L.P., 3102 Maple Ave Suite 450, Dallas, TX 75201 02/09 For product support, call 1-866-315-0426 FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: D Reorient or relocate the receiving antenna. D Increase the separation between the equipment and receiver. D Connect the equip…

Text truncated - open the document above for the full version.

@ Radioshack. CORPORATION Pmdud EvaluaUon and Canpiianm Dwayne Campbell MS WF4-136 3W RsdmShack Circle ~~~ ~~ ~- ~~ ~ ~~ Fort Worth, TX 76102-1964 (817) 415-3203 Fax: (817)415-9247 March 15,201 1 Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01 71 9 RE: AA01500044T REQUEST FOR CONFIDENTIALITY Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be harmful to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: , , , :. . ,. Detail Block Diagram .,- Schematic Diagram -.--A. . . Detailed Operational Functional Description Parts List Trade Secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Section 0.457(d) and 0.459. The fee for confidentiality has been submitted along with the fee for certification. Sincerely, 72Li2?- Sr. 6rector,~e~ulatory Affairs and Product Development

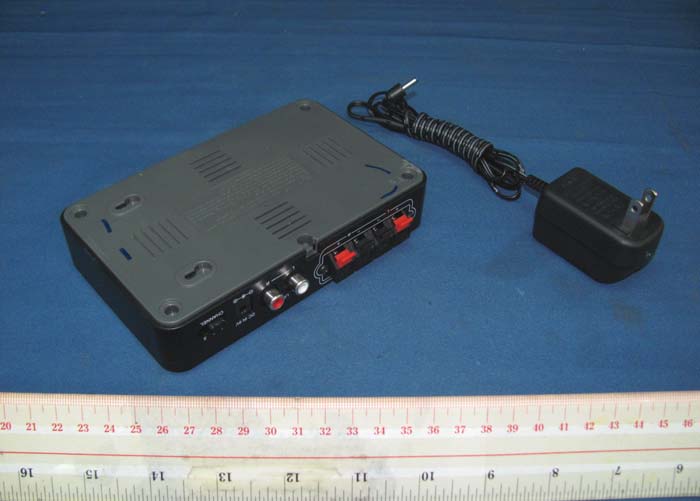

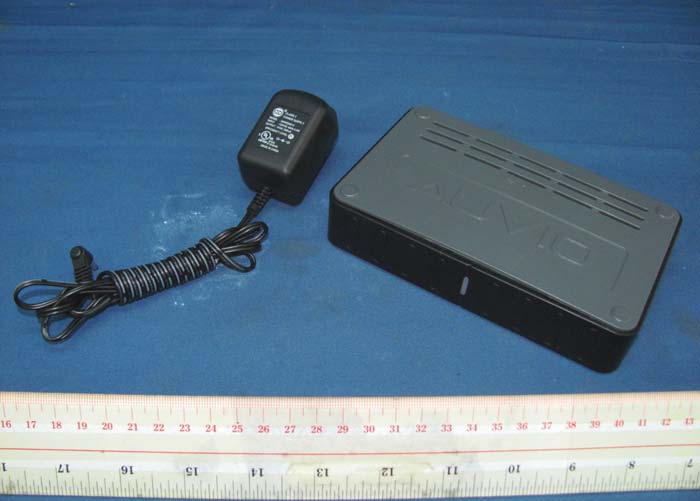

INTERTEK TESTING SERVICE Report No.: HK11020870-1 FCC ID: AAO1500044T Equipment Photographs Model: 1500044 (External) INTERTEK TESTING SERVICE Report No.: HK11020870-1 FCC ID: AAO1500044T Equipment Photographs Model: 1500044 (External)

1500044 rating label on TX ART NO. REV ECN NO. MODEL ZONE DESCRIPTION DRAFTDATE A PART NO. DWG. NO. PART NAME DEST APPROVED CHECKED DRAFT PLS RETURN IMMEDIATELY AFT FILMED SCALE 1500044 U.S.A Rating label on TX Merry 1:1 generated label A/W Merry DATE 10/22/10 10/22/10 TANDY RADIO SHACK LIMITED A Division of RadioShack Corporation 1500044E1B 2.4GHz Digital Wireless Rear Speaker Kit - Transmitter CAT. NO.: 1500044 Power: DC 9V, 200mA FCC ID: AAO1500044T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Custom Manufactured in China for Ignition L.P., 3102 Maple Ave. Suite 450, Dallas, TX 75201 ® 2.4GHz Digital Wireless Rear Speaker Kit - Transmitter CAT. NO.: 1500044 Power: DC 9V, 200mA FCC ID: AAO1500044T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Custom Manufactured in China for Ignition L.P., 3102 Maple Ave. Suite 450, Dallas, TX 75201 ® MMAYY TEC Q.C. Engraving B Change “250mA” to “200mA” Merry 02/22/11

INTERTEK TESTING SERVICE Report No.: HK11020870-1 FCC ID: AAO1500044T Equipment Photographs Model: 1500044 (Internal) INTERTEK TESTING SERVICE Report No.: HK11020870-1 FCC ID: AAO1500044T Equipment Photographs Model: 1500044 (Internal) INTERTEK TESTING SERVICE Report No.: HK11020870-1 FCC ID: AAO1500044T Equipment Photographs Model: 1500044 (Internal) INTERTEK TESTING SERVICE Report No.: HK11020870-1 FCC ID: AAO1500044T Equipment Photographs Model: 1500044 (Internal) INTERTEK TESTING SERVICE Report No.: HK11020870-1 FCC ID: AAO1500044T Equipment Photographs Model: 1500044 (Internal)

INTERTEK TESTING SERVICE RF Exposure Evaluation For Specific Absorption Rate (SAR) evaluation of the Transmitter Unit, with reference to TCB Exclusions List revised on July 17, 2002, portable transmitters with output power less than low threshold and operating within 2.5cm from person’s body can be certified by TCB without the SAR evaluation. The output power for portable transmitters is defined as the higher of the conducted or radiated (EIRP) source-based time averaging output power. And the low threshold is equal to (60/fGHz) mW for d < 2.5cm, where fGHz is mid-band frequency in GHz, and d is the distance from the portable transmitter to a person’s body, excluding hands, wrists, feet, and ankles. For the Transmitter Unit of the tested model of 1500044, the measured peak conducted power was 48.654 mW. The maximum source-based time averaging duty factor is 14.72%. The conducted source-based time averaging output power = (48.654 * 0.1472) mW = 7.162 mW The measured maximum field strength (FS) was 115.3 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. From these data, the radiated (EIRP) source-based time-averaging output power can be calculated by: The radiated power = (FS*D)2 / 30 mW = 101.653 mW The radiated (EIRP) source-based time-averaging output power = (101.653 * 0.1472) mW = 15.0 mW The low threshold in the 2400 – 2483.5MHz band is 25 mW. From the above calculation, output power obtained in both method is less than low threshold, it is concluded that the handset can be certified by TCB without the SAR evaluation.

INTERTEK TESTING SERVICES Report No.: HK11020870-1 Sample No.: 1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) 20 Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement INTERTEK TESTING SERVICES Report No.: HK11020870-1 Sample No.: 1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) 20 Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement

INTERTEK TESTING SERVICES Report No.: HK11020870-1 Sample No.: 1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) Timing Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement INTERTEK TESTING SERVICES Report No.: HK11020870-1 Sample No.: 1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) Timing Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement

Report no.: HK11020870-1 Mode: TX Ctrl No.: N/A 150 kHz30 MHz 6DB dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS MT 20 ms RBW 120 kHz PREAMP OFFAtt 10 dB AUTO AC 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP HK11020870 (B0870C1) Date: 1.MAR.2011 17:25:14

INTERTEK TESTING SERVICES Report No.: HK11020870-1 Sample No.: 1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) Channel Separation Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement

INTERTEK TESTING SERVICES Report No.: HK11020870-1 Sample No.: 1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) Conducted Emission Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement INTERTEK TESTING SERVICES Report No.: HK11020870-1 Sample No.: 1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) Conducted Emission Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement INTERTEK TESTING SERVICES Report No.: HK11020870-1 Sample No.: 1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) Conducted Emission Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement INTERTEK TESTING SERVICES Report No.: HK11020870-1 Sample No.: 1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11020870-1 RadioShack Corporation Application For Certification (Original Grant) (FCC ID: AAO1500044T) Transmitter Prepared and Checked by: Approved by: Wong Kwok Yeung, Kenneth Engineer Chan Chi Hung, Terry Assistant Supervisor Date: March 25, 2011 INTERTEK TESTING SERVICES Report No.: HK11020870-1 FCC ID: AAO1500044T i GENERAL INFORMATION RadioShack Corporation BRAND NAME: AUVIO, MODEL: 1500044 FCC ID: AAO1500044T Grantee: RadioShack Corporation Grantee Address: 300 RadioShack Circle, Mail Stop WF4-136, Fort Worth, Texas, 76102-2802, USA. Contact Person: Pat Loehr Tel: (817) 415-6221 Fax: (817) 415-9247 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: AUVIO Model: 1500044 Type of EUT: Transmitter Description of EUT: 2.4GHz Digital Wireless Rear Speaker Kit - Transmitter Serial Number: N/A FCC ID: AAO1500044T Date of Sample Submitted: February 28, 2011 Date of Test: March 08, 2011 Report No.: HK11020870-1 Report Date: March 25, 2011 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11020870-1 FCC ID: AAO1500044T ii SUMMARY OF TEST RESULT RadioShack Corporation BRAND NAME: AUVIO, MODEL: 1500044 FCC ID: AAO1500044T TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b) Pass 20 dB Bandwidth 15.247(a) Pass Number of Hopping Frequencies 15.247(a) Pass Channel Separation 15.247(a) Pass Average Channel Occupancy Time 15.247(a) Pass Out of Band Antenna Conducted Emission 15.247(d) Pass Radiated Emission in Restricted Bands 15.247(d) Pass Radiated Spurious Emissions 15.247(d) Pass Transmitter Power Line Conducted Emissions 15.207 Pass Antenna Requirement 15.203 Pass (See Note 1) Digital Device Radiated Emission 15.109 Pass Digital Device Conducted Emission 15.107 Pass Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11020870-1 FCC ID: AAO1500044T iii Table of Contents 1.0 General Description........................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants............................................................................... 1 1.3 Test Methodology.............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration............................................................................. 2 2.1 Justification ....................................................................................................... 2 2.2 EUT Exercising Software................................................................................... 2 2.3 Special Accessories .......................................................................................... 2 2.4 Equipment Modification ..................................................................................... 2 2.5 Measurement Uncertainty.................................................................................. 2 2.6 Support Equipment List and Description ............................................................ 2 3.0 Emission Results............................................................................................ 3 3.1 Field Strength Calculation.................................................................................. 3 3.2 Radiated Emission Configuration Photograph.................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 3.4 Conducted Emission Configuration Photograph................................................. 4 3.5 Conducted Emission Data ................................................................................. 4 4.0 Measurement Results..................................................................................... 5 4.1 Maximum Conducted Output Power at Antenna Terminals.................................. 5 4.2 Hopping Channel 20dB RF Bandwidth........................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK11020870-1 Sample No.: 1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) DCC Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement INTERTEK TESTING SERVICES Report No.: HK11020870-1 Sample No.: 1/2 Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) DCC Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement

INTERTEK TESTING SERVICE Report No: HK11020870-1 FCC ID: AAO1500044T i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: 1500044 INTERTEK TESTING SERVICE Report No: HK11020870-1 FCC ID: AAO1500044T ii Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) Model: 1500044 INTERTEK TESTING SERVICE Report No: HK11020870-1 FCC ID: AAO1500044T iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: 1500044

INTERTEK TESTING SERVICE Report No: HK11020870-1 FCC ID: AAO1500044T Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 1500044 INTERTEK TESTING SERVICE Report No: HK11020870-1 FCC ID: AAO1500044T Configuration Photographs Worst-Case Radiated Emissions (Back View) Model: 1500044
