AAO1200769FM Transmitter/Charger for iPod or iPhone

THE P ERFORMANCE YOU NEED TM TM FM Transmitter/Charger for iPod ® or iPhone ® User’s Guide 1200769 Please read this user’s guide before using your new transmitter. 2/2 2 2 Package contents „FM Transmitter „Quick Start „User’s Guide Features „Charges your iPod or iPhone while wirelessly transmitting the music so you can listen to it through your vehicle’s speakers. „Auto-scan feature searches with the push of a button for a clear frequency to help eliminate interference. IMPORTANT SAFETY INFORMATION Connect and operate this product BEFORE operating your vehicle. Pay attention to the road. Attempting to drive and operate your transmitter at the same time can cause a serious traffic accident! Please drive responsibly. Press any button to turn the backlight on for ten seconds. Connect to your car’s power outlet. Connect to your iPod/iPhone. 3 3 1 Connect the Transmitter 1. Insert the transmitter’s power plug into your car’s power outlet. The backlight turns on and the transmitter displays the last used frequency. 2. Insert the 30-pin connector into your iPod with the arrow facing up. Your iPod will start charging. n Note: You may need to remove the protective case of the iPod/iPhone to fully connect the FM transmitter. 2 Tune your Transmitter Interference caused by your car’s antenna, design, and physical location (such as under steel bridges and inside parking garages) can prevent the transmitter from detecting frequencies and limit sound quality. In these cases, you may need to select a saved frequency, autoscan for a clear frequency, or manually tune a frequency. Auto-scanning for a Frequency Hold down Scan until the display changes. Your FM transmitter starts searching for about 30 seconds automatically and stops at a clear frequency. Manually Tuning a Frequency 1. Hold down 2M until M1 , M2 , and M3 all flash on the display. 2. Press, but do not hold down 1or 3 to find the desired frequency. 3. Wait until the display stops flashing. Saving Frequencies To save the displayed frequency: 1. Hold down 2M until M1 , M2 , and M3 all flash on the display. 4 4 2. Hold down 1, 2M, or 3 for two seconds to save the displayed frequency to M1 , M2 , or M3 respectively. Selecting a Saved Frequency Press 1, 2M or 3 to select a saved frequency. The display shows M1 , M2 , or M3 and its corresponding frequency. 3 Tune your radio Tune your car’s FM radio to the frequency displayed on the transmitter. 4 Listen to music Use your iPod’s controls to listen to music. If the sound is distorted, you can tune your transmitter and radio to a new frequency. RBDS Transmission RBDS protocol transmits both audio and track information from your iPod/iPhone to your radio receiver. If your radio is RBDS capable, “AUVIO” appears in the Program Service Name area and the currently playing music title is shown in the Radio Text area. n Note: Actual operation to view display text may vary according to individual radio receivers. Please refer to the user’s guide of your receiver for details. Use with iPhone Application If you are using the transmitter with iPod Touch or the iPhone with OS3.0 or above, you can download FM Navi from Apple App Store. This application allows you to control all functions of the transmitter through your iPod Touch/iPhone screen. Your saved channels will upload to the application automatically, and all your application settings are stored in the transmitter in turn. 5 5 Download FM Navi Download FM Navi from Apple App store then follow the on- screen instruction to install. (Refer to the iPhone/iPod instructions for more details.) Use FM Navi 1. Plug the FM transmitter into your iPod/iPhone. 2. Choose a song to play and start playback. The transmitter turns on. 3. Return to your iPhone/iPod’s home screen. Find and tap the FM Navi icon to run the application. n Note: After the transmitter is plugged in, run the FM Navi application or start music playback to turn on the transmitter. If FM Navi is not running, the transmitter turns off 2 minutes after music is paused or stopped. After your music playlist is created in iPhone/iPod application, FM Navi allows you to control music playback and FM transmission in the same screen. Music Controls „ - Tap repeatedly to select repeat all tracks, current track or turn off repeat. „, - Tap to start and pause playback. „@ - Tap to skip to previous song or touch and hold to fast backwards. „I - Tap skip to next song or touch and hold to fast forward. „ - Tap repeatedly to shuffle all tracks or turn off shuffle. Control your Transmitter Tune Frequency „Tune Up : Touch and rotate the wheel clockwise. 6 6 „Tune Down: Touch and rotate the wheel anticlockwise. Store Channel Frequency „Touch and hold the frequency shown on the FM Navi display until a white cursor appears, then drag it to the desired memory location to save the current frequency. Select a Stored Channel Frequency „Tap any of the 3 memory buttons to select frequency. The selected memory is enlarged. Change Background Color 1. Tap the icon to show available background colors. 2. Tap the desired color. 3. Tap a to close. More Information „Tap the icon for help. n Note: Update your iPod or iPhone to the latest firmware version for the best use of this FM transmitter. Specifications Audio input ..................................................30-pin iPod connector Transmitting frequency ...........88.1–107.9 MHz with 0.2 MHz step Modulation ..........................................................FM stereo, RBDS Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. Complies with the European Union’s “Restriction of Hazardous Substances Directive,” which protects the environment by restricting specific hazardous materials and products. 7 7 FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide r…

Text truncated - open the document above for the full version.

@ RadioShack. CORPORATION Pat Loehr Radioshack River Fmnt Campus Mail Stop WF4-136 300 RadioShadc Cirde Fort Wodh. TX 76102 (817)415-5221 Fax: (817)415-9247 Limited Agency Agreement We, RadioShack Corporation, hereby authorize Intertek Testing Services NA to act as our agent for the purpose of preparing application for A.401200769 under all applicable part of the FCC rules and regulations. The effective date of this limited agency agreement is August 2,2010. The limited agency agreement expires February 2,201 1, unless sooner terminated or extended by written notice to Intertek Testing Services NA and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 2988,21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Dated this 2"* day of August, 2010 Pat Loehr Regulatory Affais Manager RadioShack Corporation (817) 415-6221

@ RadioShack. CORPORATION Mud Evaluation and Compliam Pat Loehr MS WF4-136 300 RadioShack Circle Fort Worth. TX 76102-1961 (817)415-6221 Fax : (817) 415-9247 August 2,2010 Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 0 17 19 RE: AAO 1200769 REQUEST FOR CONFIDENTIALITY Some of the material included in this application contains trade secrets and proprietary information not customarily released to the public. Because public disclosure of the material might be hW to the applicant and provide unjustified benefits to its competitors, it is requested that the following be withheld from public disclosure: Detail Block Diagram Schematic Diagram Detailed Operational Functional Description Parts List Trade Secrets and proprietary information can be held confidential. Therefore, we wish to invoke the act under the provisions of 47CFR, Section 0.457(d) and 0.459. The fee for confidentiality has been submitted along with the fee for certification. Sincerely, Pat Loehr Regulatory Affairs Manager

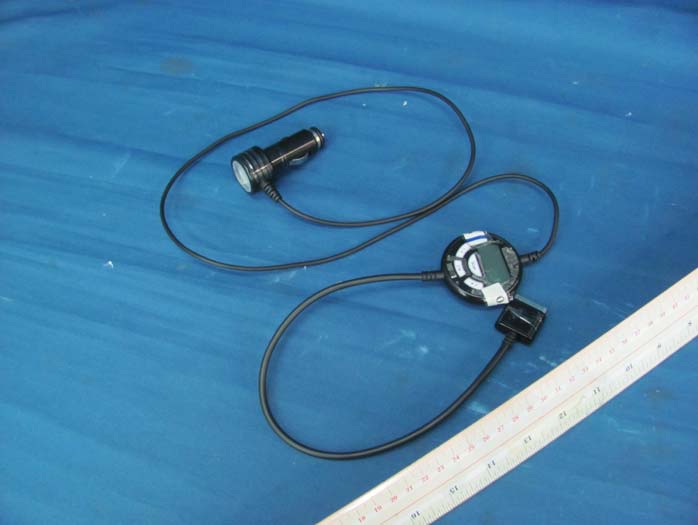

INTERTEK TESTING SERVICE Report No.: HK10071471-1 Equipment Photographs Model : 1200769 (External) FCC ID: AAO1200769

FCC ID: AAO1200769 CAT. NO.: 1200769 CUSTOM IN CHINA FOR IGNITION L.P., 3102 MAPLE AVE. SUITE 450, DALLAS, TX 75201 MFD. FM TRANSMITTER CHARGER W/ AUTO SCAN Rating Label (Engraving) Size: 28 x 16 mm ART NO. REV ECN NO. MODEL ZONE DESCRIPTION DRAFTDATE A PART NO. DWG. NO. PART NAME DEST APPROVED CHECKED DRAFT PLS RETURN IMMEDIATELY AFT FILMED SCALE 1200769 U.S.A Rating Label (E) Merry 1:1 generated label A/W Merry DATE E12769P01A 05/28/10 05/28/10 TANDY RADIO SHACK LIMITED A Division of RadioShack Corporation

INTERTEK TESTING SERVICE Report No.: HK10071471-1 Equipment Photographs Model : 1200769 (Internal) FCC ID: AAO1200769 INTERTEK TESTING SERVICE Report No.: HK10071471-1 Equipment Photographs Model : 1200769 (Internal) FCC ID: AAO1200769 INTERTEK TESTING SERVICE Report No.: HK10071471-1 Equipment Photographs Model : 1200769 (Internal) FCC ID: AAO1200769 INTERTEK TESTING SERVICE Report No.: HK10071471-1 Equipment Photographs Model : 1200769 (Internal) FCC ID: AAO1200769

INTERTEK TESTING SERVICES Report No.: HK10071471-1 Sample No.: 1/1 Code: FCC15C_c / Effective Date: 04 Aug 2009 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 239 Requirement INTERTEK TESTING SERVICES Report No.: HK10071471-1 Sample No.: 1/1 Code: FCC15C_c / Effective Date: 04 Aug 2009 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 239 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10071471-1 RadioShack Corporation Application For Certification (Original Grant) (FCC ID: AAO1200769) FM Transmitter Prepared and Checked by: Approved by: Signed On File Benny Lau Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: August 20, 2010 INTERTEK TESTING SERVICES Report No.: HK10071471-1 FCC ID: AAO1200769 i GENERAL INFORMATION RadioShack Corporation BRAND NAME: AUVIO, MODEL: 1200769 FCC ID: AAO1200769 Grantee: RadioShack Corporation Grantee Address: 300 RadioShack Circle, Mail Stop WF4-136, Fort Worth, Texas, 76102-2802, USA. Contact Person: Pat Loehr Tel: (817) 415-6221 Fax: (817) 415-9247 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: AUVIO Model: 1200769 Type of EUT: FM Transmitter Description of EUT: FM Transmitter/Charger for iPod or iPhone Serial Number: N/A FCC ID: AAO1200769 Date of Sample Submitted: July 28, 2010 Date of Test: August 10, 2010 Report No.: HK10071471-1 Report Date: August 20, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10071471-1 FCC ID: AAO1200769 ii SUMMARY OF TEST RESULT RadioShack Corporation BRAND NAME: AUVIO, MODEL: 1200769 FCC ID: AAO1200769 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Emissions 15.109 / ICES-003 N/A Intentional Radiator Conducted Emissions 15.207 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10071471-1 FCC ID: AAO1200769 iii Table of Contents 1.0 General Description........................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants............................................................................... 1 1.3 Test Methodology.............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ............................................................................. 2 2.1 Justification ....................................................................................................... 2 2.2 EUT Exercising Software................................................................................... 2 2.3 Special Accessories .......................................................................................... 2 2.4 Equipment Modification ..................................................................................... 2 2.5 Measurement Uncertainty.................................................................................. 2 2.6 Support Equipment List and Description ............................................................ 2 3.0 Emission Results ............................................................................................ 3 3.1 Field Strength Calculation.................................................................................. 3 3.2 Radiated Emission Configuration…
