AAO120313FM Transmitter

©2007. RadioShack Corporation. All rights reserved. Accurian is a registered trademark used by RadioShack Corporation. 12-313 04A07 Printed in China WHAT’S INCLUDED FM Transmitter User’s Guide SPECIFICATIONS Power ................................................Lighter socket in vehicle Transmitting frequency ................................88.1 – 107.9 MHz Operating range ......................................................10 - 30 feet Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. RF EMISSIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. LIMITED 90-DAY WARRANTY This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from authorized RadioShack dealers. For complete warranty details and exclusions, check with your dealer or contact RadioShack directly. RadioShack Customer Relations 300 RadioShack Circle Fort Worth, TX 76102 04/04 12-313 FM Transmitter Step 1 Plug the transmitter into your car’s lighter socket or accessory outlet. The LED lights. Hold down 2/( and 3/M and press 1/) simultaneously to search for a frequency. Or press 1/), 2/( or 3/M for the memory frequency. Step 2 Insert the transmitter’s barrel plug into the 3.5mm headphone jack of your portable audio device. Step 3 Turn on your FM radio to the same channel as indicated on the LED. Then start playing your audio device. Thank you for purchasing your FM transmitter from RadioShack. This FM Transmitter with scanning function connects to any portable audio device,such as a MP3 player or a CD player. 1. Hold down 2/( and 3/M and press 1/) simultaneously to activate auto-scan function. The transmitter searches for an unused frequency automatically and the frequency is shown on the LED when the signal is received. This may take 40 minutes. 2. Hold down 3/M until all LEDs are flashing. 3. Hold down 1/), 2/( or 3/M for two seconds to store the frequency. 4. To save a frequency for the other two memories, hold down 3/M until all LEDs are flashing 5. Repeatedly press 1/) or 2/( to find the desired frequency. Hold down 1/), 2/( or 3/M for two seconds to store the selected frequency. 6. Repeat step 4~5 to store the other frequency. Auto Scanning Note: For easier viewing, press 1/) and 2/( simultaneously to dim or brighten the display. 12-313_English.indd 104/16/2007 12:24:22

To Application Examiner RE: FCC ID: AAO120313 FCC ID: AAO120313

Wilson Loke ES-HKG From: Generic Office of Engineering Technology [[email protected]] Sent: 2007 年 7 月 24 日星期二 3:36 To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 300743) 2007-7-24 Inquiry: FCC ID:AAO120313 The EUT is a FM transmitter under 15.239 from 88.1MHz to 107.9MHz. Since its operating frequency is from 88.1MHz to 107.9MHz within the band of 88MHz to 108MHz with fundamential field strength less than 48dBuV/m at 3m, it is considered fall in the scope of Category 1-15.239 FM transmitter. The test procedure plan is listed in the following: i) Radiated Emission ii) Bandwidth test 1) How does this device operate? The device is operated as 88.1MHz to 107.9MHz FM transmitter and powered by 12Vdc through cigarette adaptor. It transmit the audio signal from a external audio source such as MP3 player by a FM transmitter tuned from 88.1MHz to 107.9MHz and the audio signal can be received by a common FM Broadcasting Radio which is tuned to same transmitted frequency of the FM transmitter and regenerate the transmitted signal through the FM Broadcasting Radio. 2) Provide information on the device and its antenna. The device is a simple audio FM transmitter tuned from 88.1MHz to 107.9MHz to transmit an audio source, for example, MP3 player, to a FM Broadcasting Radio. The block diagram and circuit diagram are attached for your reference. The antenna is an integral long wire antenna accompancy with the audio input cable. 3) How is it installed? It is very easy to install. It is powered by 12Vdc thru the cigarette adaptor . Before active the device, it is connected the audio input socket to the external audio source such as MP3 player. And then, switching on the device and the FM Broadcasting Radio. And then, playing the audio from the external audio source (MP3 player) Tuning the FM broadcasting radio to the frequencies which do not occupied by other FM broadcasted channel. After that, tuning the FM transmitter to that freqnency, the audio signal from the external audio source will be heard. 4) What test procedure was used? ANCI C63.4:2003. 5) If tested in a car, how was it configured/tested? We connected the cigarette adaptor and the 12V car battery and then put the EUT on a 0.8m height turntable 3m from antenna. The adaptor, MP3 player and EUT with 10cm separated distance. The test configuration photo is attached for your reference. 6) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. Yes. The tuning range is from 88.1MHz to 107.9MHz. The tuning controls were manually adjusted. 7) Was the bandwidth properly tested with maximum audio input? The maximum output Level of the typical device, mp3 player is used. 8) Use a typical audio file from typical device A Typical audio file (pop music) from a typical device (mp3 player) are used 9) Provide the test report Provided. Response: Based on the test report, this device is acceptable for FCC Certification. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. 2007-7-24

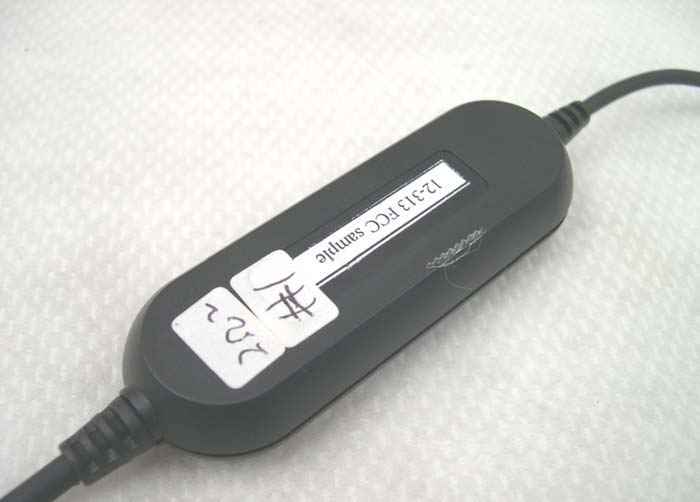

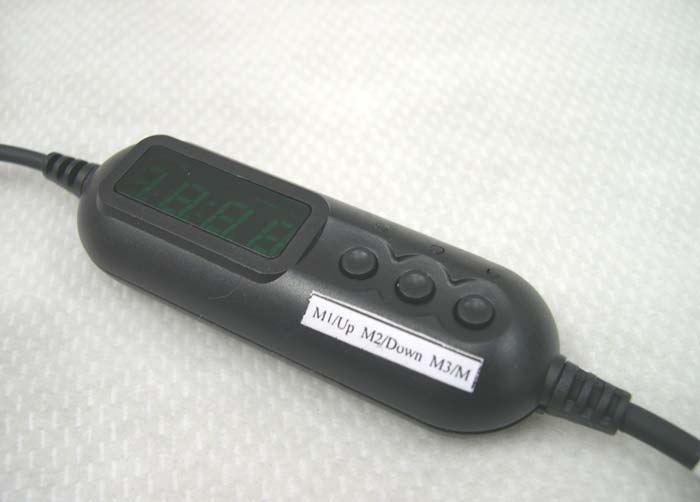

INTERTEK TESTING SERVICE Report No.: 0705617 FCC ID: AAO120313 Equipment Photographs Model : 12-313 (External) INTERTEK TESTING SERVICE Report No.: 0705617 FCC ID: AAO120313 Equipment Photographs Model : 12-313 (External) INTERTEK TESTING SERVICE Report No.: 0705617 FCC ID: AAO120313 Equipment Photographs Model : 12-313 (External)

ART NO. REV ECN NO. MODLE ZONE DESCRIPTION DRAFTDATE A PART NO. DWG. NO. PART NAME DEST APPROVED CHECKED DRAFT PLS RETURN IMMEDIATELY AFT FILMED SCALE 12-313 U.S.A R/L (Engraving) Merry 1:1 generated label A/W Merry DATE E12313001C 11/27/06 11/27/06 TANDY RADIO SHACK LIMITED A Division of RadioShack Corporation Engraving Made in ChinaFCC ID: AAO120313 12-313 B Change the new logo Merry 12/04/06 C Change the insert size Merry 12/05/06 Size: 38 x 10 mm

INTERTEK TESTING SERVICE Report No.: 0705617 FCC ID: AAO120313 Equipment Photographs Model : 12-313 (Internal) INTERTEK TESTING SERVICE Report No.: 0705617 FCC ID: AAO120313 Equipment Photographs Model : 12-313 (Internal) INTERTEK TESTING SERVICE Report No.: 0705617 FCC ID: AAO120313 Equipment Photographs Model : 12-313 (Internal) INTERTEK TESTING SERVICE Report No.: 0705617 FCC ID: AAO120313 Equipment Photographs Model : 12-313 (Internal) INTERTEK TESTING SERVICE Report No.: 0705617 FCC ID: AAO120313 Equipment Photographs Model : 12-313 (Internal) INTERTEK TESTING SERVICE Report No.: 0705617 FCC ID: AAO120313 Equipment Photographs Model : 12-313 (Internal) INTERTEK TESTING SERVICE Report No.: 0705617 FCC ID: AAO120313 Equipment Photographs Model : 12-313 (Internal)

− The evaluation data of the report will be kept for 3 years from the date of issuance. − This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com RadioShack Corporation Application For Certification (FCC ID: AAO120313) FM Transmitter 0705617 TC/el May 14, 2007 INTERTEK TESTING SERVICES FCC ID: AAO120313 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: AAO120313 ii MEASUREMENT / TECHNICAL REPORT RadioShack Corporation − MODEL: ACCURIAN 12-313 FCC ID: AAO120313 May 14, 2007 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Chow Chi Ming, Billy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8528 Fax: 852-2371-0914 INTERTEK TESTING SERVICES FCC ID: AAO120313 iii Table of Contents 1.0 General Description......................................................................................... 2 1.1 Product Description................................................................................... 2 1.2 Related Submittal(s) Grants ...................................................................... 2 1.3 Test Methodology...................................................................................... 3 1.4 Test Facility ............................................................................................... 3 2.0 System Test Configuration ............................................................................. 5 2.1 Justification ............................................................................................... 5 2.2 EUT Exercising Software .......................................................................... 5 2.3 Special Accessories .................................................................................. 5 2.4 Equipment Modification............................................................................. 6 2.5 Measurement Uncertainty ......................................................................... 6 2.6 Support Equipment List and Description ................................................... 6 3.0 Emission Results ............................................................................................. 8 3.1 Field Strength Calculation ......................................................................... 9 3.2 Radiated Emission Configuration Photograph ........................................ 11 3.3 Radiated Emission Data.......................................................................... 12 4.0 Equipment Photographs ............................................................................... 17 5.0 Product Labelling.......................................................................................... 19 6.0 Technical Specifications ............................................................................... 21 7.0 Instruction Manual ......................................................................................... 23 8.0 Miscellaneous Information ........................................................................... 25 8.1 Measured Bandwidth.............................................................................. 26 8.2 Tuning Range of FM transmitter.............................................................. 27 8.3 Calculation of Average Factor ................................................................. 28 8.4 Emissions Test Procedures .................................................................... 29 9.0 Confidentiality Request ................................................................................. 32 INTERTEK TESTING SERVICES FCC ID: AAO120313 iv List of attached file Exhibit Type File Description Filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.pdf Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.pdf Internal Photo Internal Photo internal photos.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label / Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Cover Letter Confidenti…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: 0705617 Sample No.: 1/2 FCC ID: AAO120313 Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 239(a) Requirement Source: iPod Video

INTERTEK TESTING SERVICE Report No: 0705617 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 12-313 Fig.1 FCC ID: AAO120313 INTERTEK TESTING SERVICE Report No: 0705617 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 12-313 Fig.2 FCC ID: AAO120313
