AAO120362FM Transmitter

©2007. RadioShack Corporation. All rights reserved. Accurian is a registered trademark used by RadioShack Corporation. This product is not designed, manufactured, sponsored, or endorsed by Apple Computer, Inc. iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. 12-362 09A06 P/N: AO0294AAA1 Printed in China Thank you for purchasing your FM transmitter from RadioShack. Please read this user’s guide before installing, setting up, or using your new FM transmitter. What’s Included FM Transmitter USB Cable User’s Guide Specifications Audio input .................................30-pin connector from iPod Transmitting freq. ............88.1-107.9 MHz with 0.2 MHz step Modulation ................................................................FM stereo Operating range ......................................................10 - 30 feet Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. RF Emissions This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Limited 90-Day Warranty This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from authorized RadioShack dealers. For complete warranty details and exclusions, check with your dealer or contact RadioShack directly. RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 04/04 12-362 FM Transmitter IMPORTANT SAFETY INFORMATION Connect and operate this product BEFORE operating your vehicle and pay attention to the road. Attempting to drive and scan your set at the same time can cause a serious traffic accident! Drive responsibly. Step 1: Connect the Transmitter Plug the FM transmitter into the iPod dock connector and begin playing music, the FM transmitter powers on and displays the last used frequency. To change the frequency, press or . Note: If your FM transmitter does not power on after connecting to the iPod, press § on your iPod twice. Step 2: Tune Your Radio Tune your FM radio to the frequency displayed on the transmitter. Step 3: Listen to Your Music To listen to your music, use the volume controls on the radio to adjust the volume. Note: The volume control on your iPod does not control the sound on the radio. Connect to your iPod Saving Frequencies 1. Press or to tune the desired frequency. 2. Press and hold M until M1 flashes. 3. To save a frequency in M2, press or to select M2 and hold M to store the memory location. Then, tune a frequency and Press and holdPress and hold M until M2 flashes. Selecting a Saved Frequency 1. Press M once for M1, M1 and its frequency appear. 2. Press M again for M2, M2 and its frequency appear. To charge your iPod, connect the supplied USB cable to the transmitter and to your computer.

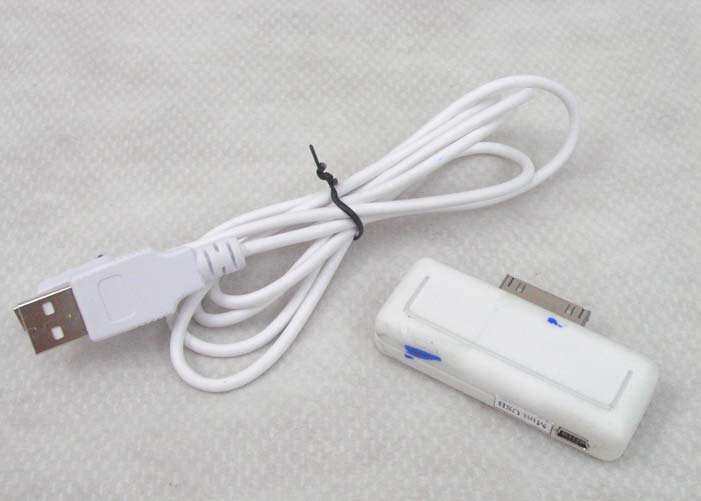

INTERTEK TESTING SERVICE Report No.: 0715187 Equipment Photographs Model : 12-362 (External) FCC ID: AAO120362 INTERTEK TESTING SERVICE Report No.: 0715187 Equipment Photographs Model : 12-362 (External) FCC ID: AAO120362

ART NO. REV ECN NO. MODLE ZONE DESCRIPTION DRAFTDATE A PART NO. DWG. NO. PART NAME DEST APPROVED CHECKED DRAFT PLS RETURN IMMEDIATELY AFT FILMED SCALE 12-362 U.S.A R/L (Silkscreen) Merry 1:1 generated label A/W Merry DATE S12362P01C 06/06/07 06/06/07 TANDY RADIO SHACK LIMITED A Division of RadioShack Corporation R/L (Silkscreen) Printing color: Pantone 431C FCC ID: AAO120362 MMAYY RadioShack Corp. 12-362 Made in China for B Add some text Merry 06/20/07 C Change the shape Merry 07/09/07 62 mm 2 4 m m

INTERTEK TESTING SERVICE Report No.: 0715187 Equipment Photographs Model : 12-362 (Internal) FCC ID: AAO120362 INTERTEK TESTING SERVICE Report No.: 0715187 Equipment Photographs Model : 12-362 (Internal) FCC ID: AAO120362

− The evaluation data of the report will be kept for 3 years from the date of issuance. − This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com RadioShack Corporation Application For Certification (FCC ID: AAO120362) FM Transmitter 0715187 TC/el August 03, 2007 INTERTEK TESTING SERVICES FCC ID: AAO120362 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: AAO120362 ii MEASUREMENT / TECHNICAL REPORT RadioShack Corporation − MODEL: ACCURIAN 12-362 FCC ID: AAO120362 August 03, 2007 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Chow Chi Ming, Billy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8528 Fax: 852-2371-0914 INTERTEK TESTING SERVICES FCC ID: AAO120362 iii Table of Contents 1.0 General Description......................................................................................... 2 1.1 Product Description................................................................................... 2 1.2 Related Submittal(s) Grants ...................................................................... 2 1.3 Test Methodology...................................................................................... 3 1.4 Test Facility ............................................................................................... 3 2.0 System Test Configuration............................................................................. 5 2.1 Justification ............................................................................................... 5 2.2 EUT Exercising Software .......................................................................... 5 2.3 Special Accessories .................................................................................. 5 2.4 Equipment Modification............................................................................. 6 2.5 Measurement Uncertainty ......................................................................... 6 2.6 Support Equipment List and Description ................................................... 6 3.0 Emission Results............................................................................................. 8 3.1 Field Strength Calculation ......................................................................... 9 3.2 Radiated Emission Configuration Photograph ........................................ 11 3.3 Radiated Emission Data.......................................................................... 12 4.0 Equipment Photographs............................................................................... 17 5.0 Product Labelling.......................................................................................... 19 6.0 Technical Specifications............................................................................... 21 7.0 Instruction Manual......................................................................................... 23 8.0 Miscellaneous Information........................................................................... 25 8.1 Measured Bandwidth.............................................................................. 26 8.2 Discussion of Pulse Desensitization........................................................ 27 8.3 Calculation of Average Factor ................................................................. 28 8.4 Emissions Test Procedures .................................................................... 29 9.0 Confidentiality Request................................................................................. 32 INTERTEK TESTING SERVICES FCC ID: AAO120362 iv List of attached file Exhibit Type File Description Filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.pdf Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.pdf Internal Photo Internal Photo internal photos.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label / Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Cover Letter Confidential…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: 0715187 Sample No.:1/1 FCC ID: AAO120362 Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 239(a) Requirement Source: iPod Video

INTERTEK TESTING SERVICE Report No: 0715187 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 12-362 Fig.1 FCC ID: AAO120362 INTERTEK TESTING SERVICE Report No: 0715187 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 12-362 Fig.2 FCC ID: AAO120362
