AAO120494BUniversal FM Transmitter

TM 12-494 User’s Guide Universal FM Transmitter Please read this User’s Guide before using your new transmitter. 2345678 Package contents • FM Transmitter • Ç to 3 / 32 inch (3.5 to 2.5 mm) Adapter • User’s Guide • Quick Start Features • Works with any device that has a Ç or 3 / 32 inch (3.5 or 2.5 mm) headphone jack. • Easily find an interference-free FM channel with the auto scan feature. • Three programmable presets to store frequencies you know are free from interference. Important Safety Information Connect and operate this product BEFORE you drive. Attempting to drive and scan for radio stations at the same time could cause a traffic accident. Please drive responsibly. 3 Tune Your Radio Tune your car’s FM radio to the frequency displayed on the transmitter. 4 Play Your Device Listen to music by operating your connected audio device. If the sound is distorted, tune your transmitter and radio to a new frequency. Using Presets Saving Frequencies To save the displayed frequency: 1. Hold down 2M until M1 , M2 , and M3 all flash on the display. 2. Press 1or 3 briefly and repeatedly to find the desired frequency. 3. Hold down 1, 2M, or 3 for two seconds to save the displayed frequency to M1 , M2 , or M3 . Selecting a Saved Frequency Press 1, 2M or 3 to select a saved frequency. The display shows M1 , M2 , or M3 and its corresponding frequency. Specifications Power ......................................................12VDC Transmitting frequency .............88.1–107.9 MHz ...............................................with 0.2 MHz step Available channels ................................about 99 Operating range ........................10–30 ft (3–9 m) Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip - ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your FM Transmitter. Changes or modifications not expressly approved by Ignition L. P. may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Limited Warranty Ignition L.P. warrants this product against defects in materials and workmanship under normal use by the original purchaser for one (1) year after the date of purchase. IGNITION L.P. MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a Ignition L.P. Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser. Should a problem occur that is covered by this warranty, take the product and the sales receipt as proof of purchase date to the place of purchase in the U.S. Ignition L.P. will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of Ignition L.P. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. IGNITION L.P. EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS Patent Pending © 2009. Ignition L.P. All rights reserved. Gigaware is a trademark used by Ignition L.P. FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRA- TION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, IGNITION L.P. SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REV…

Text truncated - open the document above for the full version.

ART NO. REV ECN NO. MODLE ZONE DESCRIPTION DRAFTDATE A PART NO. DWG. NO. PART NAME DEST APPROVED CHECKED DRAFT PLS RETURN IMMEDIATELY AFT FILMED SCALE 12-494 [B] U.S.A Rating Label Merry 1:1 generated label A/W Merry DATE 12494BLP1C 11/09/09 11/09/09 TANDY RADIO SHACK LIMITED A Division of RadioShack Corporation Rating Label Size: 27.7 x 15.7 mm Label color: White text with black background FCC ID: AAO120494B Gigaware Universal FM Transmitter 12-494 B Custom Manufactured in China for Ignition L.P., 3102 Maple Ave. Suite 450, Dallas, TX 75201 AL2618AAA1 B Add a dot Merry 11/26/09 Remove “Patent Pending” Merry 11/30/09 C

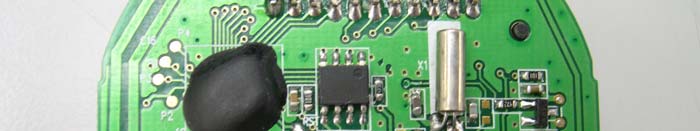

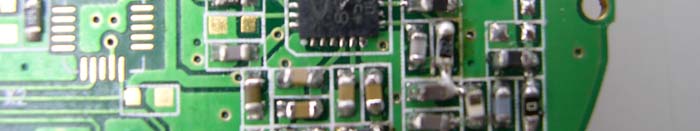

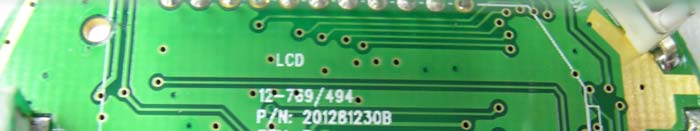

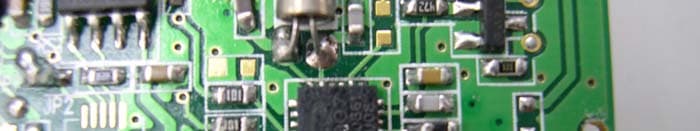

INTERTEK TESTING SERVICE Report No.: HK09120721-1 Equipment Photographs Model : 12-494 (Internal) FCC ID: AAO120494B INTERTEK TESTING SERVICE Report No.: HK09120721-1 Equipment Photographs Model : 12-494 (Internal) FCC ID: AAO120494B INTERTEK TESTING SERVICE Report No.: HK09120721-1 Equipment Photographs Model : 12-494 (Internal) FCC ID: AAO120494B INTERTEK TESTING SERVICE Report No.: HK09120721-1 Equipment Photographs Model : 12-494 (Internal) FCC ID: AAO120494B INTERTEK TESTING SERVICE Report No.: HK09120721-1 Equipment Photographs Model : 12-494 (Internal) FCC ID: AAO120494B

INTERTEK TESTING SERVICES Report No.: HK09120721-1 Sample No.: 1/1 Code: FCC15C_c / Effective Date: 04 Aug 2009 ( of ) Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 239 Requirement (Pass)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK09120721-1 RadioShack Corporation Application For Certification (Original Grant) (FCC ID: AAO120494B) FM Transmitter Prepared and Checked by: Approved by: Benny Lau/sl Engineer Chan Chi Hung, Terry Lead Engineer Date: January 05, 2010 INTERTEK TESTING SERVICES Report No.: HK09120721-1 FCC ID: AAO120494B i GENERAL INFORMATION RadioShack Corporation BRAND NAME: Gigaware, MODEL: 12-494 FCC ID: AAO120494B Grantee: RadioShack Corporation Grantee Address: 300 RadioShack Circle, Mail Stop WF4-136, Fort Worth, Texas, 76102-2802, USA. Contact Person: Pat Loehr Tel: (817) 415-6221 Fax: (817) 415-9247 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: Gigaware Model: 12-494 Type of EUT: FM Transmitter Description of EUT: Universal FM Transmitter Serial Number: N/A FCC ID: AAO120494B Date of Sample Submitted: December 17, 2009 Date of Test: December 30, 2009 Report No.: HK09120721-1 Report Date: January 05, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK09120721-1 FCC ID: AAO120494B ii SUMMARY OF TEST RESULT RadioShack Corporation BRAND NAME: Gigaware, MODEL: 12-494 FCC ID: AAO120494B TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Emissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK09120721-1 FCC ID: AAO120494B iii Table of Contents 1.0 General Description........................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants............................................................................... 1 1.3 Test Methodology.............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ............................................................................. 2 2.1 Justification ....................................................................................................... 2 2.2 EUT Exercising Software................................................................................... 2 2.3 Special Accessories .......................................................................................... 2 2.4 Equipment Modification ..................................................................................... 2 2.5 Measurement Uncertainty.................................................................................. 2 2.6 Support Equipment List and Description ............................................................ 2 3.0 Emission Results ............................................................................................ 3 3.1 Field Strength Calculation.................................................................................. 3 3.2 Radiated Emission Configuration Photograph.................…

Text truncated - open the document above for the full version.
