AAO1502117RadioShack Remote Control

<< reserved for RadioShack 8-in-One IR/RF Remote (15-2117) front cover to be supplied by UEI >> 2nd Draft RS 8in1 IR/RF UG 6/27/02 10:58 AM Page 1 TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Setting The Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 A Quick Look At The Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Key Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Key Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Programming A Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Programming A TV/VCR Combo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Searching For Your Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Using Learning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Programming A Learning Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Deleting A Function From A Learning Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Changing Volume Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Programming Volume Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Programming Volume Unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Using Macros. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Programming A Favorite Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Programming A Master Power Key With Instant Channel Selection . . . . . . . . . . . . . . . . . . . . . . . 14 Clearing A Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using Keymover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Programming Keymover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Restoring A Single Keymoved Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Restoring All Keymoved Keys In A Single Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Programming Favorite Channel Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Using Channel Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Using My System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Control Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Programming My System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Operating My System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Reassigning Device Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Restoring Factory Default Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Using The IR/RF Command Center. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Setting Up The IR/RF Command Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Adding The IR Signal Extension Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Optimizing IR/RF Command Center Reception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 FCC Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Guía Del Usuario. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Manufacturer’s Codes (Códigos De Fabricantes). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Setup Codes For Audio Amplifiers (Có…

Text truncated - open the document above for the full version.

CARE •Keep the remote dry. If the remote gets wet, wipe it dry immediately. •Handle the remote gently and carefully. Don’t drop it. •Use and store the remote only in normal temperature environments. •Keep the remote away from dust and dirt. •Wipe the remote with a damp cloth to keep it looking new. Modifying or tampering with internal parts can cause damage and invalidate the warranty. If your remote is not performing as it should, please contact us at: www.radioshack.com or visit your local RadioShack store for help. COMPLIANCE WITH FCC RULES AND REGULATIONS This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment generates, uses and radiates radio frequency energy and if not installed and used in accor- dance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiver antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet that is different from that to which the receiver is connected. • Consult the dealer or an experienced radio/television technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of the manufacturer could void the user’s authority to operate his equipment. FCC AUTHORIZATIONLABEL This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interfer- ence that may cause undesired operation. FCC ID: AA015O2117 IR/RF 8-IN-ONE REMOTE CONTROL: 15-2117 COMMANDCENTER: LIMITED 90-DAY WARRANTY This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF TIME, DATA, PROP- ERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSE- QUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. In the event of a product defect during the warranty period, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, unless otherwise provided by law: (a) correct the defect by product repair without charge for parts and labor; (b) replace the product with one of the same or similar design; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs other than those provided by a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f ) costs of product removal, installation, set-up service adjustment or reinstallation. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102 Cat. No. 15-211707/02 Fort Worth, Texas 76102 USER’S GUIDE Care/FCC Rules And Regulations/Warranty23 RS 8in1 IR/RF UG 7/25/02 9:13 AM Page 23, rev 7/29/02

FCC ID: AA01502117 Block diagram of the15-2117 RF Remote Control Micro-controller 8 Bit Keypad input EEPROM 8.000 MHz Clock Low Voltage Detector 32.768 KHz Real Time Clock Infrared learner Liquid Crystal Display Infrared (IR) transmitter 600 Hz Electro-luminescent panel 430.0 MHz Oscillator/Transmitter Liquid Crystal Display (LCD) Driver

1 Scott McCutchan To: [email protected] Subject: FCC ID: AAO1502117 Mr. Fujimoto: In order for processing of this application (FCC ID: AAO1502117) to continue, the following issue(s) will have to be addressed: 1) The FCC label of the module that was submitted does not meet the requirements of section 15.17(a)(3). The following compliance statement must also be on the device label: "This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation." There are some cases, where having only the FCC ID on the product is acceptable, but only when the device is smaller than a man's palm. Judging by the photos submitted, this device does not meet that exemption. 2) The FCC ID on page 23 of the user's manual does not meet the requirements of section 2.925(a)(1). It should read: "FCC ID: AAO1502117". There should be no number sign (#) between the FCC ID and the colon. Please submit only this corrected page from the user's manual. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Correspondence to this e-mail must be uploaded onto our website, with a correpondence number of: AAO1502117-1. Any questions about the content of this correspondence should be directed to [email protected]. If you have any questions, feel free to contact me. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB (714) 579-1489 fax (714) 579-1850 http://www.celectronics.com Correspondence by Project Project Number: 1027700173 Correspondence Number Memo AAO1502117-1 1) The FCC label of the module that was submitted does not meet the requirements of section 15.17(a)(3). The following compliance statement must also be on the device label: Response: The label has been revised. Please see the revised FCC- ID Label in exhibits. 2) The FCC ID on page 23 of the user's manual does not meet the requirements of section 2.925(a)(1). It should read: "FCC ID: AAO1502117". There should be no number sign (#) between the FCC ID and the colon. Please submit only this corrected page from the user's manual. Response: This page has been revised. Please see the revised page 23 of the user's manual in exhibits.

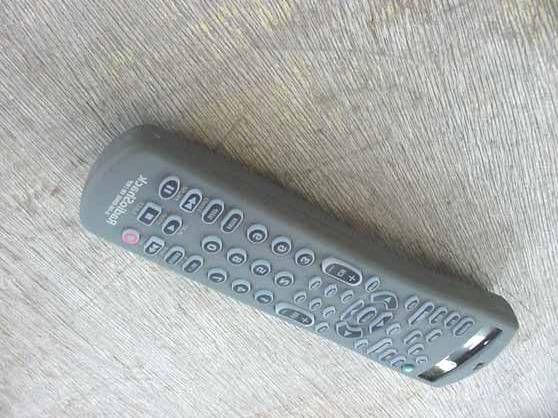

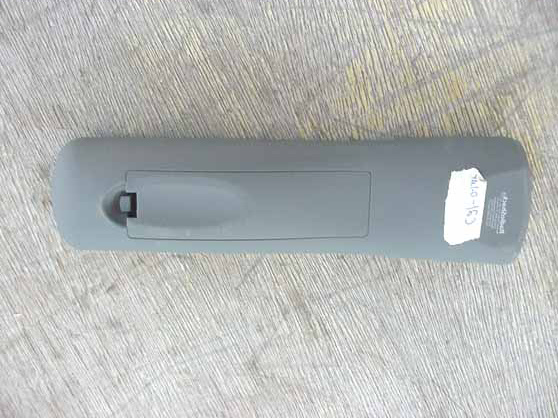

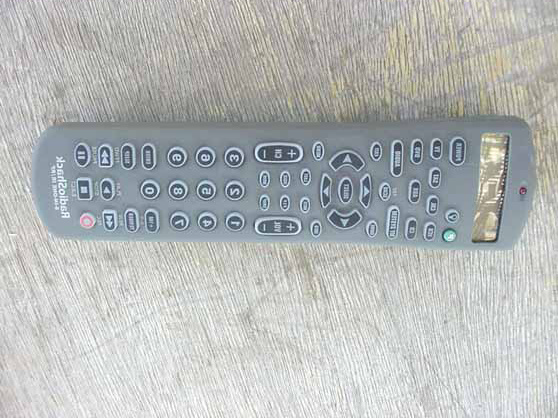

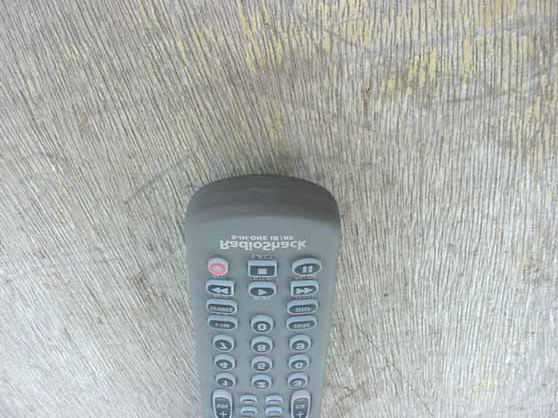

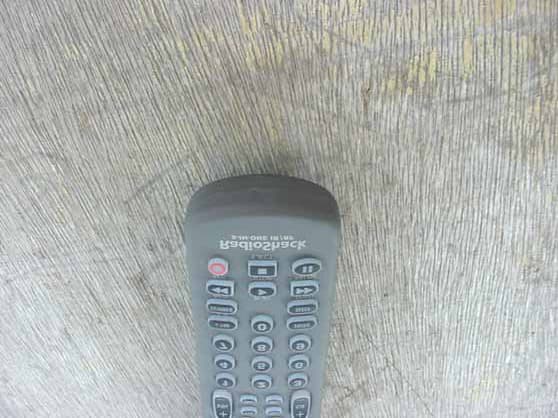

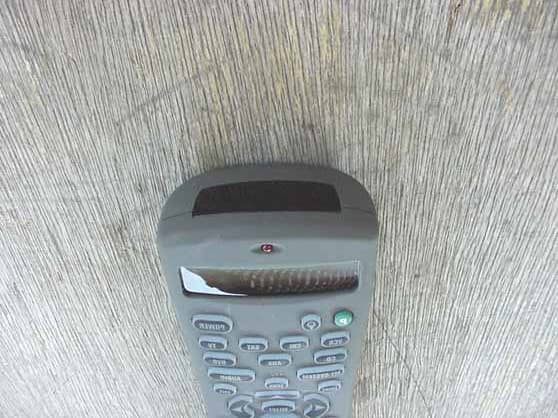

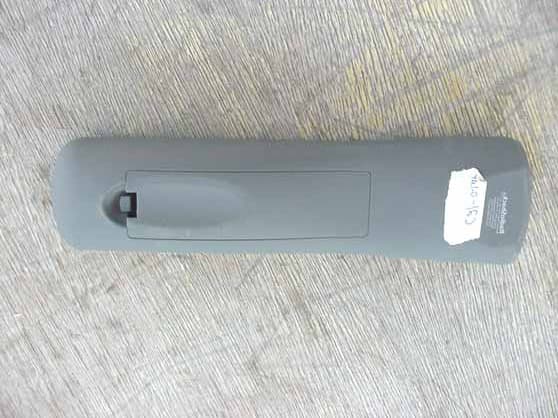

FCC ID: AA01502117 Description of the15-2117 RF Remote Control The 15-2117 RF is a universal remote control that allows users to operate audio/video (A/V) equipment using radio frequency (RF) or infrared (IR) signals. When used in conjunction with the Command Center receiver, this remote control can operate audio/video equipment with 100 feet, not necessarily in line of sight with respect to the user. The 15-2117 RF can also be used as a stand-alone IR remote control unit, and can control up to eight A/V devices. This device is part of an extensive line of infrared and RF remote control products that Universal Electronics Inc. designs, manufactures, and sell in the United States and abroad.

1234 A B C D 4321 D C B A 11 UEIS-093421 2-Sep-1999 16:22:03M:\ADVSCH\PROJECTS\09342-01.sch Title Size:Number: Date:File: Revision: Sheetof Time: A RF Transmitter Module Drawn By:Design by: This document contains information which is confidential and proprietary to Universal Electronics Inc. CONFIDENTIAL: Universal Electronics Inc. 6101 Gateway Drive Cypress, CA 90630 Phone 714-820-1000 FAX 714-820-1010 C18 2pF R8 4.7K R7 10K Q11 MMBTH10L R27 1K C23 5.6pF C20 3.9pF C19 100pF L5 100nH 4 WJ RF Test IR OUT C21 100pF VDD VC1 1.0-3.0 pF L4 100nH L6 0.05uH 5 6 4 U4B 4011 12 13 11 U4D 4011 1 2 3 U4A 4011 8 9 10 VCC 14 GND 7 U4C 4011 430.000 MHz OSCILLATOR or 5pF VDD VDD IR OUT RF Test DOCUMENT REVISION STATUS ECO#ZONEREV.DESCRIPTION OF CHANGEChgd. ByDATEAPPR.DATE 1RELEASED DOCUMENTH.M.09/02/99B.B.09/02/99 123456 A B C D 654321 D C B A 11 UEIS-10124C 6-May-2002 15:21:33C:\My Documents\Releases Packages\Radio Shack 8 in 1 RF URC-6432B00\10124_C.sch Size:Number: Date:File: Revision: SheetofTime: C Radio Shack 8 in 1 RF URC-6432B00 Drawn By:Design by: PRELIMINARY Universal Electronics Inc. 6101 Gateway Drive Cypress, CA 90630 Phone 714-820-1000 FAX 714-820-1010 This document contains information which is confidential and proprietary to Universal Electronics Inc. CONFIDENTIAL: CAUTION: This is a preliminary documentation package and may change in all or part. This package is to be used for reference only. Manufacturing is only authorized to produce to released drawings. Title N.Vrbancic05/03/02 Brightness Control VDDVBATT VE2 * C2 0.1uF C11 0.1uF R37 100 OHM Y2 8.00MHZ R19 10K D9 1N4148*C3 100 uF A0 1 A1 2 A2 3 WP 7 SDA 5 SCL 6 VDD 8 GND 4 U2 (16) (2048) BT1 1.5V AAA BT2 1.5V AAA BT3 1.5V AAA BT4 1.5V AAA CONN1 + TERMINAL CONN5 - TERMINAL CONN2 +/- TERMINAL 32.768 kHz CLOCK 8.000 MHz CLOCK NOTE: * PLACEMENT PER UEI SPEC-0029 INPUT# 453210 P20 SDA SCL P20 R13 15K R12 10K D2 1N4148 R14 22K Q55 2N3906 R16 10K C17 0.1uF C13 10pF Q3 2N3904 R15 10K Note: IR1 * Use Everlight IR333/HO only. Learning Circuit EL LRNR DATA IROUT EL LRNR ENABLE IROUT LRNR ENABLE LRNR DATA R17 1M R3 100K DATA SDA SCL * C33 0.1uF NOTE: PLACEMENT PER UEI SPEC-0029 I/O SCLK RESET VD1 Q4 2N3904 Q6 2N3904 R9 220K R10 1.5M R11 1.5M R5 100K R20 10M R18 1K LCD LVD LCD LVD SEG00 1AHMCGNDF 46 SEG02 2AHMCGNDF 44 SEG01 1BKLIJOPE 45 SEG03 2BKLIJOPE 43 SEG04 3AHMCGNDF 42 SEG06 4AHMCGNDF 40 SEG05 3BKLIJOPE 41 SEG07 4BKLIJOPE 39 SEG08 5AHMCGNDF 38 SEG10 6AHMCGNDF 36 SEG09 5BKLIJOPE 37 SEG11 6BKLIJOPE 35 SEG12 7AHMCGNDF 34 SEG14 8AHMCGNDF 32 SEG13 7BKLIJOPE 33 SEG15 8BKLIJOPE 31 SEG16 9AHMCGNDF 30 SEG18 10AHMCGNDF 28 SEG17 9BKLIJOPE 29 SEG19 10BKLIJOPE 27 SEG20 11AHMCGNDF 7 SEG22 12AHMCGNDF 9 SEG21 11BKLIJOPE 8 SEG23 12BKLIJOPE 10 SEG24 13AHMCGNDF 11 SEG26 14AHMCGNDF 13 SEG25 13BKLIJOPE 12 SEG27 14BKLIJOPE 14 SEG28 15AHMCGNDF 15 SEG30 LB,#,*,IR,:,CK,AM,PM 17 SEG29 15BKLIJOPE 16 SEG31 SHIFT 18 COM5 48 COM5 4 COM4 47 COM4 3 COM6 1 COM7 6 COM7 2 COM6 5 COM0 22 COM0 26 COM3 23 COM3 19 COM2 24 COM2 20 COM1 25 COM1 21 U4 32 X 8 LCD, HTN P/N: D42253-2311-211-01 LCD LOW BATT LVD (4.4V) C14 0.1uF VDD 12 34 56 JP1 DOWNLOAD INTERFACE 642 135 6 PIN DOWNLOAD INTERFACE NOTE: PCB PTHs ONLY Optional VDD C12 OPEN D1 1N4148 VLCD + C16 10uF VLCD VDD Vin 2 GND 1 Vout 3 U6 HT7136A Layout Notes: 1. Place learner circuit as close as possible to IR1 2. Place DATA IN and DATA OUT traces well away from the VBATT trace. Red LED R28 680 Ohm LED1 Red LED VBATT 0 1 2 3 4 7 6 5 6 OUTPUT# Red LED IROUT RF Test RF Test 1 2 3 4 J1 RF CONN VDD (COB) SEG00 23 SEG02 25 SEG01 24 SEG03 26 SEG04 27 SEG06 29 SEG05 28 SEG07 30 SEG08 31 SEG10 33 SEG09 32 SEG11 34 SEG12 35 SEG14 37 SEG13 36 SEG15 38 SEG16 39 SEG18 41 SEG17 40 SEG19 42 SEG20 43 SEG22 45 SEG21 44 SEG23 46 SEG24 47 SEG26 49 SEG25 48 SEG27 50 SEG28 51 SEG30 53 SEG29 52 SEG31 54 COM3 18 COM2 17 COM1 16 COM0 15 BZ 11 BZ 10 VDD 7 VSS 5 OSCI 6 VLCD 8 IRQ 9 DATA 4 WR 3 RD 2 CS 1 COM7 22 COM6 21 COM4 19 COM5 20 T1 12 T2 13 T3 14 U7 HT1622_COB Y1 32.768KHZ C4 5pF C5 5pF C1 0.1uF X1 2 X2 3 VDD 8 VSS 4 NC 1 RST 5 I/0 6 SCLK 7 U5 HT1381_SOP SCLK I/O RESET VD1 P00/INT0 30 P01/INT1 31 P02/INT2 32 P03/INT3 33 P04/INT4 34 P05/INT4 35 P06/INT4 36 P07/INT4 37 P40 41 P41 40 P42 39 P43 38 P44 29 P45 28 P46 27 P47 19 P10 16 P11 20 P12 21 P13 22 P14 23 P15 24 P16 25 P17 26 INT5/P20 42 INT6/P21 43 INT7/P22 44 INT8/P23 1 INT9/P24 2 INT9/P25 10 INT9/P26 11 INT9/P27 15 T0CAP/T0PWM/P30 3 REM/P31 4 P32 17 P33 18 P34 13 P35 14 TEST 9 XIN 8 XOUT 7 RESET 12 VSS 6 VDD 5 U1 S3P80F9XHU-COC9 RST ** NOTE: Indicates that Test Pad MUST be added to the PCB for uC programming purpuses. TP7 TP TP1 VDD TP2 RST TP3 TEST TP4 GND TP5 P3.1 TP6 P3.0 J2 0 OHM RST S33 7 S34 8 S35 9 S37 TV/Vid S22 INFO S23 MENU S24 1 S25 2 S27 ENTER S13 PLAY S14 FF S15 STOP S16 PAUSE S17 REC S01 P S02 POWER S03 VOL + S04 VOL -- S05 CH + S06 CH -- S07 MUTE S57 SLEEP S36 0 S20 SAT S21 CBL S30 4 S11 CD S31 5 S10 VCR S40 DVD S42 AUDIO S41 AUX S43 My System S44 PIP S45 MOVE S46 SWAP S47 FREEZE S56 +100 S53 Fav S50 LIGHT S12 REWIND S00 TV S26 3 S32 6 S67 LAST S66 Exit S65 Guide S64 Select. S63 Right S62 Left S61 Down S60 Up 6 4 NC 1 3 T1 T1 FOOTPRINT 600 Hz OSCILLATOR TOP VIEW Co_Electronic Co. LTD PX 13193-H 1 2 ELM1 EL LAMP T1 EL TRANSFORMER + C44 4.7uF R24 8.2K R25 33 OHM C15 .047uF Q5 MPS2222A 6 4 3 1 Q9 2N4403 R46 100K R48 2.2K D7 1N4148 VBATT ACTIVE LOW NOTE: Use 6V Transformer. 16339-EN (White) VBATT Q1 2N4403 IR2 IR LED R4 100K R55 1.6 OHM 1/4 W IR1 IR LED R6 100 OHM VDD VBATT DATA IN DATA OUT *

FCC ID: AAO1502117 Report No.: B20711D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 16 FCC PART 15, SUBPART C TEST REPORT for RadioShack REMOTE CONTROL CATALOG NUMBER: 15-2117 Prepared for RadioShack CORPORATION 100 THROCKMORTON STREET, SUITE 1300 FORT WORTH, TEXAS 76102-2802 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JULY 19, 2002 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 10 15 2 47 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC ID: AAO1502117 Report No.: B20711D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Bandwidth of the Fundamental 15 8. CONCLUSIONS 16 FCC ID: AAO1502117 Report No.: B20711D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Modifications to the EUT B Additional Models Covered Under This Report C Diagrams, Charts and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors D Data Sheets E Laboratory Recognitions LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site FCC ID: AAO1502117 Report No.: B20711D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: RadioShack Remote Control Catalog Number: 15-2117 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: RadioShack Corporation 100 Throckmorton Street, Suite 1300 Fort Worth, Texas 76102-2802 Manufacturer: Universal Electronics, Inc. 6101 Gateway Drive Cypress, California 90630 Test Date: July 10, 2002 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz The EUT is battery powered only and cannot be connected to the AC public mains. Thus, this test was not performed. 2 Radiated RF Emissions, 10 kHz - 4300 MHz Complies with the limits of CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.249 FCC ID: AAO1502117 Report No.: B20711D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the RadioShack Remote Control Catalog Number: 15-2117. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.231. FCC ID: AAO1502117 Report No.: B20711D2 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel RadioShack Corporation Kimberly Card Manager, Product Evaluation and Compliance Universal Electronics, Inc. Jesse Mendez Electrical Engineer Compatible Electronics, Inc. Kyle Fujimoto Test Engineer Michael Christensen Test Engineer 2.4 Date Test Sample was Received The test sample was received on July 10, 2002. 2.5 Disposition of the Test Sample The sample has not been returned to RadioShack Corporation as of July 19, 2002. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RF Radio Frequency EMI Electromagnetic Interference EUT Equipment Under Test P/N Part Number S/N Serial Number HP Hewlett Packard ITE Information Technology Equipment CML Corrected Meter Limit LISN Line Impedance Stabilization Network FCC ID: AAO1502117 Report No.: B20711D2 114 OLINDA DRIVE, BR…
