AAO1502138RadioShack Remote Control Finder

4 TH . D RAFT RS Kameleon 8in1 UG 7/9/03 1:02 PM Page 1 TABLE OF CONTENTS Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 How Kameleon ™ Works. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Installing Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Battery Use And Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 About Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Installing Batteries In The Remote . . . . . . . . . . . . . . . . . . . . . . . 3 About The Finder Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 A Quick Look At The Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Key Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Device Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Adjusting Brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Programming A Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Programming A DVD Player/VCR Combo. . . . . . . . . . . . . . . . . 11 Searching For Your Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Checking The Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Using Learning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Learning Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Programming A Learning Key . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Deleting A Single Learned Key . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Deleting All Learned Keys In A Specific Mode. . . . . . . . . . . . . . . 16 Changing Volume Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Locking Volume Control To One Mode. . . . . . . . . . . . . . . . . . . . . 16 Unlocking Volume Control For A Single Device . . . . . . . . . . . . . . 17 Unlocking All Volume Control. . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Using Macros. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Programming A Favorite Channel Macro . . . . . . . . . . . . . . . . . . 18 Programming A Master Power Macro In My System Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Programming The COM MUTE Key . . . . . . . . . . . . . . . . . . . . . . . 19 Clearing A Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Using Keymover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Programming Keymover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Restoring A Single Keymoved Key . . . . . . . . . . . . . . . . . . . . . . . 21 Restoring All Keymoved Keys In A Single Mode . . . . . . . . . . . . . 21 Programming Favorite Channel Scan. . . . . . . . . . . . . . . . . . . . 22 Using Channel Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Using My System Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Control Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Programming My System Mode . . . . . . . . . . . . . . . . . . . . . . . . 23 Reassigning Device Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Using Commercial Skip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Using The Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Programming Commercial Skip . . . . . . . . . . . . . . . . . . . . . . . . . 25 Setting The Tilt Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Disabling The Tilt Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Enabling The Tilt Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Setting The Finder Receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Disabling The Finder Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Enabling The Finder Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Restoring Factory Default Settings. . . . . . . . . . . . . . . . . . . . . . 28 Clearing All Custom Programming. . . . . . . . . . . . . . . . . . . . . . 29 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 About Upgrading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Device Menu Screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Additional Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Instruction To The User. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Limited 90-Day Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Manual De Deuño. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Manufacturer’s Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Setup Codes For Audio Amplifiers . . . . . . . . . . . . . . . . . . . . . . . 80 Setup Codes For Audio Receivers. . . . . . . . . . . . . . . . . . . . . . . . 80 Setup Codes For Cable Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Setup Codes For CD Players . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Setup Codes For DVD Players. . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Setup Codes For DVD Player/VCR Combos . . . . . . . . . . . . . . . . . 82 Setup Codes For Home-Theater-in-a-Box Devices . . . . . . . . . . . 83 Setup Codes For PVRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 Setup Codes For Satellite Receivers…

Text truncated - open the document above for the full version.

FCC ID: AA01502138 Block diagram of the15-2138T RF Remote Finder Transmitter One shot 4.5 seconds timer Encoder Voltage Regulator 349.0 MHz Oscillator/Transmitter

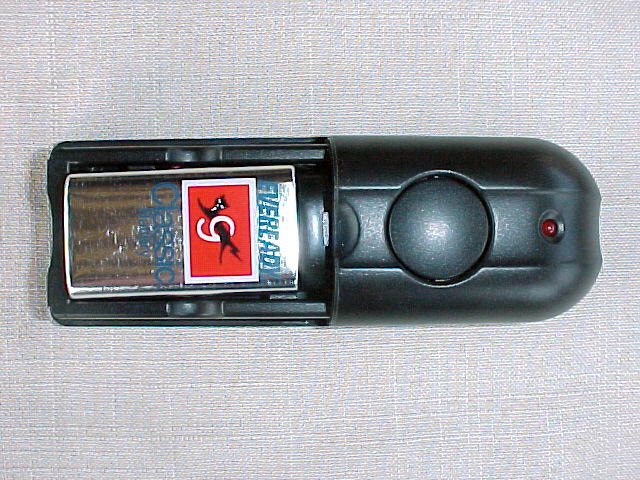

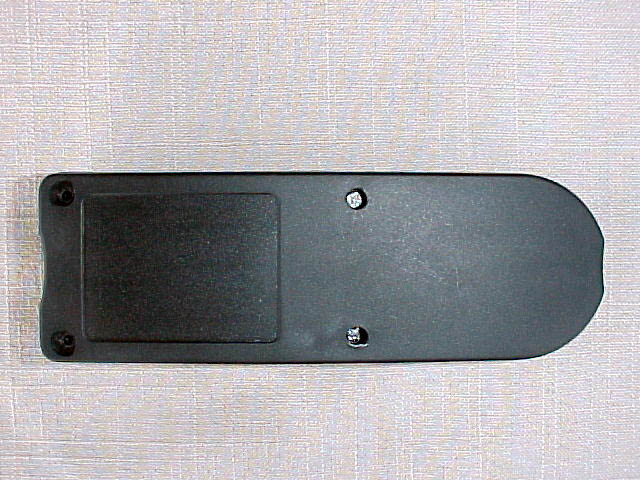

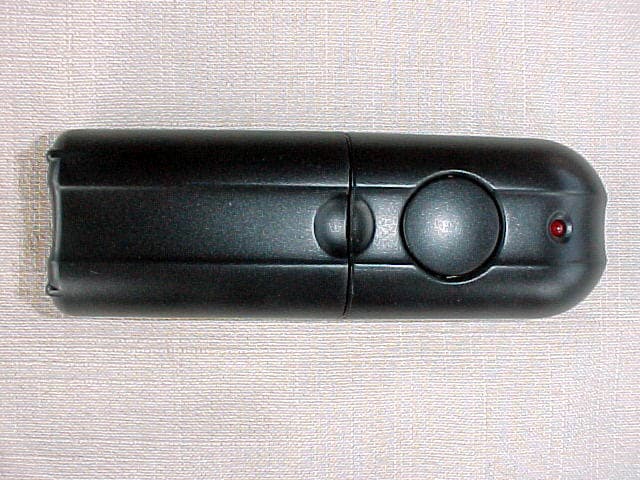

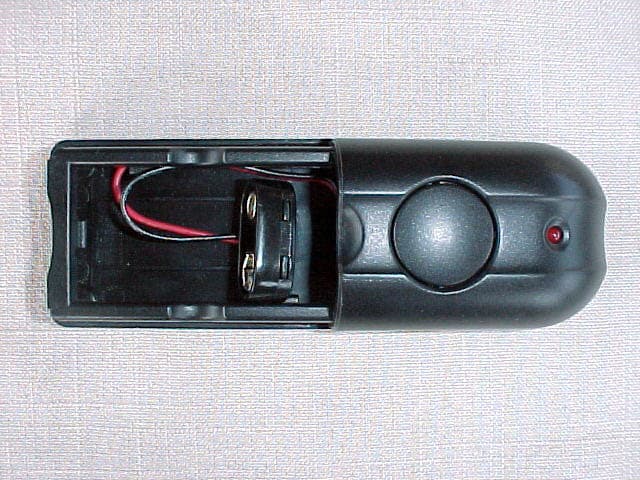

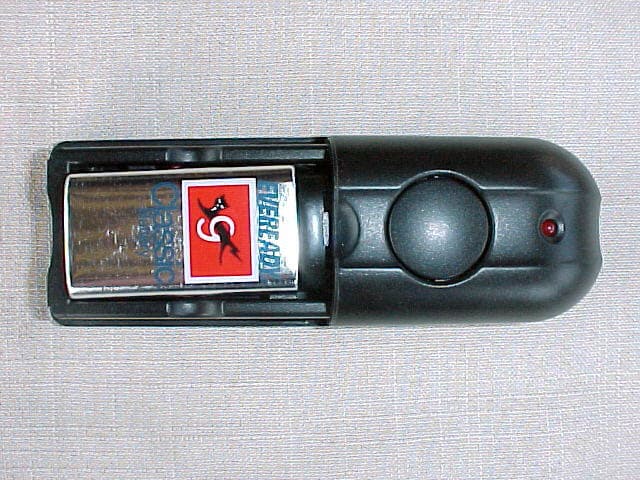

FCC ID: AA01502138 Description of the15-2138 RF Remote Finder Transmitter The 15-2138 Finder Transmitter is a one button remote that will be packaged with the Radio Shack 8-in-1 Kameleon 2003 remote URC6123BJ0/1. The RF transmitter remote will transmit an encoded signal with a specific address to the RS 8-in-1 Kameloen 2003 to activate the remote finder. The unit will continuously transmit the RF signal while the key is held down. The unit will transmit the RF signal for 4.5 seconds after the key is released.

1234 A B C D 4321 D C B A 11 UEIS-10461D 18-Jul-200308:27:58C:\My Documents\Released Packages\RS 8 in 1 Kameleon 2003 Finder Transmitter\10461_D.sch Title Size:Number: Date:File: Revision: SheetofTime: A 8 in 1 Kameleon 2003 Finder Transmitter, URC-6124BJ0 Drawn By:Design by: This document contains information which is confidential and proprietary to Universal Electronics Inc. CONFIDENTIAL: PRELIMINARY CAUTION: This is a preliminary documentation package and may change in all or part. This package is to be used for reference only. Manufacturing is only authorized to produce to released drawings. Universal Electronics Inc. 6101 Gateway Drive Cypress, CA 90630 Phone 714-820-1000 FAX 714-820-1010 T. Murry SW1 R1 100 OHM + C1 4.7uF R2 1.2M VDD R10 1.2 K LED1 LED RED R5 1K Q1 MPS2222A L1 1uH L2 PCB ANT C5 2.2pF C4 3.3pF Q3 MMBTH10L R7 150 OHM R8 1K C7 2.0pF R6 4.7KC10 Open VDD D5 1N4148 BT1 9V D4 6.2V 500mW 5 6 4 U1B TC4093B 12 13 11 U1D TC4093B 8 9 10 U1C TC4093B 1 2 3 U1A TC4093B VDD VDD (Pack. DL-35) C8 1.0pF C9 Open One - Shot 4.5 sec activation timer Encoder349 MHz RF Oscillator5.5 V Voltage Regulator Red wire Black wire Battery clip (+) Battery clip (-) + - V+ V- FIGURE 1 A1 3 NC 1 AD9 12 AD8 11 A0 2 VDD 19 NC 20 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 VSS 10 AD10 13 AD11 14 TE 15 OSC2 16 OSC1 17 DOUT 18 U3 HT12E (20 SOP) R9 1.1M VDD C2 0.1μF C5A 2.2pF C5B 1.5~5pF

Report Number: B30717A2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report 8 in 1 Kameleon 2003 Remote Finder Catalog Number: 15-2138T 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 16 FCC PART 15, SUBPART B and C TEST REPORT for 8 IN 1 KAMELEON 2003 REMOTE FINDER CATALOG NUMBER: 15-2138T Prepared for RADIOSHACK CORPORATION 100 THROCKMORTON STREET, SUITE 1300 FORT WORTH, TEXAS 76102-2802 Prepared by:_____________________ MICHAEL CHRISTENSEN Approved by:____________________ KIRIT RAMANI COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JULY 22, 2003 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 10 15 47 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B30717A2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report 8 in 1 Kameleon 2003 Remote Finder Catalog Number: 15-2138T 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Bandwidth of the Fundamental 15 8. CONCLUSIONS 16 Report Number: B30717A2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report 8 in 1 Kameleon 2003 Remote Finder Catalog Number: 15-2138T 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Site Report Number: B30717A2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report 8 in 1 Kameleon 2003 Remote Finder Catalog Number: 15-2138T 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: 8 in 1 Kameleon 2003 Remote Finder Catalog Number: 15-2138T S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was modified in order to meet the specifications. Please see the list located in Appendix B. Manufacturer: Universal Electronics, Inc. 6101 Gateway Drive Cypress, California 90630 Manufacturer: Jetta Company Limited Jetta House 19 On Kui Street, On Lok Tsuen, Fanling Hong Kong, China Test Date: July 17, 2003 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4: 2001 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz This test was not performed because the EUT operates on DC power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 3500 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B30717A2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report 8 in 1 Kameleon 2003 Remote Finder Catalog Number: 15-2138T 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the 8 in 1 Kameleon 2003 Remote Finder Catalog Number: 15-2138T. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B30717A2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report 8 in 1 Kameleon 2003 Remote Finder Catalog Number: 15-2138T 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Universal Electronics, Inc. Jesse Mendez Electric…
