AAO2000315Scanning Receiver

20-315 Owner’s Manual Page 1 Owner’s Manual Cat. No. 20-315 PRO-82 200-Channel VHF/Air/UHF Handheld Scanner Please read before using this equipment. FEATURES Your new RadioShack PRO-82 200 Channel VHF/Air/UHF Handheld Scanner lets you scan conventional transmissions, and is preprogrammed with search banks for convenience. By pressing a single button, you can quickly search those frequencies most commonly used by public service and other agencies without tedious and complicated programming. This scanner gives you direct access to over 25,000 exciting frequencies, including those used by police and fire departments, ambulance services, aircraft, and amateur radio services, and you can change your selection at any time. Your scanner also has these special features: One Touch Search Banks — let you search preset frequencies in separate marine, fire/police, aircraft, ham, and weather banks, to make it easy to locate specific types of calls. Display Backlight — makes the scanner easy to read in low-light situations. Duplicate Channel Alert — warns you when the frequency you are storing already exists in memory. Lockout Function — lets you set your scanner to skip over specified channels or frequencies when scanning or searching. Memory Backup — keeps the channel frequencies stored in memory for about an hour in the event of a power loss. Ten Channel-Storage Banks — you can store 20 channels in each bank (200 total channels), letting you group channels so you can more easily identify calls. Tune — lets you tune for new and unlisted frequencies starting from a specified frequency. 20-315 Owner’s Manual Page 2 Weather Alert — the scanner automatically sounds an alert when it receives a weather emergency signal, providing more complete information about weather conditions in your immediate area. Wired Programming — you can connect your scanner to a personal computer and program frequencies into it using an optional cable and software. Note: You can get the cable, software, and additional information about using your personal computer to program your scanner from your local RadioShack store. Special Function — lets you easy scan the fire/police, air, or ham channel banks. Scan Delay — delays scanning for about 2 seconds before moving to another channel, so you can hear more replies that are transmitted on the same channel. Priority Channel — lets you program a channel as the priority channel. As the scanner scans, it checks the priority channel every 2 seconds so you do not miss transmissions on that channel. HyperSearch and HyperScan — let you set the scanner to search at up to 50 steps per second (in frequency bands with 5 kHz steps) and scan at up to 25 channels per second, to help you quickly find interesting broadcasts. Manual Access — you can directly access any stored channel by entering that channel’s number. Key Lock — lets you lock the scanner’s keys to help prevent accidentally changing the scanner’s programming. Liquid-Crystal Display — makes it easy to view and change programming information. Supplied Flexible Antenna with BNC Connector — provides good reception of strong local signals. You can connect an external antenna with a BNC connector to the scanner for improved reception of distant/weaker signals. Key Confirmation Tones — the scanner sounds a confirmation tone when you perform an operation correctly, and an error tone if you make an error. Three Power Options — you can power the scanner from internal (rechargeable or non- rechargeable batteries) or external AC or DC power (using an optional AC or DC adapter). Your PRO-82 scanner can receive these bands: Frequency Range (MHz) Types of Transmissions 29–54 10-Meter Ham Band, VHF Lo, 6-Meter Ham Band 108–136.9875 Aircraft 137–174 Military Land Mobile, 2-Meter Ham Band, VHF Hi 380–512 UHF Aircraft, Federal Government, 70-cm Ham 20-315 Owner’s Manual Page 3 Band, UHF Standard Band, UHF “T” Band Note: See “Specifications” on Page 50 for more information about the scanner’s frequency steps. © 2002 Tandy Corporation. All Rights Reserved. RadioShack and Adaptaplug are registered trademarks used by RadioShack Corporation. HyperSearch and HyperScan are trademarks used by RadioShack Corporation. THE FCC WANTS YOU TO KNOW This equipment has been tested and found to comply with the limits for a scanning receiver, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Note: Mobile use of this scanner is unlawful or requires a permit in some areas. Check the laws in your area. SCANNING LEGALLY 20-315 Owner’s Manual Page 4 Scanning is a fun and interesting hobby. You can hear police and fire departments, ambulance services, government agencies, private companies, amateur radio services, aircraft, and military operations. It is legal to listen to almost every transmission your scanner can receive. However, there are some electronic and wire com…

Text truncated - open the document above for the full version.

GENERAL RESEARCH OF ELECfRONICS, INC. ph ~ne. +813-5439-3611 SHISA NO.3 AMEREX SLOG. .3-12-17 MITA, MINATO-KU Fa: +813-5439-3644 TOKYO 108-0073, JAPAN Match 31 , 2002 Fe eraJ Communications Commission Aut orization and Evaluation Division La oratory Division 74 5 Oakland Mills Road Col mbia, MD 21046 Radio Shack Model 20-315, FCC ID: MO2000315: I This is to clarify that the above equipment is incapable of operating (tuning) or readily being altered by the user to operate, within the frequency bands to the Cellular Radiotelephone Service. I The frequencies in question are deleted from the ROM during manufacture, and cannot be restpred through any readily available process or component such as: installation of cuts, jumper wir~s, resistors, diodes, or plug-in IC's; deletion of such items; or reprogramming via access codes or ext~mal devices such as a personal computer. The receiver is incapable of converting digital cellular transmissions to analog voice audio, Assessing the vulnerability of the receiver to possible modification ~The rec~iver has the pos~ibility of re,ducing t~e t~reshold value to. dis~ern tran~missions from the Cell lar Radiotelephone Service by making mOdification such as adding Jumper wire to the UHF RF tuni g circuit and UHF mixer circuit. Design features that prevent modification of the receiver to receive Cellular Service ~The scanning receiver is designed to prevent any attempt for the user to modify the receiver to rece ve transmissions from the Cellular Radiotelephone Service by using epoxy to cover the required part of the UHF RF tuning circuit. Tes~ing method used to determine compliance with the 38 dB rejection ratio I IThe scanning receiver prevents transmissions more than 38 dB from the Cellular Radiotelephone Serv'ce from being received for the following reasons: 1. T~e image frequencies in the frequency range from 29 MHz to 54 MHz are shown as follows GENERAL RESEARCH OF ELECTRONICS, INC. ' IMAGE FREQ. IMAGE FREQ FR = 29 to 54 MHz, 108 to 136.9875 MHz IF, 10.7 MHz FR f2 x IF = IMAGE FREQ. (29 to 54) + (2 x 10.7) = 50.4 to 75.4 MHz (10 to 136.9875) + (2 x 10. 7) = 129.4 to 158.3875 MHz These image frequencies are not included within the Cellular Radiotelephone Service Frequency , Barld 2. ihe image frequencies in the frequency range from 137 to 174 MHz, 380 to 512 MHz are shown as follqws: FR = 137 to 174 MHz, 380 to 512 MHz IF = 10.7 MHz FR f! 2 x IF = IMAGE FREQ. ~ (13 to 174) -(2 x 10.7) : 115.6 to 152.6 MHz ..~ , (38 to 512) -(2 x 10.7) -358.6 to 490.6 MHz , ..IMAGE FREQ, 0. IMAGE FREQ, These image frequencies are not included within the Cellular Radiotelephone Service Frequency , Ban~ I The 12 dB SINAD measurement method in the Cellular Radiotelephone Service used for freqfencies that the receiver tunes and the signal rejection ratio gained by the measurement. SINAD IMETER ~--~-::--:- 8 ohm LOAD Equipment Setup Block Diagram Mea~urement method TUn ~the receiver to the received frequency and output the receiving frequency from SG to obtain its 12 dB SINAD. Then output the interference frequency to obtain its 12 dB SINAD. The signal rejection ratio is the ratio between these two SSG output levels. GE~ERAL RESEARCH OF ELECTRONICS, INC. T 'st Besults Cellular frequency range included (MHz) Received frequency (MHz) Interference frequency (MHz) Signal rejection ratio (dB) Equation for interference frequency reception -(MHz) 825.000 to 848.000 825.000 837.300 848.000 71 70 70 (FR- IF) x 2 + IF = 825.000 (FR -IF) X 2 + IF = 837.300 (FR- IF) x 2 + IF ~48,000 825.000 to 848.000 428.550 434.000 440.050 825.000 835.900 848.000 59 58 57 67 66 65 56 56 56 (FR- IF) x 2- IF = 825.000 (FR -IF) x 2- IF = 835.900 (FR -IF) x 2 -=Jf-= 848.000 42~~SSO I440rOSO 44~l350 45~ 870.000 to 893.000 440.350 446.000 451.850 870.000 881.300 893.000 (FR- IF) x 2 + IF = 870.000 (FR-IF) x 2 + IF = 881.300 (FR -IF)~2+ IF = 893.000 4S:l0S0 462rSSO 870.000 to 893.000 870.000 879.900 893.000 (FR -IF) x 2 -IF = 870.000 (FR- IF) x 2- IF = 879.900 (FR- IF) x 2 -=Jf~ 893.000 FR = received frequency IF = 10.7 MHz ~he above test results indicate that all the signal rejection ratios for the Cellular Radiotelephone Service Band are higher than 38 dB. Label Requirement ~he scanning receiver has a label affixed to the product shown on the attached drawing of the mod+llabe!, which reads as follows: ~ARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERylCE SIGNALS IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW. ~ased on the above, we hereby attest that the equipment in question compiles fully with the provi~ions of 15.121 of FCC Rules. ~j/~"'-" ~. Ishi~uka, Chief Engineer 417.850 424.000 429.350 451.050 456.000 462.550

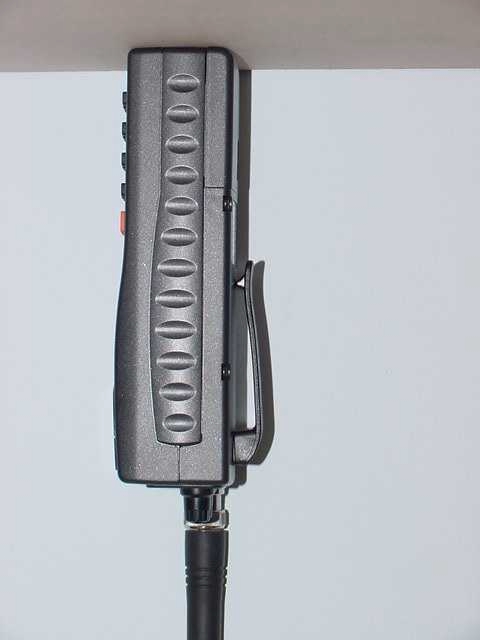

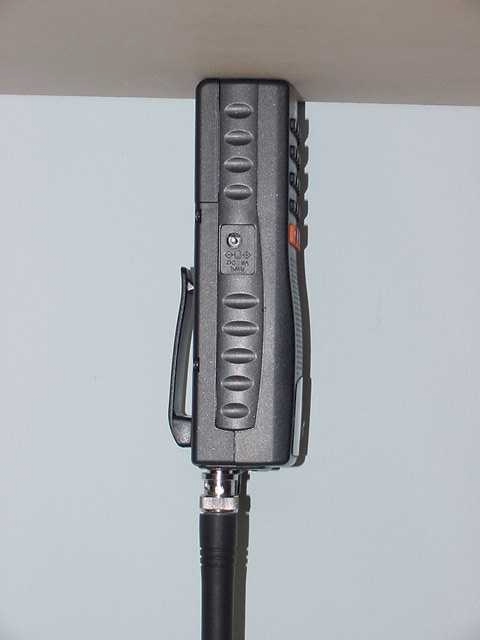

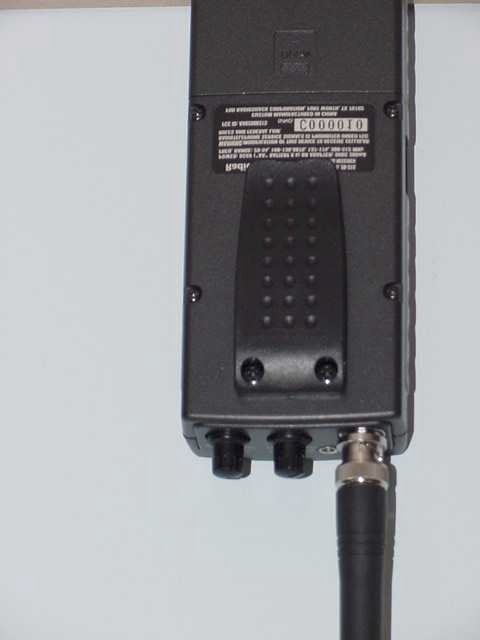

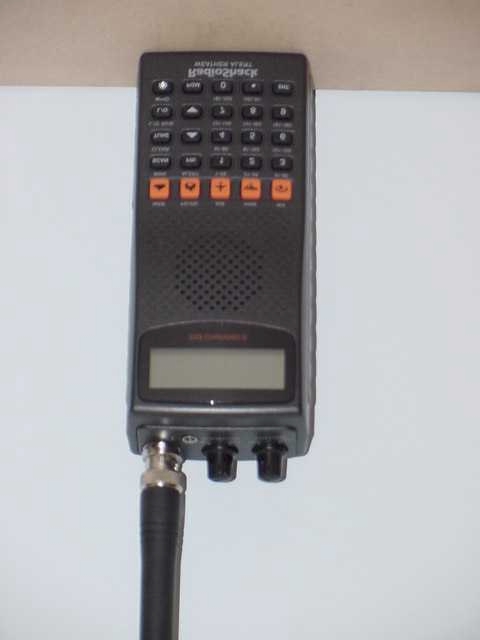

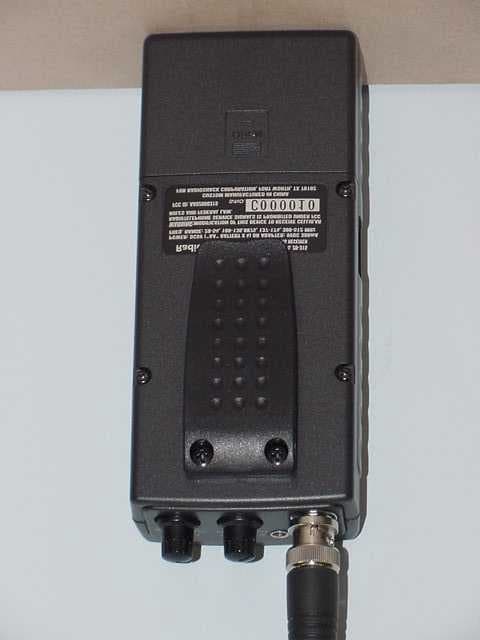

Model: PRO-82 FCCID: AAO2000315 EXTERNAL PHOTO Model: PRO-82 FCCID: AAO2000315 EXTERNAL PHOTO Model: PRO-82 FCCID: AAO2000315 EXTERNAL PHOTO Model: PRO-82 FCCID: AAO2000315 EXTERNAL PHOTO Model: PRO-82 FCCID: AAO2000315 EXTERNAL PHOTO Model: PRO-82 FCCID: AAO2000315 EXTERNAL PHOTO

+~ 1~8,=-~mn --, ~ " , " " " \ " " "' "' '\ 2:3 645 I .QTY 6 I1IM 10 ~\eEI\I SPECIFICATlm Element Cable Element rubber o..e Element SP Element FT !nsu!eter BNC Gonnecter NOME!/CI.A11JRE OR DESCRIPTION PART OR DWG, NO o~TE I SYMIREVISION ayAPPROV I NUMBER i TITLE j OUAN~I REMARK SCALETREA1IS$UE D PAl KT ! D A T E ,,-1. ~, C- ,~ ,.- -" 'rITLi RUBBE.R ANTENr\JA lTERIAL I

21.0mm ! / REMARKS .MATERIAL: PLASTIC FOIL (0.1 mm) 2. FINISH: BLACK BASE/SILVER LETTERS ~ -SYM I REVISIONBY !APPROVEI NUMBE TITLE QUANT I MATERIAL REMARK #0114 (PRO-S2) Cat No.20-315 ISSUED USA MODEL LABEL W/WARNING (~ANUFAC~~DJ~CHL~)- ~~ ~ PAINT I SCALE 2/1 G.R.E. POWER: DC6V ("AA" BATTER1t X 4) OR ADAPTER: 9VDC 300mA FREQ. RANGE: 29-54, 108-1~16.9875, 137-174, 380-512 MHz WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIDTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW. FCCJD:AAO2000315 S/NO. CUSTOM MANUFACTURED IN CHINA FOR RADIOSHACK CORPORATION, FORT WORTH, TX 76102 ,

FCC ID LABEL LOCATION (FCC ID: AAO2000315) The § 15.19(a)(3) statement is indicated in the user's instruction manual. GENERAL RESEARCH OF ELECTRONICS,INC.

APPLICATION FOR FCC CERTIFICATION For Radio Shack Corp. Scanning Receiver Model: 20-315 (PRO-82) FCC ID: AAO2000315 Job # 3022289 Report # 30222891 Date of Testing: April 9 – 10 and May 13 - 15, 2002 Date of Report: May 17, 2002 Number of Pages: 26 This report shall not be reproduced except in full, without written approval of Intertek Testing Services. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. The results contained in this report were derived from measurements performed on the identified test samples. Any implied performance of other samples on this report is dependent on the representative of the samples tested. NVLAP Laboratory Code: 200201-0 FCC Part 15 Scanning Rx Cert 1365 Adams Court, Menlo Park, CA 94025 Radio Shack Corp. , Model No: 20-315 (PRO-82) FCC ID: AAO2000315 Date of Test: April 9 – 10 and May 13 - 15, 2002 Report #30222891 1 FCC Part 15 Certification TABLE OF CONTENTS AUTHORIZATION LETTER ...................................................................................................... 3 ATTESTATION LETTER TO FCC ∋ ∋∋ ∋ 15.121 .............................................................................. 4 TEST REPORT .............................................................................................................................. 5 0.0Summary of Test Results ................................................................................................... 5 1.0General Description .......................................................................................................... 6 1.1Product Description................................................................................................. 6 1.2Related Submittal(s) Grants..................................................................................... 6 1.3Test Methodology.................................................................................................... 6 1.4Test Facility............................................................................................................. 6 2.0System Test Configuration ................................................................................................ 7 2.1Justification.............................................................................................................. 7 2.2EUT Exercising Software ........................................................................................ 7 2.4Support Equipment List and Description ................................................................ 8 2.4.1 The FCC ID's for all equipment used in the tested system 2.4.2 Equipment Setup Block Diagram ................................................................ 8 2.5Equipment Modification.......................................................................................... 8 3.0Emission Results ................................................................................................................ 9 3.1Field Strength Calculation ..................................................................................... 10 3.2Radiated Emission Configuration Photograph ...................................................... 11 3.3Radiated Emission Data ........................................................................................ 12 3.4AC conducted Emission Configuration Photograph.............................................. 14 3.5Conducted Emission Data ..................................................................................... 15 4.0List of Test Equipment .................................................................................................... 18 5.0Antenna Requirement ..................................................................................................... 19 6.0Equipment Photographs ................................................................................................. 20 7.0Product Labeling ............................................................................................................. 21 7.1Label Artwork ....................................................................................................... 21 7.2Label Location ...................................................................................................... 22 8.0Technical Specifications .................................................................................................. 23 8.1Receiver Block Diagram....................................................................................... 23 8.2Receiver Circuit Diagram...................................................................................... 24 1365 Adams Court, Menlo Park, CA 94025 Radio Shack Corp. , Model No: 20-315 (PRO-82) FCC ID: AAO2000315 Date of Test: April 9 – 10 and May 13 - 15, 2002 Report #30222891 2 FCC Part 15 Certification 9.0Instruction Manual .......................................................................................................... 25 10.0Document History ............................................................................................................ 26 1365 Adams Court, Menlo Park, CA 94025 Radio Shack Corp. , Model No: 20-315 (PRO-82) FCC ID: AAO2000315 Date of Test: April 9 – 10 and May 13 - 15, 2002 Report #30222891 3 FCC Part 15 Certification AUTHORIZATION LETTER See attachment. 1365 Adams Court, Menlo Park, CA 94025 Radio Shack Corp. , Model No: 20-315 (PRO-82) FCC ID: AAO2000315 Date of Test: April 9 – 10 and May 13 - 15, 2002 Report #30222891 4 FCC Part 15 Certification ATTESTATION LETTER TO FCC ∋ ∋∋ ∋ 15.121 See attachment. 1365 Adams Court, Menlo Park, CA 94025 Radio Shack Corp. , Model No: 20-315 (PRO-82) FCC ID: AAO2000315 Date of Test: April 9 – 10 and May 13 - 15, 2002 Report #30222891 5 FCC Part 15 Certification TEST REPORT 0.0Summary of Test Results GRE America - Model: 20-315 (PRO-82) FCC ID: AAO2000315 TESTREFERENCERESULTS Radiated Emission15.109Complies Conducted Emis…

Text truncated - open the document above for the full version.

Model: 20-315 (PRO-82) FCCID: AAO2000315 TEST SE TUP PHOTO Model: 20-315 (PRO-82) FCCID: AAO2000315 TEST SE TUP PHOTO Model: 20-315 (PRO-82) FCCID: AAO2000315 TEST SE TUP PHOTO Model: 20-315 (PRO-82) FCCID: AAO2000315 TEST SE TUP PHOTO Model: 20-315 (PRO-82) FCCID: AAO2000315 TEST SE TUP PHOTO Model: 20-315 (PRO-82) FCCID: AAO2000315 TEST SE TUP PHOTO
