360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 42 2000500 Radio Shack Corporation TRC-520 18 FCC INFORMATION PACKAGED SOLD WITH THE DEVICE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 43 2000500 Radio Shack Corporation TRC-520 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 44 2000500 Radio Shack Corporation TRC-520 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 45 2000500 Radio Shack Corporation TRC-520

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 46 2000500 Radio Shack Corporation TRC-520 19 MANUAL FEATURES You RadioShack TRC-520 40-Channel Mobile CB Radio provides two-way communications on the citizen’s radio band and also lets you tune to local and national weather service broadcests. This CB is perfect for recreational,busi- ness , or emergency use. You can call other people who have CBs at home,in Their venicles, or at campsites, (for ex- ample) You can also connect optional equipment to you CB such as external speakers , or a DC power supply and base station antenna to set up a base station in your home, The built-in 40- channel PLL (phase –locked loop) fre- quency synthesizer uses a precise fre- quency reference crystal for reliable and exact tuning. Your CB has these features: ACE(Audio Clarity Enhancer)– sup- presses noise levels while leaving the Signal intact during reception. It enhanc- es the transmission and provide a sig- nificant reduction in transmission and reception noise. WX/CB/Compass Switch – lets you quicklyselect among normal CB opera- tion,Weather mode,E.compass mode. NOAA 7 Channel WX band Receiver --lets you tune to seven national weather service frequencies which provide lo- cal weather conditions and forecasts. WX / Signal Indicator– showa the CB is ready to receive and indicates the reception of a weather alert Digital Weather Alert – uses Specif- ic Ares Message Encoding (SAME) Digital information to determine and display the level of weather events (does not limit alerts to a specific ar- ea). Convenient On-Microphone Chan- Nel Up/Down Controls–let you quick- ly scan the band for communications. Universal Mounting Bracket - lets You mount your CB securely in your ve- hicle. Specialized Squelch Circuit – com- pensates for fading signals and elimi- nates signal shopping during reception RFGain Control -prevent overload- Ing due to strong RF signals Maximum Allowable Legal Power Output –gives you the greatest avail- able range. TX Indicator- light to show when the radio is transmitting. Digital Channel Display-makes the channel number easy to see. 1 FEATURES Dual/MEM –lets you activeta Dual Watch Mode External Speaker Jack – Lets you connect your CB to an external speaker. Screw-On Mic Connector-ensures a seure microphone connection. To use this CB,you need a mobile or Base ststion antena Your local Ra- DioShack store has a wide variety of an- tennas. For more information,see “Connecting an Antenna”on page 6. The Federal Communications Commis- Sion(FCC)does not require you to have A license to operate this CB,However, You must know part 95 of FCC Rules.It Explains the proper operation of a Class D citizen’s band CB. We enclosed a Copy of part 98 with you CB radio. We recommend you record your CB’s Serial number here. The number is on The back of the CB. Serial Number: 2001 RadioShack corporation. All Rights Reserved. RadioShack ,RadioShack.com, and Adaptaplug are trademarks used by RadioShack Corporation. 2 RF EXPOSURE INFORMATION: CAUTION: To comply with the FCC RF Exposure compliance requirements, a separation distance of at least 20.0 cm must be maintained between the antenna of this device and all persons. This device must transmit with a source-based time-averaging duty factor not exceeding 50%. NOTE: Installation and Operation instructions are for satisfying FCC RF Exposure compliance. CONTENTS Installation............................................................................. 4 Before You Begin............................................................... 4 Attaching the Microphone Holder........................................... 4 Mounting the CB................................................................. 4 Connecting the Microphone................................................... 5 Connecting an Antenna........................................................ 6 Connecting Vehicle BatteryPower.......................................... 7 Connecting an External Speaker............................................ 7 Using the CB as a Base Station............................................. 7 Operation............................................................................... 9 Receiving Transmissions and Setting Squelch......................... 9 Transmitting...................................................................... 11 Listening to the Weather Band.............................................. 11 Using Weather Alert/SAME.............................................. 11 Common Uses for a CB........................................................ 12 Business Uses............................................................... 12 Personal Uses............................................................... 13 Transmission Courtesy......................................................... 13 Maximum Range................................................................. 13 Reducing Noise.................................................................. 13 Using Common 10-Codes........................................................ 15 Weather Channel Frequencies.............................................. 16 Troubleshooting..................................................................... 17 Care and Maintenance............................................................. 18 Replacing the Fuse............................................................. 19 The FCC Wants You to Know................................................ 19 Specifications......................................................................... 20 3 INSTALLATION BEFORE YOU BEGIN Your CB’s display is protected during shipment by a piece of clear film. Care- fully peel off this film before using your radio for the first time. ATTACHING THE MICROPHONE HOLDER Your can connect the microphone holder To either side of the CB or to another lo- cation in your vehicle. To attach the holder to eit…

Text truncated - open the document above for the full version.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 47 2000500 Radio Shack Corporation TRC-520 20 ATTESTATION FOR ADDITIONAL FCC 95.645 (A), FCC 95.655 (B), FCC 95.669 (A), AND FCC 95.671 1. FCC 95.645 (a), Manipulating any of the EUT controls knobs and switched does not result in a violation of the FCC’s rules. 2. FCC 95.655 (b) All frequency determining elements, including crystal, PLL integrated circuits and channel selection are permanently mounted and soldered internal to the transmitter and cannot be accessed through the from panel or from the enclosure exterior. 3. FCC 95.669 (a) The model name meets the applicable provision of FCC 95.669. External controls re limiter to the following: 1. Primary power connection 2. Microphone jack 3. RF output power connection 4. External speaker and microphone 5. On off switch combined with receiver volume control 6. N/A 7. N/A no H3E, J3E, and R3E 8. Transmitting frequency selector 9. Transmit receiver switch 10. N/A 11. Meter/ pilot lamp for RF output indication 4. FCC 95.671 The serial of each unit will be implemented in accordance with FCC 95.671. Please see sample of label.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 Date: January 29, 2001 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: On behalf of the applicant we request the following information to be held confidential pursuant of 47 CFR Part 0 §0.457 of the FCC Rules and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Product Description • Block Diagram • Bill of Materials (Parts List) Best Regards, Signature

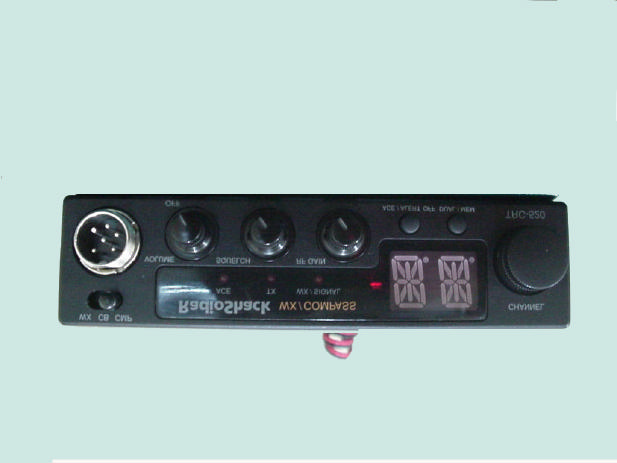

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 55 2000500 Radio Shack Corporation TRC-520 25 EXTERNAL PHOTOGRAPHS Front View Of EUT 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 56 2000500 Radio Shack Corporation TRC-520 Rear View Of EUT

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 41 2000500 Radio Shack Corporation TRC-520 17 LABEL INFORMATION Serial Number and FCC ID Label Location of Label

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 57 2000500 Radio Shack Corporation TRC-520 23 INTERNAL PHOTOGRAPHS Component Side of Board 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 58 2000500 Radio Shack Corporation TRC-520 Solder Side of Board

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 34 2000500 Radio Shack Corporation TRC-520 15 FCC RULES AND REGULATIONS PART 1.1307, 1.1310, 2.1091, 2.1093: RF EXPOSURES The manufacturer does not specify or sale any antenna with the radio identified in this report. The manufacturer applies for the General Population/Uncontrolled Environment. The maximum distance, from the antenna at which MPE is met or exceeded, is calculated from the equation relating field strength E in V/m, transmit power P in Watts, transmit antenna numeric gain G , and separation distance in meters: d GP mVE ×× = 30 )/( Power density: 3770 )/( 2 2 E cmmWP d = The limit for general population/uncontrolled exposure applicable to Bystanders (at 27.405 MHz) = 180/(f(MHz)) 2 in 2 /cmmW 15.1 MPE CALCULATION Antennae: Typical CB antenna available on the market and commonly chosen by end-users for vehicle application. Frequency A 27.405 MHz Limit for General Population/Uncontrolled Environment (Bystanders): 0.24 2 /cmmW SEPARATION DISTANCE: (dBi) Antenna Gain C (dBi) Antenna Gain C Power B (CW) -4.5 2.15 (Watt) (in) (cm) (in) (cm) 3.9 11 27 18 46 1.95 (50%) D 7 19 13 33 Notes: A = Distances are calculated for the largest (worst-case) separation distance B = Conducted Output Power delivered to the antenna C = Gains are compared to an ideal 1/2-wave dipole (0 dBd = 2.15 dBi) D = Source-base time-averaging duty factor = 50% Instructions will be placed in the user manual instructing installers and users to maintain the MPE distances during operation of the EUT.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 APPLICATION CERTIFICATION FOR A CB RADIO Radio Shack Corporation 100 Throckmorton Street, Suite 1300 Fort Worth, TX 76102-2802 Japan MODEL: TRC-520 FCC ID: AAO2101710 January 23, 2001 STANDARDS REFERENCED FOR THIS REPORT PART 2; 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15; 1999 RADIO FREQUENCIES DEVICES PART 95; 1998 PERSONAL RADIO SERVICES OET BULLETIN NO. 43; 1994 PEAK ENVELOPE POWER AND OUTPUT LIMITING IN THE CITIZENS BAND (CB) RADIO SERVICE ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS ANSI/TIA/EIA 603-1; 1998 ADDENDUM TO ANSI/TIA/EIA 603-1992 FREQUENCY RANGE MHZ CONDUCTEDUNMODULATED OUTPUT POWER (W) FREQUENCY TOLERANCE EMISSION DESIGNATOR 26.965 TO 27.405 3.89 0.005% 6K00A3E REPORT PREPARED BY: EMI Technician: Daniel Baltzell Administrative Writer Melissa Fleming Rhein Tech Laboratories, Inc. Document Number: 2000500 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 2 2000500 Radio Shack Corporation TRC-520 Table of Contents 1 GENERAL INFORMATION..................................................................................................................................4 1.1 MODIFICATIONS...................................................................................................................................................4 1.2 RELATED SUBMITTAL(S)/GRANT(S)...................................................................................................................4 1.3 TEST METHODOLOGY.........................................................................................................................................4 1.4 TEST FACILITY.....................................................................................................................................................4 2 SYSTEM TEST CONFIGURATION....................................................................................................................5 2.1 JUSTIFICATION.....................................................................................................................................................5 2.2 FCC RULES AND REGULATIONS PART 2.202: NECESSARY BANDWIDTH AND EMISSION BANDWIDTH....5 2.3 EXERCISING THE EUT..................................................................................................................................5 3 FCC RULES AND REGULATIONS PART 2 §2.1046 (A): RF POWER OUTPUT: CONDUCTED........5 3.1 TEST PROCEDURE................................................................................................................................................5 3.2 TEST DATA............................................................................................................................................................5 3.3 UNMODULATED CARRIER OUTPUT POWER AND PEAK ENVELOP POWER (PEP)................................5 3.4 PEP POWER PLOT...............................................................................................................................................6 4 §95.625: CB TRANSMITTER FREQUENCIES AND TOLERANCE............................................................7 5 CONFORMANCE STATEMENT.........................................................................................................................8 6 EMISSIONS EQUIPMENT LIST..........................................................................................................................9 7 RADIATED EMISSIONS MEASUREMENTS FOR RECEIVERS AND DIGITAL INTERFACE DEVICES.........................................................................................................................................................................11 8 FCC RULES AND REGULATIONS PART 2 §2.1053 (A): FIELD STRENGTH OF SPURIOUS RADIATION...................................................................................................................................................................12 8.1 TEST PROCEDURE.............................................................................................................................................12 8.2 TEST DATA.........................................................................................................................................................12 8.2.1 Radiated Emissions: (Transmitter into a 50 ohm Load, Channel 20)..................................................12 8.2.2 Radiated Emissions: (Receiver) CH 20 at 27.205 MHz.......................................................................13 9 FCC RULES AND REGULATIONS PART 2 §2.1049 (C) (1): OCCUPIED BANDWIDTH...................14 9.1 TEST PROCEDURE.............................................................................................................................................14 9.2 TEST DATA.........................................................................................................................................................15 10 FCC RULES AND REGULATIONS PART 2 §2.1051: SPURIOUS EMISSIONS AT ANTENNA TERMINALS..................................................................................................................................................................18 10.1 TEST PROCEDURE.............................................................................................................................................18 10.2 TEST DATA.........................................................................................................................................................18 11 FCC PART 2 § 2.1047(B): MEASUREMENT REQUIRED: MODULATION CHARACTERISTICS (MODULATION LIMITING…

Text truncated - open the document above for the full version.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 51 2000500 Radio Shack Corporation TRC-520 24 TEST CONFIGURATION PHOTOGRAPHS 24.1 RADIATED CONFIGURATION PHOTOGRAPHS Transmitter Front View 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 52 2000500 Radio Shack Corporation TRC-520 Transmitter Rear View 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 53 2000500 Radio Shack Corporation TRC-520 Receiver Front View 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC Certification Report Rev: 2 Page 54 2000500 Radio Shack Corporation TRC-520 Receiver Rear View
