AAO2101861Family Radio Transceiver

RadioShack Corporation
Family Radio Transceiver - FCC ID AAO2101861 - RadioShack Corporation
Click to zoom

Application Details

Equipment Class
FRF - Part 95 Family Radio Face Held Transmitter
Date of Grant
Aug 29, 2001
Application Purpose
Original Equipment
Date of Application
Jun 11, 2001
Equipment Note
Family Radio Transceiver
Frequency Range
462.56250000 - 467.71250000
Company
RadioShack Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

β†—

Block Diagram

β†—

External Photos

β†—
β†—
β†—

ID Label/Location Info

β†—
β†—

Internal Photos

β†—
β†—
β†—

Operational Description

β†—

Parts List/Tune Up Info

β†—

Schematics

β†—

Test Report

β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

RadioShack Corporation FCC ID: AAO2101861 Job #: 335BK1 Exhibit #: 4

ID Label/Location Info

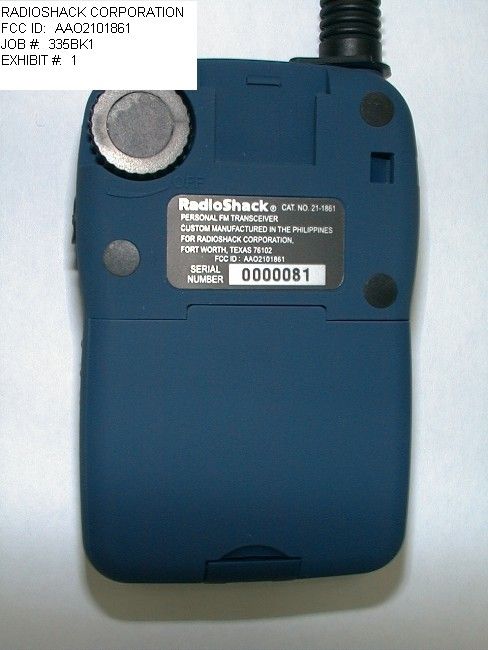

APPROVAL LABEL FOR MODEL 21-1861

Test Report

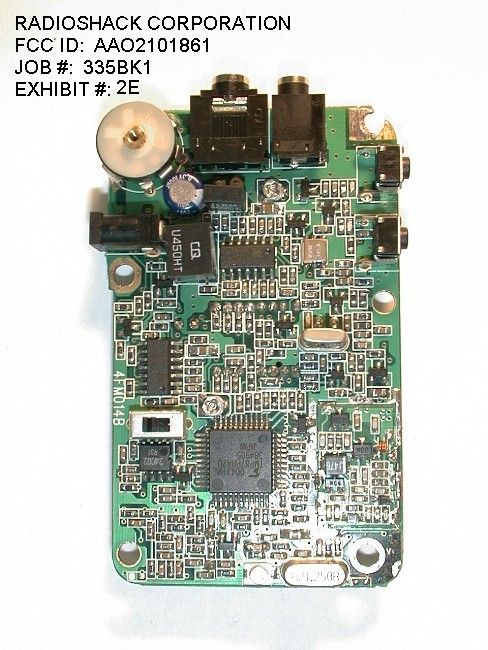

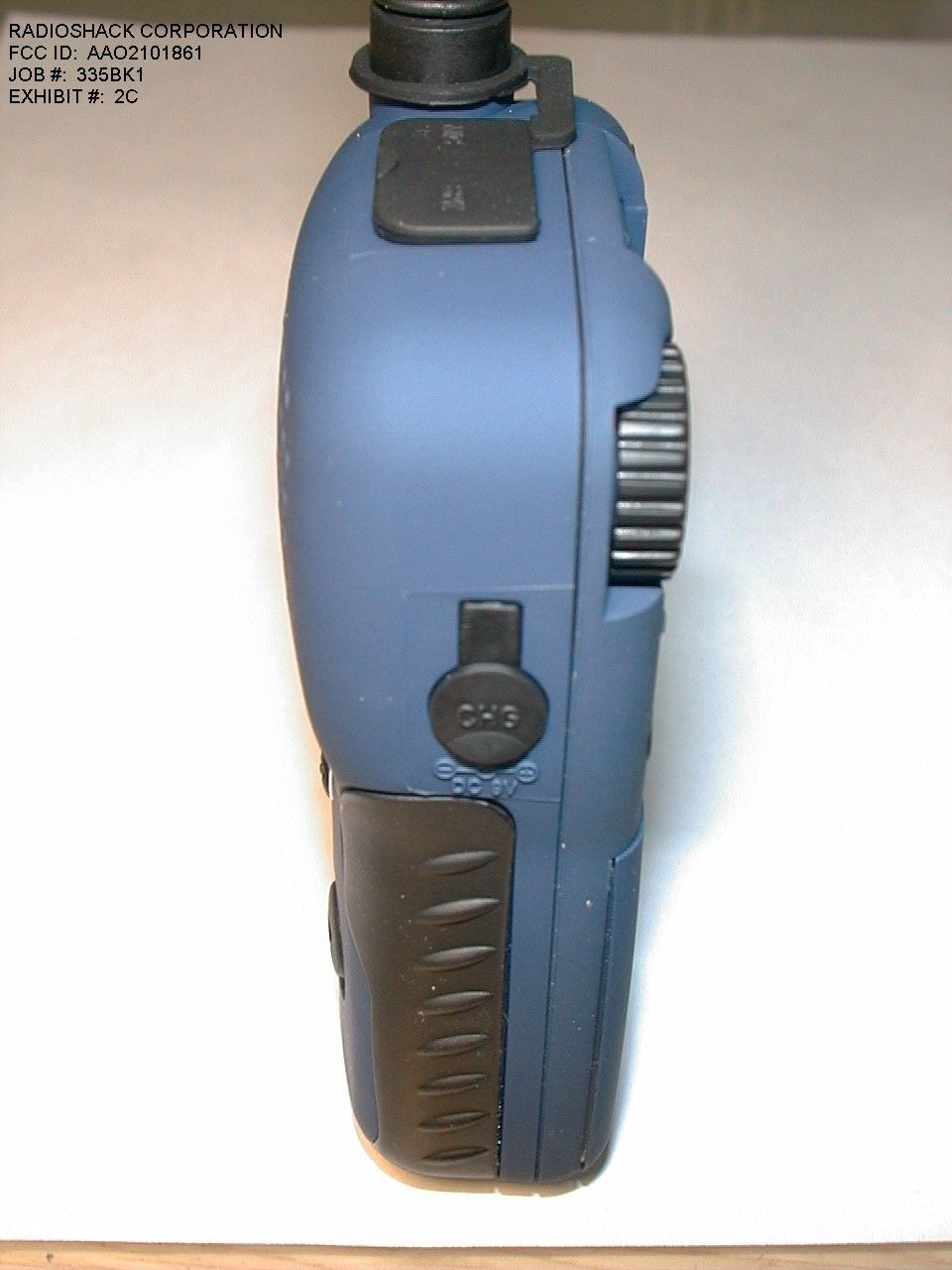

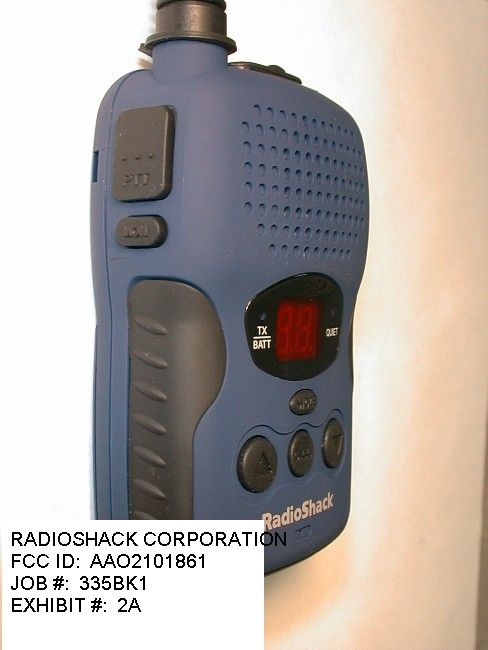

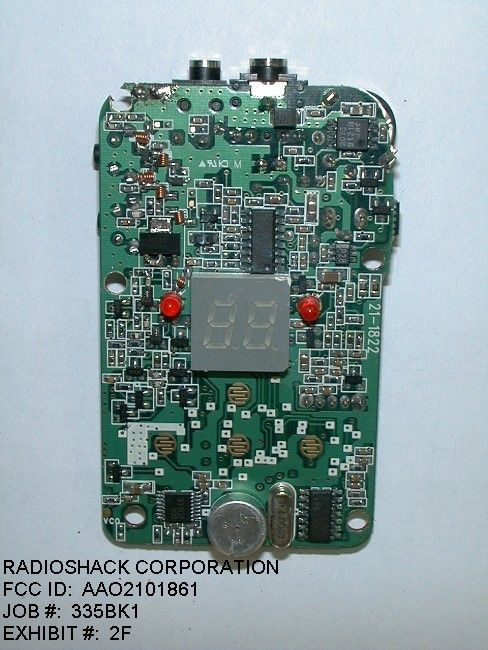

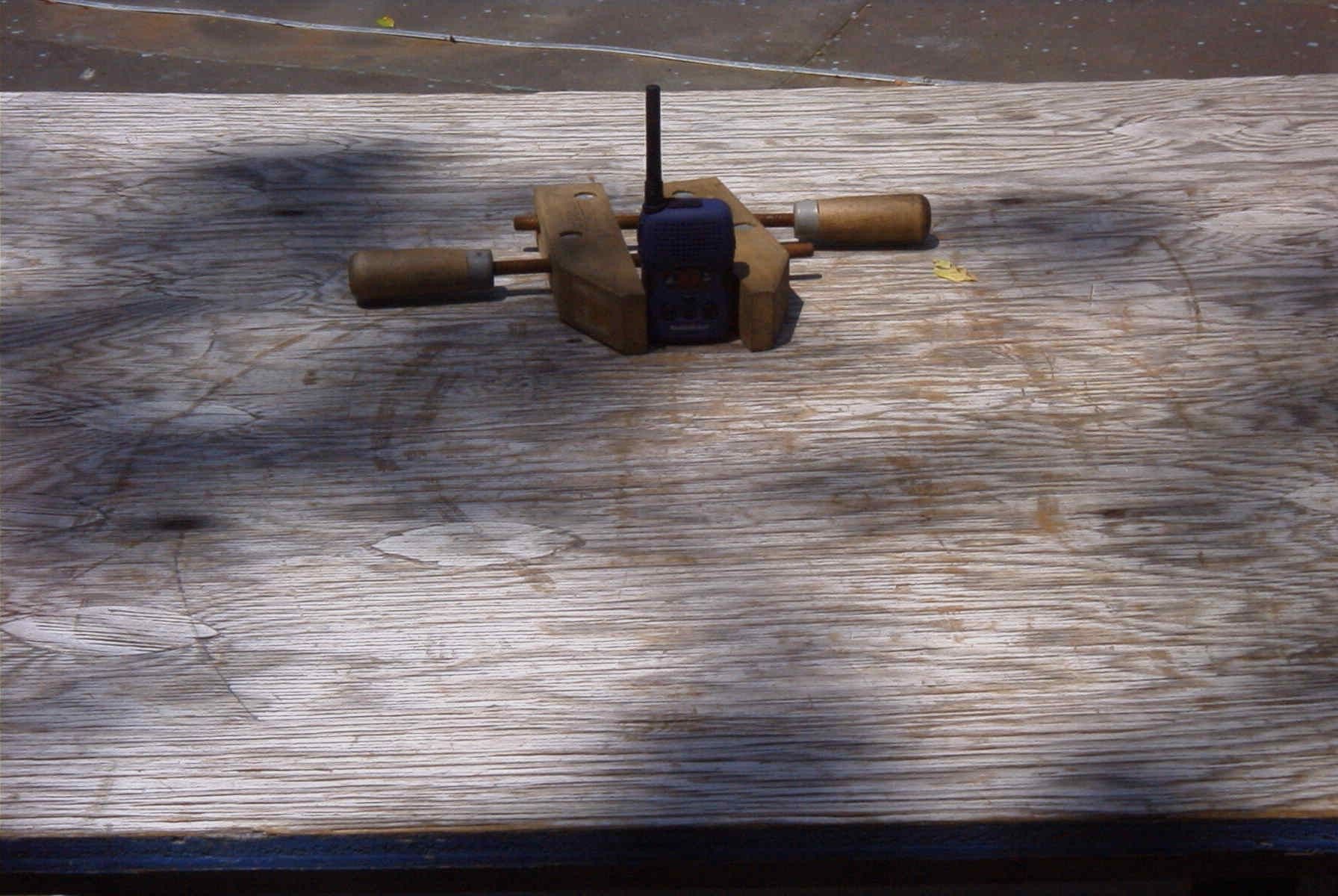

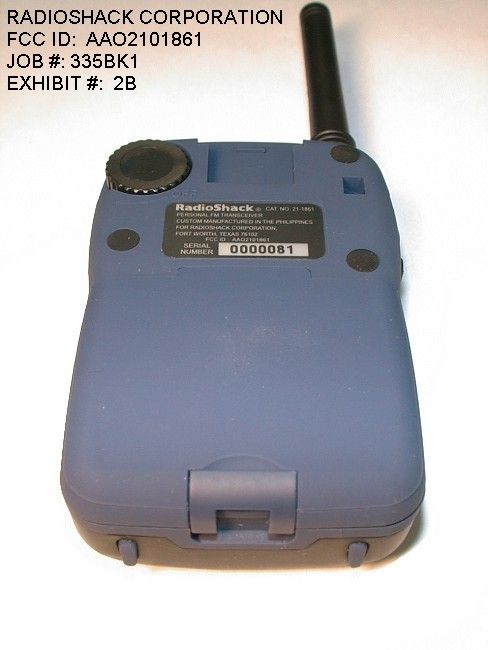

TABLE OF CONTENTS LIST APPLICANT: RADIOSHACK CORPORATION FCC ID: AAO2101861 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS AND OCCUPIED BANDWIDTH PAGE 4......METHOD OF MEASURING OCCUPIED BANDWIDTH PAGE 5......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 6......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 7......FREQUENCY STABILITY PAGE 8......LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE & FCC ID LABEL LOCATION EXHIBIT 2A........EXTERNAL PHOTO - FRONT VIEW EXHIBIT 2B........EXTERNAL PHOTO - REAR VIEW EXHIBIT 2C........EXTERNAL PHOTO – SIDE VIEW EXHIBIT 2D-2E.....INTERNAL PHOTO - SOLDER SIDE EXHIBIT 2F........INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 3.........TEST SETUP PHOTOGRAPH EXHIBIT 4.........BLOCK DIAGRAM EXHIBIT 5.........SCHEMATIC EXHIBIT 6.........USER'S MANUAL EXHIBIT 7A-7B.....CIRCUIT DESCRIPTION EXHIBIT 8A-8B.....TUNING PROCEDURE EXHIBIT 9.........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 10A.......MODULATION LIMITING PLOT - 300 Hz EXHIBIT 10B.......MODULATION LIMITING PLOT - 1000 Hz EXHIBIT 10C.......MODULATION LIMITING PLOT - 3000 Hz EXHIBIT 11........AUDIO LOW PASS FILTER GRAPH EXHIBIT 12A.......OCCUPIED BANDWIDTH CW PLOT EXHIBIT 12B.......OCCUPIED BANDWIDTH PLOT APPLICANT: RADIOSHACK CORPORATION FCC ID: AAO2101861 REPORT #: T:\CUS\R\RADSHACK\335ZBK1\335ZBK1RPT.DOC PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.1033(c)(1)(2)RADIOSHACK CORPORATIONwill manufacture the FCCID: AAO2101861 FAMILY RADIO SERVICES 14 CHANNEL TRANSCEIVER in quantity, for use under FCC RULES PART 95. The UUT is a PTT Radio with a maximum duty cycle of 50%. RADIOSHACK CORPORATION 100 THROCKMORTON STREET, SUITE 1300 FORT WORTH, TEXAS 76102-2802 2.1033 (c) TECHNICAL_DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 6. 2.1033(c) (4) Type of Emission: 9K5F3E 95.631 Bn = 2M + 2DK M = 3000 D = 1.75 K Bn = 2(3.0)+2(1.75) = 9.5 k Authorized Bandwidth 12.5kHz 2.1033(c)(5) Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.1033(c)(6)(7) Power Output shall not exceed 0.500Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. The Maximum Output Power Rating: .5 Watts effective radiated power. 95.647 The antenna is an integral part to the unit, it cannot be removed without rendering the unit inoperative. In order to remove the antenna the case must unscrewed, then the PCB assemblies must be removed then the antenna can be removed. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 4.5 Volts DC Ice = .24 A Pin = 1.08 Watts APPLICANT: RADIOSHACK CORPORATION FCC ID: AAO2101861 REPORT #: T:\CUS\R\RADSHACK\335ZBK1\335ZBK1RPT.DOC PAGE #: 1 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as EXHIBIT 8A-8B. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 5 of this report. The block diagram is included as EXHIBIT 4 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identifica tion label is included as exhibit No. 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields - See EXHIBIT 2A-2F. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF_power_output. 95.639 RF power is measured by measuring the radiated power at 3 meters and then replacing the transmitter with a signal generator to determine the effective radiated power. The ERP shall not exceed 0.500 Watts. MEASURED POWER OUTPUT = .5 Watts ERP R.F. POWER OUTPUT HP TEST SET UP Spectrum Analyzer /-------\ /-----------------\ | | | | TRANSMITTER | | | | | UNDER TEST WITH | \--| | | INTERNAL ANTENNA| | | | \-----------------/ | | | | | \-------/ | | |<-- 3.0 meters-->| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 80cm above ground on a rotatable platform. APPLICANT: RADIOSHACK CORPORATION FCC ID: AAO2101861 REPORT #: T:\CUS\R\RADSHACK\335ZBK1\335ZBK1RPT.DOC PAGE #: 2 2.1047(a)(b) Modulation_characteristics: AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown in exhibit 9 The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. 2.1047(b) Audio_input_versus_modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are shown in exhibits 10A - 10C. Curves are provided for audio input frequen cies of 300, 1000, and 3000 Hz. 95.637(b) Post Limiter Filter The filter must be between the modulation limiter and the modulated stage. At any frequency between 3 & 20KHz the filter must have an attenuation of 60log (f/3) greater that the attenuation at 1KHz. See the plot; exhibit 11. 2.989(c) EMISSION BANDWIDTH: 95.633(c) Data in the plots shows that the sidebands from greater than 50% to 100% of the authorized bandwidth must be attenuated by at least 25dB and from 100 to 250% the sidebands must be attenuated by at least 35dB. Beyond 250% the sidebands must be attenuated by at least 43+log10(TP). The transmitter was modulated with 2500 Hz, adjusted for 50% modulation plus 16 dB. The spectrum ana…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Elizabeth Granados(Regulatory Affairs Manager)
[email protected]817-415-4886Fax: 817-415-4886

Technical Contact

Timco Engineering, IncMario R de Aranzeta
[email protected]888-472-2424

849 Nw State Road 45 Β· Newberry, Florida Β· United States

Non-Technical Contact

Timco Engineering, Inc.Sharon A Hoffman
[email protected]888-472-2424

Test Firm

Timco Engineering, Inc.S Sanders
[email protected]888-472-2424Fax: 352-472-2030

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
195462.5625 MHz - 467.7125 MHz500.00 mW9K5F3E0.0002500000 %
