AAO3201258TWireless Microphone

Step 4 Set TALK-MUTE-OFF switch to TALK. Then turn the audio source and receiver volume up to the desired level. The READY indicator light displays indicating that the microphone signals are within range of the receiver. • To avoid the popping noise that may occur when switching from OFF to TALK, use MUTE. • ����� ���� ������� �������� ����������� ����������� ���� ������� �������� ��� �������� ������ TALK-MUTE-OFF to OFF. • T� ���� w���l��� ��c��p������ �����l�a�������l��� verify they operate at different frequencies. See your microphone or receiver for its frequency. Step 3 Press POWER on the receiver to turn it on. The POWER indicator lights up. �ully e�tend the antennae.�ully e�tend the antennae. Set the volume on your PA amplifier or other audio source to a minimum level. Then turn power on. • Dispose of old batteries promptly and properly. • Do not burn or bury batteries. • Use only fresh batteries of the required size and recommended type. • Do not mix batteries of different sizes or types. • If you do not plan to use your microphone system for a ������ �� ������ ����v� ��� ba�������. Ba������� ca�� l�ak chemicals that can damage electronic parts. T�a��k ���� f�� p���c�a������ ����� 170MHz S�����l� C�a�����l ����l��� M�c��p����� S����� f��� RadioShack. Your ������ ��a������� ��c��p����� ������al� ��p �� 200 f��� awa� from the receiver allowing you to move freely. microphone receiver 9V AC adapter user’s guide what’s included battery notes 32-1258 170MHz Single Channel Wireless Microphone System �requency .............169.505MHz, 170.245MHz or 171.905MHz Operating Range ............................................200 feet (Typical) �requency Response ..........................................120---13000Hz microphone R� Power ........................................................................10dBm Sensitivity............................................106 dB SPL at 7KHz �M Power Source ................................................Two AA Batteries receiver Sensitivity with S/N 20dB ....................................................1uV S/N Ratio at 1mV R� Input .................................................75dB Image Rejection .................................................................55dB Line Output .....................................................................510mV Microphone Output ..........................................................10mV Power Requirement ................................................AC Adapter Sp�c���ca������ a�� ��p�cal; ���d�v�d��al ������� �a� va��. Sp�c���ca������ a�� ���bj�c� �� c�a����� a��d ��p��v������ without notice. Product may vary from depiction. specifications Warning: Modifying, tampering with, or adjusting this unit, or replacing any transmitter component (crystal, semiconductor, etc.) may result in a violation of the FCC rules. Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your microphone system. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device may not cause harmful interference. This wireless microphone system complies with Part 90 of the FCC Rules. There are three frequencies available for the system. You must obtain a license for each frequency you plan to use before operating your system. One license can include both frequencies. Visit http://wireless.fcc.gov/uls/, or call your local FCC office to apply for your license. Your ability to obtain a license will depend on how you plan to use the system. For RF exposure “IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the system exceeding the RF exposure requirements.” For devices less than 200mW ERP SAFETY INFORMATION Your wireless microphone contains a low power transmitter. When the EUT is powered on, it sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for wireless devices. IMPORTANT To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and antenna at least 1 inch (2.5 centimetres) from your face and speak in a normal voice, with the antenna pointed up and away from the face. Ensure that the antenna is at least 1 inch (2.5 centimetres) from your body when you are using your wireless microphone. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. rf emission information ©2006. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. 32-1258 04A06 AO0262AAA1 Printed in China This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for one (1) year from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. For complete warranty details and exclusions, check with your local RadioShack store. RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 04/04 limited one-year warranty Please read this user’s guide before installing, setting up and using your new product. www.radioshack.com Connect your receiver to the input jack on your amplifier using the LINE jack. (Optional) Connect your receiver to your amplifier with the MICROPHONE jack. Plug the AC adapter into an outlet. SQUELCH Rotate to limit the background noise and control the transmitting distance. To increase the transmitting distance, rotate it to MIN. POWER indicator Replace the batteries when light is off. POWER indicator READY indicator POWER button …

Text truncated - open the document above for the full version.

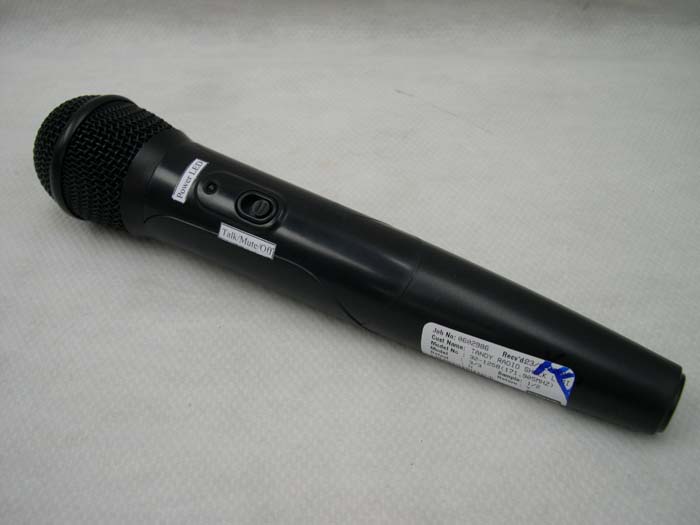

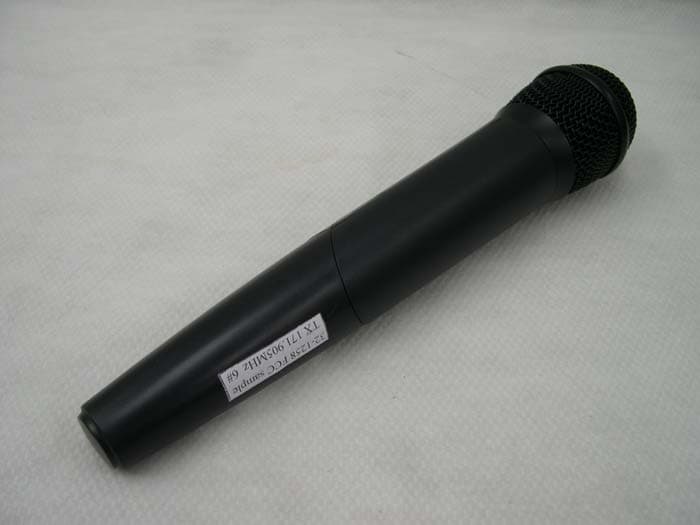

INTERTEK TESTING SERVICE Report No.: 0602986 FCC ID: AAO3201258T Equipment Photographs Model : 32-1258 (External) INTERTEK TESTING SERVICE Report No.: 0602986 FCC ID: AAO3201258T Equipment Photographs Model : 32-1258 (External)

AA OR EQUIVALENT SERIAL NO. LABEL SCALE 1:1 RATING LABEL ( 27.5 X 9.5 mm ) FCC NO. Engraving 1.5V x 2 Cat. No. 32-1258 Wireless Microphone Custom Manufactured in China for RadioShack Corporation, Fort Worth, Texas 76102 F C C I D : A A O 3 2 0 1 2 5 8 T Q. C. 03A06 TEC S E R IA L N O . XXX XXX X Q.C label 32-1258 TX label and location Color: white text on black background 1 6 9 . 5 0 5 M H z Frequency label (1,2,3) (24.0x8.0 mm) Color: white text on black background 170.245 MHz 171.905 MHz The other two different frequency label as below. O A 3 A 2 0 : 1 D I 2 5 C 8 C T F ART NO. REVECN NO. MODEL ZONE DESCRIPTION DRAFT DATE A PART NO. DWG. NO. PART NAME DEST APPROVED CHECKED DRAFT OR A/W PLS RETURN IMMEDIATELY AFT FILMED SCALE 32-1258 USA TX bottom cabinet (Engraving) E01258P04B Generated Label a/w DATE YCWu YCWu 2/8/06 1:1 2/8/06 YCWu 4/24/06 revise a/w to path B

INTERTEK TESTING SERVICE Report No.: 0602986 FCC ID: AAO3201258T Equipment Photographs Model : 32-1258 (Internal) INTERTEK TESTING SERVICE Report No.: 0602986 FCC ID: AAO3201258T Equipment Photographs Model : 32-1258 (Internal) INTERTEK TESTING SERVICE Report No.: 0602986 FCC ID: AAO3201258T Equipment Photographs Model : 32-1258 (Internal) INTERTEK TESTING SERVICE Report No.: 0602986 FCC ID: AAO3201258T Equipment Photographs Model : 32-1258 (Internal) INTERTEK TESTING SERVICE Report No.: 0602986 FCC ID: AAO3201258T Equipment Photographs Model : 32-1258 (Internal) INTERTEK TESTING SERVICE Report No.: 0602986 FCC ID: AAO3201258T Equipment Photographs Model : 32-1258 (Internal)

Circuit Description Theory of Operations Circuit Description Transmitter(TX): 1.Audio Amplifier and Compressor Audio signal from dynamic Mic is amplified by Q200 Q201. Compressor IC U200(GL6552D) will increase the dynamic range of the voice signal . C225 R226 R227 are the Pre-emphasis circuit and the audio signal is amplified further by Q205. Adjust VR200 to control the Modulation Deviation. 2.ALC Circuit ALC circuit are built by Q202 D200 Q203 and Q204, it will improve further the dynamic range of the voice. 3.Power and Low Battery Circuit U201 D201 and L201 etc. are 5V DC-DC convertor circuit for all circuit to provide DC power. Q206 Q207 and Q208 will control the Power LED D202, the LED will light off if the battery is weak. 4.Switch Control SW200 is Talk/Mute/OFF slide control switch. 5.RF Oscillator and Amplifier RF oscillator are built by Q100 X100(three frequencies: 14.1254MHz/14.1871MHz/14.3254MHz) L101 D101 D102 and L100 etc. same times they will modulated with audio signal and selects the desired frequency at this stage, Q101 is buffer amplifier, Fil100 will filter further those unwanted carriers frequency, Q102 Q103 amplifier stage provide the maximum RF power. FCC ID: AAO3201258T

Cat No. : 32-1258 Recommended Test Devices: HP8920: RFCTS HP8591: RFSA DC Power BNC cable Recommended Alignment Conditions: Supply Voltage Receiver: Recommended AC-DC adapter or 12V±0.2V DC Power Transmitter: 3.0 ±0.05V DC Alignment Procedures Transmitter Section Frequency Accuracy Adjustment 1. Connect a BNC cable’s opened end to P5 point by soldering and others BNC terminal connect to the RFIN of the RFSA. 2. Turn on the DC power and set the SW200 (OFF/MUTE/TALK) to MUTE mode, LED D202 lights on. 3. Set the RFSA as below: Center freq: UUT’s channel frequency Span: 50KHz 4. Adjust L201 and VR100 until the desired frequency +/- 1KHz is obtained from the RFSA. Distortion Tuning 1. Connect a BNC cable’s opened end to P5 point by soldering and others BNC terminal connect to the RFIN of the RFCTS. FCC ID: AAO3201258T 2. Connect a BNC cable’s opened end to MIC+ and MIC- and others BNC terminal connect to the AUDIO OUT of the RFCTS. 3. Setup the RFCTS as follow: TX mode Filter: 300-3KHz Emphasis: ON IF filter: 230KHz AUDIO OUT : 9.5mV 4. Turn on the DC power and set the SW200 (OFF/MUTE/TALK) to TALK mode, LED D202 lights on. 5. Adjust VR200 until 7KHz deviation is obtained, read the distortion from the RFCTS which will be ≤2% . 6. If the distortion is bigger than 2%, adjust VR100 until the desired value is obtained. Mike Sensitivity Tuning 1. Setup the RFCTS as follow: TX mode Filter: 300-3KHz Emphasis: OFF IF filter: 230KHz ANT IN 2. Insert an antenna to ANT In of the RFCTS. 3. Adjust the Speaker Level of the Test jig to 106dBspl . 4. Put the UUT into the Test Jig and set the SW200 (OFF/MUTE/TALK) to TALK mode. 5. Adjust VR200 until 7KHz deviation is obtained. FCC ID: AAO3201258T

7;IFFVFK7XH)HE 7;IFFVFK7XH)HE

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com RadioShack Corporation Application For Certification (FCC ID: AAO3201258T) Wireless Microphone 0602986 TC/el April 10, 2006 INTERTEK TESTING SERVICES FCC ID: AAO3201258T i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: RF Power Output EXHIBIT 4: Modulation Characteristics EXHIBIT 5: Occupied Bandwidth EXHIBIT 6: Spurious Emission EXHIBIT 7: Frequency Stability EXHIBIT 8: Technical Specifications EXHIBIT 9: Equipment Photographs EXHIBIT 10: Product Labelling EXHIBIT 11: Instruction Manual EXHIBIT 12: Tune Up Procedure EXHIBIT 13: Input Current INTERTEK TESTING SERVICES FCC ID: AAO3201258T ii MEASUREMENT/TECHNICAL REPORT Application : RadioShack Corporation Trade Name/Model No. : 32-1258 Date : April 10, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Wireless Microphone Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. If no, assumed Part 90, Subpart K for Special Frequencies or Frequency Bands – the new 47 CFR [10-01-05 Edition] provision. Report prepared by: Billy Chow Intertek Testing Services 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8576 Fax: 852-2371-0914 INTERTEK TESTING SERVICES FCC ID: AAO3201258T iii TABLE OF CONTENTS 1.0 General Description......................................................................................... 2 1.1 Product Description................................................................................... 2 1.2 Related Submittal(s) Grants ...................................................................... 3 1.3 Test Methodology...................................................................................... 3 1.4 Test Facility ............................................................................................... 3 2.0 System Test Configuration............................................................................. 5 2.1 Justification ............................................................................................... 5 2.2 EUT Exercising Software .......................................................................... 6 2.3 Special Accessories .................................................................................. 6 2.4 Measurement Uncertainly ......................................................................... 6 2.5 Equipment Modification............................................................................. 6 3.0 RF Power Output............................................................................................. 8 4.0 Modulation Characteristics........................................................................... 12 4.1 Modulation Frequency Response............................................................ 13 4.2 Modulation Limiting Characteristics......................................................... 16 5.0 Occupied Bandwidth..................................................................................... 19 6.0 Spurious Emission........................................................................................ 23 6.1 Field Strength of Spurious Radiation....................................................... 24 7.0 Frequency Stability........................................................................................ 28 7.1 Frequency Stability – Voltage ................................................................. 29 7.2 Frequency Stability – Temperature ......................................................... 31 8.0 Technical Specifications............................................................................... 34 9.0 Equipment Photographs............................................................................... 36 10.0 Product Llabelling......................................................................................... 38 11.0 Instruction Manual......................................................................................... 40 12.0 Tune Up Procedure........................................................................................ 42 13.0 Input Current.................................................................................................. 44 INTERTEK TESTING SERVICES FCC ID: AAO3201258T iv LIST OF ATTACHED FILE Exhibit Type File Description Filename Operation Description Technical Description descri.pdf Test Report Bandwidth Plot bw.pdf Test Report Modulation Frequency Response mfr.pdf Test Report Modulation Limiting Characteristic mlc.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Test Report report.pdf Test Setup Photo Radiated Emission radiated photos.pdf Internal Photo Internal Photo internal photos.pdf External Photo External Photo external photos.pdf Test Report Tune Up Procedure tuneup.pdf INTERTEK TESTING SERVICES FCC ID: AAO3201258T 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: AAO3201258T 2 1.0 General Description 1.1 Product Description The Equipment U…

Text truncated - open the document above for the full version.

FCC ID: AAO3201258T Modulation Limiting (169.505MHz) 0.002.004.006.008.00 10.0012.0014.00 67 77 87 97 107 117 127 Modulation Input (dBSPL) Peak Frequency Deviation (kHz) at 500Hzat 1000Hzat 2500Hzat 5000Hz FCC ID: AAO3201258T Modulation Limiting (171.905MHz) 0.002.004.006.008.00 10.0012.00 67 77 87 97 107 117 127 Modulation Input (dBSPL) Peak Frequency Deviation (kHz) at 500Hzat 1000Hzat 2500Hzat 5000Hz

FCC ID: AAO3201258T Modulation Frequency Response (169.505MHz) 0.00 10.0020.0030.0040.0050.0060.0070.0080.00 100 600 1100 1600 2100 2600 3100 3600 4100 4600 5100 Modulation Frequency (Hz) Modulation Index FCC ID: AAO3201258T Modulation Frequency Response (171.905MHz) 0.00 10.0020.0030.0040.0050.0060.0070.0080.00 100 600 1100 1600 2100 2600 3100 3600 4100 4600 5100 Modulation Frequency (Hz) Modulation Index
