33-103 Owner Manual 2.4GHz digital wireless headphone Introduction 33-103 consists of a 2.4GHz transmitter and a wireless digital headphone. The transmitter has a stereo RCA jacks that user can connect to most portable music sources. When the transmitter is powered on, the audio input will be wirelessly transmitted to the headphones. Operation 1. Connect the transmitter to any music source (e.g. MP3 player, CD player, etc) and then plug the AC/DC power adapter to power on the transmitter unit. A RED LED will light to indicate that the transmitter is powered ON. 2. Play the desired music from your audio source. Once the transmitter detects the audio input, it will start transmission and the LED turns to Green to indicate that the transmission is ON. 3. Switch on the headphones. A Blue LED will light to indicate the power is on. 4. Select the channel switch to the position that same as the transmitter unit. 5. Adjust the volume of the headphone to the desired level. Note: 1. When there is no audio input for 5 minutes, the transmission will stop automatically. 2. If there is any interference present, change to other channel. Low Battery indication Once the headphone is turned ON, the Blue LED should light. When the battery level is detected below about 3V, the LED will flash then the unit needs to be charged. Charge the battery as soon as possible. If the unit is not charged when the LED flashes, the headphone stops operation but still consume power. When the battery level below about 2.8V, the headphone will be shut down and not LED lights anymore until the battery is replaced or charged. Battery charging Plug the AC/DC adapter to power on the transmitter unit. Put the headphone on the transmitter docking. A blue LED will light to indicate the charging is on. LED status Transmitter unit action Blue LEDDual color LED Power ON/ no transmission OFF RED LED On Transmission start OFF Green LED On Power ON/ Charging start On Red LED On FCC ID: AAO330103T Headphone unit action Blue LED Power On On Low battery Flash Power off/battery voltage<2.8 OFF Specification Operation frequency: 2.4GHz Operation range: 150 feets Battery life: about 10 hours Frequency response (6dB): 20Hz – 20KHz Audio S/N: >70dB Audio resolution: 16 bit Audio Sample rate: 44.1KHz FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Consult your local RadioShack store or an experienced radio/TV technician for help. • If you cannot eliminate the interference, the FCC requires you to stop using the headphones. Caution •To maintain compliance with the FCC’s RF exposure guidelines place the base unit at least 20 cm from the nearby persons. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RadioShack Corporation FCC ID: AAO330103T

FCC ID: AAO330103T To Application Examiner

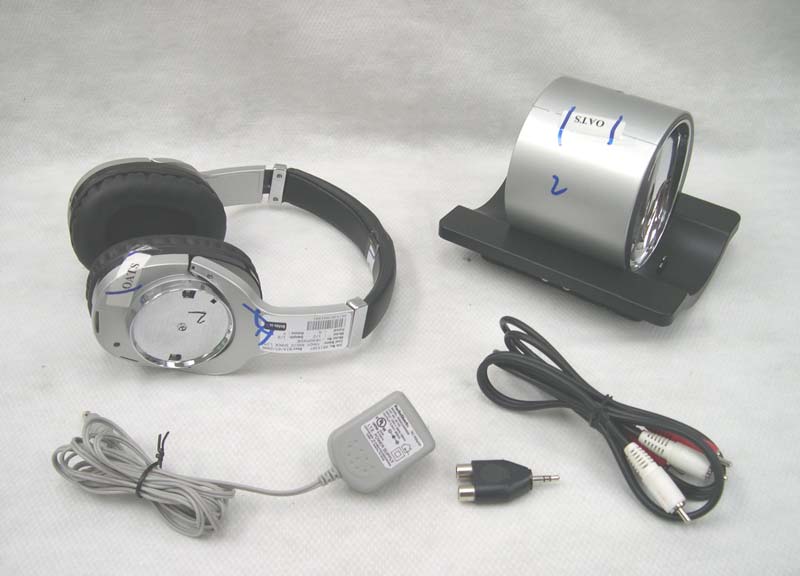

External photos FCC ID: AAO330103T External photos FCC ID: AAO330103T External photos FCC ID: AAO330103T External photos FCC ID: AAO330103T

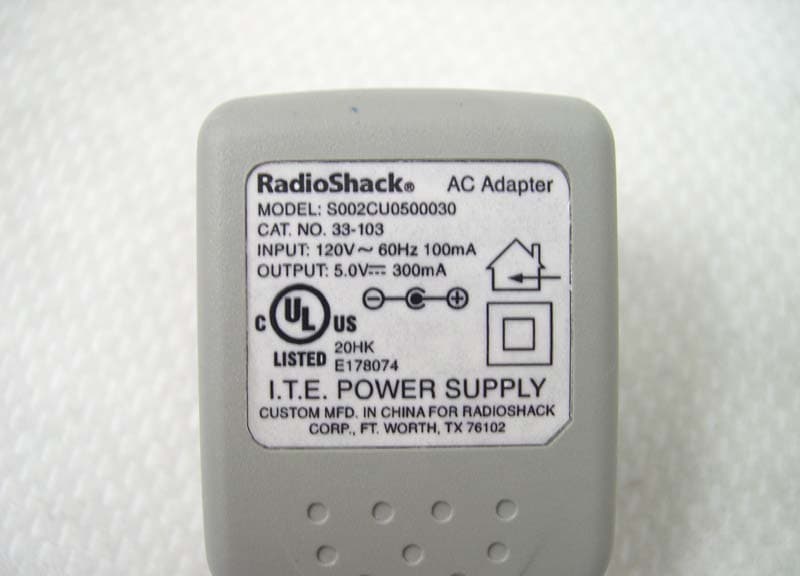

Size: 98 x 36 mm ART NO. REV ECN NO. MODLE ZONE DESCRIPTION DRAFTDATE A PART NO. DWG. NO. PART NAME DEST APPROVED CHECKED DRAFT PLS RETURN IMMEDIATELY AFT FILMED SCALE 33-103 U.S.A Rating Label AL2024AAA1 F11656A Lily 1:1 generated label A/W Lily DATE L33103P01A 08/16/06 TANDY RADIO SHACK LIMITED A Division of RadioShack Corporation 08/16/06 Cat. No. 33-103 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, Custom Mfd. in China for RadioShack Corp., Ft. Worth, TX 76102 2.4GHz Digital Wireless Stereo Headphone (Base Unit) FCC ID: AAO330103T Power: 5V DC 300mA including interference that may cause undesired operation. Date code label XXA06 TEC Q.C. Label location Bottom cabinet

Internal photos FCC ID: AAO330103T Internal photos FCC ID: AAO330103T Internal photos FCC ID: AAO330103T Internal photos FCC ID: AAO330103T Internal photos FCC ID: AAO330103T Internal photos FCC ID: AAO330103T Internal photos FCC ID: AAO330103T

FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Consult your local RadioShack store or an experienced radio/TV technician for help. • If you cannot eliminate the interference, the FCC requires you to stop using the headphones. Caution •To maintain compliance with the FCC’s RF exposure guidelines place the base unit at least 20 cm from the nearby persons. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RadioShack Corporation FCC ID: AAO330103T

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Website: www.hk.intertek-etlsemko.com RadioShack Corporation Application For Certification 2.4GHz Rechargeable Digital Wireless Stereo Headphone System (FCC ID: AAO330103T) 06153071 TC/el October 19, 2006 INTERTEK TESTING SERVICES FCC ID: AAO330103T i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labelling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: AAO330103T ii MEASUREMENT/TECHNICAL REPORT RadioShack Corporation - MODEL: RadioShack 33-103 FCC ID: AAO330103T This report concerns (check one:) Original Grant X Class II Change Equipment Type: DSS-Part 15 Spread Spectrum Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Lam Chun Cheong, Kenneth Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8474 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: AAO330103T iii Table of Contents 1.0 Summary of Test.............................................................................................. 2 2.0 General Descripton.......................................................................................... 4 2.1 Product Description.................................................................................... 4 2.2 Related Submittal(s) Grants ....................................................................... 5 2.3 Test Methodology ...................................................................................... 5 2.4 Test Facility ............................................................................................... 5 3.0 System Test Configuration .............................................................................. 7 3.1 Justification ................................................................................................ 7 3.2 EUT Exercising Software ........................................................................... 7 3.3 Support Equipment List and Description..................................................... 8 3.4 Measurement Uncertainty .......................................................................... 9 3.5 Equipment Modification.............................................................................. 9 4.0 Measurement Results .................................................................................... 11 4.1 Maximum Conducted Output Power at Antenna Terminals....................... 11 4.2 Maximum 20dB RF Bandwidth................................................................. 12 4.3 Minimum Number of Hopping Frequencies .............................................. 13 4.4 Minimum Hopping Channel Carrier Frequency Separation ....................... 14 4.5 Average Channel Occupancy Time.......................................................... 15 4.6 Out of Band Conducted Emissions........................................................... 16 4.7 Out of Band Radiated Emissions.............................................................. 17 4.8 Transmitter Radiated Emissions in Restricted Bands................................ 18 4.9 Field Strength Calculation ........................................................................ 19 4.10 Radiated Emission Configuration Photograph - Transmitter Unit............... 20 4.11 Radiated Emission Data - Transmitter Unit ............................................... 21 4.12 AC Line Conducted Emission................................................................... 25 4.13 Line Conducted Configuration Photograph ............................................... 26 4.14 Line Conducted Emission ........................................................................ 27 4.15 Radiated Emissions from Digital Section .................................................. 28 4.16 Transmitter Duty Cycle Calculation and Measurements............................ 30 5.0 Equipment Photographs ................................................................................ 32 6.0 Product Labelling ........................................................................................... 34 7.0 Technical Specifications ................................................................................ 36 8.0 Instruction Manual ......................................................................................... 38 9.0 Confidentiality Requeset ............................................................................... 40 INTERTEK TESTING SERVICES FCC ID: AAO330103T iv List of Attached File Exhibit Type File Description Filename Cover Letter Confidentiality Request request.pdf Test Report Test Report report.pdf Test Report Maximum Output Power Plot bmaxop.pdf Test Report 20dB Bandwidth Plot b20dB.pdf Test Report Minimum Number of Hopping Frequencies bchno.pdf Te…

Text truncated - open the document above for the full version.

Report No.: 06153071 Charging Mode AC Mains “L” Ctrl No.: PAGE 1 Tested By:Hong, Report No.:0615307 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A N/A FCC ID: AAO330103T Report No.: 06153071 Charging Mode AC Mains “L” Ctrl No.: N/A FCC ID: AAO330103T Tested By:Hong, Report No.:0615307 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 45.4 66.0 0.35500 32.3 58.8 0.41500 27.5 57.6 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit Report No.: 06153071 Tx Mode AC Mains “L” Ctrl No.: PAGE 1 Tested By:Hong, Report No.:0615307 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A N/A FCC ID: AAO330103T Report No.: 06153071 Tx Mode AC Mains “L” Ctrl No.: N/A FCC ID: AAO330103T Tested By:Hong, Report No.:0615307 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 42.4 66.0 0.36000 32.8 58.7 0.41000 30.7 57.7 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit

The Worst Case Configuration Photographs FCC ID: AAO330103T Radiated Emission – Transmitter Unit Front View Rear View The Worst Case Configuration Photographs FCC ID: AAO330103T Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: AAO330103T Conducted Emission Side View
