AAO4203071RF Light
RadioShack Corporation
Click to zoom
Application Details
- Equipment Class
- 8CC - Part 18 Consumer Device
- Date of Grant
- Mar 29, 1999
- Application Purpose
- Original Equipment
- Date of Application
- Dec 11, 1998
- Equipment Note
- RF Light
- Frequency Range
- 0.08000000 - 0.08000000
- Company
- RadioShack Corporation
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
External Photos
ONETECH Corp. 2F. KUNHAN BLDG, 1557-11 SEOCHO-DONG, SEOCHO-KU, SEOUL 137-070 KOREA TEL: 587-9037 FAX: 587-9039 ONETECH IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The label included following statement will be attached on the bottom side of product.
ID Label/Location Info
ONETECH Corp. 2F. KUNHAN BLDG, 1557-11 SEOCHO-DONG, SEOCHO-KU, SEOUL 137-070 KOREA TEL: 587-9037 FAX: 587-9039 ONETECH IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The label included following statement will be attached on the bottom side of product.
ID Label/Location Info
ONETECH Corp. 2F. KUNHAN BLDG, 1557-11 SEOCHO-DONG, SEOCHO-KU, SEOUL 137-070 KOREA TEL: 587-9037 FAX: 587-9039 ONETECH IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The label included following statement will be attached on the bottom side of product.
Test Report

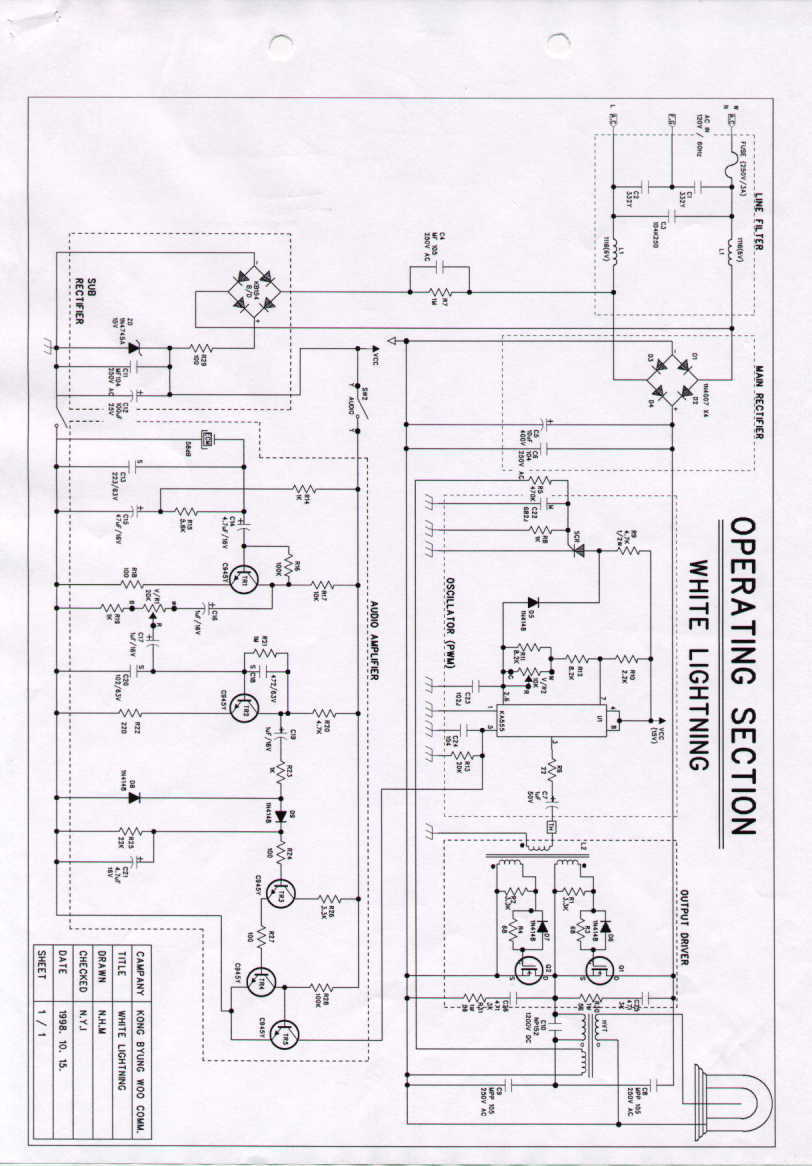

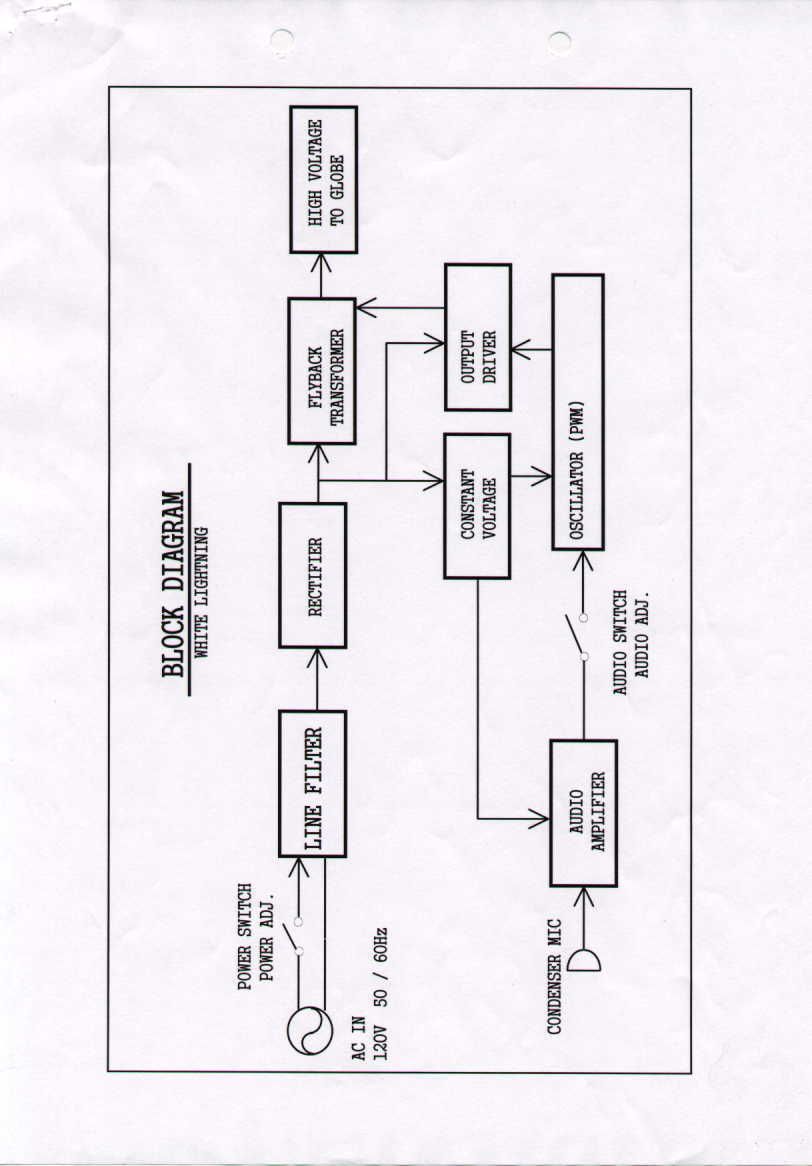

ONETECH Corp. 2F. KUNHAN BD, 1557-11 SEOCHO-DONG, SEOCHO-KU, SEOUL 137-070 KOREA TEL:587-9037 FAX:587-9039 ONETECH ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT PRODUCTWHITE LIGHTNING FCC IDAAO4203071 MODEL NO.WL-101SERIAL NO.N/A APPLICANT & ADDRESS RADIO SHACK, A DIVISION OF TANDY CORPORATION 100 Throckmorton St., Ste. 1300 Fort worth Texas 76102-2802 REPORT NO.E98NR-023ISSUE DATENovember 30, 1998 PREPARED BY : ONETECH CORPORATION 2 F. KUNHAN B/D, 1557-11, SEOCHO-DONG, SEOCHO-KU, SEOUL 137-070 KOREA (TEL)02-587-9037(FAX)02-587-9039 INDUSTRIAL, SCIENTIFIC AND MEDICAL(ISM) EQUIPMENT CERTIFICATION TO FCC PART 18 REQUIREMENT REPORT NO : E98NR-023FCC ID : AAO4203071DATE : November 30, 1998 LIST OF EXHIBITS FCC ID : AAO4203071 MODEL : WL-101 “WHITE LIGHTNING” EXHIBIT 1. IDENTIFICATION LABEL 2. AGENT AUTHORIZATION 3. TECHNICAL INFORMATION : ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT 4. PHOTO REPORT 5. USER’S MANUAL & SCHEMATIC(BLOCK DIAGRAM) PREPARED BY : ONETECH CORPORATION 2 F. KUNHAN B/D, 1557-11, SEOCHO-DONG, SEOCHO-KU, SEOUL 137-070 KOREA (TEL)02-587-9037(FAX)02-587-9039 REPORT NO : E98NR-023FCC ID : AAO4203071DATE : November 30, 1998 EXHIBIT 1. IDENTIFICATION LABEL : PROPOSED FCC ID LABEL The following ID Label will be attached on the bottom side of the product. “Please find an ID Label for EUT at ID Label/Location Info in Exhibit Type” REPORT NO : E98NR-023FCC ID : AAO4203071DATE : November 30, 1998 EXHIBIT 2. AGENT AUTHORIZATION : “Please find an Agent Authorization Letter at Attestation Statements in Exhibit Type” REPORT NO : E98NR-023FCC ID : AAO4203071DATE : November 30, 1998 EXHIBIT 3. TECHNICAL INFORMATION : ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT PRODUCTWHITE LIGHTNING FCC IDAAO4203071 MODEL NO.WL-101SERIAL NO.N/A APPLICANT & ADDRESS RADIO SHACK, A DIVISION OF TANDY CORPORATION 100 Throckmorton St., Ste. 1300 Fort worth Texas 76102-2802 REPORT NO.E98NR-023ISSUE DATENovember 30, 1998 PREPARED BY : ONETECH CORPORATION 2 F. KUNHAN B/D, 1557-11, SEOCHO-DONG, SEOCHO-KU, SEOUL 137-070 KOREA (TEL)02-587-9037(FAX)02-587-9039 INDUSTRIAL, SCIENTIFIC AND MEDICAL(ISM) EQUIPMENT CERTIFICATION TO FCC PART 18 REQUIREMENT REPORT NO : E98NR-023FCC ID : AAO4203071DATE : November 30, 1998 TABLE OF CONTENTS page 1. VERIFICATION OF COMPLIANCE ...................................................................................1 2. SCOPE ..............................................................................................................................2 3. PRODUCT INFORMATION ...............................................................................................2 4. TEST FACILITY.................................................................................................................2 4.1 General Information.................................................................................................................................. 2 4.2 Open Field Test......................................................................................................................................... 2 4.3 Preliminary Test ........................................................................................................................................ 3 5. MEASUREMENT INSTRUMENTATION............................................................................3 5.1 Measuring Instrument Calibration .......................................................................................................... 3 5.2 Detector Function Selection and Bandwidth ......................................................................................... 4 5.3 Units of Measurement .............................................................................................................................. 4 6. ANTENNAS .......................................................................................................................4 7. AMBIENT CONDITION......................................................................................................5 8. TEST METHODS ...............................................................................................................5 8.1 Test Configuration.................................................................................................................................... 5 8.2 Grounding ................................................................................................................................................. 5 8.3 Data Report format ................................................................................................................................... 5 8.4 Line Conducted Test Procedure ............................................................................................................. 5 8.5 Radiated Test Procedure ......................................................................................................................... 6 9. EQUIPMENT DEFINITION AND LIMITATIONS ................................................................7 9.1 ISM Equipment Definition ........................................................................................................................ 7 9.2 Equipment Limitations ............................................................................................................................. 8 10. SUMMARY.......................................................................................................................9 10.1 Equipment modifications....................................................................................................................... 9 11. CONDUCTED AND RADIATED MEASUREMENT PHOTOS .......................................10 12. FINAL CONDUCTED AND RADIATED EMISSION TESTS SUMMARY.......................12 12.1 Conducted Emissions Tests................................................................................................................ 12 12.2 Radiated Emission Tests ...................................…
Text truncated - open the document above for the full version.
Test Report
REPORT NO : E98NR-023FCC ID : AAO4203071DATE : March 09, 1999 12. FINAL CONDUCTED AND RADIATED EMISSION TESTS SUMMARY Per preliminary tests, the following normal mode of operations were selected which shown the maximum emissions level. 12.1 Conducted Emissions Tests Limits apply to: FCC CFR 47, PART 18, SUBPART C Type of Tests: CONSUMER EQUIPMENT Result: PASSED BY -3.4 dB EUT: WHITE LIGHTNINGDate: March 09, 1999 Operating Condition : Low Intensity Frequency (MHz) Amplitude (dBuV) Detection Mode ConductorLimit (dBuV) Margin (dB) 0.4540.8PeakNeutral48.0-7.20 0.5444.6Quasi-PeakNeutral48.0-3.40 0.7536.4PeakHot48.0-11.60 0.9736.0PeakNeutral48.0-12.00 11.0931.3PeakHot48.0-16.70 29.0032.9PeakHot48.0-15.10 Line Conducted Emissions Tabulated Data REPORT NO : E98NR-023FCC ID : AAO4203071DATE : March 09, 1999 REPORT NO : E98NR-023FCC ID : AAO4203071DATE : March 09, 1999 12.2 Conducted Emissions Tests Limits apply to: FCC CFR 47, PART 18, SUBPART C Type of Tests: CONSUMER EQUIPMENT Result: PASSED BY -3.7 dB EUT: WHITE LIGHTNINGDate: March 09, 1999 Operating Condition : High Intensity Frequency (MHz) Amplitude (dBuV) Detection Mode ConductorLimit (dBuV) Margin (dB) 0.5244.3Quasi-PeakHot48.0-3.70 0.7436.1PeakNeutral48.0-11.90 0.9531.8PeakNeutral48.0-16.20 9.030.8PeakNeutral48.0-17.20 10.7330.4PeakNeutral48.0-17.60 29.7534.5PeakHot48.0-13.50 Line Conducted Emissions Tabulated Data REPORT NO : E98NR-023FCC ID : AAO4203071DATE : March 09, 1999 REPORT NO : E98NR-023FCC ID : AAO4203071DATE : March 09, 1999 12.3 Radiated Emission Tests The following table shows the highest levels of radiated emissions on both polarization of horizontal and vertical. Limits apply to: FCC CFR 47, PART 18, SUBPART C Type of Tests: CONSUMER EQUIPMENT Result: PASSED BY –3.65dB EUT: WHITE LIGHTNINGDate: March 09, 1999 Operating Condition : Low Intensity Distance: 3 Meter Freq. (MHz) Amp. (dBuV) Detection Mode Ant Pol. Ant. (dB/m) Cable (dB) To ta l . (dBuV/m) Limit (dBuV/m) Margin (dB) 42.8022.80PeakV10.432.7635.9940.00-4.01 61.3523.50Quasi-PeakV9.853.0036.3540.00-3.65 81.6218.90PeakV6.733.2328.8640.00-11.14 108.4414.50PeakV13.483.5031.4843.50-12.02 110.0013.9PeakV13.893.5031.2943.50-12.21 145.2813.10PeakV13.244.0030.3443.50-13.16 Radiated Emissions Tabulated Data REPORT NO : E98NR-023FCC ID : AAO4203071DATE : March 09, 1999 12.3 Radiated Emission Tests The following table shows the highest levels of radiated emissions on both polarization of horizontal and vertical. Limits apply to: FCC CFR 47, PART 18, SUBPART C Type of Tests: CONSUMER EQUIPMENT Result: PASSED BY –4.21dB EUT: WHITE LIGHTNINGDate: March 09, 1999 Operating Condition : High Intensity Distance: 3 Meter Freq. (MHz) Amp. (dBuV) Detection Mode Ant Pol. Ant. (dB/m) Cable (dB) To ta l . (dBuV/m) Limit (dBuV/m) Margin (dB) 42.8022.60PeakV10.432.7635.7940.00-4.21 60.6022.70Quasi-PeakV10.023.0035.7240.00-4.28 81.6216.90PeakV6.733.2326.8640.00-13.14 108.4414.20PeakV13.483.5031.1843.50-12.32 110.0015.0PeakV13.893.5032.3943.50-11.11 145.2812.40PeakV13.244.0029.6443.50-13.86 Radiated Emissions Tabulated Data
Contact Information
Applicant
Elizabeth Granados(Regulatory Affairs Manager)
Technical Contact
ONETECH CORPORATIONYONG-KWANG KWON
[email protected]82-347-765-8289
426-1, DAESSANGRYUNG-RI, CHOWOL-MYUN, KWANGJU-KUN · KYUNGGI-DO · South Korea
Non-Technical Contact
ONETECH CORPORATIONGEA-WON LEE
[email protected]82-347-765-8289
Test Firm
Onetech CorporationIhn-Cheol Kim
- -
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 18 | 0.08 MHz - 0.08 MHz | - |
