AAO6004286TJimmy Neutron Ultra Orb

RadioShack Corporation
Jimmy Neutron Ultra Orb - FCC ID AAO6004286T - RadioShack Corporation
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Sep 05, 2001
Application Purpose
Original Equipment
Date of Application
Sep 05, 2001
Equipment Note

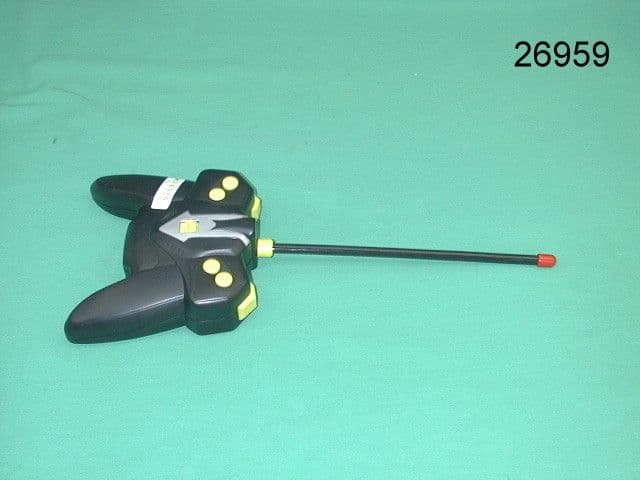

Jimmy Neutron Ultra Orb
Frequency Range
49.82000000 - 49.90000000
Company
RadioShack Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

β†—
β†—

Block Diagram

β†—
β†—

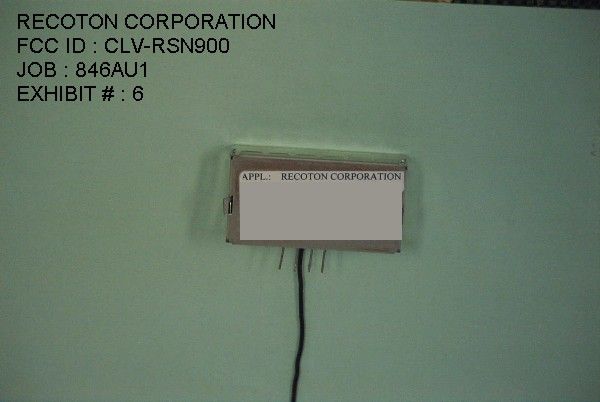

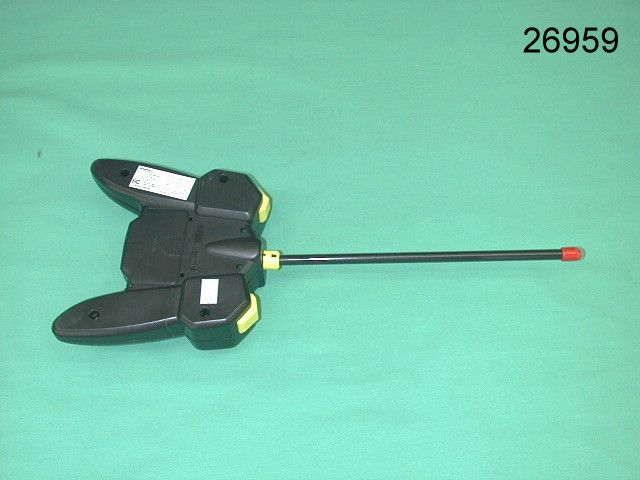

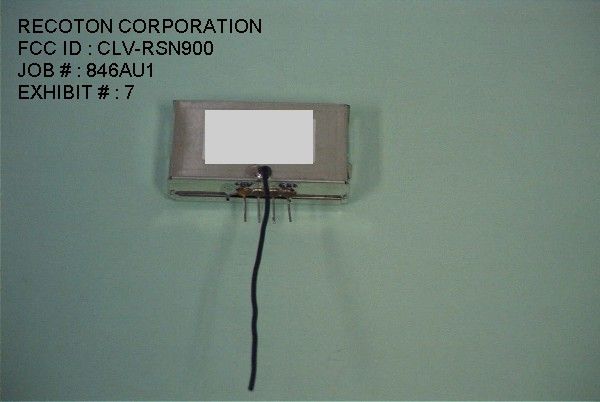

External Photos

β†—
β†—
β†—
β†—

ID Label/Location Info

β†—
β†—
β†—
β†—

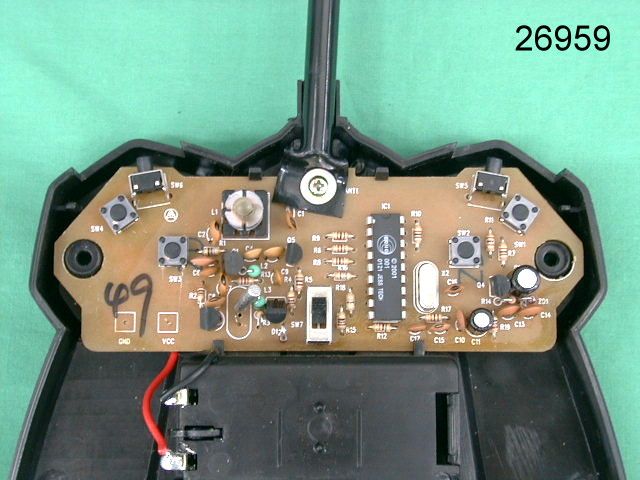

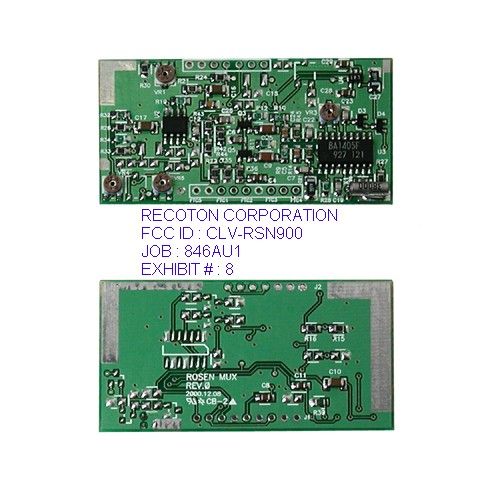

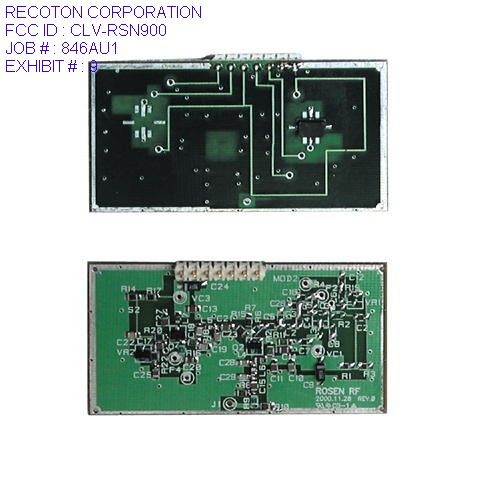

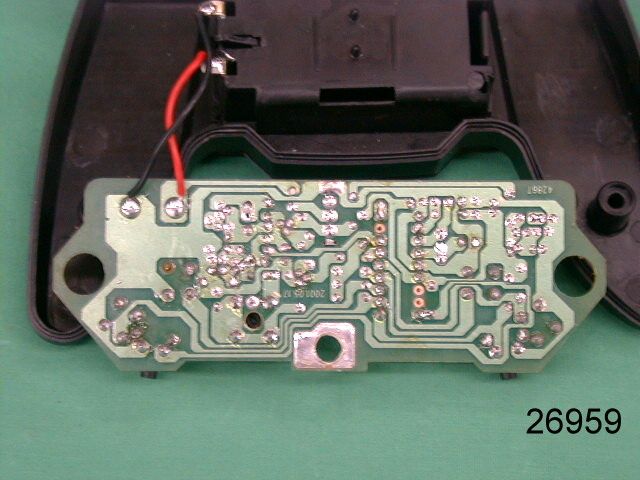

Internal Photos

β†—
β†—
β†—
β†—

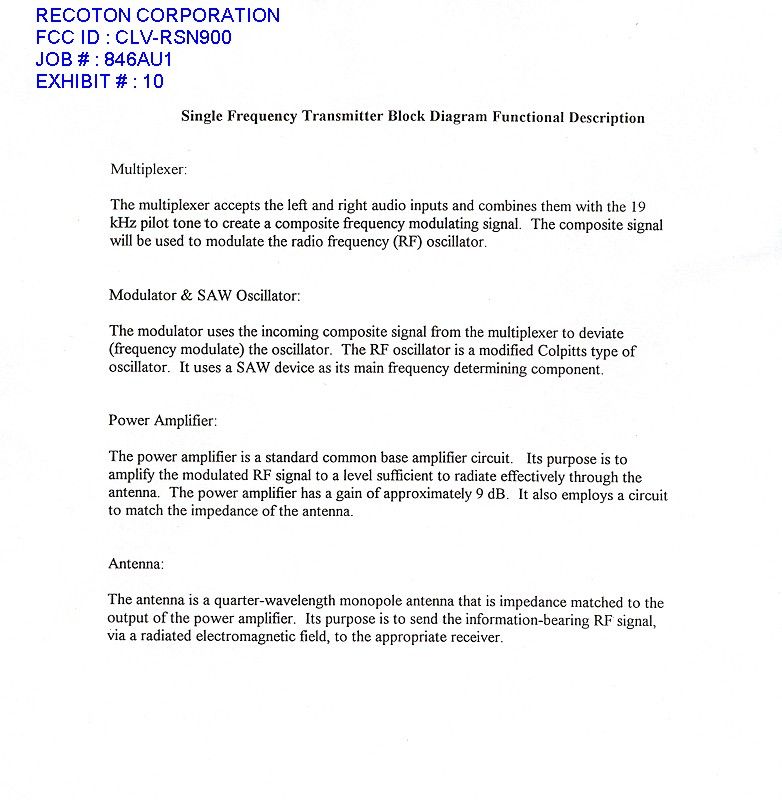

Operational Description

β†—
β†—

Schematics

β†—
β†—
β†—

Test Report

β†—
β†—

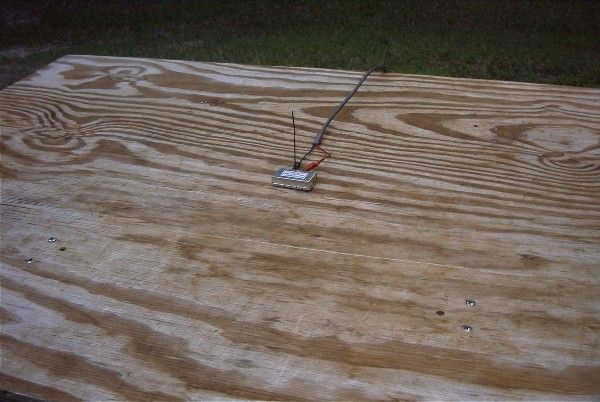

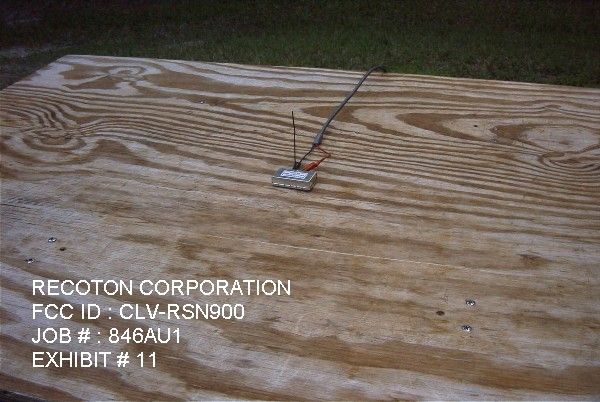

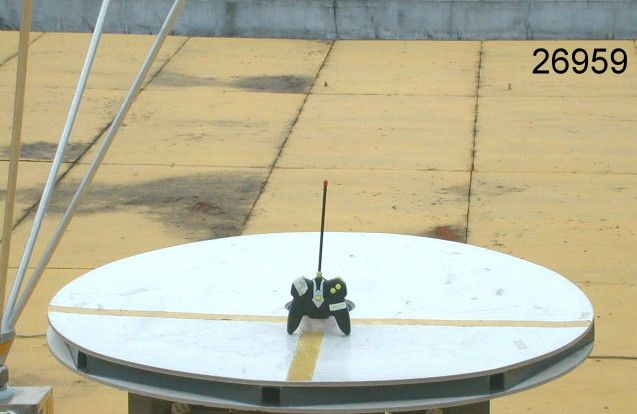

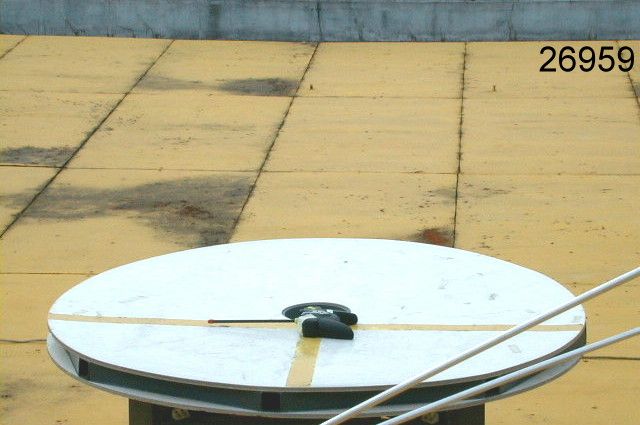

Test Setup Photos

β†—
β†—
β†—
β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

ID Label/Location Info

P/N: 4007-0180-0000(914M) FCC ID: CLV-RSN900 IND. CANADA#: MADE IN: S/N: RECOTON CORPORATION FCC ID : CLV-RSN900 JOB : 846AU1 EXHIBIT # : 1

Test Report

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 26959/1/400F FCC – Test Report No. 26959/1/400F Date: 2001-07-17 Page 2 of 12 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: Jimmy Neutron Ultra Orb Product Class : Low Power Communication Device Transmitter Model: 60-4286T Applicant: RADIOSHACK CORPORATION Manufacturer : ECHO TOYS LTD FCC – Test Report No. 26959/1/400F Date: 2001-07-17 Page 3 of 12 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure (> 30MHz) 8. Radiated Emission Testprocedure (9kHz – 30MHz) 9. Interference Radiation (Datasheet) 10. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) 11. Measurement of Emissions within Band Edges (Datasheet) 12. Notes for Measurement of Emissions within Band Edges FCC – Test Report No. 26959/1/400F Date: 2001-07-17 Page 4 of 12 LABORATORY - REPORT APPLICANT: ADDRESS: RADIOSHACK CORPORATION 100 Throckmorton St., Ste 1300 Fort Worth, TX 76102-2802 USA DATE OF SAMPLE RECEIVED: 2001/06/27 DATE OF TESTING: 2001/07/11 DESCRIPTION OF SAMPLE: Product:Jimmy Neutron Ultra Orb Product class:Low Power Communication Device Transmitter Manufacturer:ECHO TOYS LTD Model number:60-4286T Rating:DC 9V ('6F22' Size Battery x 1) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiators RESULTS: See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark : Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 26959/1/400F Date: 2001-07-17 Page 5 of 12 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. Measurement of Emissions within Band Edges Test result:O.K. Test data:See attached data sheet PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 26959/1/400F Date: 2001-07-17 Page 6 of 12 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50ΞΌH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast System SchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Loop AntennaRohde & Schwarz HFH2-Z2871336/489KHz-30MHz Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW10555 10KHz – 30MHz Turntable with Controller DrehtischDT312-- Ο†120 cm FCC – Test Report No. 26959/1/400F Date: 2001-07-17 Page 7 of 12 Radiated Emission Test Procedure (> 30MHz) Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 26959/1/400F Date: 2001-07-17 Page 8 of 12 Radiated Emission Test Procedure (9kHz - 30MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Equipment under test (on turntable) Test Receiver ESH3 Rohde & Schwarz 91 Interference Radiation Date: 2001-07-17 Page9 of 12 Measurement of Radiated Emissions FCC Part 15 Subpart C Application no.:26959/1/400F Test Equipment Model:60-4286T Receiver: ESVP Rohde & Schwarz Applicant:RADIOSHACK CORPORATION Antenna: - Schwarzbeck BBA 9106 - Schwarzbeck UHALP 9107 Sample no.:1 - Rohde & Schwarz HFH2-Z2 Set under test:Jimmy Neutron Ultra Orb Connected sets: - Operating mode:Transmitter - Power "On" Frequency (MHz) Horz. Reading dB(ΞΌV) Vert. Reading dB(ΞΌV) Antenna Factor (dB) Horiz. Test Result dB(ΞΌV/m) Vert. Test Result dB(ΞΌV/m) Limit dB(ΞΌV/m) Peak49.86404911.7 51.760.7 100 Av.49.86324111.7 43.752.780 Harm. 299.72<16<1610.3< 26.3 < 26.343.5 Harm. 3149.58<16<1615.0< 31.0 < 31.043.5 Harm. 4199.44<16<1616.5< 32.5 < 32.543.5 Harm. 5249.3<16<1617.7< 33.7 < 33.746.0 Harm. 6299.16<16<1620.0< 36.0 < 36.046.0 Harm. 7349.02<16<1617.4< 33.4 < 33.446.0 Harm. 8398.88<16<1618.3< 34.3 < 34.346.0 Harm. 9448.74<16<1619.0< 35.0 < 35.046.0 Harm. 10498.6<16<1619.7< 35.7 < 35.746.0 Harm. 11548.46<16<1620.2< 36.2 < 36.246.0 Harm. 12598.32<16<1620.9< 36.9 < 36.946.0 Harm. 13648.18<16<1621.6< 37.6 < 37.646.0 Harm. 14698.04<16<1622.4< 38.4 < 38.446.0 Harm. 15747.9<16<1623.0< 39.0 < 39.046.0 Harm. 16797.76<16<1623.7< 39.7 < 39.746.0 Harm. 17847.62<16<1624.3< 40.3 < 40.346.0 Harm. 18897.48<16<1625.0< 41.0 < 41.046.0 Harm. 19947.34<16<1625.7< 41.7 < 41.746.0 Remark:All frequencies in the required range have been scanned and only those significant and representative readings are reported above. All emissions not reported above are all well below the limit. FCC – Test Report No. 26959/1/400F Date: 2001-07-17 Page 10 of 12 Notes for Radiation Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file with the FCC Pursuant to Section 2.948 of the FCC Rules. 2. Distance between the EUT and measuring antenna: 3 meters. 3. Measuring instrumentations: Rohde & Schwarz ESVP Test Receiver ( 20 - 1300 MHz ) with a CISPR weighting QP…

Text truncated - open the document above for the full version.

Test Report

TABLE OF CONTENTS APPLICANT: RECOTON CORPORATION FCC ID: CLV-RSN900 TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST & TEST PROCEDURE PAGE 2.............TEST PROCEDURE CONTD. PAGE 3-4...........RADIATION INTERFERENCE TEST DATA PAGE 5.............OCCUPIED BANDWIDTH PAGE 6-7...........OCCUPIED BANDWIDTH PLOTS EXHIBIT ATTACHMENTS: EXHIBIT 1...........FCC ID LABEL SAMPLE EXHIBIT 2...........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 3...........BLOCK DIAGRAM EXHIBIT 4A..........SCHEMATIC – RF CIRCUIT DIAGRAM EXHIBIT 4B..........SCHEMATIC – MUX CIRCUIT DIAGRAM EXHIBIT 5...........INSTRUCTION MANUAL EXHIBIT 6...........EXTERNAL PHOTO – FRONT VIEW EXHIBIT 7...........EXTERNAL PHOTO – REAR VIEW EXHIBIT 8...........INTERNAL PHOTOS – COMPONENT AND COPPER 1 EXHIBIT 9...........INTERNAL PHOTOS – COMPONENT AND COPPER 2 EXHIBIT 10..........OPERATIONAL DESCRIPTION EXHIBIT 11..........TEST SET UP PHOTO APPLICANT: RECOTON CORPORATION FCC ID: CLV-RSN900 REPORT #: R\REC\846AU1\846AU1RPT.doc PAGE: TABLE OF CONTENTS LIST TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 1/19/01 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057, Cal 3/15/00 3.___Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 Cal. 3/16/01 4._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 Cal. 3/15/00 5.___Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 Cal. 3/15/00 6._X_Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 7.___18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 8.___Horn 40-60GHz: ATM Part #19-443-6R 9.___Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, w/NEMA Adapter S/N 2682 Cal. 3/16/01 10.___Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 Cal. 1/21/01 11.___Frequency Counter: HP Model 5385A, S/N 3242A07460 Cal 11/20/00 12.___Peak Power Meter: HP Model 8900C, S/N 2131A00545, Cal. 1/26/01 13._X_Open Area Test Site #1-3meters Cal. 12/22/99 14.___Signal Generator: HP 8640B, S/N 2308A21464 Cal. 11/21/00 15.___Signal Generator: HP 8614A, S/N 2015A07428 16.___Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/10/00 17.___Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/00 18.___AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 2/1/01 19.___Digital Multimeter: Fluke Model 8012A, S/N 4810047 Cal 9/21/99 20.___Digital Multimeter: Fluke Model 77, S/N 43850817 Cal 11/16/00 21.___Oscilloscope: Tektronix Model 2230, S/N 300572 Cal 2/1/01 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. The UUT was transmit- ting a test signal during the testing. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz up to 1.0GHz and 1.0MHz with a video BW of 3.0MHz above 1.0GHz. The ambient temperature of the UUT was 74.3oF with a humidity of 69%. APPLICANT: RECOTON CORPORATION FCC ID: CLV-RSN900 REPORT NO.: R\REC\846AU1\846AU1RPT.doc PAGE #: 1 APPLICANT: RECOTON CORPORATION FCC ID: CLV-RSN900 TEST PROCEDURES CONTINUED FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. APPLICANT: RECOTON CORPORATION FCC ID: CLV-RSN900 REPORT NO.: R\REC\846AU1\846AU1RPT.doc PAGE #: 2 APPLICANT: RECOTON CORPORATION FCC ID: CLV-RSN900 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.249, 15.209 REQUIREMENTS: 15.249 FUNDAMENTAL FIELD STRENGTH FIELD STRENGTH FREQUENCY OF FUNDAMENTAL OF HARMONICS 902 – 928 MHz 94 dBuV/m 54 dBuV/m 2400 – 2483.5 MHz 94 dBuV/m 54 dBuV/m EMISSIONS RADIATED OUTSIDE OF THE SPECIFIED FREQUENCY BANDS, EXCEPT FOR HARMONICS, SHALL BE ATTENUATED BY AT LEAST 50 dB BELOW THE LEVEL OF THE FUNDAMENTAL OR TO THE GENERAL RADIATED EMISSION LIMITS IN 15.209, WHICHEVER IS THE LESSER ATTENUATION. REQUIREMENTS: 15.209 FREQUENCY FIELD STRENGTH (MHz) @ 3 METERS 30 – 88 40 dBuV/m 88 – 216 43.5dBuV/m 216 – 960 46 dBuV/m Above 960 54 dBuV/m TEST DATA: Emission Frequency MHz Meter Reading dBuv Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuv/m Margin dB 914.00 63.1 V 5.80 23.09 91.99 2.01 1,828.00 16.7 V 3.00 28.55 48.25 5.75 2,742.00R 8.5 V 3.60 30.78 42.88 11.12 3,656.00R 0.2 V 4.30 33.24 37.74 16.26 TEST RESULTS: This unit DOES meet the FCC requirements. APPLICANT: RECOTON CORPORATION FCC ID: CLV-RSN900 REPORT #: R\REC\846AU1\846AU1RPT.doc PAGE: 3 APPLICANT: RECOTON CORPORATION FCC ID: CLV-RSN900 NAME OF TEST: RADIATION INTERFERENCE TEST PROCEDURE: ANSI STANDARD C63.4-1992 using a Hewlett Packard Model 8566B spectrum analyzer, a Hewlett Packard Model 85685A Preselector, a Hewlett Packard Model 85650A Quasi-Peak adapter, and an appropriate antenna. The bandwidth of spectrum analyzer was 100 kHz with an…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Elizabeth Granados(Regulatory Affairs Manager)
[email protected]817-415-4886Fax: 817-415-4886

Test Firm

SGS IECC LimitedJeffery Chen
[email protected]852-2305-2570Fax: 852-2756- 4480

Technical Specifications

#Rule PartsFrequency RangePower Output
115C49.82 MHz - 49.9 MHz-
